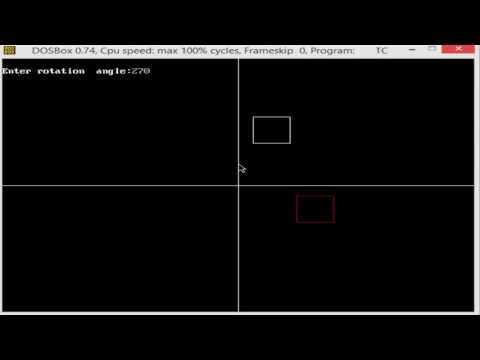

├── README.md └── 2d transformations.C /README.md: -------------------------------------------------------------------------------- 1 | # 2D Transformations in CG 2 | 2D Transformations in Computer Graphics 3 | 4 | ## Get the Code 5 | 6 | ``` 7 | $ git clone https://github.com/CodAffection/2D-Transformations-in-CG.git 8 | ``` 9 | 10 | ## How it works ? 11 | 12 | :tv: Video tutorial on this same topic 13 | Url : https://youtu.be/WRrUUyyg5xg 14 | 15 | Demo for 2D Transformations in CG 18 | 19 | 20 | | :bar_chart: | List of Tutorials | | :moneybag: | Support Us | 21 | |--------------------------:|:---------------------|---|---------------------:|:-------------------------------------| 22 | | Angular |http://bit.ly/2KQN9xF | |Paypal | https://goo.gl/bPcyXW | 23 | | Asp.Net Core |http://bit.ly/30fPDMg | |Amazon Affiliate | https://geni.us/JDzpE | 24 | | React |http://bit.ly/325temF | | 25 | | Python |http://bit.ly/2ws4utg | | :point_right: | Follow Us | 26 | | Node.js |https://goo.gl/viJcFs | |Website |http://www.codaffection.com | 27 | | Asp.Net MVC |https://goo.gl/gvjUJ7 | |YouTube |https://www.youtube.com/codaffection | 28 | | Flutter |https://bit.ly/3ggmmJz| |Facebook |https://www.facebook.com/codaffection | 29 | | Web API |https://goo.gl/itVayJ | |Twitter |https://twitter.com/CodAffection | 30 | | MEAN Stack |https://goo.gl/YJPPAH | | 31 | | C# Tutorial |https://goo.gl/s1zJxo | | 32 | | Asp.Net WebForm |https://goo.gl/GXC2aJ | | 33 | | C# WinForm |https://goo.gl/vHS9Hd | | 34 | | MS SQL |https://goo.gl/MLYS9e | | 35 | | Crystal Report |https://goo.gl/5Vou7t | | 36 | | CG Exercises in C Program |https://goo.gl/qEWJCs | | 37 | -------------------------------------------------------------------------------- /2d transformations.C: -------------------------------------------------------------------------------- 1 | //Author : youtube channel - Dotnet Mob 2 | //Date : 05-Nov-15 3 | //Description : Program for 2D transformations 4 | //For More :https://www.youtube.com/c/DotnetMob 5 | 6 | #include 7 | #include 8 | #include 9 | #include 10 | # define ROUND(a) ((int)(a+0.5)) 11 | # define absx(x) x+320 12 | # define absy(y) 240-y 13 | void DrawCordinates() 14 | { 15 | line(320,0,320,640); 16 | line(0,240,640,240); 17 | } 18 | void main() 19 | { 20 | int gd=DETECT,gm; 21 | int ang,sx,sy,c,k=0,x1,y1,sh,shx,shy,c1; 22 | int poly[20],choice,i,tdx,tdy,shchoice; 23 | int x,y; 24 | clrscr(); 25 | initgraph(&gd,&gm,"C:\\TurboC3\\bgi"); 26 | DrawCordinates(); 27 | poly[0]=absx(20); 28 | poly[1]=absy(20); 29 | poly[2]=absx(70); 30 | poly[3]=absy(20); 31 | poly[4]=absx(70); 32 | poly[5]=absy(70); 33 | poly[6]=absx(20); 34 | poly[7]=absy(70); 35 | poly[8]=poly[0]; 36 | poly[9]=poly[1]; 37 | drawpoly(5,poly); 38 | printf("This square will be used for 2D transaformations in this program\nPress Any Key To Continue..."); 39 | getch(); 40 | closegraph(); 41 | do 42 | { 43 | clrscr(); 44 | printf("\n****************MENU***************\n"); 45 | printf("\n1.Translation\n2.Rotation\n3.Scaling\n4.Reflection\n5.Exit"); 46 | printf("\nEnter your choice : "); 47 | scanf("%d",&choice); 48 | switch(choice) 49 | { 50 | case 1: 51 | clrscr(); 52 | initgraph(&gd,&gm,"c:\\turboc3\\bgi"); 53 | DrawCordinates(); 54 | drawpoly(5,poly); 55 | printf("\nEnter translation vectors (tx,ty):"); 56 | scanf("%d%d",&tdx,&tdy); 57 | for(i=0;i<8;i=i+2) 58 | { 59 | poly[i]=poly[i]+tdx; 60 | poly[i+1]-=tdy; 61 | } 62 | poly[8]=poly[0]; 63 | poly[9]=poly[1]; 64 | setcolor(RED); 65 | drawpoly(5,poly); 66 | getch(); 67 | closegraph(); 68 | break; 69 | case 2: 70 | clrscr(); 71 | initgraph(&gd,&gm,"c:\\turboc3\\bgi"); 72 | DrawCordinates(); 73 | drawpoly(5,poly); 74 | printf("\nEnter rotation angle:"); 75 | scanf("%d",&ang); 76 | for(i=0;i<8;i=i+2) 77 | { 78 | int tx= poly[i]-320; 79 | poly[i]=320+((poly[i]-320)*cos(ang*0.01744)-(240-poly[i+1])*sin(ang*0.01744)); 80 | poly[i+1]=240-((240-poly[i+1])*cos(ang*0.01744)+(tx)*sin(ang*0.01744)); 81 | } 82 | poly[8]=poly[0]; 83 | poly[9]=poly[1]; 84 | setcolor(RED); 85 | drawpoly(5,poly); 86 | getch(); 87 | closegraph(); 88 | break; 89 | case 3: 90 | clrscr(); 91 | initgraph(&gd,&gm,"c:\\turboc3\\bgi"); 92 | DrawCordinates(); 93 | drawpoly(5,poly); 94 | printf("\nEnter scaling vectors (tx,ty):"); 95 | scanf("%d%d",&sx,&sy); 96 | for(i=2;i<8;i=i+2) 97 | { 98 | poly[i]=poly[i]*sx+poly[0]*(1-sx); 99 | poly[i+1]=poly[i+1]*sy+poly[1]*(1-sy); 100 | } 101 | poly[8]=poly[0]; 102 | poly[9]=poly[1]; 103 | setcolor(RED); 104 | drawpoly(5,poly); 105 | getch(); 106 | closegraph(); 107 | break; 108 | case 4: 109 | clrscr(); 110 | initgraph(&gd,&gm,"c:\\turboc3\\bgi"); 111 | DrawCordinates(); 112 | drawpoly(5,poly); 113 | printf("\n1.Y-axis\n2.X-axis\n3.exit\n"); 114 | scanf("%d",&c1); 115 | switch(c1) 116 | { 117 | case 1: 118 | for(k=0;k<8;k=k+2) 119 | { 120 | x1=poly[k]; 121 | y1=poly[k+1]; 122 | poly[k]=320-(x1-320); 123 | poly[k+1]=y1; 124 | } 125 | poly[8]=poly[0]; 126 | poly[9]=poly[1]; 127 | setcolor(RED); 128 | drawpoly(5,poly); 129 | getch(); 130 | break; 131 | case 2: 132 | for(k=0;k<8;k=k+2) 133 | { 134 | x1=poly[k]; 135 | y1=poly[k+1]; 136 | poly[k]=x1; 137 | poly[k+1]=240-(y1-240); 138 | } 139 | poly[8]=poly[0]; 140 | poly[9]=poly[1]; 141 | setcolor(RED); 142 | drawpoly(5,poly); 143 | getch(); 144 | break; 145 | case 3: 146 | break; 147 | 148 | } 149 | closegraph(); 150 | break; 151 | case 5: 152 | exit(0); 153 | } 154 | }while(choice!=6); 155 | } 156 | 157 | 158 | --------------------------------------------------------------------------------
