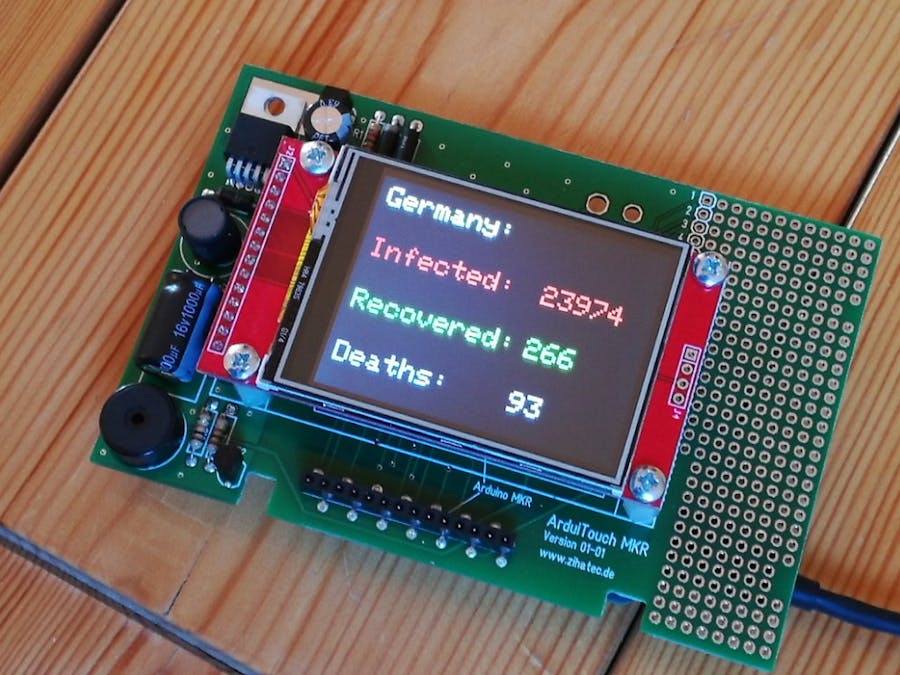

├── README.md └── CovidTracker.ino /README.md: -------------------------------------------------------------------------------- 1 | # COVID19-Tracker-ESP32 2 | This little tracker will help you to be up to date about the Corona virus outbreak and the situation in your country. The display shows alternating the current data of different countries of your choice. 3 | 4 | The data is collected by the website www.worldometers.info/coronavirus/ 5 | 6 | ![My image](https://hackster.imgix.net/uploads/attachments/1089824/_tH0IrpXr0o.blob?auto=compress%2Cformat&w=900&h=675&fit=min) 7 | 8 | ## Hardware 9 | 10 | I've used our AZ-Touch kit for ESP32 as hardware plattform. This kit comes with a 2.4 inch tft touchscreen, which will be used for the data output. 11 | 12 | ![My image](https://hackster.imgix.net/uploads/attachments/1089826/mkr_extended_kit_8R81xIIxzy.jpg?auto=compress%2Cformat&w=680&h=510&fit=max) 13 | 14 | You can find all information about the hardware here: 15 | https://www.hwhardsoft.de/english/projects/arduitouch-esp/ 16 | 17 | 18 | ## Libraries 19 | 20 | Install the following libraries through Arduino Library Manager 21 | 22 | Adafruit GFX Library https://github.com/adafruit/Adafruit-GFX-Library/archive/master.zip 23 | 24 | Adafruit ILI9341 Library https://github.com/adafruit/Adafruit_ILI9341 25 | 26 | You can also download the library also directly as ZIP file and uncompress the folder under yourarduinosketchfolder/libraries/ 27 | 28 | After installing the libraries, restart the Arduino IDE. 29 | 30 | ## WiFi settings 31 | 32 | Enter your WiFi SSID & password in the fields in the WiFi section: 33 | 34 | #define WIFI_SSID "xxxxxx" // Enter your SSID here 35 | 36 | #define WIFI_PASS "xxxxx" // Enter your WiFi password here 37 | 38 | 39 | ## Country settings 40 | 41 | You can change/add/delete the countries in the main loop of the program according your interests. 42 | 43 | ![My image](https://hackster.imgix.net/uploads/attachments/1089828/grafik_eRLuAc5tGD.png?auto=compress%2Cformat&w=680&h=510&fit=max) 44 | 45 | 46 | 47 | # License 48 | 49 | This library is free software; you can redistribute it and/or 50 | modify it under the terms of the GNU Lesser General Public 51 | License as published by the Free Software Foundation; either 52 | version 2.1 of the License, or (at your option) any later version. 53 | 54 | This library is distributed in the hope that it will be useful, 55 | but WITHOUT ANY WARRANTY; without even the implied warranty of 56 | MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU 57 | Lesser General Public License for more details. 58 | -------------------------------------------------------------------------------- /CovidTracker.ino: -------------------------------------------------------------------------------- 1 | /* 2 | * Application note: Covid 19 tracker for AZ-Touch and ESP32 DEV KIT 3 3 | * Version 1.1 4 | * Copyright (C) 2020 Hartmut Wendt www.zihatec.de 5 | * 6 | * 7 | * This program is free software: you can redistribute it and/or modify 8 | * it under the terms of the GNU General Public License as published by 9 | * the Free Software Foundation, either version 3 of the License, or 10 | * (at your option) any later version. 11 | * 12 | * This program is distributed in the hope that it will be useful, 13 | * but WITHOUT ANY WARRANTY; without even the implied warranty of 14 | * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the 15 | * GNU General Public License for more details. 16 | * 17 | * You should have received a copy of the GNU General Public License 18 | * along with this program. If not, see . 19 | */ 20 | 21 | /*______Import Libraries_______*/ 22 | #include 23 | #include 24 | #include 25 | #include 26 | #include 27 | #include "Adafruit_GFX.h" 28 | #include "Adafruit_ILI9341.h" 29 | 30 | /*______End of Libraries_______*/ 31 | 32 | /*__Pin definitions for the Arduino MKR__*/ 33 | #define TFT_CS 5 34 | #define TFT_DC 4 35 | #define TFT_MOSI 23 36 | #define TFT_CLK 18 37 | #define TFT_RST 22 38 | #define TFT_MISO 19 39 | #define TFT_LED 15 40 | 41 | 42 | #define HAVE_TOUCHPAD 43 | #define TOUCH_CS 14 44 | #define TOUCH_IRQ 2 45 | /*_______End of definitions______*/ 46 | 47 | /*____Calibrate Touchscreen_____*/ 48 | #define MINPRESSURE 10 // minimum required force for touch event 49 | #define TS_MINX 370 50 | #define TS_MINY 470 51 | #define TS_MAXX 3700 52 | #define TS_MAXY 3600 53 | /*______End of Calibration______*/ 54 | 55 | 56 | /*____Wifi _____________________*/ 57 | ///////please enter your sensitive data in the Secret tab/arduino_secrets.h 58 | #define WIFI_SSID "xxxxxx" // Enter your SSID here 59 | #define WIFI_PASS "xxxxx" // Enter your WiFi password here 60 | 61 | // Number of milliseconds to wait without receiving any data before we give up 62 | const int kNetworkTimeout = 30*1000; 63 | // Number of milliseconds to wait if no data is available before trying again 64 | const int kNetworkDelay = 2000; 65 | /*______End of Wifi______*/ 66 | 67 | 68 | int status = WL_IDLE_STATUS; 69 | int infected=0; 70 | int recovered=0; 71 | int deaths=0; 72 | 73 | 74 | WiFiClientSecure client; 75 | HttpClient http(client,"www.worldometers.info", 443); 76 | 77 | Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_RST); 78 | 79 | 80 | void setup() { 81 | //Initialize serial and wait for port to open: 82 | Serial.begin(9600); 83 | while (!Serial) { 84 | ; // wait for serial port to connect. Needed for native USB port only 85 | } 86 | 87 | // init GPIOs 88 | pinMode(TFT_LED, OUTPUT); // define as output for backlight control 89 | 90 | // initialize the TFT 91 | Serial.println("Init TFT ..."); 92 | tft.begin(); 93 | tft.setRotation(3); // landscape mode 94 | tft.fillScreen(ILI9341_BLACK);// clear screen 95 | 96 | tft.setCursor(70,110); 97 | tft.setTextColor(ILI9341_WHITE); 98 | tft.setTextSize(2); 99 | tft.print("Connecting..."); 100 | digitalWrite(TFT_LED, LOW); // LOW to turn backlight on; 101 | 102 | 103 | // Set WiFi to station mode and disconnect from an AP if it was Previously 104 | // connected 105 | WiFi.mode(WIFI_STA); 106 | WiFi.disconnect(); 107 | delay(100); 108 | 109 | // Attempt to connect to Wifi network: 110 | Serial.print("Connecting Wifi: "); 111 | Serial.println(WIFI_SSID); 112 | WiFi.begin(WIFI_SSID, WIFI_PASS); 113 | while (WiFi.status() != WL_CONNECTED) { 114 | Serial.print("."); 115 | delay(500); 116 | } 117 | Serial.println(""); 118 | Serial.println("WiFi connected"); 119 | Serial.println("IP address: "); 120 | IPAddress ip = WiFi.localIP(); 121 | Serial.println(ip); 122 | 123 | 124 | } 125 | 126 | void loop() { 127 | check_country("US"); 128 | delay(2000); 129 | check_country("UK"); 130 | delay(2000); 131 | check_country("Italy"); 132 | delay(2000); 133 | check_country("Germany"); 134 | delay(2000); 135 | check_country("Spain"); 136 | delay(2000); 137 | check_country("Russia"); 138 | delay(2000); 139 | check_country("Brazil"); 140 | delay(2000); 141 | } 142 | 143 | 144 | void draw_country_screen(String sCountry){ 145 | tft.fillScreen(ILI9341_BLACK);// clear screen 146 | 147 | // headline 148 | tft.setCursor(10,10); 149 | tft.setTextColor(ILI9341_WHITE); 150 | tft.setTextSize(3); 151 | tft.print(sCountry + ":"); 152 | 153 | // infected 154 | tft.setCursor(5,70); 155 | tft.setTextColor(ILI9341_RED); 156 | tft.print("Infected:"); 157 | tft.setCursor(190,70); 158 | tft.print(infected); 159 | 160 | // recovered 161 | tft.setCursor(5,130); 162 | tft.setTextColor(ILI9341_GREEN); 163 | tft.print("Recovered:"); 164 | tft.setCursor(190,130); 165 | tft.print(recovered); 166 | 167 | // deaths 168 | tft.setCursor(5,190); 169 | tft.setTextColor(ILI9341_LIGHTGREY); 170 | tft.print("Deaths:"); 171 | tft.setCursor(190,190); 172 | tft.print(deaths); 173 | 174 | } 175 | 176 | void check_country(String sCountry) { 177 | int err =0; 178 | int readcounter = 0; 179 | int read_value_step = 0; 180 | String s1 = ""; 181 | String s2 = ""; 182 | 183 | err = http.get("/coronavirus/country/" + sCountry +"/"); 184 | if (err == 0) 185 | { 186 | Serial.println("startedRequest ok"); 187 | 188 | err = http.responseStatusCode(); 189 | if (err >= 0) 190 | { 191 | Serial.print("Got status code: "); 192 | Serial.println(err); 193 | 194 | // Usually you'd check that the response code is 200 or a 195 | // similar "success" code (200-299) before carrying on, 196 | // but we'll print out whatever response we get 197 | 198 | // If you are interesting in the response headers, you 199 | // can read them here: 200 | //while(http.headerAvailable()) 201 | //{ 202 | // String headerName = http.readHeaderName(); 203 | // String headerValue = http.readHeaderValue(); 204 | //} 205 | 206 | Serial.print("Request data for "); 207 | Serial.println(sCountry); 208 | 209 | // Now we've got to the body, so we can print it out 210 | unsigned long timeoutStart = millis(); 211 | char c; 212 | // Whilst we haven't timed out & haven't reached the end of the body 213 | while ( (http.connected() || http.available()) && 214 | (!http.endOfBodyReached()) && 215 | ((millis() - timeoutStart) < kNetworkTimeout) ) 216 | { 217 | if (http.available()) 218 | { 219 | c = http.read(); 220 | s2 = s2 + c; 221 | if (readcounter < 300) { 222 | readcounter++; 223 | } else { 224 | readcounter = 0; 225 | String tempString = ""; 226 | tempString.concat(s1); 227 | tempString.concat(s2); 228 | // check infected first 229 | if (read_value_step == 0) { 230 | int place = tempString.indexOf("Coronavirus Cases:"); 231 | if ((place != -1) && (place < 350)) { 232 | read_value_step = 1; 233 | s2 = tempString.substring(place + 15); 234 | tempString = s2.substring(s2.indexOf("#aaa") + 6); 235 | s1 = tempString.substring(0, (tempString.indexOf("") + 6); 251 | s1 = tempString.substring(0, (tempString.indexOf("") + 6); 265 | s1 = tempString.substring(0, (tempString.indexOf("
