├── .gitignore
├── README.md
├── dataset.py
├── eval_DAVIS.py
├── helpers.py
├── img
    └── main.jpg
└── model.py


/.gitignore:
--------------------------------------------------------------------------------
  1 | # Byte-compiled / optimized / DLL files
  2 | __pycache__/
  3 | *.py[cod]
  4 | *$py.class
  5 |
  6 | # C extensions
  7 | *.so
  8 |
  9 | # Distribution / packaging
 10 | .Python
 11 | build/
 12 | develop-eggs/
 13 | dist/
 14 | downloads/
 15 | eggs/
 16 | .eggs/
 17 | lib/
 18 | lib64/
 19 | parts/
 20 | sdist/
 21 | var/
 22 | wheels/
 23 | pip-wheel-metadata/
 24 | share/python-wheels/
 25 | *.egg-info/
 26 | .installed.cfg
 27 | *.egg
 28 | MANIFEST
 29 |
 30 | # PyInstaller
 31 | #  Usually these files are written by a python script from a template
 32 | #  before PyInstaller builds the exe, so as to inject date/other infos into it.
 33 | *.manifest
 34 | *.spec
 35 |
 36 | # Installer logs
 37 | pip-log.txt
 38 | pip-delete-this-directory.txt
 39 |
 40 | # Unit test / coverage reports
 41 | htmlcov/
 42 | .tox/
 43 | .nox/
 44 | .coverage
 45 | .coverage.*
 46 | .cache
 47 | nosetests.xml
 48 | coverage.xml
 49 | *.cover
 50 | *.py,cover
 51 | .hypothesis/
 52 | .pytest_cache/
 53 |
 54 | # Translations
 55 | *.mo
 56 | *.pot
 57 |
 58 | # Django stuff:
 59 | *.log
 60 | local_settings.py
 61 | db.sqlite3
 62 | db.sqlite3-journal
 63 |
 64 | # Flask stuff:
 65 | instance/
 66 | .webassets-cache
 67 |
 68 | # Scrapy stuff:
 69 | .scrapy
 70 |
 71 | # Sphinx documentation
 72 | docs/_build/
 73 |
 74 | # PyBuilder
 75 | target/
 76 |
 77 | # Jupyter Notebook
 78 | .ipynb_checkpoints
 79 |
 80 | # IPython
 81 | profile_default/
 82 | ipython_config.py
 83 |
 84 | # pyenv
 85 | .python-version
 86 |
 87 | # pipenv
 88 | #   According to pypa/pipenv#598, it is recommended to include Pipfile.lock in version control.
 89 | #   However, in case of collaboration, if having platform-specific dependencies or dependencies
 90 | #   having no cross-platform support, pipenv may install dependencies that don't work, or not
 91 | #   install all needed dependencies.
 92 | #Pipfile.lock
 93 |
 94 | # PEP 582; used by e.g. github.com/David-OConnor/pyflow
 95 | __pypackages__/
 96 |
 97 | # Celery stuff
 98 | celerybeat-schedule
 99 | celerybeat.pid
100 |
101 | # SageMath parsed files
102 | *.sage.py
103 |
104 | # Environments
105 | .env
106 | .venv
107 | env/
108 | venv/
109 | ENV/
110 | env.bak/
111 | venv.bak/
112 |
113 | # Spyder project settings
114 | .spyderproject
115 | .spyproject
116 |
117 | # Rope project settings
118 | .ropeproject
119 |
120 | # mkdocs documentation
121 | /site
122 |
123 | # mypy
124 | .mypy_cache/
125 | .dmypy.json
126 | dmypy.json
127 |
128 | # Pyre type checker
129 | .pyre/
130 |
131 | # Visual Studio Code
132 | .vscode/*
133 | #!.vscode/settings.json
134 | #!.vscode/tasks.json
135 | #!.vscode/launch.json
136 | #!.vscode/extensions.json
137 | *.code-workspace
138 |
139 | # Local History for Visual Studio Code
140 | .history/
141 |


--------------------------------------------------------------------------------
/README.md:
--------------------------------------------------------------------------------
 1 | ## Hierarchical Memory Matching Network for Video Object Segmentation
 2 | ### Hongje Seong, Seoung Wug Oh, Joon-Young Lee, Seongwon Lee, Suhyeon Lee, Euntai Kim
 3 | ### ICCV 2021
 4 |
 5 | <img src="./img/main.jpg" alt="no_image"/>
 6 |
 7 | This is the implementation of HMMN.
 8 | This code is based on STM (ICCV 2019): [[link](https://github.com/seoungwugoh/STM)].
 9 | Please see our paper for the details: [[paper]](https://arxiv.org/abs/2109.11404)
10 |

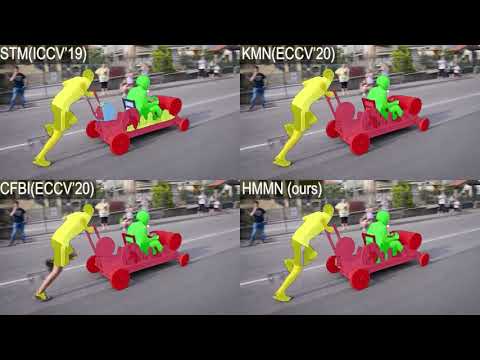

11 | [![Hierarchical Memory Matching Network for Video Object Segmentation (ICCV 2021)](https://img.youtube.com/vi/zSofRzPImQY/0.jpg)](https://www.youtube.com/watch?v=zSofRzPImQY "Hierarchical Memory Matching Network for Video Object Segmentation (ICCV 2021)")
12 |
13 | ## Dependencies
14 | * Python 3.8
15 | * PyTorch 1.8.1
16 | * numpy, opencv, pillow
17 |
18 | ## Trained model
19 | * Download pre-trained weights into the same folder with demo scripts <br>Link: [[weights](https://drive.google.com/file/d/16vOMm7hIdmC6yL4FlBO4p_miTeUoskt7/view?usp=sharing)]
20 |
21 |
22 | ## Code
23 | * DAVIS-2016 validation set (Single-object)
24 | ```bash
25 | python eval_DAVIS.py -g '0' -s val -y 16 -D [path/to/DAVIS]
26 | ```
27 | * DAVIS-2017 validation set (Multi-object)
28 | ```bash
29 | python eval_DAVIS.py -g '0' -s val -y 17 -D [path/to/DAVIS]
30 | ```
31 |
32 | ## Pre-computed Results
33 | We also provide pre-computed results for benchmark sets.
34 | * [[DAVIS-16-val]](https://drive.google.com/file/d/1SqzBktU0DrSd5_vC7TVmPtXJBn3bqAfG/view?usp=sharing)
35 | * [[DAVIS-17-val]](https://drive.google.com/file/d/1uDx8rPo91qEnoE_nBCYF-A-G8noRq6G8/view?usp=sharing)
36 | * [[DAVIS-17-test-dev]](https://drive.google.com/file/d/18-p2ihxfHZisOghWiSpvlfbhpy1j1oSl/view?usp=sharing)
37 | * [[YouTube-VOS-18-valid]](https://drive.google.com/file/d/1cE9rtqdafXGm7V3rP2ZSXq56atoXVUg3/view?usp=sharing)
38 | * [[YouTube-VOS-19-valid]](https://drive.google.com/file/d/1bA2iv2KhjYGlw5i25dLPf24byt-5On2r/view?usp=sharing)
39 |
40 |
41 | ## Bibtex
42 | ```
43 | @inproceedings{seong2021hierarchical,
44 |   title={Hierarchical Memory Matching Network for Video Object Segmentation},
45 |   author={Seong, Hongje and Oh, Seoung Wug and Lee, Joon-Young and Lee, Seongwon and Lee, Suhyeon and Kim, Euntai},
46 |   booktitle={Proceedings of the IEEE/CVF International Conference on Computer Vision},
47 |   year={2021}
48 | }
49 | ```
50 |
51 |
52 | ## Terms of Use
53 | This software is for non-commercial use only.
54 | The source code is released under the Attribution-NonCommercial-ShareAlike (CC BY-NC-SA) Licence
55 | (see [this](https://creativecommons.org/licenses/by-nc-sa/4.0/legalcode) for details)
56 |


--------------------------------------------------------------------------------
/dataset.py:
--------------------------------------------------------------------------------
 1 | import os
 2 | import os.path as osp
 3 | import numpy as np
 4 | from PIL import Image
 5 |
 6 | import torch
 7 | import torchvision
 8 | from torch.utils import data
 9 |
10 | import glob
11 |
12 | class DAVIS_MO_Test(data.Dataset):
13 |     # for multi object, do shuffling
14 |
15 |     def __init__(self, root, imset='2017/train.txt', resolution='480p', single_object=False):
16 |         self.root = root
17 |         self.mask_dir = os.path.join(root, 'Annotations', resolution)
18 |         self.mask480_dir = os.path.join(root, 'Annotations', '480p')
19 |         self.image_dir = os.path.join(root, 'JPEGImages', resolution)
20 |         _imset_dir = os.path.join(root, 'ImageSets')
21 |         _imset_f = os.path.join(_imset_dir, imset)
22 |
23 |         self.videos = []
24 |         self.num_frames = {}
25 |         self.num_objects = {}
26 |         self.shape = {}
27 |         self.size_480p = {}
28 |         with open(os.path.join(_imset_f), "r") as lines:
29 |             for line in lines:
30 |                 _video = line.rstrip('\n')
31 |                 self.videos.append(_video)
32 |                 self.num_frames[_video] = len(glob.glob(os.path.join(self.image_dir, _video, '*.jpg')))
33 |                 _mask = np.array(Image.open(os.path.join(self.mask_dir, _video, '00000.png')).convert("P"))
34 |                 self.num_objects[_video] = np.max(_mask)
35 |                 self.shape[_video] = np.shape(_mask)
36 |                 _mask480 = np.array(Image.open(os.path.join(self.mask480_dir, _video, '00000.png')).convert("P"))
37 |                 self.size_480p[_video] = np.shape(_mask480)
38 |
39 |         self.K = -1
40 |         self.single_object = single_object
41 |
42 |     def __len__(self):
43 |         return len(self.videos)
44 |
45 |
46 |     def To_onehot(self, mask):
47 |         M = np.zeros((self.K, mask.shape[0], mask.shape[1]), dtype=np.uint8)
48 |         for k in range(self.K):
49 |             M[k] = (mask == k).astype(np.uint8)
50 |         return M
51 |
52 |     def All_to_onehot(self, masks):
53 |         Ms = np.zeros((self.K, masks.shape[0], masks.shape[1], masks.shape[2]), dtype=np.uint8)
54 |         for n in range(masks.shape[0]):
55 |             Ms[:,n] = self.To_onehot(masks[n])
56 |         return Ms
57 |
58 |     def __getitem__(self, index):
59 |         video = self.videos[index]
60 |         info = {}
61 |         info['name'] = video
62 |         info['num_frames'] = self.num_frames[video]
63 |         info['size_480p'] = self.size_480p[video]
64 |
65 |         N_frames = np.empty((self.num_frames[video],)+self.shape[video]+(3,), dtype=np.float32)
66 |         N_masks = np.empty((self.num_frames[video],)+self.shape[video], dtype=np.uint8)
67 |         for f in range(self.num_frames[video]):
68 |             img_file = os.path.join(self.image_dir, video, '{:05d}.jpg'.format(f))
69 |             N_frames[f] = np.array(Image.open(img_file).convert('RGB'))/255.
70 |             try:
71 |                 mask_file = os.path.join(self.mask_dir, video, '{:05d}.png'.format(f))
72 |                 N_masks[f] = np.array(Image.open(mask_file).convert('P'), dtype=np.uint8)
73 |             except:
74 |                 # print('a')
75 |                 N_masks[f] = 255
76 |
77 |         Fs = torch.from_numpy(np.transpose(N_frames.copy(), (3, 0, 1, 2)).copy()).float()
78 |         if self.single_object:
79 |             N_masks = (N_masks > 0.5).astype(np.uint8) * (N_masks < 255).astype(np.uint8)
80 |             self.K = int(1+1)
81 |             Ms = torch.from_numpy(self.All_to_onehot(N_masks).copy()).float()
82 |             num_objects = torch.LongTensor([int(1)])
83 |             return Fs, Ms, num_objects, info
84 |         else:
85 |             self.K = int(self.num_objects[video]+1)
86 |             Ms = torch.from_numpy(self.All_to_onehot(N_masks).copy()).float()
87 |             num_objects = torch.LongTensor([int(self.num_objects[video])])
88 |             return Fs, Ms, num_objects, info
89 |
90 |
91 |
92 | if __name__ == '__main__':
93 |     pass
94 |


--------------------------------------------------------------------------------
/eval_DAVIS.py:
--------------------------------------------------------------------------------
  1 | from __future__ import division
  2 | import torch
  3 | from torch.autograd import Variable
  4 | from torch.utils import data
  5 |
  6 | import torch.nn as nn
  7 | import torch.nn.functional as F
  8 | import torch.nn.init as init
  9 | import torch.utils.model_zoo as model_zoo
 10 | from torchvision import models
 11 |
 12 | # general libs
 13 | import cv2
 14 | import matplotlib.pyplot as plt
 15 | from PIL import Image
 16 | import numpy as np
 17 | import math
 18 | import time
 19 | import tqdm
 20 | import os
 21 | import argparse
 22 | import copy
 23 |
 24 |
 25 | ### My libs
 26 | from dataset import DAVIS_MO_Test
 27 | from model import HMMN
 28 |
 29 |
 30 | torch.set_grad_enabled(False) # Volatile
 31 |
 32 | def get_arguments():
 33 |     parser = argparse.ArgumentParser(description="SST")
 34 |     parser.add_argument("-g", type=str, help="0; 0,1; 0,3; etc", required=True)
 35 |     parser.add_argument("-s", type=str, help="set", required=True)
 36 |     parser.add_argument("-y", type=int, help="year", required=True)
 37 |     parser.add_argument("-viz", help="Save visualization", action="store_true")
 38 |     parser.add_argument("-D", type=str, help="path to data",default='/local/DATA')
 39 |     return parser.parse_args()
 40 |
 41 | args = get_arguments()
 42 |
 43 | GPU = args.g
 44 | YEAR = args.y
 45 | SET = args.s
 46 | VIZ = args.viz
 47 | DATA_ROOT = args.D
 48 |
 49 | # Model and version
 50 | MODEL = 'HMMN'
 51 | print(MODEL, ': Testing on DAVIS')
 52 |
 53 | os.environ['CUDA_VISIBLE_DEVICES'] = GPU
 54 | if torch.cuda.is_available():
 55 |     print('using Cuda devices, num:', torch.cuda.device_count())
 56 |
 57 | if VIZ:
 58 |     print('--- Produce mask overaid video outputs. Evaluation will run slow.')
 59 |     print('--- Require FFMPEG for encoding, Check folder ./viz')
 60 |
 61 |
 62 | palette = Image.open(DATA_ROOT + '/Annotations/480p/blackswan/00000.png').getpalette()
 63 |
 64 | def Run_video(Fs, Ms, num_frames, num_objects, Mem_every=None, Mem_number=None):
 65 |     # initialize storage tensors
 66 |     if Mem_every:
 67 |         to_memorize = [int(i) for i in np.arange(0, num_frames, step=Mem_every)]
 68 |     elif Mem_number:
 69 |         to_memorize = [int(round(i)) for i in np.linspace(0, num_frames, num=Mem_number+2)[:-1]]
 70 |     else:
 71 |         raise NotImplementedError
 72 |
 73 |     Es = torch.zeros_like(Ms)
 74 |     Es[:,:,0] = Ms[:,:,0]
 75 |
 76 |     for t in tqdm.tqdm(range(1, num_frames)):
 77 |         # memorize
 78 |         with torch.no_grad():
 79 |             prev_key4, prev_value4, prev_key3, prev_value3, prev_key2, prev_value2 = model(Fs[:,:,t-1], Es[:,:,t-1], torch.tensor([num_objects]))
 80 |
 81 |         if t-1 == 0: # only prev memory
 82 |             this_keys4, this_values4 = prev_key4, prev_value4
 83 |             this_keys3, this_values3 = prev_key3, prev_value3
 84 |             this_keys2, this_values2 = prev_key2, prev_value2
 85 |         else:
 86 |             this_keys4 = torch.cat([keys4, prev_key4], dim=2)
 87 |             this_values4 = torch.cat([values4, prev_value4], dim=2)
 88 |             this_keys3 = torch.cat([keys3, prev_key3], dim=2)
 89 |             this_values3 = torch.cat([values3, prev_value3], dim=2)
 90 |             this_keys2 = torch.cat([keys2, prev_key2], dim=2)
 91 |             this_values2 = torch.cat([values2, prev_value2], dim=2)
 92 |
 93 |         # segment
 94 |         with torch.no_grad():
 95 |             logit = model(Fs[:,:,t], this_keys4, this_values4, this_keys3, this_values3, this_keys2, this_values2, torch.tensor([num_objects]))
 96 |         Es[:,:,t] = F.softmax(logit, dim=1)
 97 |
 98 |         # update
 99 |         if t-1 in to_memorize:
100 |             keys4, values4 = this_keys4, this_values4
101 |         if t-1 == 0: # update only the first frame memory
102 |             keys3, values3 = this_keys3, this_values3
103 |             keys2, values2 = this_keys2, this_values2
104 |
105 |     pred = np.argmax(Es[0].cpu().numpy(), axis=0).astype(np.uint8)
106 |     return pred, Es
107 |
108 |
109 |
110 | Testset = DAVIS_MO_Test(DATA_ROOT, resolution='480p', imset='20{}/{}.txt'.format(YEAR,SET), single_object=(YEAR==16))
111 | Testloader = data.DataLoader(Testset, batch_size=1, shuffle=False, num_workers=0, pin_memory=True)
112 |
113 | model = nn.DataParallel(HMMN())
114 | if torch.cuda.is_available():
115 |     model.cuda()
116 | model.eval() # turn-off BN
117 |
118 | pth_path = 'HMMN_weights.pth'
119 | print('Loading weights:', pth_path)
120 | model.load_state_dict(torch.load(pth_path, map_location='cpu'))
121 |
122 | code_name = '{}_DAVIS_{}{}'.format(MODEL,YEAR,SET)
123 | print('Start Testing:', code_name)
124 |
125 |
126 | for seq, V in enumerate(Testloader):
127 |     Fs, Ms, num_objects, info = V
128 |     seq_name = info['name'][0]
129 |     num_frames = info['num_frames'][0].item()
130 |     print('[{}]: num_frames: {}, num_objects: {}'.format(seq_name, num_frames, num_objects[0][0]))
131 |
132 |     pred, Es = Run_video(Fs, Ms, num_frames, num_objects, Mem_every=5, Mem_number=None)
133 |
134 |     # Save results for quantitative eval ######################
135 |     test_path = os.path.join('./test', code_name, seq_name)
136 |     if not os.path.exists(test_path):
137 |         os.makedirs(test_path)
138 |     for f in range(num_frames):
139 |         img_E = Image.fromarray(pred[f])
140 |         img_E.putpalette(palette)
141 |         img_E.save(os.path.join(test_path, '{:05d}.png'.format(f)))
142 |
143 |     if VIZ:
144 |         from helpers import overlay_davis
145 |         # visualize results #######################
146 |         viz_path = os.path.join('./viz/', code_name, seq_name)
147 |         if not os.path.exists(viz_path):
148 |             os.makedirs(viz_path)
149 |
150 |         for f in range(num_frames):
151 |             pF = (Fs[0,:,f].permute(1,2,0).numpy() * 255.).astype(np.uint8)
152 |             pE = pred[f]
153 |             canvas = overlay_davis(pF, pE, palette)
154 |             canvas = Image.fromarray(canvas)
155 |             canvas.save(os.path.join(viz_path, 'f{}.jpg'.format(f)))
156 |
157 |         vid_path = os.path.join('./viz/', code_name, '{}.mp4'.format(seq_name))
158 |         frame_path = os.path.join('./viz/', code_name, seq_name, 'f%d.jpg')
159 |         os.system('ffmpeg -framerate 10 -i {} {} -vcodec libx264 -crf 10  -pix_fmt yuv420p  -nostats -loglevel 0 -y'.format(frame_path, vid_path))
160 |
161 |
162 |
163 |


--------------------------------------------------------------------------------
/helpers.py:
--------------------------------------------------------------------------------
 1 | from __future__ import division
 2 | #torch
 3 | import torch
 4 | from torch.autograd import Variable
 5 | from torch.utils import data
 6 |
 7 | import torch.nn as nn
 8 | import torch.nn.functional as F
 9 | import torch.nn.init as init
10 | import torch.utils.model_zoo as model_zoo
11 | from torchvision import models
12 |
13 | # general libs
14 | import cv2
15 | import matplotlib.pyplot as plt
16 | from PIL import Image
17 | import numpy as np
18 | import time
19 | import os
20 | import copy
21 |
22 |
23 | def ToCuda(xs):
24 |     if torch.cuda.is_available():
25 |         if isinstance(xs, list) or isinstance(xs, tuple):
26 |             return [x.cuda(non_blocking=True) for x in xs]
27 |         else:
28 |             return xs.cuda(non_blocking=True)
29 |     else:
30 |         return xs
31 |
32 |
33 | def pad_divide_by(in_list, d, in_size):
34 |     out_list = []
35 |     h, w = in_size
36 |     if h % d > 0:
37 |         new_h = h + d - h % d
38 |     else:
39 |         new_h = h
40 |     if w % d > 0:
41 |         new_w = w + d - w % d
42 |     else:
43 |         new_w = w
44 |     lh, uh = int((new_h-h) / 2), int(new_h-h) - int((new_h-h) / 2)
45 |     lw, uw = int((new_w-w) / 2), int(new_w-w) - int((new_w-w) / 2)
46 |     pad_array = (int(lw), int(uw), int(lh), int(uh))
47 |     for inp in in_list:
48 |         out_list.append(F.pad(inp, pad_array))
49 |     return out_list, pad_array
50 |
51 |
52 |
53 | def overlay_davis(image,mask,colors=[255,0,0],cscale=2,alpha=0.4):
54 |     """ Overlay segmentation on top of RGB image. from davis official"""
55 |     # import skimage
56 |     from scipy.ndimage.morphology import binary_erosion, binary_dilation
57 |
58 |     colors = np.reshape(colors, (-1, 3))
59 |     colors = np.atleast_2d(colors) * cscale
60 |
61 |     im_overlay = image.copy()
62 |     object_ids = np.unique(mask)
63 |
64 |     for object_id in object_ids[1:]:
65 |         # Overlay color on  binary mask
66 |         foreground = image*alpha + np.ones(image.shape)*(1-alpha) * np.array(colors[object_id])
67 |         binary_mask = mask == object_id
68 |
69 |         # Compose image
70 |         im_overlay[binary_mask] = foreground[binary_mask]
71 |
72 |         # countours = skimage.morphology.binary.binary_dilation(binary_mask) - binary_mask
73 |         countours = binary_dilation(binary_mask) ^ binary_mask
74 |         # countours = cv2.dilate(binary_mask, cv2.getStructuringElement(cv2.MORPH_CROSS,(3,3))) - binary_mask
75 |         im_overlay[countours,:] = 0
76 |
77 |     return im_overlay.astype(image.dtype)
78 |
79 |
80 |
81 |
82 |


--------------------------------------------------------------------------------
/img/main.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/Hongje/HMMN/a138cd805c0e30effb910f1a282e27c969e4fcac/img/main.jpg


--------------------------------------------------------------------------------
/model.py:
--------------------------------------------------------------------------------
  1 | from __future__ import division
  2 | import torch
  3 | import torch.nn as nn
  4 | import torch.nn.functional as F
  5 | import torch.nn.init as init
  6 | import torch.utils.model_zoo as model_zoo
  7 | from torchvision import models
  8 |
  9 | # general libs
 10 | import cv2
 11 | import matplotlib.pyplot as plt
 12 | from PIL import Image
 13 | import numpy as np
 14 | import math
 15 | import time
 16 | import tqdm
 17 | import os
 18 | import argparse
 19 | import copy
 20 | import sys
 21 |
 22 | from helpers import *
 23 |
 24 | print('Hierarchical Memory Matching Network: initialized.')
 25 |
 26 | class ResBlock(nn.Module):
 27 |     def __init__(self, indim, outdim=None, stride=1):
 28 |         super(ResBlock, self).__init__()
 29 |         if outdim == None:
 30 |             outdim = indim
 31 |         if indim == outdim and stride==1:
 32 |             self.downsample = None
 33 |         else:
 34 |             self.downsample = nn.Conv2d(indim, outdim, kernel_size=3, padding=1, stride=stride)
 35 |
 36 |         self.conv1 = nn.Conv2d(indim, outdim, kernel_size=3, padding=1, stride=stride)
 37 |         self.conv2 = nn.Conv2d(outdim, outdim, kernel_size=3, padding=1)
 38 |
 39 |
 40 |     def forward(self, x):
 41 |         r = self.conv1(F.relu(x))
 42 |         r = self.conv2(F.relu(r))
 43 |
 44 |         if self.downsample is not None:
 45 |             x = self.downsample(x)
 46 |
 47 |         return x + r
 48 |
 49 | class Encoder_M(nn.Module):
 50 |     def __init__(self):
 51 |         super(Encoder_M, self).__init__()
 52 |         self.conv1_m = nn.Conv2d(1, 64, kernel_size=7, stride=2, padding=3, bias=False)
 53 |         self.conv1_o = nn.Conv2d(1, 64, kernel_size=7, stride=2, padding=3, bias=False)
 54 |
 55 |         resnet = models.resnet50(pretrained=True)
 56 |         self.conv1 = resnet.conv1
 57 |         self.bn1 = resnet.bn1
 58 |         self.relu = resnet.relu  # 1/2, 64
 59 |         self.maxpool = resnet.maxpool
 60 |
 61 |         self.res2 = resnet.layer1 # 1/4, 256
 62 |         self.res3 = resnet.layer2 # 1/8, 512
 63 |         self.res4 = resnet.layer3 # 1/16, 1024
 64 |
 65 |         self.register_buffer('mean', torch.FloatTensor([0.485, 0.456, 0.406]).view(1,3,1,1))
 66 |         self.register_buffer('std', torch.FloatTensor([0.229, 0.224, 0.225]).view(1,3,1,1))
 67 |
 68 |     def forward(self, in_f, in_m, in_o):
 69 |         f = (in_f - self.mean) / self.std
 70 |         m = torch.unsqueeze(in_m, dim=1).float() # add channel dim
 71 |         o = torch.unsqueeze(in_o, dim=1).float() # add channel dim
 72 |
 73 |         x = self.conv1(f) + self.conv1_m(m) + self.conv1_o(o)
 74 |         x = self.bn1(x)
 75 |         c1 = self.relu(x)   # 1/2, 64
 76 |         x = self.maxpool(c1)  # 1/4, 64
 77 |         r2 = self.res2(x)   # 1/4, 256
 78 |         r3 = self.res3(r2) # 1/8, 512
 79 |         r4 = self.res4(r3) # 1/16, 1024
 80 |         return r4, r3, r2, c1, f
 81 |
 82 | class Encoder_Q(nn.Module):
 83 |     def __init__(self):
 84 |         super(Encoder_Q, self).__init__()
 85 |         resnet = models.resnet50(pretrained=True)
 86 |         self.conv1 = resnet.conv1
 87 |         self.bn1 = resnet.bn1
 88 |         self.relu = resnet.relu  # 1/2, 64
 89 |         self.maxpool = resnet.maxpool
 90 |
 91 |         self.res2 = resnet.layer1 # 1/4, 256
 92 |         self.res3 = resnet.layer2 # 1/8, 512
 93 |         self.res4 = resnet.layer3 # 1/16, 1024
 94 |
 95 |         self.register_buffer('mean', torch.FloatTensor([0.485, 0.456, 0.406]).view(1,3,1,1))
 96 |         self.register_buffer('std', torch.FloatTensor([0.229, 0.224, 0.225]).view(1,3,1,1))
 97 |
 98 |     def forward(self, in_f):
 99 |         f = (in_f - self.mean) / self.std
100 |
101 |         x = self.conv1(f)
102 |         x = self.bn1(x)
103 |         c1 = self.relu(x)   # 1/2, 64
104 |         x = self.maxpool(c1)  # 1/4, 64
105 |         r2 = self.res2(x)   # 1/4, 256
106 |         r3 = self.res3(r2) # 1/8, 512
107 |         r4 = self.res4(r3) # 1/16, 1024
108 |         return r4, r3, r2, c1, f
109 |
110 |
111 | class Refine(nn.Module):
112 |     def __init__(self, inplanes, planes, scale_factor=2):
113 |         super(Refine, self).__init__()
114 |         self.convFS = nn.Conv2d(inplanes, planes, kernel_size=(3,3), padding=(1,1), stride=1)
115 |         self.convMemory = nn.Conv2d(inplanes//2, planes, kernel_size=(3,3), padding=(1,1), stride=1, bias=False)
116 |         self.ResFS = ResBlock(planes, planes)
117 |         self.ResMM = ResBlock(planes, planes)
118 |         self.scale_factor = scale_factor
119 |
120 |     def forward(self, f, pm, mem):
121 |         s = self.convFS(f) + self.convMemory(mem)
122 |         s = self.ResFS(s)
123 |         m = s + F.interpolate(pm, scale_factor=self.scale_factor, mode='bilinear', align_corners=False)
124 |         m = self.ResMM(m)
125 |         return m
126 |
127 | class Decoder(nn.Module):
128 |     def __init__(self, mdim):
129 |         super(Decoder, self).__init__()
130 |         self.convFM = nn.Conv2d(1024, mdim, kernel_size=(3,3), padding=(1,1), stride=1)
131 |         self.ResMM = ResBlock(mdim, mdim)
132 |         self.RF3 = Refine(512, mdim) # 1/8 -> 1/4
133 |         self.RF2 = Refine(256, mdim) # 1/4 -> 1
134 |
135 |         self.pred2 = nn.Conv2d(mdim, 2, kernel_size=(3,3), padding=(1,1), stride=1)
136 |
137 |     def forward(self, r4, r3, r2, mem3, mem2):
138 |         m4 = self.ResMM(self.convFM(r4))
139 |         m3 = self.RF3(r3, m4, mem3) # out: 1/8, 256
140 |         m2 = self.RF2(r2, m3, mem2) # out: 1/4, 256
141 |
142 |         p2 = self.pred2(F.relu(m2))
143 |
144 |         p = F.interpolate(p2, scale_factor=4, mode='bilinear', align_corners=False)
145 |         return p
146 |
147 |
148 |
149 | class Memory(nn.Module):
150 |     def __init__(self, gaussian_kernel, gaussian_kernel_flow_window):
151 |         super(Memory, self).__init__()
152 |         self.gaussian_kernel = gaussian_kernel
153 |         self.gaussian_kernel_flow_window = gaussian_kernel_flow_window
154 |         if self.gaussian_kernel != -1:
155 |             self.feature_H = -1
156 |             self.feature_W = -1
157 |             if self.gaussian_kernel_flow_window != -1:
158 |                 self.H_flow = -1
159 |                 self.W_flow = -1
160 |                 self.T_flow = 1e+7
161 |                 self.B_flow = -1
162 |
163 |     def apply_gaussian_kernel(self, corr, h, w, sigma_factor=1.):
164 |         b, hwt, hw = corr.size()
165 |
166 |         idx = corr.max(dim=2)[1] # b x h2 x w2
167 |         idx_y = (idx // w).view(b, hwt, 1, 1).float()
168 |         idx_x = (idx % w).view(b, hwt, 1, 1).float()
169 |
170 |         if h != self.feature_H:
171 |             self.feature_H = h
172 |             y_tmp = np.linspace(0,h-1,h)
173 |             self.y = ToCuda(torch.FloatTensor(y_tmp))
174 |         y = self.y.view(1,1,h,1).expand(b, hwt, h, 1)
175 |
176 |         if w != self.feature_W:
177 |             self.feature_W = w
178 |             x_tmp = np.linspace(0,w-1,w)
179 |             self.x = ToCuda(torch.FloatTensor(x_tmp))
180 |         x = self.x.view(1,1,1,w).expand(b, hwt, 1, w)
181 |
182 |         gauss_kernel = torch.exp(-((x-idx_x)**2 + (y-idx_y)**2) / (2 * (self.gaussian_kernel*sigma_factor)**2))
183 |         gauss_kernel = gauss_kernel.view(b, hwt, hw)
184 |
185 |         return gauss_kernel, idx
186 |
187 |     def forward(self, m_in, m_out, q_in, q_out):  # m_in: o,c,t,h,w
188 |         B, D_e, T, H, W = m_in.size()
189 |         _, D_o, _, _, _ = m_out.size()
190 |
191 |         mi = m_in.view(B, D_e, T*H*W)
192 |         mi = torch.transpose(mi, 1, 2)  # b, THW, emb
193 |
194 |         qi = q_in.view(B, D_e, H*W)  # b, emb, HW
195 |
196 |         p = torch.bmm(mi, qi) # b, THW, HW
197 |         p = p / math.sqrt(D_e)
198 |
199 |         if self.gaussian_kernel != -1:
200 |             if self.gaussian_kernel_flow_window != -1:
201 |                 p_tmp = p[:,int(-H*W):].clone()
202 |                 if (self.B_flow != B) or (self.T_flow != T) or (self.H_flow != H) or (self.W_flow != W):
203 |                     hide_non_local_qk_map_tmp = torch.ones(B,1,H,W,H,W).bool()
204 |                     window_size_half = (self.gaussian_kernel_flow_window-1) // 2
205 |                     for h_idx1 in range(H):
206 |                         for w_idx1 in range(W):
207 |                             h_left = max(h_idx1-window_size_half, 0)
208 |                             h_right = h_idx1+window_size_half+1
209 |                             w_left = max(w_idx1-window_size_half, 0)
210 |                             w_right = w_idx1+window_size_half+1
211 |                             hide_non_local_qk_map_tmp[:,0,h_idx1,w_idx1,h_left:h_right,w_left:w_right] = False
212 |                     hide_non_local_qk_map_tmp = hide_non_local_qk_map_tmp.view(B,H*W,H*W)
213 |                     self.hide_non_local_qk_map_flow = ToCuda(hide_non_local_qk_map_tmp)
214 |                 if (self.B_flow != B) or (self.T_flow > T) or (T==1) or (self.H_flow != H) or (self.W_flow != W):
215 |                     self.max_idx_stacked = None
216 |                 p_tmp.masked_fill_(self.hide_non_local_qk_map_flow, float('-inf'))
217 |                 gauss_kernel_map, max_idx = self.apply_gaussian_kernel(p_tmp, h=H, w=W)
218 |                 if self.max_idx_stacked is None:
219 |                     self.max_idx_stacked = max_idx
220 |                 else:
221 |                     if self.T_flow == T:
222 |                         self.max_idx_stacked = self.max_idx_stacked[:,:int(-H*W)]
223 |                     self.max_idx_stacked = torch.gather(max_idx, dim=1, index=self.max_idx_stacked)
224 |                     for t_ in range(1, T):
225 |                         gauss_kernel_map_tmp, _ = self.apply_gaussian_kernel(p_tmp, h=H, w=W, sigma_factor=(t_*0.5)+1)
226 |                         gauss_kernel_map_tmp = torch.gather(gauss_kernel_map_tmp, dim=1, index=self.max_idx_stacked[:,int((T-t_-1)*H*W):int((T-t_)*H*W)].unsqueeze(-1).expand(-1,-1,int(H*W)))
227 |                         gauss_kernel_map = torch.cat((gauss_kernel_map_tmp, gauss_kernel_map), dim=1)
228 |                     self.max_idx_stacked = torch.cat((self.max_idx_stacked, max_idx), dim=1)
229 |                 self.T_flow = T
230 |                 self.H_flow = H
231 |                 self.W_flow = W
232 |                 self.B_flow = B
233 |             else:
234 |                 gauss_kernel_map, _ = self.apply_gaussian_kernel(p, h=H, w=W)
235 |
236 |         p = F.softmax(p, dim=1) # b, THW, HW
237 |
238 |         if self.gaussian_kernel != -1:
239 |             p.mul_(gauss_kernel_map)
240 |             p.div_(p.sum(dim=1, keepdim=True))
241 |
242 |         mo = m_out.view(B, D_o, T*H*W)
243 |         mem = torch.bmm(mo, p) # Weighted-sum B, D_o, HW
244 |         mem = mem.view(B, D_o, H, W)
245 |
246 |         mem_out = torch.cat([mem, q_out], dim=1)
247 |
248 |         return mem_out, p
249 |
250 |
251 | class Memory_topk(nn.Module):
252 |     def __init__(self, topk_guided_num):
253 |         super(Memory_topk, self).__init__()
254 |         self.topk_guided_num = topk_guided_num
255 |
256 |     def forward(self, m_in, m_out, q_in, qk_ref, qk_ref_topk_indices=None, qk_ref_topk_val=None, mem_dropout=None):  # m_in: o,c,t,h,w
257 |         B_ori, D_e, T, H, W = m_in.size()
258 |         _, D_o, _, _, _ = m_out.size()
259 |
260 |         _, THW_ref, HW_ref = qk_ref.size()
261 |         resolution_ref = int(math.sqrt((H*W) // HW_ref))
262 |         H_ref = H // resolution_ref
263 |         W_ref = W // resolution_ref
264 |
265 |         size = resolution_ref
266 |
267 |         if qk_ref_topk_indices is None:
268 |             qk_ref_topk_val, qk_ref_topk_indices = torch.topk(qk_ref.transpose(1,2), k=self.topk_guided_num, dim=2, sorted=True)
269 |             topk_guided_num = self.topk_guided_num
270 |         else:
271 |             topk_guided_num = qk_ref_topk_indices.shape[2]
272 |
273 |         B = B_ori
274 |         qk_ref_selected = qk_ref
275 |         qk_ref_topk_indices_selected = qk_ref_topk_indices
276 |         m_in_selected = m_in
277 |         m_out_selected = m_out
278 |         q_in_selected = q_in
279 |
280 |         ref = torch.zeros_like(qk_ref_selected.transpose(1,2))
281 |         ref.scatter_(2, qk_ref_topk_indices_selected, 1.)
282 |         ref = ref.view(B, H_ref, W_ref, T, H_ref, W_ref)
283 |
284 |         idx_all = torch.nonzero(ref)
285 |         idx = idx_all[:, 0], idx_all[:, 1], idx_all[:, 2], idx_all[:, 3], idx_all[:, 4], idx_all[:, 5]
286 |         m_in_selected = m_in_selected.view(B,D_e,T,H_ref,size,W_ref,size).permute(0,2,3,5,4,6,1)[idx[0], idx[3], idx[4], idx[5]] # B*H/2*W/2*k, 2, 2, Cin
287 |         m_in_selected = m_in_selected.reshape(B, H_ref, W_ref, topk_guided_num*size*size, D_e) # B, H/2, W/2, k*size*size, Cin
288 |         q_in_selected = q_in_selected.view(B,D_e,H_ref,size,W_ref,size) # B, Cin, H/2, 2, W/2, 2
289 |         q_in_selected = q_in_selected.permute(0,2,4,1,3,5) # B, H/2, W/2, Cin, 2, 2
290 |         m_out_selected = m_out_selected.view(B,D_o,T,H_ref,size,W_ref,size).permute(0,2,3,5,4,6,1)[idx[0], idx[3], idx[4], idx[5]] # B*H/2*W/2*k, 2, 2, Cout
291 |         m_out_selected = m_out_selected.reshape(B, H_ref, W_ref, topk_guided_num*size*size, D_o)
292 |
293 |         p = torch.einsum('bhwnc,bhwcij->bhwijn', m_in_selected, q_in_selected)
294 |         p = p / math.sqrt(D_e)
295 |         p = F.softmax(p, dim=-1)
296 |
297 |         mem_out = torch.einsum('bhwnc,bhwijn->bchiwj', m_out_selected, p)
298 |         mem_out = mem_out.reshape(B, D_o, H, W)
299 |
300 |         mem_out_pad = mem_out
301 |
302 |         return mem_out_pad, qk_ref_topk_indices[:,:,:max(topk_guided_num//4,1)], qk_ref_topk_val[:,:,:max(topk_guided_num//4,1)]
303 |
304 |
305 | class KeyValue(nn.Module):
306 |     def __init__(self, indim, keydim, valdim, only_key=False):
307 |         super(KeyValue, self).__init__()
308 |         self.Key = nn.Conv2d(indim, keydim, kernel_size=(3,3), padding=(1,1), stride=1)
309 |         self.only_key = only_key
310 |         if not self.only_key:
311 |             self.Value = nn.Conv2d(indim, valdim, kernel_size=(3,3), padding=(1,1), stride=1)
312 |
313 |     def forward(self, x):
314 |         k = self.Key(x)
315 |         v = self.Value(x) if not self.only_key else None
316 |         return k, v
317 |
318 |
319 |
320 |
321 | class HMMN(nn.Module):
322 |     def __init__(self):
323 |         super(HMMN, self).__init__()
324 |         self.Encoder_M = Encoder_M()
325 |         self.Encoder_Q = Encoder_Q()
326 |
327 |         self.KV_M_r4 = KeyValue(1024, keydim=128, valdim=512)
328 |         self.KV_Q_r4 = KeyValue(1024, keydim=128, valdim=512)
329 |         self.KV_M_r3 = KeyValue(512, keydim=128, valdim=256)
330 |         self.KV_Q_r3 = KeyValue(512, keydim=128, valdim=-1, only_key=True)
331 |         self.KV_M_r2 = KeyValue(256, keydim=64, valdim=128)
332 |         self.KV_Q_r2 = KeyValue(256, keydim=64, valdim=-1, only_key=True)
333 |
334 |         self.Memory = Memory(gaussian_kernel=3, gaussian_kernel_flow_window=7)
335 |         self.Memory_topk3 = Memory_topk(topk_guided_num=32)
336 |         self.Memory_topk2 = Memory_topk(topk_guided_num=32//4)
337 |
338 |         self.Decoder = Decoder(256)
339 |
340 |     def Pad_memory(self, mems, num_objects, K):
341 |         pad_mems = []
342 |         for mem in mems:
343 |             # pad_mem = ToCuda(torch.zeros(1, K, mem.size()[1], 1, mem.size()[2], mem.size()[3]))
344 |             # pad_mem[0,1:num_objects+1,:,0] = mem
345 |             pad_mem = mem.unsqueeze(2)
346 |             pad_mems.append(pad_mem)
347 |         return pad_mems
348 |
349 |     def memorize(self, frame, masks, num_objects):
350 |         # memorize a frame
351 |         num_objects = num_objects[0].item()
352 |         _, K, H, W = masks.shape # B = 1
353 |
354 |         (frame, masks), pad = pad_divide_by([frame, masks], 16, (frame.size()[2], frame.size()[3]))
355 |
356 |         # make batch arg list
357 |         B_list = {'f':[], 'm':[], 'o':[]}
358 |         for o in range(1, num_objects+1): # 1 - no
359 |             B_list['f'].append(frame)
360 |             B_list['m'].append(masks[:,o])
361 |             B_list['o'].append( (torch.sum(masks[:,1:o], dim=1) + \
362 |                 torch.sum(masks[:,o+1:num_objects+1], dim=1)).clamp(0,1) )
363 |
364 |         # make Batch
365 |         B_ = {}
366 |         for arg in B_list.keys():
367 |             B_[arg] = torch.cat(B_list[arg], dim=0)
368 |
369 |         r4, r3, r2, _, _ = self.Encoder_M(B_['f'], B_['m'], B_['o'])
370 |         k4, v4 = self.KV_M_r4(r4) # num_objects, 128 and 512, H/16, W/16
371 |         k3, v3 = self.KV_M_r3(r3)
372 |         k2, v2 = self.KV_M_r2(r2)
373 |         k4, v4 = self.Pad_memory([k4, v4], num_objects=num_objects, K=K)
374 |         k3, v3 = self.Pad_memory([k3, v3], num_objects=num_objects, K=K)
375 |         k2, v2 = self.Pad_memory([k2, v2], num_objects=num_objects, K=K)
376 |         return k4, v4, k3, v3, k2, v2
377 |
378 |     def Soft_aggregation(self, ps, K):
379 |         num_objects, H, W = ps.shape
380 |         em = ToCuda(torch.zeros(1, num_objects+1, H, W))
381 |         em[0,0] =  torch.prod(1-ps, dim=0) # bg prob
382 |         em[0,1:num_objects+1] = ps # obj prob
383 |         em = torch.clamp(em, 1e-7, 1-1e-7)
384 |         logit = torch.log((em /(1-em)))
385 |         return logit
386 |
387 |     def segment(self, frame, keys4, values4, keys3, values3, keys2, values2, num_objects):
388 |         num_objects = num_objects[0].item()
389 |         K, keydim, T, H, W = keys4.shape # B = 1
390 |         # pad
391 |         [frame], pad = pad_divide_by([frame], 16, (frame.size()[2], frame.size()[3]))
392 |
393 |         r4, r3, r2, _, _ = self.Encoder_Q(frame)
394 |         k4, v4 = self.KV_Q_r4(r4)   # 1, dim, H/16, W/16
395 |         k3, _ = self.KV_Q_r3(r3)
396 |         k2, _ = self.KV_Q_r2(r2)
397 |
398 |         # expand to ---  no, c, h, w
399 |         k4e, v4e = k4.expand(num_objects,-1,-1,-1), v4.expand(num_objects,-1,-1,-1)
400 |         k3e = k3.expand(num_objects,-1,-1,-1)
401 |         k2e = k2.expand(num_objects,-1,-1,-1)
402 |         r3e, r2e = r3.expand(num_objects,-1,-1,-1), r2.expand(num_objects,-1,-1,-1)
403 |
404 |         # memory select kv:(1, K, C, T, H, W)
405 |         # m4, pm4 = self.Memory(keys4[0,1:num_objects+1], values4[0,1:num_objects+1], k4e, v4e)
406 |         m4, pm4 = self.Memory(keys4, values4, k4e, v4e)
407 |         B, THW_ref, HW_ref = pm4.size()
408 |         if THW_ref > (HW_ref):
409 |             pm4_for_topk = torch.cat((pm4[:,:HW_ref], pm4[:,-HW_ref:]), dim=1) # First and Prev
410 |         else:
411 |             pm4_for_topk = pm4
412 |
413 |         # m3, next_topk_indices, next_topk_val = self.Memory_topk3(keys3[0,1:num_objects+1], values3[0,1:num_objects+1], k3e, pm4_for_topk)
414 |         # m2, _, _ = self.Memory_topk2(keys2[0,1:num_objects+1], values2[0,1:num_objects+1], k2e, pm4_for_topk, next_topk_indices, next_topk_val)
415 |         m3, next_topk_indices, next_topk_val = self.Memory_topk3(keys3, values3, k3e, pm4_for_topk)
416 |         m2, _, _ = self.Memory_topk2(keys2, values2, k2e, pm4_for_topk, next_topk_indices, next_topk_val)
417 |
418 |         logits = self.Decoder(m4, r3e, r2e, m3, m2)
419 |         ps = F.softmax(logits, dim=1)[:,1] # no, h, w
420 |         #ps = indipendant possibility to belong to each object
421 |
422 |         logit = self.Soft_aggregation(ps, K) # 1, K, H, W
423 |
424 |         if pad[2]+pad[3] > 0:
425 |             logit = logit[:,:,pad[2]:-pad[3],:]
426 |         if pad[0]+pad[1] > 0:
427 |             logit = logit[:,:,:,pad[0]:-pad[1]]
428 |
429 |         return logit
430 |
431 |     def forward(self, *args, **kwargs):
432 |         if args[1].dim() > 4: # keys
433 |             return self.segment(*args, **kwargs)
434 |         else:
435 |             return self.memorize(*args, **kwargs)
436 |
437 |
438 |


--------------------------------------------------------------------------------
