├── Classic Composite Edition ├── DOCS_BOM_NES_PowerBoard_Classic_V3.1.csv ├── DOCS_POS_NES_PowerBoard_Classic_V3.1.csv ├── Kicad Files │ ├── DOCS_BOM_NES_PowerBoard_Classic_V3.1c.csv │ ├── DOCS_POS_NES_PowerBoard_Classic_V3.1c.csv │ ├── NES_PowerBoard_Classic_RCA_V3.1_Scematic.kicad_sch │ ├── NES_PowerBoard_Classic_V3.1c-Gerbers.zip │ ├── NES_PowerBoard_Classic_V3.1c.kicad_pcb │ └── readme.md ├── NES_PowerBoard_Classic_V3.1-Gerbers.zip ├── Older Archived Designs │ ├── Readme.md │ ├── Version 1.8 │ │ ├── DOCS_BOM_NES_PowerBoard_Classic_RCA_V1.8.csv │ │ ├── DOCS_POS_NES_PowerBoard_Classic_RCA_V1.8.csv │ │ ├── Kicad Files │ │ │ ├── NES_PowerBoard_Classic_RCA_V1.8.kicad_pcb │ │ │ ├── NES_PowerBoard_Classic_RCA_V1.8.kicad_prl │ │ │ ├── NES_PowerBoard_Classic_RCA_V1.8.kicad_pro │ │ │ ├── NES_PowerBoard_Classic_RCA_V1.8.kicad_sch │ │ │ └── readme.md │ │ ├── NES_PowerBoard_Classic_RCA_V1.8_Gerbers.zip │ │ ├── Readme.md │ │ └── SCHEMATIC - NES Power Board Classic Composite Edition V1.6.png │ ├── Version 2.0b │ │ ├── BOM_NES_PowerBoard_Classic_RCA_V2.0b.csv │ │ ├── IBOM_NES_PowerBoard_Classic_RCA_V2.0b.html │ │ ├── NES_PowerBoard_Classic_RCA_V2.0b-Gerbers.zip │ │ ├── POS_NES_PowerBoard_Classic_RCA_V2.0b.csv │ │ └── readme.md │ └── Version 2.1e │ │ ├── BOM_NES_PowerBoard_Classic_RCA_V2.1e.csv │ │ ├── NES_PowerBoard_Classic_RCA_V2e.kicad_pcb │ │ ├── NES_PowerBoard_Classic_RCA_V2e.kicad_pro │ │ ├── NES_PowerBoard_Classic_RCA_V2e.zip │ │ ├── POS_NES_PowerBoard_Classic_RCA_V2.1e.csv │ │ └── readme.md └── readme.md ├── Classic High-Def HDMI Mod Companion Board ├── DOCS_BOM_NES_Hi-Def_HDMI Mod Companion Board V1.1.csv ├── Kicad Files │ ├── NES_PowerBoard_Hi-Def_HDMI Mod Companion Board V1.1.kicad_pcb │ ├── NES_PowerBoard_Hi-Def_HDMI Mod Companion Board V1.1.kicad_prl │ ├── NES_PowerBoard_Hi-Def_HDMI Mod Companion Board V1.1.kicad_pro │ └── Readme.md ├── NES_PowerBoard_Hi-Def_HDMI_Gerbers_V1.1.zip └── readme.md ├── Classic RCA DIY THT Edition ├── BOM NES Revival THT DIY Version 3.0.xlsx ├── NES_PowerBoard_7805_Classic_RCA_V3-1c_GERBERS.zip ├── Version 1.3 │ ├── DOCS_BOM_NES_Classic LDO RCA DIY THT V1.2 Edition.csv │ ├── NES_PowerBoard_LDO_THT_RCA_V1.3-B_Gerbers.zip │ ├── Virtual BOM - NES_PowerBoard_LDO_THT_RCA_V1.3.html │ └── readme.md ├── Virtual BOM - NES_PowerBoard_LDO_RCA_DIY_V3-0.html └── readme.md ├── GND Loop Solution.md ├── Install_Instructions.md ├── LICENSE ├── README.md ├── RGB - Genesis 9 Pin Edition ├── Board Configurations.md ├── Kicad Files │ ├── NES_PowerBoard_RGB_V3.1c_OfficialRelease.kicad_pcb │ ├── NES_PowerBoard_RGB_V3.1c_OfficialRelease.kicad_pro │ └── readme.md ├── NESRGB Hookup Instructions.jpg ├── Older Archived Designs │ ├── Features and Components.md │ └── Readme.md ├── Oscilloscope Results │ └── readme.md ├── Production Files │ ├── DOCS_BOM_ASSEMBLY_NES_PowerBoard_RGB_V3.1c.csv │ ├── DOCS_POS_ASSEMBLY_NES_PowerBoard_RGB_V3.1c.csv │ ├── NES_PowerBoard_RGB_V3.1c-Gerbers.zip │ ├── NES_PowerBoard_RGBv3.1c_IBOM.zip │ └── readme.md └── readme.md ├── USB-Powered-RCA-Classic ├── Kicad Files │ ├── BOM_NES_USBC_Classic_V1.5.csv │ ├── NES_PowerBoard_USB C_Classic_RCA_V1-5.kicad_pcb │ ├── NES_PowerBoard_USB C_Classic_RCA_V1.5.kicad_pro │ ├── NES_PowerBoard_USB C_Classic_RCA_V1.5.kicad_sch │ ├── POS_NES_USBC_Classic_V1.4.csv │ └── readme.md ├── Schematic-NES_PowerBoard_USB C_RCA_V1.5.jpg └── readme.md └── Updates.md /Classic Composite Edition/DOCS_BOM_NES_PowerBoard_Classic_V3.1.csv: -------------------------------------------------------------------------------- 1 | Comment,Designator,SMD Footprints,LCSC,Mouser 2 | 2200uF,C1,Capacitor_THT:CP_Radial_D12.5mm_P5.00mm,C445125,https://www.digikey.com/en/products/detail/nichicon/UVZ1E222MHD/589047 3 | 10nF,C2,C_0805_2012Metric,C1710,https://www.digikey.com/en/products/detail/samsung-electro-mechanics/CL21B103KBANNNC/3886673 4 | 10uF,C3,C_0805_2012Metric,C15850,https://www.digikey.com/en/products/detail/samsung-electro-mechanics/CL21A106KAYNNNE/3888549 5 | .1uF,"C4,C5",C_0603_1608Metric,C14663,https://www.digikey.com/en/products/detail/yageo/CC0603KRX7R9BB104/2103082 6 | 10nF,C6,C_1206_3216Metric, C1846,https://www.digikey.com/en/products/detail/murata-electronics/GRM3195C1H103JA01D/586883 7 | 22uF,"C7,C8",C_1206_3216Metric,C12891,https://www.digikey.com/en/products/detail/murata-electronics/GRM31CR71A226KE15L/2039036 8 | .1uF,C9,C_1206_3216Metric, C24497,https://www.digikey.com/en/products/detail/murata-electronics/GRM31C5C1H104JA01K/2548138 9 | 220uF,C10,CAP-SMD_BD6.3-L6.5-W6.5-LS7.0-FD,C125979,https://www.digikey.com/en/products/detail/nichicon/PCJ0J221MCL1GS/1662427 10 | 75pF,C11,C_0805_2012Metric,C5375865,https://www.digikey.com/en/products/detail/yageo/CC0805JRNPO9BN750/5884054 11 | 560pF,C12,C_0805_2012Metric,C520091,https://www.digikey.com/en/products/detail/kemet/C0805C561J5GACAUTO/10642381 12 | MSB30M,D1,MSBL,C460923,https://www.digikey.com/en/products/detail/diodes-incorporated/MSB30M-13/7353064 13 | Green_LED,D2,LED_SMD:LED_0805_2012Metric,C2297,https://www.digikey.com/en/products/detail/liteon/LTST-C171GKT/386793 14 | 1N4148W,D3,D_SOD-123,C7420318,https://www.digikey.com/en/products/detail/smc-diode-solutions/1N4148W/6022450 15 | Red LED,D4,LED_0603_1608Metric,C2286,https://www.digikey.com/en/products/detail/liteon/LTST-C191KRKT/386837 16 | MINISMDC150F/16-2,FUSE1,F1812,C2649921,https://www.digikey.com/en/products/detail/littelfuse-inc/MINISMDC150F-16-2/2319761 17 | EJ503A,J2,THT,C3095117,https://www.digikey.com/en/products/detail/mpd-memory-protection-devices/EJ503A/5431753 18 | TPS54202HDDCT,J7,SOT-23-6,C134129,https://www.digikey.com/en/products/detail/texas-instruments/TPS54202HDDCR/6026259 19 | 15uH,L1,7.2x6.9x4.5mm Copy,C2836220,https://www.digikey.com/en/products/detail/tdk-corporation/CLF7045NIT-150M-D/5812243 20 | 2SA1015,Q1,SOT-23,C181170,https://www.digikey.com/en/products/detail/evvo/2SA1015/22482092 21 | 4.7K,R1,R_0805_2012Metric, C17673, 22 | 120K,R2,R_0603_1608Metric,C25808,https://www.digikey.com/en/products/detail/yageo/AC0603FR-07105KL/5895738 23 | 511K,R3,R_0603_1608Metric,C2684557,https://www.digikey.com/en/products/detail/yageo/RC0603FR-07511KL/727288 24 | 100K,R4,R_0603_1608Metric,C25803,https://www.digikey.com/en/products/detail/yageo/RC0603FR-07100KL/726889 25 | 13.3K,R5,R_0603_1608Metric,C321713,https://www.digikey.com/en/products/detail/yageo/RT0603BRD0713K3L/1072240 26 | 49.9R,R6,R_0603_1608Metric,C23185,https://www.digikey.com/en/products/detail/yageo/RC0603FR-0749R9L/727264 27 | 4.7K,R7,R_0603_1608Metric,C23162,https://www.digikey.com/en/products/detail/yageo/RC0603FR-074K7L/727212 28 | 300R,R8,R_0805_2012Metric,C17617,https://www.digikey.com/en/products/detail/yageo/RC0805FR-07300RL/727848 29 | 110R,R9,R_0805_2012Metric,C246031,https://www.digikey.com/en/products/detail/yageo/RC0805FR-07110RL/727559 30 | ,,,, 31 | ,,,, 32 | ,,,, 33 | ,,,, 34 | ,,,, 35 | Comment,Designator,Through Hole FootPrints,LCSC, 36 | Palette Switch,SW1,THT,,EG2215 *JLCPCB has a global source for this 37 | Yellow RCA (If using Componsite),J3,Yellow RCA Jack for Video,,RCJ-044 38 | Red RCA,J5,Red RCA Jack for Audio,,RCJ-042 39 | 9 Pin Gen2 Connector,J9,9 Pin Gen2 Connector,,MD-90SM 40 | 3 Pin JST with cable for connecting to Palette,J12is,,,https://www.amazon.com/2-54MM-Female-Single-Connector-300mm/dp/B01IZAING4 41 | -------------------------------------------------------------------------------- /Classic Composite Edition/DOCS_POS_NES_PowerBoard_Classic_V3.1.csv: -------------------------------------------------------------------------------- 1 | Designator,Val,Package,MidX,MidY,Rotation,Layer 2 | C2,10nF,C_0805_2012Metric,142,-110,-90,top 3 | C3,10uF,C_0805_2012Metric,124.7,-114.2,0,top 4 | C4,.1uF,C_0603_1608Metric,124.7,-116.1,0,top 5 | C5,.1uF,C_0603_1608Metric,123.9,-122,0,top 6 | C6,10nF,C_1206_3216Metric,141.3,-119.1,90,top 7 | C7,22uF,C_1206_3216Metric,138.9,-119.1,90,top 8 | C8,22uF,C_1206_3216Metric,138.9,-124.1,-90,top 9 | C9,.1uF,C_1206_3216Metric,141.3,-124.1,-90,top 10 | C10,220uF,CAP-SMD_BD6.3-L6.5-W6.5-LS7.0-FD,109.9,-128.3,180,top 11 | C11,75pF,C_0805_2012Metric,120.5,-120.1,0,top 12 | C12,1nF,C_0805_2012Metric,108.28,-120.95,0,top 13 | D1,MSB30M,MSB30M,111.6,-82.45,-90,top 14 | D2,Power LED,LED_0805_2012Metric,106,-112.4,0,top 15 | D3,1N4148W,D_SOD-123,118.7,-108.3,0,top 16 | D4,Power LED,LED_0603_1608Metric,122.4,-108.7,-90,top 17 | FUSE1,F1812,F1812,121.2,-104.8,0,top 18 | J2,EJ503A,THT,101.95,-87.75,0,top 19 | J7,TPS54202,SOT-23-6,124.4,-119.1,0,top 20 | L1,15uF,CLF7045T,132.2,-121.2,0,top 21 | Q1,2SA1015,SOT-23,118,-129.25,0,top 22 | R1,4.7K,R_0805_2012Metric,106,-114.4,0,top 23 | R2,105K,R_0603_1608Metric,132.7,-113.9,180,top 24 | R3,511K,R_0603_1608Metric,136,-113.9,0,top 25 | R4,100K,R_0603_1608Metric,120.8,-121.9,180,top 26 | R5,13.3K,R_0603_1608Metric,123.9,-123.6,0,top 27 | R6,49.9,R_0603_1608Metric,120.8,-123.5,0,top 28 | R7,4.7K,R_0603_1608Metric,124,-108.7,-90,top 29 | R8,300,R_0805_2012Metric,121.2,-127.35,90,top 30 | R9,110R,R_0805_2012Metric,108.3,-123.1,0,top 31 | -------------------------------------------------------------------------------- /Classic Composite Edition/Kicad Files/DOCS_BOM_NES_PowerBoard_Classic_V3.1c.csv: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic Composite Edition/Kicad Files/DOCS_BOM_NES_PowerBoard_Classic_V3.1c.csv -------------------------------------------------------------------------------- /Classic Composite Edition/Kicad Files/DOCS_POS_NES_PowerBoard_Classic_V3.1c.csv: -------------------------------------------------------------------------------- 1 | Designator,Val,Package,MidX,MidY,Rotation,Layer 2 | C2,10nF,C_0805_2012Metric,142,-110,-90,top 3 | C3,10uF,C_0805_2012Metric,124.7,-114.2,0,top 4 | C4,.1uF,C_0603_1608Metric,124.7,-116.1,0,top 5 | C5,.1uF,C_0603_1608Metric,123.9,-122,0,top 6 | C6,10nF,C_1206_3216Metric,141.3,-119.1,90,top 7 | C7,22uF,C_1206_3216Metric,138.9,-119.1,90,top 8 | C8,22uF,C_1206_3216Metric,138.9,-124.1,-90,top 9 | C9,.1uF,C_1206_3216Metric,141.3,-124.1,-90,top 10 | C10,220uF,CAP-SMD_BD6.3-L6.5-W6.5-LS7.0-FD,109.9,-128.3,180,top 11 | C11,75pF,C_0805_2012Metric,120.5,-120.1,0,top 12 | C12,1nF,C_0805_2012Metric,108.28,-120.95,0,top 13 | D1,MSB30M,MSB30M,111.6,-82.45,-90,top 14 | D2,Power LED,LED_0805_2012Metric,106,-112.4,0,top 15 | D3,1N4148W,D_SOD-123,118.7,-108.3,0,top 16 | D4,Power LED,LED_0603_1608Metric,122.4,-108.7,-90,top 17 | FUSE1,F1812,F1812,121.2,-104.8,0,top 18 | J2,EJ503A,THT,101.95,-87.75,0,top 19 | J7,TPS54202,SOT-23-6,124.4,-119.1,0,top 20 | L1,15uF,CLF7045T,132.2,-121.2,0,top 21 | Q1,2SA1015,SOT-23,118,-129.25,0,top 22 | R1,4.7K,R_0805_2012Metric,106,-114.4,0,top 23 | R2,105K,R_0603_1608Metric,132.7,-113.9,180,top 24 | R3,511K,R_0603_1608Metric,136,-113.9,0,top 25 | R4,100K,R_0603_1608Metric,120.8,-121.9,180,top 26 | R5,13.3K,R_0603_1608Metric,123.9,-123.6,0,top 27 | R6,49.9,R_0603_1608Metric,120.8,-123.5,0,top 28 | R7,4.7K,R_0603_1608Metric,124,-108.7,-90,top 29 | R8,300,R_0805_2012Metric,121.2,-127.35,90,top 30 | R9,110R,R_0805_2012Metric,108.3,-123.1,0,top 31 | -------------------------------------------------------------------------------- /Classic Composite Edition/Kicad Files/NES_PowerBoard_Classic_V3.1c-Gerbers.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic Composite Edition/Kicad Files/NES_PowerBoard_Classic_V3.1c-Gerbers.zip -------------------------------------------------------------------------------- /Classic Composite Edition/Kicad Files/readme.md: -------------------------------------------------------------------------------- 1 | 2 | -------------------------------------------------------------------------------- /Classic Composite Edition/NES_PowerBoard_Classic_V3.1-Gerbers.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic Composite Edition/NES_PowerBoard_Classic_V3.1-Gerbers.zip -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Readme.md: -------------------------------------------------------------------------------- 1 | 2 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 1.8/DOCS_BOM_NES_PowerBoard_Classic_RCA_V1.8.csv: -------------------------------------------------------------------------------- 1 | Comment,Designator,SMD Footprints,LCSC,Mouser 2 | 6.8uH,L1,SMD_6x6x4.5mm,C206253, 3 | BL8033,J7,SOT-23-6L,C160717, 4 | .01uF,C2,Capacitor_SMD:C_0805_2012Metric,C1710, 5 | 22uF,C3,Capacitor_SMD:C_0805_2012Metric,C602037, 6 | .1uF,C4,Capacitor_SMD:C_0805_2012Metric,C49678, 7 | 1uF,C5,Capacitor_SMD:C_0805_2012Metric,C28323, 8 | 22uF,"C6,C7",Capacitor_SMD:C_1206_3216Metric,C12891, 9 | Green_LED,D2,LED_SMD:LED_0805_2012Metric,C2297, 10 | 680R,R1,Resistor_SMD:R_0805_2012Metric,C17798, 11 | 300R,R2,Resistor_SMD:R_0805_2012Metric,C17617, 12 | 110R,R3,Resistor_SMD:R_0805_2012Metric,C17423, 13 | 10K,R4,Resistor_SMD:R_0805_2012Metric,C17414, 14 | 7.68k,R5,Resistor_SMD:R_0805_2012Metric,C30041, 15 | 40.2k,R6,Resistor_SMD:R_0805_2012Metric,C17678, 16 | 100K,R7,Resistor_SMD:R_0805_2012Metric,C149504, 17 | 2SA1015,Q1,Package_TO_SOT_SMD:SOT-23,C545569, 18 | ,,,, 19 | Comment,Designator,Through Hole FootPrints,LCSC,Mouser 20 | 2200uF,C1,Capacitor_THT:CP_Radial_D12.5mm_P5.00mm,C225868,ECA-1EHG222 21 | 220uF,C8,Capacitor_THT:CP_Radial_D6.3mm_P2.50mm,C2897445,6SEPC220M+TSS 22 | Power Jack,J1,"2.1mm ID, DC Power Supply Connector, 2 Pin",,PJ-037A 23 | Red RCA,,Right Audio - Red RCA Jack,,"RCJ-042 " 24 | White RCA,,Left Audio - White RCA Jack,,"RCJ-043 " 25 | Yellow RCA,,Video Out Yellow RCA Jack,,"RCJ-044 " 26 | AC->DC,,Bridge Rectifiers VR=600V IAV=2.0A,,DF206ST-G 27 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 1.8/DOCS_POS_NES_PowerBoard_Classic_RCA_V1.8.csv: -------------------------------------------------------------------------------- 1 | Designator,Val,Package,MidX,MidY,Rotation,Layer 2 | C2,10nF,C_0805_2012Metric,162.5,-101.75,0,top 3 | C3,22uf/25,C_0805_2012Metric,151.5,-108.75,-90,top 4 | C4,.1uF/25,C_0805_2012Metric,149.25,-108.75,-90,top 5 | C5,1uF,C_0805_2012Metric,142.75,-106,-90,top 6 | C6,22uf/25,C_1206_3216Metric,149.75,-115.75,90,top 7 | C7,22uf/25,C_1206_3216Metric,152.25,-115.75,90,top 8 | D2,LED,LED_0805_2012Metric,137.75,-116,-90,top 9 | L1,6.8uH,Inductor-L_6.3x6.3_H3,144.59,-115,0,top 10 | Q1,2SA1015,SOT-23,131,-123.33,0,top 11 | R1,680,R_0805_2012Metric,139.75,-116,90,top 12 | R2,300,R_0805_2012Metric,130.9,-119.25,180,top 13 | R3,110R,R_0805_2012Metric,120.25,-119,-90,top 14 | R4,10k,R_0805_2012Metric,145.5,-103,180,top 15 | R5,7.68k,R_0805_2012Metric,140.75,-106,0,top 16 | R6,40.2k,R_0805_2012Metric,142,-103,180,top 17 | R7,100K,R_0805_2012Metric,150.25,-105.75,0,top 18 | J7,BL8033,SOT-23-6L,146,-106.5,270,top 19 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 1.8/Kicad Files/NES_PowerBoard_Classic_RCA_V1.8.kicad_prl: -------------------------------------------------------------------------------- 1 | { 2 | "board": { 3 | "active_layer": 37, 4 | "active_layer_preset": "All Layers", 5 | "auto_track_width": true, 6 | "hidden_nets": [], 7 | "high_contrast_mode": 0, 8 | "net_color_mode": 1, 9 | "opacity": { 10 | "pads": 1.0, 11 | "tracks": 1.0, 12 | "vias": 1.0, 13 | "zones": 0.6 14 | }, 15 | "ratsnest_display_mode": 0, 16 | "selection_filter": { 17 | "dimensions": true, 18 | "footprints": true, 19 | "graphics": true, 20 | "keepouts": true, 21 | "lockedItems": true, 22 | "otherItems": true, 23 | "pads": true, 24 | "text": true, 25 | "tracks": true, 26 | "vias": true, 27 | "zones": true 28 | }, 29 | "visible_items": [ 30 | 0, 31 | 1, 32 | 2, 33 | 3, 34 | 4, 35 | 5, 36 | 8, 37 | 9, 38 | 10, 39 | 11, 40 | 12, 41 | 13, 42 | 14, 43 | 15, 44 | 16, 45 | 17, 46 | 18, 47 | 19, 48 | 20, 49 | 21, 50 | 22, 51 | 23, 52 | 24, 53 | 25, 54 | 26, 55 | 27, 56 | 28, 57 | 29, 58 | 30, 59 | 32, 60 | 33, 61 | 34, 62 | 35, 63 | 36 64 | ], 65 | "visible_layers": "fffffff_ffffffff", 66 | "zone_display_mode": 0 67 | }, 68 | "meta": { 69 | "filename": "NES_PowerBoard_Classic_RCA_V1.8.kicad_prl", 70 | "version": 3 71 | }, 72 | "project": { 73 | "files": [] 74 | } 75 | } 76 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 1.8/Kicad Files/NES_PowerBoard_Classic_RCA_V1.8.kicad_pro: -------------------------------------------------------------------------------- 1 | { 2 | "board": { 3 | "design_settings": { 4 | "defaults": { 5 | "board_outline_line_width": 0.049999999999999996, 6 | "copper_line_width": 0.19999999999999998, 7 | "copper_text_italic": false, 8 | "copper_text_size_h": 1.5, 9 | "copper_text_size_v": 1.5, 10 | "copper_text_thickness": 0.3, 11 | "copper_text_upright": false, 12 | "courtyard_line_width": 0.049999999999999996, 13 | "dimension_precision": 4, 14 | "dimension_units": 3, 15 | "dimensions": { 16 | "arrow_length": 1270000, 17 | "extension_offset": 500000, 18 | "keep_text_aligned": true, 19 | "suppress_zeroes": false, 20 | "text_position": 0, 21 | "units_format": 1 22 | }, 23 | "fab_line_width": 0.09999999999999999, 24 | "fab_text_italic": false, 25 | "fab_text_size_h": 1.0, 26 | "fab_text_size_v": 1.0, 27 | "fab_text_thickness": 0.15, 28 | "fab_text_upright": false, 29 | "other_line_width": 0.09999999999999999, 30 | "other_text_italic": false, 31 | "other_text_size_h": 1.0, 32 | "other_text_size_v": 1.0, 33 | "other_text_thickness": 0.15, 34 | "other_text_upright": false, 35 | "pads": { 36 | "drill": 1.3, 37 | "height": 3.9, 38 | "width": 2.5 39 | }, 40 | "silk_line_width": 0.12, 41 | "silk_text_italic": false, 42 | "silk_text_size_h": 1.0, 43 | "silk_text_size_v": 1.0, 44 | "silk_text_thickness": 0.15, 45 | "silk_text_upright": false, 46 | "zones": { 47 | "45_degree_only": false, 48 | "min_clearance": 0.19999999999999998 49 | } 50 | }, 51 | "diff_pair_dimensions": [ 52 | { 53 | "gap": 0.0, 54 | "via_gap": 0.0, 55 | "width": 0.0 56 | } 57 | ], 58 | "drc_exclusions": [], 59 | "meta": { 60 | "version": 2 61 | }, 62 | "rule_severities": { 63 | "annular_width": "error", 64 | "clearance": "error", 65 | "copper_edge_clearance": "error", 66 | "courtyards_overlap": "error", 67 | "diff_pair_gap_out_of_range": "error", 68 | "diff_pair_uncoupled_length_too_long": "error", 69 | "drill_out_of_range": "error", 70 | "duplicate_footprints": "warning", 71 | "extra_footprint": "warning", 72 | "footprint_type_mismatch": "error", 73 | "hole_clearance": "error", 74 | "hole_near_hole": "error", 75 | "invalid_outline": "error", 76 | "item_on_disabled_layer": "error", 77 | "items_not_allowed": "error", 78 | "length_out_of_range": "error", 79 | "malformed_courtyard": "error", 80 | "microvia_drill_out_of_range": "error", 81 | "missing_courtyard": "ignore", 82 | "missing_footprint": "warning", 83 | "net_conflict": "warning", 84 | "npth_inside_courtyard": "ignore", 85 | "padstack": "error", 86 | "pth_inside_courtyard": "ignore", 87 | "shorting_items": "error", 88 | "silk_over_copper": "warning", 89 | "silk_overlap": "warning", 90 | "skew_out_of_range": "error", 91 | "through_hole_pad_without_hole": "error", 92 | "too_many_vias": "error", 93 | "track_dangling": "warning", 94 | "track_width": "error", 95 | "tracks_crossing": "error", 96 | "unconnected_items": "error", 97 | "unresolved_variable": "error", 98 | "via_dangling": "warning", 99 | "zone_has_empty_net": "error", 100 | "zones_intersect": "error" 101 | }, 102 | "rules": { 103 | "allow_blind_buried_vias": false, 104 | "allow_microvias": false, 105 | "max_error": 0.005, 106 | "min_clearance": 0.0, 107 | "min_copper_edge_clearance": 0.01, 108 | "min_hole_clearance": 0.25, 109 | "min_hole_to_hole": 0.25, 110 | "min_microvia_diameter": 0.19999999999999998, 111 | "min_microvia_drill": 0.09999999999999999, 112 | "min_silk_clearance": 0.0, 113 | "min_through_hole_diameter": 0.3, 114 | "min_track_width": 0.19999999999999998, 115 | "min_via_annular_width": 0.049999999999999996, 116 | "min_via_diameter": 0.39999999999999997, 117 | "use_height_for_length_calcs": true 118 | }, 119 | "track_widths": [ 120 | 0.0, 121 | 0.25, 122 | 0.35, 123 | 0.5, 124 | 0.75, 125 | 1.0 126 | ], 127 | "via_dimensions": [ 128 | { 129 | "diameter": 0.0, 130 | "drill": 0.0 131 | } 132 | ], 133 | "zones_allow_external_fillets": false, 134 | "zones_use_no_outline": true 135 | }, 136 | "layer_presets": [] 137 | }, 138 | "boards": [], 139 | "cvpcb": { 140 | "equivalence_files": [] 141 | }, 142 | "erc": { 143 | "erc_exclusions": [], 144 | "meta": { 145 | "version": 0 146 | }, 147 | "pin_map": [ 148 | [ 149 | 0, 150 | 0, 151 | 0, 152 | 0, 153 | 0, 154 | 0, 155 | 1, 156 | 0, 157 | 0, 158 | 0, 159 | 0, 160 | 2 161 | ], 162 | [ 163 | 0, 164 | 2, 165 | 0, 166 | 1, 167 | 0, 168 | 0, 169 | 1, 170 | 0, 171 | 2, 172 | 2, 173 | 2, 174 | 2 175 | ], 176 | [ 177 | 0, 178 | 0, 179 | 0, 180 | 0, 181 | 0, 182 | 0, 183 | 1, 184 | 0, 185 | 1, 186 | 0, 187 | 1, 188 | 2 189 | ], 190 | [ 191 | 0, 192 | 1, 193 | 0, 194 | 0, 195 | 0, 196 | 0, 197 | 1, 198 | 1, 199 | 2, 200 | 1, 201 | 1, 202 | 2 203 | ], 204 | [ 205 | 0, 206 | 0, 207 | 0, 208 | 0, 209 | 0, 210 | 0, 211 | 1, 212 | 0, 213 | 0, 214 | 0, 215 | 0, 216 | 2 217 | ], 218 | [ 219 | 0, 220 | 0, 221 | 0, 222 | 0, 223 | 0, 224 | 0, 225 | 0, 226 | 0, 227 | 0, 228 | 0, 229 | 0, 230 | 2 231 | ], 232 | [ 233 | 1, 234 | 1, 235 | 1, 236 | 1, 237 | 1, 238 | 0, 239 | 1, 240 | 1, 241 | 1, 242 | 1, 243 | 1, 244 | 2 245 | ], 246 | [ 247 | 0, 248 | 0, 249 | 0, 250 | 1, 251 | 0, 252 | 0, 253 | 1, 254 | 0, 255 | 0, 256 | 0, 257 | 0, 258 | 2 259 | ], 260 | [ 261 | 0, 262 | 2, 263 | 1, 264 | 2, 265 | 0, 266 | 0, 267 | 1, 268 | 0, 269 | 2, 270 | 2, 271 | 2, 272 | 2 273 | ], 274 | [ 275 | 0, 276 | 2, 277 | 0, 278 | 1, 279 | 0, 280 | 0, 281 | 1, 282 | 0, 283 | 2, 284 | 0, 285 | 0, 286 | 2 287 | ], 288 | [ 289 | 0, 290 | 2, 291 | 1, 292 | 1, 293 | 0, 294 | 0, 295 | 1, 296 | 0, 297 | 2, 298 | 0, 299 | 0, 300 | 2 301 | ], 302 | [ 303 | 2, 304 | 2, 305 | 2, 306 | 2, 307 | 2, 308 | 2, 309 | 2, 310 | 2, 311 | 2, 312 | 2, 313 | 2, 314 | 2 315 | ] 316 | ], 317 | "rule_severities": { 318 | "bus_definition_conflict": "error", 319 | "bus_entry_needed": "error", 320 | "bus_label_syntax": "error", 321 | "bus_to_bus_conflict": "error", 322 | "bus_to_net_conflict": "error", 323 | "different_unit_footprint": "error", 324 | "different_unit_net": "error", 325 | "duplicate_reference": "error", 326 | "duplicate_sheet_names": "error", 327 | "extra_units": "error", 328 | "global_label_dangling": "warning", 329 | "hier_label_mismatch": "error", 330 | "label_dangling": "error", 331 | "lib_symbol_issues": "warning", 332 | "multiple_net_names": "warning", 333 | "net_not_bus_member": "warning", 334 | "no_connect_connected": "warning", 335 | "no_connect_dangling": "warning", 336 | "pin_not_connected": "error", 337 | "pin_not_driven": "error", 338 | "pin_to_pin": "warning", 339 | "power_pin_not_driven": "error", 340 | "similar_labels": "warning", 341 | "unannotated": "error", 342 | "unit_value_mismatch": "error", 343 | "unresolved_variable": "error", 344 | "wire_dangling": "error" 345 | } 346 | }, 347 | "libraries": { 348 | "pinned_footprint_libs": [], 349 | "pinned_symbol_libs": [] 350 | }, 351 | "meta": { 352 | "filename": "NES_PowerBoard_Classic_RCA_V1.8.kicad_pro", 353 | "version": 1 354 | }, 355 | "net_settings": { 356 | "classes": [ 357 | { 358 | "bus_width": 12.0, 359 | "clearance": 0.2, 360 | "diff_pair_gap": 0.25, 361 | "diff_pair_via_gap": 0.25, 362 | "diff_pair_width": 0.2, 363 | "line_style": 0, 364 | "microvia_diameter": 0.3, 365 | "microvia_drill": 0.1, 366 | "name": "Default", 367 | "pcb_color": "rgba(0, 0, 0, 0.000)", 368 | "schematic_color": "rgba(0, 0, 0, 0.000)", 369 | "track_width": 0.25, 370 | "via_diameter": 0.8, 371 | "via_drill": 0.4, 372 | "wire_width": 6.0 373 | } 374 | ], 375 | "meta": { 376 | "version": 2 377 | }, 378 | "net_colors": null 379 | }, 380 | "pcbnew": { 381 | "last_paths": { 382 | "gencad": "", 383 | "idf": "", 384 | "netlist": "NES_PowerBoard_Classic_RCA_V1.8.net", 385 | "specctra_dsn": "", 386 | "step": "", 387 | "vrml": "" 388 | }, 389 | "page_layout_descr_file": "" 390 | }, 391 | "schematic": { 392 | "annotate_start_num": 0, 393 | "drawing": { 394 | "default_line_thickness": 6.0, 395 | "default_text_size": 50.0, 396 | "field_names": [], 397 | "intersheets_ref_own_page": false, 398 | "intersheets_ref_prefix": "", 399 | "intersheets_ref_short": false, 400 | "intersheets_ref_show": false, 401 | "intersheets_ref_suffix": "", 402 | "junction_size_choice": 3, 403 | "label_size_ratio": 0.375, 404 | "pin_symbol_size": 25.0, 405 | "text_offset_ratio": 0.15 406 | }, 407 | "legacy_lib_dir": "", 408 | "legacy_lib_list": [], 409 | "meta": { 410 | "version": 1 411 | }, 412 | "net_format_name": "", 413 | "ngspice": { 414 | "fix_include_paths": true, 415 | "fix_passive_vals": false, 416 | "meta": { 417 | "version": 0 418 | }, 419 | "model_mode": 0, 420 | "workbook_filename": "" 421 | }, 422 | "page_layout_descr_file": "", 423 | "plot_directory": "", 424 | "spice_adjust_passive_values": false, 425 | "spice_external_command": "spice \"%I\"", 426 | "subpart_first_id": 65, 427 | "subpart_id_separator": 0 428 | }, 429 | "sheets": [ 430 | [ 431 | "eaef1172-3351-417c-bfc4-74a598f141cb", 432 | "" 433 | ] 434 | ], 435 | "text_variables": {} 436 | } 437 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 1.8/Kicad Files/readme.md: -------------------------------------------------------------------------------- 1 | 2 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 1.8/NES_PowerBoard_Classic_RCA_V1.8_Gerbers.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic Composite Edition/Older Archived Designs/Version 1.8/NES_PowerBoard_Classic_RCA_V1.8_Gerbers.zip -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 1.8/Readme.md: -------------------------------------------------------------------------------- 1 | 2 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 1.8/SCHEMATIC - NES Power Board Classic Composite Edition V1.6.png: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic Composite Edition/Older Archived Designs/Version 1.8/SCHEMATIC - NES Power Board Classic Composite Edition V1.6.png -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 2.0b/BOM_NES_PowerBoard_Classic_RCA_V2.0b.csv: -------------------------------------------------------------------------------- 1 | Comment,Designator,SMD Footprints,LCSC,Mouser 2 | 6.8uH,L1,SMD_6x6x4.5mm,C206253, 3 | BL8033,J7,SOT-23-6L,C160717, 4 | 2200uF,C1,CAP-SMD,C249624, 5 | .01uF,C2,Capacitor_SMD:C_0805_2012Metric,C1710, 6 | 22uF,C3,Capacitor_SMD:C_0805_2012Metric,C602037, 7 | .1uF,C4,Capacitor_SMD:C_0805_2012Metric,C49678, 8 | 1uF,C5,Capacitor_SMD:C_0805_2012Metric,C28323, 9 | 22uF,C6,Capacitor_SMD:C_1206_3216Metric,C12891, 10 | 220uF,C8,CAP-SMD,C259967, 11 | TT8MF,D1,TTF,C712545, 12 | Green_LED,D2,LED_SMD:LED_0805_2012Metric,C2297, 13 | 680R,R1,Resistor_SMD:R_0805_2012Metric,C17798, 14 | 300R,R2,Resistor_SMD:R_0805_2012Metric,C17617, 15 | 110R,R3,Resistor_SMD:R_0805_2012Metric,C246031, 16 | 10K,R4,Resistor_SMD:R_0805_2012Metric,C17414, 17 | 7.68k,R5,Resistor_SMD:R_0805_2012Metric,C30041, 18 | 40.2k,R6,Resistor_SMD:R_0805_2012Metric,C17678, 19 | 100K,R7,Resistor_SMD:R_0805_2012Metric,C149504, 20 | 2SA1015,Q1,Package_TO_SOT_SMD:SOT-23,C181170, 21 | DC-005-5A - Power Jack,J2,THT,C381115, 22 | ,,,, 23 | Comment,Designator,Through Hole FootPrints,LCSC,Mouser 24 | Red RCA,J5,Right Audio - Red RCA Jack,,"RCJ-042 " 25 | White RCA,J3,Left Audio - White RCA Jack,,"RCJ-043 " 26 | Yellow RCA,J4,Video Out Yellow RCA Jack,,"RCJ-044 " 27 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 2.0b/NES_PowerBoard_Classic_RCA_V2.0b-Gerbers.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic Composite Edition/Older Archived Designs/Version 2.0b/NES_PowerBoard_Classic_RCA_V2.0b-Gerbers.zip -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 2.0b/POS_NES_PowerBoard_Classic_RCA_V2.0b.csv: -------------------------------------------------------------------------------- 1 | Designator,Val,Package,MidX,MidY,Rotation,Layer 2 | C1,2200uF,CAP-SMD_BD16.0-L17.0-W17.0-FD-LS18.0,216.5,48.65,180,top 3 | C2,10nF,C_0805_2012Metric,250.25,44.35,0,top 4 | C3,22uf/25,C_0805_2012Metric,239.25,37.35,-90,top 5 | C4,.1uF/25,C_0805_2012Metric,237,37.35,-90,top 6 | C5,1uF,C_0805_2012Metric,230.5,40.1,-90,top 7 | C6,22uf/25,C_1206_3216Metric,237.5,30.35,90,top 8 | C8,220uF,CAP-SMD_BD6.3-L6.5-W6.5-LS7.0-FD,214,27.1,180,top 9 | D1,TTR5MF,TTF,213.85,64.7,180,top 10 | D2,Power LED,LED_0805_2012Metric,223.6,34.75,90,top 11 | J2,DC-005-5A - Power Jack,THT,204.39,64.2975,0,top 12 | J7,BL8033,SOT-23-6_Handsoldering,233.75,39.6,-90,top 13 | L1,6.8uH,Inductor-L_6.3x6.3_H3,232.34,31.1,0,top 14 | Q1,2SA1015,SOT-23,218.75,22.77,0,top 15 | R1,680,R_0805_2012Metric,225.6,34.75,-90,top 16 | R2,300,R_0805_2012Metric,220.75,26.85,180,top 17 | R3,110R,R_0805_2012Metric,208,27.1,-90,top 18 | R4,10k,R_0805_2012Metric,233.25,43.1,180,top 19 | R5,7.68k,R_0805_2012Metric,228.5,40.1,-90,top 20 | R6,40.2k,R_0805_2012Metric,229.75,43.1,180,top 21 | R7,100K,R_0805_2012Metric,238,40.35,0,top 22 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 2.0b/readme.md: -------------------------------------------------------------------------------- 1 | # NES Revival Classic Power Board RCA Edition 2.0 2 | 3 | Check out the Virtual BOM and Placement of these components on this Board. 4 | [Link](https://htmlpreview.github.io/?https://github.com/ShawMerlin/NES-Power-Module-Redesign/blob/main/Classic%20Composite%20Edition/Version%202.0b/IBOM_NES_PowerBoard_Classic_RCA_V2.0b.html)
5 | 6 | The below improvements have been made to Version 2.0v over our last release of 1.8v.
7 | 8 | Updates 2/14/2023
9 | - Upgraded the Full Bridge Rectifier to one that can do 5 Amps. The old version was getting pretty warm.
10 | - Beefier DC Input Jack that can handle 5 Amps (old one could only do 2.5 amps)
11 | - This Board has been tested pulling 3 Amps max without issue.
12 | - Ground stitching over audio traces to help prevent any static and noise that would be coming from the Buck Converter.
13 | - The Power LED turns on now when the Solder Bridge has been made. Meaning it can be disabled by removing the bridge.
14 | - Most all parts are SMD now and made easy for an Assembly House like JLCPCB to build the PCB and Assemble for you.
15 | - BOM and POS files are included that Assembly Houses will need.

16 | 17 | ![image](https://user-images.githubusercontent.com/70423454/218925882-f2fb7efe-27cc-43b1-8b55-42b3a82840e6.png) 18 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 2.1e/BOM_NES_PowerBoard_Classic_RCA_V2.1e.csv: -------------------------------------------------------------------------------- 1 | Comment,Designator,SMD Footprints,LCSC,Mouser 2 | 2200uF,C1,CAP-SMD,C249624, 3 | .01uF,C2,C_0805_2012Metric,C1710, 4 | 22uF,"C3,C6",C_1206_3216Metric,C12891, 5 | .1uF,"C4,C10",C_0805_2012Metric,C49678, 6 | 1uF,C5,C_0805_2012Metric,C28323, 7 | 220uF,C8,CAP-SMD_BD6.3-L6.5-W6.5-LS7.0-FD,C259967, 8 | 47uF,C9,C_1206_3216Metric,C426659, 9 | 50pF,C11,C_0805_2012Metric,C1823, 10 | SD560B,"D1,D2,D3,D4",D_SMB,C260348, 11 | Green_LED,D5,LED_0805_2012Metric,C2297, 12 | Red_LED,D6,LED_0603_1608Metric,C84263, 13 | 1N4148W,D7,D_SOD-123,C81598, 14 | SMD1812P150TF/16,FUSE1,1812,C20810, 15 | DC-005-5A-2.5,J2,BarrelJack_Horizontal,C381115, 16 | BL8033,J7,SOT-23-6L,C160717, 17 | JSHC0420-R56M,L1,IND-SMD_L4.9-W4.5,C386774, 18 | SLB1360P100MTT,L2,IND-SMD_L13.0-W13.0,C397796, 19 | 2SA1015,Q1,Package_TO_SOT_SMD:SOT-23,C181170, 20 | 2K,R1,R_0805_2012Metric,C17520, 21 | 300R,R2,R_0805_2012Metric,C17617, 22 | 110R,R3,R_0805_2012Metric,C246031, 23 | 10K,R4,R_0805_2012Metric,C17414, 24 | 7.68k,R5,R_0805_2012Metric,C30041, 25 | 40.2k,R6,R_0805_2012Metric,C17678, 26 | 100K,R7,R_0805_2012Metric,C149504, 27 | 2K,R8,R_0603_1608Metric,C4190, 28 | ,,,, 29 | ,,,, 30 | ,,,, 31 | Comment,Designator,Through Hole FootPrints,LCSC,Mouser 32 | Red RCA,J5,Right Audio - Red RCA Jack,,"RCJ-042 " 33 | White RCA,J3,Left Audio - White RCA Jack,,"RCJ-043 " 34 | Yellow RCA,J4,Video Out Yellow RCA Jack,,"RCJ-044 " 35 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 2.1e/NES_PowerBoard_Classic_RCA_V2e.kicad_pro: -------------------------------------------------------------------------------- 1 | { 2 | "board": { 3 | "design_settings": { 4 | "defaults": { 5 | "board_outline_line_width": 0.049999999999999996, 6 | "copper_line_width": 0.19999999999999998, 7 | "copper_text_italic": false, 8 | "copper_text_size_h": 1.5, 9 | "copper_text_size_v": 1.5, 10 | "copper_text_thickness": 0.3, 11 | "copper_text_upright": false, 12 | "courtyard_line_width": 0.049999999999999996, 13 | "dimension_precision": 4, 14 | "dimension_units": 3, 15 | "dimensions": { 16 | "arrow_length": 1270000, 17 | "extension_offset": 500000, 18 | "keep_text_aligned": true, 19 | "suppress_zeroes": false, 20 | "text_position": 0, 21 | "units_format": 1 22 | }, 23 | "fab_line_width": 0.09999999999999999, 24 | "fab_text_italic": false, 25 | "fab_text_size_h": 1.0, 26 | "fab_text_size_v": 1.0, 27 | "fab_text_thickness": 0.15, 28 | "fab_text_upright": false, 29 | "other_line_width": 0.09999999999999999, 30 | "other_text_italic": false, 31 | "other_text_size_h": 1.0, 32 | "other_text_size_v": 1.0, 33 | "other_text_thickness": 0.15, 34 | "other_text_upright": false, 35 | "pads": { 36 | "drill": 0.0, 37 | "height": 0.6, 38 | "width": 1.1 39 | }, 40 | "silk_line_width": 0.12, 41 | "silk_text_italic": false, 42 | "silk_text_size_h": 1.0, 43 | "silk_text_size_v": 1.0, 44 | "silk_text_thickness": 0.15, 45 | "silk_text_upright": false, 46 | "zones": { 47 | "45_degree_only": false, 48 | "min_clearance": 0.208 49 | } 50 | }, 51 | "diff_pair_dimensions": [ 52 | { 53 | "gap": 0.0, 54 | "via_gap": 0.0, 55 | "width": 0.0 56 | } 57 | ], 58 | "drc_exclusions": [], 59 | "meta": { 60 | "version": 2 61 | }, 62 | "rule_severities": { 63 | "annular_width": "error", 64 | "clearance": "error", 65 | "copper_edge_clearance": "error", 66 | "courtyards_overlap": "error", 67 | "diff_pair_gap_out_of_range": "error", 68 | "diff_pair_uncoupled_length_too_long": "error", 69 | "drill_out_of_range": "error", 70 | "duplicate_footprints": "warning", 71 | "extra_footprint": "warning", 72 | "footprint_type_mismatch": "error", 73 | "hole_clearance": "error", 74 | "hole_near_hole": "error", 75 | "invalid_outline": "error", 76 | "item_on_disabled_layer": "error", 77 | "items_not_allowed": "error", 78 | "length_out_of_range": "error", 79 | "malformed_courtyard": "error", 80 | "microvia_drill_out_of_range": "error", 81 | "missing_courtyard": "ignore", 82 | "missing_footprint": "warning", 83 | "net_conflict": "warning", 84 | "npth_inside_courtyard": "ignore", 85 | "padstack": "error", 86 | "pth_inside_courtyard": "ignore", 87 | "shorting_items": "error", 88 | "silk_over_copper": "warning", 89 | "silk_overlap": "warning", 90 | "skew_out_of_range": "error", 91 | "through_hole_pad_without_hole": "error", 92 | "too_many_vias": "error", 93 | "track_dangling": "warning", 94 | "track_width": "error", 95 | "tracks_crossing": "error", 96 | "unconnected_items": "error", 97 | "unresolved_variable": "error", 98 | "via_dangling": "warning", 99 | "zone_has_empty_net": "error", 100 | "zones_intersect": "error" 101 | }, 102 | "rules": { 103 | "allow_blind_buried_vias": false, 104 | "allow_microvias": false, 105 | "max_error": 0.005, 106 | "min_clearance": 0.0, 107 | "min_copper_edge_clearance": 0.01, 108 | "min_hole_clearance": 0.25, 109 | "min_hole_to_hole": 0.25, 110 | "min_microvia_diameter": 0.19999999999999998, 111 | "min_microvia_drill": 0.09999999999999999, 112 | "min_silk_clearance": 0.0, 113 | "min_through_hole_diameter": 0.3, 114 | "min_track_width": 0.19999999999999998, 115 | "min_via_annular_width": 0.049999999999999996, 116 | "min_via_diameter": 0.39999999999999997, 117 | "use_height_for_length_calcs": true 118 | }, 119 | "track_widths": [ 120 | 0.0, 121 | 0.25, 122 | 0.35, 123 | 0.5, 124 | 0.75, 125 | 1.0 126 | ], 127 | "via_dimensions": [ 128 | { 129 | "diameter": 0.0, 130 | "drill": 0.0 131 | } 132 | ], 133 | "zones_allow_external_fillets": false, 134 | "zones_use_no_outline": true 135 | }, 136 | "layer_presets": [] 137 | }, 138 | "boards": [], 139 | "cvpcb": { 140 | "equivalence_files": [] 141 | }, 142 | "erc": { 143 | "erc_exclusions": [], 144 | "meta": { 145 | "version": 0 146 | }, 147 | "pin_map": [ 148 | [ 149 | 0, 150 | 0, 151 | 0, 152 | 0, 153 | 0, 154 | 0, 155 | 1, 156 | 0, 157 | 0, 158 | 0, 159 | 0, 160 | 2 161 | ], 162 | [ 163 | 0, 164 | 2, 165 | 0, 166 | 1, 167 | 0, 168 | 0, 169 | 1, 170 | 0, 171 | 2, 172 | 2, 173 | 2, 174 | 2 175 | ], 176 | [ 177 | 0, 178 | 0, 179 | 0, 180 | 0, 181 | 0, 182 | 0, 183 | 1, 184 | 0, 185 | 1, 186 | 0, 187 | 1, 188 | 2 189 | ], 190 | [ 191 | 0, 192 | 1, 193 | 0, 194 | 0, 195 | 0, 196 | 0, 197 | 1, 198 | 1, 199 | 2, 200 | 1, 201 | 1, 202 | 2 203 | ], 204 | [ 205 | 0, 206 | 0, 207 | 0, 208 | 0, 209 | 0, 210 | 0, 211 | 1, 212 | 0, 213 | 0, 214 | 0, 215 | 0, 216 | 2 217 | ], 218 | [ 219 | 0, 220 | 0, 221 | 0, 222 | 0, 223 | 0, 224 | 0, 225 | 0, 226 | 0, 227 | 0, 228 | 0, 229 | 0, 230 | 2 231 | ], 232 | [ 233 | 1, 234 | 1, 235 | 1, 236 | 1, 237 | 1, 238 | 0, 239 | 1, 240 | 1, 241 | 1, 242 | 1, 243 | 1, 244 | 2 245 | ], 246 | [ 247 | 0, 248 | 0, 249 | 0, 250 | 1, 251 | 0, 252 | 0, 253 | 1, 254 | 0, 255 | 0, 256 | 0, 257 | 0, 258 | 2 259 | ], 260 | [ 261 | 0, 262 | 2, 263 | 1, 264 | 2, 265 | 0, 266 | 0, 267 | 1, 268 | 0, 269 | 2, 270 | 2, 271 | 2, 272 | 2 273 | ], 274 | [ 275 | 0, 276 | 2, 277 | 0, 278 | 1, 279 | 0, 280 | 0, 281 | 1, 282 | 0, 283 | 2, 284 | 0, 285 | 0, 286 | 2 287 | ], 288 | [ 289 | 0, 290 | 2, 291 | 1, 292 | 1, 293 | 0, 294 | 0, 295 | 1, 296 | 0, 297 | 2, 298 | 0, 299 | 0, 300 | 2 301 | ], 302 | [ 303 | 2, 304 | 2, 305 | 2, 306 | 2, 307 | 2, 308 | 2, 309 | 2, 310 | 2, 311 | 2, 312 | 2, 313 | 2, 314 | 2 315 | ] 316 | ], 317 | "rule_severities": { 318 | "bus_definition_conflict": "error", 319 | "bus_entry_needed": "error", 320 | "bus_label_syntax": "error", 321 | "bus_to_bus_conflict": "error", 322 | "bus_to_net_conflict": "error", 323 | "different_unit_footprint": "error", 324 | "different_unit_net": "error", 325 | "duplicate_reference": "error", 326 | "duplicate_sheet_names": "error", 327 | "extra_units": "error", 328 | "global_label_dangling": "warning", 329 | "hier_label_mismatch": "error", 330 | "label_dangling": "error", 331 | "lib_symbol_issues": "warning", 332 | "multiple_net_names": "warning", 333 | "net_not_bus_member": "warning", 334 | "no_connect_connected": "warning", 335 | "no_connect_dangling": "warning", 336 | "pin_not_connected": "error", 337 | "pin_not_driven": "error", 338 | "pin_to_pin": "warning", 339 | "power_pin_not_driven": "error", 340 | "similar_labels": "warning", 341 | "unannotated": "error", 342 | "unit_value_mismatch": "error", 343 | "unresolved_variable": "error", 344 | "wire_dangling": "error" 345 | } 346 | }, 347 | "libraries": { 348 | "pinned_footprint_libs": [], 349 | "pinned_symbol_libs": [] 350 | }, 351 | "meta": { 352 | "filename": "NES_PowerBoard_Classic_RCA_V2e.kicad_pro", 353 | "version": 1 354 | }, 355 | "net_settings": { 356 | "classes": [ 357 | { 358 | "bus_width": 12.0, 359 | "clearance": 0.2, 360 | "diff_pair_gap": 0.25, 361 | "diff_pair_via_gap": 0.25, 362 | "diff_pair_width": 0.2, 363 | "line_style": 0, 364 | "microvia_diameter": 0.3, 365 | "microvia_drill": 0.1, 366 | "name": "Default", 367 | "pcb_color": "rgba(0, 0, 0, 0.000)", 368 | "schematic_color": "rgba(0, 0, 0, 0.000)", 369 | "track_width": 0.25, 370 | "via_diameter": 0.8, 371 | "via_drill": 0.4, 372 | "wire_width": 6.0 373 | } 374 | ], 375 | "meta": { 376 | "version": 2 377 | }, 378 | "net_colors": null 379 | }, 380 | "pcbnew": { 381 | "last_paths": { 382 | "gencad": "", 383 | "idf": "", 384 | "netlist": "NES_PowerBoard_Classic_RCA_V1.8.net", 385 | "specctra_dsn": "", 386 | "step": "", 387 | "vrml": "" 388 | }, 389 | "page_layout_descr_file": "" 390 | }, 391 | "schematic": { 392 | "annotate_start_num": 0, 393 | "drawing": { 394 | "default_line_thickness": 6.0, 395 | "default_text_size": 50.0, 396 | "field_names": [], 397 | "intersheets_ref_own_page": false, 398 | "intersheets_ref_prefix": "", 399 | "intersheets_ref_short": false, 400 | "intersheets_ref_show": false, 401 | "intersheets_ref_suffix": "", 402 | "junction_size_choice": 3, 403 | "label_size_ratio": 0.375, 404 | "pin_symbol_size": 25.0, 405 | "text_offset_ratio": 0.15 406 | }, 407 | "legacy_lib_dir": "", 408 | "legacy_lib_list": [], 409 | "meta": { 410 | "version": 1 411 | }, 412 | "net_format_name": "", 413 | "ngspice": { 414 | "fix_include_paths": true, 415 | "fix_passive_vals": false, 416 | "meta": { 417 | "version": 0 418 | }, 419 | "model_mode": 0, 420 | "workbook_filename": "" 421 | }, 422 | "page_layout_descr_file": "", 423 | "plot_directory": "", 424 | "spice_adjust_passive_values": false, 425 | "spice_external_command": "spice \"%I\"", 426 | "subpart_first_id": 65, 427 | "subpart_id_separator": 0 428 | }, 429 | "sheets": [ 430 | [ 431 | "eaef1172-3351-417c-bfc4-74a598f141cb", 432 | "" 433 | ] 434 | ], 435 | "text_variables": {} 436 | } 437 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 2.1e/NES_PowerBoard_Classic_RCA_V2e.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic Composite Edition/Older Archived Designs/Version 2.1e/NES_PowerBoard_Classic_RCA_V2e.zip -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 2.1e/POS_NES_PowerBoard_Classic_RCA_V2.1e.csv: -------------------------------------------------------------------------------- 1 | Designator,Val,Package,MidX,MidY,Rotation,Layer 2 | C1,CAP-SMD_BD16.0-L17.0-W17.0-FD-LS18.0,CAP-SMD_BD16.0-L17.0-W17.0-FD-LS18.0,214.75,52.25,180,top 3 | C2,10nF,C_0805_2012Metric,250.25,44.35,0,top 4 | C3,22uf/25,C_1206_3216Metric,236.55,44,-90,top 5 | C4,.1uF/25,C_0805_2012Metric,234.25,44.55,-90,top 6 | C5,1uF,C_0805_2012Metric,227.9875,47.5,-90,top 7 | C6,22uf/25,C_1206_3216Metric,240.5,29.75,-90,top 8 | C8,220uF,CAP-SMD_BD6.3-L6.5-W6.5-LS7.0-FD,214,27.1,180,top 9 | C9,47uF,C_1206_3216Metric,238.1,29.75,-90,top 10 | C10,.1uF/25,C_0805_2012Metric,242.75,30.35,-90,top 11 | C11,50pF,C_0805_2012Metric,244.85,30.35,-90,top 12 | D1,SD560B,D_SMB,211.6,70.25,180,top 13 | D2,SD560B,D_SMB,219.6,70.25,0,top 14 | D3,SD560B,D_SMB,211.6,65.75,180,top 15 | D4,SD560B,D_SMB,219.6,65.75,0,top 16 | D5,Green Power LED,LED_0805_2012Metric,214,37,-90,top 17 | D6,Red Fuse LED,LED_0603_1608Metric,244,44.75,-90,top 18 | D7,1N4148W,D_SOD-123,244.375,37.55,-90,top 19 | FUSE1,F1812,F1812,240.6,37.5,-90,top 20 | J2,DC-005-5A-2.5,BarrelJack_Horizontal,204.39,64.2975,0,top 21 | J7,BL8033,SOT-23-6_Handsoldering,231,46.8,-90,top 22 | L1,IND-SMD_L4.9-W4.5,IND-SMD_L4.9-W4.5,240.3,43.65,-90,top 23 | L2,IND-SMD_L13.0-W13.0,IND-SMD_L13.0-W13.0,230,34.4,-90,top 24 | Q1,2SA1015,SOT-23,218.75,22.77,0,top 25 | R1,2.2k,R_0805_2012Metric,216,37,90,top 26 | R2,300,R_0805_2012Metric,220.75,26.85,180,top 27 | R3,110R,R_0805_2012Metric,208,27.1,-90,top 28 | R4,10k,R_0805_2012Metric,225.8,47.5,-90,top 29 | R5,7.68k,R_0805_2012Metric,223.75,44.1,-90,top 30 | R6,40.2k,R_0805_2012Metric,225.8,44.1,-90,top 31 | R7,100K,R_0805_2012Metric,234.65,48.3,0,top 32 | R8,2.2k,R_0603_1608Metric,244,41.5,-90,top 33 | -------------------------------------------------------------------------------- /Classic Composite Edition/Older Archived Designs/Version 2.1e/readme.md: -------------------------------------------------------------------------------- 1 | 2 | -------------------------------------------------------------------------------- /Classic Composite Edition/readme.md: -------------------------------------------------------------------------------- 1 | **1/15/2025 - Version 3.1c**
2 | - Updated a mistake in the BOM for the Digikey Part number to be correct on the Q1 Transistor.
3 | - https://www.digikey.com/en/products/detail/evvo/2SA1015/22482092

4 | - Updated C12 to be 560pF, 1nF will work fine but 560pF produces a slightly sharper picture.
5 | - https://www.digikey.com/en/products/detail/kemet/C0805C561J5GACAUTO/10642381

6 | - Updated Switching Regulator from Digikey to the H Variant in the BOM - 1/17/2025
7 | - https://www.digikey.com/en/products/detail/texas-instruments/TPS54202HDDCR/6026259

8 | 9 | **6/15/2024 - Version 3.1c**
10 | - It's been a long time coming but I wanted to make sure the RGBNES Versions were perfect.
11 | - This uses the exact same voltage regulator as the RGBNES Compantion Board.
12 | - GND Loop issue has been resolved.
13 | - 2 Audio Ports to give Duo Mono Sound.
14 | - Gerbers will be released for this later next week.
15 | 16 | ![image](https://github.com/ShawMerlin/NES-Power-Module-Redesign/assets/70423454/58c8878b-3d4e-4b5d-a789-e5c9d7a3947f) 17 | 18 | 19 | **2/06/2024 3.0 Update**
20 | - I am in the process of testing our new 3.0 design with lots of great feedback from our community.
21 | - At this time, I do not recommend having any of the 2.0 boards built.
22 | - If you have already invested time/money into the older boards, Please contact me so we can work something out.
23 | - I have an official Statement on these new boards within a few weeks.

24 | 25 | 26 | **4/01/2023 2.1 Update** 27 | - Create a Full Bridge Rectifier out of SMC Diodes for better heat dissapation into the PCB Board. 28 | - Changed the 6.8uH Inductor to a 10uH inductor per the datasheet in order to reduce noise. 29 | - Added an Input Inductor on the voltage regulator to reduce ringing on the circuit. 30 | - Added a 1.9A Fuse for safety and including a tripped fuse LED indicator. 31 | - Added more filtering caps on the 5v Output (47uF, 22uF, .1uF, 50pF) 32 | 33 | ![image](https://user-images.githubusercontent.com/70423454/229327264-134b7cf2-5151-47fe-b502-df62a01ec055.png) 34 | 35 | 36 | **2/14/2023 2.0 Update** 37 | - Upgraded the Full Bridge Rectifier to one that can do 5 Amps. The old version was getting pretty warm. 38 | - Beefier DC Input Jack that can handle 5 Amps (old one could only do 2.5 amps) 39 | - This Board has been tested pulling 3 Amps max without issue. 40 | - Ground stitching over audio traces to help prevent any static and noise that would be coming from the Buck Converter. 41 | - The Power LED turns on now when the Solder Bridge has been made. Meaning it can be disabled by removing the bridge. 42 | - Most all parts are SMD now and made easy for an Assembly House like JLCPCB to build the PCB and Assemble for you. 43 | - BOM and POS files are included that Assembly Houses will need. 44 | 45 | **9/19/2022 Update** 46 | - Version 1.8 - Increased the Ground Stitching around the Video Trace and added Ground Stitching to the Audio Trace. 47 | 48 | I have uploaded the Gerbers for this board and also a Bill of Materials and Position File. 49 | You can use both these .CSV files to have JLCPCB provide and Assemble the SMD parts for you. 50 | 51 | # Picture Showcase!! 52 | 53 | ![IMG_0249](https://user-images.githubusercontent.com/70423454/179364663-a0c55e0e-c655-44df-aa56-60dbd48e1ca1.JPG) 54 | 55 | ![IMG_0247](https://user-images.githubusercontent.com/70423454/179364715-3eb0b7fd-7f62-46b9-8909-671c2c8192e6.JPG) 56 | 57 | ![IMG_0253](https://user-images.githubusercontent.com/70423454/179364775-fea9a326-a6ca-4d14-ba35-7a6c670ecfa7.JPG) 58 | 59 | ![IMG_0248](https://user-images.githubusercontent.com/70423454/179364731-f40d4218-21f4-47a5-adba-e601ad28afcb.JPG) 60 | -------------------------------------------------------------------------------- /Classic High-Def HDMI Mod Companion Board/DOCS_BOM_NES_Hi-Def_HDMI Mod Companion Board V1.1.csv: -------------------------------------------------------------------------------- 1 | Comment,Designator,SMD Footprints,LCSC,Mouser 2 | 10nF,C2,Capacitor_SMD:C_0805_2012Metric,C1710, 3 | Green_LED,D2,LED_SMD:LED_0805_2012Metric,C2297, 4 | 2K,R1,Resistor_SMD:R_0805_2012Metric,C17798, 5 | 300R,R2,Resistor_SMD:R_0805_2012Metric,C17617, 6 | 110R,R3,Resistor_SMD:R_0805_2012Metric,C17423, 7 | 2SA1015,Q1,Package_TO_SOT_SMD:SOT-23,C545569, 8 | ,,,, 9 | Comment,Designator,Through Hole FootPrints,LCSC,Mouser 10 | 2200uF,C1,Capacitor_THT:CP_Radial_D12.5mm_P5.00mm,C225868,UVZ1E222MHD 11 | 100uF,C5,Capacitor_THT:CP_Radial_D6.3mm_P2.50mm, ,50ML1MEFC4X5 12 | 220uF,C8,Capacitor_THT:CP_Radial_D6.3mm_P2.50mm,C2897445,6SEPC220M+TSS 13 | Power Jack,J1,"2.1mm ID, DC Power Supply Connector, 2 Pin", ,PJ-037A 14 | Red RCA,,Right Audio - Red RCA Jack,,"RCJ-042 " 15 | White RCA,,Left Audio - White RCA Jack,,"RCJ-043 " 16 | Yellow RCA,,Video Out Yellow RCA Jack,,"RCJ-044 " 17 | AC->DC,,Bridge Rectifiers VR=600V IAV=2.0A,,DF206ST-G 18 | -------------------------------------------------------------------------------- /Classic High-Def HDMI Mod Companion Board/Kicad Files/NES_PowerBoard_Hi-Def_HDMI Mod Companion Board V1.1.kicad_prl: -------------------------------------------------------------------------------- 1 | { 2 | "board": { 3 | "active_layer": 0, 4 | "active_layer_preset": "All Layers", 5 | "auto_track_width": true, 6 | "hidden_netclasses": [], 7 | "hidden_nets": [], 8 | "high_contrast_mode": 0, 9 | "net_color_mode": 1, 10 | "opacity": { 11 | "images": 0.6, 12 | "pads": 1.0, 13 | "tracks": 1.0, 14 | "vias": 1.0, 15 | "zones": 0.6 16 | }, 17 | "ratsnest_display_mode": 0, 18 | "selection_filter": { 19 | "dimensions": true, 20 | "footprints": true, 21 | "graphics": true, 22 | "keepouts": true, 23 | "lockedItems": true, 24 | "otherItems": true, 25 | "pads": true, 26 | "text": true, 27 | "tracks": true, 28 | "vias": true, 29 | "zones": true 30 | }, 31 | "visible_items": [ 32 | 0, 33 | 1, 34 | 2, 35 | 3, 36 | 4, 37 | 5, 38 | 8, 39 | 9, 40 | 10, 41 | 11, 42 | 12, 43 | 13, 44 | 14, 45 | 15, 46 | 16, 47 | 17, 48 | 18, 49 | 19, 50 | 20, 51 | 21, 52 | 22, 53 | 23, 54 | 24, 55 | 25, 56 | 26, 57 | 27, 58 | 28, 59 | 29, 60 | 30, 61 | 32, 62 | 33, 63 | 34, 64 | 35, 65 | 36 66 | ], 67 | "visible_layers": "fffffff_ffffffff", 68 | "zone_display_mode": 0 69 | }, 70 | "meta": { 71 | "filename": "NES_PowerBoard_Hi-Def_HDMI Mod Companion Board V1.1.kicad_prl", 72 | "version": 3 73 | }, 74 | "project": { 75 | "files": [] 76 | } 77 | } 78 | -------------------------------------------------------------------------------- /Classic High-Def HDMI Mod Companion Board/Kicad Files/NES_PowerBoard_Hi-Def_HDMI Mod Companion Board V1.1.kicad_pro: -------------------------------------------------------------------------------- 1 | { 2 | "board": { 3 | "3dviewports": [], 4 | "design_settings": { 5 | "defaults": { 6 | "board_outline_line_width": 0.049999999999999996, 7 | "copper_line_width": 0.19999999999999998, 8 | "copper_text_italic": false, 9 | "copper_text_size_h": 1.5, 10 | "copper_text_size_v": 1.5, 11 | "copper_text_thickness": 0.3, 12 | "copper_text_upright": false, 13 | "courtyard_line_width": 0.049999999999999996, 14 | "dimension_precision": 4, 15 | "dimension_units": 3, 16 | "dimensions": { 17 | "arrow_length": 1270000, 18 | "extension_offset": 500000, 19 | "keep_text_aligned": true, 20 | "suppress_zeroes": false, 21 | "text_position": 0, 22 | "units_format": 1 23 | }, 24 | "fab_line_width": 0.09999999999999999, 25 | "fab_text_italic": false, 26 | "fab_text_size_h": 1.0, 27 | "fab_text_size_v": 1.0, 28 | "fab_text_thickness": 0.15, 29 | "fab_text_upright": false, 30 | "other_line_width": 0.09999999999999999, 31 | "other_text_italic": false, 32 | "other_text_size_h": 1.0, 33 | "other_text_size_v": 1.0, 34 | "other_text_thickness": 0.15, 35 | "other_text_upright": false, 36 | "pads": { 37 | "drill": 0.0, 38 | "height": 1.82, 39 | "width": 1.5 40 | }, 41 | "silk_line_width": 0.12, 42 | "silk_text_italic": false, 43 | "silk_text_size_h": 1.0, 44 | "silk_text_size_v": 1.0, 45 | "silk_text_thickness": 0.15, 46 | "silk_text_upright": false, 47 | "zones": { 48 | "45_degree_only": false, 49 | "min_clearance": 0.208 50 | } 51 | }, 52 | "diff_pair_dimensions": [ 53 | { 54 | "gap": 0.0, 55 | "via_gap": 0.0, 56 | "width": 0.0 57 | } 58 | ], 59 | "drc_exclusions": [], 60 | "meta": { 61 | "version": 2 62 | }, 63 | "rule_severities": { 64 | "annular_width": "error", 65 | "clearance": "error", 66 | "connection_width": "warning", 67 | "copper_edge_clearance": "error", 68 | "copper_sliver": "warning", 69 | "courtyards_overlap": "error", 70 | "diff_pair_gap_out_of_range": "error", 71 | "diff_pair_uncoupled_length_too_long": "error", 72 | "drill_out_of_range": "error", 73 | "duplicate_footprints": "warning", 74 | "extra_footprint": "warning", 75 | "footprint": "error", 76 | "footprint_type_mismatch": "error", 77 | "hole_clearance": "error", 78 | "hole_near_hole": "error", 79 | "invalid_outline": "error", 80 | "isolated_copper": "warning", 81 | "item_on_disabled_layer": "error", 82 | "items_not_allowed": "error", 83 | "length_out_of_range": "error", 84 | "lib_footprint_issues": "warning", 85 | "lib_footprint_mismatch": "warning", 86 | "malformed_courtyard": "error", 87 | "microvia_drill_out_of_range": "error", 88 | "missing_courtyard": "ignore", 89 | "missing_footprint": "warning", 90 | "net_conflict": "warning", 91 | "npth_inside_courtyard": "ignore", 92 | "padstack": "error", 93 | "pth_inside_courtyard": "ignore", 94 | "shorting_items": "error", 95 | "silk_edge_clearance": "warning", 96 | "silk_over_copper": "warning", 97 | "silk_overlap": "warning", 98 | "skew_out_of_range": "error", 99 | "solder_mask_bridge": "error", 100 | "starved_thermal": "error", 101 | "text_height": "warning", 102 | "text_thickness": "warning", 103 | "through_hole_pad_without_hole": "error", 104 | "too_many_vias": "error", 105 | "track_dangling": "warning", 106 | "track_width": "error", 107 | "tracks_crossing": "error", 108 | "unconnected_items": "error", 109 | "unresolved_variable": "error", 110 | "via_dangling": "warning", 111 | "zones_intersect": "error" 112 | }, 113 | "rules": { 114 | "allow_blind_buried_vias": false, 115 | "allow_microvias": false, 116 | "max_error": 0.005, 117 | "min_clearance": 0.0, 118 | "min_connection": 0.0, 119 | "min_copper_edge_clearance": 0.01, 120 | "min_hole_clearance": 0.25, 121 | "min_hole_to_hole": 0.25, 122 | "min_microvia_diameter": 0.19999999999999998, 123 | "min_microvia_drill": 0.09999999999999999, 124 | "min_resolved_spokes": 2, 125 | "min_silk_clearance": 0.0, 126 | "min_text_height": 0.7999999999999999, 127 | "min_text_thickness": 0.08, 128 | "min_through_hole_diameter": 0.3, 129 | "min_track_width": 0.19999999999999998, 130 | "min_via_annular_width": 0.049999999999999996, 131 | "min_via_diameter": 0.39999999999999997, 132 | "solder_mask_to_copper_clearance": 0.0, 133 | "use_height_for_length_calcs": true 134 | }, 135 | "teardrop_options": [ 136 | { 137 | "td_allow_use_two_tracks": true, 138 | "td_curve_segcount": 5, 139 | "td_on_pad_in_zone": false, 140 | "td_onpadsmd": true, 141 | "td_onroundshapesonly": false, 142 | "td_ontrackend": false, 143 | "td_onviapad": true 144 | } 145 | ], 146 | "teardrop_parameters": [ 147 | { 148 | "td_curve_segcount": 0, 149 | "td_height_ratio": 1.0, 150 | "td_length_ratio": 0.5, 151 | "td_maxheight": 2.0, 152 | "td_maxlen": 1.0, 153 | "td_target_name": "td_round_shape", 154 | "td_width_to_size_filter_ratio": 0.9 155 | }, 156 | { 157 | "td_curve_segcount": 0, 158 | "td_height_ratio": 1.0, 159 | "td_length_ratio": 0.5, 160 | "td_maxheight": 2.0, 161 | "td_maxlen": 1.0, 162 | "td_target_name": "td_rect_shape", 163 | "td_width_to_size_filter_ratio": 0.9 164 | }, 165 | { 166 | "td_curve_segcount": 0, 167 | "td_height_ratio": 1.0, 168 | "td_length_ratio": 0.5, 169 | "td_maxheight": 2.0, 170 | "td_maxlen": 1.0, 171 | "td_target_name": "td_track_end", 172 | "td_width_to_size_filter_ratio": 0.9 173 | } 174 | ], 175 | "track_widths": [ 176 | 0.0, 177 | 0.25, 178 | 0.35, 179 | 0.5, 180 | 0.75, 181 | 1.0 182 | ], 183 | "via_dimensions": [ 184 | { 185 | "diameter": 0.0, 186 | "drill": 0.0 187 | } 188 | ], 189 | "zones_allow_external_fillets": false, 190 | "zones_use_no_outline": true 191 | }, 192 | "layer_presets": [], 193 | "viewports": [] 194 | }, 195 | "boards": [], 196 | "cvpcb": { 197 | "equivalence_files": [] 198 | }, 199 | "erc": { 200 | "erc_exclusions": [], 201 | "meta": { 202 | "version": 0 203 | }, 204 | "pin_map": [ 205 | [ 206 | 0, 207 | 0, 208 | 0, 209 | 0, 210 | 0, 211 | 0, 212 | 1, 213 | 0, 214 | 0, 215 | 0, 216 | 0, 217 | 2 218 | ], 219 | [ 220 | 0, 221 | 2, 222 | 0, 223 | 1, 224 | 0, 225 | 0, 226 | 1, 227 | 0, 228 | 2, 229 | 2, 230 | 2, 231 | 2 232 | ], 233 | [ 234 | 0, 235 | 0, 236 | 0, 237 | 0, 238 | 0, 239 | 0, 240 | 1, 241 | 0, 242 | 1, 243 | 0, 244 | 1, 245 | 2 246 | ], 247 | [ 248 | 0, 249 | 1, 250 | 0, 251 | 0, 252 | 0, 253 | 0, 254 | 1, 255 | 1, 256 | 2, 257 | 1, 258 | 1, 259 | 2 260 | ], 261 | [ 262 | 0, 263 | 0, 264 | 0, 265 | 0, 266 | 0, 267 | 0, 268 | 1, 269 | 0, 270 | 0, 271 | 0, 272 | 0, 273 | 2 274 | ], 275 | [ 276 | 0, 277 | 0, 278 | 0, 279 | 0, 280 | 0, 281 | 0, 282 | 0, 283 | 0, 284 | 0, 285 | 0, 286 | 0, 287 | 2 288 | ], 289 | [ 290 | 1, 291 | 1, 292 | 1, 293 | 1, 294 | 1, 295 | 0, 296 | 1, 297 | 1, 298 | 1, 299 | 1, 300 | 1, 301 | 2 302 | ], 303 | [ 304 | 0, 305 | 0, 306 | 0, 307 | 1, 308 | 0, 309 | 0, 310 | 1, 311 | 0, 312 | 0, 313 | 0, 314 | 0, 315 | 2 316 | ], 317 | [ 318 | 0, 319 | 2, 320 | 1, 321 | 2, 322 | 0, 323 | 0, 324 | 1, 325 | 0, 326 | 2, 327 | 2, 328 | 2, 329 | 2 330 | ], 331 | [ 332 | 0, 333 | 2, 334 | 0, 335 | 1, 336 | 0, 337 | 0, 338 | 1, 339 | 0, 340 | 2, 341 | 0, 342 | 0, 343 | 2 344 | ], 345 | [ 346 | 0, 347 | 2, 348 | 1, 349 | 1, 350 | 0, 351 | 0, 352 | 1, 353 | 0, 354 | 2, 355 | 0, 356 | 0, 357 | 2 358 | ], 359 | [ 360 | 2, 361 | 2, 362 | 2, 363 | 2, 364 | 2, 365 | 2, 366 | 2, 367 | 2, 368 | 2, 369 | 2, 370 | 2, 371 | 2 372 | ] 373 | ], 374 | "rule_severities": { 375 | "bus_definition_conflict": "error", 376 | "bus_entry_needed": "error", 377 | "bus_label_syntax": "error", 378 | "bus_to_bus_conflict": "error", 379 | "bus_to_net_conflict": "error", 380 | "different_unit_footprint": "error", 381 | "different_unit_net": "error", 382 | "duplicate_reference": "error", 383 | "duplicate_sheet_names": "error", 384 | "extra_units": "error", 385 | "global_label_dangling": "warning", 386 | "hier_label_mismatch": "error", 387 | "label_dangling": "error", 388 | "lib_symbol_issues": "warning", 389 | "multiple_net_names": "warning", 390 | "net_not_bus_member": "warning", 391 | "no_connect_connected": "warning", 392 | "no_connect_dangling": "warning", 393 | "pin_not_connected": "error", 394 | "pin_not_driven": "error", 395 | "pin_to_pin": "warning", 396 | "power_pin_not_driven": "error", 397 | "similar_labels": "warning", 398 | "unannotated": "error", 399 | "unit_value_mismatch": "error", 400 | "unresolved_variable": "error", 401 | "wire_dangling": "error" 402 | } 403 | }, 404 | "libraries": { 405 | "pinned_footprint_libs": [], 406 | "pinned_symbol_libs": [] 407 | }, 408 | "meta": { 409 | "filename": "NES_PowerBoard_Hi-Def_HDMI Mod Companion Board V1.1.kicad_pro", 410 | "version": 1 411 | }, 412 | "net_settings": { 413 | "classes": [ 414 | { 415 | "bus_width": 12, 416 | "clearance": 0.2, 417 | "diff_pair_gap": 0.25, 418 | "diff_pair_via_gap": 0.25, 419 | "diff_pair_width": 0.2, 420 | "line_style": 0, 421 | "microvia_diameter": 0.3, 422 | "microvia_drill": 0.1, 423 | "name": "Default", 424 | "pcb_color": "rgba(0, 0, 0, 0.000)", 425 | "schematic_color": "rgba(0, 0, 0, 0.000)", 426 | "track_width": 0.25, 427 | "via_diameter": 0.8, 428 | "via_drill": 0.4, 429 | "wire_width": 6 430 | } 431 | ], 432 | "meta": { 433 | "version": 3 434 | }, 435 | "net_colors": null, 436 | "netclass_assignments": null, 437 | "netclass_patterns": [] 438 | }, 439 | "pcbnew": { 440 | "last_paths": { 441 | "gencad": "", 442 | "idf": "", 443 | "netlist": "NES_PowerBoard_LDO_Classic_RCA_V1.1.net", 444 | "specctra_dsn": "", 445 | "step": "", 446 | "vrml": "" 447 | }, 448 | "page_layout_descr_file": "" 449 | }, 450 | "schematic": { 451 | "annotate_start_num": 0, 452 | "drawing": { 453 | "default_line_thickness": 6.0, 454 | "default_text_size": 50.0, 455 | "field_names": [], 456 | "intersheets_ref_own_page": false, 457 | "intersheets_ref_prefix": "", 458 | "intersheets_ref_short": false, 459 | "intersheets_ref_show": false, 460 | "intersheets_ref_suffix": "", 461 | "junction_size_choice": 3, 462 | "label_size_ratio": 0.375, 463 | "pin_symbol_size": 25.0, 464 | "text_offset_ratio": 0.15 465 | }, 466 | "legacy_lib_dir": "", 467 | "legacy_lib_list": [], 468 | "meta": { 469 | "version": 1 470 | }, 471 | "net_format_name": "", 472 | "ngspice": { 473 | "fix_include_paths": true, 474 | "fix_passive_vals": false, 475 | "meta": { 476 | "version": 0 477 | }, 478 | "model_mode": 0, 479 | "workbook_filename": "" 480 | }, 481 | "page_layout_descr_file": "", 482 | "plot_directory": "", 483 | "spice_adjust_passive_values": false, 484 | "spice_external_command": "spice \"%I\"", 485 | "subpart_first_id": 65, 486 | "subpart_id_separator": 0 487 | }, 488 | "sheets": [ 489 | [ 490 | "eaef1172-3351-417c-bfc4-74a598f141cb", 491 | "" 492 | ] 493 | ], 494 | "text_variables": {} 495 | } 496 | -------------------------------------------------------------------------------- /Classic High-Def HDMI Mod Companion Board/Kicad Files/Readme.md: -------------------------------------------------------------------------------- 1 | 2 | -------------------------------------------------------------------------------- /Classic High-Def HDMI Mod Companion Board/NES_PowerBoard_Hi-Def_HDMI_Gerbers_V1.1.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic High-Def HDMI Mod Companion Board/NES_PowerBoard_Hi-Def_HDMI_Gerbers_V1.1.zip -------------------------------------------------------------------------------- /Classic High-Def HDMI Mod Companion Board/readme.md: -------------------------------------------------------------------------------- 1 | For the lucky few that got the NES HDMI Board while it was available, there is an option for it with our boards. 2 | The NES HDMI Board uses the 9v input instead of the 5v regulated so there is no voltage regulator on this board. 3 | 4 | 5 | Large Postive and Negative pads to make it easy to connect wires directly to the HDMI Board. 6 | 7 | 8 | ![image](https://user-images.githubusercontent.com/70423454/188059317-081f0817-49a8-43d6-b4ea-268ba0b3c584.png) 9 | -------------------------------------------------------------------------------- /Classic RCA DIY THT Edition/BOM NES Revival THT DIY Version 3.0.xlsx: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic RCA DIY THT Edition/BOM NES Revival THT DIY Version 3.0.xlsx -------------------------------------------------------------------------------- /Classic RCA DIY THT Edition/NES_PowerBoard_7805_Classic_RCA_V3-1c_GERBERS.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic RCA DIY THT Edition/NES_PowerBoard_7805_Classic_RCA_V3-1c_GERBERS.zip -------------------------------------------------------------------------------- /Classic RCA DIY THT Edition/Version 1.3/DOCS_BOM_NES_Classic LDO RCA DIY THT V1.2 Edition.csv: -------------------------------------------------------------------------------- 1 | Designator,Qty,Query,Value,Description, Price ,Mouser 2 | C1,1,UVZ1E222MHD,2200uF,Capacitor_THT:CP_Radial_D12.5mm_P5.00mm,$1.00 ,https://www.mouser.com/ProductDetail/Nichicon/UVZ1E222MHD?qs=IervGVB6FOU7x4X6KRxxHg%3D%3D 3 | C2,1,FG18C0G1H103JNT00,10nF,Ceramic Capacitors MLCC - 0.01uF - 5% - C0G (NP0),$0.51 ,https://www.mouser.com/ProductDetail/TDK/FG18C0G1H103JNT00?qs=vNwBHymccZ%252Bw21RycOG3mw%3D%3D 4 | C3,1,FG16X7R2A334KNT06,.33uF,Ceramic Capacitors MLCC - 0.33uF - 10% - X7R,$0.56 ,https://www.mouser.com/ProductDetail/TDK/FG16X7R2A334KNT06?qs=qf2ddTMq67VlCs5DKK16%252Bg%3D%3D 5 | C4,1,FG16C0G1H104JNT06,100nF,Ceramic Capacitors MLCC - 0.1uF - 5% - C0G (NP0),$0.75 ,https://www.mouser.com/ProductDetail/TDK/FG16C0G1H104JNT06?qs=qf2ddTMq67VWU%252BzSLgM9lA%3D%3D 6 | C8,1,A750EK227M1CAAE016,220uF,Capacitor_THT:CP_Radial_D6.3mm_P2.50mm,$0.58 ,https://www.mouser.com/ProductDetail/KEMET/A750EK227M1CAAE016?qs=M6jHmRuQorX%252BbkmlO9snxA%3D%3D 7 | D1,1,GBL410_T0_00601,4A,Bridge Rectifiers 4A/1000V low vf bridge,$0.70 ,https://www.mouser.com/ProductDetail/Panjit/GBL410_T0_00601?qs=vvQtp7zwQdOZWOPgfhTt1w%3D%3D 8 | D2,1,-,-,5mm Through Hole LED - Any Color,$0.06 ,https://www.amazon.com/EDGELEC-100pcs-Resistors-Included-Emitting/dp/B077XDN49X 9 | J1,1,Power Jack,PJ-037A,"2.1mm ID, DC Power Supply Connector, 2 Pin",$0.68 ,https://www.mouser.com/ProductDetail/CUI-Devices/PJ-037A?qs=WyjlAZoYn53bdNRXfildEA%3D%3D 10 | J3,1,White RCA,"RCJ-043 ",Left Audio - White RCA Jack,$1.64 ,https://www.mouser.com/ProductDetail/CUI-Devices/RCJ-043?qs=WyjlAZoYn518Y1bnzBVySQ%3D%3D 11 | J4,1,Yellow RCA,"RCJ-044 ",Video Out Yellow RCA Jack,$1.64 ,https://www.mouser.com/ProductDetail/CUI-Devices/RCJ-044?qs=WyjlAZoYn50SPBJvOy7ojw%3D%3D 12 | J5,1,Red RCA,"RCJ-042 ",Right Audio - Red RCA Jack,$1.64 ,https://www.mouser.com/ProductDetail/CUI-Devices/RCJ-042?qs=WyjlAZoYn51fgBDaFkMuLQ%3D%3D 13 | Q1,1,KSA1015YTA,-,"Bipolar (BJT) Transistor PNP 50 V 150 mA 80MHz 400 mW ",$0.44 ,https://www.mouser.com/ProductDetail/onsemi-Fairchild/KSA1015YTA?qs=ljbEvF4DwOP4wK7PS53%252BtA%3D%3D 14 | Q2,1,L78S05CV,,Linear Voltage Regulators 5.0V 2.0A Positive,$1.12 ,https://www.mouser.com/ProductDetail/STMicroelectronics/L78S05CV?qs=sepekKm5O7lXLQm2U%2FAl6g%3D%3D 15 | R1,1,MFR-25SFTF52-4K7,4.7K,Carbon Film Resistors - Through Hole 1/4W 4.7K Ohm ,$0.10 ,https://www.digikey.com/en/products/detail/yageo/MFR25SFTF52-4K7/9144664 16 | R2,1,MFR-25FBF52-300R,300,Carbon Film Resistors - Through Hole 1/4W 300 Ohm,$0.10 ,https://www.digikey.com/en/products/detail/yageo/MFR-25FBF52-300R/9138132 17 | R3,1,MFR-25FBF52-110R,110,Carbon Film Resistors - Through Hole 1/4W 110 Ohm,$0.10 ,https://www.digikey.com/en/products/detail/yageo/MFR-25FBF52-110R/12804 18 | -,1,Heatsink,-,HEATSINK ANOD ALUM TO-220,$0.72 ,https://www.digikey.com/en/products/detail/assmann-wsw-components/V4330N/3511519 19 | -------------------------------------------------------------------------------- /Classic RCA DIY THT Edition/Version 1.3/NES_PowerBoard_LDO_THT_RCA_V1.3-B_Gerbers.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/Classic RCA DIY THT Edition/Version 1.3/NES_PowerBoard_LDO_THT_RCA_V1.3-B_Gerbers.zip -------------------------------------------------------------------------------- /Classic RCA DIY THT Edition/Version 1.3/readme.md: -------------------------------------------------------------------------------- 1 | # NES Revival PWR Board DIY Edition 2 | 3 | A DIY NES Power Module for at home assembly that uses a LDO instead of a buck converter to get the voltage to 5V
4 | Check out the Virtual BOM and Placement of these components on this Board. 5 | [Link](https://htmlpreview.github.io/?https://github.com/ShawMerlin/NES-Power-Module-Redesign/blob/main/Classic%20RCA%20DIY%20THT%20Edition/Virtual%20BOM%20-%20NES_PowerBoard_LDO_THT_RCA_V1.3.html) 6 | 7 | 2/14/2023 - Minor changes to V1.3 including a correction in one of the capacitor values on the silkscreen and putting hot indicators
8 | - Gerbers are now available that can be used at your favorite PCB Fab House.

9 | 10 | 11 | 2/01/2022 - Version 1.2 ordered today. Will test when they come in and then release Gerbers. 12 | - BOM is Available now, Gerbers will be available after testing. 13 | 14 | Key Features on this board.
15 | - No SMD Parts, All THT and easy to solder.
16 | - L78S05CV for 2 Amps of Power
17 | - Heatsink with full ground plane on both layers underneath the Heatsink.
18 | - Should be printed with 2oz copper to help dissipate the heat.
19 | - Power Indicator LED is optional with a Solder Jumper to enable.

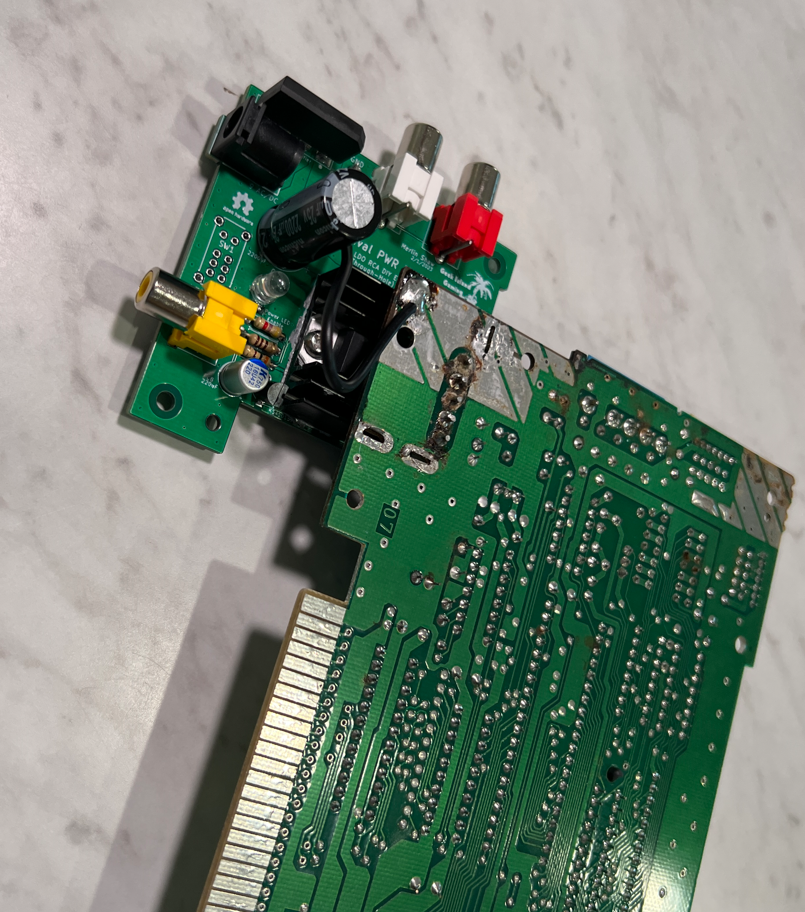

20 | 21 | 22 | 23 | ![image](https://user-images.githubusercontent.com/70423454/218863113-a1dd5af9-ebe8-4bd0-baba-259bd90e63b2.png) 24 | 25 | ![image](https://user-images.githubusercontent.com/70423454/218920131-dc49eb1d-dcf1-4ee1-a7af-7ca0c617cf1e.png) 26 | 27 | ![image](https://user-images.githubusercontent.com/70423454/218920200-51cc5b2e-24f7-41b8-8623-422e9ee802cf.png) 28 | 29 | ![image](https://user-images.githubusercontent.com/70423454/218920315-61a6ed7b-308e-4c10-8fe1-b9cb5a5977fb.png) 30 | 31 | ![image](https://user-images.githubusercontent.com/70423454/218920410-8a4f07de-f8c2-4d8f-905d-61d968d07b9a.png) 32 | 33 | ![image](https://user-images.githubusercontent.com/70423454/218920476-10da06f9-c76c-471b-81fd-98b1ce956856.png) 34 | 35 | ![image](https://user-images.githubusercontent.com/70423454/218920540-a46804dd-c26c-469e-8a60-57337d13285f.png) 36 | -------------------------------------------------------------------------------- /Classic RCA DIY THT Edition/readme.md: -------------------------------------------------------------------------------- 1 | # NES Revival PWR Board DIY Edition 2 | 3 | A DIY NES Power Module for at home assembly that uses a LDO instead of a buck converter to get the voltage to 5V
4 | To View the Virtual BOM without downloading, click here - Virtual BOM 5 | 6 | 2/26/2024 - An issue was discovered with the pinout on the Q1 Transistor. Version 3.1C was created to fix this pinout issue. If Version 3.1b
7 | has already been ordered, you can still use it but you have to rotate the transistor 90 degrees to put the legs in the right holes.
8 | Please reach out to me through email if you need help with this.

9 | 10 | 2/18/2024 - Changed to a 4 layer PCB Board to help with coupling the front and back layer to the inner gnd layers. This is only a few more 11 | dollars for the PCB but is well worth it for noise reduction.

12 | 13 | 1/28/2024 - Moved the NES GND Connection pad closer to the 7805

14 | 15 | 1/20/2024 - Complete Redesign on Version 3.0 to get the 7805 back to where it is on the original Power Module.
16 | This will allow for the orignal Heatsink to be used or Regulator TSR2-2450 if no Heatsink is wanted.
17 | Extra Modifications for a Common Mode Choke and Bypass Capacitors on 5V Out to help reduce all Noise.
18 | 19 |
20 | I added a Low Cost tab in the BOM if noise is not as big of a concern. Savings is about $5 from selecting these parts.
21 | 22 | 2/14/2023 - Minor changes to V1.3 including a correction in one of the capacitor values on the silkscreen and putting hot indicators
23 | - Gerbers are now available that can be used at your favorite PCB Fab House.

24 | 25 | image 26 | 27 | image 28 | 29 | 30 |

31 | 32 | Key Features on this board.
33 | - No SMD Parts, All THT and easy to solder.
34 | - L78S05CV for 2 Amps of Power
35 | - Power Indicator LED is optional with a Solder Jumper to enable.

36 | -------------------------------------------------------------------------------- /GND Loop Solution.md: -------------------------------------------------------------------------------- 1 | 2 | ## A GND Loop discovery from the older NES Revival Power Modules.
3 | 4 | I first must express my appreciation for the Retro Community. Instead of tearing others down, they work to build and improve.
5 | My mindset has always been that every design can be improved and I will always welcome any and all feedback.
6 | 7 | A design flaw oversight was discovered from our power boards and community members brought this to my attention.
8 | The original GND to NES location was placed near the Full Bridge Rectifier with the thought of having a short retun path.
9 | My oversight was that the return path had to go all the way back to the Switching Regulator and then heads back to the rectifier.
10 | This large GND Loop results in ringing and other undesirable impacts to the overall circuit.
11 | 12 | While I do not believe that these power boards in the wild pose a danger to the NES, they will have a reduced life as a result.
13 | Currently, I have only seen about a 4% failure rate on people reporting back to me. (Which I feel is still too high).
14 | The whole idea behind this redesign from the beginning was to have a product that would last for years to come.
15 | 16 | This GND Loop only impacts the Power Boards with Switching Regulators. It does not exist on the 7805 designs.
17 | The suggestion for 2oz copper on the 7805 designs was to provide more copper for heat dissipation and not to couple noise frequencies.
18 | I would like the express my thanks to the Dubesinhower Discord Group for bringing this to my attention.
19 | I would also like to personally thank Zaxour for assisting with the new design layout. - https://twitter.com/zaxour
20 | 21 | If you have one of these boards that has failed and have not yet contacted me. Please reach out so I can provide a full replacement at no cost.
22 | To make right to the community that I love, I have 2 options for those that have a NES Revival Power Board and would like this fixed.

23 | 24 | ## Option #1 - A quick DIY Fix to shorten the GND Loop on the Power Board itself
25 | 26 | - Step 1 Just right of the bottom interconnect pin, scrap back the soldermask
27 | 309180911-02046060-b7c6-4868-9515-8014584bc00d 28 | 29 | - Step 2 Place a ball of solder on this exposed GND section.
30 | 31 | 32 | 33 | - Step 3 Connect a GND Wire to that newly created pad and connect it to a nearby GND point on the NES Main Board
34 | 35 | 36 | - Step 4 Disconnect the original GNDing wire so that it's no longer on either the power module or the NES Main Board.
37 | 38 | 39 | ## Option #2 - A replacement Power Module will be offered at a heavily discounted rate.
40 | - If you have spent money/resources in any of these designs and would like a full replacement. Please reach out to me.
41 | - My email is Merlin(dot)Shaw@gmail(dot)com. Let me know how many replacements you need to cover the boards you have made/purchased.
42 | - I will add your name to a list for replacements and will work to get through the list in a timely but realistic fashion.
43 | - The discount on the board will cover my costs and shipping.
44 | -------------------------------------------------------------------------------- /Install_Instructions.md: -------------------------------------------------------------------------------- 1 | # NES-Power-Module-Installation Instructions 2 | 3 | Items Needed 4 | - Soldering Iron - https://www.amazon.com/gp/product/B089SKWMPT 5 | - Solder - https://www.amazon.com/MG-Chemicals-Leaded-Solder-Pocket/dp/B072JQ1JH4 6 | - Soldering Wick - https://www.amazon.com/SRA-Soldering-Desoldering-Damage-Free-Removal/dp/B09PZLZSNT 7 | 8 | Items Optional 9 | - Soldering Tips *(the one that come with the Iron are garbage)* - https://www.amazon.com/gp/product/B08QTW4LH5 10 | - Flux - https://www.amazon.com/AMTECH-NC-559-V2-TF-clean-free-tacky-hand-soldering/dp/B09NXCPNN3 11 | - Solder Sucker - https://www.amazon.com/Teenitor-Solder-Sucker-Desoldering-Removal/dp/B0739LXQ6N 12 | 13 | Tips 14 | - Always leave solder on iron when putting away. This will help the tip not to oxidize. 15 | - Use a thick tip so that lots of heat can transfer to the solder wick. Fine tips do not transfer heat well. 16 | - After Iron has heated up, clean the solder off on a sponge or brass cleaner and then tin the tip. 17 | - Do not go above 350 C on your soldering iron *(only exception will be for the large ground pads)* 18 | - Only leave the iron on the point for a few seconds, the longer you wait, the large the chance of pulling up the pad. 19 | - Use extra flux on the Solder Wick will help it quickly pull the solder out. 20 | - Put new solder and flux on all joints you want to desolder. *(Larger Solder masses will suck up easier)* 21 | 22 | Instructions 23 | 24 | On the Chip side of the NES Main Board, Remove the metal shield over the Power Module. 25 | ![image](https://user-images.githubusercontent.com/70423454/179368982-04ed1b5e-bc62-4a36-ac7c-b79a2b427261.png) 26 | 27 | 28 | Desolder the below 5 Pins highlighted in Yellow. Soldering Wick or a Soldering Gun should be used. 29 | Make sure each pin can move freely before moving on to the next step. 30 | ![image](https://user-images.githubusercontent.com/70423454/179365288-df28e6d7-2bf9-40c6-be32-d42333c60d89.png) 31 | 32 | 33 | Flip the board over and desolder the ground points highlighted in Yellow. Do NOT desolder the 5 pins in red. 34 | ![image](https://user-images.githubusercontent.com/70423454/179365236-274d3eb5-2d6a-498c-834b-30d47d30f796.png) 35 | 36 | 37 | Carefully lift off the power module, This is what it will look like when the power modele has been removed. 38 | ![image](https://user-images.githubusercontent.com/70423454/179368675-d41f29fc-1e22-4ef6-8a11-f49b31867e8f.png) 39 | 40 | 41 | Position the new NES Powerboard on the pins, level and then solder it on. 42 | 43 | ![image](https://user-images.githubusercontent.com/70423454/179365084-cbc2710f-7526-4f7e-9ab1-cdfcf5b4c739.png) 44 | 45 | 46 | 47 | Connect a ground wire from the new NES Power Board to the ground plane on the main NES Board. 48 | The console will not power on if this is missed. Please make sure to verify you have done this correctly. 49 | 50 | 51 | ![IMG_0247](https://user-images.githubusercontent.com/70423454/179426140-07c47ddd-48ca-4ac5-9abc-8f7afbc0ae5d.JPG) 52 | 53 | 54 | #Tips for using Solder Braid 55 | 56 | 57 | Place the braid over unwanted solder, preferably on the greatest solder build up so that it maximizes the contact of the braid to the surface area of the solder. 58 | 59 | Next, place your iron tip over the wick at 45 degrees and allow heat to transfer to the pad. Molten solder will absorb into the braid. 60 | 61 | Move the solder tip and braid as needed to remove all of the solder at one time. Careful not to drag the braid over the pads, which can scratch. 62 | 63 | Once the braid is full of solder, you must trim the spent portion and move to fresh braid in order to pull more solder. 64 | 65 | Remove the iron and braid simultaneously to avoid soldering the wire to the board. 66 | -------------------------------------------------------------------------------- /LICENSE: -------------------------------------------------------------------------------- 1 | MIT License 2 | 3 | Copyright (c) 2022 Merlin Shaw 4 | 5 | Permission is hereby granted, free of charge, to any person obtaining a copy 6 | of this software and associated documentation files (the "Software"), to deal 7 | in the Software without restriction, including without limitation the rights 8 | to use, copy, modify, merge, publish, distribute, sublicense, and/or sell 9 | copies of the Software, and to permit persons to whom the Software is 10 | furnished to do so, subject to the following conditions: 11 | 12 | The above copyright notice and this permission notice shall be included in all 13 | copies or substantial portions of the Software. 14 | 15 | THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR 16 | IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, 17 | FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE 18 | AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER 19 | LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, 20 | OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE 21 | SOFTWARE. 22 | -------------------------------------------------------------------------------- /README.md: -------------------------------------------------------------------------------- 1 | # NES Revival - Power-Module Redesign 2 | Completely Redesigning the NES Power Module to Reduce Noise and EMI
3 |
4 | 5 | 1/30/2025 6 | 7 | I would like to thank the retro community for the love and support I have received over the years.
8 | At this time, I will no longer be offering these NES Boards on eBay or other channels.
9 | It's been a great couple of years but I must move on to other things in life.
10 | All of the Boards should have their Kicad files and Gerbers available on this Github.

11 | 12 | It's not too bad ordering 5 of them pre-assembled from JLCPCB and then just sell the other 4 to get a free board. :)
13 | I will not be able to provide support as well on these but I absolutely recommend the NES Help section on Dubesinhower Discord.
14 | https://x.com/dubesinhower?lang=en&mx=2

15 | 16 | There are a lot of amazing folks on that Discord Channel and in our community.
17 | Thank you for letting me be a part of it.
18 | 19 | -Merlin Shaw


20 | 21 | 6/15/2024
22 | Our first production run on NES Revival Classic RCA Editions have come in.

23 | 24 | 6/4/2024
25 | The NEW Revival RGBNES "Companion" Power Module production files have been released on this Github.

26 | 27 | 5/8/2024
28 | I have my first RGB "Companion" 3.1c production boards run ready for eBay.

29 | 30 | 4/5/2024
31 | The RGBNES "Companion" Power Board v3.1b has passed it's prototype phase and I am ordering a production run.
32 | We are getting close to being able to release the gerber files for this design. I just want to verify with the new order.

33 | 34 | 3/2/2024
35 | GND Loop Issue Discovered on Older Boards and a Quick DIY Solution for it.
36 | https://github.com/ShawMerlin/NES-Power-Module-Redesign/blob/main/GND%20Loop%20Solution.md

37 | 38 | 2/13/2024
39 | New Updates on the Rivial RGBNES 'Companion" Power Module
40 | https://github.com/ShawMerlin/NES-Power-Module-Redesign/blob/main/RGB%20-%20Genesis%209%20Pin%20Edition/readme.md

41 | 42 | 1/16/2024
43 | I have a small sample of the new RGB "Companion" 3.0 Boards that are available
44 | I will also update the classic design with the new features of the RGB Board and offer that one as well.
45 | 46 | https://github.com/ShawMerlin/NES-Power-Module-Redesign/tree/main/RGB%20-%20Genesis%209%20Pin%20Edition
47 | 48 | image 49 | 50 |

51 | 52 | The original NES Power Module from the 80's is very noisy. The Power Traces cross eachother and the ground home path is messy. 53 | EMI was not a worry in 1985 but noise can impact picture and sound quality 54 | 55 | Project is Open Sourced with a MIT License. It can be edited, changed and sold at your own discretion. 56 | Please link back here if this helps you with your own project. 57 | 58 | =-=-=-Special Thanks to Project Guardian-=-=-= 59 | 60 | # Goals with these new NES Power Modules 61 | - Full Ground Plane that is uninterrupted and is free of traces and components. 62 | - Power Traces that do not cross and have the GND plane below for a good return power signal. 63 | - Have a specific NES Power Module for each use case (not try and pile everything into one board) 64 | 65 | # NES Classic USB C Powered Module 66 | ![image](https://user-images.githubusercontent.com/70423454/218329070-949a418e-abe6-4502-98c1-52825bb83cc2.png) 67 | 68 | # USB C Powered - NESRGB Companion Power Module with YPbPr "Component" Video 69 | ![image](https://user-images.githubusercontent.com/70423454/222496031-472e9dfb-1a86-4818-8382-9c7ba2a242c9.png) 70 | 71 | # NES Classic with Composite Out and Two Channel Mono Sound. 72 | ![image](https://user-images.githubusercontent.com/70423454/222495383-a3cf528f-f45c-4dce-8eab-32bfaa3d9db7.png) 73 | 74 | # NES RGB with Genesis 2 9 Pin Output 75 | ![image](https://user-images.githubusercontent.com/70423454/222492542-76702977-732b-44fb-bf1c-827be4a234ed.png) 76 | 77 | # Full uninterrupted ground plane on the back of the board. 78 | ![image](https://user-images.githubusercontent.com/70423454/179363800-cb818a45-c4a4-4a72-b937-716b4586f864.png) 79 | 80 | 81 | # An easy to solder DIY Version of the Classic Composite RCA Edition. 82 | image 83 | 84 | 85 | # For the few that own the NES HDMI Board, this module will provide very easy solder points without the need of the LDO. 86 | ![image](https://user-images.githubusercontent.com/70423454/185999783-296dcafc-dfe5-4f3a-911b-82fa9e63dd2f.png) 87 | 88 | 89 | # Below is an example of the Orignal Power Module. Notice how the power traces keep crossing eachother and other components. Folks really didn't consider EMI a lot back then and opted to just cover the entire board in a metal shroud. 90 | 91 | ![image](https://user-images.githubusercontent.com/70423454/189474492-a8b75d50-ffc9-4e5b-844f-7f16a31056be.png) 92 | 93 | 94 | 95 | -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Board Configurations.md: -------------------------------------------------------------------------------- 1 | The next rendition of the RGB Board will have the selector switches removed in favor of Solder Jumpers.
2 | 3 | # Solder Jumper Configurations
4 | 5 | The Boards will come pre-configured for both External Video and Audio (S1 & S3)
6 | If Internal Video or Audio is desired, then the above solder jumpers will have to be desoldered.
7 | 8 | ## Audio Selection *(Select either S1 or S2 but not both)*
9 | - S1 - External Audio
10 | - S2 - Internal Audio
11 | ## Video Selection *(Select either S3 or S4 but not both)*
12 | - S3 - External Video
13 | - S4 - Internal Video
14 | - S5 - Int Video Enable (Must be enabled if using S4)
15 | ## Power LED 16 | - S6 - Power LED Enable
17 | 18 | The board's internal audio circuit will not work if the RGBNES Pallettes are used.
19 | Bascially if using the RGBNES, External Video will be the only option that can be used.
20 | Desolder S4 & S5 if using the RGBNES and solder S3.

21 | 22 | S1 & S3 are both external inputs, these come directly from the J8 JST Cable.
23 | These must be hooked up to the RGBNES's outputs in order for them to work correctly.
24 | 25 | image 26 | -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Kicad Files/NES_PowerBoard_RGB_V3.1c_OfficialRelease.kicad_pro: -------------------------------------------------------------------------------- 1 | { 2 | "board": { 3 | "3dviewports": [], 4 | "design_settings": { 5 | "defaults": { 6 | "apply_defaults_to_fp_fields": false, 7 | "apply_defaults_to_fp_shapes": false, 8 | "apply_defaults_to_fp_text": false, 9 | "board_outline_line_width": 0.049999999999999996, 10 | "copper_line_width": 0.19999999999999998, 11 | "copper_text_italic": false, 12 | "copper_text_size_h": 1.5, 13 | "copper_text_size_v": 1.5, 14 | "copper_text_thickness": 0.3, 15 | "copper_text_upright": false, 16 | "courtyard_line_width": 0.049999999999999996, 17 | "dimension_precision": 4, 18 | "dimension_units": 3, 19 | "dimensions": { 20 | "arrow_length": 1270000, 21 | "extension_offset": 500000, 22 | "keep_text_aligned": true, 23 | "suppress_zeroes": false, 24 | "text_position": 0, 25 | "units_format": 1 26 | }, 27 | "fab_line_width": 0.09999999999999999, 28 | "fab_text_italic": false, 29 | "fab_text_size_h": 1.0, 30 | "fab_text_size_v": 1.0, 31 | "fab_text_thickness": 0.15, 32 | "fab_text_upright": false, 33 | "other_line_width": 0.09999999999999999, 34 | "other_text_italic": false, 35 | "other_text_size_h": 1.0, 36 | "other_text_size_v": 1.0, 37 | "other_text_thickness": 0.15, 38 | "other_text_upright": false, 39 | "pads": { 40 | "drill": 1.0, 41 | "height": 3.0, 42 | "width": 1.75 43 | }, 44 | "silk_line_width": 0.12, 45 | "silk_text_italic": false, 46 | "silk_text_size_h": 1.0, 47 | "silk_text_size_v": 1.0, 48 | "silk_text_thickness": 0.15, 49 | "silk_text_upright": false, 50 | "zones": { 51 | "45_degree_only": false, 52 | "min_clearance": 0.0 53 | } 54 | }, 55 | "diff_pair_dimensions": [ 56 | { 57 | "gap": 0.0, 58 | "via_gap": 0.0, 59 | "width": 0.0 60 | } 61 | ], 62 | "drc_exclusions": [], 63 | "meta": { 64 | "version": 2 65 | }, 66 | "rule_severities": { 67 | "annular_width": "error", 68 | "clearance": "error", 69 | "connection_width": "warning", 70 | "copper_edge_clearance": "error", 71 | "copper_sliver": "warning", 72 | "courtyards_overlap": "error", 73 | "diff_pair_gap_out_of_range": "error", 74 | "diff_pair_uncoupled_length_too_long": "error", 75 | "drill_out_of_range": "error", 76 | "duplicate_footprints": "warning", 77 | "extra_footprint": "warning", 78 | "footprint": "error", 79 | "footprint_symbol_mismatch": "warning", 80 | "footprint_type_mismatch": "ignore", 81 | "hole_clearance": "error", 82 | "hole_near_hole": "error", 83 | "invalid_outline": "error", 84 | "isolated_copper": "warning", 85 | "item_on_disabled_layer": "error", 86 | "items_not_allowed": "error", 87 | "length_out_of_range": "error", 88 | "lib_footprint_issues": "ignore", 89 | "lib_footprint_mismatch": "ignore", 90 | "malformed_courtyard": "error", 91 | "microvia_drill_out_of_range": "error", 92 | "missing_courtyard": "ignore", 93 | "missing_footprint": "warning", 94 | "net_conflict": "warning", 95 | "npth_inside_courtyard": "ignore", 96 | "padstack": "error", 97 | "pth_inside_courtyard": "ignore", 98 | "shorting_items": "error", 99 | "silk_edge_clearance": "warning", 100 | "silk_over_copper": "warning", 101 | "silk_overlap": "warning", 102 | "skew_out_of_range": "error", 103 | "solder_mask_bridge": "error", 104 | "starved_thermal": "error", 105 | "text_height": "warning", 106 | "text_thickness": "warning", 107 | "through_hole_pad_without_hole": "ignore", 108 | "too_many_vias": "error", 109 | "track_dangling": "warning", 110 | "track_width": "error", 111 | "tracks_crossing": "error", 112 | "unconnected_items": "error", 113 | "unresolved_variable": "error", 114 | "via_dangling": "warning", 115 | "zones_intersect": "error" 116 | }, 117 | "rules": { 118 | "allow_blind_buried_vias": false, 119 | "allow_microvias": false, 120 | "max_error": 0.005, 121 | "min_clearance": 0.0, 122 | "min_connection": 0.0, 123 | "min_copper_edge_clearance": 0.25, 124 | "min_hole_clearance": 0.25, 125 | "min_hole_to_hole": 0.25, 126 | "min_microvia_diameter": 0.19999999999999998, 127 | "min_microvia_drill": 0.09999999999999999, 128 | "min_resolved_spokes": 2, 129 | "min_silk_clearance": 0.0, 130 | "min_text_height": 0.75, 131 | "min_text_thickness": 0.08, 132 | "min_through_hole_diameter": 0.19999999999999998, 133 | "min_track_width": 0.19999999999999998, 134 | "min_via_annular_width": 0.049999999999999996, 135 | "min_via_diameter": 0.39999999999999997, 136 | "solder_mask_to_copper_clearance": 0.0, 137 | "use_height_for_length_calcs": true 138 | }, 139 | "teardrop_options": [ 140 | { 141 | "td_onpadsmd": true, 142 | "td_onroundshapesonly": false, 143 | "td_ontrackend": false, 144 | "td_onviapad": true 145 | } 146 | ], 147 | "teardrop_parameters": [ 148 | { 149 | "td_allow_use_two_tracks": true, 150 | "td_curve_segcount": 0, 151 | "td_height_ratio": 1.0, 152 | "td_length_ratio": 0.5, 153 | "td_maxheight": 2.0, 154 | "td_maxlen": 1.0, 155 | "td_on_pad_in_zone": false, 156 | "td_target_name": "td_round_shape", 157 | "td_width_to_size_filter_ratio": 0.9 158 | }, 159 | { 160 | "td_allow_use_two_tracks": true, 161 | "td_curve_segcount": 0, 162 | "td_height_ratio": 1.0, 163 | "td_length_ratio": 0.5, 164 | "td_maxheight": 2.0, 165 | "td_maxlen": 1.0, 166 | "td_on_pad_in_zone": false, 167 | "td_target_name": "td_rect_shape", 168 | "td_width_to_size_filter_ratio": 0.9 169 | }, 170 | { 171 | "td_allow_use_two_tracks": true, 172 | "td_curve_segcount": 0, 173 | "td_height_ratio": 1.0, 174 | "td_length_ratio": 0.5, 175 | "td_maxheight": 2.0, 176 | "td_maxlen": 1.0, 177 | "td_on_pad_in_zone": false, 178 | "td_target_name": "td_track_end", 179 | "td_width_to_size_filter_ratio": 0.9 180 | } 181 | ], 182 | "track_widths": [ 183 | 0.0, 184 | 0.25, 185 | 0.35, 186 | 0.4, 187 | 0.5, 188 | 0.75, 189 | 1.0, 190 | 1.5, 191 | 2.0 192 | ], 193 | "tuning_pattern_settings": { 194 | "diff_pair_defaults": { 195 | "corner_radius_percentage": 80, 196 | "corner_style": 1, 197 | "max_amplitude": 1.0, 198 | "min_amplitude": 0.2, 199 | "single_sided": false, 200 | "spacing": 1.0 201 | }, 202 | "diff_pair_skew_defaults": { 203 | "corner_radius_percentage": 80, 204 | "corner_style": 1, 205 | "max_amplitude": 1.0, 206 | "min_amplitude": 0.2, 207 | "single_sided": false, 208 | "spacing": 0.6 209 | }, 210 | "single_track_defaults": { 211 | "corner_radius_percentage": 80, 212 | "corner_style": 1, 213 | "max_amplitude": 1.0, 214 | "min_amplitude": 0.2, 215 | "single_sided": false, 216 | "spacing": 0.6 217 | } 218 | }, 219 | "via_dimensions": [ 220 | { 221 | "diameter": 0.0, 222 | "drill": 0.0 223 | } 224 | ], 225 | "zones_allow_external_fillets": false, 226 | "zones_use_no_outline": true 227 | }, 228 | "ipc2581": { 229 | "dist": "", 230 | "distpn": "", 231 | "internal_id": "", 232 | "mfg": "", 233 | "mpn": "" 234 | }, 235 | "layer_presets": [], 236 | "viewports": [] 237 | }, 238 | "boards": [], 239 | "cvpcb": { 240 | "equivalence_files": [] 241 | }, 242 | "erc": { 243 | "erc_exclusions": [], 244 | "meta": { 245 | "version": 0 246 | }, 247 | "pin_map": [ 248 | [ 249 | 0, 250 | 0, 251 | 0, 252 | 0, 253 | 0, 254 | 0, 255 | 1, 256 | 0, 257 | 0, 258 | 0, 259 | 0, 260 | 2 261 | ], 262 | [ 263 | 0, 264 | 2, 265 | 0, 266 | 1, 267 | 0, 268 | 0, 269 | 1, 270 | 0, 271 | 2, 272 | 2, 273 | 2, 274 | 2 275 | ], 276 | [ 277 | 0, 278 | 0, 279 | 0, 280 | 0, 281 | 0, 282 | 0, 283 | 1, 284 | 0, 285 | 1, 286 | 0, 287 | 1, 288 | 2 289 | ], 290 | [ 291 | 0, 292 | 1, 293 | 0, 294 | 0, 295 | 0, 296 | 0, 297 | 1, 298 | 1, 299 | 2, 300 | 1, 301 | 1, 302 | 2 303 | ], 304 | [ 305 | 0, 306 | 0, 307 | 0, 308 | 0, 309 | 0, 310 | 0, 311 | 1, 312 | 0, 313 | 0, 314 | 0, 315 | 0, 316 | 2 317 | ], 318 | [ 319 | 0, 320 | 0, 321 | 0, 322 | 0, 323 | 0, 324 | 0, 325 | 0, 326 | 0, 327 | 0, 328 | 0, 329 | 0, 330 | 2 331 | ], 332 | [ 333 | 1, 334 | 1, 335 | 1, 336 | 1, 337 | 1, 338 | 0, 339 | 1, 340 | 1, 341 | 1, 342 | 1, 343 | 1, 344 | 2 345 | ], 346 | [ 347 | 0, 348 | 0, 349 | 0, 350 | 1, 351 | 0, 352 | 0, 353 | 1, 354 | 0, 355 | 0, 356 | 0, 357 | 0, 358 | 2 359 | ], 360 | [ 361 | 0, 362 | 2, 363 | 1, 364 | 2, 365 | 0, 366 | 0, 367 | 1, 368 | 0, 369 | 2, 370 | 2, 371 | 2, 372 | 2 373 | ], 374 | [ 375 | 0, 376 | 2, 377 | 0, 378 | 1, 379 | 0, 380 | 0, 381 | 1, 382 | 0, 383 | 2, 384 | 0, 385 | 0, 386 | 2 387 | ], 388 | [ 389 | 0, 390 | 2, 391 | 1, 392 | 1, 393 | 0, 394 | 0, 395 | 1, 396 | 0, 397 | 2, 398 | 0, 399 | 0, 400 | 2 401 | ], 402 | [ 403 | 2, 404 | 2, 405 | 2, 406 | 2, 407 | 2, 408 | 2, 409 | 2, 410 | 2, 411 | 2, 412 | 2, 413 | 2, 414 | 2 415 | ] 416 | ], 417 | "rule_severities": { 418 | "bus_definition_conflict": "error", 419 | "bus_entry_needed": "error", 420 | "bus_to_bus_conflict": "error", 421 | "bus_to_net_conflict": "error", 422 | "conflicting_netclasses": "error", 423 | "different_unit_footprint": "error", 424 | "different_unit_net": "error", 425 | "duplicate_reference": "error", 426 | "duplicate_sheet_names": "error", 427 | "endpoint_off_grid": "warning", 428 | "extra_units": "error", 429 | "global_label_dangling": "warning", 430 | "hier_label_mismatch": "error", 431 | "label_dangling": "error", 432 | "lib_symbol_issues": "warning", 433 | "missing_bidi_pin": "warning", 434 | "missing_input_pin": "warning", 435 | "missing_power_pin": "error", 436 | "missing_unit": "warning", 437 | "multiple_net_names": "warning", 438 | "net_not_bus_member": "warning", 439 | "no_connect_connected": "warning", 440 | "no_connect_dangling": "warning", 441 | "pin_not_connected": "error", 442 | "pin_not_driven": "error", 443 | "pin_to_pin": "warning", 444 | "power_pin_not_driven": "error", 445 | "similar_labels": "warning", 446 | "simulation_model_issue": "ignore", 447 | "unannotated": "error", 448 | "unit_value_mismatch": "error", 449 | "unresolved_variable": "error", 450 | "wire_dangling": "error" 451 | } 452 | }, 453 | "libraries": { 454 | "pinned_footprint_libs": [], 455 | "pinned_symbol_libs": [] 456 | }, 457 | "meta": { 458 | "filename": "NES_PowerBoard_RGB_V3.1c_OfficialRelease.kicad_pro", 459 | "version": 1 460 | }, 461 | "net_settings": { 462 | "classes": [ 463 | { 464 | "bus_width": 12, 465 | "clearance": 0.2, 466 | "diff_pair_gap": 0.25, 467 | "diff_pair_via_gap": 0.25, 468 | "diff_pair_width": 0.2, 469 | "line_style": 0, 470 | "microvia_diameter": 0.3, 471 | "microvia_drill": 0.1, 472 | "name": "Default", 473 | "pcb_color": "rgba(0, 0, 0, 0.000)", 474 | "schematic_color": "rgba(0, 0, 0, 0.000)", 475 | "track_width": 0.25, 476 | "via_diameter": 0.8, 477 | "via_drill": 0.4, 478 | "wire_width": 6 479 | } 480 | ], 481 | "meta": { 482 | "version": 3 483 | }, 484 | "net_colors": null, 485 | "netclass_assignments": null, 486 | "netclass_patterns": [] 487 | }, 488 | "pcbnew": { 489 | "last_paths": { 490 | "gencad": "", 491 | "idf": "", 492 | "netlist": "NES_PowerBoard_RGB_V1.5.net", 493 | "plot": "Gerber/V3.1c/Merlin Shaw Release/NES_PowerBoard_RGB_V3.1c_OurProduction/Oct20/", 494 | "pos_files": "Gerber/V3.1b/", 495 | "specctra_dsn": "", 496 | "step": "../../../A.3dModel/NES_PowerBoard_RGB_V3-1.step", 497 | "svg": "", 498 | "vrml": "" 499 | }, 500 | "page_layout_descr_file": "" 501 | }, 502 | "schematic": { 503 | "annotate_start_num": 0, 504 | "bom_fmt_presets": [], 505 | "bom_fmt_settings": { 506 | "field_delimiter": ",", 507 | "keep_line_breaks": false, 508 | "keep_tabs": false, 509 | "name": "CSV", 510 | "ref_delimiter": ",", 511 | "ref_range_delimiter": "", 512 | "string_delimiter": "\"" 513 | }, 514 | "bom_presets": [], 515 | "bom_settings": { 516 | "exclude_dnp": false, 517 | "fields_ordered": [ 518 | { 519 | "group_by": false, 520 | "label": "Reference", 521 | "name": "Reference", 522 | "show": true 523 | }, 524 | { 525 | "group_by": true, 526 | "label": "Value", 527 | "name": "Value", 528 | "show": true 529 | }, 530 | { 531 | "group_by": false, 532 | "label": "Datasheet", 533 | "name": "Datasheet", 534 | "show": true 535 | }, 536 | { 537 | "group_by": false, 538 | "label": "Footprint", 539 | "name": "Footprint", 540 | "show": true 541 | }, 542 | { 543 | "group_by": false, 544 | "label": "Qty", 545 | "name": "${QUANTITY}", 546 | "show": true 547 | }, 548 | { 549 | "group_by": true, 550 | "label": "DNP", 551 | "name": "${DNP}", 552 | "show": true 553 | } 554 | ], 555 | "filter_string": "", 556 | "group_symbols": true, 557 | "name": "Grouped By Value", 558 | "sort_asc": true, 559 | "sort_field": "Reference" 560 | }, 561 | "connection_grid_size": 50.0, 562 | "drawing": { 563 | "dashed_lines_dash_length_ratio": 12.0, 564 | "dashed_lines_gap_length_ratio": 3.0, 565 | "default_line_thickness": 6.0, 566 | "default_text_size": 50.0, 567 | "field_names": [], 568 | "intersheets_ref_own_page": false, 569 | "intersheets_ref_prefix": "", 570 | "intersheets_ref_short": false, 571 | "intersheets_ref_show": false, 572 | "intersheets_ref_suffix": "", 573 | "junction_size_choice": 3, 574 | "label_size_ratio": 0.375, 575 | "operating_point_overlay_i_precision": 3, 576 | "operating_point_overlay_i_range": "~A", 577 | "operating_point_overlay_v_precision": 3, 578 | "operating_point_overlay_v_range": "~V", 579 | "overbar_offset_ratio": 1.23, 580 | "pin_symbol_size": 25.0, 581 | "text_offset_ratio": 0.15 582 | }, 583 | "legacy_lib_dir": "", 584 | "legacy_lib_list": [], 585 | "meta": { 586 | "version": 1 587 | }, 588 | "net_format_name": "", 589 | "ngspice": { 590 | "fix_include_paths": true, 591 | "fix_passive_vals": false, 592 | "meta": { 593 | "version": 0 594 | }, 595 | "model_mode": 0, 596 | "workbook_filename": "" 597 | }, 598 | "page_layout_descr_file": "", 599 | "plot_directory": "", 600 | "spice_adjust_passive_values": false, 601 | "spice_current_sheet_as_root": false, 602 | "spice_external_command": "spice \"%I\"", 603 | "spice_model_current_sheet_as_root": true, 604 | "spice_save_all_currents": false, 605 | "spice_save_all_dissipations": false, 606 | "spice_save_all_voltages": false, 607 | "subpart_first_id": 65, 608 | "subpart_id_separator": 0 609 | }, 610 | "sheets": [ 611 | [ 612 | "fc4a9531-4d24-4a51-9912-87dd609490ea", 613 | "" 614 | ] 615 | ], 616 | "text_variables": {} 617 | } 618 | -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Kicad Files/readme.md: -------------------------------------------------------------------------------- 1 | *** 1/15/2025 *** 2 | - KiCad PCB Designed files released for 3.1c 3 | - I will work on getting clean schematics to release. 4 | -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/NESRGB Hookup Instructions.jpg: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/RGB - Genesis 9 Pin Edition/NESRGB Hookup Instructions.jpg -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Older Archived Designs/Features and Components.md: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/RGB - Genesis 9 Pin Edition/Older Archived Designs/Features and Components.md -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Older Archived Designs/Readme.md: -------------------------------------------------------------------------------- 1 | *** Coming Soon *** 2 | -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Oscilloscope Results/readme.md: -------------------------------------------------------------------------------- 1 | Testing consited of constant current of 1.5 - 2 amps.

2 | 3 | My testing Setup
4 | image 5 |

6 | Ossiloscope used for testing: RIGOL DHO814
7 | Parameters:
8 | - Bandwidth 20Mhz.
9 | - AC coupled.
10 | - 10x Probe.
11 | - measured with the spring on the probe across the output capacitor.
12 | - Tested multiple Boards to make sure it was consistent.
13 | - Tested at 1.65 Amps Constant Current. 14 | 15 | Results 16 | - 23.2mV pp 17 | - 5.7mV RMS 18 | 19 | image 20 | 21 |

22 | Zaxour was also willing to test this board. Please show him some love!! https://twitter.com/zaxour
23 | Here are his results.

24 | 25 | Ossiloscope used for testing: RIGOL DS1202
26 | Parameters:
27 | - Bandwidth 20Mhz.
28 | - AC coupled
29 | - 10x probe.
30 | - No Probe spring was used so the dimmer spiky noise can be ignored.
31 | - Tested at 1.9 Amps Constant Current

32 | 33 | ![image](https://github.com/ShawMerlin/NES-Power-Module-Redesign/assets/70423454/cf501326-70eb-4fd8-b90e-123f69dc4fa4) 34 |

35 | Showing the A/C Results at 1.9 Amps.
36 | ![image](https://github.com/ShawMerlin/NES-Power-Module-Redesign/assets/70423454/753c82f8-9653-4503-8a3b-733ac7c5f3db) 37 | 38 | 39 | -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Production Files/DOCS_BOM_ASSEMBLY_NES_PowerBoard_RGB_V3.1c.csv: -------------------------------------------------------------------------------- 1 | Comment,Designator,Footprint,JLCPCB Part #,Digkey 2 | 2200uF,C1,Capacitor_THT:CP_Radial_D12.5mm_P5.00mm,C445125,https://www.digikey.com/en/products/detail/nichicon/UVZ1E222MHD/589047 3 | 10nF,C2,C_0805_2012Metric,C1710,https://www.digikey.com/en/products/detail/samsung-electro-mechanics/CL21B103KBANNNC/3886673 4 | 10uF,C3,C_0805_2012Metric,C15850,https://www.digikey.com/en/products/detail/samsung-electro-mechanics/CL21A106KAYNNNE/3888549 5 | .1uF,"C4,C5",C_0603_1608Metric,C14663,https://www.digikey.com/en/products/detail/yageo/CC0603KRX7R9BB104/2103082 6 | 10nF,C6,C_1206_3216Metric,C1846,https://www.digikey.com/en/products/detail/murata-electronics/GRM3195C1H103JA01D/586883 7 | 22uF,"C7,C8",C_1206_3216Metric,C12891,https://www.digikey.com/en/products/detail/murata-electronics/GRM31CR71A226KE15L/2039036 8 | .1uF,C9,C_1206_3216Metric,C24497,https://www.digikey.com/en/products/detail/murata-electronics/GRM31C5C1H104JA01K/2548138 9 | 220uF,C10,CAP-SMD_BD6.3-L6.5-W6.5-LS7.0-FD,C125979,https://www.digikey.com/en/products/detail/nichicon/PCJ0J221MCL1GS/1662427 10 | 75pF,C11,C_0805_2012Metric,C5375865,https://www.digikey.com/en/products/detail/yageo/CC0805JRNPO9BN750/5884054 11 | 1nF,C12,C_0805_2012Metric,C520091,https://www.digikey.com/en/products/detail/kemet/C0805C561J5GACAUTO/10642381 12 | MSB30M,D1,MSBL,C460923,https://www.digikey.com/en/products/detail/diodes-incorporated/MSB30M-13/7353064 13 | Green_LED,D2,LED_SMD:LED_0805_2012Metric,C2297,https://www.digikey.com/en/products/detail/liteon/LTST-C171GKT/386793 14 | 1N4148W,D3,D_SOD-123,C7420318,https://www.digikey.com/en/products/detail/smc-diode-solutions/1N4148W/6022450 15 | RedLED,D4,LED_0603_1608Metric,C2286,https://www.digikey.com/en/products/detail/liteon/LTST-C191KRKT/386837 16 | MINISMDC150F/16-2,FUSE1,F1812,C2649921,https://www.digikey.com/en/products/detail/littelfuse-inc/MINISMDC150F-16-2/2319761 17 | EJ503A,J2,DC Jack,C3095117,https://www.digikey.com/en/products/detail/mpd-memory-protection-devices/EJ503A/5431753 18 | RCJ-044,J3,Yellow RCA Jack,-,https://www.digikey.com/en/products/detail/cui-devices/RCJ-044/408508 19 | RCJ-042,J5,Red RCA Jack,-,https://www.digikey.com/en/products/detail/cui-devices/RCJ-042/408506 20 | 3P Header,J4,PinHeader_1x03_P2.54mm_Vertical,C49257,https://www.digikey.com/en/products/detail/samtec-inc/TS-103-T-A/1105491 21 | TPS54202HDDCT,J7,SOT-23-6,C134129,https://www.digikey.com/en/products/detail/texas-instruments/TPS54202HDDCR/6026259 22 | S7B-PH-K-S(LF)(SN),J8,THT,C157917,https://www.digikey.com/en/products/detail/jst-sales-america-inc/S7B-PH-K-S/926631 23 | MD-90SM,J9,THT,-,https://www.digikey.com/en/products/detail/cui-devices/MD-90SM/145323 24 | OS102011MS2QN1,"J10,J11",THT,C221829,https://www.digikey.com/en/products/detail/c-k/OS102011MS2QN1/411602 25 | 15uH,L1,7.2x6.9x4.5mmCopy,C2836220,https://www.digikey.com/en/products/detail/tdk-corporation/CLF7045NIT-150M-D/5812243 26 | 2SA1015,Q1,SOT-23,C181170,https://www.digikey.com/en/products/detail/evvo/2SA1015/22482092 27 | 4.7K,R1,R_0805_2012Metric,C17673,https://www.digikey.com/en/products/detail/yageo/RC0603FR-074K02L/727203 28 | 120K,R2,R_0603_1608Metric,C25808,https://www.digikey.com/en/products/detail/yageo/RC0603FR-07120KL/726921 29 | 511K,R3,R_0603_1608Metric,C2684557,https://www.digikey.com/en/products/detail/yageo/RC0603FR-07511KL/727288 30 | 100K,R4,R_0603_1608Metric,C25803,https://www.digikey.com/en/products/detail/yageo/RC0603FR-07100KL/726889 31 | 13.3K,R5,R_0603_1608Metric,C321713,https://www.digikey.com/en/products/detail/yageo/RT0603BRD0713K3L/1072240 32 | 49.9R,R6,R_0603_1608Metric,C23185,https://www.digikey.com/en/products/detail/yageo/RC0603FR-0749R9L/727264 33 | 4.7K,R7,R_0603_1608Metric,C23162,https://www.digikey.com/en/products/detail/yageo/RC0603FR-074K7L/727212 34 | 470R,R8,R_0805_2012Metric,C17710,https://www.digikey.com/en/products/detail/yageo/RC0603FR-07470RL/727256 35 | 300R,R9,R_0805_2012Metric,C17617,https://www.digikey.com/en/products/detail/yageo/RC0805FR-07300RL/727848 36 | 110R,R10,R_0805_2012Metric,C246031,https://www.digikey.com/en/products/detail/yageo/RC0805FR-07110RL/727559 37 | EG2319,SW1,THT,-,https://www.digikey.com/en/products/detail/e-switch/EG2319/506090 38 | -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Production Files/DOCS_POS_ASSEMBLY_NES_PowerBoard_RGB_V3.1c.csv: -------------------------------------------------------------------------------- 1 | Designator,Val,Package,MidX,MidY,Rotation,Layer 2 | C2,10nF,C_0805_2012Metric,142.2,-111,-90,top 3 | C3,22uf/25,C_1206_3216Metric,124.7,-114.2,0,top 4 | C4,.1uF/25,C_1206_3216Metric,124.7,-116.1,-90,top 5 | C5,1uF,C_0805_2012Metric,123.9,-122,0,top 6 | C6,10nF,C_1206_3216Metric,141.3,-119.1,-90,top 7 | C7,22uf/25,C_1206_3216Metric,138.9,-119.1,-90,top 8 | C8,22uf/25,C_1206_3216Metric,138.9,-124.1,-90,top 9 | C9,100nF,C_1206_3216Metric,141.3,-124.1,-90,top 10 | C10,220uF,CAP-SMD_BD6.3-L6.5-W6.5-LS7.0-FD,156,-90.2,90,top 11 | C11,75pF,C_0805_2012Metric,120.5,-120.1,180,top 12 | C12,560pF,C_0805_2012Metric,149,-88.6,90,top 13 | D1,MSB30M,MSB30M,111.6,-82.45,-90,top 14 | D2,Power LED,LED_0805_2012Metric,106,-112.4,0,top 15 | D3,1N4148W,D_SOD-123,118.7,-108.3,180,top 16 | D4,Red LED,LED_0603_1608Metric,122.4,-108.7,-90,top 17 | Fuse1,F1812,F1812,121.2,-104.8,-90,top 18 | J2,EJ503A,THT,101.95,-87.75,180,top 19 | J4,3P Header,PinHeader_1x03_P2.54mm_Vertical,93.2,-96.9,90,top 20 | J7,TPS54202HDDCT,SOT-23-6,124.4,-119.1,0,top 21 | J8,1.27mm Pitch,JST_PH_B7B-PH-K_1x07_P2.00mm_Vertical,113.05,-129.3,0,top 22 | J10,OS102011MS2QN1,THT,126,-91,0,top 23 | J11,OS102011MS2QN1,THT,110.9,-117.75,0,top 24 | L1,15uF,CLF7045T,132.2,-121.3,0,top 25 | Q1,2SA1015,SOT-23,149.25,-93.75,0,top 26 | R1,4.7K,R_0805_2012Metric,106,-114.4,0,top 27 | R2,105K,R_0603_1608Metric,132.7,-113.9,0,top 28 | R3,511K,R_0603_1608Metric,136,-113.9,0,top 29 | R4,100K,R_0603_1608Metric,120.8,-121.9,180,top 30 | R5,13.3K,R_0603_1608Metric,123.9,-123.6,0,top 31 | R6,49.9R,R_0603_1608Metric,120.8,-123.6,0,top 32 | R7,4.7K,R_0603_1608Metric,124,-108.7,-90,top 33 | R8,470R,R_0805_2012Metric,105.15,-123.95,90,top 34 | R9,300R,R_0805_2012Metric,147,-99.2,90,top 35 | R10,110R,R_0805_2012Metric,151.2,-88.6,90,top 36 | -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Production Files/NES_PowerBoard_RGB_V3.1c-Gerbers.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/RGB - Genesis 9 Pin Edition/Production Files/NES_PowerBoard_RGB_V3.1c-Gerbers.zip -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Production Files/NES_PowerBoard_RGBv3.1c_IBOM.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/RGB - Genesis 9 Pin Edition/Production Files/NES_PowerBoard_RGBv3.1c_IBOM.zip -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/Production Files/readme.md: -------------------------------------------------------------------------------- 1 | 2 | -------------------------------------------------------------------------------- /RGB - Genesis 9 Pin Edition/readme.md: -------------------------------------------------------------------------------- 1 | # NES Revival RGBNES "Companion" Power Module.
2 | 3 | 1/15/2024
4 | - over 100 of these 3.1c boards have been sent out on my eBay store. 5 | - A few installation errors but we have not seen any buck converters giving up the smoke! 6 | - Corrected a mistake in the Digikey part number of the Q1 Transistor, the JLCPCB number was correct. 7 | - We are recommending a 560pF instead of the 1nF capacitor on C12, this provides a slightly crisper image. 8 | - Added the H variant of the switching regulator to the Digikey BOM. 9 | 10 | 6/4/2024
11 | - Production files have been released for version 3.1c

12 | 13 | 5/8/2024 - Version 3.1c is production ready, Gerbers will be released this week.
14 | I have a full analsyis with aid from Zaxour to show peformance levels for these boards.

15 | image 16 |

17 | 3/1/2024 - Testing of the new Design 3.0b is going well.
18 | - We have moved to a 4 layer board to increase the coupling of the switching components to the inner GND layers.
19 | - The Switch input is only used now to power the enable pin on the Buck Converter. The Input power comes directly from the board itself.
20 | - GND to NES Connector has been moved closer to the Voltage Regulator to reduce the GND Loop area.
21 | - Inductor has been moved further away from the interconnect pins and more bypass capacitors have been added to help reduce noise.
22 | - I plan on doing a more indepth analsys of this design vs the older design and releasing the results.
23 | - All Kicad files and Gerber files will be released once testing is completed.
24 | 25 | image 26 | 27 |

28 | 2/13/2024 - Production Boards have been ordered.
29 | - Testing has been going great!! I have now ordered my first production run.
30 | - With some help from this great community, I have made improvments to the design.
31 | - I plan on releasing a full breakdown of these new boards and some words on older designs.
32 | - Open Source Files will be released once the Production Boards are verified

33 | 34 | 1/16/2024 - Features of the 3.0 Boards
35 | - Stable and clean 5.06 volts at a 1.5A load. (7.5 watts)
36 | - Tested for 48 hours at a 1.8A load (9 watts)
37 | - Peaks of 2A are fine, but it's pushing the components pretty hard.
38 | - 1.5A Resettable Fuse on 9V input for board protection. (13.5 watts)
39 | - The LCSC Chinese Voltage Regulator has been replaced with a TE Connectivity IC. (TPS54202)
40 | - The Full Bridge Rectifier is a Diode Incorporate part. (MSB30M)
41 | - All Parts can be obtained from Digi-Key/Mouser.
42 | - Gerbers and Kicad files will be released once testing burn-in is complete.
43 | - I also plan on offering these again on my eBay account once i'm done with testing.
44 | 45 | image 46 | 47 | 48 |

49 | 4/30/2023 -

50 | When connecting the RGBNES to this PWR Module, do not use the main RGB Headers on the RGBNES.
51 | - The Gen2 Cables have circuits in them to treat the RGB Signal. The main RGB Headers on the RGBNES are also treating the RGB Signal.
52 | - If these header points are used, the picture will be a lot darker as a result.
53 | - There are other points on the RGBNES that can be used that have the RAW RGB Data before all the processing.
54 | - Use of the RAW RGB points will allow the picture's brightness to be accurate and good.
55 | - Reference these pins [HERE](https://github.com/ShawMerlin/NES-Power-Module-Redesign/blob/main/RGB%20-%20Genesis%209%20Pin%20Edition/Features%20and%20Components.md)
56 | 57 | 58 | 59 |
60 | 61 | 4/03/2023 - Newer features of the 2.1 Boards
62 | - Using JST 2.0 PH Connectors now so the wires are not so microscopic.
63 | - Updated the Audio Selection Switch to also control Audio Output on the Gen2 Port.
64 | - Added the Internal Componsite Circuit so now this board can be fully used without a RGBNES Installed.
65 | - Video Selection switch will now control whether Int or Ext Video is outputted on the RCA Jack.
66 | - If Dual Mono Audio is desired, a simple RCA Y Splitter cable can be used on the Red RCA Jack.
67 | 68 | 69 | 3/13/2023
70 | Gerbers, BOM and POS (JLCPCB Assembly) have been released and are on this github page.
71 | 72 | 73 | 74 | Key Features on this board. 75 | - Switching Voltage Regulator. This outputs a lot less heat and a stable 5V Supply. 76 | - Seperate Ground Plane from the 5V Regulator and the RGB Traces. 2 Grounding points on the Board. 77 | - Physical cut outs in the PCB board to help shield against any EMI from the regulator. 78 | - Switch for selection of Internal Audio or External Audio (if you have your own Audio Circuit) 79 | - Switch for Selection of the Multi-Function RCA Jack to be Left (mono Audio) or Composite from the RGB Board. 80 | - 3 Way Side Switch that can be wired into the Palette Selection on the RGB Board - 81 | - Gen2 Output is compatible with the Scart Adapters, HDRetrovision Cable, OSSC and the Retrotink. 82 | - The RGBNES offers Raw RGB Output pads as the Gen2 Cables will add 75 ohm resistors. Check instructions for more details. 83 | 84 | 85 | Click here for a list of the features this board offers - [Link](https://github.com/ShawMerlin/NES-Power-Module-Redesign/blob/main/RGB%20-%20Genesis%209%20Pin%20Edition/Features%20and%20Components.md) 86 | 87 | 88 | Click here for Instructions on how to install this Power Module - [Link](https://github.com/ShawMerlin/NES-Power-Module-Redesign/blob/main/Install_Instructions.md) 89 | 90 | (RGBNES Required for the Gen2 Port on this No Cut Mod Board, Normal Componsite and Audio will still work without it.)
91 | 92 | Shoutout to Long Island Retro Gaming for the screenshot!! - https://www.youtube.com/@LIRetroGaming 93 | ![image](https://user-images.githubusercontent.com/70423454/226394506-f0109706-81cb-4232-8296-21bb947b9209.png) 94 | 95 | 96 | ![image](https://user-images.githubusercontent.com/70423454/222490935-0a6bae29-9fde-409d-aaa8-4821d209c6cb.png) 97 | 98 | ![image](https://user-images.githubusercontent.com/70423454/216229176-2274718d-cc2f-489f-aa68-324682cbb03c.png) 99 | 100 | 101 |

102 | Update History
103 | 104 | 3/20/2023 - Feedback from testers has been excellent. I have received great feedback which is being done in the next revision.

105 | Revisions for V2.1 106 | - Removed the ability to use the multifuction port as an Audio Port. It is now Video Componsite Only.
107 | - Added the internal Composite circuitry back to the Power Board and made the seldctor switch, Int Video and Ext Video.
108 | 109 | 3/2/2023 - Testing is going good. I am sending engineering samples to various testers in order to get feedback.
110 | 111 | Final Revision for V2.0 that brings some quality of life updates.
112 | - Moved the Optional Power LED to a more central location.
113 | - Changed the Pitch from JST XH 1.5mm to JST PH 2.0mm to make it a lot easier to solder without bridges.
114 | - Rotated JST Connector so now a right angle one can be used.
115 | - Gen2 Audio Output now is controlled by the Ext/Int Audio Switch.
116 | - Rotated the Palette Switch outputs for easier access.

117 | 118 | 2/28/2023 - Boards have arrived and are assembled. I couldn't find my Gen2 9 Pin to SCART cable so I had to order a new one.
119 | It sohuld arrive today and after testing is complete. All files will be released on this github.
120 | 121 | 2/1/2023 - Getting back on the horse!! I have Version 1.9 completed and ordered. I should be able to test within a couple of weeks. 122 | This new version has slide switches instead of header jumpers and I have also changed the pinout on the 7 pin connector to match the color of wires. 123 | 124 | 9/12/2022 - I have made a couple of changes to the RGB Board, I have moved the 9 pin Genesis Connector closer and fixed part of the audio circuit. 125 | The Gerber files have been taken down until we get this new one tested. 126 | -------------------------------------------------------------------------------- /USB-Powered-RCA-Classic/Kicad Files/BOM_NES_USBC_Classic_V1.5.csv: -------------------------------------------------------------------------------- 1 | Comment,Designator,SMD Footprints,LCSC,Website 2 | 2200uF,C1,"SMD,D12.5xL13.5mm",C99834,https://www.lcsc.com/product-detail/Aluminum-Electrolytic-Capacitors-SMD_ROQANG-RVT1A222M1213_C99834.html 3 | 10nF,"C2,C9",C_0805_2012Metric,C1710,https://www.lcsc.com/product-detail/Multilayer-Ceramic-Capacitors-MLCC-SMD-SMT_Samsung-Electro-Mechanics-CL21B103KBANNNC_C1710.html 4 | 47uF,C3,C_0805_2012Metric,C76636,https://www.lcsc.com/product-detail/Multilayer-Ceramic-Capacitors-MLCC-SMD-SMT_TDK-C2012X5R1A476MTJ00E_C76636.html 5 | 1uF,C4,C_0805_2012Metric,C28323,https://www.lcsc.com/product-detail/Multilayer-Ceramic-Capacitors-MLCC-SMD-SMT_Samsung-Electro-Mechanics-CL21B105KBFNNNE_C28323.html 6 | 22uF,C5,C_0805_2012Metric,C45783,https://www.lcsc.com/product-detail/Multilayer-Ceramic-Capacitors-MLCC-SMD-SMT_Samsung-Electro-Mechanics-CL21A226MAQNNNE_C45783.html 7 | .1uF,C6,C_0805_2012Metric,C49678,https://www.lcsc.com/product-detail/Multilayer-Ceramic-Capacitors-MLCC-SMD-SMT_YAGEO-CC0805KRX7R9BB104_C49678.html 8 | 330uF,C7,"SMD,6.3x5.8mm",C176319,https://www.lcsc.com/product-detail/Solid-Capacitors_APAQ-Tech-6R3AVEA331M0606_C176319.html 9 | 220uF,C8,CAP-SMD,C259967,https://www.lcsc.com/product-detail/Solid-Capacitors_Nichicon-FP-6R3ME221M-SLR_C259967.html 10 | Green_LED,D1,LED_0805_2012Metric,C2297,https://www.lcsc.com/product-detail/Light-Emitting-Diodes-LED_Hubei-KENTO-Elec-KT-0805G_C2297.html 11 | SMA4734A,D2,SMA(DO-214AC),C2917848,https://www.lcsc.com/product-detail/Zener-Diodes_ZHIDE-SMA4734A_C2917848.html 12 | Red_LED,D3,LED_0805_2012Metric,C84256,https://www.lcsc.com/product-detail/Light-Emitting-Diodes-LED_Foshan-NationStar-Optoelectronics-NCD0805R1_C84256.html 13 | 1N4148W,D4,SOD-123,C81598,https://www.lcsc.com/product-detail/Switching-Diode_ST-Semtech-1N4148W_C81598.html 14 | MINISMDC150F/16-2,FUSE1,F1812,C315955,https://www.lcsc.com/product-detail/Resettable-Fuses_Littelfuse-MINISMDC150F-16-2_C315955.html 15 | 1.5K,R1,R_0805_2012Metric,C4310,https://www.lcsc.com/product-detail/Chip-Resistor-Surface-Mount_UNI-ROYAL-Uniroyal-Elec-0805W8F1501T5E_C4310.html 16 | 300R,R2,R_0805_2012Metric,C17617,https://www.lcsc.com/product-detail/Chip-Resistor-Surface-Mount_UNI-ROYAL-Uniroyal-Elec-0805W8F3000T5E_C17617.html 17 | 110R,R3,R_0805_2012Metric,C246031,https://www.lcsc.com/product-detail/Chip-Resistor-Surface-Mount_YAGEO-RC0805FR-07110RL_C246031.html 18 | 5.1K,"R4,R5",R_0402_1005Metric,C105872,https://www.lcsc.com/product-detail/Chip-Resistor-Surface-Mount_YAGEO-RC0402FR-075K1L_C105872.html 19 | 680R,"R6,R7",R_0805_2012Metric,C17798,https://www.lcsc.com/product-detail/Chip-Resistor-Surface-Mount_UNI-ROYAL-Uniroyal-Elec-0805W8F6800T5E_C17798.html 20 | 2SA1015,Q1,SOT-23,C181170,https://www.lcsc.com/product-detail/Bipolar-Transistors-BJT_Guangdong-Hottech-2SA1015_C181170.html 21 | SP0502BAHTG,"Q2,Q3",SOT-23,C207261,https://www.lcsc.com/product-detail/Electrostatic-and-Surge-Protection-TVS-ESD_Littelfuse-SP0502BAHTG_C207261.html 22 | X0202AG-A-AA3-R,T1,SOT-223-3_TabPin2,C696248,https://www.lcsc.com/product-detail/TRIACs_UTC-Unisonic-Tech-X0202AG-A-AA3-R_C696248.html 23 | PESDNC2XD5VB,U1,DFN0603-D,C110696,https://www.lcsc.com/product-detail/Electrostatic-and-Surge-Protection-TVS-ESD_Shanghai-Prisemi-Elec-PESDNC2XD5VB_C110696.html 24 | DX07S024XJ1R1100,J2,USB SMD,C134113,https://www.lcsc.com/product-detail/USB-Connectors_JAE-Electronics-DX07S024XJ1R1100_C134113.html 25 | ,,,Mouser, 26 | White RCA,J3,THT,RCJ-043,https://www.mouser.com/ProductDetail/490-RCJ-043 27 | Yellow RCA,J4,THT,RCJ-044,https://www.mouser.com/ProductDetail/490-RCJ-044 28 | Red RCA,J5,THT,RCJ-042,https://www.mouser.com/ProductDetail/490-RCJ-042 29 | DNP,SW1,,, 30 | -------------------------------------------------------------------------------- /USB-Powered-RCA-Classic/Kicad Files/NES_PowerBoard_USB C_Classic_RCA_V1.5.kicad_pro: -------------------------------------------------------------------------------- 1 | { 2 | "board": { 3 | "3dviewports": [], 4 | "design_settings": { 5 | "defaults": { 6 | "board_outline_line_width": 0.049999999999999996, 7 | "copper_line_width": 0.19999999999999998, 8 | "copper_text_italic": false, 9 | "copper_text_size_h": 1.5, 10 | "copper_text_size_v": 1.5, 11 | "copper_text_thickness": 0.3, 12 | "copper_text_upright": false, 13 | "courtyard_line_width": 0.049999999999999996, 14 | "dimension_precision": 4, 15 | "dimension_units": 3, 16 | "dimensions": { 17 | "arrow_length": 1270000, 18 | "extension_offset": 500000, 19 | "keep_text_aligned": true, 20 | "suppress_zeroes": false, 21 | "text_position": 0, 22 | "units_format": 1 23 | }, 24 | "fab_line_width": 0.09999999999999999, 25 | "fab_text_italic": false, 26 | "fab_text_size_h": 1.0, 27 | "fab_text_size_v": 1.0, 28 | "fab_text_thickness": 0.15, 29 | "fab_text_upright": false, 30 | "other_line_width": 0.09999999999999999, 31 | "other_text_italic": false, 32 | "other_text_size_h": 1.0, 33 | "other_text_size_v": 1.0, 34 | "other_text_thickness": 0.15, 35 | "other_text_upright": false, 36 | "pads": { 37 | "drill": 0.0, 38 | "height": 2.6, 39 | "width": 8.5 40 | }, 41 | "silk_line_width": 0.12, 42 | "silk_text_italic": false, 43 | "silk_text_size_h": 1.0, 44 | "silk_text_size_v": 1.0, 45 | "silk_text_thickness": 0.15, 46 | "silk_text_upright": false, 47 | "zones": { 48 | "45_degree_only": false, 49 | "min_clearance": 0.19999999999999998 50 | } 51 | }, 52 | "diff_pair_dimensions": [ 53 | { 54 | "gap": 0.0, 55 | "via_gap": 0.0, 56 | "width": 0.0 57 | } 58 | ], 59 | "drc_exclusions": [], 60 | "meta": { 61 | "version": 2 62 | }, 63 | "rule_severities": { 64 | "annular_width": "error", 65 | "clearance": "error", 66 | "copper_edge_clearance": "error", 67 | "courtyards_overlap": "error", 68 | "diff_pair_gap_out_of_range": "error", 69 | "diff_pair_uncoupled_length_too_long": "error", 70 | "drill_out_of_range": "error", 71 | "duplicate_footprints": "warning", 72 | "extra_footprint": "warning", 73 | "footprint_type_mismatch": "error", 74 | "hole_clearance": "error", 75 | "hole_near_hole": "error", 76 | "invalid_outline": "error", 77 | "item_on_disabled_layer": "error", 78 | "items_not_allowed": "error", 79 | "length_out_of_range": "error", 80 | "malformed_courtyard": "error", 81 | "microvia_drill_out_of_range": "error", 82 | "missing_courtyard": "ignore", 83 | "missing_footprint": "warning", 84 | "net_conflict": "warning", 85 | "npth_inside_courtyard": "ignore", 86 | "padstack": "error", 87 | "pth_inside_courtyard": "ignore", 88 | "shorting_items": "error", 89 | "silk_over_copper": "warning", 90 | "silk_overlap": "warning", 91 | "skew_out_of_range": "error", 92 | "through_hole_pad_without_hole": "error", 93 | "too_many_vias": "error", 94 | "track_dangling": "warning", 95 | "track_width": "error", 96 | "tracks_crossing": "error", 97 | "unconnected_items": "error", 98 | "unresolved_variable": "error", 99 | "via_dangling": "warning", 100 | "zone_has_empty_net": "error", 101 | "zones_intersect": "error" 102 | }, 103 | "rules": { 104 | "allow_blind_buried_vias": false, 105 | "allow_microvias": false, 106 | "max_error": 0.005, 107 | "min_clearance": 0.0, 108 | "min_copper_edge_clearance": 0.01, 109 | "min_hole_clearance": 0.25, 110 | "min_hole_to_hole": 0.25, 111 | "min_microvia_diameter": 0.19999999999999998, 112 | "min_microvia_drill": 0.09999999999999999, 113 | "min_silk_clearance": 0.0, 114 | "min_through_hole_diameter": 0.3, 115 | "min_track_width": 0.19999999999999998, 116 | "min_via_annular_width": 0.049999999999999996, 117 | "min_via_diameter": 0.39999999999999997, 118 | "use_height_for_length_calcs": true 119 | }, 120 | "track_widths": [ 121 | 0.0, 122 | 0.25, 123 | 0.35, 124 | 0.5, 125 | 0.75, 126 | 1.0 127 | ], 128 | "via_dimensions": [ 129 | { 130 | "diameter": 0.0, 131 | "drill": 0.0 132 | } 133 | ], 134 | "zones_allow_external_fillets": false, 135 | "zones_use_no_outline": true 136 | }, 137 | "layer_presets": [], 138 | "viewports": [] 139 | }, 140 | "boards": [], 141 | "cvpcb": { 142 | "equivalence_files": [] 143 | }, 144 | "erc": { 145 | "erc_exclusions": [], 146 | "meta": { 147 | "version": 0 148 | }, 149 | "pin_map": [ 150 | [ 151 | 0, 152 | 0, 153 | 0, 154 | 0, 155 | 0, 156 | 0, 157 | 1, 158 | 0, 159 | 0, 160 | 0, 161 | 0, 162 | 2 163 | ], 164 | [ 165 | 0, 166 | 2, 167 | 0, 168 | 1, 169 | 0, 170 | 0, 171 | 1, 172 | 0, 173 | 2, 174 | 2, 175 | 2, 176 | 2 177 | ], 178 | [ 179 | 0, 180 | 0, 181 | 0, 182 | 0, 183 | 0, 184 | 0, 185 | 1, 186 | 0, 187 | 1, 188 | 0, 189 | 1, 190 | 2 191 | ], 192 | [ 193 | 0, 194 | 1, 195 | 0, 196 | 0, 197 | 0, 198 | 0, 199 | 1, 200 | 1, 201 | 2, 202 | 1, 203 | 1, 204 | 2 205 | ], 206 | [ 207 | 0, 208 | 0, 209 | 0, 210 | 0, 211 | 0, 212 | 0, 213 | 1, 214 | 0, 215 | 0, 216 | 0, 217 | 0, 218 | 2 219 | ], 220 | [ 221 | 0, 222 | 0, 223 | 0, 224 | 0, 225 | 0, 226 | 0, 227 | 0, 228 | 0, 229 | 0, 230 | 0, 231 | 0, 232 | 2 233 | ], 234 | [ 235 | 1, 236 | 1, 237 | 1, 238 | 1, 239 | 1, 240 | 0, 241 | 1, 242 | 1, 243 | 1, 244 | 1, 245 | 1, 246 | 2 247 | ], 248 | [ 249 | 0, 250 | 0, 251 | 0, 252 | 1, 253 | 0, 254 | 0, 255 | 1, 256 | 0, 257 | 0, 258 | 0, 259 | 0, 260 | 2 261 | ], 262 | [ 263 | 0, 264 | 2, 265 | 1, 266 | 2, 267 | 0, 268 | 0, 269 | 1, 270 | 0, 271 | 2, 272 | 2, 273 | 2, 274 | 2 275 | ], 276 | [ 277 | 0, 278 | 2, 279 | 0, 280 | 1, 281 | 0, 282 | 0, 283 | 1, 284 | 0, 285 | 2, 286 | 0, 287 | 0, 288 | 2 289 | ], 290 | [ 291 | 0, 292 | 2, 293 | 1, 294 | 1, 295 | 0, 296 | 0, 297 | 1, 298 | 0, 299 | 2, 300 | 0, 301 | 0, 302 | 2 303 | ], 304 | [ 305 | 2, 306 | 2, 307 | 2, 308 | 2, 309 | 2, 310 | 2, 311 | 2, 312 | 2, 313 | 2, 314 | 2, 315 | 2, 316 | 2 317 | ] 318 | ], 319 | "rule_severities": { 320 | "bus_definition_conflict": "error", 321 | "bus_entry_needed": "error", 322 | "bus_to_bus_conflict": "error", 323 | "bus_to_net_conflict": "error", 324 | "conflicting_netclasses": "error", 325 | "different_unit_footprint": "error", 326 | "different_unit_net": "error", 327 | "duplicate_reference": "error", 328 | "duplicate_sheet_names": "error", 329 | "endpoint_off_grid": "warning", 330 | "extra_units": "error", 331 | "global_label_dangling": "warning", 332 | "hier_label_mismatch": "error", 333 | "label_dangling": "error", 334 | "lib_symbol_issues": "warning", 335 | "missing_bidi_pin": "warning", 336 | "missing_input_pin": "warning", 337 | "missing_power_pin": "error", 338 | "missing_unit": "warning", 339 | "multiple_net_names": "warning", 340 | "net_not_bus_member": "warning", 341 | "no_connect_connected": "warning", 342 | "no_connect_dangling": "warning", 343 | "pin_not_connected": "error", 344 | "pin_not_driven": "error", 345 | "pin_to_pin": "warning", 346 | "power_pin_not_driven": "error", 347 | "similar_labels": "warning", 348 | "simulation_model_issue": "ignore", 349 | "unannotated": "error", 350 | "unit_value_mismatch": "error", 351 | "unresolved_variable": "error", 352 | "wire_dangling": "error" 353 | } 354 | }, 355 | "libraries": { 356 | "pinned_footprint_libs": [], 357 | "pinned_symbol_libs": [] 358 | }, 359 | "meta": { 360 | "filename": "NES_PowerBoard_USB C_Classic_RCA_V1.5.kicad_pro", 361 | "version": 1 362 | }, 363 | "net_settings": { 364 | "classes": [ 365 | { 366 | "bus_width": 12, 367 | "clearance": 0.2, 368 | "diff_pair_gap": 0.25, 369 | "diff_pair_via_gap": 0.25, 370 | "diff_pair_width": 0.2, 371 | "line_style": 0, 372 | "microvia_diameter": 0.3, 373 | "microvia_drill": 0.1, 374 | "name": "Default", 375 | "pcb_color": "rgba(0, 0, 0, 0.000)", 376 | "schematic_color": "rgba(0, 0, 0, 0.000)", 377 | "track_width": 0.25, 378 | "via_diameter": 0.8, 379 | "via_drill": 0.4, 380 | "wire_width": 6 381 | } 382 | ], 383 | "meta": { 384 | "version": 3 385 | }, 386 | "net_colors": null, 387 | "netclass_assignments": null, 388 | "netclass_patterns": [] 389 | }, 390 | "pcbnew": { 391 | "last_paths": { 392 | "gencad": "", 393 | "idf": "", 394 | "netlist": "NES_PowerBoard_Classic_RCA_V1.8.net", 395 | "specctra_dsn": "", 396 | "step": "", 397 | "vrml": "" 398 | }, 399 | "page_layout_descr_file": "" 400 | }, 401 | "schematic": { 402 | "annotate_start_num": 0, 403 | "drawing": { 404 | "dashed_lines_dash_length_ratio": 12.0, 405 | "dashed_lines_gap_length_ratio": 3.0, 406 | "default_line_thickness": 6.0, 407 | "default_text_size": 50.0, 408 | "field_names": [], 409 | "intersheets_ref_own_page": false, 410 | "intersheets_ref_prefix": "", 411 | "intersheets_ref_short": false, 412 | "intersheets_ref_show": false, 413 | "intersheets_ref_suffix": "", 414 | "junction_size_choice": 3, 415 | "label_size_ratio": 0.375, 416 | "pin_symbol_size": 25.0, 417 | "text_offset_ratio": 0.15 418 | }, 419 | "legacy_lib_dir": "", 420 | "legacy_lib_list": [], 421 | "meta": { 422 | "version": 1 423 | }, 424 | "net_format_name": "KiCad", 425 | "ngspice": { 426 | "fix_include_paths": true, 427 | "fix_passive_vals": false, 428 | "meta": { 429 | "version": 0 430 | }, 431 | "model_mode": 0, 432 | "workbook_filename": "" 433 | }, 434 | "page_layout_descr_file": "", 435 | "plot_directory": "", 436 | "spice_adjust_passive_values": false, 437 | "spice_current_sheet_as_root": false, 438 | "spice_external_command": "spice \"%I\"", 439 | "spice_model_current_sheet_as_root": true, 440 | "spice_save_all_currents": false, 441 | "spice_save_all_voltages": false, 442 | "subpart_first_id": 65, 443 | "subpart_id_separator": 0 444 | }, 445 | "sheets": [ 446 | [ 447 | "eaef1172-3351-417c-bfc4-74a598f141cb", 448 | "" 449 | ] 450 | ], 451 | "text_variables": {} 452 | } 453 | -------------------------------------------------------------------------------- /USB-Powered-RCA-Classic/Kicad Files/POS_NES_USBC_Classic_V1.4.csv: -------------------------------------------------------------------------------- 1 | Designator,Val,Package,MidX,MidY,Rotation,Layer 2 | C1,2200uF,CAP-SMD_BD12.5-L13.0-W13.0-RD,212.5,49,0,top 3 | C2,10nF,C_0805_2012Metric,244.75,39.75,180,top 4 | C3,22uf/25,C_0805_2012Metric_Pad1.18x1.45mm_HandSolder,243,35.5,90,top 5 | C4,22uf/25,C_0805_2012Metric_Pad1.18x1.45mm_HandSolder,245.25,35.5,90,top 6 | C5,22uf/25,C_0805_2012Metric_Pad1.18x1.45mm_HandSolder,243,28.4125,-90,top 7 | C6,22uf/25,C_0805_2012Metric_Pad1.18x1.45mm_HandSolder,245.25,28.4125,-90,top 8 | C7,220uF,CAP-SMD_BD6.3-L6.5-W6.5-LS7.0-FD,237,32,180,top 9 | C8,220uF,CAP-SMD_BD6.3-L6.5-W6.5-LS7.0-FD,215,24,180,top 10 | C9,10nF,C_0805_2012Metric,237.9,55.2,0,top 11 | D1,Power LED,LED_0805_2012Metric,238.34375,25.06875,90,top 12 | D2,SMA4734A,SMA_L4.2-W2.7-LS5.0-RD,233.3,49.9,90,top 13 | D3,Power LED,LED_0805_2012Metric,225.6,41.7,-90,top 14 | D4,1N4148W,D_SOD-123,222,42.3375,180,top 15 | FUSE1,MINISMDC125F/16-2,F1812,225.2,47.3,0,top 16 | J2,DX07S024XJ1R1100,USB-C-TH_DX07S024XJ1R1100-1,198.33,61.35,-90,top 17 | Q1,2SA1015,SOT-23,219.75,19.67,0,top 18 | Q2,SP0502BAHTG,SOT-23,201.03,53.7875,90,top 19 | Q3,SP0502BAHTG,SOT-23,206.8625,59.8,180,top 20 | R1,680,R_0805_2012Metric,236.34375,25.06875,-90,top 21 | R2,300,R_0805_2012Metric,221.75,23.75,180,top 22 | R3,110R,R_0805_2012Metric,209,24,-90,top 23 | R4,5.1K,R_0402_1005Metric,198.63,54.4875,-90,top 24 | R5,5.1K,R_0402_1005Metric,202.83,61.1875,0,top 25 | R6,680,R_0805_2012Metric,227.7,41.7,-90,top 26 | R7,680,R_0805_2012Metric,234.4,55.2,180,top 27 | T1,MCR08BT1G,SOT-223-3_TabPin2,239.3,49.4,90,top 28 | U1,DFN0603-D_L0.6-W0.3-P0.34-RD,DFN0603-D_L0.6-W0.3-P0.34-RD,202.53,62.0875,180,top 29 | -------------------------------------------------------------------------------- /USB-Powered-RCA-Classic/Kicad Files/readme.md: -------------------------------------------------------------------------------- 1 | 2 | -------------------------------------------------------------------------------- /USB-Powered-RCA-Classic/Schematic-NES_PowerBoard_USB C_RCA_V1.5.jpg: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/ShawMerlin/NES-Power-Module-Redesign/30cb6ad2c363d7b25e0403a72f982298ec3018ca/USB-Powered-RCA-Classic/Schematic-NES_PowerBoard_USB C_RCA_V1.5.jpg -------------------------------------------------------------------------------- /USB-Powered-RCA-Classic/readme.md: -------------------------------------------------------------------------------- 1 | 4/27/2024 - The Prototype of the USB C PD Power Board has been ordered and we should be testing it at the end of next week.
2 | I do plan on offering these for sell when they have completed testing.

3 | 4 | 4/5/2024 - I added information to the older USB C Design. I still do not recommend using this design.
5 | I am close to ordering my first prototype for the USB C PD Board. The Evaluation board I got to test this has worked great.
6 | I hope to order within a few weeks, i'm just trying to save up for the order.

7 | Here is a sneak peak ;)
8 | 9 | image 10 | 11 |
12 |
13 | 3/31/2024 - Please note that I am currently working on a USB C PD version that will be a lot more stable.
14 | The USB C Standard allows for voltages between 4.75 and 5.75 volts. The NES does not like voltages under or above 5.0-5.1 volts.
15 | So it was kit or miss when it came to what USB C Brick was used.

16 | 17 | With USB C PD, we will output a stable 9 - 12 volts and then use a voltage regulator to output a stable 5.07 volts.
18 | This regulator has been tested and found to only have a 23mV peak to peak.
19 | I plan to have this design ready for release in about 4 weeks.

20 | 21 |

22 | image 23 | 24 | image 25 | -------------------------------------------------------------------------------- /Updates.md: -------------------------------------------------------------------------------- 1 | # Updates 2 | - 4/10/2023 - New RGBNES Companion PWR Boards Version 2.1 are completed and fully tested.(I will upload design files shortly)
3 | - Still working on the 5.2V Clamp on the USB Boards to send all voltages above 5.2V to GND and trip a resettable fuse.
4 | 5 | - 3/31/2023 - New RCA Classic Modules v2.1 have been tested and are working great.
6 | Features a 1.9A fuse to help protect the circuit and main NES Board, input inductor, Diode Rectifier and more filtering capacitors
7 | - 3/13/2023 - The NES NESRGB "Companion" Power Module is completed and tested. Files released under this github.
8 | - 2/14/2023 - DIY Boards have tested good with a 2 amp load for 24 hours. I updated a footprint and added some warning graphics to the board. Gerbers files have been released.
9 | - 2/12/2023 - The DIY Board has arrived and it has been assembled. Testing will finish up tonight and I will release the Kicad/Gerber files once testing is done.
10 | - 2/12/2023 - The Vertical USB C proved to not be the most solid or stable when I was stress testing it with twisting and plugging in the cable. This has been replaced.
11 | - 2/12/2023 - The 'Y'Pb'Pr Component output board is working but is oversaturated on the blue channel. More research is being done.
12 | - 2/12/2023 - NES RGB Gen2 Power Module is currently in-transit. I will be testing this as soon as it arrives. 13 | 14 | 15 | - 2/1/2023 - Getting back on the horse!! I have NES RGB Gen2 Power Module Version 1.9 completed and ordered. I should be able to test within a couple of weeks. 16 | This new version has slide switches instead of header jumpers and I have also changed the pinout on the 7 pin connector to match the color of wires. 17 | 18 | - 2/1/2023 - Redesigned the THT DIY Board so that it uses a LDO once again and uploaded the BOM files. Testing the PCB is our next step. 19 | 20 | - 1/8/2022 I have added to my designs a USB C Powered Module (This was long overdue). 21 | This module uses Power Delivery to get up to 3 amps of 5V Power from a USB Power Brick. 22 | It does not need to coverted down to 5V so no buck converters or LDO's needed!! 23 | 24 | - 10/18/2022 - The YPbPr Component board has to have the 3.5mm jack changed positions. The case doesn't quite have a low enough lip to 25 | support it and I want to keept his a No-Cut Mod. I plan on putting it up where the old Video Out use to be and will upload photo's when I have this completed. 26 | 27 | - 9/22/2022 - Working on a Classic and 'Y'Pb'Pr "Component" Version that uses the LDO instead of the Switching Voltage Regulator. 28 | 29 | Lots of heat but I have some ideas on how to handle it. 30 | 31 | - 9/17/2022 - I tested the Component (Y/pB/pR) circuit with the NESRGB Board and it looked great!! I have these new PCBs on order 32 | 33 | - 9/12/2022 - I found a couple of issues on the Sound and RGB Board which are being fixed. The Classic and THT Versions are still good. 34 | Added new concept of a Component Output board and created a folder for it with Pictures. 35 | 36 | - 9/10/2022 - Sound Mix board needed a couple of small changes but the RGB, DIY THT, and new HDMI Companion board are working great!! 37 | I will be updating the folders on this github with those gerber files too. 38 | 39 | - 8/24/2022 - Uploaded BOM, Gerber and Kicad Files for the DIY THT Classic RCA Power Module. 40 | - 8/22/2022 - Starting tests on the Sound Mix and RGB Edition. 41 | 42 | I have also added a new version below for the HDMI Hi-Def Mod. 43 | - 7/13/2022 - First Production batch of Classic Power Module arrived. Kicad files available and uploaded! 44 | 45 | I have also ordered the Soundmix and RGB Boards. 46 | - 7/02/2022 - Prototypes for the Classic Power Module with Composite Video were successful!! 47 | 48 | Gerbers, Bill of Materials and Assemly Position files have been uploaded above. 49 | - 6/19/2022 - Replaced the LDO with a Switching Voltage Regulator for a low heat alternative. New boards ordered. Expected by 6/27. 50 | - 5/30/2022 - BOM created for Classic RCA Power Board and Uploaded, boards expected by 6/3. 51 | - 5/17/2022 - Both Classic and Classic with Sound AMP PCBs have been ordered for testing. 52 | - Once verified, the open source files will be released. 53 | --------------------------------------------------------------------------------
