├── .gitattributes
├── 00_Start_Project.unitypackage
├── 01_End_Project.unitypackage
├── LICENSE
├── README.md
└── Scripts
    ├── MapGenerator.cs
    ├── MapRenderer.cs
    ├── NoiseHelper.cs
    ├── NoiseSettings.cs
    ├── PerlinWorm.cs
    └── RiverGenerator.cs


/.gitattributes:
--------------------------------------------------------------------------------
1 | # Auto detect text files and perform LF normalization
2 | * text=auto
3 |


--------------------------------------------------------------------------------
/00_Start_Project.unitypackage:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/SunnyValleyStudio/Perlin-Worms-Unity-tutorial/fdd62459725360bc61a25fcfc0c7516f202bfa24/00_Start_Project.unitypackage


--------------------------------------------------------------------------------
/01_End_Project.unitypackage:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/SunnyValleyStudio/Perlin-Worms-Unity-tutorial/fdd62459725360bc61a25fcfc0c7516f202bfa24/01_End_Project.unitypackage


--------------------------------------------------------------------------------
/LICENSE:
--------------------------------------------------------------------------------
 1 | MIT License
 2 |
 3 | Copyright (c) 2021 SunnyValleyStudio
 4 |
 5 | Permission is hereby granted, free of charge, to any person obtaining a copy
 6 | of this software and associated documentation files (the "Software"), to deal
 7 | in the Software without restriction, including without limitation the rights
 8 | to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 9 | copies of the Software, and to permit persons to whom the Software is
10 | furnished to do so, subject to the following conditions:
11 |
12 | The above copyright notice and this permission notice shall be included in all
13 | copies or substantial portions of the Software.
14 |
15 | THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
16 | IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
17 | FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
18 | AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
19 | LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
20 | OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
21 | SOFTWARE.
22 |


--------------------------------------------------------------------------------
/README.md:
--------------------------------------------------------------------------------
1 | # Perlin-Worms-Unity-tutorial

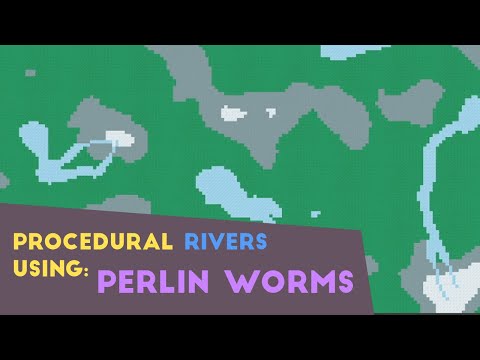

2 | [![Tutorial](http://img.youtube.com/vi/B8qarIAuE6M/hqdefault.jpg)](https://youtu.be/B8qarIAuE6M)
3 |
4 | <p>  Create procedural rivers in unity 2d top down example map using Perlin worms algorithm.
5 |
6 |
7 | <p>Attribution:
8 | Made by Sunny Valley Studio
9 |


--------------------------------------------------------------------------------
/Scripts/MapGenerator.cs:
--------------------------------------------------------------------------------
 1 | using System;
 2 | using System.Collections;
 3 | using System.Collections.Generic;
 4 | using System.Linq;
 5 | using UnityEngine;
 6 | using UnityEngine.Tilemaps;
 7 |
 8 | public class MapGenerator : MonoBehaviour
 9 | {
10 |     public MapRenderer mapRenderer;
11 |     public TileBase grassTile, waterTile, hillTile, snowTile, maxPosTile;
12 |     public int mapSize;
13 |     public NoiseSettings mapSettings;
14 |     public float hillHeight = 0.5f, snowHeight = 0.6f, waterHeight = 0.4f;
15 |     public float[,] noiseMap;
16 |
17 |     private void Start()
18 |     {
19 |         noiseMap = new float[mapSize, mapSize];
20 |         PrepareMap();
21 |     }
22 |
23 |     public void PrepareMap()
24 |     {
25 |         Debug.Log("Generating map");
26 |         mapRenderer.ClearMap();
27 |
28 |         for (int x = 0; x < mapSize; x++)
29 |         {
30 |             for (int y = 0; y < mapSize; y++)
31 |             {
32 |                 var noise = NoiseHelper.SumNoise(x, y, mapSettings);
33 |                 noiseMap[x, y] = noise;
34 |                 if (noise > snowHeight)
35 |                 {
36 |                     mapRenderer.SetTileTo(x, y, snowTile);
37 |                 }else if(noise > hillHeight)
38 |                 {
39 |                     mapRenderer.SetTileTo(x, y, hillTile);
40 |                 }else if (noise < waterHeight)
41 |                 {
42 |                     mapRenderer.SetTileTo(x, y, waterTile);
43 |                 }
44 |                 else
45 |                 {
46 |                     mapRenderer.SetTileTo(x, y, grassTile);
47 |                 }
48 |
49 |             }
50 |         }
51 |     }
52 |
53 |     public void ShowMaximas()
54 |     {
55 |         var result = NoiseHelper.FindLocalMaxima(noiseMap);
56 |         result = result.Where(pos => noiseMap[pos.x, pos.y] > snowHeight).OrderBy(pos => noiseMap[pos.x, pos.y]).Take(20).ToList();
57 |         foreach (var item in result)
58 |         {
59 |             mapRenderer.SetTileTo(item.x, item.y, maxPosTile);
60 |         }
61 |     }
62 |
63 |     public void ShowMinimas()
64 |     {
65 |         var result = NoiseHelper.FindLocalMinima(noiseMap);
66 |         result = result.Where(pos => noiseMap[pos.x, pos.y] < waterHeight).OrderBy(pos => noiseMap[pos.x, pos.y]).Take(20).ToList();
67 |         foreach (var item in result)
68 |         {
69 |             mapRenderer.SetTileTo(item.x, item.y, maxPosTile);
70 |         }
71 |     }
72 |
73 | }
74 |


--------------------------------------------------------------------------------
/Scripts/MapRenderer.cs:
--------------------------------------------------------------------------------
 1 | using System;
 2 | using System.Collections;
 3 | using System.Collections.Generic;
 4 | using UnityEngine;
 5 | using UnityEngine.Tilemaps;
 6 |
 7 | public class MapRenderer : MonoBehaviour
 8 | {
 9 |     public Tilemap map;
10 |
11 |     public void ClearMap()
12 |     {
13 |         map.ClearAllTiles();
14 |     }
15 |
16 |     public void SetTileTo(int x, int y, TileBase tiletype)
17 |     {
18 |         map.SetTile(map.WorldToCell(new Vector3(x, y, 0)), tiletype);
19 |     }
20 |
21 |     public void SetTileTo(Vector3 pos, TileBase tiletype)
22 |     {
23 |         map.SetTile(map.WorldToCell(pos), tiletype);
24 |     }
25 |
26 |     public Vector3Int GetCellposition(Vector3 pos)
27 |     {
28 |         return map.WorldToCell(pos);
29 |     }
30 | }
31 |


--------------------------------------------------------------------------------
/Scripts/NoiseHelper.cs:
--------------------------------------------------------------------------------
  1 | using System;
  2 | using System.Collections;
  3 | using System.Collections.Generic;
  4 | using UnityEngine;
  5 |
  6 | public static class NoiseHelper
  7 | {
  8 |
  9 |     public static float SumNoise(float x, float y, NoiseSettings noiseSettings)
 10 |     {
 11 |         float amplitude = 1;
 12 |         float frequency = noiseSettings.startFrequency;
 13 |         float noiseSum = 0;
 14 |         float amplitudeSum = 0;
 15 |         for (int i = 0; i < noiseSettings.octaves; i++)
 16 |         {
 17 |             noiseSum += amplitude * Mathf.PerlinNoise(x * frequency, y * frequency);
 18 |             amplitudeSum += amplitude;
 19 |             amplitude *= noiseSettings.persistance;
 20 |             frequency *= 2;
 21 |
 22 |         }
 23 |         return noiseSum / amplitudeSum; // set range back to 0-1
 24 |
 25 |     }
 26 |
 27 |     public static float RangeMap(float inputValue, float inMin, float inMax, float outMin, float outMax)
 28 |     {
 29 |         return outMin + (inputValue - inMin) * (outMax - outMin) / (inMax - inMin);
 30 |     }
 31 |
 32 |     public static List<Vector2Int> FindLocalMaxima(float[,] noiseMap)
 33 |     {
 34 |         List<Vector2Int> maximas = new List<Vector2Int>();
 35 |         for (int x = 0; x < noiseMap.GetLength(0); x++)
 36 |         {
 37 |             for (int y = 0; y < noiseMap.GetLength(1); y++)
 38 |             {
 39 |                 var noiseVal = noiseMap[x, y];
 40 |                 if (CheckNeighbours(x, y, noiseMap, (neighbourNoise) => neighbourNoise > noiseVal))
 41 |                 {
 42 |                     maximas.Add(new Vector2Int(x, y));
 43 |                 }
 44 |
 45 |             }
 46 |         }
 47 |         return maximas;
 48 |     }
 49 |
 50 |     public static List<Vector2Int> FindLocalMinima(float[,] noiseMap)
 51 |     {
 52 |         List<Vector2Int> minima = new List<Vector2Int>();
 53 |         for (int x = 0; x < noiseMap.GetLength(0); x++)
 54 |         {
 55 |             for (int y = 0; y < noiseMap.GetLength(1); y++)
 56 |             {
 57 |                 var noiseVal = noiseMap[x, y];
 58 |                 if (CheckNeighbours(x, y, noiseMap, (neighbourNoise) => neighbourNoise < noiseVal))
 59 |                 {
 60 |                     minima.Add(new Vector2Int(x, y));
 61 |                 }
 62 |
 63 |             }
 64 |         }
 65 |         return minima;
 66 |     }
 67 |
 68 |     static List<Vector2Int> directions = new List<Vector2Int>
 69 |     {
 70 |         new Vector2Int( 0, 1), //N
 71 |         new Vector2Int( 1, 1), //NE
 72 |         new Vector2Int( 1, 0), //E
 73 |         new Vector2Int(-1, 1), //SE
 74 |         new Vector2Int(-1, 0), //S
 75 |         new Vector2Int(-1,-1), //SW
 76 |         new Vector2Int( 0,-1), //W
 77 |         new Vector2Int( 1,-1)  //NW
 78 |     };
 79 |
 80 |     private static bool CheckNeighbours(int x, int y, float[,] noiseMap, Func<float, bool> failCondition)
 81 |     {
 82 |         foreach (var dir in directions)
 83 |         {
 84 |             var newPost = new Vector2Int(x + dir.x, y + dir.y);
 85 |
 86 |             if (newPost.x < 0 || newPost.x >= noiseMap.GetLength(0) || newPost.y < 0 || newPost.y >= noiseMap.GetLength(1))
 87 |             {
 88 |                 continue;
 89 |             }
 90 |
 91 |             if (failCondition(noiseMap[x + dir.x, y + dir.y]))
 92 |             {
 93 |                 return false;
 94 |             }
 95 |         }
 96 |         return true;
 97 |     }
 98 |
 99 | }
100 |


--------------------------------------------------------------------------------
/Scripts/NoiseSettings.cs:
--------------------------------------------------------------------------------
 1 | using System;
 2 | using System.Collections;
 3 | using System.Collections.Generic;
 4 | using UnityEngine;
 5 |
 6 | [Serializable]
 7 | public class NoiseSettings
 8 | {
 9 |     [Min(1)]
10 |     public int octaves = 3;
11 |     [Min(0.001f)]
12 |     public float startFrequency = 0.01f;
13 |     [Min(0)]
14 |     public float persistance = 0.5f;
15 | }
16 |


--------------------------------------------------------------------------------
/Scripts/PerlinWorm.cs:
--------------------------------------------------------------------------------
 1 | using System.Collections;
 2 | using System.Collections.Generic;
 3 | using System.Linq;
 4 | using UnityEngine;
 5 |
 6 | public class PerlinWorm
 7 | {
 8 |     private Vector2 currentDirection;
 9 |     private Vector2 currentPosition;
10 |     private Vector2 convergancePoint;
11 |     NoiseSettings noiseSettings;
12 |     public bool moveToConvergancepoint = false;
13 |     [Range(0.5f, 0.9f)]
14 |     public float weight = 0.6f;
15 |
16 |     public PerlinWorm(NoiseSettings noiseSettings, Vector2 startPosition, Vector2 convergancePoint)
17 |     {
18 |         currentDirection = Random.insideUnitCircle.normalized;
19 |         this.noiseSettings = noiseSettings;
20 |         this.currentPosition = startPosition;
21 |         this.convergancePoint = convergancePoint;
22 |         this.moveToConvergancepoint = true;
23 |     }
24 |
25 |     public PerlinWorm(NoiseSettings noiseSettings, Vector2 startPosition)
26 |     {
27 |         currentDirection = Random.insideUnitCircle.normalized;
28 |         this.noiseSettings = noiseSettings;
29 |         this.currentPosition = startPosition;
30 |         this.moveToConvergancepoint = false;
31 |     }
32 |
33 |     public Vector2 MoveTowardsConvergancePoint()
34 |     {
35 |         Vector3 direction = GetPerlinNoiseDirection();
36 |         var directionToConvergancePoint = (this.convergancePoint - currentPosition).normalized;
37 |         var endDirection = ((Vector2)direction * (1 - weight) + directionToConvergancePoint * weight).normalized;
38 |         currentPosition += endDirection;
39 |         return currentPosition;
40 |     }
41 |
42 |     public Vector2 Move()
43 |     {
44 |         Vector3 direction = GetPerlinNoiseDirection();
45 |         currentPosition += (Vector2)direction;
46 |         return currentPosition;
47 |     }
48 |
49 |     private Vector3 GetPerlinNoiseDirection()
50 |     {
51 |         float noise = NoiseHelper.SumNoise(currentPosition.x, currentPosition.y, noiseSettings); //0-1
52 |         float degrees = NoiseHelper.RangeMap(noise, 0, 1, -90, 90);
53 |         currentDirection = (Quaternion.AngleAxis(degrees, Vector3.forward) * currentDirection).normalized;
54 |         return currentDirection;
55 |     }
56 |
57 |     public List<Vector2> MoveLength(int length)
58 |     {
59 |         var list = new List<Vector2>();
60 |         foreach (var item in Enumerable.Range(0, length))
61 |         {
62 |             if (moveToConvergancepoint)
63 |             {
64 |                 var result = MoveTowardsConvergancePoint();
65 |                 list.Add(result);
66 |                 if (Vector2.Distance(this.convergancePoint, result) < 1)
67 |                 {
68 |                     break;
69 |                 }
70 |             }
71 |             else
72 |             {
73 |                 var result = Move();
74 |                 list.Add(result);
75 |             }
76 |
77 |
78 |         }
79 |         if (moveToConvergancepoint)
80 |         {
81 |             while (Vector2.Distance(this.convergancePoint, currentPosition) > 1)
82 |             {
83 |                 weight = 0.9f;
84 |                 var result = MoveTowardsConvergancePoint();
85 |                 list.Add(result);
86 |                 if (Vector2.Distance(this.convergancePoint, result) < 1)
87 |                 {
88 |                     break;
89 |                 }
90 |             }
91 |         }
92 |
93 |         return list;
94 |     }
95 | }
96 |


--------------------------------------------------------------------------------
/Scripts/RiverGenerator.cs:
--------------------------------------------------------------------------------
 1 | using System;
 2 | using System.Collections;
 3 | using System.Collections.Generic;
 4 | using System.Linq;
 5 | using UnityEngine;
 6 |
 7 | public class RiverGenerator : MonoBehaviour
 8 | {
 9 |     public MapGenerator mapGenerator;
10 |     public NoiseSettings riverSettings;
11 |     public Vector2 riverStartPosition;
12 |     public int riverLength = 50;
13 |     public bool bold = true;
14 |     public bool converganceOn = true;
15 |
16 |     public void GenerateRivers()
17 |     {
18 |         var result = NoiseHelper.FindLocalMaxima(mapGenerator.noiseMap);
19 |         var toCreate = result.Where(pos => mapGenerator.noiseMap[pos.x, pos.y] > mapGenerator.snowHeight).OrderBy(a => Guid.NewGuid()).Take(5).ToList();
20 |         var waterMinimas = NoiseHelper.FindLocalMinima(mapGenerator.noiseMap);
21 |         waterMinimas = waterMinimas.Where(pos => mapGenerator.noiseMap[pos.x, pos.y] < mapGenerator.waterHeight).OrderBy(pos => mapGenerator.noiseMap[pos.x, pos.y]).Take(20).ToList();
22 |         foreach (var item in toCreate)
23 |         {
24 |             //SetTileTo(item.x, item.y, maxPosTile);
25 |             CreateRiver(item, waterMinimas);
26 |             //return;
27 |         }
28 |     }
29 |
30 |     private void CreateRiver(Vector2Int startPosition, List<Vector2Int> waterMinimas)
31 |     {
32 |         PerlinWorm worm;
33 |         if (converganceOn)
34 |         {
35 |             var closestWaterPos = waterMinimas.OrderBy(pos => Vector2.Distance(pos, startPosition)).First();
36 |             worm = new PerlinWorm(riverSettings, startPosition, closestWaterPos);
37 |         }
38 |         else
39 |         {
40 |             worm = new PerlinWorm(riverSettings, startPosition);
41 |         }
42 |
43 |         var position = worm.MoveLength(riverLength);
44 |         StartCoroutine(PlaceRiverTile(position));
45 |     }
46 |
47 |     IEnumerator PlaceRiverTile(List<Vector2> positons)
48 |     {
49 |         foreach (var pos in positons)
50 |         {
51 |             var tilePos = mapGenerator.mapRenderer.GetCellposition(pos);
52 |             if (tilePos.x < 0 || tilePos.x >= mapGenerator.mapSize || tilePos.y < 0 || tilePos.y >= mapGenerator.mapSize)
53 |                 break;
54 |             mapGenerator.mapRenderer.SetTileTo(tilePos, mapGenerator.waterTile);
55 |             if (bold && mapGenerator.noiseMap[tilePos.x, tilePos.y] < mapGenerator.hillHeight)
56 |             {
57 |                 mapGenerator.mapRenderer.SetTileTo(tilePos + Vector3Int.right, mapGenerator.waterTile);
58 |                 mapGenerator.mapRenderer.SetTileTo(tilePos + Vector3Int.left, mapGenerator.waterTile);
59 |                 mapGenerator.mapRenderer.SetTileTo(tilePos + Vector3Int.up, mapGenerator.waterTile);
60 |                 mapGenerator.mapRenderer.SetTileTo(tilePos + Vector3Int.down, mapGenerator.waterTile);
61 |             }
62 |             yield return new WaitForSeconds(0.1f);
63 |         }
64 |         yield return null;
65 |     }
66 | }
67 |


--------------------------------------------------------------------------------
