├── Scripts
    ├── ColorHeight.cs
    ├── PlanetData.cs
    ├── PopulateData.cs
    ├── GenerationData.cs
    ├── Planet.cs
    └── Polygon.cs
├── README.md
├── PopulateData.cs
└── LICENSE


/Scripts/ColorHeight.cs:
--------------------------------------------------------------------------------
 1 | /**
 2 |         ColorHeight.cs
 3 |         Purpose: Contains ColorHeight class and
 4 |         the class required to have a custom layout on the inspector.
 5 |         Require: No other files required.
 6 |
 7 |         @author Mikel Jauregui
 8 |         @version 1.1.0 14/07/2018
 9 | */
10 |
11 | using UnityEngine;
12 | using UnityEditor;
13 | using System;
14 |
15 | [Serializable]
16 | public class ColorHeight
17 | {
18 |     [Tooltip("Minimun height to set the color.")]
19 |     public int layer;
20 |     [Tooltip("Color of the mesh.")]
21 |     public Color color;
22 | }
23 |
24 | [CustomPropertyDrawer(typeof(ColorHeight), true)]
25 | public class ColorHeightDrawer : PropertyDrawer
26 | {
27 |     /// <summary>
28 |     /// Custom GUI view of the ColorHeight class.
29 |     /// </summary>
30 |     public override void OnGUI(Rect position, SerializedProperty property, GUIContent label)
31 |     {
32 |         label = EditorGUI.BeginProperty(position, label, property);
33 |         Rect contentPosition = EditorGUI.PrefixLabel(position, label);
34 |         contentPosition.width *= 0.75f;
35 |         EditorGUI.indentLevel = 0;
36 |         contentPosition.width /= 2f;
37 |         EditorGUIUtility.labelWidth = 45f;
38 |         EditorGUI.PropertyField(contentPosition, property.FindPropertyRelative("layer"), new GUIContent("Layer"));
39 |         contentPosition.x += contentPosition.width + 10;
40 |         EditorGUI.PropertyField(contentPosition, property.FindPropertyRelative("color"), new GUIContent("Color"));
41 |         EditorGUI.EndProperty();
42 |     }
43 | }


--------------------------------------------------------------------------------
/Scripts/PlanetData.cs:
--------------------------------------------------------------------------------
 1 | /**
 2 |         PlanetData.cs
 3 |         Purpose: Scriptable object that have all the data needed
 4 |         to crate a planet.
 5 |         Require: GenerationData.cs, ColorHeight.cs, PopulateData.cs.
 6 |
 7 |         @author Mikel Jauregui
 8 |         @version 1.1.0 14/07/2018
 9 | */
10 |
11 | using UnityEngine;
12 |
13 | namespace Generation
14 | {
15 |     [CreateAssetMenu()]
16 |     public class PlanetData : ScriptableObject
17 |     {
18 |         [Tooltip("Name for the Empty Object that will hold the terrains.")]
19 |         public string newName;
20 |         [Tooltip("Seed for the planet.")]
21 |         public int seed;
22 |         [Tooltip("If true it will ignore the seed and generate a new random one.")]
23 |         public bool generateRandomSeed;
24 |         [Tooltip("Types of terrain generation.")]
25 |         public Style terrainStyle;
26 |         [Tooltip("Material for the terrain(to be able to apply the color per layer the material need to be vertex friendly).")]
27 |         public Material material;
28 |         [Tooltip("Material for the sea.")]
29 |         public Material seaMaterial;
30 |         [Space(5)]
31 |         [Tooltip("Position of the center of the planet.")]
32 |         public Vector3 position;
33 |         [Tooltip("Radius of the planet.")]
34 |         public float radius;
35 |         [Tooltip("Level of the sea.")]
36 |         public float seaLevel;
37 |         [Tooltip("Amount of times the  icosphere is divided.")]
38 |         public int subdivisions;
39 |         [Tooltip("Amount of times each icosphere division is divided.")]
40 |         public int chunckSubdivisions;
41 |         [Space(5)]
42 |         [Tooltip("Noise to modify the terrain shape.")]
43 |         public GenerationData[] generationData;
44 |         [Tooltip("Colors for the terrain.")]
45 |         public ColorHeight[] ColorPerLayer;
46 |         [Tooltip("Data to populate the terrain.")]
47 |         public PopulateData[] population;
48 |     }
49 |     /// <summary>
50 |     /// Types of terrains.
51 |     /// </summary>
52 |     public enum Style { LowPoly, Terrace };
53 | }


--------------------------------------------------------------------------------
/README.md:
--------------------------------------------------------------------------------
 1 | ![status](https://img.shields.io/badge/status-discontinued-red)
 2 |
 3 | # New feature added:
 4 | Now the planet have water and can be populate:
 5 | ![](https://i.gyazo.com/0e9afa84b7d5c65a1bc8ffcbf31b4211.png)
 6 |
 7 | # Procedural-planet-generation (Unity Project)
 8 | Generate planets proceduraly.
 9 | [(Generate)](https://thehunterjp.itch.io/planetary-generation-prototype)

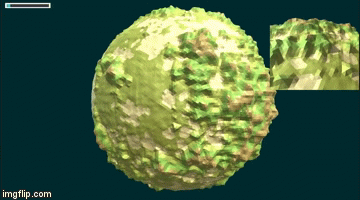

10 | # Low Poly style:
11 | <a href="https://imgflip.com/gif/2crlvi"><img src="https://i.imgflip.com/2crlvi.gif" title="made at imgflip.com"/></a>
12 |

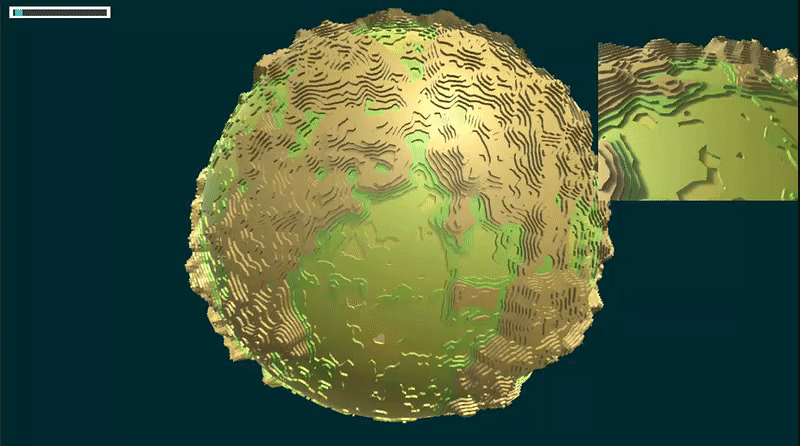

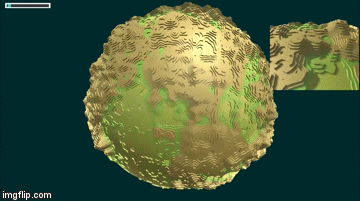

13 | # Terrace style:
14 | <a href="https://imgflip.com/gif/2crlff"><img src="https://i.imgflip.com/2crlff.gif" title="made at imgflip.com"/></a>
15 | ![](https://i.gyazo.com/e15d76e0091e84ada206e3a14787739b.gif)
16 |
17 |
18 | # How to use?
19 | #### We only need to **import 5 files**:
20 |  'Planet.cs' , 'PlanetData.cs' , 'Polygon.cs' , 'ColorHeight.cs' , 'GenerationData.cs'.
21 |

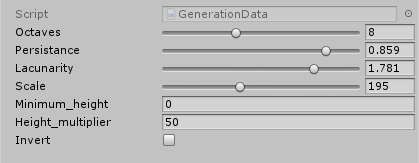

22 | #### GenerationData:
23 |  This scriptable object stores the information that will then be used to get the height of the map vertices (it uses perlin noise).
24 |
25 |  ![](https://i.gyazo.com/18a6e7d72de6d9383ae1c72503ba8d45.png)
26 |
27 | #### PlanetData:
28 |  This scriptable object stores the information that will then be used to create a planet.
29 |
30 |  ![](https://i.gyazo.com/fc828f1192b56b41dce73e9fcf1df70c.png)
31 |
32 | #### Generate the planets:
33 |  To add a planet to the list of planets that will be created, use the functtion:
34 | > Planet.AddPlanetToQueu();
35 |
36 | To start the thread that will calculate the data for the mesh sphere generation and modification of the landscape (will only be executed after StartDataQueu has ended):
37 | > Planet.StartDataQueu();
38 |
39 | Instantiate the planet into the scene:
40 | >Planet.InstantiateIntoWorld();
41 |
42 | Wait until the planet data have been compute. Then load the chunks in range to the position.
43 | >Planet.HideAndShow(Vector3 position);
44 |
45 | Both InstantiateIntoWorld and HideAndShow can be used at the same time. In that case
46 | InstantiateIntoWorld will generate the planet until it's fully generated and the will hide all the
47 | terrain that is not in range of the position.
48 |
49 | The end result should look like this:
50 | ![](https://i.gyazo.com/f6c185f8c376b7a620202f5381a32ffe.png)
51 |


--------------------------------------------------------------------------------
/PopulateData.cs:
--------------------------------------------------------------------------------
 1 | /**
 2 |         PopulateData.cs
 3 |         Purpose: Scriptable object that have all the data needed
 4 |         to crate a planet.
 5 |         Require: GenerationData.cs, ColorHeight.cs, PopulateData.cs.
 6 |
 7 |         @author Mikel Jauregui
 8 |         @version 1.1.0 14/07/2018
 9 | */
10 |
11 | using UnityEngine;
12 |
13 | namespace Generation
14 | {
15 |     [CreateAssetMenu]
16 |     public class PopulateData : ScriptableObject
17 |     {
18 |         // To generate all random numbers.
19 |         private System.Random rng;
20 |
21 |         [Tooltip("List of models.")]
22 |         public GameObject[] models;
23 |         [Tooltip("Noise.")]
24 |         public GenerationData noise;
25 |         [Tooltip("Minimum height to get the height.")]
26 |         public int minHeight;
27 |         [Tooltip("Maximum height to get the height.")]
28 |         public int maxHeight;
29 |         [Tooltip("Numbers of divisions.")]
30 |         public int divisions;
31 |         [Range(0,1)]
32 |         [Tooltip("Probability to generatethe model.")]
33 |         public float probability;
34 |
35 |         // Offset for the noise.
36 |         private Vector3 offset;
37 |
38 |         /// <summary>
39 |         /// Set the seed random number generator and the offset.
40 |         /// </summary>
41 |         /// <param name="seed"> Seed of the planet.</param>
42 |         /// <param name="population"> List of population that want to add the seed.</param>
43 |         static public void SetSeed(int seed, PopulateData[] population)
44 |         {
45 |             foreach (var item in population)
46 |             {
47 |                 item.rng = new System.Random(123);
48 |                 Vector3 offset = new Vector3(item.rng.Next(-10000, 10000), item.rng.Next(-10000, 10000), item.rng.Next(-10000, 10000));
49 |             }
50 |         }
51 |         /// <summary>
52 |         /// Check if it can be instantiate.
53 |         /// </summary>
54 |         /// <param name="position"> Position to check. </param>
55 |         /// <returns> Return true if it can be instantiate. </returns>
56 |         public bool InstantiateAtPosition(Vector3 position)
57 |         {
58 |             // Get the height at the position.
59 |             float height = noise.CalculateNoise(position + offset);
60 |             // Check if in range.
61 |             if(height > minHeight && height < maxHeight)
62 |                 return true;
63 |             return false;
64 |         }
65 |         /// <summary>
66 |         /// Get a random model from the list.
67 |         /// </summary>
68 |         /// <returns> Return a model.</returns>
69 |         public GameObject GetRandomModel()
70 |         {
71 |             // Get random model.
72 |             return models[rng.Next(0, models.Length)];
73 |         }
74 |         /// <summary>
75 |         /// Get the height at that position.
76 |         /// </summary>
77 |         /// <param name="position">Position to check.</param>
78 |         /// <returns>Return the height.</returns>
79 |         public float GetHeightAtPosition(Vector3 position)
80 |         {
81 |             // Get noise at position.
82 |             return noise.CalculateNoise(position + offset);
83 |         }
84 |     }
85 | }
86 |


--------------------------------------------------------------------------------
/Scripts/PopulateData.cs:
--------------------------------------------------------------------------------
 1 | /**
 2 |         PopulateData.cs
 3 |         Purpose: Scriptable object that have all the data needed
 4 |         to crate a planet.
 5 |         Require: GenerationData.cs, ColorHeight.cs, PopulateData.cs.
 6 |
 7 |         @author Mikel Jauregui
 8 |         @version 1.1.0 14/07/2018
 9 | */
10 |
11 | using UnityEngine;
12 |
13 | namespace Generation
14 | {
15 |     [CreateAssetMenu]
16 |     public class PopulateData : ScriptableObject
17 |     {
18 |         // To generate all random numbers.
19 |         private System.Random rng;
20 |
21 |         [Tooltip("List of models.")]
22 |         public GameObject[] models;
23 |         [Tooltip("Noise.")]
24 |         public GenerationData noise;
25 |         [Tooltip("Minimum height to get the height.")]
26 |         public int minHeight;
27 |         [Tooltip("Maximum height to get the height.")]
28 |         public int maxHeight;
29 |         [Tooltip("Numbers of divisions.")]
30 |         public int divisions;
31 |         [Range(0,1)]
32 |         [Tooltip("Probability to generatethe model.")]
33 |         public float probability;
34 |
35 |         // Offset for the noise.
36 |         private Vector3 offset;
37 |
38 |         /// <summary>
39 |         /// Set the seed random number generator and the offset.
40 |         /// </summary>
41 |         /// <param name="seed"> Seed of the planet.</param>
42 |         /// <param name="population"> List of population that want to add the seed.</param>
43 |         static public void SetSeed(int seed, PopulateData[] population)
44 |         {
45 |             foreach (var item in population)
46 |             {
47 |                 item.rng = new System.Random(123);
48 |                 Vector3 offset = new Vector3(item.rng.Next(-10000, 10000), item.rng.Next(-10000, 10000), item.rng.Next(-10000, 10000));
49 |             }
50 |         }
51 |         /// <summary>
52 |         /// Check if it can be instantiate.
53 |         /// </summary>
54 |         /// <param name="position"> Position to check. </param>
55 |         /// <returns> Return true if it can be instantiate. </returns>
56 |         public bool InstantiateAtPosition(Vector3 position)
57 |         {
58 |             // Get the height at the position.
59 |             float height = noise.CalculateNoise(position + offset);
60 |             // Check if in range.
61 |             if(height > minHeight && height < maxHeight)
62 |                 return true;
63 |             return false;
64 |         }
65 |         /// <summary>
66 |         /// Get a random model from the list.
67 |         /// </summary>
68 |         /// <returns> Return a model.</returns>
69 |         public GameObject GetRandomModel()
70 |         {
71 |             // Get random model.
72 |             return models[rng.Next(0, models.Length)];
73 |         }
74 |         /// <summary>
75 |         /// Get the height at that position.
76 |         /// </summary>
77 |         /// <param name="position">Position to check.</param>
78 |         /// <returns>Return the height.</returns>
79 |         public float GetHeightAtPosition(Vector3 position)
80 |         {
81 |             // Get noise at position.
82 |             return noise.CalculateNoise(position + offset);
83 |         }
84 |     }
85 | }
86 |


--------------------------------------------------------------------------------
/Scripts/GenerationData.cs:
--------------------------------------------------------------------------------
 1 | /**
 2 |         GenerationData.cs
 3 |         Purpose: Scriptable object that stores the
 4 |         data and some functions for the terrain generation.
 5 |         Require: No other files required.
 6 |
 7 |         @author Mikel Jauregui
 8 |         @version 1.1.0 14/07/2018
 9 | */
10 |
11 | using UnityEngine;
12 |
13 | namespace Generation
14 | {
15 |     [CreateAssetMenu()]
16 |     public class GenerationData : ScriptableObject
17 |     {
18 |         [Range(1, 10)]
19 |         [Tooltip("Amounts of calls.")]
20 |         public int octaves = 8;
21 |         [Range(0.1f, 1.0f)]
22 |         [Tooltip("Amplitud variation through octaves.")]
23 |         public float persistance = 0.5f;
24 |         [Range(1.0f, 2f)]
25 |         [Tooltip("Frequency variation through octaves.")]
26 |         public float lacunarity = 2f;
27 |         [Range(0.1f, 500)]
28 |         [Tooltip("General frequency division.")]
29 |         public float scale = 1;
30 |         [Range(0f,1f)]
31 |         [Tooltip("Minimum perlin value that return a value.")]
32 |         public float minimum_height = 0.5f;
33 |         [Range(1f,500f)]
34 |         [Tooltip("Height that will be multiply to the 0 to 1 value.")]
35 |         public int height_multiplier = 1;
36 |         [Tooltip("True to invert the values sign.")]
37 |         public bool invert = false;
38 |
39 |         /// <summary>
40 |         /// Genrate 3D perlin noise value.
41 |         /// </summary>
42 |         /// <param name="x"> x axis. </param>
43 |         /// <param name="y"> y axis. </param>
44 |         /// <param name="z">z axis. </param>
45 |         /// <returns> Return a float between 0 and 1. </returns>
46 |         static private float PerlinNoise3D(float x, float y, float z)
47 |         {
48 |
49 |             float ab = Mathf.PerlinNoise(x, y);
50 |             float bc = Mathf.PerlinNoise(y, z);
51 |             float ac = Mathf.PerlinNoise(x, z);
52 |
53 |             float ba = Mathf.PerlinNoise(y, x);
54 |             float cb = Mathf.PerlinNoise(z, y);
55 |             float ca = Mathf.PerlinNoise(z, x);
56 |
57 |             float abc = ab + bc + ac + ba + cb + ca;
58 |             return abc / 6f;
59 |         }
60 |
61 |         /// <summary>
62 |         /// Calculate the noise at a specific position.
63 |         /// </summary>
64 |         /// <param name="position"> Position. </param>
65 |         /// <returns> Returns the height at that position.</returns>
66 |         public float CalculateNoise(Vector3 position)
67 |         {
68 |             float x = position.x;
69 |             float y = position.y;
70 |             float z = position.z;
71 |
72 |             float output = 0;
73 |             float frequency = 1;
74 |             float amplitude = 1;
75 |
76 |             for (int i = 0; i < octaves; i++)
77 |             {
78 |                 output += PerlinNoise3D(x * frequency / scale, y * frequency / scale, z * frequency / scale) * amplitude;
79 |                 amplitude *= persistance;
80 |                 frequency *= lacunarity;
81 |             }
82 |             // Make output to stay between 0 and 1.
83 |             output /= octaves;
84 |
85 |             // if output is less than minimum_height then set to 0.
86 |             output = output > minimum_height ? Mathf.InverseLerp(0, 1f - minimum_height, output - minimum_height) : 0;
87 |             output *= height_multiplier;
88 |             if (invert)
89 |                 output *= -1;
90 |             return output;
91 |         }
92 |     }
93 | }
94 |


--------------------------------------------------------------------------------
/LICENSE:
--------------------------------------------------------------------------------
  1 |                                  Apache License
  2 |                            Version 2.0, January 2004
  3 |                         http://www.apache.org/licenses/
  4 |
  5 |    TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION
  6 |
  7 |    1. Definitions.
  8 |
  9 |       "License" shall mean the terms and conditions for use, reproduction,
 10 |       and distribution as defined by Sections 1 through 9 of this document.
 11 |
 12 |       "Licensor" shall mean the copyright owner or entity authorized by
 13 |       the copyright owner that is granting the License.
 14 |
 15 |       "Legal Entity" shall mean the union of the acting entity and all
 16 |       other entities that control, are controlled by, or are under common
 17 |       control with that entity. For the purposes of this definition,
 18 |       "control" means (i) the power, direct or indirect, to cause the
 19 |       direction or management of such entity, whether by contract or
 20 |       otherwise, or (ii) ownership of fifty percent (50%) or more of the
 21 |       outstanding shares, or (iii) beneficial ownership of such entity.
 22 |
 23 |       "You" (or "Your") shall mean an individual or Legal Entity
 24 |       exercising permissions granted by this License.
 25 |
 26 |       "Source" form shall mean the preferred form for making modifications,
 27 |       including but not limited to software source code, documentation
 28 |       source, and configuration files.
 29 |
 30 |       "Object" form shall mean any form resulting from mechanical
 31 |       transformation or translation of a Source form, including but
 32 |       not limited to compiled object code, generated documentation,
 33 |       and conversions to other media types.
 34 |
 35 |       "Work" shall mean the work of authorship, whether in Source or
 36 |       Object form, made available under the License, as indicated by a
 37 |       copyright notice that is included in or attached to the work
 38 |       (an example is provided in the Appendix below).
 39 |
 40 |       "Derivative Works" shall mean any work, whether in Source or Object
 41 |       form, that is based on (or derived from) the Work and for which the
 42 |       editorial revisions, annotations, elaborations, or other modifications
 43 |       represent, as a whole, an original work of authorship. For the purposes
 44 |       of this License, Derivative Works shall not include works that remain
 45 |       separable from, or merely link (or bind by name) to the interfaces of,
 46 |       the Work and Derivative Works thereof.
 47 |
 48 |       "Contribution" shall mean any work of authorship, including
 49 |       the original version of the Work and any modifications or additions
 50 |       to that Work or Derivative Works thereof, that is intentionally
 51 |       submitted to Licensor for inclusion in the Work by the copyright owner
 52 |       or by an individual or Legal Entity authorized to submit on behalf of
 53 |       the copyright owner. For the purposes of this definition, "submitted"
 54 |       means any form of electronic, verbal, or written communication sent
 55 |       to the Licensor or its representatives, including but not limited to
 56 |       communication on electronic mailing lists, source code control systems,
 57 |       and issue tracking systems that are managed by, or on behalf of, the
 58 |       Licensor for the purpose of discussing and improving the Work, but
 59 |       excluding communication that is conspicuously marked or otherwise
 60 |       designated in writing by the copyright owner as "Not a Contribution."
 61 |
 62 |       "Contributor" shall mean Licensor and any individual or Legal Entity
 63 |       on behalf of whom a Contribution has been received by Licensor and
 64 |       subsequently incorporated within the Work.
 65 |
 66 |    2. Grant of Copyright License. Subject to the terms and conditions of
 67 |       this License, each Contributor hereby grants to You a perpetual,
 68 |       worldwide, non-exclusive, no-charge, royalty-free, irrevocable
 69 |       copyright license to reproduce, prepare Derivative Works of,
 70 |       publicly display, publicly perform, sublicense, and distribute the
 71 |       Work and such Derivative Works in Source or Object form.
 72 |
 73 |    3. Grant of Patent License. Subject to the terms and conditions of
 74 |       this License, each Contributor hereby grants to You a perpetual,
 75 |       worldwide, non-exclusive, no-charge, royalty-free, irrevocable
 76 |       (except as stated in this section) patent license to make, have made,
 77 |       use, offer to sell, sell, import, and otherwise transfer the Work,
 78 |       where such license applies only to those patent claims licensable
 79 |       by such Contributor that are necessarily infringed by their
 80 |       Contribution(s) alone or by combination of their Contribution(s)
 81 |       with the Work to which such Contribution(s) was submitted. If You
 82 |       institute patent litigation against any entity (including a
 83 |       cross-claim or counterclaim in a lawsuit) alleging that the Work
 84 |       or a Contribution incorporated within the Work constitutes direct
 85 |       or contributory patent infringement, then any patent licenses
 86 |       granted to You under this License for that Work shall terminate
 87 |       as of the date such litigation is filed.
 88 |
 89 |    4. Redistribution. You may reproduce and distribute copies of the
 90 |       Work or Derivative Works thereof in any medium, with or without
 91 |       modifications, and in Source or Object form, provided that You
 92 |       meet the following conditions:
 93 |
 94 |       (a) You must give any other recipients of the Work or
 95 |           Derivative Works a copy of this License; and
 96 |
 97 |       (b) You must cause any modified files to carry prominent notices
 98 |           stating that You changed the files; and
 99 |
100 |       (c) You must retain, in the Source form of any Derivative Works
101 |           that You distribute, all copyright, patent, trademark, and
102 |           attribution notices from the Source form of the Work,
103 |           excluding those notices that do not pertain to any part of
104 |           the Derivative Works; and
105 |
106 |       (d) If the Work includes a "NOTICE" text file as part of its
107 |           distribution, then any Derivative Works that You distribute must
108 |           include a readable copy of the attribution notices contained
109 |           within such NOTICE file, excluding those notices that do not
110 |           pertain to any part of the Derivative Works, in at least one
111 |           of the following places: within a NOTICE text file distributed
112 |           as part of the Derivative Works; within the Source form or
113 |           documentation, if provided along with the Derivative Works; or,
114 |           within a display generated by the Derivative Works, if and
115 |           wherever such third-party notices normally appear. The contents
116 |           of the NOTICE file are for informational purposes only and
117 |           do not modify the License. You may add Your own attribution
118 |           notices within Derivative Works that You distribute, alongside
119 |           or as an addendum to the NOTICE text from the Work, provided
120 |           that such additional attribution notices cannot be construed
121 |           as modifying the License.
122 |
123 |       You may add Your own copyright statement to Your modifications and
124 |       may provide additional or different license terms and conditions
125 |       for use, reproduction, or distribution of Your modifications, or
126 |       for any such Derivative Works as a whole, provided Your use,
127 |       reproduction, and distribution of the Work otherwise complies with
128 |       the conditions stated in this License.
129 |
130 |    5. Submission of Contributions. Unless You explicitly state otherwise,
131 |       any Contribution intentionally submitted for inclusion in the Work
132 |       by You to the Licensor shall be under the terms and conditions of
133 |       this License, without any additional terms or conditions.
134 |       Notwithstanding the above, nothing herein shall supersede or modify
135 |       the terms of any separate license agreement you may have executed
136 |       with Licensor regarding such Contributions.
137 |
138 |    6. Trademarks. This License does not grant permission to use the trade
139 |       names, trademarks, service marks, or product names of the Licensor,
140 |       except as required for reasonable and customary use in describing the
141 |       origin of the Work and reproducing the content of the NOTICE file.
142 |
143 |    7. Disclaimer of Warranty. Unless required by applicable law or
144 |       agreed to in writing, Licensor provides the Work (and each
145 |       Contributor provides its Contributions) on an "AS IS" BASIS,
146 |       WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or
147 |       implied, including, without limitation, any warranties or conditions
148 |       of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A
149 |       PARTICULAR PURPOSE. You are solely responsible for determining the
150 |       appropriateness of using or redistributing the Work and assume any
151 |       risks associated with Your exercise of permissions under this License.
152 |
153 |    8. Limitation of Liability. In no event and under no legal theory,
154 |       whether in tort (including negligence), contract, or otherwise,
155 |       unless required by applicable law (such as deliberate and grossly
156 |       negligent acts) or agreed to in writing, shall any Contributor be
157 |       liable to You for damages, including any direct, indirect, special,
158 |       incidental, or consequential damages of any character arising as a
159 |       result of this License or out of the use or inability to use the
160 |       Work (including but not limited to damages for loss of goodwill,
161 |       work stoppage, computer failure or malfunction, or any and all
162 |       other commercial damages or losses), even if such Contributor
163 |       has been advised of the possibility of such damages.
164 |
165 |    9. Accepting Warranty or Additional Liability. While redistributing
166 |       the Work or Derivative Works thereof, You may choose to offer,
167 |       and charge a fee for, acceptance of support, warranty, indemnity,
168 |       or other liability obligations and/or rights consistent with this
169 |       License. However, in accepting such obligations, You may act only
170 |       on Your own behalf and on Your sole responsibility, not on behalf
171 |       of any other Contributor, and only if You agree to indemnify,
172 |       defend, and hold each Contributor harmless for any liability
173 |       incurred by, or claims asserted against, such Contributor by reason
174 |       of your accepting any such warranty or additional liability.
175 |
176 |    END OF TERMS AND CONDITIONS
177 |
178 |    APPENDIX: How to apply the Apache License to your work.
179 |
180 |       To apply the Apache License to your work, attach the following
181 |       boilerplate notice, with the fields enclosed by brackets "[]"
182 |       replaced with your own identifying information. (Don't include
183 |       the brackets!)  The text should be enclosed in the appropriate
184 |       comment syntax for the file format. We also recommend that a
185 |       file or class name and description of purpose be included on the
186 |       same "printed page" as the copyright notice for easier
187 |       identification within third-party archives.
188 |
189 |    Copyright [yyyy] [name of copyright owner]
190 |
191 |    Licensed under the Apache License, Version 2.0 (the "License");
192 |    you may not use this file except in compliance with the License.
193 |    You may obtain a copy of the License at
194 |
195 |        http://www.apache.org/licenses/LICENSE-2.0
196 |
197 |    Unless required by applicable law or agreed to in writing, software
198 |    distributed under the License is distributed on an "AS IS" BASIS,
199 |    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
200 |    See the License for the specific language governing permissions and
201 |    limitations under the License.
202 |


--------------------------------------------------------------------------------
/Scripts/Planet.cs:
--------------------------------------------------------------------------------
  1 | /**
  2 |         Planet.cs
  3 |         Purpose: Generate Planets into the scene.
  4 |         Require: Polygon.cs, GenerationData.cs,
  5 |         ColorHeight.cs, PopulationData.cs.
  6 |
  7 |         @author Mikel Jauregui
  8 |         @version 1.1.0 14/07/18
  9 | */
 10 |
 11 | using System.Collections.Generic;
 12 | using UnityEngine;
 13 | using System.Threading;
 14 |
 15 | namespace Generation
 16 | {
 17 |     public class Planet : MonoBehaviour
 18 |     {
 19 |         // List where we store all the planets.
 20 |         static private List<Planet> planetList = new List<Planet>();
 21 |         // Queue where we add the polygons that need to be instantiate.
 22 |         static private Queue<Polygon> polygonsToInstantiate = new Queue<Polygon>();
 23 |         // List of polygons instantiated.
 24 |         static List<Polygon> distanceList = new List<Polygon>();
 25 |         // True if the thread that generate
 26 |         // the data for the planet has started.
 27 |         static private bool isThreadBeenStarted = false;
 28 |         // True if the thread that generate the
 29 |         // data for the planet has ended.
 30 |         static private bool isThreadDone = false;
 31 |         // True if the game want to quit.
 32 |         static private bool gameQuiting = false;
 33 |         // The terrain has been instantiate.
 34 |         static private bool terrainInstantiated = false;
 35 |
 36 |         // Stores a reference to its own
 37 |         // to pass it to the polygons.
 38 |         private Planet planet;
 39 |         // Terrain style for the planet.
 40 |         private Style terrainStyle;
 41 |         // Array of noises that will
 42 |         // then be used to generate the terrain.
 43 |         private GenerationData[] generationData;
 44 |         // Array of colors that will then be used
 45 |         // to color the terrain.
 46 |         private ColorHeight[] colorHeight;
 47 |         // Array of offsets that will be apply
 48 |         // to the terrain generation noise.
 49 |         private Vector3[] offset;
 50 |         // Array that stores the data to
 51 |         // generate the population for the planet.
 52 |         private PopulateData[] population;
 53 |         // Material for the terrain.
 54 |         private Material material;
 55 |         // Material for the sea.
 56 |         private Material seaMaterial;
 57 |         // List of polygons that compose the planet.
 58 |         private List<Polygon> polygons;
 59 |         // List of vertices of the icosphere.
 60 |         private List<Vector3> vertices;
 61 |         // Center of the planet.
 62 |         private Vector3 position;
 63 |         // Planet radius.
 64 |         private float radius;
 65 |         // Sea Level.
 66 |         private float seaLevel;
 67 |         // Planet seed.
 68 |         private int seed;
 69 |         // Icosphere subdivisions.
 70 |         private int subdivisions;
 71 |         // Chunck subdivisions.
 72 |         private int chunckSubdivisions;
 73 |
 74 |         /// <summary>
 75 |         /// Thread that generate all the data.
 76 |         /// </summary>
 77 |         static private void DataThreadLoop()
 78 |         {
 79 |             //Prevent list modification during
 80 |             // thread loop.
 81 |             lock (planetList)
 82 |             {
 83 |                 foreach (var planet in planetList)
 84 |                 {
 85 |                     if (gameQuiting)
 86 |                         return;
 87 |                     // Create icosahedron.
 88 |                     planet.InitAsIcosahedron();
 89 |                     // Subdivide it.
 90 |                     planet.Subdivide();
 91 |                     // Create noise offset.
 92 |                     planet.CalculateOffset();
 93 |
 94 |                     // Generate mesh data.
 95 |                     foreach (var poly in planet.polygons)
 96 |                     {
 97 |                         if (gameQuiting)
 98 |                             return;
 99 |
100 |                         poly.GenerateMesh();
101 |                     }
102 |                 }
103 |             }
104 |             isThreadDone = true;
105 |         }
106 |         /// <summary>
107 |         /// Check is a polygon is in range of the viewer.
108 |         /// </summary>
109 |         /// <param name="poly"></param>
110 |         /// <param name="position"></param>
111 |         /// <returns></returns>
112 |         static private bool PolyInRange(Polygon poly, Vector3 position)
113 |         {
114 |             // Normalize to check on the circle unit.
115 |             position = position.normalized;
116 |
117 |             // Get the planet data.
118 |             Planet p = poly.GetPlanet();
119 |             int[] i = poly.GetVertices().ToArray();
120 |             Vector3[] v = new Vector3[3] { p.vertices[i[0]], p.vertices[i[1]], p.vertices[i[2]] };
121 |             float d0, d1, d2;
122 |             d0 = Vector3.Distance(position, v[0].normalized);
123 |             d1 = Vector3.Distance(position, v[1].normalized);
124 |             d2 = Vector3.Distance(position, v[2].normalized);
125 |             // True if in range.
126 |             return d0 < Main.G_viewDistance || d1 < Main.G_viewDistance || d2 < Main.G_viewDistance;
127 |         }
128 |         /// <summary>
129 |         /// Add a polygon to the Instantiate queue.
130 |         /// </summary>
131 |         /// <param name="poly"> The polygon that need to be added. </param>
132 |         static public void AddPolygonToQueue(Polygon poly)
133 |         {
134 |             lock (polygonsToInstantiate)
135 |             {
136 |                 // Add to end of the queue.
137 |                 polygonsToInstantiate.Enqueue(poly);
138 |             }
139 |         }
140 |         /// <summary>
141 |         /// Check if the main thread want to quit.
142 |         /// </summary>
143 |         /// <returns> True if the game is quitting. </returns>
144 |         static public bool ThreadNeedToQuit()
145 |         {
146 |             return gameQuiting;
147 |         }
148 |         /// <summary>
149 |         /// Add a planet to the queue of the ones that need to be generated.
150 |         /// </summary>
151 |         /// <param name="name">Name of the Empty object that will hold the terrain objects</param>
152 |         /// <param name="position">Center of the planet.</param>
153 |         /// <param name="seed">Seed for the planet.</param>
154 |         /// <param name="randomSeed"> True if the seed need to be change by a random new one.</param>
155 |         /// <param name="terrainStyle">Style of the terrain.</param>
156 |         /// <param name="seaLevel">Level of the sea.</param>
157 |         /// <param name="generationData">Noise to generate the terrain.</param>
158 |         /// <param name="colorHeight">Color to add to the layers.</param>
159 |         /// <param name="population">Data to populate the planet.</param>
160 |         /// <param name="material">Material for the terrain.</param>
161 |         /// <param name="seaMaterial">Material for the sea.</param>
162 |         /// <param name="radius">Radius of the planet.</param>
163 |         /// <param name="subdivisions">Icosphere subdivisions.</param>
164 |         /// <param name="chunckSubdivisions">Chunck subdivisions.</param>
165 |         static public void AddPlanetToQueue(string name, Vector3 position, int seed, bool randomSeed, Style terrainStyle, float seaLevel, GenerationData[] generationData, ColorHeight[] colorHeight, PopulateData[] population, Material material, Material seaMaterial, float radius, int subdivisions, int chunckSubdivisions)
166 |         {
167 |             // Instantiate a gameobject that hold planet.
168 |             GameObject obj = new GameObject();
169 |             obj.name = name;
170 |             obj.transform.position = position;
171 |             Planet planet = obj.AddComponent<Planet>();
172 |             planet.planet = planet;
173 |             int new_seed = randomSeed == true ? UnityEngine.Random.Range(0, int.MaxValue) : seed;
174 |             planet.InstantiatePlanetVariables(new_seed, terrainStyle, seaLevel, generationData, colorHeight, population, material, seaMaterial, radius, subdivisions, chunckSubdivisions);
175 |             planet.position = position;
176 |
177 |             // Add the planet to the list of planets.
178 |             planetList.Add(planet);
179 |         }
180 |         /// <summary>
181 |         /// Start the Data computations.
182 |         /// </summary>
183 |         static public void StartDataQueue()
184 |         {
185 |             // Prevent to overload of threads. Only
186 |             // one will be running at a time.
187 |             if (isThreadBeenStarted)
188 |                 return;
189 |
190 |             // Start the thread.
191 |             Thread thread = new Thread(DataThreadLoop);
192 |             thread.Start();
193 |             isThreadBeenStarted = true;
194 |         }
195 |         /// <summary>
196 |         /// Generate the terrain while added to the queue.
197 |         /// </summary>
198 |         static public void InstantiateIntoWorld()
199 |         {
200 |             terrainInstantiated = true;
201 |             // Instantiate the polygons into the scene while been added to the queue.
202 |             while (polygonsToInstantiate.Count != 0)
203 |             {
204 |                 Polygon poly = polygonsToInstantiate.Dequeue();
205 |                 poly.Instantiate();
206 |                 // Add it to the list for later modification.
207 |                 distanceList.Add(poly);
208 |             }
209 |         }
210 |         /// <summary>
211 |         /// Hide or show the polygons objects
212 |         /// if they are in range of the viewer.
213 |         /// </summary>
214 |         /// <param name="viewer"> Position tto check if the polygon is in range. </param>
215 |         static public void HideAndShow(Vector3 viewer)
216 |         {
217 |             // Wait to the secondary thread to end for avoid errors.
218 |             if (!isThreadDone)
219 |                 return;
220 |
221 |             // if distanceList is empty fill it.
222 |             if(!terrainInstantiated)
223 |                 while (polygonsToInstantiate.Count != 0)
224 |                     distanceList.Add(polygonsToInstantiate.Dequeue());
225 |
226 |             foreach (var item in distanceList)
227 |             {
228 |                 // if polygon is in range to the viewer instantiate.
229 |                 if(PolyInRange(item, viewer))
230 |                     item.Show();
231 |                 // else hide it.
232 |                 else
233 |                     item.Hide();
234 |             }
235 |         }
236 |         /// <summary>
237 |         /// Set the vairables to the values.
238 |         /// </summary>
239 |         /// <param name="seed">Seed for the planet.</param>
240 |         /// <param name="randomSeed"> True if the seed need to be change by a random new one.</param>
241 |         /// <param name="terrainStyle">Style of the terrain.</param>
242 |         /// <param name="seaLevel">Level of the sea.</param>
243 |         /// <param name="generationData">Noise to generate the terrain.</param>
244 |         /// <param name="colorHeight">Color to add to the layers.</param>
245 |         /// <param name="population">Data to populate the planet.</param>
246 |         /// <param name="material">Material for the terrain.</param>
247 |         /// <param name="seaMaterial">Material for the sea.</param>
248 |         /// <param name="radius">Radius of the planet.</param>
249 |         /// <param name="subdivisions">Icosphere subdivisions.</param>
250 |         /// <param name="chunckSubdivisions">Chunck subdivisions.</param>
251 |         private void InstantiatePlanetVariables(int seed, Style terrainStyle, float seaLevel, GenerationData[] generationData, ColorHeight[] colorHeight, PopulateData[] population, Material material, Material seaMaterial, float radius, int subdivisions, int chunckSubdivisions)
252 |         {
253 |             this.seed = seed;
254 |             this.terrainStyle = terrainStyle;
255 |             this.radius = radius;
256 |             this.generationData = generationData;
257 |             this.colorHeight = colorHeight;
258 |             this.population = population;
259 |             PopulateData.SetSeed(seed, population);
260 |             this.subdivisions = subdivisions;
261 |             this.seaLevel = seaLevel;
262 |             this.material = material;
263 |             this.seaMaterial = seaMaterial;
264 |             this.chunckSubdivisions = chunckSubdivisions;
265 |         }
266 |         /// <summary>
267 |         /// Generate the basic Icosphere structure.
268 |         /// </summary>
269 |         private void InitAsIcosahedron()
270 |         {
271 |             polygons = new List<Polygon>();
272 |             vertices = new List<Vector3>();
273 |
274 |             // An icosahedron has 12 vertices, and
275 |             // since it's completely symmetrical the
276 |             // formula for calculating them is kind of
277 |             // symmetrical too:
278 |
279 |             float t = (1.0f + Mathf.Sqrt(5.0f)) / 2.0f;
280 |
281 |             vertices.Add(position + new Vector3(-1, t, 0).normalized * this.radius);
282 |             vertices.Add(position + new Vector3(1, t, 0).normalized * this.radius);
283 |             vertices.Add(position + new Vector3(-1, -t, 0).normalized * this.radius);
284 |             vertices.Add(position + new Vector3(1, -t, 0).normalized * this.radius);
285 |             vertices.Add(position + new Vector3(0, -1, t).normalized * this.radius);
286 |             vertices.Add(position + new Vector3(0, 1, t).normalized * this.radius);
287 |             vertices.Add(position + new Vector3(0, -1, -t).normalized * this.radius);
288 |             vertices.Add(position + new Vector3(0, 1, -t).normalized * this.radius);
289 |             vertices.Add(position + new Vector3(t, 0, -1).normalized * this.radius);
290 |             vertices.Add(position + new Vector3(t, 0, 1).normalized * this.radius);
291 |             vertices.Add(position + new Vector3(-t, 0, -1).normalized * this.radius);
292 |             vertices.Add(position + new Vector3(-t, 0, 1).normalized * this.radius);
293 |
294 |             // And here's the formula for the 20 sides,
295 |             // referencing the 12 vertices we just created.
296 |             polygons.Add(new Polygon(0, 11, 5, ref planet));
297 |             polygons.Add(new Polygon(0, 5, 1, ref planet));
298 |             polygons.Add(new Polygon(0, 1, 7, ref planet));
299 |             polygons.Add(new Polygon(0, 7, 10, ref planet));
300 |             polygons.Add(new Polygon(0, 10, 11, ref planet));
301 |             polygons.Add(new Polygon(1, 5, 9, ref planet));
302 |             polygons.Add(new Polygon(5, 11, 4, ref planet));
303 |             polygons.Add(new Polygon(11, 10, 2, ref planet));
304 |             polygons.Add(new Polygon(10, 7, 6, ref planet));
305 |             polygons.Add(new Polygon(7, 1, 8, ref planet));
306 |             polygons.Add(new Polygon(3, 9, 4, ref planet));
307 |             polygons.Add(new Polygon(3, 4, 2, ref planet));
308 |             polygons.Add(new Polygon(3, 2, 6, ref planet));
309 |             polygons.Add(new Polygon(3, 6, 8, ref planet));
310 |             polygons.Add(new Polygon(3, 8, 9, ref planet));
311 |             polygons.Add(new Polygon(4, 9, 5, ref planet));
312 |             polygons.Add(new Polygon(2, 4, 11, ref planet));
313 |             polygons.Add(new Polygon(6, 2, 10, ref planet));
314 |             polygons.Add(new Polygon(8, 6, 7, ref planet));
315 |             polygons.Add(new Polygon(9, 8, 1, ref planet));
316 |         }
317 |         /// <summary>
318 |         /// Subdivide the Icosphere by 'subdivisions' times.
319 |         /// </summary>
320 |         private void Subdivide()
321 |         {
322 |             var mid_point_cache = new Dictionary<int, int>();
323 |
324 |             for (int i = 0; i < subdivisions; i++)
325 |             {
326 |                 var new_polys = new List<Polygon>();
327 |                 foreach (var poly in polygons)
328 |                 {
329 |                     List<int> t_vertices = poly.GetVertices();
330 |                     int a = t_vertices[0];
331 |                     int b = t_vertices[1];
332 |                     int c = t_vertices[2];
333 |                     // Use GetMidPointIndex to either create a
334 |                     // new vertex between two old vertices, or
335 |                     // find the one that was already created.
336 |                     int ab = GetMidPointIndex(mid_point_cache, a, b);
337 |                     int bc = GetMidPointIndex(mid_point_cache, b, c);
338 |                     int ca = GetMidPointIndex(mid_point_cache, c, a);
339 |                     // Create the four new polygons using our original
340 |                     // three vertices, and the three new midpoints.
341 |                     new_polys.Add(new Polygon(a, ab, ca, ref planet));
342 |                     new_polys.Add(new Polygon(b, bc, ab, ref planet));
343 |                     new_polys.Add(new Polygon(c, ca, bc, ref planet));
344 |                     new_polys.Add(new Polygon(ab, bc, ca, ref planet));
345 |                 }
346 |                 // Replace all our old polygons with the new set of
347 |                 // subdivided ones.
348 |                 polygons = new_polys;
349 |             }
350 |         }
351 |         /// <summary>
352 |         /// Get the Middle point.
353 |         /// </summary>
354 |         private int GetMidPointIndex(Dictionary<int, int> cache, int indexA, int indexB)
355 |         {
356 |             // We create a key out of the two original indices
357 |             // by storing the smaller index in the upper two bytes
358 |             // of an integer, and the larger index in the lower two
359 |             // bytes. By sorting them according to whichever is smaller
360 |             // we ensure that this function returns the same result
361 |             // whether you call
362 |             // GetMidPointIndex(cache, 5, 9)
363 |             // or...
364 |             // GetMidPointIndex(cache, 9, 5)
365 |             int smaller_index = Mathf.Min(indexA, indexB);
366 |             int greater_index = Mathf.Max(indexA, indexB);
367 |             int key = (smaller_index << 16) + greater_index;
368 |             // If a midpoint is already defined, just return it.
369 |             int ret;
370 |             if (cache.TryGetValue(key, out ret))
371 |                 return ret;
372 |             // If we're here, it's because a midpoint for these two
373 |             // vertices hasn't been created yet. Let's do that now!
374 |             Vector3 p1 = vertices[indexA];
375 |             Vector3 p2 = vertices[indexB];
376 |             Vector3 middle = (Vector3.Lerp(p1, p2, 0.5f) - position).normalized * radius + position;
377 |
378 |             ret = vertices.Count;
379 |             vertices.Add(middle);
380 |
381 |             cache.Add(key, ret);
382 |             return ret;
383 |         }
384 |         /// <summary>
385 |         /// Calculate the offset for the noise using the seed.
386 |         /// </summary>
387 |         private void CalculateOffset()
388 |         {
389 |             // Generate a random number generator to
390 |             // always have the same random for the same seed.
391 |             System.Random rng = new System.Random(seed);
392 |
393 |             offset = new Vector3[generationData.Length];
394 |
395 |             // Calculate the offset of the generation noise.
396 |             for (int i = 0; i < offset.Length; i++)
397 |             {
398 |                 offset[i].x = rng.Next(-10000, 10000);
399 |                 offset[i].y = rng.Next(-10000, 10000);
400 |                 offset[i].z = rng.Next(-10000, 10000);
401 |             }
402 |         }
403 |         /// <summary>
404 |         /// If the game try to quit.
405 |         /// </summary>
406 |         private void OnApplicationQuit()
407 |         {
408 |             // If the background thread is still running.
409 |             // quit will make it stop.
410 |             gameQuiting = true;
411 |         }
412 |
413 |         /// <summary>
414 |         /// Get the style.
415 |         /// </summary>
416 |         /// <returns> Return the style. </returns>
417 |         public Style GetStyle()
418 |         {
419 |             return terrainStyle;
420 |         }
421 |         /// <summary>
422 |         /// Get the polygons list.
423 |         /// </summary>
424 |         /// <returns> Return the polygon list. </returns>
425 |         public List<Polygon> GetPolygons()
426 |         {
427 |             return polygons;
428 |         }
429 |         /// <summary>
430 |         /// Get the Color height array.
431 |         /// </summary>
432 |         /// <returns> Return the colorHeight array. </returns>
433 |         public ColorHeight[] GetColorHeight()
434 |         {
435 |             return colorHeight;
436 |         }
437 |         /// <summary>
438 |         /// Get the vertex list.
439 |         /// </summary>
440 |         /// <returns> Return the vertex list.</returns>
441 |         public List<Vector3> GetVertices()
442 |         {
443 |             return vertices;
444 |         }
445 |         /// <summary>
446 |         /// Get the sea level.
447 |         /// </summary>
448 |         /// <returns> Return the sea level. </returns>
449 |         public float GetSeaLevel()
450 |         {
451 |             return seaLevel;
452 |         }
453 |         /// <summary>
454 |         /// Get the populationData array.
455 |         /// </summary>
456 |         /// <returns> Return the populationData array. </returns>
457 |         public PopulateData[] GetPopulation()
458 |         {
459 |             return population;
460 |         }
461 |         /// <summary>
462 |         /// Get the planet center.
463 |         /// </summary>
464 |         /// <returns> Return the planet center. </returns>
465 |         public Vector3 GetPosition()
466 |         {
467 |             return position;
468 |         }
469 |         /// <summary>
470 |         /// Get material.
471 |         /// </summary>
472 |         /// <returns> Return the terrain material.</returns>
473 |         public Material GetMaterial()
474 |         {
475 |             return material;
476 |         }
477 |         /// <summary>
478 |         /// Get the sea material.
479 |         /// </summary>
480 |         /// <returns> Return the material for the sea.</returns>
481 |         public Material GetSeaMaterial()
482 |         {
483 |             return seaMaterial;
484 |         }
485 |         /// <summary>
486 |         /// Get seed.
487 |         /// </summary>
488 |         /// <returns> Return the seed.</returns>
489 |         public int GetSeed()
490 |         {
491 |             return seed;
492 |         }
493 |         /// <summary>
494 |         /// Get the chunck subdivisions.
495 |         /// </summary>
496 |         /// <returns> Return the chunck subdivision number.</returns>
497 |         public int GetChunkSubdivisions()
498 |         {
499 |             return chunckSubdivisions;
500 |         }
501 |         /// <summary>
502 |         /// Calculate the height at a specific position.
503 |         /// </summary>
504 |         /// <param name="position">Position where we want tto get the height.</param>
505 |         /// <returns> Return the height.</returns>
506 |         public float CalculateHeightAtPosition(Vector3 position)
507 |         {
508 |             float height = 0;
509 |
510 |             for (int i = 0; i < generationData.Length; i++)
511 |                 height += generationData[i].CalculateNoise(position + offset[i]);
512 |
513 |             return height;
514 |         }
515 |     }
516 | }
517 |


--------------------------------------------------------------------------------
/Scripts/Polygon.cs:
--------------------------------------------------------------------------------
  1 | /**
  2 |         Polygon.cs
  3 |         Purpose: Generate Polygons into the scene.
  4 |         Require: Planet.cs.
  5 |
  6 |         @author Mikel Jauregui
  7 |         @version 1.1.0 14/07/2018
  8 | */
  9 |
 10 | using System.Collections.Generic;
 11 | using UnityEngine;
 12 |
 13 | namespace Generation
 14 | {
 15 |     public class Polygon
 16 |     {
 17 |         // Random number generator.
 18 |         static private System.Random rng = new System.Random(0);
 19 |
 20 |         // Planet data.
 21 |         private Planet planet;
 22 |         // Object that hold the terrain.
 23 |         private GameObject face;
 24 |         // Object that hold the sea.
 25 |         private GameObject seaFace;
 26 |         // Data for generate the mesh.
 27 |         private MeshData meshData;
 28 |         // Data for generate the sea mesh.
 29 |         private MeshData seaMeshData;
 30 |         // Index of the vertices of the chunk.
 31 |         private List<int> vertices;
 32 |         // Positions of the populations that need to be instantiated.
 33 |         private List<Vector3>[] pop;
 34 |         // Terrain has been instantiated.
 35 |         private bool instantiate = false;
 36 |         // Face is active.
 37 |         private bool showing = false;
 38 |
 39 |         /// <summary>
 40 |         /// Get the middle points and add them to the list.
 41 |         /// </summary>
 42 |         /// <param name="list">List where we add the points.</param>
 43 |         /// <param name="a"> Point a.</param>
 44 |         /// <param name="b"> Point b.</param>
 45 |         /// <param name="sub"> Amount of subdivisions.</param>
 46 |         static private void ListMiddlePoints(List<Vector3> list, Vector3 a, Vector3 b, int sub)
 47 |         {
 48 |             Vector3 new_vector = new Vector3();
 49 |
 50 |             new_vector.x = (b.x - a.x) / sub;
 51 |             new_vector.y = (b.y - a.y) / sub;
 52 |             new_vector.z = (b.z - a.z) / sub;
 53 |
 54 |             for (int i = 1; i < sub; i++)
 55 |                 list.Add(a + new_vector * i);
 56 |         }
 57 |         /// <summary>
 58 |         /// Organize the three vectors by distance to
 59 |         /// </summary>
 60 |         private void Organize(ref Vector3 a, ref Vector3 b, ref Vector3 c)
 61 |         {
 62 |             Vector3 v1, v2, v3;
 63 |             float h1, h2, h3;
 64 |
 65 |             // Get distance from center of the planet.
 66 |             h1 = Vector3.Magnitude(a);
 67 |             h2 = Vector3.Magnitude(b);
 68 |             h3 = Vector3.Magnitude(c);
 69 |
 70 |             // Sort.
 71 |             if (h1 > h2)
 72 |             {
 73 |                 if (h1 > h3)
 74 |                 {
 75 |                     v1 = a;
 76 |                     if (h2 > h3)
 77 |                     {
 78 |                         v2 = b;
 79 |                         v3 = c;
 80 |                     }
 81 |                     else
 82 |                     {
 83 |                         v2 = c;
 84 |                         v3 = b;
 85 |                     }
 86 |                 }
 87 |                 else
 88 |                 {
 89 |                     v1 = c;
 90 |                     v2 = a;
 91 |                     v3 = b;
 92 |                 }
 93 |             }
 94 |             else
 95 |             {
 96 |                 if (h2 > h3)
 97 |                 {
 98 |                     v1 = b;
 99 |                     if (h1 > h3)
100 |                     {
101 |                         v2 = a;
102 |                         v3 = c;
103 |                     }
104 |                     else
105 |                     {
106 |                         v2 = c;
107 |                         v3 = a;
108 |                     }
109 |                 }
110 |                 else
111 |                 {
112 |                     v1 = c;
113 |                     v2 = b;
114 |                     v3 = a;
115 |                 }
116 |             }
117 |             // Set the result.
118 |             a = v1;
119 |             b = v2;
120 |             c = v3;
121 |         }
122 |         /// <summary>
123 |         /// From a triangle generate a stair.
124 |         /// </summary>
125 |         /// <param name="triangle">Triangle to use.</param>
126 |         /// <returns>Return the mesh of the stair.</returns>
127 |         private MeshData TriangleToStair(Vector3[] triangle)
128 |         {
129 |             Vector3 middle = planet.GetPosition();
130 |             MeshData mesh_data = new MeshData();
131 |             Vector3 v1, v2, v3;
132 |
133 |             v1 = triangle[0];
134 |             v2 = triangle[1];
135 |             v3 = triangle[2];
136 |             Organize(ref v1, ref v2, ref v3);
137 |
138 |             float h1, h2, h3;
139 |             h1 = Vector3.Magnitude(v1);
140 |             h2 = Vector3.Magnitude(v2);
141 |             h3 = Vector3.Magnitude(v3);
142 |
143 |             int h_min, h_max;
144 |             h_min = Mathf.FloorToInt(Mathf.Min(h1, h2, h3));
145 |             h_max = Mathf.FloorToInt(Mathf.Max(h1, h2, h3));
146 |             int iv = 0;
147 |             for (int h = h_min; h <= h_max; h++)
148 |             {
149 |                 int points_above = 0;
150 |                 if (h3 == h2 && h3 == h1)
151 |                     points_above = 3;
152 |                 else if (h3 > h)
153 |                     points_above = 3;
154 |                 else if (h2 > h)
155 |                     points_above = 2;
156 |                 else
157 |                     points_above = 1;
158 |
159 |                 // Current Plane.
160 |                 Vector3 v1_c, v2_c, v3_c;
161 |                 v1_c = v1.normalized * h;
162 |                 v2_c = v2.normalized * h;
163 |                 v3_c = v3.normalized * h;
164 |
165 |                 // Previous Plane.
166 |                 Vector3 v1_p, v2_p, v3_p;
167 |                 v1_p = v1.normalized * (h - 1);
168 |                 v2_p = v2.normalized * (h - 1);
169 |                 v3_p = v3.normalized * (h - 1);
170 |
171 |                 Vector3 normal = Vector3.Cross(v1_p - v2_p, v3_p - v2_p).normalized;
172 |                 float d = -Vector3.Dot(normal, v1_p);
173 |                 float sign1 = d;
174 |                 float distance = Mathf.Abs(normal.x * v1_c.x + normal.y * v1_c.y + normal.z * v1_c.z + d);
175 |
176 |                 Color color = Color.white;
177 |                 ColorHeight[] colorHeight = planet.GetColorHeight();
178 |                 foreach (var item in colorHeight)
179 |                 {
180 |                     if (h > item.layer)
181 |                     {
182 |                         color = item.color;
183 |                         break;
184 |                     }
185 |                 }
186 |
187 |                 if (points_above == 3)
188 |                 {
189 |                     // Floor.
190 |                     mesh_data.vertices.Add(v1_c + middle);
191 |                     mesh_data.vertices.Add(v2_c + middle);
192 |                     mesh_data.vertices.Add(v3_c + middle);
193 |
194 |                     mesh_data.colors.Add(color);
195 |                     mesh_data.colors.Add(color);
196 |                     mesh_data.colors.Add(color);
197 |
198 |                     if (sign1 < 0)
199 |                     {
200 |                         // Floor.
201 |                         mesh_data.triangles.Add(iv);
202 |                         mesh_data.triangles.Add(iv + 2);
203 |                         mesh_data.triangles.Add(iv + 1);
204 |                     }
205 |                     else
206 |                     {
207 |                         mesh_data.triangles.Add(iv);
208 |                         mesh_data.triangles.Add(iv + 1);
209 |                         mesh_data.triangles.Add(iv + 2);
210 |                     }
211 |                     iv += 3;
212 |                 }
213 |                 else if (points_above == 2)
214 |                 {
215 |                     float t1 = (h1 - h) / (h1 - h3);
216 |                     Vector3 v1_v3_c = Vector3.Lerp(v1, v3, t1);
217 |                     Vector3 v1_v3_p = v1_v3_c + Vector3.Cross(v1_c - v2_c, v3_c - v2_c).normalized * distance * Mathf.Sign(sign1);
218 |
219 |                     float t2 = (h2 - h) / (h2 - h3);
220 |                     Vector3 v2_v3_c = Vector3.Lerp(v2, v3, t2);
221 |                     Vector3 v2_v3_p = v2_v3_c + Vector3.Cross(v1_c - v2_c, v3_c - v2_c).normalized * distance * Mathf.Sign(sign1);
222 |
223 |                     if (sign1 < 0)
224 |                     {
225 |                         // Floor.
226 |                         mesh_data.vertices.Add(v1_v3_c + middle);
227 |                         mesh_data.vertices.Add(v2_v3_c + middle);
228 |                         mesh_data.vertices.Add(v1_c + middle);
229 |                         mesh_data.vertices.Add(v2_c + middle);
230 |
231 |                         mesh_data.colors.Add(color);
232 |                         mesh_data.colors.Add(color);
233 |                         mesh_data.colors.Add(color);
234 |                         mesh_data.colors.Add(color);
235 |
236 |                         mesh_data.triangles.Add(iv);
237 |                         mesh_data.triangles.Add(iv + 1);
238 |                         mesh_data.triangles.Add(iv + 2);
239 |
240 |                         mesh_data.triangles.Add(iv + 1);
241 |                         mesh_data.triangles.Add(iv + 3);
242 |                         mesh_data.triangles.Add(iv + 2);
243 |                         iv += 4;
244 |
245 |                         // Wall.
246 |                         mesh_data.vertices.Add(v1_v3_c + middle);
247 |                         mesh_data.vertices.Add(v1_v3_p + middle);
248 |                         mesh_data.vertices.Add(v2_v3_c + middle);
249 |                         mesh_data.vertices.Add(v2_v3_p + middle);
250 |
251 |                         mesh_data.colors.Add(color);
252 |                         mesh_data.colors.Add(color);
253 |                         mesh_data.colors.Add(color);
254 |                         mesh_data.colors.Add(color);
255 |
256 |                         mesh_data.triangles.Add(iv);
257 |                         mesh_data.triangles.Add(iv + 1);
258 |                         mesh_data.triangles.Add(iv + 2);
259 |
260 |                         mesh_data.triangles.Add(iv + 1);
261 |                         mesh_data.triangles.Add(iv + 3);
262 |                         mesh_data.triangles.Add(iv + 2);
263 |                         iv += 4;
264 |                     }
265 |                     else
266 |                     {
267 |                         // Floor.
268 |                         mesh_data.vertices.Add(v1_v3_c + middle);
269 |                         mesh_data.vertices.Add(v2_v3_c + middle);
270 |                         mesh_data.vertices.Add(v1_c + middle);
271 |                         mesh_data.vertices.Add(v2_c + middle);
272 |
273 |                         mesh_data.colors.Add(color);
274 |                         mesh_data.colors.Add(color);
275 |                         mesh_data.colors.Add(color);
276 |                         mesh_data.colors.Add(color);
277 |
278 |                         mesh_data.triangles.Add(iv);
279 |                         mesh_data.triangles.Add(iv + 2);
280 |                         mesh_data.triangles.Add(iv + 1);
281 |
282 |                         mesh_data.triangles.Add(iv + 1);
283 |                         mesh_data.triangles.Add(iv + 2);
284 |                         mesh_data.triangles.Add(iv + 3);
285 |                         iv += 4;
286 |
287 |                         // Wall.
288 |                         mesh_data.vertices.Add(v1_v3_c + middle);
289 |                         mesh_data.vertices.Add(v1_v3_p + middle);
290 |                         mesh_data.vertices.Add(v2_v3_c + middle);
291 |                         mesh_data.vertices.Add(v2_v3_p + middle);
292 |
293 |                         mesh_data.colors.Add(color);
294 |                         mesh_data.colors.Add(color);
295 |                         mesh_data.colors.Add(color);
296 |                         mesh_data.colors.Add(color);
297 |
298 |                         mesh_data.triangles.Add(iv);
299 |                         mesh_data.triangles.Add(iv + 2);
300 |                         mesh_data.triangles.Add(iv + 1);
301 |
302 |                         mesh_data.triangles.Add(iv + 1);
303 |                         mesh_data.triangles.Add(iv + 2);
304 |                         mesh_data.triangles.Add(iv + 3);
305 |                         iv += 4;
306 |                     }
307 |                 }
308 |                 else if (points_above == 1)
309 |                 {
310 |                     float t1 = (h1 - h) / (h1 - h3);
311 |                     Vector3 v1_v3_c = Vector3.Lerp(v1, v3, t1);
312 |                     Vector3 v1_v3_p = v1_v3_c + Vector3.Cross(v1_c - v2_c, v3_c - v2_c).normalized * distance * Mathf.Sign(sign1);
313 |
314 |                     float t2 = (h1 - h) / (h1 - h2);
315 |                     Vector3 v2_v3_c = Vector3.Lerp(v1, v2, t2);
316 |                     Vector3 v2_v3_p = v2_v3_c + Vector3.Cross(v1_c - v2_c, v3_c - v2_c).normalized * distance * Mathf.Sign(sign1);
317 |
318 |                     if (sign1 < 0)
319 |                     {
320 |                         // Floor.
321 |                         mesh_data.vertices.Add(v1_v3_c + middle);
322 |                         mesh_data.vertices.Add(v2_v3_c + middle);
323 |                         mesh_data.vertices.Add(v1_c + middle);
324 |
325 |                         mesh_data.colors.Add(color);
326 |                         mesh_data.colors.Add(color);
327 |                         mesh_data.colors.Add(color);
328 |
329 |                         mesh_data.triangles.Add(iv);
330 |                         mesh_data.triangles.Add(iv + 1);
331 |                         mesh_data.triangles.Add(iv + 2);
332 |
333 |                         iv += 3;
334 |
335 |                         // Wall.
336 |                         mesh_data.vertices.Add(v1_v3_c + middle);
337 |                         mesh_data.vertices.Add(v1_v3_p + middle);
338 |                         mesh_data.vertices.Add(v2_v3_c + middle);
339 |                         mesh_data.vertices.Add(v2_v3_p + middle);
340 |
341 |                         mesh_data.colors.Add(color);
342 |                         mesh_data.colors.Add(color);
343 |                         mesh_data.colors.Add(color);
344 |                         mesh_data.colors.Add(color);
345 |
346 |                         mesh_data.triangles.Add(iv);
347 |                         mesh_data.triangles.Add(iv + 1);
348 |                         mesh_data.triangles.Add(iv + 2);
349 |
350 |                         mesh_data.triangles.Add(iv + 1);
351 |                         mesh_data.triangles.Add(iv + 3);
352 |                         mesh_data.triangles.Add(iv + 2);
353 |                         iv += 4;
354 |                     }
355 |                     else
356 |                     {
357 |                         // Floor.
358 |                         mesh_data.vertices.Add(v1_v3_c + middle);
359 |                         mesh_data.vertices.Add(v2_v3_c + middle);
360 |                         mesh_data.vertices.Add(v1_c + middle);
361 |
362 |                         mesh_data.colors.Add(color);
363 |                         mesh_data.colors.Add(color);
364 |                         mesh_data.colors.Add(color);
365 |
366 |                         mesh_data.triangles.Add(iv);
367 |                         mesh_data.triangles.Add(iv + 2);
368 |                         mesh_data.triangles.Add(iv + 1);
369 |
370 |                         iv += 3;
371 |
372 |                         // Wall.
373 |                         mesh_data.vertices.Add(v1_v3_c + middle);
374 |                         mesh_data.vertices.Add(v1_v3_p + middle);
375 |                         mesh_data.vertices.Add(v2_v3_c + middle);
376 |                         mesh_data.vertices.Add(v2_v3_p + middle);
377 |
378 |                         mesh_data.colors.Add(color);
379 |                         mesh_data.colors.Add(color);
380 |                         mesh_data.colors.Add(color);
381 |                         mesh_data.colors.Add(color);
382 |
383 |                         mesh_data.triangles.Add(iv);
384 |                         mesh_data.triangles.Add(iv + 2);
385 |                         mesh_data.triangles.Add(iv + 1);
386 |
387 |                         mesh_data.triangles.Add(iv + 1);
388 |                         mesh_data.triangles.Add(iv + 2);
389 |                         mesh_data.triangles.Add(iv + 3);
390 |                         iv += 4;
391 |                     }
392 |                 }
393 |             }
394 |             MeshData data = new MeshData();
395 |             data.vertices = new List<Vector3>(triangle);
396 |             int[] i = new int[3] { 0, 1, 2 };
397 |             data.triangles = new List<int>(i);
398 |
399 |             return mesh_data;
400 |         }
401 |         /// <summary>
402 |         /// Subdivide a triangle.
403 |         /// </summary>
404 |         /// <param name="m_Vertices"> Index of the vertices of the triangle.</param>
405 |         /// <returns>Return aa list with the points of the triangle divided.</returns>
406 |         private List<List<Vector3>> Subdivide(List<int> m_Vertices)
407 |         {
408 |             List<List<Vector3>> vertices = new List<List<Vector3>>();
409 |             List<Vector3> p_Vertices = planet.GetVertices();
410 |             List<Vector3> left = new List<Vector3>();
411 |             List<Vector3> right = new List<Vector3>();
412 |             vertices = new List<List<Vector3>>();
413 |
414 |             Vector3 a = p_Vertices[m_Vertices[0]] - planet.GetPosition();
415 |             Vector3 b = p_Vertices[m_Vertices[1]] - planet.GetPosition();
416 |             Vector3 c = p_Vertices[m_Vertices[2]] - planet.GetPosition();
417 |
418 |             // Amount of sections we need to create.
419 |             int size = (int)Mathf.Pow(2, planet.GetChunkSubdivisions());
420 |
421 |             // Create the sections of the left side of the triangle.
422 |             left.Add(a);
423 |             ListMiddlePoints(left, a, c, size);
424 |             left.Add(c);
425 |
426 |             // Create the sections of the right side of the triangle.
427 |             right.Add(b);
428 |             ListMiddlePoints(right, b, c, size);
429 |             right.Add(c);
430 |
431 |             // Calculate each slice points.
432 |             for (int i = 0; i < size; i++)
433 |             {
434 |                 vertices.Add(new List<Vector3>());
435 |                 vertices[i].Add(left[i]);
436 |                 ListMiddlePoints(vertices[i], left[i], right[i], size - i);
437 |                 vertices[i].Add(right[i]);
438 |             }
439 |
440 |             // Add the last slice.
441 |             vertices.Add(new List<Vector3>());
442 |             vertices[vertices.Count - 1].Add(c);
443 |
444 |             return vertices;
445 |         }
446 |         /// <summary>
447 |         /// If a value is in range of two others.
448 |         /// </summary>
449 |         /// <param name="min">Minimum.</param>
450 |         /// <param name="max">Maximum.</param>
451 |         /// <param name="value"> Value to check.</param>
452 |         /// <returns>True if the value is in range.</returns>
453 |         private bool InRange(float min, float max, float value)
454 |         {
455 |             return min < value && max > value;
456 |         }
457 |         /// <summary>
458 |         /// Calculate the height at a point.
459 |         /// </summary>
460 |         /// <param name="p">Position.</param>
461 |         /// <returns>Return the height.</returns>
462 |         private float getHeight(Vector3 p)
463 |         {
464 |             return planet.CalculateHeightAtPosition(p);
465 |         }
466 |
467 |         /// <summary>
468 |         /// Constructor
469 |         /// </summary>
470 |         /// <param name="a">Index of a vertex.</param>
471 |         /// <param name="b">Index of a vertex.</param>
472 |         /// <param name="c">Index of a vertex.</param>
473 |         /// <param name="planet">Parent planet.</param>
474 |         public Polygon(int a, int b, int c, ref Planet planet)
475 |         {
476 |             vertices = new List<int>() { a, b, c };
477 |             this.planet = planet;
478 |         }
479 |         /// <summary>
480 |         /// Generate the data for the meshes and the population locations.
481 |         /// </summary>
482 |         public void GenerateMesh()
483 |         {
484 |             List<Vector3> t_vertices = new List<Vector3>();
485 |             List<int> t_triangles = new List<int>();
486 |             List<Color> t_colors = new List<Color>();
487 |
488 |             // If the chunck don't need to be divided.
489 |             if(planet.GetChunkSubdivisions() == 0)
490 |             {
491 |                 // Only asssign the original triangle.
492 |                 List<Vector3> v = planet.GetVertices();
493 |                 t_vertices = new List<Vector3>() { v[vertices[0]], v[vertices[1]], v[vertices[2]] };
494 |                 t_triangles = new List<int>() { 0,1,2 };
495 |                 meshData = new MeshData(t_vertices, t_triangles, t_colors);
496 |                 Planet.AddPolygonToQueue(this);
497 |                 return;
498 |             }
499 |
500 |             List<List<Vector3>> sub_vertices = Subdivide(vertices);
501 |             List<Mesh> meshes = new List<Mesh>();
502 |             int size = (int)Mathf.Pow(2, planet.GetChunkSubdivisions());
503 |             int iv = 0;
504 |             PopulateData[] population = planet.GetPopulation();
505 |             pop = new List<Vector3>[population.Length];
506 |             for (int i = 0; i < pop.Length; i++)
507 |                 pop[i] = new List<Vector3>();
508 |
509 |             // Create the mesh data.
510 |             for (int x = 0; x < size; x++)
511 |             {
512 |                 for (int y = 0; y < size - x; y++)
513 |                 {
514 |                     if (Planet.ThreadNeedToQuit())
515 |                         return;
516 |
517 |                     Vector3 v1, v2, v3, v4 = Vector3.zero;
518 |
519 |                     v1 = sub_vertices[x][y];
520 |                     v2 = sub_vertices[x][y + 1];
521 |                     v3 = sub_vertices[x + 1][y];
522 |
523 |                     // Variables for the height of each vertex of the triangle.
524 |                     float h1 = 0.0f, h2 = 0.0f, h3 = 0.0f, h4 = 0.0f;
525 |
526 |                     h1 = getHeight(v1);
527 |                     h2 = getHeight(v2);
528 |                     h3 = getHeight(v3);
529 |
530 |                     v1 = v1 + (v1).normalized * h1;
531 |                     v2 = v2 + (v2).normalized * h2;
532 |                     v3 = v3 + (v3).normalized * h3;
533 |
534 |                     if(planet.GetStyle() == Style.LowPoly)
535 |                     {
536 |                         t_vertices.Add(v1 + planet.GetPosition());
537 |                         t_vertices.Add(v2 + planet.GetPosition());
538 |                         t_vertices.Add(v3 + planet.GetPosition());
539 |
540 |                         t_triangles.Add(iv + 0);
541 |                         t_triangles.Add(iv + 1);
542 |                         t_triangles.Add(iv + 2);
543 |
544 |                         if (h1 > 19 && h2 > 19 && h3 > 19)
545 |                         {
546 |                             t_colors.Add(new Color(0.6415094f, 0.5063629f, 0.1845852f, 1));
547 |                             t_colors.Add(new Color(0.6415094f, 0.5063629f, 0.1845852f, 1));
548 |                             t_colors.Add(new Color(0.6415094f, 0.5063629f, 0.1845852f, 1));
549 |                         }
550 |                         else if (h1 > 16 && h2 > 16 && h3 > 16)
551 |                         {
552 |                             t_colors.Add(new Color(0.4470589f, 0.6392157f, 0.145098f, 1));
553 |                             t_colors.Add(new Color(0.4470589f, 0.6392157f, 0.145098f, 1));
554 |                             t_colors.Add(new Color(0.4470589f, 0.6392157f, 0.145098f, 1));
555 |                         }
556 |                         else if (h1 > 14 && h2 > 14 && h3 > 14)
557 |                         {
558 |                             t_colors.Add(new Color(0.6196079f, 0.6431373f, 0.1568628f, 1));
559 |                             t_colors.Add(new Color(0.6196079f, 0.6431373f, 0.1568628f, 1));
560 |                             t_colors.Add(new Color(0.6196079f, 0.6431373f, 0.1568628f, 1));
561 |                         }
562 |                         else
563 |                         {
564 |                             t_colors.Add(new Color(0.9450981f, 0.8392158f, 0.4980392f, 1));
565 |                             t_colors.Add(new Color(0.9450981f, 0.8392158f, 0.4980392f, 1));
566 |                             t_colors.Add(new Color(0.9450981f, 0.8392158f, 0.4980392f, 1));
567 |                         }
568 |
569 |                         iv += 3;
570 |                     }
571 |                     else
572 |                     {
573 |                         Vector3[] triangle = new Vector3[3] { v1, v2, v3 };
574 |                         MeshData mesh_data = TriangleToStair(triangle);
575 |
576 |                         foreach (var item in mesh_data.vertices)
577 |                         {
578 |                             t_vertices.Add(item);
579 |                         }
580 |                         foreach (var item in mesh_data.triangles)
581 |                         {
582 |                             t_triangles.Add(iv + item);
583 |                         }
584 |                         foreach (var item in mesh_data.colors)
585 |                         {
586 |                             t_colors.Add(item);
587 |                         }
588 |
589 |                         iv += mesh_data.vertices.Count;
590 |                     }
591 |
592 |                     if (x != 0)
593 |                     {
594 |                         v4 = sub_vertices[x - 1][y + 1];
595 |
596 |                         h4 = getHeight(v4);
597 |
598 |                         v4 = v4 + v4.normalized * h4;
599 |
600 |                         if(planet.GetStyle() == Style.LowPoly)
601 |                         {
602 |                             t_vertices.Add(v1 + planet.GetPosition());
603 |                             t_vertices.Add(v2 + planet.GetPosition());
604 |                             t_vertices.Add(v4 + planet.GetPosition());
605 |
606 |                             t_triangles.Add(iv + 0);
607 |                             t_triangles.Add(iv + 2);
608 |                             t_triangles.Add(iv + 1);
609 |
610 |                             if (h1 > 19 && h2 > 19 && h4 > 19)
611 |                             {
612 |                                 t_colors.Add(new Color(0.6415094f, 0.5063629f, 0.1845852f, 1));
613 |                                 t_colors.Add(new Color(0.6415094f, 0.5063629f, 0.1845852f, 1));
614 |                                 t_colors.Add(new Color(0.6415094f, 0.5063629f, 0.1845852f, 1));
615 |                             }
616 |                             else if (h1 > 16 && h2 > 16 && h4 > 16)
617 |                             {
618 |                                 t_colors.Add(new Color(0.4470589f, 0.6392157f, 0.145098f, 1));
619 |                                 t_colors.Add(new Color(0.4470589f, 0.6392157f, 0.145098f, 1));
620 |                                 t_colors.Add(new Color(0.4470589f, 0.6392157f, 0.145098f, 1));
621 |                             }
622 |                             else if (h1 > 14 && h2 > 14 && h4 > 14)
623 |                             {
624 |                                 t_colors.Add(new Color(0.6196079f, 0.6431373f, 0.1568628f, 1));
625 |                                 t_colors.Add(new Color(0.6196079f, 0.6431373f, 0.1568628f, 1));
626 |                                 t_colors.Add(new Color(0.6196079f, 0.6431373f, 0.1568628f, 1));
627 |                             }
628 |                             else
629 |                             {
630 |                                 t_colors.Add(new Color(0.9450981f, 0.8392158f, 0.4980392f, 1));
631 |                                 t_colors.Add(new Color(0.9450981f, 0.8392158f, 0.4980392f, 1));
632 |                                 t_colors.Add(new Color(0.9450981f, 0.8392158f, 0.4980392f, 1));
633 |                             }
634 |
635 |                             iv += 3;
636 |                         }
637 |                         else
638 |                         {
639 |                             Vector3[] triangle2 = new Vector3[3] { v1, v2, v4 };
640 |
641 |                             MeshData mesh_data2 = TriangleToStair(triangle2);
642 |
643 |                             foreach (var item in mesh_data2.vertices)
644 |                             {
645 |                                 t_vertices.Add(item);
646 |                             }
647 |                             foreach (var item in mesh_data2.triangles)
648 |                             {
649 |                                 t_triangles.Add(iv + item);
650 |                             }
651 |                             foreach (var item in mesh_data2.colors)
652 |                             {
653 |                                 t_colors.Add(item);
654 |                             }
655 |                             iv += mesh_data2.vertices.Count;
656 |                         }
657 |                     }
658 |
659 |                     if (Vector3.Magnitude(v1) < planet.GetSeaLevel()
660 |                         || Vector3.Magnitude(v2) < planet.GetSeaLevel()
661 |                         || Vector3.Magnitude(v3) < planet.GetSeaLevel())
662 |
663 |                     {
664 |                         // Only asssign the original triangle.
665 |                         List<Vector3> v = planet.GetVertices();
666 |                         List<Vector3> sea_t_vertices = new List<Vector3>() {(v[vertices[0]] - planet.GetPosition()).normalized * planet.GetSeaLevel() + planet.GetPosition(),
667 |                                                                             (v[vertices[1]] - planet.GetPosition()).normalized * planet.GetSeaLevel() + planet.GetPosition(),
668 |                                                                             (v[vertices[2]] - planet.GetPosition()).normalized * planet.GetSeaLevel() + planet.GetPosition()};
669 |                         List<int> sea_t_triangles = new List<int>() { 0, 1, 2 };
670 |                         List<Color> sea_t_colors = new List<Color>();
671 |                         seaMeshData = new MeshData(sea_t_vertices, sea_t_triangles, sea_t_colors);
672 |                     }
673 |
674 |                     Vector3 a = v1;
675 |                     Vector3 b = v2;
676 |                     Vector3 c = v3;
677 |                     Vector3 d = v4;
678 |
679 |                     for (int i = 0; i < pop.Length; i++)
680 |                     {
681 |                         float rand1 = (float)rng.NextDouble();
682 |                         float rand2 = (float)rng.NextDouble();
683 |                         Vector3 ac = Vector3.Lerp(a, c, rand1);
684 |                         Vector3 bc = Vector3.Lerp(b, c, rand1);
685 |
686 |                         Vector3 point = Vector3.Lerp(ac, bc, rand2);
687 |                         float height = Vector3.Magnitude(point);
688 |                         if (Style.Terrace == planet.GetStyle())
689 |                         {
690 |                             height = Mathf.Floor(height);
691 |                             point = point.normalized * height;
692 |                         }
693 |                         if (height >= population[i].minHeight && height <= population[i].maxHeight
694 |                             && population[i].GetHeightAtPosition(point) > 0
695 |                             && population[i].probability > (float)rng.NextDouble())
696 |                         {
697 |                             pop[i].Add(point + planet.GetPosition());
698 |                         }
699 |
700 |                         if (x != 0)
701 |                         {
702 |                             rand1 = (float)rng.NextDouble();
703 |                             rand2 = (float)rng.NextDouble();
704 |                             Vector3 ab = Vector3.Lerp(a, b, rand1);
705 |                             Vector3 db = Vector3.Lerp(d, b, rand1);
706 |
707 |                             point = Vector3.Lerp(ab, db, rand2);
708 |                             height = Vector3.Distance(planet.GetPosition(), point);
709 |                             if (Style.Terrace == planet.GetStyle())
710 |                             {
711 |                                 height = Mathf.Floor(height);
712 |                                 point = point.normalized * height;
713 |                             }
714 |                             if (height >= population[i].minHeight && height <= population[i].maxHeight
715 |                                 && population[i].GetHeightAtPosition(point) > 0
716 |                                 && population[i].probability > (float)rng.NextDouble())
717 |                             {
718 |                                 pop[i].Add(point + planet.GetPosition());
719 |                             }
720 |                         }
721 |                     }
722 |                 }
723 |             }
724 |             // Assign the mesh data.
725 |             meshData = new MeshData(t_vertices, t_triangles, t_colors);
726 |             Planet.AddPolygonToQueue(this);
727 |         }
728 |         /// <summary>
729 |         /// Instantiate terrain and populate it.
730 |         /// </summary>
731 |         public void Instantiate()
732 |         {
733 |             if (instantiate)
734 |                 return;
735 |             // Instantiate the gameobject.
736 |             face = new GameObject();
737 |             face.name = "Terrain Chunck";
738 |             face.transform.parent = planet.transform;
739 |             MeshFilter mesh_filter = face.AddComponent<MeshFilter>();
740 |             MeshCollider collider = face.AddComponent<MeshCollider>();
741 |             MeshRenderer renderer = face.AddComponent<MeshRenderer>();
742 |             renderer.material = planet.GetMaterial();
743 |
744 |             // Apply the mesh to the object.
745 |             Mesh mesh = new Mesh();
746 |             mesh.vertices = meshData.vertices.ToArray();
747 |             mesh.triangles = meshData.triangles.ToArray();
748 |             mesh.colors = meshData.colors.ToArray();
749 |             mesh.RecalculateBounds();
750 |             mesh.RecalculateNormals();
751 |             mesh.RecalculateTangents();
752 |             mesh_filter.mesh = mesh;
753 |             collider.sharedMesh = mesh;
754 |
755 |             if(seaMeshData != null)
756 |             {
757 |                 // Instantiate the gameobject.
758 |                 seaFace = new GameObject();
759 |                 seaFace.name = "Sea";
760 |                 seaFace.transform.parent = face.transform;
761 |                 MeshFilter sea_mesh_filter = seaFace.AddComponent<MeshFilter>();
762 |                 MeshCollider sea_collider = seaFace.AddComponent<MeshCollider>();
763 |                 MeshRenderer sea_renderer = seaFace.AddComponent<MeshRenderer>();
764 |                 sea_renderer.material = planet.GetSeaMaterial();
765 |
766 |                 // Apply the mesh to the object.
767 |                 Mesh sea_mesh = new Mesh();
768 |                 sea_mesh.vertices = seaMeshData.vertices.ToArray();
769 |                 sea_mesh.triangles = seaMeshData.triangles.ToArray();
770 |                 sea_mesh.colors = seaMeshData.colors.ToArray();
771 |                 sea_mesh.RecalculateBounds();
772 |                 sea_mesh.RecalculateNormals();
773 |                 sea_mesh.RecalculateTangents();
774 |                 sea_mesh_filter.mesh = sea_mesh;
775 |                 sea_collider.sharedMesh = sea_mesh;
776 |             }
777 |
778 |             PopulateData[] population = planet.GetPopulation();
779 |             for (int i = 0; i < pop.Length; i++)
780 |             {
781 |                 foreach (var pos in pop[i])
782 |                 {
783 |                     GameObject cube = GameObject.Instantiate(population[i].GetRandomModel());
784 |                     cube.transform.parent = face.transform;
785 |                     Quaternion rotation = Quaternion.FromToRotation(Vector3.up, (pos - planet.GetPosition()).normalized);
786 |                     cube.transform.SetPositionAndRotation(pos, rotation);
787 |                 }
788 |             }
789 |             instantiate = true;
790 |             showing = true;
791 |         }
792 |         /// <summary>
793 |         /// Show the terrain  on the scene.
794 |         /// </summary>
795 |         public void Show()
796 |         {
797 |             Instantiate();
798 |             face.SetActive(true);
799 |         }
800 |         /// <summary>
801 |         /// Hide the terrain on the scene.
802 |         /// </summary>
803 |         public void Hide()
804 |         {
805 |             if (!instantiate)
806 |                 return;
807 |
808 |             face.SetActive(false);
809 |             showing = false;
810 |         }
811 |         public List<int> GetVertices()
812 |         {
813 |             return vertices;
814 |         }
815 |         public Planet GetPlanet()
816 |         {
817 |             return planet;
818 |         }
819 |         public bool GetShowing()
820 |         {
821 |             return showing;
822 |         }
823 |     }
824 |     public class MeshData
825 |     {
826 |         public List<Vector3> vertices;
827 |         public List<int> triangles;
828 |         public List<Color> colors;
829 |
830 |         public MeshData()
831 |         {
832 |             this.vertices = new List<Vector3>();
833 |             this.triangles = new List<int>();
834 |             this.colors = new List<Color>();
835 |         }
836 |         public MeshData(List<Vector3> vertices, List<int> triangles, List<Color> colors)
837 |         {
838 |             this.vertices = vertices;
839 |             this.triangles = triangles;
840 |             this.colors = colors;
841 |         }
842 |     }
843 | }


--------------------------------------------------------------------------------
