├── README.md
├── Source code
    ├── cnnproject.py
    └── svm.py
├── cnn
    └── CNNplaceholder
├── haarcascade_frontalface_default.xml
├── knn
    └── KNNplaceholder
├── main.py
└── svm
    └── SVMplaceholder


/README.md:
--------------------------------------------------------------------------------
 1 | # Age Estimation project !
 2 |
 3 | This is our project for Pattern Recognition CS-342 course.
 4 | The project contributors:
 5 | - **Ahmed Mohamadeen** [@ahmeed2m](https://git.io/ahmed)
 6 | - **Ali elrafei** [@alielrafeiFCIH](https://github.com/alielrafeiFCIH)
 7 | - **Ali Khaled** [@ali-khaled-elsayed](https://github.com/ali-khaled-elsayed)
 8 | - **Aly Moataz**  [@Aly-Moataz-Shorosh](https://github.com/Aly-Moataz-Shorosh)
 9 | - **Omar Farouk** [@Onsymers](https://github.com/Onsymers)
10 | - **Marwan Bedeir** [@marwanBedeir](https://github.com/marwanBedeir)
11 |
12 |
13 | ## Brief
14 | The problem is Age Estimation for the popular **[UTKFace](https://susanqq.github.io/UTKFace/)** data-set.<br>
15 |
16 | The project has a gui interface for camera capturing and take the picture localize a face and give that face for out three implemented methods of estimating *KNN, SVM and CNN* trained from the previously mentioned data-set.<br>
17 | For now the project only runs on linux due to the pickle files of the models only readable from a linux enviroment.
18 |
19 | ### Requirements
20 | Temporary : Linux machine with Python 3 or later<br>
21 | python libraries:
22 | ```
23 | tensorflow
24 | opencv-contrib-python or opencv
25 | Pillow
26 | ```
27 | ### How to run
28 | Clone the project
29 | >git clone https://github.com/Ahmeed2m/Age-estimation-project.git
30 |
31 | Download the models pickles and tensorflow session from this link and put it in the matching folders <br>
32 | <link will be added>
33 | Open terminal/cmd in repo path and run
34 |
35 | >python ./main.py
36 |

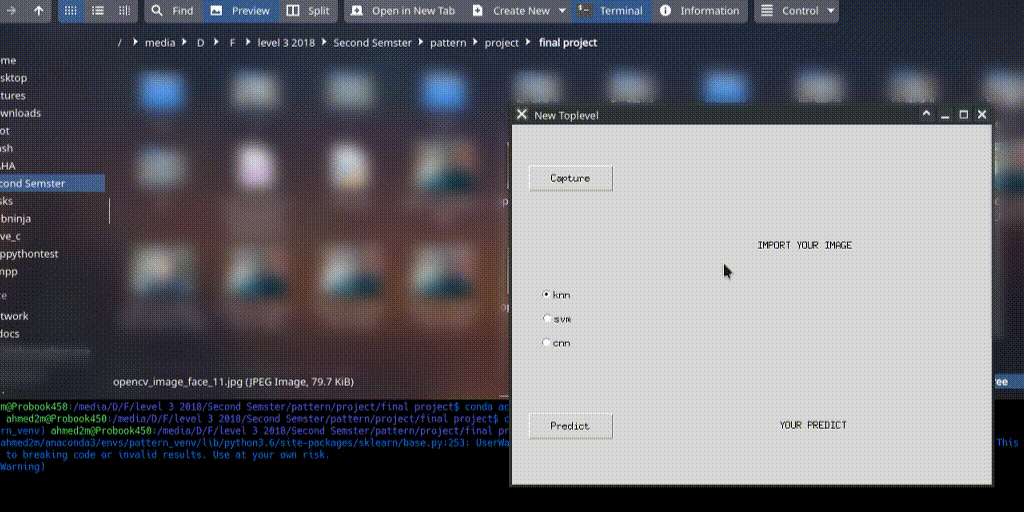

37 | ### Project preview
38 |
39 | ![preview_GIF](https://media.giphy.com/media/Qx5dC1X50WfAI2ETOl/giphy.gif)
40 |
41 | ### Accuracy details
42 |
43 |
44 | |                |ACCURACY       |
45 | |----------------|---------------|
46 | |KNN             |38%            |
47 | |SVM             |50%            |
48 | |CNN             |60%            |
49 |
50 |


--------------------------------------------------------------------------------
/Source code/cnnproject.py:
--------------------------------------------------------------------------------
  1 | import os
  2 | import matplotlib.pyplot as plt
  3 | from sklearn.model_selection import train_test_split
  4 | import numpy as np
  5 | import datetime
  6 | import cv2
  7 | import pickle as pk
  8 | import tensorflow as tf
  9 |
 10 | # dir = "UTKFace/"
 11 | # filenames = os.listdir(dir)
 12 | # filenames = filenames[:23708]
 13 | # lst = [dir + f for f in filenames]
 14 | # # arr=np.array(lst)
 15 | # data = []
 16 | # age_label = []
 17 | # classes = []
 18 | # labels = []
 19 | # targetreg = []
 20 | # race_label = []
 21 | # gender_label = []
 22 | # print(filenames[0])
 23 | # print(lst[0])
 24 | #
 25 | # t = zip(lst, filenames, list(range(len(filenames))))
 26 | # # print(len(list(t)))
 27 | #
 28 | # a = datetime.datetime.now().replace(microsecond=0)
 29 | # for f, source, i in t:
 30 | #     img = cv2.imread(f)
 31 | #     # SCALING
 32 | #     scale = 40
 33 | #     dim = (scale, scale)
 34 | #     img = cv2.resize(img, dim)
 35 | #
 36 | #     # Grayscaling
 37 | #     img = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
 38 | #
 39 | #     sp = source.split("_")
 40 | #     age = sp[0]
 41 | #     gender = sp[1]
 42 | #     race = sp[2]
 43 | #     flat = img.flatten()
 44 | #     if "jpg" in race:
 45 | #         print("race: " + race + "\nsource:" + source)
 46 | #         continue
 47 | #     row = np.array([[age, gender, race]])
 48 | #     age = int(age)
 49 | #     targetreg.append(age)
 50 | #     if age <= 14:
 51 | #         labels.append([1, 0, 0, 0, 0])
 52 | #     if (age > 14) and (age <= 25):
 53 | #         labels.append([0, 1, 0, 0, 0])
 54 | #     if (age > 25) and (age < 40):
 55 | #         labels.append([0, 0, 1, 0, 0])
 56 | #     if (age >= 40) and (age < 60):
 57 | #         labels.append([0, 0, 0, 1, 0])
 58 | #     if age >= 60:
 59 | #         labels.append([0, 0, 0, 0, 1])
 60 | #
 61 | #     gender_label.append(gender)
 62 | #     race_label.append(race)
 63 | #     age_label.append(age)
 64 | #     data.append(flat)
 65 | #
 66 | # b = datetime.datetime.now().replace(microsecond=0)
 67 | # print("Finished import in " + str(b - a))
 68 | # data = np.asarray(data)
 69 | # labels = np.asarray(labels)
 70 | # print(data.shape)
 71 |
 72 | # pick_out = open('data.pickle', 'wb')
 73 | # pk.dump(data, pick_out)
 74 | # pick_out.close()
 75 | #
 76 | # pick_out = open('labels.pickle', 'wb')
 77 | # pk.dump(labels, pick_out)
 78 | # pick_out.close()
 79 |
 80 |
 81 | pick_in = open('data.pickle', 'rb')
 82 | data= pk.load(pick_in)
 83 | pick_in.close()
 84 |
 85 | pick_in = open('labels.pickle', 'rb')
 86 | labels = pk.load(pick_in)
 87 | pick_in.close()
 88 |
 89 | n_classes = 5
 90 | batch_size = 1000
 91 |
 92 | x = tf.placeholder('float', [None, 1600])
 93 | y = tf.placeholder('float')
 94 |
 95 | keep_rate = 0.8
 96 | keep_prob = tf.placeholder(tf.float32)
 97 |
 98 |
 99 | def conv2d(x, W):
100 |     return tf.nn.conv2d(x, W, strides=[1, 1, 1, 1], padding='SAME')
101 |
102 |
103 | def maxpool2d(x):
104 |     #                        size of window         movement of window
105 |     return tf.nn.max_pool(x, ksize=[1, 2, 2, 1], strides=[1, 2, 2, 1], padding='SAME')
106 |
107 |
108 | X_train, X_test, y_train, y_test = train_test_split(data, labels, test_size=0.3, random_state=32)
109 |
110 |
111 | def convolution_neural_network(x):
112 |     weights = {'W_conv1': tf.Variable(tf.random_normal([5, 5, 1, 32])),
113 |                'W_conv2': tf.Variable(tf.random_normal([5, 5, 32, 64])),
114 |                'W_fc': tf.Variable(tf.random_normal([10 * 10 * 64, 1024])),
115 |                'out': tf.Variable(tf.random_normal([1024, n_classes]))}
116 |
117 |     #     weights = {'W_conv1': tf.Variable(tf.random_normal([5, 5, 1, 32])),
118 |     #                'W_conv2': tf.Variable(tf.random_normal([5, 5, 32, 64])),
119 |     #                'W_conv3': tf.Variable(tf.random_normal([5, , 64, 128])),
120 |     #                'W_fc': tf.Variable(tf.random_normal([13 * 13 * 128, 128])),
121 |     #                'out': tf.Variable(tf.random_normal([128, n_classes]))}
122 |
123 |     biases = {'b_conv1': tf.Variable(tf.random_normal([32])),
124 |               'b_conv2': tf.Variable(tf.random_normal([64])),
125 |               # 'b_conv3': tf.Variable(tf.random_normal([128])),
126 |               'b_fc': tf.Variable(tf.random_normal([1024])),
127 |               'out': tf.Variable(tf.random_normal([n_classes]))}
128 |
129 |     x = tf.reshape(x, shape=[-1, 40, 40, 1])
130 |
131 |     conv1 = tf.nn.relu(conv2d(x, weights['W_conv1']) + biases['b_conv1'])
132 |     conv1 = maxpool2d(conv1)
133 |
134 |     conv2 = tf.nn.relu(conv2d(conv1, weights['W_conv2']) + biases['b_conv2'])
135 |     conv2 = maxpool2d(conv2)
136 |
137 |     #     conv3 = conv2d(conv2,weights['W_conv3']) + biases['b_conv3']
138 |     #     conv3 = maxpool2d(conv3)
139 |
140 |     #     fc = tf.reshape(conv2, [-1, 7*7*64])
141 |     fc = tf.reshape(conv2, [-1, 10 * 10 * 64])
142 |
143 |     fc = tf.nn.relu(tf.matmul(fc, weights['W_fc']) + biases['b_fc'])
144 |
145 |     output = tf.matmul(fc, weights['out']) + biases['out']
146 |     return output
147 |
148 |
149 | saver = tf.train.Saver()
150 |
151 |
152 | def train_neural_network(x):
153 |     prediction = convolution_neural_network(x)
154 |     cost = tf.reduce_mean(tf.nn.softmax_cross_entropy_with_logits_v2(logits=prediction, labels=y))
155 |     optimizer = tf.train.AdamOptimizer().minimize(cost)
156 |
157 |     hm_epochs = 15
158 |     with tf.Session() as sess:
159 |         sess.run(tf.global_variables_initializer())
160 |
161 |         for epoch in range(hm_epochs):
162 |             tr_acc_list = []
163 |             epoch_loss = 0
164 |             i = 0
165 |             while i < len(X_train):
166 |                 start = i
167 |                 end = i + batch_size
168 |
169 |                 x_batch = X_train[start:end]
170 |                 y_batch = y_train[start:end]
171 |                 # print("label: ", epoch_y[1])
172 |                 # print("shape image: ",epoch_x.shape ,'\nlabel : ', epoch_y.shape)
173 |                 _, c = sess.run([optimizer, cost], feed_dict={x: x_batch, y: y_batch})
174 |
175 |                 epoch_loss += c
176 |                 #               tr_acc_list.append(train_acc)
177 |
178 |                 i += batch_size
179 |
180 |             print('Epoch', epoch, 'completed out of', hm_epochs, 'loss:', epoch_loss)
181 |
182 |         correct = tf.equal(tf.argmax(prediction, 1), tf.argmax(y, 1))
183 |
184 |         accuracy = tf.reduce_mean(tf.cast(correct, 'float'))
185 |         #         print('train Accuracy:', accuracy.eval({x: X_train, y: y_train}))
186 |         acc = accuracy.eval({x: X_test, y: y_test})
187 |
188 |         print('Test Accuracy:', accuracy.eval({x: X_test, y: y_test}))
189 |
190 |         save_path = saver.save(sess, "cnnmodel.ckpt")
191 |         pk_out = open('acc.pickle', 'wb')
192 |         pk.dump(acc, pk_out)
193 |         pk_out.close()
194 |
195 |
196 | train_neural_network(x)
197 |
198 |
199 | def Cnn_predict(image):
200 |     prediction = convolution_neural_network(x)
201 |     img = cv2.resize(image, (40, 40))
202 |     img = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
203 |     data = []
204 |     flat = img.flatten()
205 |     data.append(flat)
206 |     data = np.asarray(data)
207 |
208 |     with tf.Session() as sess:
209 |         sess.run(tf.global_variables_initializer())
210 |         saver.restore(sess, "cnnmodel.ckpt")
211 |
212 |         result = sess.run(tf.argmax(prediction.eval(feed_dict={x: data}), 1))
213 |         print(result[0])
214 |
215 |
216 |
217 |
218 |


--------------------------------------------------------------------------------
/Source code/svm.py:
--------------------------------------------------------------------------------
 1 | clf = svm.SVC(gamma=0.0000001,kernel='rbf',C=1000,verbose=True,max_iter=100,decision_function_shape='ovo')
 2 |
 3 | clf.fit(X_train,y_train)
 4 |
 5 |
 6 |
 7 | pk_out = open("SVM_gamma=0.0000001,kernel='rbf',C=1000.pickle","rb")
 8 | clf = pickle.load(pk_out)
 9 | img=plt.imread('1_0_0_20161219140627985.jpg.chip.jpg')
10 | scale = 100
11 | dim = (scale, scale)
12 | img = cv2.resize(img, dim)
13 | img = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
14 | img = img.flatten()
15 | array = [img]
16 | print
17 | age=clf.predict(array)
18 | print(age)
19 | pk_out.close()
20 |


--------------------------------------------------------------------------------
/cnn/CNNplaceholder:
--------------------------------------------------------------------------------
1 |
2 |


--------------------------------------------------------------------------------
/knn/KNNplaceholder:
--------------------------------------------------------------------------------
1 |
2 |


--------------------------------------------------------------------------------
/main.py:
--------------------------------------------------------------------------------
  1 | #! /usr/bin/env python
  2 | #  -*- coding: utf-8 -*-
  3 | #
  4 | # GUI module generated by PAGE version 4.19
  5 | #  in conjunction with Tcl version 8.6
  6 | #    Apr 22, 2019 03:43:23 PM PDT  platform: Windows NT
  7 |
  8 | import sys
  9 | import cv2
 10 | from PIL import Image, ImageTk
 11 | import pickle
 12 | import numpy as np
 13 | import tensorflow as tf
 14 | import matplotlib as plt
 15 |
 16 | face_cascade = cv2.CascadeClassifier('haarcascade_frontalface_default.xml')
 17 | imageSource = ""
 18 | img_counter = 0
 19 | rio = ""
 20 | knn = None
 21 | svm = None
 22 |
 23 | try:
 24 |     import Tkinter as tk
 25 | except ImportError:
 26 |     import tkinter as tk
 27 |
 28 | try:
 29 |     import ttk
 30 |     py3 = False
 31 | except ImportError:
 32 |     import tkinter.ttk as ttk
 33 |     py3 = True
 34 |
 35 | n_classes = 5
 36 | batch_size = 1000
 37 |
 38 | x = tf.placeholder('float', [None, 1600])
 39 | y = tf.placeholder('float')
 40 |
 41 | keep_rate = 0.8
 42 | keep_prob = tf.placeholder(tf.float32)
 43 |
 44 |
 45 | def conv2d(x, W):
 46 |     return tf.nn.conv2d(x, W, strides=[1, 1, 1, 1], padding='SAME')
 47 |
 48 |
 49 | def maxpool2d(x):
 50 |     #                        size of window         movement of window
 51 |     return tf.nn.max_pool(x, ksize=[1, 2, 2, 1], strides=[1, 2, 2, 1], padding='SAME')
 52 |
 53 |
 54 | def convolution_neural_network(x):
 55 |     weights = {'W_conv1': tf.Variable(tf.random_normal([5, 5, 1, 32])),
 56 |                'W_conv2': tf.Variable(tf.random_normal([5, 5, 32, 64])),
 57 |                'W_fc': tf.Variable(tf.random_normal([10 * 10 * 64, 1024])),
 58 |                'out': tf.Variable(tf.random_normal([1024, n_classes]))}
 59 |
 60 |     #     weights = {'W_conv1': tf.Variable(tf.random_normal([5, 5, 1, 32])),
 61 |     #                'W_conv2': tf.Variable(tf.random_normal([5, 5, 32, 64])),
 62 |     #                'W_conv3': tf.Variable(tf.random_normal([5, , 64, 128])),
 63 |     #                'W_fc': tf.Variable(tf.random_normal([13 * 13 * 128, 128])),
 64 |     #                'out': tf.Variable(tf.random_normal([128, n_classes]))}
 65 |
 66 |     biases = {'b_conv1': tf.Variable(tf.random_normal([32])),
 67 |               'b_conv2': tf.Variable(tf.random_normal([64])),
 68 |               # 'b_conv3': tf.Variable(tf.random_normal([128])),
 69 |               'b_fc': tf.Variable(tf.random_normal([1024])),
 70 |               'out': tf.Variable(tf.random_normal([n_classes]))}
 71 |
 72 |     x = tf.reshape(x, shape=[-1, 40, 40, 1])
 73 |
 74 |     conv1 = tf.nn.relu(conv2d(x, weights['W_conv1']) + biases['b_conv1'])
 75 |     conv1 = maxpool2d(conv1)
 76 |
 77 |     conv2 = tf.nn.relu(conv2d(conv1, weights['W_conv2']) + biases['b_conv2'])
 78 |     conv2 = maxpool2d(conv2)
 79 |
 80 |     #     conv3 = conv2d(conv2,weights['W_conv3']) + biases['b_conv3']
 81 |     #     conv3 = maxpool2d(conv3)
 82 |
 83 |     #     fc = tf.reshape(conv2, [-1, 7*7*64])
 84 |     fc = tf.reshape(conv2, [-1, 10 * 10 * 64])
 85 |
 86 |     fc = tf.nn.relu(tf.matmul(fc, weights['W_fc']) + biases['b_fc'])
 87 |
 88 |     output = tf.matmul(fc, weights['out']) + biases['out']
 89 |     return output
 90 |
 91 |
 92 | # saver = tf.train.Saver()
 93 |
 94 |
 95 | def Cnn_predict(image):
 96 |     img = cv2.imread(image, cv2.IMREAD_GRAYSCALE)
 97 |     img = cv2.resize(img, (40, 40))
 98 |     # img = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
 99 |     data = []
100 |     flat = img.flatten()
101 |     data.append(flat)
102 |     data = np.asarray(data)
103 |
104 |     prediction = convolution_neural_network(x)
105 |
106 |     with tf.Session() as sess:
107 |         sess.run(tf.global_variables_initializer())
108 |         tf.train.Saver().restore(sess, "cnn/cnnmodel.ckpt")
109 |
110 |         result = sess.run(tf.argmax(prediction.eval(feed_dict={x: data}), 1))
111 |         print(result[0])
112 |         return result[0]
113 |
114 |
115 | def onclick(btnNum,Label1,group):
116 |     global img_counter
117 |     if btnNum == 1:
118 |         temp = capture()
119 |         if temp is not None:
120 |             imageSource = temp
121 |             img = cv2.imread(imageSource)
122 |             gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
123 |
124 |             faces = face_cascade.detectMultiScale(gray, 1.3, 5)
125 |             print(faces)
126 |             for (x, y, w, h) in faces:
127 |                 roi_gray = gray[y:y + h, x:x + w]
128 |                 roi_color = img[y - 30:y + 30 + h, x - 30:x + 30 + w]
129 |                 img_name = "roi_{}.jpg".format(img_counter)
130 |                 global rio
131 |                 rio = img_name
132 |                 cv2.imwrite(img_name, roi_color)
133 |                 cv2.rectangle(img, (x-10, y-60), (x + w, y+10 + h), (255, 0, 0), 2)
134 |
135 |             img_name = "opencv_image_face_{}.jpg".format(img_counter)
136 |             cv2.imwrite(img_name, img)
137 |
138 |             imageToShow = Image.open(temp)
139 |             img3 = cv2.imread(temp)
140 |             dim = (320, 240)
141 |             imageToShow  = cv2.resize(img, dim)
142 |             img_name = "opencv_image_face__rect_{}.jpg".format(img_counter)
143 |             cv2.imwrite(img_name, imageToShow)
144 |
145 |             imageToShow = Image.open(img_name)
146 |             img2 = ImageTk.PhotoImage(imageToShow)
147 |
148 |             Label1.configure(image=img2)
149 |             Label1.image = img2
150 |             img_counter += 1
151 |             #print("aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa")
152 |
153 |    # elif btnNum == 2:
154 |
155 |     elif btnNum == 3:
156 |         if group == 0:
157 |             # global rio
158 |             # path = rio
159 |             print(rio)
160 |             # img = cv2.cvtColor(cv2.UMat(rio), cv2.COLOR_BGR2GRAY,ranges=[])
161 |             img = cv2.imread(rio,cv2.IMREAD_GRAYSCALE)
162 |             # img1 = cv2.cvtColor(rio, cv2.COLOR_BGR2GRAY)
163 |             scale = 50
164 |             dim = (scale, scale)
165 |             img = cv2.resize(img, dim)
166 |             img = img.flatten()
167 |             img = np.asarray(img)
168 |             # plt.imshow(img, cmap='gray')
169 |             # plt.show
170 |             global knn
171 |             y_pred = knn.predict(img.reshape(1, -1))
172 |             print(y_pred)
173 |             if y_pred ==0:
174 |                 Label1.configure(text="Knn estimate is from Age 1 to 14")
175 |             if y_pred ==1:
176 |                 Label1.configure(text="Knn estimate is from Age 15 to 25")
177 |             if y_pred ==2:
178 |                 Label1.configure(text="Knn estimate is from Age 26 to 40")
179 |             if y_pred ==3:
180 |                 Label1.configure(text="Knn estimate is from Age 41 to 60")
181 |             if y_pred ==4:
182 |                 Label1.configure(text="Knn estimate is from Age 61 to 100")
183 |         elif group == 1:
184 |             img = cv2.imread(rio, cv2.IMREAD_GRAYSCALE)
185 |             # img1 = cv2.cvtColor(rio, cv2.COLOR_BGR2GRAY)
186 |             scale = 100
187 |             dim = (scale, scale)
188 |             img = cv2.resize(img, dim)
189 |             img = img.flatten()
190 |             img = np.asarray(img)
191 |             # plt.imshow(img, cmap='gray')
192 |             # plt.show
193 |             global svm
194 |             y_pred = svm.predict(img.reshape(1, -1))
195 |             print(y_pred)
196 |             Label1.configure(text="SVM estimate is  "+ str(y_pred[0]))
197 |
198 |             # if y_pred == 0:
199 |             #     Label1.configure(text="Knn estimate is from Age 1 to 14")
200 |             # if y_pred == 1:
201 |             #     Label1.configure(text="Knn estimate is from Age 15 to 25")
202 |             # if y_pred == 2:
203 |             #     Label1.configure(text="Knn estimate is from Age 26 to 40")
204 |             # if y_pred == 3:
205 |             #     Label1.configure(text="Knn estimate is from Age 41 to 60")
206 |             # if y_pred == 4:
207 |             #     Label1.configure(text="Knn estimate is from Age 61 to 100")
208 |         elif group == 2:
209 |             # cnn predict
210 |             img = cv2.imread(rio)
211 |             y_pred=Cnn_predict(rio)
212 |             if y_pred ==0:
213 |                 Label1.configure(text="Cnn estimate is from Age 1 to 14")
214 |             if y_pred ==1:
215 |                 Label1.configure(text="Cnn estimate is from Age 15 to 25")
216 |             if y_pred ==2:
217 |                 Label1.configure(text="Cnn estimate is from Age 26 to 40")
218 |             if y_pred ==3:
219 |                 Label1.configure(text="Cnn estimate is from Age 41 to 60")
220 |             if y_pred ==4:
221 |                 Label1.configure(text="Cnn estimate is from Age 61 to 100")
222 |
223 | '''
224 | conda remove opencv
225 | conda install -c menpo opencv
226 | pip install --upgrade pip
227 | pip install opencv-contrib-python
228 | '''
229 |
230 |
231 | def capture():
232 |     cam = cv2.VideoCapture(0)
233 |
234 |     cv2.namedWindow("age estimation camera")
235 |
236 |     while True:
237 |         ret, image = cam.read()
238 |         cv2.imshow("age estimation camera", image)
239 |         if not ret:
240 |             break
241 |         k = cv2.waitKey(1)
242 |         global img_counter
243 |         if k % 256 == 27:
244 |             # ESC pressed
245 |             print("Escape hit, closing...")
246 |             cam.release()
247 |             cv2.destroyAllWindows()
248 |             return None
249 |         elif k % 256 == 32:
250 |             # SPACE pressed
251 |             img_name = "opencv_image_{}.jpg".format(img_counter)
252 |             cv2.imwrite(img_name, image)
253 |             img_source = "{}".format(img_name)
254 |             print(img_source)
255 |             cam.release()
256 |             cv2.destroyAllWindows()
257 |             return img_source
258 |
259 | def vp_start_gui():
260 |     global knn
261 |     knn = getKnn().load()
262 |     global svm
263 |     svm = getsvm().load()
264 |     '''Starting point when module is the main routine.'''
265 |     global val, w, root
266 |     root = tk.Tk()
267 |     top = Toplevel1(root)
268 |     root.mainloop()
269 |
270 | w = None
271 | def create_Toplevel1(root, *args, **kwargs):
272 |     '''Starting point when module is imported by another program.'''
273 |     global w, w_win, rt
274 |     rt = root
275 |     w = tk.Toplevel (root)
276 |     top = Toplevel1 (w)
277 |     return (w, top)
278 |
279 | def destroy_Toplevel1():
280 |     global w
281 |     w.destroy()
282 |     w = None
283 |
284 | class Toplevel1:
285 |     def __init__(self, top=None):
286 |         '''This class configures and populates the toplevel window.
287 |            top is the toplevel containing window.'''
288 |         _bgcolor = '#d9d9d9'  # X11 color: 'gray85'
289 |         _fgcolor = '#000000'  # X11 color: 'black'
290 |         _compcolor = '#d9d9d9' # X11 color: 'gray85'
291 |         _ana1color = '#d9d9d9' # X11 color: 'gray85'
292 |         _ana2color = '#ececec' # Closest X11 color: 'gray92'
293 |
294 |         top.geometry("600x450+678+223")
295 |         top.title("New Toplevel")
296 |         top.configure(background="#d9d9d9")
297 |
298 |         group = tk.IntVar()
299 |
300 |         self.Label1 = tk.Label(top)
301 |         self.Label1.place(relx=0.233, rely=0.044, height=261, width=454)
302 |         self.Label1.configure(background="#d9d9d9")
303 |         self.Label1.configure(disabledforeground="#a3a3a3")
304 |         self.Label1.configure(foreground="#000000")
305 |         self.Label1.configure(text='''IMPORT YOUR IMAGE''')
306 |         self.Label1.configure(width=454)
307 |
308 |         self.Label2 = tk.Label(top)
309 |         self.Label2.place(relx=0.417, rely=0.778, height=51, width=254)
310 |         self.Label2.configure(background="#d9d9d9")
311 |         self.Label2.configure(disabledforeground="#a3a3a3")
312 |         self.Label2.configure(foreground="#000000")
313 |         self.Label2.configure(text='''YOUR PREDICT''')
314 |         self.Label2.configure(width=254)
315 |
316 |
317 | #        self.browse = tk.Button(top , command = lambda:onclick(2,self.Label1))
318 | #       self.browse.place(relx=0.033, rely=0.022, height=34, width=107)
319 | #        self.browse.configure(activebackground="#ececec")
320 | #        self.browse.configure(activeforeground="#000000")
321 | #        self.browse.configure(background="#d9d9d9")
322 | #        self.browse.configure(disabledforeground="#a3a3a3")
323 | #        self.browse.configure(foreground="#000000")
324 | #        self.browse.configure(highlightbackground="#d9d9d9")
325 | #        self.browse.configure(highlightcolor="black")
326 | #        self.browse.configure(pady="0")
327 | #        self.browse.configure(text='''Browse''')
328 | #        self.browse.configure(width=107)
329 |
330 |         self.capture = tk.Button(top , command = lambda:onclick(1,self.Label1,0))
331 |         self.capture.place(relx=0.033, rely=0.111, height=34, width=107)
332 |         self.capture.configure(activebackground="#ececec")
333 |         self.capture.configure(activeforeground="#000000")
334 |         self.capture.configure(background="#d9d9d9")
335 |         self.capture.configure(disabledforeground="#a3a3a3")
336 |         self.capture.configure(foreground="#000000")
337 |         self.capture.configure(highlightbackground="#d9d9d9")
338 |         self.capture.configure(highlightcolor="black")
339 |         self.capture.configure(pady="0")
340 |         self.capture.configure(text='''Capture''')
341 |         self.capture.configure(width=107)
342 |
343 |         self.knn = tk.Radiobutton(top)
344 |         self.knn.place(relx=0.05, rely=0.444, relheight=0.056, relwidth=0.08)
345 |         self.knn.configure(activebackground="#ececec")
346 |         self.knn.configure(activeforeground="#000000")
347 |         self.knn.configure(background="#d9d9d9")
348 |         self.knn.configure(disabledforeground="#a3a3a3")
349 |         self.knn.configure(foreground="#000000")
350 |         self.knn.configure(highlightbackground="#d9d9d9")
351 |         self.knn.configure(highlightcolor="black")
352 |         self.knn.configure(justify='left')
353 |         self.knn.configure(text='''knn''')
354 |         self.knn.configure(value="0")
355 |         self.knn.configure(variable=group)
356 |
357 |         self.svm = tk.Radiobutton(top)
358 |         self.svm.place(relx=0.05, rely=0.511, relheight=0.056, relwidth=0.083)
359 |         self.svm.configure(activebackground="#ececec")
360 |         self.svm.configure(activeforeground="#000000")
361 |         self.svm.configure(background="#d9d9d9")
362 |         self.svm.configure(disabledforeground="#a3a3a3")
363 |         self.svm.configure(foreground="#000000")
364 |         self.svm.configure(highlightbackground="#d9d9d9")
365 |         self.svm.configure(highlightcolor="black")
366 |         self.svm.configure(justify='left')
367 |         self.svm.configure(text='''svm''')
368 |         self.svm.configure(value="1")
369 |         self.svm.configure(variable=group)
370 |
371 |         self.cnn = tk.Radiobutton(top)
372 |         self.cnn.place(relx=0.05, rely=0.578, relheight=0.056, relwidth=0.08)
373 |         self.cnn.configure(activebackground="#ececec")
374 |         self.cnn.configure(activeforeground="#000000")
375 |         self.cnn.configure(background="#d9d9d9")
376 |         self.cnn.configure(disabledforeground="#a3a3a3")
377 |         self.cnn.configure(foreground="#000000")
378 |         self.cnn.configure(highlightbackground="#d9d9d9")
379 |         self.cnn.configure(highlightcolor="black")
380 |         self.cnn.configure(justify='left')
381 |         self.cnn.configure(text='''cnn''')
382 |         self.cnn.configure(value="2")
383 |         self.cnn.configure(variable=group)
384 |
385 |
386 |
387 |         self.predict = tk.Button(top,command = lambda:onclick(3,self.Label2,group.get()))
388 |         self.predict.place(relx=0.033, rely=0.8, height=34, width=107)
389 |         self.predict.configure(activebackground="#ececec")
390 |         self.predict.configure(activeforeground="#000000")
391 |         self.predict.configure(background="#d9d9d9")
392 |         self.predict.configure(disabledforeground="#a3a3a3")
393 |         self.predict.configure(foreground="#000000")
394 |         self.predict.configure(highlightbackground="#d9d9d9")
395 |         self.predict.configure(highlightcolor="black")
396 |         self.predict.configure(pady="0")
397 |         self.predict.configure(text='''Predict''')
398 |         self.predict.configure(width=107)
399 |
400 |
401 | def getKnn():
402 |     # global knn
403 |     pk_out = open("Knn/Knn_model.pickle", "rb")
404 |     knn = pickle.Unpickler(pk_out)
405 |     return knn
406 |
407 |
408 | def getsvm():
409 |     pk_out = open("svm/SVM_gamma=0.0000001,kernel='rbf',C=1000.pickle", "rb")
410 |     svm = pickle.Unpickler(pk_out)
411 |     return svm
412 |
413 |
414 | if __name__ == '__main__':
415 |     img_counter = 0
416 |     vp_start_gui()
417 |
418 |
419 |
420 |
421 |
422 |


--------------------------------------------------------------------------------
/svm/SVMplaceholder:
--------------------------------------------------------------------------------
1 |
2 |


--------------------------------------------------------------------------------
