├── .babelrc
├── .gitignore
├── README.md
├── doc
    └── handlock.md
├── example
    ├── locker-check.html
    ├── locker-update.html
    ├── locker.html
    └── recorder.html
├── lib
    ├── app.js
    ├── locker.js
    └── recorder.js
├── package.json
├── script
    ├── cdn-uploader.js
    └── deploy.js
└── webpack.config.js


/.babelrc:
--------------------------------------------------------------------------------
1 | {
2 |   "presets": ["env"],
3 |   "plugins": ["transform-runtime"]
4 | }
5 |


--------------------------------------------------------------------------------
/.gitignore:
--------------------------------------------------------------------------------
 1 | # Logs
 2 | logs
 3 | *.log
 4 |
 5 | # Runtime data
 6 | pids
 7 | *.pid
 8 | *.seed
 9 |
10 | # Directory for instrumented libs generated by jscoverage/JSCover
11 | lib-cov
12 |
13 | # Coverage directory used by tools like istanbul
14 | coverage/
15 |
16 | # Grunt intermediate storage (http://gruntjs.com/creating-plugins#storing-task-files)
17 | .grunt
18 |
19 | # node-waf configuration
20 | .lock-wscript
21 |
22 | # Dependency directory
23 | # https://www.npmjs.org/doc/misc/npm-faq.html#should-i-check-my-node_modules-folder-into-git
24 | node_modules/
25 |
26 | # IDE config
27 | .idea
28 |
29 | # output
30 | output/
31 | output.tar.gz
32 |
33 | app/
34 | dist/
35 |
36 | runtime/
37 |
38 | .DS_Store
39 | sftp-config.json


--------------------------------------------------------------------------------
/README.md:
--------------------------------------------------------------------------------
  1 | # 手势密码设置和解锁的实现
  2 |
  3 | 这是[第三届360前端星计划](http://html5.360.cn/star)的[在线作业](doc/handlock.md)的参考实现。
  4 |
  5 | ## 在线例子
  6 |
  7 | [在线示例](http://handlock.test.h5jun.com/example/locker.html)
  8 |
  9 | ![扫描二维码](https://p.ssl.qhimg.com/t0183f30bf0e1670466.png)
 10 |
 11 | ## 安装和使用
 12 |
 13 | 直接在浏览器里引用:
 14 |
 15 | ```html
 16 | <script src="https://s2.ssl.qhres.com/!9f2db498/HandLock-0.2.1.min.js"></script>
 17 | ```
 18 |
 19 | ## API
 20 |
 21 | ### Locker
 22 |
 23 | 创建一个可以设置密码和验证密码的实例
 24 |
 25 | ```js
 26 | var password = '11121323';
 27 |
 28 | var locker = new HandLock.Locker({
 29 |   container: document.querySelector('#handlock'),
 30 |   check: {
 31 |     checked: function(res){
 32 |       if(res.err){
 33 |         console.error(res.err); //密码错误或长度太短
 34 |       }else{
 35 |         console.log(`正确，密码是：${res.records}`);
 36 |       }
 37 |     },
 38 |   },
 39 |   update:{
 40 |     beforeRepeat: function(res){
 41 |       if(res.err){
 42 |         console.error(res.err); //密码长度太短
 43 |       }else{
 44 |         console.log(`密码初次输入完成，等待重复输入`);
 45 |       }
 46 |     },
 47 |     afterRepeat: function(res){
 48 |       if(res.err){
 49 |         console.error(res.err); //密码长度太短或者两次密码输入不一致
 50 |       }else{
 51 |         console.log(`密码更新完成，新密码是：${res.records}`);
 52 |       }
 53 |     },
 54 |   }
 55 | });
 56 |
 57 | locker.check(password);
 58 | ```
 59 |
 60 | ### 几种 err 状态
 61 |
 62 | - ERR_NOT_ENOUGH_POINTS 绘制的点数量不足，默认为最少4个点
 63 | - ERR_PASSWORD_MISMATCH 密码不一致，check时密码不对或者update时两次输入密码不一致
 64 | - ERR_USER_CANCELED     用户切换验证或设置操作时，取消当前的状态
 65 |
 66 | ### 可配置的参数
 67 |
 68 | ```js
 69 | //recorder.js
 70 | const defaultOptions = {
 71 |   container: null, //创建canvas的容器，如果不填，自动在 body 上创建覆盖全屏的层
 72 |   focusColor: '#e06555',  //当前选中的圆的颜色
 73 |   fgColor: '#d6dae5',     //未选中的圆的颜色
 74 |   bgColor: '#fff',        //canvas背景颜色
 75 |   n: 3, //圆点的数量： n x n
 76 |   innerRadius: 10,  //圆点的内半径
 77 |   outerRadius: 25,  //圆点的外半径，focus 的时候显示
 78 |   touchRadius: 35,  //判定touch事件的圆半径
 79 |   render: true,     //自动渲染
 80 |   customStyle: false, //自定义样式
 81 |   minPoints: 4,     //最小允许的点数
 82 | };
 83 | ```
 84 |
 85 | ```js
 86 | //locker.js
 87 | const defaultOptions = {
 88 |   update: {
 89 |     beforeRepeat: function(){}, //更新密码第一次输入后的事件
 90 |     afterRepeat: function(){}   //更新密码重复输入后的事件
 91 |   },
 92 |   check: {
 93 |     checked: function(){} //校验密码之后的事件
 94 |   }
 95 | }
 96 | ```
 97 |
 98 | ### clearPath()
 99 |
100 | 清除 canvas 上选中的圆。
101 |
102 | ### cancel()
103 |
104 | 取消当前状态，用于update/check状态切换。
105 |
106 | ## 修改和发布代码
107 |
108 | 下载仓库并安装依赖：
109 |
110 | ```bash
111 | npm install
112 | ```
113 |
114 | 启动服务：
115 |
116 | ```bash
117 | npm start
118 | ```
119 |
120 | 发布代码：
121 |
122 | ```bash
123 | npm run deploy
124 | ```
125 |
126 | ## License
127 |
128 | MIT
129 |


--------------------------------------------------------------------------------
/doc/handlock.md:
--------------------------------------------------------------------------------
 1 | # 2017 前端星计划选拔作业
 2 |
 3 | 在移动端设备上，“手势密码”成为一个很常用的 UI 组件。
 4 |

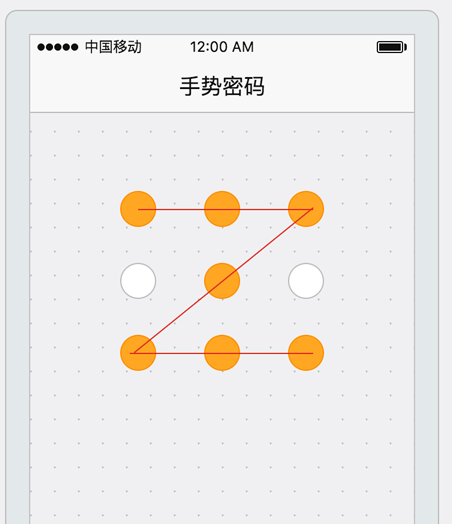

 5 | 一个手势密码的界面大致如下：
 6 |
 7 | ![](https://p3.ssl.qhimg.com/t01c6b1b34d845c192b.png)
 8 |
 9 | 用户用手指按顺序依次划过 9 个原点中的若干个（必须不少于 4 个点），如果划过的点的数量和顺序与之前用户设置的相同，那么当用户的手指离开屏幕时，判定为密码输入正确，否则密码错误。
10 |
11 | 要求：实现一个移动网页，允许用户设置手势密码和验证手势密码。已设置的密码记录在本地 localStorage 中。
12 |
13 | 界面原型和操作流程如下：
14 |
15 | ### stat 1：设置密码
16 |
17 | ![](https://p5.ssl.qhimg.com/t01ad2dbd1fa3195d55.png)
18 |
19 | 用户选择设置密码，提示用户输入手势密码
20 |
21 | ### stat 2：密码长度太短
22 |
23 | ![](https://p3.ssl.qhimg.com/t01e3ccb14544b73cc3.png)
24 |
25 | 如果不足 5 个点，提示用户密码太短
26 |
27 | ### stat 3：再次输入密码
28 |
29 | ![](https://p4.ssl.qhimg.com/t01e29ee99bbe73b256.png)
30 |
31 | 提示用户再次输入密码
32 |
33 | ### stat 4: 两次密码输入不一致
34 |
35 | ![](https://p4.ssl.qhimg.com/t01698b3be9b0d473e7.png)
36 |
37 | 如果用户输入的两次密码不一致，**提示并重置，重新开始设置密码**
38 |
39 | ### stat 5: 密码设置成功
40 |
41 | ![](https://p3.ssl.qhimg.com/t01dc54ccf4133d2b06.png)
42 |
43 | 如果两次输入一致，**密码设置成功，更新 localStorage**
44 |
45 | ### stat 6: 验证密码 - 不正确
46 |
47 | ![](https://p1.ssl.qhimg.com/t01410791e9c637add0.png)
48 |
49 | 切换单选框进入验证密码模式，将用户输入的密码与保存的密码相比较，如果不一致，则提示**输入密码不正确，重置为等待用户输入**。
50 |
51 | ### stat 7: 验证密码 - 正确
52 |
53 | ![](https://p0.ssl.qhimg.com/t019bf08a6f82f1d289.png)
54 |
55 | 如果用户输入的密码与 localStorage 中保存的密码一致，则提示**密码正确**。
56 |
57 | ---
58 |
59 | 请同学们按照上面的需求实现这个网页，在手机上可用。可以不用太考虑古老机器的兼容性，最新的 android 和 iPhone 可用即可。
60 |
61 | **要求：**
62 |
63 | 1. 独立思考，独立完成，严禁抄袭！如果发现抄袭导致代码雷同，抄袭者和被抄袭者将都不会入选，而且会取消以后参加 360 面试的资格。
64 |
65 | 1. 注意保持良好代码风格和注释，可以在 README 文档里写上自己的思路。
66 |
67 | 1. 请在截止日期内完成并提交。


--------------------------------------------------------------------------------
/example/locker-check.html:
--------------------------------------------------------------------------------
 1 | <!DOCTYPE html>
 2 | <html lang="en">
 3 | <head>
 4 |   <meta charset="UTF-8">
 5 |   <meta name="viewport" content="width=device-width,initial-scale=1">
 6 |   <title>Demo</title>
 7 |   <style type="text/css">
 8 |     * {
 9 |       padding: 0;
10 |       margin: 0;
11 |     }
12 |     html, body {
13 |       width: 100%;
14 |       height: 100%;
15 |       overflow: hidden;
16 |     }
17 |
18 |     #main{
19 |       position: relative;
20 |       width: 100%;
21 |       height: 100%;
22 |       overflow: hidden;
23 |     }
24 |
25 |   </style>
26 | </head>
27 | <body>
28 |   <div id="main">
29 |   </div>
30 |   <script src="/js/HandLock.js"></script>
31 |   <script>
32 |     var locker = new HandLock.Locker({
33 |       container: document.querySelector('#main'),
34 |       check: {
35 |         checked: function(res){
36 |           console.log(res);
37 |         }
38 |       }
39 |     });
40 |
41 |     locker.check('11121323');
42 |   </script>
43 | </body>
44 | </html>


--------------------------------------------------------------------------------
/example/locker-update.html:
--------------------------------------------------------------------------------
 1 | <!DOCTYPE html>
 2 | <html lang="en">
 3 | <head>
 4 |   <meta charset="UTF-8">
 5 |   <meta name="viewport" content="width=device-width,initial-scale=1">
 6 |   <title>Demo</title>
 7 |   <style type="text/css">
 8 |     * {
 9 |       padding: 0;
10 |       margin: 0;
11 |     }
12 |     html, body {
13 |       width: 100%;
14 |       height: 100%;
15 |       overflow: hidden;
16 |     }
17 |
18 |     #main{
19 |       position: relative;
20 |       width: 100%;
21 |       height: 100%;
22 |       overflow: hidden;
23 |     }
24 |
25 |   </style>
26 | </head>
27 | <body>
28 |   <div id="main">
29 |   </div>
30 |   <script src="/js/HandLock.js"></script>
31 |   <script>
32 |     var locker = new HandLock.Locker({
33 |       container: document.querySelector('#main'),
34 |       update:{
35 |         beforeRepeat: function(res){
36 |           if(res.err){
37 |             console.error(res.err);
38 |           }else{
39 |             console.log('再一次输入');
40 |           }
41 |         },
42 |         afterRepeat: function(res){
43 |           if(res.err){
44 |             console.error(res.err);
45 |           }else{
46 |             console.log(res.records);
47 |           }
48 |         }
49 |       }
50 |     });
51 |
52 |     locker.update();
53 |   </script>
54 | </body>
55 | </html>


--------------------------------------------------------------------------------
/example/locker.html:
--------------------------------------------------------------------------------
  1 | <!DOCTYPE html>
  2 | <html lang="en">
  3 | <head>
  4 |   <meta charset="UTF-8">
  5 |   <meta name="viewport" content="width=device-width,initial-scale=1">
  6 |   <title>Demo</title>
  7 |   <style type="text/css">
  8 |     * {
  9 |       padding: 0;
 10 |       margin: 0;
 11 |     }
 12 |     html, body {
 13 |       width: 100%;
 14 |       height: 100%;
 15 |       overflow: hidden;
 16 |     }
 17 |
 18 |     #main {
 19 |       text-align: center;
 20 |       position: relative;
 21 |       width: 100%;
 22 |       height: 100%;
 23 |       overflow: hidden;
 24 |     }
 25 |
 26 |     #main h2{
 27 |       margin-top: 60px;
 28 |       color: #666;
 29 |     }
 30 |
 31 |     #handlock {
 32 |       position: relative;
 33 |       width: 100%;
 34 |       padding-bottom: 100%;
 35 |       height: 0;
 36 |     }
 37 |
 38 |     #hint {
 39 |       color: #e00;
 40 |       font-size: 0.8em;
 41 |     }
 42 |
 43 |     #toast {
 44 |       position: absolute;
 45 |       color: #fff;
 46 |       background-color: #000;
 47 |       border-radius: 5px;
 48 |       z-index: 99999;
 49 |       padding: 6px 16px;
 50 |       font-size: 0.8em;
 51 |       top: 50%;
 52 |       left: 50%;
 53 |       transform: translate(-50%, -50%);
 54 |     }
 55 |
 56 |     #toast.show {
 57 |       opacity: 1;
 58 |       visibility: visible;
 59 |     }
 60 |
 61 |     #toast.hide {
 62 |       opacity: 0;
 63 |       transition: all 1s;
 64 |       visibility: hidden;
 65 |     }
 66 |
 67 |     #main label {
 68 |       margin-right: 6px;
 69 |     }
 70 |   </style>
 71 | </head>
 72 | <body>
 73 |   <div id="main">
 74 |     <h2>手势解锁</h2>
 75 |     <div id="hint" class="hint">验证密码，请绘制密码图案</div>
 76 |     <div id="handlock"></div>
 77 |     <div id="toast" class="hide">请连接至少4个点</div>
 78 |     <div id="selectMode">
 79 |       <label><input id="checkmode" name="mode" type="radio" value="check" checked="checked"/>验证密码</label>
 80 |       <label><input name="mode" type="radio" value="update"/>设置密码</label>
 81 |     </div>
 82 |   </div>
 83 |   <script src="/js/HandLock.js"></script>
 84 |   <script>
 85 |     var password = localStorage.getItem('handlock_passwd') || '11121323';
 86 |
 87 |     var locker = new HandLock.Locker({
 88 |       container: document.querySelector('#handlock'),
 89 |       check: {
 90 |         checked: function(res){
 91 |           locker.clearPath();
 92 |           if(res.err){
 93 |             if(res.err.message === HandLock.Locker.ERR_PASSWORD_MISMATCH){
 94 |               hint.innerHTML = '密码错误，请重新绘制！';
 95 |             }else{
 96 |               toast.className = 'show';
 97 |               setTimeout(function(){
 98 |                 toast.className = 'hide';
 99 |               }, 1000);
100 |             }
101 |           }else{
102 |             hint.innerHTML = '密码正确！';
103 |           }
104 |         },
105 |       },
106 |       update:{
107 |         beforeRepeat: function(res){
108 |           locker.clearPath();
109 |           if(res.err){
110 |             toast.className = 'show';
111 |             setTimeout(function(){
112 |               toast.className = 'hide';
113 |             }, 1000);
114 |           }else{
115 |             hint.innerHTML = '请再次绘制相同图案';
116 |           }
117 |         },
118 |         afterRepeat: function(res){
119 |           locker.clearPath();
120 |           if(res.err){
121 |             if(res.err.message === HandLock.Locker.ERR_PASSWORD_MISMATCH){
122 |               hint.innerHTML = '两次绘制的图形不一致，请重新绘制！';
123 |             }else{
124 |               toast.className = 'show';
125 |               setTimeout(function(){
126 |                 toast.className = 'hide';
127 |               }, 1000);
128 |             }
129 |           }else{
130 |             hint.innerHTML = '密码更新成功！';
131 |             password = res.records;
132 |             localStorage.setItem('handlock_passwd', password);
133 |             checkmode.click();
134 |           }
135 |         },
136 |       }
137 |     });
138 |
139 |     selectMode.addEventListener('change', function(e){
140 |       var value = e.target.value;
141 |       if(value === 'update'){
142 |         locker.clearPath();
143 |         hint.innerHTML = '设置密码，请绘制密码图案';
144 |         locker.update();
145 |       }else if(value === 'check'){
146 |         locker.clearPath();
147 |         hint.innerHTML = '验证密码，请绘制密码图案';
148 |         locker.check(password);
149 |       }
150 |     });
151 |
152 |     var p = locker.check(password);
153 |   </script>
154 | </body>
155 | </html>


--------------------------------------------------------------------------------
/example/recorder.html:
--------------------------------------------------------------------------------
 1 | <!DOCTYPE html>
 2 | <html lang="en">
 3 | <head>
 4 |   <meta charset="UTF-8">
 5 |   <meta name="viewport" content="width=device-width,initial-scale=1">
 6 |   <title>Demo</title>
 7 |   <style type="text/css">
 8 |     * {
 9 |       padding: 0;
10 |       margin: 0;
11 |     }
12 |     html, body {
13 |       width: 100%;
14 |       height: 100%;
15 |       overflow: hidden;
16 |     }
17 |
18 |     #main{
19 |       position: relative;
20 |       width: 100%;
21 |       height: 100%;
22 |       overflow: hidden;
23 |     }
24 |
25 |     .control {
26 |       position: absolute;
27 |       top: 10px;
28 |       left: 10px;
29 |     }
30 |
31 |   </style>
32 | </head>
33 | <body>
34 |   <div id="main"></div>
35 |   <div class="control">
36 |     <button id="cancelBtn">cancel</button>
37 |     <button id="recordBtn">record</button>
38 |   </div>
39 |   <script src="/js/HandLock.js"></script>
40 |   <script>
41 |     var recorder = new HandLock.Recorder({
42 |       container: document.querySelector('#main')
43 |     });
44 |
45 |     function recorded(res){
46 |       if(res.err){
47 |         console.error(res.err);
48 |         recorder.clearPath();
49 |         if(res.err.message !== HandLock.Recorder.ERR_USER_CANCELED){
50 |           recorder.record().then(recorded);
51 |         }
52 |       }else{
53 |         console.log(res.records);
54 |         recorder.record().then(recorded);
55 |       }
56 |     }
57 |
58 |     recorder.record().then(recorded);
59 |
60 |     cancelBtn.onclick = function(){
61 |       recorder.cancel();
62 |       recorder.clearPath();
63 |     }
64 |
65 |     recordBtn.onclick = function(){
66 |       console.log('record enabled');
67 |       recorder.record().then(recorded);
68 |     }
69 |   </script>
70 | </body>
71 | </html>


--------------------------------------------------------------------------------
/lib/app.js:
--------------------------------------------------------------------------------
1 | import Recorder from './recorder.js';
2 | import Locker from './locker.js';
3 |
4 | export {
5 |   /** add your code here **/
6 |   Recorder,
7 |   Locker,
8 | }
9 |


--------------------------------------------------------------------------------
/lib/locker.js:
--------------------------------------------------------------------------------
 1 | import Recorder from './recorder.js';
 2 |
 3 | const defaultOptions = {
 4 |   update: {
 5 |     beforeRepeat: function(){},
 6 |     afterRepeat: function(){}
 7 |   },
 8 |   check: {
 9 |     checked: function(){}
10 |   }
11 | }
12 |
13 | export default class Locker extends Recorder{
14 |   static get ERR_PASSWORD_MISMATCH(){
15 |     return 'password mismatch!';
16 |   }
17 |   static get MODE_UPDATE(){
18 |     return 'update';
19 |   }
20 |   static get MODE_CHECK(){
21 |     return 'check';
22 |   }
23 |   constructor(options = {}) {
24 |     options.update = Object.assign({}, defaultOptions.update, options.update);
25 |     options.check = Object.assign({}, defaultOptions.check, options.check);
26 |     super(options);
27 |   }
28 |   async update(){
29 |     if(this.mode !== Locker.MODE_UPDATE){
30 |       await this.cancel();
31 |       this.mode = Locker.MODE_UPDATE;
32 |     }
33 |
34 |     let beforeRepeat = this.options.update.beforeRepeat,
35 |         afterRepeat = this.options.update.afterRepeat;
36 |
37 |     let first = await this.record();
38 |
39 |     if(first.err && first.err.message === Locker.ERR_USER_CANCELED){
40 |       return Promise.resolve(first);
41 |     }
42 |
43 |     if(first.err){
44 |       this.update();
45 |       beforeRepeat.call(this, first);
46 |       return Promise.resolve(first);
47 |     }
48 |
49 |     beforeRepeat.call(this, first);
50 |
51 |     let second = await this.record();
52 |
53 |     if(second.err && second.err.message === Locker.ERR_USER_CANCELED){
54 |       return Promise.resolve(second);
55 |     }
56 |
57 |     if(!second.err && first.records !== second.records){
58 |       second.err = new Error(Locker.ERR_PASSWORD_MISMATCH);
59 |     }
60 |
61 |     this.update();
62 |     afterRepeat.call(this, second);
63 |     return Promise.resolve(second);
64 |   }
65 |   async check(password){
66 |     if(this.mode !== Locker.MODE_CHECK){
67 |       await this.cancel();
68 |       this.mode = Locker.MODE_CHECK;
69 |     }
70 |
71 |     let checked = this.options.check.checked;
72 |
73 |     let res = await this.record();
74 |
75 |     if(res.err && res.err.message === Locker.ERR_USER_CANCELED){
76 |       return Promise.resolve(res);
77 |     }
78 |
79 |     if(!res.err && password !== res.records){
80 |       res.err = new Error(Locker.ERR_PASSWORD_MISMATCH)
81 |     }
82 |
83 |     checked.call(this, res);
84 |     this.check(password);
85 |     return Promise.resolve(res);
86 |   }
87 | }
88 |


--------------------------------------------------------------------------------
/lib/recorder.js:
--------------------------------------------------------------------------------
  1 | function getCanvasPoint(canvas, x, y){
  2 |   let rect = canvas.getBoundingClientRect();
  3 |   return {
  4 |     x: 2 * (x - rect.left), //canvas 显示大小缩放为实际大小的 50%。为了让图形在 Retina 屏上清晰
  5 |     y: 2 * (y - rect.top),
  6 |   };
  7 | }
  8 |
  9 | function distance(p1, p2){
 10 |   let x = p2.x - p1.x, y = p2.y - p1.y;
 11 |   return Math.sqrt(x * x + y * y);
 12 | }
 13 |
 14 | //画实心圆
 15 | function drawSolidCircle(ctx, color, x, y, r){
 16 |   ctx.fillStyle = color;
 17 |   ctx.beginPath();
 18 |   ctx.arc(x, y, r, 0, Math.PI * 2, true);
 19 |   ctx.closePath();
 20 |   ctx.fill();
 21 | }
 22 |
 23 | //画空心圆
 24 | function drawHollowCircle(ctx, color, x, y, r){
 25 |   ctx.strokeStyle = color;
 26 |   ctx.beginPath();
 27 |   ctx.arc(x, y, r, 0, Math.PI * 2, true);
 28 |   ctx.closePath();
 29 |   ctx.stroke();
 30 | }
 31 |
 32 | //画线段
 33 | function drawLine(ctx, color, x1, y1, x2, y2){
 34 |   ctx.strokeStyle = color;
 35 |   ctx.beginPath();
 36 |   ctx.moveTo(x1, y1);
 37 |   ctx.lineTo(x2, y2);
 38 |   ctx.stroke();
 39 |   ctx.closePath();
 40 | }
 41 |
 42 | const defaultOptions = {
 43 |   container: null, //创建canvas的容器，如果不填，自动在 body 上创建覆盖全屏的层
 44 |   focusColor: '#e06555',  //当前选中的圆的颜色
 45 |   fgColor: '#d6dae5',     //未选中的圆的颜色
 46 |   bgColor: '#fff',        //canvas背景颜色
 47 |   n: 3, //圆点的数量： n x n
 48 |   innerRadius: 20,  //圆点的内半径
 49 |   outerRadius: 50,  //圆点的外半径，focus 的时候显示
 50 |   touchRadius: 70,  //判定touch事件的圆半径
 51 |   render: true,     //自动渲染
 52 |   customStyle: false, //自定义样式
 53 |   minPoints: 4,     //最小允许的点数
 54 | };
 55 |
 56 | export default class Recorder{
 57 |   static get ERR_NOT_ENOUGH_POINTS(){
 58 |     return 'not enough points';
 59 |   }
 60 |   static get ERR_USER_CANCELED(){
 61 |     return 'user canceled';
 62 |   }
 63 |   static get ERR_NO_TASK(){
 64 |     return 'no task';
 65 |   }
 66 |   constructor(options){
 67 |     options = Object.assign({}, defaultOptions, options);
 68 |
 69 |     this.options = options;
 70 |     this.path = [];
 71 |
 72 |     if(options.render){
 73 |       this.render();
 74 |     }
 75 |   }
 76 |   render(){
 77 |     if(this.circleCanvas) return false;
 78 |
 79 |     let options = this.options;
 80 |     let container = options.container || document.createElement('div');
 81 |
 82 |     if(!options.container && !options.customStyle){
 83 |       Object.assign(container.style, {
 84 |         position: 'absolute',
 85 |         top: 0,
 86 |         left: 0,
 87 |         width: '100%',
 88 |         height: '100%',
 89 |         lineHeight: '100%',
 90 |         overflow: 'hidden',
 91 |         backgroundColor: options.bgColor
 92 |       });
 93 |       document.body.appendChild(container);
 94 |     }
 95 |     this.container = container;
 96 |
 97 |     let {width, height} = container.getBoundingClientRect();
 98 |
 99 |     //画圆的 canvas，也是最外层监听事件的 canvas
100 |     let circleCanvas = document.createElement('canvas');
101 |
102 |     //2 倍大小，为了支持 retina 屏
103 |     circleCanvas.width = circleCanvas.height = 2 * Math.min(width, height);
104 |     if(!options.customStyle){
105 |       Object.assign(circleCanvas.style, {
106 |         position: 'absolute',
107 |         top: '50%',
108 |         left: '50%',
109 |         transform: 'translate(-50%, -50%) scale(0.5)',
110 |       });
111 |     }
112 |
113 |     //画固定线条的 canvas
114 |     let lineCanvas = circleCanvas.cloneNode(true);
115 |
116 |     //画不固定线条的 canvas
117 |     let moveCanvas = circleCanvas.cloneNode(true);
118 |
119 |     container.appendChild(lineCanvas);
120 |     container.appendChild(moveCanvas);
121 |     container.appendChild(circleCanvas);
122 |
123 |     this.lineCanvas = lineCanvas;
124 |     this.moveCanvas = moveCanvas;
125 |     this.circleCanvas = circleCanvas;
126 |
127 |     this.container.addEventListener('touchmove',
128 |       evt => evt.preventDefault(), {passive: false});
129 |
130 |     this.clearPath();
131 |     return true;
132 |   }
133 |   clearPath(){
134 |     if(!this.circleCanvas) this.render();
135 |
136 |     let {circleCanvas, lineCanvas, moveCanvas} = this,
137 |         circleCtx = circleCanvas.getContext('2d'),
138 |         lineCtx = lineCanvas.getContext('2d'),
139 |         moveCtx = moveCanvas.getContext('2d'),
140 |         width = circleCanvas.width,
141 |         {n, fgColor, innerRadius} = this.options;
142 |
143 |     circleCtx.clearRect(0, 0, width, width);
144 |     lineCtx.clearRect(0, 0, width, width);
145 |     moveCtx.clearRect(0, 0, width, width);
146 |
147 |     let range = Math.round(width / (n + 1));
148 |
149 |     let circles = [];
150 |
151 |     //drawCircleCenters
152 |     for(let i = 1; i <= n; i++){
153 |       for(let j = 1; j <= n; j++){
154 |         let y = range * i, x = range * j;
155 |         drawSolidCircle(circleCtx, fgColor, x, y, innerRadius);
156 |         let circlePoint = {x, y};
157 |         circlePoint.pos = [i, j];
158 |         circles.push(circlePoint);
159 |       }
160 |     }
161 |
162 |     this.circles = circles;
163 |   }
164 |   async cancel(){
165 |     if(this.recordingTask){
166 |       return this.recordingTask.cancel();
167 |     }
168 |     return Promise.resolve({err: new Error(Recorder.ERR_NO_TASK)});
169 |   }
170 |   async record(){
171 |     if(this.recordingTask) return this.recordingTask.promise;
172 |
173 |     let {circleCanvas, lineCanvas, moveCanvas, options} = this,
174 |         circleCtx = circleCanvas.getContext('2d'),
175 |         lineCtx = lineCanvas.getContext('2d'),
176 |         moveCtx = moveCanvas.getContext('2d');
177 |
178 |     circleCanvas.addEventListener('touchstart', ()=>{
179 |       this.clearPath();
180 |     });
181 |
182 |     let records = [];
183 |
184 |     let handler = evt => {
185 |       let {clientX, clientY} = evt.changedTouches[0],
186 |           {bgColor, focusColor, innerRadius, outerRadius, touchRadius} = options,
187 |           touchPoint = getCanvasPoint(moveCanvas, clientX, clientY);
188 |
189 |       for(let i = 0; i < this.circles.length; i++){
190 |         let point = this.circles[i],
191 |             x0 = point.x,
192 |             y0 = point.y;
193 |
194 |         if(distance(point, touchPoint) < touchRadius){
195 |           drawSolidCircle(circleCtx, bgColor, x0, y0, outerRadius);
196 |           drawSolidCircle(circleCtx, focusColor, x0, y0, innerRadius);
197 |           drawHollowCircle(circleCtx, focusColor, x0, y0, outerRadius);
198 |
199 |           if(records.length){
200 |             let p2 = records[records.length - 1],
201 |                 x1 = p2.x,
202 |                 y1 = p2.y;
203 |
204 |             drawLine(lineCtx, focusColor, x0, y0, x1, y1);
205 |           }
206 |
207 |           let circle = this.circles.splice(i, 1);
208 |           records.push(circle[0]);
209 |           break;
210 |         }
211 |       }
212 |
213 |       if(records.length){
214 |         let point = records[records.length - 1],
215 |             x0 = point.x,
216 |             y0 = point.y,
217 |             x1 = touchPoint.x,
218 |             y1 = touchPoint.y;
219 |
220 |         moveCtx.clearRect(0, 0, moveCanvas.width, moveCanvas.height);
221 |         drawLine(moveCtx, focusColor, x0, y0, x1, y1);
222 |       }
223 |     };
224 |
225 |
226 |     circleCanvas.addEventListener('touchstart', handler);
227 |     circleCanvas.addEventListener('touchmove', handler);
228 |
229 |     let recordingTask = {};
230 |     let promise = new Promise((resolve, reject) => {
231 |       recordingTask.cancel = (res = {}) => {
232 |         let promise = this.recordingTask.promise;
233 |
234 |         res.err = res.err || new Error(Recorder.ERR_USER_CANCELED);
235 |         circleCanvas.removeEventListener('touchstart', handler);
236 |         circleCanvas.removeEventListener('touchmove', handler);
237 |         document.removeEventListener('touchend', done);
238 |         resolve(res);
239 |         this.recordingTask = null;
240 |
241 |         return promise;
242 |       }
243 |
244 |       let done = evt => {
245 |         moveCtx.clearRect(0, 0, moveCanvas.width, moveCanvas.height);
246 |         if(!records.length) return;
247 |
248 |         circleCanvas.removeEventListener('touchstart', handler);
249 |         circleCanvas.removeEventListener('touchmove', handler);
250 |         document.removeEventListener('touchend', done);
251 |
252 |         let err = null;
253 |
254 |         if(records.length < options.minPoints){
255 |           err = new Error(Recorder.ERR_NOT_ENOUGH_POINTS);
256 |         }
257 |
258 |         //这里可以选择一些复杂的编码方式，本例子用最简单的直接把坐标转成字符串
259 |         let res = {err, records: records.map(o => o.pos.join('')).join('')};
260 |
261 |         resolve(res);
262 |         this.recordingTask = null;
263 |       };
264 |       document.addEventListener('touchend', done);
265 |     });
266 |
267 |     recordingTask.promise = promise;
268 |
269 |     this.recordingTask = recordingTask;
270 |
271 |     return promise;
272 |   }
273 | }
274 |


--------------------------------------------------------------------------------
/package.json:
--------------------------------------------------------------------------------
 1 | {
 2 |   "name": "hand-lock",
 3 |   "version": "0.2.1",
 4 |   "description": "",
 5 |   "main": "index.js",
 6 |   "directories": {
 7 |     "example": "example"
 8 |   },
 9 |   "scripts": {
10 |     "test": "echo \"Error: no test specified\" && exit 1",
11 |     "start": "webpack-dev-server --quiet & http-server example -c-1 -p 8081",
12 |     "deploy": "rm -rf dist/* && ./script/deploy.js"
13 |   },
14 |   "keywords": [],
15 |   "author": "",
16 |   "license": "MIT",
17 |   "devDependencies": {
18 |     "babel-core": "^6.24.0",
19 |     "babel-loader": "^6.4.1",
20 |     "babel-plugin-transform-runtime": "^6.23.0",
21 |     "babel-preset-env": "^1.3.2",
22 |     "http-server": "^0.9.0",
23 |     "webpack": "^2.3.3",
24 |     "webpack-dev-server": "^2.4.2"
25 |   }
26 | }
27 |


--------------------------------------------------------------------------------
/script/cdn-uploader.js:
--------------------------------------------------------------------------------
 1 |
 2 | module.exports = {
 3 |   upload: function(file){
 4 |     try{
 5 |       let qcdn = require('@q/qcdn');
 6 |       return qcdn.upload(file, {
 7 |         https: true,
 8 |         keepName: true
 9 |       });
10 |     }catch(ex){
11 |       return Promise.reject('no cdn uploader specified!');
12 |     }
13 |   }
14 | }
15 |


--------------------------------------------------------------------------------
/script/deploy.js:
--------------------------------------------------------------------------------
 1 | #!/usr/bin/env node
 2 |
 3 | const webpack = require('webpack');
 4 | const fs      = require('fs');
 5 | const path    = require('path');
 6 |
 7 | let webpackConf = require('../webpack.config.js');
 8 |
 9 | webpack(webpackConf({production: true}), function(err, stats){
10 |   let cdnUploader = require('./cdn-uploader'),
11 |       output = stats.compilation.compiler.options.output,
12 |       file = path.resolve(output.path, output.filename);
13 |
14 |   cdnUploader.upload(file).then(function(res){
15 |     let readmeFile = path.resolve(__dirname, '..', 'README.md');
16 |     let content = fs.readFileSync(readmeFile, 'utf-8');
17 |     content = content.replace(/script src="(.*)"/igm, `script src="${res[file]}"`);
18 |     fs.writeFileSync(readmeFile, content);
19 |   });
20 | });
21 |


--------------------------------------------------------------------------------
/webpack.config.js:
--------------------------------------------------------------------------------
 1 | module.exports = function(env = {}){
 2 |
 3 |   const webpack     = require('webpack'),
 4 |         path        = require('path'),
 5 |         fs          = require('fs'),
 6 |         packageConf = JSON.parse(fs.readFileSync('package.json', 'utf-8'));
 7 |
 8 |   let version   = packageConf.version,
 9 |       library   = packageConf.name.replace(/(?:^|-)(\w)/g, (_, m) => m.toUpperCase()),
10 |       proxyPort = 8081,
11 |       plugins   = [],
12 |       jsLoaders   = [];
13 |
14 |   if(env.production){
15 |     //compress js in production environment
16 |     plugins.push(
17 |       new webpack.optimize.UglifyJsPlugin({
18 |         compress: {
19 |           warnings: false,
20 |           drop_console: false,
21 |          }
22 |       })
23 |     );
24 |   }
25 |
26 |   if(fs.existsSync('./.babelrc')){
27 |     //use babel
28 |     let babelConf = JSON.parse(fs.readFileSync('.babelrc'));
29 |     jsLoaders.push({
30 |       loader: 'babel-loader',
31 |       options: babelConf
32 |     });
33 |   }
34 |
35 |   return {
36 |     entry: './lib/app.js',
37 |     output: {
38 |       filename: env.production ? `${library}-${version}.min.js` : `${library}.js`,
39 |       path: path.resolve(__dirname, 'dist'),
40 |       publicPath: '/js/',
41 |       library: `${library}`,
42 |       libraryTarget: 'umd'
43 |     },
44 |
45 |     plugins: plugins,
46 |
47 |     module: {
48 |       rules : [{
49 |         test: /\.js$/,
50 |         exclude: /(node_modules|bower_components)/,
51 |         use: jsLoaders
52 |       }]
53 |     },
54 |
55 |     devServer: {
56 |       proxy: {
57 |         "*": `http://127.0.0.1:${proxyPort}`,
58 |       }
59 |     }
60 |   };
61 | }
62 |


--------------------------------------------------------------------------------
