├── .gitignore
├── LICENSE
├── README.md
├── app
    ├── .gitignore
    ├── README.md
    ├── app.py
    ├── camera.py
    ├── config.json
    ├── growlab.service
    ├── index.jinja
    ├── requirements.txt
    ├── sample.sh
    ├── sensor-i2c.png
    ├── sensors.py
    ├── specimen.py
    └── sync-code.sh
└── data-logger
    ├── .gitignore
    ├── README.md
    ├── dashboard.json
    ├── sender
        ├── main.py
        ├── requirements.txt
        └── sensors.py
    ├── stack.yml
    └── submit-sample
        ├── __init__.py
        ├── handler.py
        └── requirements.txt


/.gitignore:
--------------------------------------------------------------------------------
1 | *.pyc
2 | .venv


--------------------------------------------------------------------------------
/LICENSE:
--------------------------------------------------------------------------------
 1 | MIT License
 2 |
 3 | Copyright (c) 2021 Alex Ellis
 4 |
 5 | Permission is hereby granted, free of charge, to any person obtaining a copy
 6 | of this software and associated documentation files (the "Software"), to deal
 7 | in the Software without restriction, including without limitation the rights
 8 | to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 9 | copies of the Software, and to permit persons to whom the Software is
10 | furnished to do so, subject to the following conditions:
11 |
12 | The above copyright notice and this permission notice shall be included in all
13 | copies or substantial portions of the Software.
14 |
15 | THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
16 | IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
17 | FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
18 | AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
19 | LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
20 | OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
21 | SOFTWARE.
22 |


--------------------------------------------------------------------------------
/README.md:
--------------------------------------------------------------------------------
  1 | <img src="https://growlab.dev/images/logo-green.svg" alt="Official logo" width="40%">
  2 |
  3 | ## News!
  4 |
  5 | If you particpated in Growlab 2021, you can [register for our prize draw here](https://forms.gle/ekZuGnuWDfwpaEGd6)
  6 |
  7 | ## A global contest to grow seeds and share your progress with the Raspberry Pi
  8 |
  9 | My early growlab
 10 |
 11 | ![My green beans](https://pbs.twimg.com/media/Ey1ugNwWgAIyUiJ?format=jpg&name=small)
 12 | > A capture from phototimer of my seed tray with a wide-angle camera positioned above
 13 |

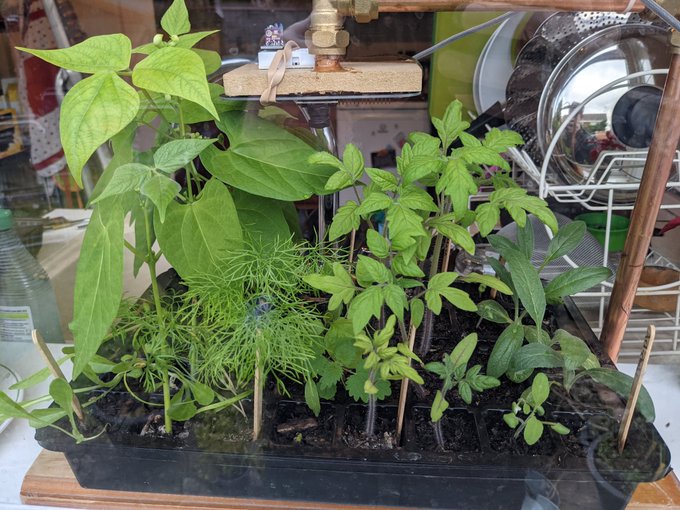

 14 | ![My rig](https://pbs.twimg.com/media/E077X9mXEAY13LZ?format=jpg&name=small)
 15 | > My own growlab laboratory
 16 |
 17 | ![Graduated seedlings](https://pbs.twimg.com/media/E1hw8EZX0AABJNG?format=jpg&name=small)
 18 | > Graduated seedlings
 19 |
 20 | ## Videos
 21 |
 22 | * [Overview - Growing your own with the Raspberry Pi with Alex Ellis at GIFEE Day](https://www.youtube.com/watch?v=GE7kyi6kFJY)
 23 | * [Live stream "Grow your own food with Raspberry Pi" - Alex Ellis & Richard Gee](https://www.youtube.com/watch?v=Ta_LBKpI5-0)
 24 |
 25 | ## How it works
 26 |
 27 | 1) Read the launch blog post: [Join the Grow Lab Challenge](https://blog.alexellis.io/the-grow-lab-challenge/).
 28 | 3) Decide you're taking part by sending a PR and adding yourself to the "growlab Technicians" section below.
 29 | 2) Find or buy the required components for the experiments you want to take part in (read all of this file to learn more)
 30 | 4) Build your own `#growlab` using one of the designs, or customise it. And start growing and recording a timelapse.
 31 | 5) Use the [#growlab hashtag](https://twitter.com/search?q=%23growlab&src=typed_query) and share as many pictures as you like.
 32 | 6) Send a Pull Request and link to each Tweet to unlock each level.
 33 | 7) At the conclusion of the growing period, we'll send some prizes from OpenFaaS Ltd and Pimoroni to entries at random for different tiers.
 34 |
 35 | > Note: Growlab 2021 concludes Sunday 3rd October to mark Harvest Festival in the United Kingdom.
 36 |
 37 | Prizes to be provided by: [OpenFaaS Ltd](https://openfaas.com) and [Pimoroni](https://www.pimoroni.com). Want to sponsor or provide prizes? Send an email to [alex@openfaas.com](mailto:alex@openfaas.com)
 38 |
 39 | ### Unlock each level
 40 |
 41 | Before you get started with your build, send a PR to list yourself as a "lab technician".
 42 |
 43 | Bronze - assemble your `#growlab` using one of the recommend designs or customise it. Tweet a photo of your build fully assembled.
 44 |
 45 | Silver - install the software and capture your first photo of your seed tray or pots. Tweet the photo.
 46 |
 47 | Gold - Wait until at least one of your seeds has germinated and grown into a seedling - around 2-3cm in height. Tweet the photo taken by the timelapse software.
 48 |
 49 | Platinum - use the [phototimer](https://github.com/alexellis/phototimer) or seeds2 software to capture images over 14 days. Compile the images into a timelapse and upload it to YouTube. We recommend one photo every 10 minutes. Feel free to exclude any photos prior to the seeds germinating. Tweet a link to the video.
 50 |
 51 | ## Growlab Technicians
 52 |
 53 | Technicians work in laboratories, and you are no different, so if you've bought your kit, or have decided to join, then add your details below so that we can encourage each other and see how many people are participating. If you don't have a Twitter or GitHub handle just put N/a.
 54 |
 55 | | # | Name                | Twitter         | GitHub        | Live preview URL | Country |
 56 | |---|---------------------|-----------------|---------------|------------------|----------|
 57 | | 1 | Alex Ellis | [@alexellisuk](https://twitter.com/alexellisuk) | [alexellis](https://github.com/alexellis)  | [Live preview with the growlab app](http://growlab.alexellis.io/) | United Kingdom |
 58 | | 2 | Simon Emms | [@MrSimonEmms](https://twitter.com/MrSimonEmms)  | [MrSimonEmms](https://github.com/MrSimonEmms)  | [Images captured by phototimer](https://growlab.simonemms.com) | United Kingdom |
 59 | | 3 | Richard Gee | [@rgee0](https://twitter.com/rgee0) | [rgee0](https://github.com/rgee0)  | [Most recently captured image](https://growlab.technologee.co.uk/) | United Kingdom |
 60 | | 4 | Jakob Waibel | [@jakobwaibel](https://twitter.com/jakobwaibel) | [JakWai01](https://github.com/JakWai01) | [Live preview with the growlab app](https://jakwai01.github.io/growlab/) | Germany |
 61 | | 5 | Florian Clanet | [@FlolightC](https://twitter.com/FlolightC)  | [Flolight](https://github.com/Flolight) | |
 62 | | 6 | Felix Pojtinger | [@pojntfx](https://twitter.com/pojntfx) | [pojntfx](https://github.com/pojntfx) | |
 63 | | 7 | Sam Perrin | [@sam_perrin](https://twitter.com/sam_perrin) | [sam-perrin](https://github.com/sam-perrin) | | United Kingdom |
 64 | | 8 | Philippe Charrière | [@k33g_org](https://twitter.com/k33g_org) | [k33g](https://github.com/k33g) | |
 65 | | 9 | John McCabe | [@mccabejohn](https://twitter.com/mccabejohn) | [johnmccabe](https://github.com/johnmccabe) | | United Kingdom |
 66 | | 10 | Adam Craggs | [@abigpancake](https://twitter.com/abigpancake) | [agcraggs](https://github.com/agcraggs) | | United Kingdom |
 67 | | 11 | Martin Woodward | [@martinwoodward](https://twitter.com/martinwoodward) | [martinwoodward](https://github.com/martinwoodward) | [Live preview](https://bfaulty.z16.web.core.windows.net/) | United Kingdom |
 68 | | 12 | Jérôme Velociter | [@jvelo](https://twitter.com/jvelo) | [jvelo](https://github.com/jvelo) |  | France |
 69 | | 13 | Philippe Ensarguet | [@p_ensarguet](https://twitter.com/P_Ensarguet) | [pensarguet](https://github.com/pensarguet) | [Live preview](https://pensarguet.github.io/growlab-livepreview/) | France |
 70 | | 14 | Sander Vanhove | [@SanderWaylay](https://twitter.com/SanderWaylay) | [SanderVanhove](https://github.com/SanderVanhove) | [Live preview](https://www.sandervanhove.com/plant-monitor) |
 71 | | 15 | Sergei Vasilev | [@nblpblc](https://twitter.com/nblpblc) | [sergevas](https://github.com/sergevas) | [Live preview](https://growlab.sergevas.dev) |
 72 | | 16 | Iheb | [@iboonox](https://twitter.com/iboonox) | [iboonox](https://github.com/iboonox) | [Live preview](https://iheb.io) | France |
 73 | | 17 | Allan Pead | [@adpead](https://twitter.com/adpead) | [apead](https://github.com/apead) | |
 74 | | 18 | Keith Hubner | [@keithhubner](https://twitter.com/keithhubner) | [keithhubner](https://github.com/keithhubner) | [Live preview](https://growlab.hubner.co.uk/) |
 75 | | 19 | Antoine Mouchere | [@mouchere_a](https://twitter.com/mouchere_a) | [amouchere](https://github.com/amouchere/growlab-project#readme) | [Live preview](https://amouchere.github.io/growlab-preview/) |
 76 | | 20 | Kyle Brennan | [@kylos101](https://twitter.com/kylos101/) | [kylos101](https://github.com/kylos101)| [Live Preview](https://kylos101.github.io/growlab/docs/) |
 77 | | 21 | Ben Hughes | [@bwghghs](https://twitter.com/bwghghs) | [bwghughes](https://github.com/bwghughes)| [Live Preview](https://bwghughes.github.io/growlab/app/docs/) |
 78 | | 22 | Carlos Panato | [@comedordexis](https://twitter.com/comedordexis) | [cpanato](https://github.com/cpanato)| [Live Preview](https://cpanato.dev/growlab-live/) | Germany |
 79 | | 23 | Plant Holmes | [@plantholmes](https://twitter.com/plantholmes) | [scrimples](https://github.com/scrimples)| | |
 80 | | 24 | Marian Horgan | [@always_marian](https://twitter.com/always_marian) | [Quarkiness](https://github.com/Quarkiness)| | Ireland |
 81 | | 25 | Felipe Cruz | [@felipecruz](https://twitter.com/felipecruz) | [felipecruz91](https://github.com/felipecruz91)| [Live preview with the growlab app](https://felipecruz91.github.io/growlab) | Spain |
 82 | | 26 | Iván Gómez | [@ivanusatuiter](https://twitter.com/ivanusatuiter) | [igomezal](https://github.com/igomezal)| [Live Preview](https://igomezal.github.io/growlab/) | Spain |
 83 | | 27 | Thibault Jochem | [@tryumk](https://twitter.com/tryumk) | [tryum](https://github.com/Tryum) | N/A (yet) | France |
 84 | | 28 | Peter Dongo | [@TheDaN997](https://twitter.com/TheDaN997) | [dpeter79](https://github.com/dpeter79)  | [Live preview with the growlab app](https://dpeter79.github.io/growlab/) | Hungary |
 85 | | 29 | Dalton Cole | [@LessTechnology](https://twitter.com/LessTechnology) | [dalton-cole](https://github.com/dalton-cole)  | [Live preview](https://raspberry.farm) | United States |
 86 | | 30 | Beril Kurt| [@berlonics](https://twitter.com/berlonics) | [berlonics](https://github.com/berlonics)  | | Germany |
 87 | | 31 | Cameron Bunce | | [cameronbunce](https://github.com/cameronbunce) | coming soon | United States |
 88 | ### Live preview URLs

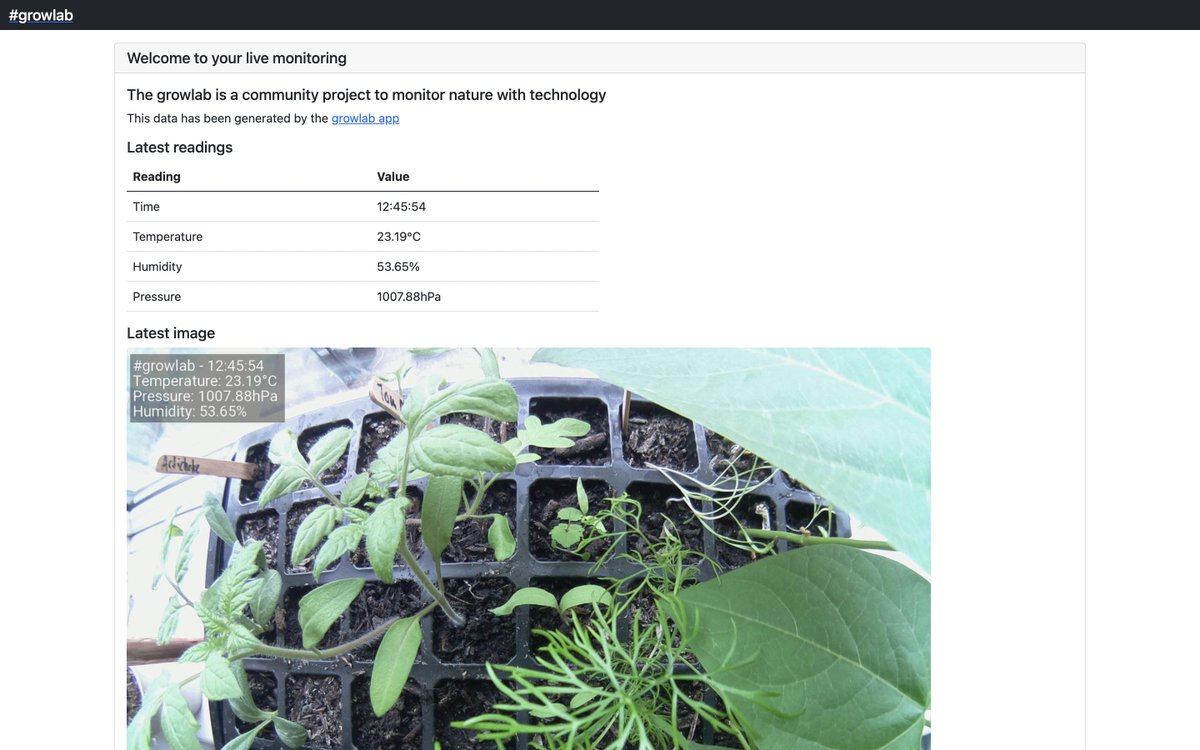

 89 |
 90 | A live preview URL keeps things interesting and lets the community get a view inside your lab.
 91 |
 92 | See the new [growlab app](/app) for your Raspberry Pi
 93 |
 94 | ## Contest entries `#growlab` 🥇🥈🥉
 95 |
 96 | | Name  | Bronze   | Silver   | Gold   | Platinum |
 97 | |-------|----------|----------|--------|----------|
 98 | | Alex Ellis        | [Bronze](https://twitter.com/alexellisuk/status/1380227185894690823)  |  [Silver](https://twitter.com/alexellisuk/status/1380227185894690823) | [Gold](https://twitter.com/alexellisuk/status1380417347861774337)  | [Platinum](https://www.youtube.com/watch?v=YiFUVAP0B18)  |
 99 | |  Simon Emms       | [Bronze](https://twitter.com/MrSimonEmms/status/1386361659187412996)  | [Silver](https://twitter.com/MrSimonEmms/status/1386361659187412996)  | [Gold](https://twitter.com/MrSimonEmms/status/1391832940225630212) | [Platinum](https://twitter.com/MrSimonEmms/status/1391832943170146313) |
100 | | Richard Gee       | [Bronze](https://twitter.com/rgee0/status/1383379807585521665)  | [Silver](https://twitter.com/rgee0/status/1383379805928759301)  | [Gold](https://twitter.com/rgee0/status/1384765411913355265)  | [Platinum](https://twitter.com/rgee0/status/1393890208446402561)  |
101 | | Jakob Waibel      | [Bronze](https://twitter.com/jakobwaibel/status/1386372010658443265) | [Silver](https://twitter.com/jakobwaibel/status/1386372010658443265) | [Gold](https://twitter.com/jakobwaibel/status/1388894057955479554) | [Platinum](https://www.youtube.com/watch?v=z8sY37OlFrw) |
102 | |  Florian Clanet   | [Bronze](https://twitter.com/FlolightC/status/1384587367785369602) | [Silver](https://twitter.com/FlolightC/status/1383802323164561418) |   | |
103 | |  Felix Pojtinger    |   |   |   |
104 | |   Sam Perrin        | [Bronze](https://twitter.com/sam_perrin/status/1391383693860687876) | [Silver](https://twitter.com/sam_perrin/status/1391383693860687876) | [Gold](https://twitter.com/sam_perrin/status/1393898134527414272) | |
105 | | Philippe Charrière  |   |   |   |
106 | |  John McCabe        | [Bronze](https://twitter.com/mccabejohn/status/1387001148419227648) | [Silver](https://twitter.com/mccabejohn/status/1396484258403950598) | | |
107 | | Adam Craggs         | [Bronze](https://twitter.com/ABigPancake/status/1387414840914894851) |  |  |  |
108 | | Martin Woodward     | [Bronze](https://twitter.com/martinwoodward/status/1388813602828730369) | [Silver](https://twitter.com/martinwoodward/status/1388887836196098049)| [Gold](https://twitter.com/martinwoodward/status/1392376722612445184) | |
109 | | Jérôme Velociter    | [Bronze](https://twitter.com/jvelo/status/1393892964305448961) | | | |
110 | |  Philippe Ensarguet | [Bronze](https://twitter.com/P_Ensarguet/status/1391382014557933569) |[Silver](https://twitter.com/P_Ensarguet/status/1395743166507139072) |[Gold](https://twitter.com/P_Ensarguet/status/1401155745157206018)  |[Platinum](https://twitter.com/P_Ensarguet/status/1401151522692534281) |
111 | |  Sander Vanhove     | [Bronze](https://twitter.com/SanderWaylay/status/1391665619616026624) | [Silver](https://twitter.com/SanderWaylay/status/1397853230315540482) | [Gold](https://twitter.com/SanderWaylay/status/1400716134094098433) | |
112 | |  Sergei Vasilev     | [Bronze](https://twitter.com/nblpblc/status/1398195911390633984) |[Silver](https://twitter.com/nblpblc/status/1398195911390633984) |[Gold](https://twitter.com/nblpblc/status/1398617422400208900)  |[Platinum](https://twitter.com/nblpblc/status/1404772425691111427) |
113 | |  Iheb            | [Bronze](https://twitter.com/iboonox/status/1393532825031397377) | [Silver](https://twitter.com/iboonox/status/1393532908166602753)| [Gold](https://twitter.com/iboonox/status/1395105689161412614) | [Platinium](https://youtu.be/M2rNWlyxRKA) |
114 | | Allan Pead          | [Bronze](https://twitter.com/adpead/status/1393984772381229059) | [Silver](https://twitter.com/adpead/status/1394906481515024385) | | |
115 | | Keith Hubner        | [Bronze](https://twitter.com/keithhubner/status/1393611768660963335) | [Silver](https://twitter.com/keithhubner/status/1394203963352887301) | [Gold](https://twitter.com/keithhubner/status/1394608874636914690) | |
116 | | Antoine Mouchere    | [Bronze](https://twitter.com/mouchere_a/status/1428079585757995015)  | [Silver](https://twitter.com/mouchere_a/status/1437878692882100233) | [Gold](https://twitter.com/mouchere_a/status/1437878700763230213)|[Platinium](https://www.youtube.com/watch?v=0tuGF8XQPz4) |
117 | | Kyle Brennan        | | | | |
118 | | Carlos Panato       | [Bronze](https://twitter.com/comedordexis/status/1398203436559130624) | [Silver](https://twitter.com/comedordexis/status/1398203436559130624) | | |
119 | | Felipe Cruz       | [Bronze](https://twitter.com/felipecruz/status/1401197347586068482) | [Silver](https://twitter.com/felipecruz/status/1401197973929873410) | | |
120 | | Marian Horgan       | [Bronze](https://twitter.com/always_marian/status/1402967317907226635) | [Silver](https://twitter.com/always_marian/status/1402967860171915269) | [Gold](https://twitter.com/always_marian/status/1405978590714413057) | |
121 | | Thibault Jochem | [Bronze](https://twitter.com/Tryumk/status/1414234033668730886) | | | |
122 | | Peter Dongo | [Bronze](https://twitter.com/TheDaN997/status/1415298756757573637) | [Silver](https://twitter.com/TheDaN997/status/1415299162623594499) | [Gold](https://twitter.com/TheDaN997/status/1422856683575988225)  | [Platinum](https://twitter.com/TheDaN997/status/1422857244706807810)  |
123 | | Iván Gómez | [Bronze](https://twitter.com/ivanusatuiter/status/1401564344656216069) | [Silver](https://twitter.com/ivanusatuiter/status/1416383863606157312) | [Gold](https://twitter.com/ivanusatuiter/status/1416405907752247299) | |

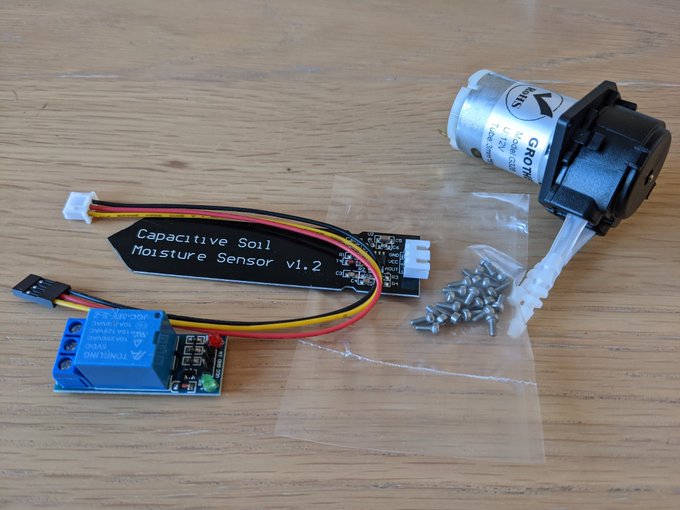

124 | | Dalton Cole | [Bronze](https://twitter.com/LessTechnology/status/1421238078241484801) | [Silver](https://twitter.com/LessTechnology/status/1421241626354192395) | | |
125 |
126 | ## Official growlab apps
127 |
128 | We have three experiments that you can take part in:
129 |
130 | 1) [phototimer - Record images for the timelapse contest](https://github.com/alexellis/phototimer)
131 |
132 |     You'll need a Raspberry Pi Zero or greater with a camera module. This is required for the contest.
133 |
134 | 2) [live preview app - Generate and upload a live-preview with sensor data growlab app](/app)
135 |
136 |     You'll need a Raspberry Pi Zero or greater with a camera module. If you have a BME280 sensor or BMP280 sensor, then you can add sensor data to the live preview image. This is optional for the contest, but recommended so that you can share with the community.
137 |
138 | 3) [data-logger - Capture environment data and plot on a Grafana dashboard](/data-logger)
139 |
140 |     You'll need an RPi 3 or 4 to run the time series database, and dashboard. Then you can attach a sensor to this unit directly, or have a number of other Raspberry Pi Zeros or greater with the BME280 sensor or BMP280 sensor.
141 |
142 |     The data-logger does not require you to grow any plants, you can even use it to monitor your home and garden temperatures during the year. This experiment is optional.
143 |
144 | ### Focusing your camera
145 |
146 | Some cameras like the HQ camera are variable focus, the cheaper lenses can also have their glue broken to enable them to close focus.
147 |
148 | Low latency with built-in web-browser:
149 |
150 | ["Raspberry Pi High Quality Camera setup for low-latency Video Conferencing"](http://www.davidhunt.ie/raspberry-pi-high-quality-camera-setup-for-low-latency-video-conferencing/)
151 |
152 | Quick and functional:
153 |
154 | ```bash
155 | # On your Raspberry Pi
156 | raspivid -t 0 -w 1280 -h 720 -fps 10 -o - | nc -lkv4 8080
157 |
158 | # On your computer, enter this URL into VLC under "Network Stream"
159 | # Replace with your Raspberry Pi's IP
160 | tcp/h264://192.168.0.53:8080
161 | ```
162 |
163 | ### Making your timelapse
164 |
165 | If you're using phototimer, then you can run the following with ffmpeg. It's advised that you copy the images to your PC before running the command since the Raspberry Pi Zero is rather slow at crunching videos.
166 |
167 | ```bash
168 | echo $(echo $(find ./Desktop/image/ | sort -V|grep jpg)) | xargs cat | ffmpeg  -framerate 10 -f image2pipe -vcodec mjpeg -i - -vcodec libx264 out.mp4
169 | ```
170 |
171 | iMovie is also relatively easy to use, by dragging the images into the timeline and changing the time between images to ~ 0.1s
172 |
173 | Here's a sample from 9th-22nd April you can watch on YouTube:
174 |
175 | [![](https://img.youtube.com/vi/YiFUVAP0B18/hqdefault.jpg)](https://www.youtube.com/watch?v=YiFUVAP0B18)
176 |
177 | [Click here](https://www.youtube.com/watch?v=YiFUVAP0B18) to watch my video timelapse
178 |
179 | ### Extra points and taking things further
180 |
181 | ![Self-watering system](https://pbs.twimg.com/media/EzZ1vDsXMAgNQKF?format=jpg&name=small)
182 | > A self-watering system
183 |
184 | * Overlay temperature and humidity data with a Bosch BME280 or BMP280 sensor
185 | * Add a self-watering system with a small pump and capacitive soil sensor
186 | * Try a garden RGB grow-light to give your seeds a little more help
187 | * Experiment with hydroponics
188 | * Install your lab in an outdoor greenhouse, shed or cold-frame
189 | * Use a light sensor / LDR or UV sensor measure available light
190 | * Try a suitable solar panel and battery capacity to run your experiment outdoors or in a room without a socket
191 |
192 | ## Community projects and add-ons
193 |
194 | * phototimer for capturing photos from the RPi camera for a timelapse: [alexellis/phototimer](https://github.com/alexellis/phototimer)
195 | * Richard Gee's seeds2 repo for tweeting and capturing images: [rgee0/seeds2](https://github.com/rgee0/seeds2)
196 | * Sam Perrin's seed-viewer for viewing the images captured with phototimer [sam-perrin/seed-viewer](https://github.com/sam-perrin/seed-viewer)
197 | * Sander Vanhove's plant-monitor using Waylay: [SanderVanhove/plant-monitor](https://github.com/SanderVanhove/plant-monitor)
198 | * Felipe Cruz's repo for displaying sensor readings in an OLED i2c screen: [felipecruz91/growlab-oled](https://github.com/felipecruz91/growlab-oled)
199 |


--------------------------------------------------------------------------------
/app/.gitignore:
--------------------------------------------------------------------------------
1 | /.ssh/*
2 | /roboto/*
3 | /html/*
4 | /image.jpg
5 | /preview.jpg
6 |
7 | /__pycache__/**
8 |


--------------------------------------------------------------------------------
/app/README.md:
--------------------------------------------------------------------------------
  1 | # `#growlab` app for Raspberry Pi
  2 |
  3 | Record a timelapse and live preview image with sensor data from a Bosch BME280 or BMP280 sensor
  4 |
  5 | * The BME280 costs slightly more and measures: temperature, humidity and air pressure.
  6 | * The BMP can only measure temperature and air pressure.
  7 |
  8 | ![](https://pbs.twimg.com/media/E0DwywWXoAET9dK?format=jpg&name=medium)
  9 | > Example HTML output which can be synced to GitHub Pages, an S3 bucket, or served directly from the RPi using [inlets](https://docs.inlets.dev/)
 10 |
 11 | See also: [app roadmap](https://github.com/alexellis/growlab/issues/15)
 12 |
 13 | ## Assembling the build
 14 |
 15 | * You'll need a Raspberry Pi Zero W or any other Raspberry Pi.
 16 | * An RPi camera connected - any version
 17 | * A Bosch BME280 or BMP280 sensor connected to GND, VCC SDL and SCL.
 18 |
 19 | ![How to connect the sensor over i2c](sensor-i2c.png)
 20 | > How to connect the sensor over i2c
 21 |
 22 | ### Configuring the RPi
 23 |
 24 | Using `raspi-config`
 25 |
 26 | * Set your hostname such as `growpi`
 27 | * Enable i2c under interfacing options
 28 | * Change the password for the `pi` user
 29 |
 30 | ### Getting started with the software
 31 |
 32 | Install git, tmux, Python and font pages
 33 |
 34 | ```bash
 35 | sudo apt update -qy && \
 36 |   sudo apt install -qy python3 \
 37 |   i2c-tools \
 38 |   python3-pip \
 39 |   git \
 40 |   tmux \
 41 |   libopenjp2-7 \
 42 |   libopenjp2-7-dev \
 43 |   libopenjp2-tools
 44 | ```
 45 |
 46 | > The `libopenjp2` package is for overlaying text on top of the images.
 47 |
 48 | Clone the repo:
 49 |
 50 | ```bash
 51 | git clone https://github.com/alexellis/growlab
 52 | cd growlab/app
 53 | ```
 54 |
 55 | Get the free Roboto font from Google's download page:
 56 |
 57 | ```bash
 58 | curl -sSL https://github.com/googlefonts/roboto/releases/download/v2.138/roboto-unhinted.zip -o roboto.zip \
 59 |   && unzip roboto.zip -d roboto \
 60 |   && rm roboto.zip
 61 | ```
 62 |
 63 | Install Python modules with `pip3`:
 64 |
 65 | ```bash
 66 | sudo pip3 install -r requirements.txt
 67 | ```
 68 |
 69 | Capture a test image to determine if you need a horizontal or vertical flip or not:
 70 |
 71 | ```bash
 72 | # On the RPi
 73 | raspistill -o growlab.jpg
 74 |
 75 | # From your PC:
 76 | scp pi@growlab.local:~/growlab.jpg Desktop/
 77 |
 78 | # On a Mac:
 79 | open Desktop/growlab.jpg
 80 |
 81 | # On a Linux desktop:
 82 | xdg-open Desktop/growlab.jpg
 83 | ```
 84 |
 85 | If needed, test again with `-vf` or `-hf` to flip the image.
 86 |
 87 | Edit the `config.json` file if needed and update the flip settings, and width and height to match the file that you got from your test `growlab.jpg` image.
 88 |
 89 | ```json
 90 | {
 91 |     "images": {
 92 |         "output_dir": "./images/",
 93 |         "encoding": "jpeg",
 94 |         "width": 2592,
 95 |         "height": 1944,
 96 |         "image_quality": 70,
 97 |         "preview_seconds": 1,
 98 |         "vertical_flip": false,
 99 |         "horizontal_flip": false,
100 |         "interval_seconds": 600
101 |     },
102 |     "text": {
103 |         "colour": {
104 |             "red": 255,
105 |             "green": 255,
106 |             "blue": 255
107 |         },
108 |         "size": 48
109 |     }
110 | }
111 | ```
112 |
113 | Capture a test photo and HTML page. You'll see the files generated in the `html` folder as `image.jpg` and `index.html`.
114 |
115 | ```bash
116 | python3 app.py
117 | ```
118 |
119 | If you have no sensors, then run:
120 |
121 | ```bash
122 | export SENSOR_TYPE=none
123 | python3 app.py
124 | ```
125 |
126 | If you have the BMP280, then run this instead:
127 |
128 | ```bash
129 | export SENSOR_TYPE=bmp280
130 | python3 app.py
131 | ```
132 |
133 | ### Serve a preview with GitHub pages
134 |
135 | Configure GitHub pages and / or a custom domain using the CNAME approach
136 |
137 | Set the folder for serving content to "docs"
138 |
139 | Generate an SSH key:
140 |
141 | ```bash
142 | cd growlab/app
143 | mkdir -p .ssh
144 |
145 | ssh-keygen -f `pwd`/.ssh/id_rsa
146 | ```
147 |
148 | Remove the HTTPS git remote and add a SSH one, changing "alexellis" to your own name.
149 |
150 | ```bash
151 | git remote rm origin
152 | git remote add origin git@github.com:alexellis/growlab.git
153 | ```
154 |
155 | Configure your git user/email:
156 |
157 | ```
158 | git config --global user.name 'YOUR_USERNAME'
159 | git config --global user.email 'YOUR_EMAIL'
160 | ```
161 |
162 | Go to the repo settings and add the deploy key and check *Allow write access*
163 |
164 | Now run the sample.sh bash script. Feel free to view its contents to see how it works
165 |
166 | ```bash
167 | mkdir -p docs
168 | cd growlab/app
169 |
170 | ./sample.sh
171 | ```
172 |
173 | You can also put this into a loop to run every 10 minutes:
174 |
175 | ```bash
176 | while [ true ] ; do ./sample.sh && echo "waiting 10 minutes" && sleep 600 ; done
177 | ```
178 |
179 | ### Install growlab as a service
180 |
181 | In the `growlab.service` file change the line where says `Environment="SENSOR_TYPE=none"` if you are using a sensor
182 | then change for the sensor you have, ie. if you have BMP280 change for `Environment="SENSOR_TYPE=bmp280"`
183 |
184 | Install the systemd service:
185 |
186 | ```bash
187 | chmod +x app.py
188 | sudo cp growlab.service /etc/systemd/system
189 | sudo systemctl enable growlab
190 | sudo systemctl start growlab
191 | ```
192 |


--------------------------------------------------------------------------------
/app/app.py:
--------------------------------------------------------------------------------
 1 | #!/bin/python3
 2 |
 3 | import json
 4 | import os, sys
 5 | from sensors import growbme280, growbmp280, grownosensor
 6 | from camera import camera
 7 | from specimen import specimen
 8 |
 9 | if __name__ == "__main__":
10 |     print("Starting growlab")
11 |
12 |     config = {}
13 |     try:
14 |         with open("./config.json") as f:
15 |             config = json.loads(f.read())
16 |     except Exception as e:
17 |         sys.stderr.write("Error: {}".format(e))
18 |         sys.exit(1)
19 |
20 |     print("Loaded config, saving images every {} seconds to {}".format( config["images"]["interval_seconds"], config["images"]["output_directory"]))
21 |
22 |     sensor = None
23 |     sensor_type = os.getenv("SENSOR_TYPE", "bme280")
24 |     if sensor_type == "bme280":
25 |         sensor = growbme280()
26 |     if sensor_type == "bmp280":
27 |         sensor = growbmp280()
28 |     elif sensor_type == "none":
29 |         sensor = grownosensor()
30 |
31 |     readings = sensor.get_readings()
32 |     print(readings)
33 |
34 |     cam = camera(config["images"])
35 |     frame = cam.get_frame()
36 |
37 |     pwd = os.getcwd()
38 |     output_path = pwd + "/html"
39 |
40 |     try:
41 |        os.mkdir(output_path)
42 |     except:
43 |        pass
44 |
45 |     spec = specimen(config["text"], config["images"])
46 |     spec.save_image("{}/image.jpg".format(pwd), frame, readings)
47 |
48 |     spec.save_html("{}/image.jpg".format(pwd), output_path, readings)
49 |


--------------------------------------------------------------------------------
/app/camera.py:
--------------------------------------------------------------------------------
 1 | import picamera
 2 | import io
 3 | import time
 4 |
 5 | class camera:
 6 |     def __init__(self, camera_opts):
 7 |         self.camera_opts = camera_opts
 8 |
 9 |     def get_frame(self):
10 |         stream = io.BytesIO()
11 |         with picamera.PiCamera() as camera:
12 |             camera.start_preview()
13 |             camera.vflip = self.camera_opts["vertical_flip"]
14 |             camera.hflip = self.camera_opts["horizontal_flip"]
15 |             camera.meter_mode = self.camera_opts["meter_mode"]
16 |             camera.exposure_mode = "auto"
17 |             camera.resolution = (self.camera_opts["width"], self.camera_opts["height"])
18 |             # Camera warm-up time
19 |             time.sleep(self.camera_opts["preview_seconds"])
20 |             camera.capture(stream, format=self.camera_opts["encoding"], quality=self.camera_opts["image_quality"])
21 |
22 |         return stream
23 |


--------------------------------------------------------------------------------
/app/config.json:
--------------------------------------------------------------------------------
 1 | {
 2 |     "images": {
 3 |         "output_directory": "./images/",
 4 |         "encoding": "jpeg",
 5 |         "width": 2592,
 6 |         "height": 1944,
 7 |         "image_quality": 70,
 8 |         "preview_seconds": 1,
 9 |         "vertical_flip": false,
10 |         "horizontal_flip": false,
11 |         "meter_mode": "matrix",
12 |         "interval_seconds": 600
13 |     },
14 |     "text": {
15 |         "colour": {
16 |             "red": 255,
17 |             "green": 255,
18 |             "blue": 255
19 |         },
20 |         "size": 48
21 |     }
22 | }
23 |


--------------------------------------------------------------------------------
/app/growlab.service:
--------------------------------------------------------------------------------
 1 | [Unit]
 2 | Description=Growlab
 3 | After=network.target
 4 |
 5 | [Service]
 6 | Type=simple
 7 | User=pi
 8 | Group=pi
 9 | Restart=always
10 |
11 | # Every 600 seconds (or 10 minutes)
12 | RestartSec=600
13 |
14 | StartLimitInterval=0
15 |
16 | # Sensor type: "none", "BME280" or "BMP280"
17 | Environment="SENSOR_TYPE=BME280"
18 | WorkingDirectory=/home/pi/growlab/app
19 | ExecStart=/home/pi/growlab/app/sample.sh
20 |
21 | [Install]
22 | WantedBy=multi-user.target
23 |


--------------------------------------------------------------------------------
/app/index.jinja:
--------------------------------------------------------------------------------
 1 | <!doctype html>
 2 | <html lang="en">
 3 |   <head>
 4 |     <meta charset="utf-8">
 5 |     <meta name="viewport" content="width=device-width, initial-scale=1">
 6 |
 7 |     <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.0.0-beta3/dist/css/bootstrap.min.css" rel="stylesheet" integrity="sha384-eOJMYsd53ii+scO/bJGFsiCZc+5NDVN2yr8+0RDqr0Ql0h+rP48ckxlpbzKgwra6" crossorigin="anonymous">
 8 |
 9 |     <style>
10 |     body {
11 |       background-color: rgb(16,185,129);
12 |     }
13 |     .upper {
14 |         text-transform: uppercase;
15 |     }
16 |     </style>
17 |     <title>{{'#'}}GrowLab live</title>
18 |   </head>
19 | <body>
20 |     <nav class="navbar navbar-dark bg-dark">
21 |       <div class="container-fluid">
22 |         <a href="https://github.com/alexellis/growlab"><span class="navbar-brand mb-0 h1 upper">{{'#'}}growlab</span></a>
23 |         <img src="https://raw.githubusercontent.com/alexellis/growlab.dev/master/src/images/logo-notext.svg" class="navbar-brand mb-1" width="60px">
24 |       </div>
25 |     </nav>
26 |     <div class="d-grid gap-3">
27 |       <div class="p-2"></div>
28 |     </div>
29 |     <div class="container">
30 |         <div class="card">
31 |             <h5 class="card-header">
32 |                 <quote>Welcome to your live monitoring</quote>
33 |             </h5>
34 |             <div class="card-body">
35 |                 <h5 class="card-title"><a href="https://growlab.dev">growlab</a> is a community project to monitor nature with technology</h5>
36 |                 <p class="card-text">Generated with the <a href="https://github.com/alexellis/growlab/tree/master/app">growlab app</a></p>
37 |
38 |                 <h5>Latest readings</h5>
39 | 		        <div class="col-sm-6 col-lg-6 col-md-6 col-xl-6">
40 |                     <table class="table">
41 |                         <thead>
42 |                             <tr>
43 |                             <th scope="col">Reading</th>
44 |                             <th scope="col">Value</th>
45 |                             </tr>
46 |                         </thead>
47 |                         <tbody>
48 |                             <tr>
49 |                                 <td>Time</td>
50 |                                 <td>{{ time }}</td>
51 |                             </tr>
52 |                             <tr>
53 |                                 <td>Temperature</td>
54 |                                 <td>{{ temperature }}</td>
55 |                             </tr>
56 |                             <tr>
57 |                                 <td>Humidity</td>
58 |                                 <td>{{ humidity }}</td>
59 |                             </tr>
60 |                             <tr>
61 |                                 <td>Pressure</td>
62 |                                 <td>{{ pressure }}</td>
63 |                             </tr>
64 |                         </tbody>
65 |                     </table>
66 | 		    </div>
67 |
68 |                 <h5>Latest image</h5>
69 |                 <div style="width: 85%;">
70 |                             <img class="figure-img img-fluid rounded" src="./preview.jpg?uid={{uid}}">
71 |                 </div>
72 |             </div>
73 |         </div>
74 |     </div>
75 |     <nav class="navbar navbar-dark bg-dark">
76 |         <div class="container-fluid">
77 |             <a class="navbar-brand" href="https://www.openfaas.com/">Growlab is sponsored by OpenFaaS Ltd</a>
78 |         </div>
79 |     </nav>
80 | <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.0.0-beta3/dist/js/bootstrap.bundle.min.js" integrity="sha384-JEW9xMcG8R+pH31jmWH6WWP0WintQrMb4s7ZOdauHnUtxwoG2vI5DkLtS3qm9Ekf" crossorigin="anonymous"></script>
81 | </body>
82 | </html>
83 |


--------------------------------------------------------------------------------
/app/requirements.txt:
--------------------------------------------------------------------------------
1 | smbus
2 | pimoroni-bme280
3 | bmp280
4 | picamera
5 | pillow
6 | Jinja2


--------------------------------------------------------------------------------
/app/sample.sh:
--------------------------------------------------------------------------------
 1 | #!/bin/bash
 2 | python3 app.py
 3 |
 4 | export GIT_SSH_COMMAND="ssh -i `pwd`/.ssh/id_rsa"
 5 |
 6 | cp ${HOME}/growlab/app/html/* ${HOME}/growlab/docs/
 7 |
 8 | git add .
 9 |
10 | git commit -s -m "Update images at `date`"
11 | git pull origin master --rebase
12 | git push origin master
13 |
14 |


--------------------------------------------------------------------------------
/app/sensor-i2c.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/alexellis/growlab/ce60e75acddde67e7258ea3f788c73bd076043ad/app/sensor-i2c.png


--------------------------------------------------------------------------------
/app/sensors.py:
--------------------------------------------------------------------------------
 1 | try:
 2 |     from smbus2 import SMBus
 3 | except ImportError:
 4 |     from smbus import SMBus
 5 | from bme280 import BME280
 6 | from bmp280 import BMP280
 7 |
 8 | import time
 9 |
10 | class grownosensor:
11 |     def __init__(self):
12 |         pass
13 |
14 |     def get_readings(self):
15 |         time_str = time.strftime("%H:%M:%S")
16 |
17 |         return {
18 |             "time": time_str,
19 |         }
20 |
21 | class growbme280:
22 |     def __init__(self):
23 |         self.bus = SMBus(1)
24 |         self.sensor = BME280(i2c_dev=self.bus)
25 |
26 |     def get_readings(self):
27 |         # Ignore first result since it seems stale
28 |         temperature = self.sensor.get_temperature()
29 |         pressure = self.sensor.get_pressure()
30 |         humidity = self.sensor.get_humidity()
31 |         time.sleep(0.1)
32 |
33 |         temperature = self.sensor.get_temperature()
34 |         pressure = self.sensor.get_pressure()
35 |         humidity = self.sensor.get_humidity()
36 |         time_str = time.strftime("%H:%M:%S")
37 |
38 |         return {
39 |             "time": time_str,
40 |             "temperature": temperature,
41 |             "pressure": pressure,
42 |             "humidity": humidity
43 |         }
44 |
45 | class growbmp280:
46 |     def __init__(self):
47 |         self.bus = SMBus(1)
48 |         self.sensor = BMP280(i2c_dev=self.bus)
49 |
50 |     def get_readings(self):
51 |         # Ignore first result since it seems stale
52 |         temperature = self.sensor.get_temperature()
53 |         pressure = self.sensor.get_pressure()
54 |         time.sleep(0.1)
55 |
56 |         temperature = self.sensor.get_temperature()
57 |         pressure = self.sensor.get_pressure()
58 |         time_str = time.strftime("%H:%M:%S")
59 |
60 |         return {
61 |             "time": time_str,
62 |             "temperature": temperature,
63 |             "pressure": pressure,
64 |         }
65 |


--------------------------------------------------------------------------------
/app/specimen.py:
--------------------------------------------------------------------------------
 1 | from PIL import Image, ImageFont, ImageDraw
 2 | from jinja2 import Template
 3 | import time
 4 |
 5 | class specimen:
 6 |     def __init__(self, text_config, image_config):
 7 |         self.text_config = text_config
 8 |         self.image_config = image_config
 9 |
10 |     def save_image(self, filename, image, readings):
11 |         with open(filename, 'wb') as file:
12 |             file.write(image.getvalue())
13 |
14 |         msg = self.format(readings)
15 |
16 |         img = Image.open(filename, "r").convert("RGBA")
17 |         img_draw = ImageDraw.Draw(img)
18 |         font = ImageFont.truetype('roboto/Roboto-Regular.ttf', self.text_config["size"])
19 |         colour = (self.text_config["colour"]["red"] ,self.text_config["colour"]["green"], self.text_config["colour"]["blue"])
20 |
21 |         text_size = img_draw.textsize(msg, font)
22 |
23 |         pos = (10, 20)
24 |         bg_size = (text_size[0]+30, text_size[1]+50)
25 |         bg_img = Image.new('RGBA', img.size, (0, 0, 0, 0))
26 |
27 |         bg_draw = ImageDraw.Draw(bg_img)
28 |         overlay_transparency = 100
29 |         bg_draw.rectangle((pos[0], pos[1], bg_size[0], bg_size[1]), fill=(0, 0, 0, overlay_transparency), outline=(255, 255, 255))
30 |         bg_draw.text(xy=(pos[0]+10, pos[1]+10), text=msg, fill=colour, font=font)
31 |
32 |         out = Image.alpha_composite(img, bg_img)
33 |         print("Saving {}..".format(filename))
34 |         r = out.convert('RGB')
35 |         r.save(filename, "JPEG")
36 |         print("Saved {}..OK".format(filename))
37 |
38 |     def format(self, readings):
39 |         degree_symbol=u"\u00b0"
40 |         msg = "#growlab - {}\n".format(readings["time"])
41 |         if "temperature" in readings:
42 |             msg = msg + " Temperature: {:05.2f}{}C \n".format(readings["temperature"],degree_symbol)
43 |         if "pressure" in readings:
44 |             msg = msg + " Pressure: {:05.2f}hPa \n".format(readings["pressure"])
45 |         if "humidity" in readings:
46 |             msg = msg + " Humidity: {:05.2f}% \n".format(readings["humidity"])
47 |
48 |         return msg.rstrip() + " "
49 |
50 |     def save_html(self, input_filename, output_path, readings):
51 |         img = Image.open(input_filename, "r")
52 |
53 |         img = img.resize((int(self.image_config["width"]/2), int(self.image_config["height"]/2)), Image.ANTIALIAS)
54 |         img.save(output_path+"/preview.jpg", "JPEG")
55 |
56 |         template_text = ""
57 |         with open("index.jinja", 'r') as file:
58 |             template_text = file.read()
59 |
60 |         template = Template(template_text)
61 |         degree_symbol=u"\u00b0"
62 |
63 |         vals = {}
64 |         vals["time"] = readings["time"]
65 |         if "temperature" in readings:
66 |             vals["temperature"] = "{:05.2f}{}C".format(readings["temperature"], degree_symbol)
67 |         else:
68 |             vals["temperature"] = "N/A"
69 |
70 |         if "humidity" in readings:
71 |             vals["humidity"] = "{:05.2f}%".format(readings["humidity"])
72 |         else:
73 |             vals["humidity"] = "N/A"
74 |
75 |         if "pressure" in readings:
76 |             vals["pressure"] = "{:05.2f}hPa".format(readings["pressure"])
77 |         else:
78 |             vals["pressure"] = "N/A"
79 |
80 |         vals["uid"] = "{}".format(time.time())
81 |
82 |         html = template.render(vals)
83 |         with open(output_path+"/index.html", "w") as html_file:
84 |             html_file.write(html)
85 |             print("Wrote {}..OK".format(output_path+"/index.html"))
86 |


--------------------------------------------------------------------------------
/app/sync-code.sh:
--------------------------------------------------------------------------------
 1 | #!/bin/bash
 2 |
 3 | # sudo apt install inotify-tools
 4 |
 5 | export RPI=growpi.local
 6 |
 7 | while inotifywait -r ./*; do
 8 |     rsync -ravz ../app pi@$RPI:~/
 9 | done
10 |


--------------------------------------------------------------------------------
/data-logger/.gitignore:
--------------------------------------------------------------------------------
1 | /template
2 | /build
3 |


--------------------------------------------------------------------------------
/data-logger/README.md:
--------------------------------------------------------------------------------
  1 | # BME280 Data Logger with faasd
  2 |
  3 | This data logger writes measurements from a Bosch BME280 or BMP280 sensor into a InfluxDB time-series database.
  4 |
  5 | You'll need one Raspberry Pi 3 or 4 to run the data collection stack and dashboard, then as many additional Raspberry Pi Zeros as you like for each location you want to monitor.
  6 |
  7 | ## The hardware
  8 |
  9 | ![How to connect the sensor over i2c](../app/sensor-i2c.png)
 10 | > How to connect the sensor over i2c
 11 |
 12 | For the hardware, follow the instructions from the [growlab app](../app/) under "Assembling the build". You'll need the same parts, but you can skip the camera module.
 13 |
 14 | ## Deployment
 15 |
 16 | You will run faasd on your Raspberry Pi 2, 3 or 4 to store data readings and to run OpenFaaS and Grafana.
 17 |
 18 | On your Raspberry Pi Zero, or whichever host has a sensor connected to it, you'll run the sender app.
 19 |
 20 | ### Deploy faasd
 21 |
 22 | Deploy faasd to your Raspberry Pi 3 or 4 [using these instructions](https://github.com/openfaas/faasd)
 23 |
 24 | Customise the password, and update ` /var/lib/faasd/docker-compose.yaml`
 25 |
 26 | ```yaml
 27 |   influxdb:
 28 |     image: docker.io/library/influxdb:1.8
 29 |     environment:
 30 |       - INFLUXDB_DB=defaultdb
 31 |       - INFLUXDB_ADMIN_USER=admin
 32 |       - "INFLUXDB_ADMIN_PASSWORD=PASSWORD"
 33 |       - INFLUXDB_USER=user
 34 |       - "INFLUXDB_USER_PASSWORD=PASSWORD"
 35 |       - INFLUXDB_REPORTING_DISABLED=true
 36 |       - INFLUXDB_HTTP_AUTH_ENABLED=true
 37 |       - INFLUXDB_HTTP_BIND_ADDRESS=0.0.0.0:8086
 38 |     volumes:
 39 |       # we assume cwd == /var/lib/faasd
 40 |       - type: bind
 41 |         source: ./influxdb/
 42 |         target: /var/lib/influxdb
 43 |     user: "1000"
 44 |     cap_add:
 45 |       - CAP_NET_RAW
 46 |     ports:
 47 |       - "0.0.0.0:8086:8086"
 48 | ```
 49 |
 50 | Make a directory for InfluxDB:
 51 |
 52 | ```bash
 53 | mkdir -p /var/lib/faasd/influxdb
 54 | chown 1000:1000 /var/lib/faasd/influxdb
 55 | ```
 56 |
 57 | Then reload and restart:
 58 |
 59 | ```bash
 60 | sudo systemctl daemon-reload \
 61 |   && sudo systemctl restart faasd
 62 | ```
 63 |
 64 | ### Deploy the function
 65 |
 66 | Create a secret for the InfluxDB user:
 67 |
 68 | ```bash
 69 | export PASSWORD=""
 70 |
 71 | faas-cli secret create influx-pass --from-literal $PASSWORD
 72 | faas-cli secret create influx-user --from-literal admin
 73 | ```
 74 |
 75 | Set the influx_db env-var in `stack.yml` i.e. `192.168.0.21`
 76 |
 77 | Next, deploy the function:
 78 |
 79 | ```bash
 80 | faas-cli deploy
 81 | ```
 82 |
 83 | Build if you like:
 84 |
 85 | ```bash
 86 | faas-cli publish -f stack.yml --platforms linux/arm/7
 87 | ```
 88 |
 89 | ### Deploy the sender onto your Raspberry Pi with a sensor
 90 |
 91 | On your Raspberry Pi with the sensor, you'll run the "sender" app.
 92 |
 93 | Enable i2c and change the hostname as required using the `raspi-config` tool.
 94 |
 95 | If you haven't installed the main growlab app for live-previews, then install the below dependencies:
 96 |
 97 | ```bash
 98 | sudo apt update -qy && \
 99 |   sudo apt install -qy python3 \
100 |   i2c-tools \
101 |   python3-pip \
102 |   git \
103 |   tmux
104 | ```
105 |
106 | Clone the growlab app:
107 |
108 | ```bash
109 | git clone https://github.com/alexellis/growlab
110 | cd growlab/data-logger/sender/
111 | ```
112 |
113 | Install any pip modules required for the sender app:
114 |
115 | ```bash
116 | pip3 install -r requirements.txt
117 | ```
118 |
119 | Then run the sender app:
120 |
121 | ```bash
122 | FUNCTION_URL=http://192.168.0.21:8080/function/submit-sample \
123 |   SENSOR=my-shed \
124 |   python3 main.py
125 | ```
126 |
127 | > Note: if you're using a BMP280 sensor then add an addition environment variable of `SENSOR=bmp280`
128 |
129 | A sensor reading will be submitted to faasd every 30 seconds. You can alter this sample interval by editing [sender/main.py](sender/main.py).
130 |
131 | ## Going further with a dashboard
132 |
133 | Deploy Grafana to faasd using the instructions in the [eBook Serverless For Everyone Else](https://gumroad.com/l/serverless-for-everyone-else)
134 |
135 | Then create yourself a simple dashboard for the measurements you see in the "readings" database.
136 |
137 | Once you have it up and running, create a datasource, then import the dashboard.json file and open the dashboard to view your sensor readings.
138 |
139 | ![A very cold shed](https://pbs.twimg.com/media/E0H6WhfXIAAMOR3?format=jpg&name=medium)
140 | > My very cold shed - measured overnight!
141 |
142 | A larger version in the summer time:
143 |
144 | ![Getting very warm in my shed](https://pbs.twimg.com/media/E6feyrJWYAMc4l2?format=jpg&name=large)
145 |


--------------------------------------------------------------------------------
/data-logger/dashboard.json:
--------------------------------------------------------------------------------
  1 | {
  2 |   "annotations": {
  3 |     "list": [
  4 |       {
  5 |         "builtIn": 1,
  6 |         "datasource": "-- Grafana --",
  7 |         "enable": true,
  8 |         "hide": true,
  9 |         "iconColor": "rgba(0, 211, 255, 1)",
 10 |         "name": "Annotations & Alerts",
 11 |         "type": "dashboard"
 12 |       }
 13 |     ]
 14 |   },
 15 |   "editable": true,
 16 |   "gnetId": null,
 17 |   "graphTooltip": 0,
 18 |   "id": 1,
 19 |   "links": [],
 20 |   "panels": [
 21 |     {
 22 |       "aliasColors": {},
 23 |       "bars": false,
 24 |       "dashLength": 10,
 25 |       "dashes": false,
 26 |       "datasource": null,
 27 |       "description": "",
 28 |       "fieldConfig": {
 29 |         "defaults": {},
 30 |         "overrides": []
 31 |       },
 32 |       "fill": 1,
 33 |       "fillGradient": 0,
 34 |       "gridPos": {
 35 |         "h": 8,
 36 |         "w": 12,
 37 |         "x": 0,
 38 |         "y": 0
 39 |       },
 40 |       "hiddenSeries": false,
 41 |       "id": 2,
 42 |       "legend": {
 43 |         "avg": false,
 44 |         "current": false,
 45 |         "max": false,
 46 |         "min": false,
 47 |         "show": true,
 48 |         "total": false,
 49 |         "values": false
 50 |       },
 51 |       "lines": true,
 52 |       "linewidth": 1,
 53 |       "nullPointMode": "null",
 54 |       "options": {
 55 |         "alertThreshold": true
 56 |       },
 57 |       "percentage": false,
 58 |       "pluginVersion": "7.5.5",
 59 |       "pointradius": 2,
 60 |       "points": false,
 61 |       "renderer": "flot",
 62 |       "seriesOverrides": [],
 63 |       "spaceLength": 10,
 64 |       "stack": false,
 65 |       "steppedLine": false,
 66 |       "targets": [
 67 |         {
 68 |           "groupBy": [
 69 |             {
 70 |               "params": [
 71 |                 "$__interval"
 72 |               ],
 73 |               "type": "time"
 74 |             },
 75 |             {
 76 |               "params": [
 77 |                 "sensor"
 78 |               ],
 79 |               "type": "tag"
 80 |             },
 81 |             {
 82 |               "params": [
 83 |                 "linear"
 84 |               ],
 85 |               "type": "fill"
 86 |             }
 87 |           ],
 88 |           "measurement": "temp",
 89 |           "orderByTime": "ASC",
 90 |           "policy": "default",
 91 |           "refId": "A",
 92 |           "resultFormat": "time_series",
 93 |           "select": [
 94 |             [
 95 |               {
 96 |                 "params": [
 97 |                   "value"
 98 |                 ],
 99 |                 "type": "field"
100 |               },
101 |               {
102 |                 "params": [],
103 |                 "type": "mean"
104 |               }
105 |             ]
106 |           ],
107 |           "tags": []
108 |         }
109 |       ],
110 |       "thresholds": [],
111 |       "timeFrom": null,
112 |       "timeRegions": [],
113 |       "timeShift": null,
114 |       "title": "Ambient Temperature",
115 |       "tooltip": {
116 |         "shared": true,
117 |         "sort": 0,
118 |         "value_type": "individual"
119 |       },
120 |       "type": "graph",
121 |       "xaxis": {
122 |         "buckets": null,
123 |         "mode": "time",
124 |         "name": null,
125 |         "show": true,
126 |         "values": []
127 |       },
128 |       "yaxes": [
129 |         {
130 |           "$$hashKey": "object:282",
131 |           "format": "celsius",
132 |           "label": null,
133 |           "logBase": 1,
134 |           "max": null,
135 |           "min": null,
136 |           "show": true
137 |         },
138 |         {
139 |           "$$hashKey": "object:283",
140 |           "format": "short",
141 |           "label": null,
142 |           "logBase": 1,
143 |           "max": null,
144 |           "min": null,
145 |           "show": true
146 |         }
147 |       ],
148 |       "yaxis": {
149 |         "align": false,
150 |         "alignLevel": null
151 |       }
152 |     },
153 |     {
154 |       "aliasColors": {},
155 |       "bars": false,
156 |       "dashLength": 10,
157 |       "dashes": false,
158 |       "datasource": null,
159 |       "description": "",
160 |       "fieldConfig": {
161 |         "defaults": {},
162 |         "overrides": []
163 |       },
164 |       "fill": 1,
165 |       "fillGradient": 0,
166 |       "gridPos": {
167 |         "h": 8,
168 |         "w": 12,
169 |         "x": 12,
170 |         "y": 0
171 |       },
172 |       "hiddenSeries": false,
173 |       "id": 3,
174 |       "legend": {
175 |         "avg": false,
176 |         "current": false,
177 |         "max": false,
178 |         "min": false,
179 |         "show": true,
180 |         "total": false,
181 |         "values": false
182 |       },
183 |       "lines": true,
184 |       "linewidth": 1,
185 |       "nullPointMode": "null",
186 |       "options": {
187 |         "alertThreshold": true
188 |       },
189 |       "percentage": false,
190 |       "pluginVersion": "7.5.5",
191 |       "pointradius": 2,
192 |       "points": false,
193 |       "renderer": "flot",
194 |       "seriesOverrides": [],
195 |       "spaceLength": 10,
196 |       "stack": false,
197 |       "steppedLine": false,
198 |       "targets": [
199 |         {
200 |           "groupBy": [
201 |             {
202 |               "params": [
203 |                 "$__interval"
204 |               ],
205 |               "type": "time"
206 |             },
207 |             {
208 |               "params": [
209 |                 "sensor"
210 |               ],
211 |               "type": "tag"
212 |             },
213 |             {
214 |               "params": [
215 |                 "linear"
216 |               ],
217 |               "type": "fill"
218 |             }
219 |           ],
220 |           "measurement": "cpu_temperature",
221 |           "orderByTime": "ASC",
222 |           "policy": "default",
223 |           "refId": "A",
224 |           "resultFormat": "time_series",
225 |           "select": [
226 |             [
227 |               {
228 |                 "params": [
229 |                   "value"
230 |                 ],
231 |                 "type": "field"
232 |               },
233 |               {
234 |                 "params": [],
235 |                 "type": "mean"
236 |               }
237 |             ]
238 |           ],
239 |           "tags": []
240 |         }
241 |       ],
242 |       "thresholds": [],
243 |       "timeFrom": null,
244 |       "timeRegions": [],
245 |       "timeShift": null,
246 |       "title": "CPU Temperature",
247 |       "tooltip": {
248 |         "shared": true,
249 |         "sort": 0,
250 |         "value_type": "individual"
251 |       },
252 |       "type": "graph",
253 |       "xaxis": {
254 |         "buckets": null,
255 |         "mode": "time",
256 |         "name": null,
257 |         "show": true,
258 |         "values": []
259 |       },
260 |       "yaxes": [
261 |         {
262 |           "$$hashKey": "object:452",
263 |           "format": "celsius",
264 |           "label": null,
265 |           "logBase": 1,
266 |           "max": null,
267 |           "min": null,
268 |           "show": true
269 |         },
270 |         {
271 |           "$$hashKey": "object:453",
272 |           "format": "short",
273 |           "label": null,
274 |           "logBase": 1,
275 |           "max": null,
276 |           "min": null,
277 |           "show": true
278 |         }
279 |       ],
280 |       "yaxis": {
281 |         "align": false,
282 |         "alignLevel": null
283 |       }
284 |     },
285 |     {
286 |       "aliasColors": {},
287 |       "bars": false,
288 |       "dashLength": 10,
289 |       "dashes": false,
290 |       "datasource": null,
291 |       "description": "",
292 |       "fieldConfig": {
293 |         "defaults": {},
294 |         "overrides": []
295 |       },
296 |       "fill": 1,
297 |       "fillGradient": 0,
298 |       "gridPos": {
299 |         "h": 8,
300 |         "w": 12,
301 |         "x": 0,
302 |         "y": 8
303 |       },
304 |       "hiddenSeries": false,
305 |       "id": 4,
306 |       "legend": {
307 |         "avg": false,
308 |         "current": false,
309 |         "max": false,
310 |         "min": false,
311 |         "show": true,
312 |         "total": false,
313 |         "values": false
314 |       },
315 |       "lines": true,
316 |       "linewidth": 1,
317 |       "nullPointMode": "null",
318 |       "options": {
319 |         "alertThreshold": true
320 |       },
321 |       "percentage": false,
322 |       "pluginVersion": "7.5.5",
323 |       "pointradius": 2,
324 |       "points": false,
325 |       "renderer": "flot",
326 |       "seriesOverrides": [],
327 |       "spaceLength": 10,
328 |       "stack": false,
329 |       "steppedLine": false,
330 |       "targets": [
331 |         {
332 |           "groupBy": [
333 |             {
334 |               "params": [
335 |                 "$__interval"
336 |               ],
337 |               "type": "time"
338 |             },
339 |             {
340 |               "params": [
341 |                 "sensor"
342 |               ],
343 |               "type": "tag"
344 |             },
345 |             {
346 |               "params": [
347 |                 "linear"
348 |               ],
349 |               "type": "fill"
350 |             }
351 |           ],
352 |           "measurement": "humidity",
353 |           "orderByTime": "ASC",
354 |           "policy": "default",
355 |           "refId": "A",
356 |           "resultFormat": "time_series",
357 |           "select": [
358 |             [
359 |               {
360 |                 "params": [
361 |                   "value"
362 |                 ],
363 |                 "type": "field"
364 |               },
365 |               {
366 |                 "params": [],
367 |                 "type": "mean"
368 |               }
369 |             ]
370 |           ],
371 |           "tags": []
372 |         }
373 |       ],
374 |       "thresholds": [],
375 |       "timeFrom": null,
376 |       "timeRegions": [],
377 |       "timeShift": null,
378 |       "title": "Humidity",
379 |       "tooltip": {
380 |         "shared": true,
381 |         "sort": 0,
382 |         "value_type": "individual"
383 |       },
384 |       "type": "graph",
385 |       "xaxis": {
386 |         "buckets": null,
387 |         "mode": "time",
388 |         "name": null,
389 |         "show": true,
390 |         "values": []
391 |       },
392 |       "yaxes": [
393 |         {
394 |           "$$hashKey": "object:196",
395 |           "format": "percent",
396 |           "label": null,
397 |           "logBase": 1,
398 |           "max": null,
399 |           "min": null,
400 |           "show": true
401 |         },
402 |         {
403 |           "$$hashKey": "object:197",
404 |           "format": "short",
405 |           "label": null,
406 |           "logBase": 1,
407 |           "max": null,
408 |           "min": null,
409 |           "show": true
410 |         }
411 |       ],
412 |       "yaxis": {
413 |         "align": false,
414 |         "alignLevel": null
415 |       }
416 |     },
417 |     {
418 |       "aliasColors": {},
419 |       "bars": false,
420 |       "dashLength": 10,
421 |       "dashes": false,
422 |       "datasource": null,
423 |       "description": "",
424 |       "fieldConfig": {
425 |         "defaults": {},
426 |         "overrides": []
427 |       },
428 |       "fill": 1,
429 |       "fillGradient": 0,
430 |       "gridPos": {
431 |         "h": 8,
432 |         "w": 12,
433 |         "x": 12,
434 |         "y": 8
435 |       },
436 |       "hiddenSeries": false,
437 |       "id": 5,
438 |       "legend": {
439 |         "avg": false,
440 |         "current": false,
441 |         "max": false,
442 |         "min": false,
443 |         "show": true,
444 |         "total": false,
445 |         "values": false
446 |       },
447 |       "lines": true,
448 |       "linewidth": 1,
449 |       "nullPointMode": "null",
450 |       "options": {
451 |         "alertThreshold": true
452 |       },
453 |       "percentage": false,
454 |       "pluginVersion": "7.5.5",
455 |       "pointradius": 2,
456 |       "points": false,
457 |       "renderer": "flot",
458 |       "seriesOverrides": [],
459 |       "spaceLength": 10,
460 |       "stack": false,
461 |       "steppedLine": false,
462 |       "targets": [
463 |         {
464 |           "groupBy": [
465 |             {
466 |               "params": [
467 |                 "$__interval"
468 |               ],
469 |               "type": "time"
470 |             },
471 |             {
472 |               "params": [
473 |                 "sensor"
474 |               ],
475 |               "type": "tag"
476 |             },
477 |             {
478 |               "params": [
479 |                 "linear"
480 |               ],
481 |               "type": "fill"
482 |             }
483 |           ],
484 |           "measurement": "pressure",
485 |           "orderByTime": "ASC",
486 |           "policy": "default",
487 |           "refId": "A",
488 |           "resultFormat": "time_series",
489 |           "select": [
490 |             [
491 |               {
492 |                 "params": [
493 |                   "value"
494 |                 ],
495 |                 "type": "field"
496 |               },
497 |               {
498 |                 "params": [],
499 |                 "type": "mean"
500 |               }
501 |             ]
502 |           ],
503 |           "tags": []
504 |         }
505 |       ],
506 |       "thresholds": [],
507 |       "timeFrom": null,
508 |       "timeRegions": [],
509 |       "timeShift": null,
510 |       "title": "Air Pressure",
511 |       "tooltip": {
512 |         "shared": true,
513 |         "sort": 0,
514 |         "value_type": "individual"
515 |       },
516 |       "type": "graph",
517 |       "xaxis": {
518 |         "buckets": null,
519 |         "mode": "time",
520 |         "name": null,
521 |         "show": true,
522 |         "values": []
523 |       },
524 |       "yaxes": [
525 |         {
526 |           "$$hashKey": "object:88",
527 |           "format": "pressurehpa",
528 |           "label": null,
529 |           "logBase": 1,
530 |           "max": null,
531 |           "min": null,
532 |           "show": true
533 |         },
534 |         {
535 |           "$$hashKey": "object:89",
536 |           "format": "short",
537 |           "label": null,
538 |           "logBase": 1,
539 |           "max": null,
540 |           "min": null,
541 |           "show": true
542 |         }
543 |       ],
544 |       "yaxis": {
545 |         "align": false,
546 |         "alignLevel": null
547 |       }
548 |     }
549 |   ],
550 |   "schemaVersion": 27,
551 |   "style": "dark",
552 |   "tags": [],
553 |   "templating": {
554 |     "list": []
555 |   },
556 |   "time": {
557 |     "from": "now-5m",
558 |     "to": "now"
559 |   },
560 |   "timepicker": {},
561 |   "timezone": "",
562 |   "title": "BME280",
563 |   "uid": "arM0loRRz",
564 |   "version": 14
565 | }


--------------------------------------------------------------------------------
/data-logger/sender/main.py:
--------------------------------------------------------------------------------
 1 | import time
 2 | import os, json
 3 | from sensors import growbme280, growbmp280
 4 | import requests
 5 | from datetime import datetime
 6 |
 7 | function_url = os.getenv("FUNCTION_URL")  # change this on each Pi
 8 | sensor_name = os.getenv("SENSOR")
 9 | sample_duration = 30  # seconds
10 |
11 | sensor = None
12 | sensor_type = os.getenv("SENSOR_TYPE", "bme280")
13 | print("Sensor type: {}", sensor_type)
14 |
15 | if sensor_type == "bme280":
16 |     sensor = growbme280()
17 | elif sensor_type == "bmp280":
18 |     sensor = growbmp280()
19 |
20 | if function_url == None:
21 |     sys.stderr.write("env-var FUNCTION_URL is required i.e. http://192.168.0.21:8080/function/submit-sample")
22 |     os.exit(1)
23 |
24 | if sensor_name == None:
25 |     sys.stderr.write("env-var SENSOR is required i.e. shed1")
26 |     os.exit(1)
27 |
28 | def get_cpu_temp():
29 |     path="/sys/class/thermal/thermal_zone0/temp"
30 |     f = open(path, "r")
31 |     temp_raw = int(f.read().strip())
32 |     temp_cpu = float(temp_raw / 1000.0)
33 |     return temp_cpu
34 |
35 | try:
36 |     while True:
37 |         print("Gathering sensor data.")
38 |         temp_cpu = get_cpu_temp()
39 |
40 |         readings = sensor.get_readings()
41 |
42 |         readings["sensor"] = sensor_name
43 |         readings["cpu_temperature"] = temp_cpu
44 |
45 |         my_date = datetime.now()
46 |         readings["iso_time"] = my_date.isoformat()
47 |         data = json.dumps(readings)
48 |         print(data)
49 |
50 |         try:
51 |             res = requests.post(function_url, data=data, headers={"Content-type": "application/json"})
52 |             if res.status_code != 200:
53 |                 print("Unexpected status code: {}".format(res.status_code))
54 |             else:
55 |                 print("Sent to function..OK.")
56 |
57 |         except Exception as e:
58 |             print(e)
59 |             continue
60 |         time.sleep(sample_duration)
61 |
62 | except KeyboardInterrupt:
63 |     pass
64 |


--------------------------------------------------------------------------------
/data-logger/sender/requirements.txt:
--------------------------------------------------------------------------------
1 | requests
2 | pimoroni-bme280
3 | bmp280
4 | smbus


--------------------------------------------------------------------------------
/data-logger/sender/sensors.py:
--------------------------------------------------------------------------------
 1 | try:
 2 |     from smbus2 import SMBus
 3 | except ImportError:
 4 |     from smbus import SMBus
 5 | from bme280 import BME280
 6 | from bmp280 import BMP280
 7 |
 8 | import time
 9 |
10 | class growbme280:
11 |     def __init__(self):
12 |         self.bus = SMBus(1)
13 |         self.sensor = BME280(i2c_dev=self.bus)
14 |
15 |     def get_readings(self):
16 |         # Ignore first result since it seems stale
17 |         temperature = self.sensor.get_temperature()
18 |         pressure = self.sensor.get_pressure()
19 |         humidity = self.sensor.get_humidity()
20 |         time.sleep(0.1)
21 |
22 |         temperature = self.sensor.get_temperature()
23 |         pressure = self.sensor.get_pressure()
24 |         humidity = self.sensor.get_humidity()
25 |         time_str = time.strftime("%H:%M:%S")
26 |
27 |         return {
28 |             "time": time_str,
29 |             "temperature": temperature,
30 |             "pressure": pressure,
31 |             "humidity": humidity
32 |         }
33 |
34 | class growbmp280:
35 |     def __init__(self):
36 |         self.bus = SMBus(1)
37 |         self.sensor = BMP280(i2c_dev=self.bus)
38 |
39 |     def get_readings(self):
40 |         # Ignore first result since it seems stale
41 |         temperature = self.sensor.get_temperature()
42 |         pressure = self.sensor.get_pressure()
43 |         time.sleep(0.1)
44 |
45 |         temperature = self.sensor.get_temperature()
46 |         pressure = self.sensor.get_pressure()
47 |         time_str = time.strftime("%H:%M:%S")
48 |
49 |         return {
50 |             "time": time_str,
51 |             "temperature": temperature,
52 |             "pressure": pressure,
53 |         }


--------------------------------------------------------------------------------
/data-logger/stack.yml:
--------------------------------------------------------------------------------
 1 | version: 1.0
 2 | provider:
 3 |   name: openfaas
 4 |   gateway: http://127.0.0.1:8080
 5 |
 6 | functions:
 7 |   submit-sample:
 8 |     lang: python3
 9 |     handler: ./submit-sample
10 |     image: ghcr.io/alexellis/submit-sample:0.2.1
11 |     environment:
12 |       influx_host: 192.168.0.21
13 |       influx_port: 8086
14 |       influx_db: readings
15 |       write_debug: true
16 |       read_debug: true
17 |       combine_output: false
18 |     secrets:
19 |       - influx-user
20 |       - influx-pass
21 |


--------------------------------------------------------------------------------
/data-logger/submit-sample/__init__.py:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/alexellis/growlab/ce60e75acddde67e7258ea3f788c73bd076043ad/data-logger/submit-sample/__init__.py


--------------------------------------------------------------------------------
/data-logger/submit-sample/handler.py:
--------------------------------------------------------------------------------
 1 | import json
 2 | import os
 3 | import time
 4 | from datetime import datetime
 5 | from influxdb import InfluxDBClient
 6 |
 7 | def handle(req):
 8 |     """handle a request to the function
 9 |     Args:
10 |         req (str): request body
11 |     """
12 |
13 |     # Parse NodeMCU data packet into JSON
14 |     r = json.loads(req)
15 |
16 |     influx_host = os.getenv("influx_host")
17 |     influx_port = os.getenv("influx_port")
18 |     influx_db = os.getenv("influx_db")
19 |
20 |     influx_user = get_file("/var/openfaas/secrets/influx-user")
21 |     influx_pass = get_file("/var/openfaas/secrets/influx-pass")
22 |
23 |     client = InfluxDBClient(influx_host, influx_port, influx_user, influx_pass, influx_db)
24 |     try:
25 |       client.create_database(influx_db)
26 |     except:
27 |       print("Database {} may already exist", influx_db)
28 |
29 |     points = make_points(r)
30 |
31 |     res = client.write_points(points)
32 |     client.close()
33 |
34 |     return json.dumps(res)
35 |
36 | def get_file(path):
37 |     v = ""
38 |     with open(path) as f:
39 |         v = f.read()
40 |         f.close()
41 |     return v.strip()
42 |
43 | def make_points(r):
44 |     tags = {"sensor": r["sensor"]}
45 |     my_date = datetime.now()
46 |     iso_time = my_date.isoformat()
47 |     points = []
48 |
49 |     points.append({
50 |       "measurement": "temp",
51 |       "tags":  tags,
52 |       "time": iso_time,
53 |       "fields": {
54 |         "value": float(r["temperature"])
55 |       }
56 |      })
57 |
58 |     if "cpu_temperature" in r:
59 |         points.append({
60 |           "measurement": "cpu_temperature",
61 |           "tags":  tags,
62 |           "time": iso_time,
63 |           "fields": {
64 |             "value": float(r["cpu_temperature"])
65 |           }
66 |      })
67 |
68 |     if "humidity" in r:
69 |         points.append({
70 |               "measurement": "humidity",
71 |               "tags":  tags,
72 |               "time": iso_time,
73 |               "fields": {
74 |               "value": float(r["humidity"])
75 |              }
76 |             })
77 |
78 |     if "pressure" in r:
79 |         points.append({
80 |               "measurement": "pressure",
81 |               "tags":  tags,
82 |               "time": iso_time,
83 |               "fields": {
84 |               "value": float(r["pressure"])
85 |              }
86 |             })
87 |
88 |     return points
89 |


--------------------------------------------------------------------------------
/data-logger/submit-sample/requirements.txt:
--------------------------------------------------------------------------------
1 | influxdb
2 |
3 |


--------------------------------------------------------------------------------
