├── .gitignore
├── vse_doom.blend
├── readme.md
├── run_doom.py
└── render.py


/.gitignore:
--------------------------------------------------------------------------------
1 | __pycache__
2 | doom1.wad
3 | *.blend1
4 | /.vs
5 |


--------------------------------------------------------------------------------
/vse_doom.blend:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/aras-p/blender-vse-doom/HEAD/vse_doom.blend


--------------------------------------------------------------------------------
/readme.md:
--------------------------------------------------------------------------------
 1 | # Doom running in Blender Video Sequence Editor timeline
 2 |
 3 | Here's a video (click): <br/>

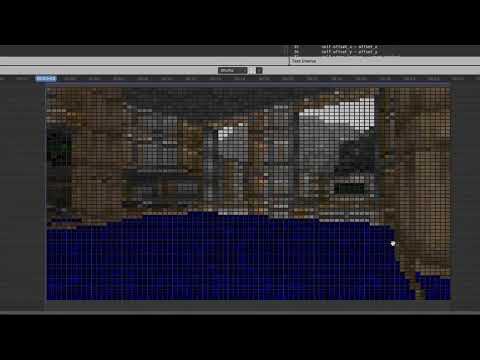

 4 | [![Doom in Blender VSE timeline](https://img.youtube.com/vi/Y2iDZjteMs8/0.jpg)](https://www.youtube.com/watch?v=Y2iDZjteMs8)
 5 |
 6 | A modal blender operator that loads doom file, creates
 7 | VSE timeline full of color strips (80 columns, 60 rows), listens to
 8 | keyboard input for player control, renders doom frame and updates the
 9 | VSE color strip colors to match the rendered result. Escape key finishes
10 | the operator.
11 |
12 | > I have no idea what I'm doing, so it is entirely possible that the
13 | > operator is written in a completely nonsensical way!
14 |
15 | All the Doom-specific heavy lifting is in `render.py`, written by
16 | Mark Dufour and is completely unrelated to Blender. It is just a tiny
17 | pure Python Doom loader/renderer. I took it from
18 | "[Minimal DOOM WAD renderer](https://github.com/shedskin/shedskin/blob/6c30bbe617/examples/doom/render.py)"
19 | and made two small edits to avoid division by zero exceptions that I was getting.
20 |
21 |
22 | ## Instructions
23 |
24 | 1. Download code of this repository.
25 | 1. Put `doom1.wad` next to `vse_doom.blend` file, can get it from [doomwiki](https://doomwiki.org/wiki/DOOM1.WAD)
26 |    or other places.
27 | 1. Open `vse_doom.blend` file in Blender. The file is made with Blender 4.0, I have tested up to Blender 4.4.
28 | 1. Click "Run Script" atop of the script editor window.
29 | 1. This will create 80x60 color strips in the VSE timeline below, load E1M1 from `doom1.wad` and start a modal operator
30 |    that reacts to arrow keys to move. Escape finishes the operator and returns to "normal blender".
31 |
32 |
33 | ## Performance
34 |
35 | This runs pretty slow (~3fps) currently (blender 4.1-4.4), due to various VSE shenanigans. Updating colors of
36 | almost 5000 color strips is slow, it turns out.
37 |
38 | The pure-python Doom renderer, while perhaps written in not performant Python way, is not the slow part here.
39 | It takes about 7 milliseconds to render 80x60 frame. It takes almost 300 milliseconds to update the colors
40 | of all the VSE strips, in comparison. I will see if I can optimize it somehow!
41 |
42 | > In Blender 4.0 or earlier it runs even slower, because redrawing the VSE timeline with 5000 strips
43 | > takes about 100 milliseconds; that is no longer slow in 4.1+ (1-2ms).
44 |
45 | A blog post with more details: https://aras-p.info/blog/2025/01/17/Doom-in-Blender-VSE/
46 |
47 | ## .blend file contents
48 |
49 | The `vse_doom.blend` file itself contains pretty much nothing, except this text script block:
50 |
51 | ```
52 | import bpy
53 | import os
54 | import sys
55 |
56 | # add blend file folder to import path, so that we can use .py scripts next to the file
57 | blen_dir = os.path.normpath(os.path.join(__file__, "..", ".."))
58 | if blen_dir not in sys.path:
59 |     sys.path.append(blen_dir)
60 |
61 | # make sure to reload run_doom/render modules so we can do edits while blender is running
62 | if "run_doom" in sys.modules:
63 |     del sys.modules["run_doom"]
64 | if "render" in sys.modules:
65 |     del sys.modules["render"]
66 |
67 | import run_doom
68 |
69 | def register():
70 |     try:
71 |         bpy.utils.register_class(run_doom.DoomOperator)
72 |     except:
73 |         pass # was already registered
74 |
75 | def unregister():
76 |     bpy.utils.unregister_class(run_doom.DoomOperator)
77 |
78 | if __name__ == "__main__":
79 |     register()
80 |     bpy.ops.lol.doom_player('INVOKE_DEFAULT')
81 | ```
82 |


--------------------------------------------------------------------------------
/run_doom.py:
--------------------------------------------------------------------------------
  1 | # A modal blender operator that loads doom file, creates
  2 | # VSE timeline full of color strips, listens to keyboard input for player
  3 | # control, renders doom frame and updates the VSE color strip colors
  4 | # to match the rendered result. Escape key finishes the operator.
  5 | #
  6 | # I have no idea what I'm doing, so it is entirely possible that the
  7 | # operator is written in a completely nonsensical way!
  8 | #
  9 | # All the Doom-specific heavy lifting is in render.py, written by
 10 | # Mark Dufour and is completely unrelated to Blender. It is just a tiny
 11 | # pure Python Doom loader/renderer.
 12 |
 13 | import bpy
 14 | import os
 15 | import math
 16 | import time
 17 |
 18 | import render
 19 |
 20 | class DoomOperator(bpy.types.Operator):
 21 |     bl_idname = "lol.doom_player"
 22 |     bl_label = "Doom Player"
 23 |
 24 |     def __init__(self, *args, **kwargs):
 25 |         super().__init__(*args, **kwargs)
 26 |         self.timer = None
 27 |         self.strip_lookup = None
 28 |         self.map = None
 29 |         self.blender_palette = None
 30 |         self.player = None
 31 |
 32 |     def create_strips(self):
 33 |         bpy.context.scene.sequence_editor_clear()
 34 |         if not bpy.context.scene.sequence_editor:
 35 |             bpy.context.scene.sequence_editor_create()
 36 |
 37 |         width = render.WIDTH
 38 |         height = render.HEIGHT
 39 |         dur = 10
 40 |         self.strip_lookup = [None] * (width * height)
 41 |
 42 |         for y in range(height):
 43 |             for x in range(width):
 44 |                 start = x * dur + 1
 45 |                 strip = bpy.context.scene.sequence_editor.sequences.new_effect(
 46 |                     name=f"C{x}_{y}",
 47 |                     type='COLOR',
 48 |                     channel=y + 1,
 49 |                     frame_start=start,
 50 |                     frame_end=start + dur - 1
 51 |                 )
 52 |                 strip.select = False
 53 |                 idx = (height - 1 - y) * width + x
 54 |                 self.strip_lookup[idx] = strip
 55 |         bpy.context.scene.frame_end = width * dur
 56 |
 57 |
 58 |     def update_strips(self, data):
 59 |         num = len(data)
 60 |         for idx in range(num):
 61 |             val = data[idx]
 62 |             col = self.blender_palette[val]
 63 |             self.strip_lookup[idx].color = col
 64 |
 65 |     def modal(self, context, event):
 66 |         # Escape stops
 67 |         if event.type == 'ESC':
 68 |             context.window_manager.event_timer_remove(self.timer)
 69 |             context.window.cursor_modal_restore()
 70 |             return {'FINISHED'}
 71 |
 72 |         if event.type == 'TIMER':
 73 |             self.frame_update()
 74 |         elif event.type == 'LEFT_ARROW' and event.value == 'PRESS':
 75 |             self.player.angle += math.radians(20)
 76 |         elif event.type == 'RIGHT_ARROW' and event.value == 'PRESS':
 77 |             self.player.angle -= math.radians(20)
 78 |         elif event.type == 'UP_ARROW' and event.value == 'PRESS':
 79 |             self.move_player(7.0, 0)
 80 |         elif event.type == 'DOWN_ARROW' and event.value == 'PRESS':
 81 |             self.move_player(-7.0, 0)
 82 |
 83 |         return {'RUNNING_MODAL'}
 84 |
 85 |     def move_player(self, dist, strafe):
 86 |         dx = dist * math.cos(self.player.angle + strafe)
 87 |         dy = dist * math.sin(self.player.angle + strafe)
 88 |         self.player.x += dx
 89 |         self.player.y += dy
 90 |
 91 |     def invoke(self, context, event):
 92 |         context.window.cursor_modal_set('HAND')
 93 |
 94 |         # create strips
 95 |         t0 = time.perf_counter()
 96 |         self.create_strips()
 97 |         t1 = time.perf_counter()
 98 |         print(f"doom: created {render.WIDTH}x{render.HEIGHT} ({render.WIDTH*render.HEIGHT}) strips in {(t1-t0)*1000:.1f}ms")
 99 |         self.frame_count = 0
100 |
101 |         # load doom map
102 |         blen_dir = os.path.normpath(os.path.join(__file__, ".."))
103 |         mapname = 'E1M1'
104 |         t0 = time.perf_counter()
105 |         self.map = render.Map(f"{blen_dir}/doom1.wad", mapname)
106 |         t1 = time.perf_counter()
107 |         print(f"doom: loaded {mapname} in {(t1-t0)*1000:.1f}ms")
108 |         palette = self.map.palette
109 |         self.blender_palette = [(r/255, g/255, b/255) for r,g,b in palette]
110 |         self.player = self.map.player
111 |
112 |         wm = context.window_manager
113 |         self.timer = wm.event_timer_add(0.1, window=context.window)
114 |         wm.modal_handler_add(self)
115 |         return {'RUNNING_MODAL'}
116 |
117 |     def frame_update(self):
118 |
119 |         # update player
120 |         pl = self.player
121 |         pl.z = pl.floor_h + 48
122 |         pl.update()
123 |
124 |         # render frame and update strip colors
125 |         t0 = time.perf_counter()
126 |         buf = render.render(self.map, self.frame_count)
127 |         t1 = time.perf_counter()
128 |         self.update_strips(buf)
129 |         t2 = time.perf_counter()
130 |         if self.frame_count % 8 == 0:
131 |             print(f"doom: render {(t1-t0)*1000:.1f}ms strip color update {(t2-t1)*1000:.1f}ms")
132 |
133 |         self.frame_count += 1
134 |


--------------------------------------------------------------------------------
/render.py:
--------------------------------------------------------------------------------
  1 | # From "Minimal DOOM WAD renderer" by Mark Dufour,
  2 | # https://github.com/shedskin/shedskin/blob/6c30bbe617/examples/doom/render.py

  3 | # with two changes for avoiding division by zero exceptions:
  4 | # `max(lowerDy, 0.00001)` and `max(upperDy, 0.00001)`
  5 |
  6 | import math
  7 | from struct import unpack_from
  8 | import random
  9 |
 10 | WIDTH = 80
 11 | HEIGHT = 60
 12 |
 13 | WIDTH_2 = WIDTH//2
 14 | HEIGHT_2 = HEIGHT//2
 15 | HEIGHT_INV = 1.0 / WIDTH
 16 |
 17 | TAN_45_DEG = math.tan(math.radians(45))
 18 |
 19 | FLOOR_Y_INV = [1.0 / (y - HEIGHT_2) if y > HEIGHT_2 else 0.0
 20 |                for y in range(HEIGHT)]
 21 |
 22 | CEIL_Y_INV = [1.0 / (HEIGHT_2 - y) if y < HEIGHT_2 else 0.0
 23 |               for y in range(HEIGHT)]
 24 |
 25 | OSCILLATION = [int(13 + 13 * math.sin(2 * math.pi * (i / 255)))
 26 |                for i in range(256)]
 27 |
 28 |
 29 | class Vertex:
 30 |     def __init__(self, x, y):
 31 |         self.x = x
 32 |         self.y = y
 33 |
 34 |
 35 | class Sidedef:
 36 |     def __init__(self, offset_x, offset_y, upper_texture, lower_texture,
 37 |                  middle_texture, sector):
 38 |         self.offset_x = offset_x
 39 |         self.offset_y = offset_y
 40 |         self.upper_texture = upper_texture
 41 |         self.lower_texture = lower_texture
 42 |         self.middle_texture = middle_texture
 43 |         self.sector = sector
 44 |         self.skyhack = False
 45 |
 46 |
 47 | class Linedef:
 48 |     def __init__(self, vertex_start, vertex_end, special_type, sidedef_front,
 49 |                  sidedef_back):
 50 |         self.vertex_start = vertex_start
 51 |         self.vertex_end = vertex_end
 52 |         self.special_type = special_type
 53 |         self.sidedef_front = sidedef_front
 54 |         self.sidedef_back = sidedef_back
 55 |
 56 |
 57 | class Sector:
 58 |     def __init__(self, floor_h, ceil_h, floor_texture, ceil_texture,
 59 |                  light_level, special_type, floor_flat, ceil_flat, ceil_pic):
 60 |         self.floor_h = floor_h
 61 |         self.ceil_h = ceil_h
 62 |         self.floor_texture = floor_texture
 63 |         self.ceil_texture = ceil_texture
 64 |         self.light_level = light_level
 65 |         self.special_type = special_type
 66 |         self.floor_flat = floor_flat
 67 |         self.ceil_flat = ceil_flat
 68 |         self.ceil_pic = ceil_pic
 69 |
 70 |         self.random = [random.random() < 0.5 for i in range(256)]
 71 |
 72 |
 73 | class SubSector:
 74 |     def __init__(self, segs):
 75 |         self.segs = segs
 76 |
 77 |
 78 | class Seg:
 79 |     def __init__(self, vertex_start, vertex_end, angle, linedef,
 80 |                  sidedef_front, sidedef_back, is_portal, offset,
 81 |                  sector_front, sector_back):
 82 |         self.vertex_start = vertex_start
 83 |         self.vertex_end = vertex_end
 84 |         self.angle = angle
 85 |         self.linedef = linedef
 86 |         self.sidedef_front = sidedef_front
 87 |         self.sidedef_back = sidedef_back
 88 |         self.is_portal = is_portal
 89 |         self.offset = offset
 90 |         self.sector_front = sector_front
 91 |         self.sector_back = sector_back
 92 |
 93 |         self.length = math.hypot(vertex_end.x - vertex_start.x,
 94 |                                  vertex_end.y - vertex_start.y)
 95 |
 96 |
 97 | class Flat:
 98 |     def __init__(self, data):
 99 |         self.data = [[[d[64*y+x] for y in range(64)]
100 |                      for x in range(64)] for d in data]
101 |
102 |     def get_data(self, frame_count):
103 |         return self.data[(frame_count >> 4) % len(self.data)]
104 |
105 |
106 | class BSPNode:
107 |     def __init__(self, partition_x, partition_y, change_partition_x,
108 |                  change_partition_y, rchild_id, lchild_id):
109 |         self.partition_x = partition_x
110 |         self.partition_y = partition_y
111 |         self.change_partition_x = change_partition_x
112 |         self.change_partition_y = change_partition_y
113 |         self.rchild_id = rchild_id
114 |         self.lchild_id = lchild_id
115 |
116 |     def visit(self,  map_, subsectors=None):
117 |         if subsectors is None:
118 |             subsectors = []
119 |         player = map_.player
120 |         px = player.x - self.partition_x
121 |         py = player.y - self.partition_y
122 |
123 |         closest_id, farthest_id = self.lchild_id, self.rchild_id
124 |         if py * self.change_partition_x <= px * self.change_partition_y:
125 |             closest_id, farthest_id = farthest_id, closest_id
126 |
127 |         for child_id in (closest_id, farthest_id):
128 |             if child_id < 0:
129 |                 subsectors.append(map_.subsectors[child_id & 0x7fff])
130 |             else:
131 |                 map_.bspnodes[child_id].visit(map_, subsectors)
132 |         return subsectors
133 |
134 |
135 | class Thing:
136 |     def __init__(self, x, y, angle, type_):
137 |         self.x = float(x)
138 |         self.y = float(y)
139 |         self.angle = math.radians(90)
140 |         self.type_ = type_
141 |
142 |
143 | class Player:
144 |     def __init__(self, thing):
145 |         self.x = thing.x
146 |         self.y = thing.y
147 |         self.z = 0.0
148 |         self.angle = thing.angle
149 |         self.floor_h = 48.0
150 |         self.direction = Vec2(math.cos(self.angle), math.sin(self.angle))
151 |
152 |     def update(self):
153 |         self.direction = Vec2(math.cos(self.angle), math.sin(self.angle))
154 |
155 |
156 | class Texture:
157 |     def __init__(self, name, data, width, height):
158 |         self.name = name
159 |         self.data = data
160 |         self.width = width
161 |         self.height = height
162 |
163 |
164 | class Picture:
165 |     def __init__(self, data):
166 |         width, height, offset_x, offset_y = unpack_from('<HHhh', data, 0)
167 |         self.width, self.height = width, height
168 |         self.data = [[0 for k in range(height)] for j in range(width)]
169 |
170 |         for j in range(width):
171 |             col_offset, = unpack_from('<H', data, 8+4*j)
172 |             y_offset, = unpack_from('<B', data, col_offset)
173 |             length, _ = unpack_from('<BB', data, col_offset+1)
174 |             for y in range(length):
175 |                 self.data[j][y+y_offset] = data[col_offset+3+y]
176 |
177 |
178 | class Colormap:
179 |     def __init__(self, data):
180 |         self.data = []
181 |         for i in range(256):
182 |             self.data.append(data[i])
183 |
184 |
185 | class Vec2:
186 |     def __init__(self, x=0.0, y=0.0):
187 |         self.x = x
188 |         self.y = y
189 |
190 |     def dot(self, v):
191 |         return self.x * v.x + self.y * v.y
192 |
193 |
194 | class Map:
195 |     def __init__(self, filepath, map_):
196 |         self.extract_entries(filepath, map_)
197 |
198 |         self.extract_palette()
199 |         self.extract_colormaps()
200 |         self.extract_patches()
201 |         self.extract_textures()
202 |         self.extract_vertices()
203 |         self.extract_sectors()
204 |         self.extract_sidedefs()
205 |         self.extract_linedefs()
206 |         self.extract_segs()
207 |         self.extract_subsectors()
208 |         self.extract_bspnodes()
209 |         self.extract_things()
210 |
211 |         self.player = Player(self.things[0])
212 |
213 |     def extract_entries(self, filepath, mapname):
214 |         data = open(filepath, 'rb').read()
215 |         nentries, dir_offset = unpack_from('<II', data, 4)
216 |
217 |         self.entry_data = {}
218 |         inmap = False
219 |         bmapname = bytes([ord(c) for c in mapname])  # TODO encoding='acscii'?
220 |
221 |         # filter entries that apply to map
222 |         for i in range(nentries):
223 |             offset, length, name = unpack_from('<II8s', data, dir_offset+i*16)
224 |             name = name.rstrip(b'\0')
225 |
226 |             if name == bmapname:
227 |                 inmap = True
228 |             elif ((inmap or name in (b'PLAYPAL', b'COLORMAP')) and
229 |                     name not in self.entry_data):
230 |                 self.entry_data[name.upper()] = data[offset: offset+length]
231 |
232 |     def extract_vertices(self):
233 |         self.vertices = []
234 |         data = self.entry_data[b'VERTEXES']
235 |         for j in range(len(data)//4):
236 |             x, y = unpack_from('<hh', data, j*4)
237 |             self.vertices.append(Vertex(x, y))
238 |
239 |     def extract_linedefs(self):
240 |         self.linedefs = []
241 |         data = self.entry_data[b'LINEDEFS']
242 |         for j in range(len(data)//14):
243 |             (vertex_start, vertex_end, _, special_type, _, sidedef_front,
244 |                 sidedef_back) = unpack_from('<HHHHHHH', data, j*14)
245 |             vertex_a = self.vertices[vertex_start]
246 |             vertex_b = self.vertices[vertex_end]
247 |             sidedef_a = self.sidedefs[sidedef_front]
248 |             if sidedef_back != 0xffff:
249 |                 sidedef_b = self.sidedefs[sidedef_back]
250 |             else:
251 |                 sidedef_b = None
252 |             linedef = Linedef(vertex_a, vertex_b, special_type,
253 |                               sidedef_a, sidedef_b)
254 |             self.linedefs.append(linedef)
255 |
256 |         # sky hack
257 |         for linedef in self.linedefs:
258 |             if (linedef.sidedef_front is not None and
259 |                     linedef.sidedef_front.sector.ceil_pic is not None and
260 |                     linedef.sidedef_back is not None and
261 |                     linedef.sidedef_back.sector.ceil_pic is not None):
262 |                 linedef.sidedef_front.skyhack = True
263 |
264 |     def extract_sidedefs(self):
265 |         self.sidedefs = []
266 |         data = self.entry_data[b'SIDEDEFS']
267 |         for j in range(len(data)//30):
268 |             (offset_x, offset_y, upper_texture_name, lower_texture_name,
269 |                 middle_texture_name, sector_nr) = \
270 |                     unpack_from('<HH8s8s8sH', data, j*30)
271 |
272 |             upper_texture = self.textures.get(upper_texture_name.rstrip(b'\0'))
273 |             lower_texture = self.textures.get(lower_texture_name.rstrip(b'\0'))
274 |             middle_texture = \
275 |                 self.textures.get(middle_texture_name.rstrip(b'\0'))
276 |             sector = self.sectors[sector_nr]
277 |             sidedef = Sidedef(offset_x, offset_y, upper_texture, lower_texture,
278 |                               middle_texture, sector)
279 |             self.sidedefs.append(sidedef)
280 |
281 |     def extract_sectors(self):
282 |         self.sectors = []
283 |         data = self.entry_data[b'SECTORS']
284 |         for j in range(len(data)//26):
285 |             (floor_h, ceil_h, floor_texture, ceil_texture, light_level,
286 |                 special_type, _) = \
287 |                     unpack_from('<hh8s8sHhh', data, j*26)
288 |             light_level &= 0xff
289 |             floor_texture = floor_texture.rstrip(b'\0')
290 |             if floor_texture.startswith(b'NUKAGE'):
291 |                 names = [b'NUKAGE1', b'NUKAGE2', b'NUKAGE3']
292 |                 floor_flat = Flat([self.entry_data[name] for name in names])
293 |             else:
294 |                 floor_flat = Flat([self.entry_data[floor_texture]])
295 |             ceil_texture = ceil_texture.rstrip(b'\0')
296 |             ceil_flat = Flat([self.entry_data[ceil_texture]])
297 |             ceil_pic = None
298 |             if b'F_SKY' in ceil_texture:
299 |                 pic_data = self.entry_data[ceil_texture.replace(b'F_', b'')]
300 |                 ceil_pic = Picture(pic_data)
301 |             sector = Sector(floor_h, ceil_h, floor_texture, ceil_texture,
302 |                             light_level, special_type, floor_flat, ceil_flat,
303 |                             ceil_pic)
304 |             self.sectors.append(sector)
305 |
306 |     def extract_patches(self):
307 |         self.patches = []
308 |         data = self.entry_data[b'PNAMES']
309 |         n_pnames, = unpack_from('<i', data, 0)
310 |         for j in range(n_pnames):
311 |             patch_name = data[4+j*8:4+(j+1)*8].rstrip(b'\0').upper()
312 |             try:
313 |                 patch = Picture(self.entry_data[patch_name])
314 |             except KeyError:
315 |                 patch = None
316 |             self.patches.append(patch)
317 |
318 |     def extract_textures(self):
319 |         self.textures = {}
320 |         data = self.entry_data[b'TEXTURE1']
321 |         n_textures, = unpack_from('<i', data, 0)
322 |         for j in range(n_textures):
323 |             offset, = unpack_from('<i', data, 4+j*4)
324 |             (name, _, width, height, _, n_patches) = \
325 |                 unpack_from('<8sIHHIH', data, offset)
326 |             name = name.rstrip(b'\0')
327 |             patch = [[0 for k in range(height)] for j in range(width)]
328 |             for k in range(n_patches):
329 |                 offset_x, offset_y, patch_index, _, _ = \
330 |                     unpack_from('<hhhhh', data, offset+22+k*10)
331 |                 pic = self.patches[patch_index]
332 |                 for m in range(pic.width):
333 |                     for n in range(pic.height):
334 |                         x = m+offset_x
335 |                         y = n+offset_y
336 |                         if 0 <= x < width and 0 <= y < height:
337 |                             patch[x][y] = pic.data[m][n]
338 |             self.textures[name] = Texture(name, patch, width, height)
339 |
340 |     def extract_palette(self):
341 |         self.palette = []
342 |         data = self.entry_data[b'PLAYPAL']
343 |         for j in range(256):
344 |             r, g, b = unpack_from('<BBB', data, 3*j)
345 |             self.palette.append((r, g, b))
346 |
347 |     def extract_colormaps(self):
348 |         self.colormaps = []
349 |         data = self.entry_data[b'COLORMAP']
350 |         for j in range(34):
351 |             self.colormaps.append(Colormap(data[256*j:256*(j+1)]))
352 |
353 |     def extract_segs(self):
354 |         self.segs = []
355 |         data = self.entry_data[b'SEGS']
356 |         for j in range(len(data)//12):
357 |             vertex_start, vertex_end, angle, linedef_nr, direction, offset = \
358 |                 unpack_from('<HHhHHh', data, j*12)
359 |             vertex_a = self.vertices[vertex_start]
360 |             vertex_b = self.vertices[vertex_end]
361 |             linedef = self.linedefs[linedef_nr]
362 |             sidedef_back = None
363 |             is_portal = False
364 |             if direction == 0:
365 |                 sidedef_front = linedef.sidedef_front
366 |                 if linedef.sidedef_back is not None:
367 |                     sidedef_back = linedef.sidedef_back
368 |                     is_portal = True
369 |             else:
370 |                 sidedef_front = linedef.sidedef_back
371 |                 if linedef.sidedef_front is not None:
372 |                     sidedef_back = linedef.sidedef_front
373 |                     is_portal = True
374 |             sector_front = sidedef_front.sector
375 |             if sidedef_back is not None:
376 |                 sector_back = sidedef_back.sector
377 |             else:
378 |                 sector_back = None
379 |             self.segs.append(Seg(vertex_a, vertex_b, angle, linedef,
380 |                                  sidedef_front, sidedef_back, is_portal,
381 |                                  offset, sector_front, sector_back))
382 |
383 |     def extract_subsectors(self):
384 |         self.subsectors = []
385 |         data = self.entry_data[b'SSECTORS']
386 |         for j in range(len(data)//4):
387 |             seg_count, first_seg = unpack_from('<HH', data, j*4)
388 |             segs = self.segs[first_seg:first_seg+seg_count]
389 |             self.subsectors.append(SubSector(segs))
390 |
391 |     def extract_bspnodes(self):
392 |         self.bspnodes = []
393 |         data = self.entry_data[b'NODES']
394 |         for j in range(len(data)//28):
395 |             (partition_x, partition_y, change_partition_x, change_partition_y,
396 |              _, _, _,  _, _, _, _, _, rchild_id, lchild_id) = \
397 |                 unpack_from('<hhhhhhhhhhhhhh', data, j*28)
398 |             bspnode = BSPNode(partition_x, partition_y, change_partition_x,
399 |                               change_partition_y, rchild_id, lchild_id)
400 |             self.bspnodes.append(bspnode)
401 |
402 |     def extract_things(self):
403 |         self.things = []
404 |         data = self.entry_data[b'THINGS']
405 |         for j in range(len(data)//10):
406 |             x, y, angle, type_, _ = unpack_from('<hhhhh', data, j*10)
407 |             self.things.append(Thing(x, y, angle, type_))
408 |
409 |
410 | class ClipBufferNode:
411 |     def __init__(self, start, end):
412 |         self.start = start
413 |         self.end = end
414 |         self.occluded = False
415 |         self.left = None
416 |         self.right = None
417 |         self.partitioned = False
418 |
419 |     def checkSpan(self, start, end, result, add):
420 |         # span completely occluded by node
421 |         if self.occluded and start >= self.start and end <= self.end:
422 |             return
423 |
424 |         # no overlap, so node does not apply to span
425 |         if start > self.end or end < self.start:
426 |             return
427 |
428 |         # reduce span to overlap with node
429 |         if start <= self.start:
430 |             start = self.start
431 |
432 |         if end >= self.end:
433 |             end = self.end
434 |
435 |         if add:
436 |             # unpartitioned, unoccluded node covered fully by span
437 |             if (not self.occluded and not self.partitioned and
438 |                     start <= self.start and end >= self.end):
439 |                 result.append(start)
440 |                 result.append(end)
441 |                 self.occluded = True
442 |                 return
443 |
444 |             # partition if needed
445 |             if not self.partitioned:
446 |                 if start == self.start:
447 |                     self.partitionPoint = end
448 |                 else:
449 |                     self.partitionPoint = start - 1
450 |
451 |                 self.left = ClipBufferNode(self.start, self.partitionPoint)
452 |                 self.right = ClipBufferNode(self.partitionPoint + 1, self.end)
453 |                 self.partitioned = True
454 |
455 |         else:
456 |             if not self.partitioned:
457 |                 result.append(start)
458 |                 result.append(end)
459 |                 return
460 |
461 |         # recurse into left and right
462 |         if start <= self.partitionPoint and end <= self.partitionPoint:
463 |             self.left.checkSpan(start, end, result, add)
464 |
465 |         elif start <= self.partitionPoint and end > self.partitionPoint:
466 |             self.left.checkSpan(start, self.partitionPoint, result, add)
467 |             self.right.checkSpan(self.partitionPoint + 1, end, result, add)
468 |
469 |         elif start > self.partitionPoint and end > self.partitionPoint:
470 |             self.right.checkSpan(start, end, result, add)
471 |
472 |         # left and right occluded, so node fully occluded
473 |         if add and self.left.occluded and self.right.occluded:
474 |             self.occluded = True
475 |
476 |
477 | def get_special_light(sector, frame_count):
478 |     special_type = sector.special_type
479 |
480 |     if special_type in (1, 17):
481 |         if sector.random[(frame_count & 0xff0) >> 4]:
482 |             return 10
483 |     elif special_type in (2, 12):
484 |         if (frame_count % 120) < 60:
485 |             return 10
486 |     elif special_type in (3, 13):
487 |         if (frame_count % 240) < 120:
488 |             return 10
489 |     elif special_type == 8:
490 |         return OSCILLATION[frame_count & 0xff]
491 |
492 |     return 0
493 |
494 |
495 | def get_wall_colormap(colormaps, currentZ, seg, frame_count):
496 |     sector = seg.sector_front
497 |
498 |     colorMapIndex = int((currentZ - 5) * 0.05)
499 |     colorMapIndex = min(colorMapIndex, 32 - (sector.light_level >> 3))
500 |
501 |     colorMapIndex += ((((seg.angle + 8192) & 0x7fff) - 16384) & 0x7fff) // 3200
502 |     colorMapIndex += get_special_light(sector, frame_count)
503 |
504 |     colorMapIndex = max(min(colorMapIndex, 31), 0)
505 |     return colormaps[colorMapIndex]
506 |
507 |
508 | def get_flat_colormap(colormaps, currentZ, seg, frame_count):
509 |     sector = seg.sector_front
510 |
511 |     colorMapIndex = int((currentZ - 5) * 0.05)
512 |     colorMapIndex = min(colorMapIndex, 32 - (sector.light_level >> 3))
513 |
514 |     colorMapIndex += get_special_light(sector, frame_count)
515 |
516 |     colorMapIndex = max(min(colorMapIndex, 31), 0)
517 |     return colormaps[colorMapIndex]
518 |
519 |
520 | def draw_wall_col(drawsurf, x, middleMinY, middleMaxY, wallTexture,
521 |                   currentTextureX, currentZ, middleTextureY,
522 |                   middleTextureYStep, colormap):
523 |     width = wallTexture.width
524 |     height = wallTexture.height
525 |     wallTextureData = wallTexture.data
526 |
527 |     tx = int(currentTextureX * currentZ) % width
528 |     for y in range(middleMinY, middleMaxY):
529 |         ty = int(middleTextureY) % height
530 |         drawsurf[y*WIDTH+x] = colormap.data[wallTextureData[tx][ty]]
531 |         middleTextureY += middleTextureYStep
532 |
533 |
534 | def draw_flat_col(drawsurf, x, ceilMin, ceilMax, seg, player, flatTexture,
535 |                   flat_h, INV, sign, colormaps, frame_count):
536 |     for y in range(ceilMin, ceilMax):
537 |         z = sign * WIDTH_2 * (-flat_h + player.z) * INV[y]
538 |
539 |         colormap = get_flat_colormap(colormaps, z, seg, frame_count)
540 |
541 |         playerDir = player.direction
542 |         px = playerDir.x * z + player.x
543 |         py = playerDir.y * z + player.y
544 |
545 |         lateralLength = TAN_45_DEG * z
546 |
547 |         leftX = -playerDir.y * lateralLength + px
548 |         leftY = playerDir.x * lateralLength + py
549 |         rightX = playerDir.y * lateralLength + px
550 |         rightY = -playerDir.x * lateralLength + py
551 |
552 |         dx = (rightX - leftX) * HEIGHT_INV
553 |         dy = (rightY - leftY) * HEIGHT_INV
554 |
555 |         tx = int(leftX + dx * x) & 0x3f
556 |         ty = int(leftY + dy * x) & 0x3f
557 |
558 |         drawsurf[y*WIDTH+x] = colormap.data[flatTexture[tx][ty]]
559 |
560 |
561 | def draw_sky_col(drawsurf, x, upperMinY, upperMaxY, seg, player):
562 |     ceil_pic = seg.sector_front.ceil_pic
563 |     ceilingTextureWidth = ceil_pic.width
564 |     ceilingTextureHeight = ceil_pic.height
565 |     ceilTextureData = ceil_pic.data
566 |
567 |     normPlayerAngle = player.angle % (2 * math.pi)
568 |     if normPlayerAngle < 0:
569 |         normPlayerAngle += 2 * math.pi
570 |
571 |     textureOffsetX = ceilingTextureWidth * (normPlayerAngle / (math.pi * 0.5))
572 |     dx = ceilingTextureWidth / WIDTH
573 |     dy = ceilingTextureHeight / (WIDTH//2)
574 |
575 |     for y in range(upperMinY, upperMaxY):
576 |         tx = int(dx * x - textureOffsetX) % ceilingTextureWidth
577 |         ty = int(y * dy) % ceilingTextureHeight
578 |         drawsurf[y*WIDTH+x] = ceilTextureData[tx][ty]
579 |
580 |
581 | def draw_seg(seg, map_, drawsurf, scrXA, scrXB, cbuffer, za, zb, textureX0,
582 |              textureX1, frontSidedef, lowerOcclusion, upperOcclusion,
583 |              frame_count):
584 |     # get non-occluded clips from cbuffer
585 |     cbufferResult = []
586 |     cbuffer.checkSpan(scrXA, scrXB, cbufferResult, not seg.is_portal)
587 |
588 |     # no visible clips
589 |     if not cbufferResult:
590 |         return
591 |
592 |     player = map_.player
593 |     colormaps = map_.colormaps
594 |     sector_front = seg.sector_front
595 |     sector_back = seg.sector_back
596 |
597 |     # front side
598 |     frontCeil = sector_front.ceil_h - player.z
599 |     frontFloor = sector_front.floor_h - player.z
600 |     scrYAFrontCeil = WIDTH_2 * (frontCeil / -za) + HEIGHT_2
601 |     scrYAFrontFloor = WIDTH_2 * (frontFloor / -za) + HEIGHT_2
602 |     scrYBFrontCeil = WIDTH_2 * (frontCeil / -zb) + HEIGHT_2
603 |     scrYBFrontFloor = WIDTH_2 * (frontFloor / -zb) + HEIGHT_2
604 |
605 |     # back side
606 |     if seg.is_portal:
607 |         backCeil = sector_back.ceil_h - player.z
608 |         backFloor = sector_back.floor_h - player.z
609 |         scrYABackCeil = WIDTH_2 * (backCeil / -za) + HEIGHT_2
610 |         scrYABackFloor = WIDTH_2 * (backFloor / -za) + HEIGHT_2
611 |         scrYBBackCeil = WIDTH_2 * (backCeil / -zb) + HEIGHT_2
612 |         scrYBBackFloor = WIDTH_2 * (backFloor / -zb) + HEIGHT_2
613 |         hasLowerWall = backFloor > frontFloor
614 |         hasUpperWall = backCeil < frontCeil
615 |     else:
616 |         backCeil = 0
617 |         backFloor = 0
618 |         scrYABackCeil = 0
619 |         scrYABackFloor = 0
620 |         scrYBBackCeil = 0
621 |         scrYBBackFloor = 0
622 |         hasLowerWall = False
623 |         hasUpperWall = False
624 |
625 |     # calculate steps
626 |     dxInv = 1.0 / (scrXB - scrXA)
627 |     zInvStep = (1 / zb - 1 / za) * dxInv
628 |     textureXStep = (textureX1 / zb - textureX0 / za) * dxInv
629 |     middleCeilStep = (scrYBFrontCeil - scrYAFrontCeil) * dxInv
630 |     middlefloorStep = (scrYBFrontFloor - scrYAFrontFloor) * dxInv
631 |     lowerCeilStep = (scrYBBackFloor - scrYABackFloor) * dxInv
632 |     lowerfloorStep = (scrYBFrontFloor - scrYAFrontFloor) * dxInv
633 |     upperCeilStep = (scrYBFrontCeil - scrYAFrontCeil) * dxInv
634 |     upperFloorStep = (scrYBBackCeil - scrYABackCeil) * dxInv
635 |
636 |     # loop over non-occluded seg clips
637 |     for clip in range(0, len(cbufferResult), 2):
638 |         clipLeft = cbufferResult[clip]
639 |         clipRight = cbufferResult[clip+1]
640 |
641 |         currentMiddleCeil = scrYAFrontCeil
642 |         currentMiddleFloor = scrYAFrontFloor
643 |
644 |         currentLowerCeil = scrYABackFloor
645 |         currentLowerFloor = scrYAFrontFloor
646 |         currentUpperCeil = scrYAFrontCeil
647 |         currentUpperFloor = scrYABackCeil
648 |
649 |         currentZInv = 1 / za
650 |         currentTextureX = textureX0 / za
651 |         scrLeft = scrXA
652 |         scrRight = scrXB
653 |
654 |         # narrow to clip
655 |         if scrLeft < clipLeft:
656 |             dif = clipLeft - scrXA
657 |             currentTextureX += dif * textureXStep
658 |             currentZInv += dif * zInvStep
659 |             currentMiddleCeil += dif * middleCeilStep
660 |             currentMiddleFloor += dif * middlefloorStep
661 |
662 |             if hasLowerWall:
663 |                 currentLowerCeil += dif * lowerCeilStep
664 |                 currentLowerFloor += dif * lowerfloorStep
665 |
666 |             if hasUpperWall:
667 |                 currentUpperCeil += dif * upperCeilStep
668 |                 currentUpperFloor += dif * upperFloorStep
669 |
670 |             scrLeft = clipLeft
671 |
672 |         if scrRight > clipRight:
673 |             scrRight = clipRight
674 |
675 |         # draw clip column-wise
676 |         for x in range(scrLeft, scrRight+1):
677 |             currentZ = 1.0 / currentZInv
678 |             colormap = get_wall_colormap(colormaps, currentZ, seg, frame_count)
679 |
680 |             middleMaxY = int(currentMiddleFloor)
681 |             middleMinY = int(currentMiddleCeil)
682 |             middleDy = middleMaxY - middleMinY
683 |
684 |             if middleDy == 0:  # on collision with wall
685 |                 middleTextureYStep = 0
686 |             else:
687 |                 middleTextureYStep = (frontCeil - frontFloor) / middleDy
688 |             middleTextureY = frontSidedef.offset_y
689 |
690 |             if middleMinY < lowerOcclusion[x]:
691 |                 dif = lowerOcclusion[x] - middleMinY
692 |                 middleTextureY = \
693 |                     dif * middleTextureYStep + frontSidedef.offset_y
694 |                 middleMinY = lowerOcclusion[x]
695 |
696 |             middleMaxY = min(middleMaxY, upperOcclusion[x])
697 |
698 |             # middle wall
699 |             middle_texture = frontSidedef.middle_texture
700 |             if not seg.is_portal and middle_texture is not None:
701 |                 draw_wall_col(drawsurf, x, middleMinY, middleMaxY,
702 |                               middle_texture, currentTextureX, currentZ,
703 |                               middleTextureY, middleTextureYStep, colormap)
704 |
705 |             # floor
706 |             ceilMin = int(max(lowerOcclusion[x], middleMaxY))
707 |             if ceilMin < upperOcclusion[x]:
708 |                 floor_flat = sector_front.floor_flat.get_data(frame_count)
709 |                 draw_flat_col(drawsurf, x, ceilMin, upperOcclusion[x], seg,
710 |                               player, floor_flat, sector_front.floor_h,
711 |                               FLOOR_Y_INV, 1, colormaps, frame_count)
712 |                 upperOcclusion[x] = ceilMin
713 |
714 |             # lower wall
715 |             if hasLowerWall:
716 |                 lowerMaxY = int(currentLowerFloor)
717 |                 lowerMinY = int(currentLowerCeil)
718 |
719 |                 lowerDy = lowerMaxY - lowerMinY
720 |                 lowerTextureYStep = (backFloor - frontFloor) / max(lowerDy, 0.00001)
721 |                 lowerTextureY = frontSidedef.offset_y
722 |
723 |                 if lowerMinY < lowerOcclusion[x]:
724 |                     dif = lowerOcclusion[x] - lowerMinY
725 |                     lowerTextureY = \
726 |                         dif * lowerTextureYStep + frontSidedef.offset_y
727 |                     lowerMinY = lowerOcclusion[x]
728 |
729 |                 lowerMaxY = min(lowerMaxY, upperOcclusion[x])
730 |
731 |                 lower_texture = frontSidedef.lower_texture
732 |                 if lower_texture is not None:
733 |                     draw_wall_col(drawsurf, x, lowerMinY, lowerMaxY,
734 |                                   lower_texture, currentTextureX, currentZ,
735 |                                   lowerTextureY, lowerTextureYStep,
736 |                                   colormap)
737 |
738 |                 if lowerMinY < upperOcclusion[x]:
739 |                     upperOcclusion[x] = lowerMinY
740 |
741 |                 currentLowerCeil += lowerCeilStep
742 |                 currentLowerFloor += lowerfloorStep
743 |
744 |             # ceil
745 |             ceilMax = int(min(upperOcclusion[x], middleMinY))
746 |             if ceilMax > lowerOcclusion[x]:
747 |                 # sky
748 |                 if sector_front.ceil_pic is not None:
749 |                     draw_sky_col(drawsurf, x, lowerOcclusion[x], ceilMax, seg,
750 |                                  player)
751 |                 # ceil
752 |                 else:
753 |                     ceil_flat = sector_front.ceil_flat.get_data(frame_count)
754 |                     draw_flat_col(drawsurf, x, lowerOcclusion[x], ceilMax, seg,
755 |                                   player, ceil_flat, sector_front.ceil_h,
756 |                                   CEIL_Y_INV, -1, colormaps, frame_count)
757 |
758 |                 lowerOcclusion[x] = middleMinY
759 |
760 |             # upper wall
761 |             if hasUpperWall:
762 |                 upperMaxY = int(currentUpperFloor)
763 |                 upperMinY = int(currentUpperCeil)
764 |
765 |                 upperDy = upperMaxY - upperMinY
766 |                 upperTextureYStep = (frontCeil - backCeil) / max(upperDy, 0.00001)
767 |                 upperTextureY = frontSidedef.offset_y
768 |
769 |                 if upperMinY < lowerOcclusion[x]:
770 |                     dif = lowerOcclusion[x] - upperMinY
771 |                     upperTextureY = \
772 |                         dif * upperTextureYStep + frontSidedef.offset_y
773 |                     upperMinY = lowerOcclusion[x]
774 |
775 |                 upperMaxY = min(upperMaxY, upperOcclusion[x])
776 |                 upper_texture = frontSidedef.upper_texture
777 |
778 |                 # sky
779 |                 if frontSidedef.skyhack or upper_texture is None:
780 |                     if sector_front.ceil_pic is not None:
781 |                         draw_sky_col(drawsurf, x, upperMinY, upperMaxY, seg,
782 |                                      player)
783 |                 # wall
784 |                 else:
785 |                     draw_wall_col(drawsurf, x, upperMinY, upperMaxY,
786 |                                   upper_texture, currentTextureX, currentZ,
787 |                                   upperTextureY, upperTextureYStep, colormap)
788 |
789 |                 if upperMaxY > lowerOcclusion[x]:
790 |                     lowerOcclusion[x] = upperMaxY
791 |
792 |                 currentUpperCeil += upperCeilStep
793 |                 currentUpperFloor += upperFloorStep
794 |
795 |             currentMiddleCeil += middleCeilStep
796 |             currentMiddleFloor += middlefloorStep
797 |             currentZInv += zInvStep
798 |             currentTextureX += textureXStep
799 |
800 |
801 | def render(map_, frame_count):
802 |     drawsurf = bytearray(WIDTH * HEIGHT)
803 |
804 |     lowerOcclusion = WIDTH * [0]
805 |     upperOcclusion = WIDTH * [HEIGHT]
806 |
807 |     cbuffer = ClipBufferNode(0, WIDTH-1)
808 |
809 |     subsectors = map_.bspnodes[-1].visit(map_)
810 |
811 |     player = map_.player
812 |     player.floor_h = subsectors[0].segs[0].sector_front.floor_h
813 |
814 |     for subsector in subsectors:
815 |         if cbuffer.occluded:
816 |             break
817 |
818 |         for seg in subsector.segs:
819 |             if cbuffer.occluded:
820 |                 break
821 |
822 |             # backface/frustrum culling
823 |             pa = seg.vertex_start
824 |             pb = seg.vertex_end
825 |             v0 = Vec2(pa.x - player.x, pa.y - player.y)
826 |             v1 = Vec2(pb.x - player.x, pb.y - player.y)
827 |             v2 = Vec2(player.direction.x, player.direction.y)
828 |             za = v2.dot(v0)
829 |             zb = v2.dot(v1)
830 |             v3 = Vec2(-v2.y, v2.x)
831 |             xa = v3.dot(v0)
832 |             xb = v3.dot(v1)
833 |
834 |             if not (za <= 0.1 and zb <= 0.1):
835 |                 frontSidedef = seg.sidedef_front
836 |                 textureX0 = seg.offset + frontSidedef.offset_x
837 |                 textureX1 = seg.offset + seg.length + frontSidedef.offset_x
838 |
839 |                 if za <= 0.1:
840 |                     p = (zb - 0.1) / (zb - za)
841 |                     xa = xb + p * (xa - xb)
842 |                     textureX0 = textureX1 + p * (textureX0 - textureX1)
843 |                     za = 0.1
844 |
845 |                 elif zb <= 0.1:
846 |                     p = (za - 0.1) / (za - zb)
847 |                     xb = xa + p * (xb - xa)
848 |                     textureX1 = textureX0 + p * (textureX1 - textureX0)
849 |                     zb = 0.1
850 |
851 |                 scrXA = int(WIDTH_2 * xa / -za) + WIDTH_2
852 |                 scrXB = int(WIDTH_2 * xb / -zb) + WIDTH_2
853 |
854 |                 if scrXA < scrXB:
855 |                     draw_seg(seg, map_, drawsurf, scrXA, scrXB, cbuffer, za,
856 |                              zb, textureX0, textureX1, frontSidedef,
857 |                              lowerOcclusion, upperOcclusion, frame_count)
858 |
859 |     return drawsurf
860 |
861 |
862 | #if __name__ == '__main__':
863 | #    map_ = Map('DOOM1.WAD', 'E1M1')
864 | #    map_.player.update()
865 | #    render(map_, 0)
866 |


--------------------------------------------------------------------------------
