/README.md:
--------------------------------------------------------------------------------
 1 | Animated Sand demo<br>
 2 | Project started 2/2/2019<br>
 3 | Written by Larry Bank<br>
 4 | bitbank@pobox.com<br>
 5 | Based on Phil Burgess' Animated Sand code<br>
 6 | <br>

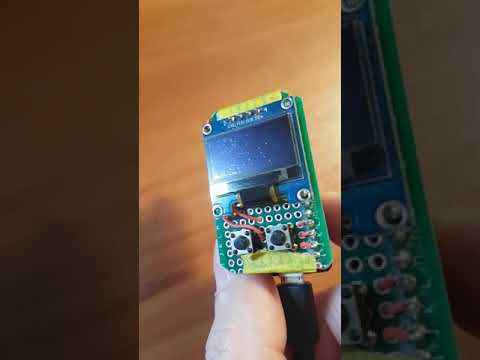

 7 | [![Demo video](https://img.youtube.com/vi/ktr4Itf9JtU/0.jpg)](https://www.youtube.com/watch?v=ktr4Itf9JtU)
 8 |
 9 | <br>
10 | The purpose of this code is simulate grains of sand on a 2 dimensional
11 | surface. An accelerometer provides the tilt sensing to give motion to the
12 | grains. My purpose in writing this was to understand the logic of such
13 | a physics demo and to optimize it. Starting from Phil's code, I made the
14 | following changes:<br>
15 | - Switched to a different accelerometer (MPU-6050 - what I had on hand)<br>
16 | - Upgraded display from a 15x7 LED matrix to a 128x64 monochrome OLED (SSD1306)<br>
17 | - Increased the number of grains from 20 to 250<br>
18 | - Image matrix from 1 byte per pixel to 1 bit per pixel to match the display<br>
19 | - Image memory mapping to match the memory layout of the display for easy updating<br>
20 | - Simplified the pixel 'bounce' loop by removing some calls to abs() and simplifying other code<br>
21 | - Removed the floating point math in the 2D vector limiting code<br>
22 | - Added oledDumpBuffer() function to my oled_96 library which only transmits blocks of 16x8 pixels which have changed since the last call (aka dirty rectangle - for speed)<br>
23 | - Fixed bug in collision logic which allowed grains to overlap<br>
24 | <br>
25 | This code depends on my oled_96 library. You can download it here:<br>
26 | https://github.com/bitbank2/oled_96
27 | <br>
28 | If you find this code useful, please consider buying me a cup of coffee
29 |
30 | [![paypal](https://www.paypalobjects.com/en_US/i/btn/btn_donateCC_LG.gif)](https://www.paypal.com/cgi-bin/webscr?cmd=_s-xclick&hosted_button_id=SR4F44J2UR8S4)
31 |
32 |


--------------------------------------------------------------------------------
/Animated_Sand.ino:
--------------------------------------------------------------------------------
  1 | //
  2 | // Animated sand demo
  3 | // Written by Larry Bank (bitbank@pobox.com), https://github.com/bitbank2
  4 | // Project started 2/2/2019
  5 | // original code by Phil Burgess of Adafruit:
  6 | // https://github.com/adafruit/Adafruit_Learning_System_Guides/tree/master/LED_Sand
  7 | //
  8 | // I built an Adafruit Feather "wing" for another project which consists of a SSD1306 I2C OLED
  9 | // two push buttons and an MPU-6050 accelerometer/gyroscope. I changed the project design and
 10 | // was no longer going to use the hat. I then saw the animated sand demo and thought it
 11 | // would be a fun exercise to port the code to the SSD1306 and optimize it.
 12 | // The original code animated 20 grains on a small 15x7 LED matrix.
 13 | //
 14 | // Tested on the Adafruit nRF52832 Feather and the Arduino MKR Zero
 15 | //
 16 | // What did I change?
 17 | // 1) Switched to a different accelerometer (MPU-6050 - what I had on hand)
 18 | // 2) Upgraded display from a 15x7 LED matrix to a 128x64 monochrome OLED (SSD1306)
 19 | // 3) Increased the number of grains from 20 to 250
 20 | // 4) Image matrix from 1 byte per pixel to 1 bit per pixel to match the display
 21 | // 5) Image memory mapping to match the memory layout of the display for easy updating
 22 | // 6) Simplified the pixel 'bounce' loop by removing some calls to abs() and simplifying other code
 23 | // 7) Removed the floating point math in the 2D vector limiting code
 24 | // 8) Added oledDumpBuffer() function to my oled_96 library which only transmits blocks of 16x8
 25 | //    pixels which have changed since the last call (aka dirty rectangle - for speed)
 26 | // 9) Fixed bug in collision logic which allowed grains to overlap
 27 | //
 28 | // Dependencies - oled_96 library: https://github.com/bitbank2/oled_96
 29 | //
 30 | #include <oled_96.h>
 31 | #include <Wire.h>
 32 |
 33 | static byte imu_addr;
 34 | // frame counter for updating display every other pixel update
 35 | static int iFrame;
 36 |
 37 | // Number of grains of sand
 38 | #define N_GRAINS     250
 39 | // Display width in pixels
 40 | #define WIDTH        128
 41 | // Display height in pixels
 42 | #define HEIGHT       64
 43 | // Maximum redraw rate, frames/second
 44 | #define MAX_FPS      120
 45 |
 46 | // The 'sand' grains exist in an integer coordinate space that's 256X
 47 | // the scale of the pixel grid, allowing them to move and interact at
 48 | // less than whole-pixel increments.
 49 | #define MAX_X (WIDTH  * 256 - 1) // Maximum X coordinate in grain space
 50 | #define MAX_Y (HEIGHT * 256 - 1) // Maximum Y coordinate
 51 | struct Grain {
 52 |   int16_t  x,  y; // Position
 53 |   int16_t vx, vy; // Velocity
 54 | } grain[N_GRAINS];
 55 | uint32_t prevTime = 0;           // Used for frames-per-second throttle
 56 | uint8_t img[WIDTH * (HEIGHT/8)]; // Copy of pixel map laid out the same way as the SSD1306
 57 |
 58 | // Wrapper function to write I2C data on Arduino
 59 | static void I2CWrite(int iAddr, unsigned char *pData, int iLen)
 60 | {
 61 |   Wire.beginTransmission(iAddr);
 62 |   Wire.write(pData, iLen);
 63 |   Wire.endTransmission();
 64 | } /* I2CWrite() */
 65 |
 66 | static byte I2CReadRegister(byte bAddr, byte bRegister, byte *pData, byte iLen)
 67 | {
 68 | byte ucTemp[2];
 69 | byte x;
 70 |
 71 |   ucTemp[0] = bRegister;
 72 |   I2CWrite(bAddr, ucTemp, 1); // write address of register to read
 73 |   Wire.requestFrom(bAddr, iLen); // request N bytes
 74 |   x = 0;
 75 |   while (x < iLen && Wire.available())
 76 |   {
 77 |      pData[x] = Wire.read();
 78 |      x++;
 79 |   }
 80 |   return x;
 81 | } /* I2CReadRegister() */
 82 |
 83 | void mpu6050Init(byte bAddr)
 84 | {
 85 | uint8_t ucTemp[4];
 86 | byte i;
 87 |
 88 |   imu_addr = bAddr;
 89 |   i = I2CReadRegister(imu_addr, 0x75, ucTemp, 1); // Get ID
 90 |   if (i != 1 || ucTemp[0] != 0x68)
 91 |   {
 92 | //     printf("Error, ID doesn't match 0x68; wrong device?\n");
 93 | //     printf("Value read = %02x\n", ucTemp[0]);
 94 |      return;
 95 |   }
 96 |  // pwr mgmt 1 register
 97 |  // bits: 7=reset, 6=sleep, 5=cycle, 4=n/a, 3=temp_disable, 2-0=clock select
 98 |   ucTemp[0] = 0x6b; // power management 1 register
 99 |   ucTemp[1] = 0x00; // disable sleep mode
100 |   I2CWrite(imu_addr, ucTemp, 2);
101 | } /* mpu6050Init() */
102 |
103 | void mpu6050ReadAccel(int16_t *X, int16_t *Y, int16_t *Z)
104 | {
105 | uint8_t ucTemp[8];
106 | byte i;
107 |
108 |   i = I2CReadRegister(imu_addr, 0x3b, ucTemp, 6);
109 |   if (i == 6)
110 |   {
111 |     *X = (ucTemp[0] << 8) + ucTemp[1]; // reverse endian order
112 |     *Y = (ucTemp[2] << 8) + ucTemp[3];
113 |     *Z = (ucTemp[4] << 8) + ucTemp[5];
114 |   }
115 | } /* mpu6050ReadAccel() */
116 |
117 | void setup() {
118 | int i, j, x, y;
119 | // initialize SSD1306 display
120 | // 1Mhz is wishful thinking, but worst case, the I2C driver will settle for 400Khz
121 |   oledInit(0x3c, OLED_128x64, 0, 0, -1, -1, 1000000);
122 |   oledFill(0); // fill display with black
123 |   mpu6050Init(0x68); // Initialize the accelerometer
124 |
125 |   memset(img, 0, sizeof(img)); // Clear our copy of the image array
126 |   for(i=0; i<N_GRAINS; i++) {  // For each sand grain...
127 |     do {
128 |       grain[i].x = random(WIDTH  * 256); // Assign random position within
129 |       grain[i].y = random(HEIGHT * 256); // the 'grain' coordinate space
130 |       // Check if corresponding pixel position is already occupied...
131 |       for(j=0; (j<i) && (((grain[i].x / 256) != (grain[j].x / 256)) ||
132 |                          ((grain[i].y / 256) != (grain[j].y / 256))); j++);
133 |     } while(j < i); // Keep retrying until a clear spot is found
134 |     x = grain[i].x / 256; y = grain[i].y / 256;
135 |     img[((y / 8) * 128) + x] |= (1 << (y & 7)); // Mark it
136 |     grain[i].vx = grain[i].vy = 0; // Initial velocity is zero
137 |   }
138 | } // setup
139 | void loop() {
140 |   int16_t i, x, y, z;
141 |   uint32_t t;
142 |   int32_t v2; // Velocity squared
143 |   int16_t ax, ay, az;
144 |   int        oldidx, newidx;
145 |   uint8_t    oldbit, newbit;
146 |   int        newx, newy;
147 |   int        x1, y1, x2, y2;
148 |
149 |   // Limit the animation frame rate to MAX_FPS.  Because the subsequent sand
150 |   // calculations are non-deterministic (don't always take the same amount
151 |   // of time, depending on their current states), this helps ensure that
152 |   // things like gravity appear constant in the simulation.
153 |   while(((t = micros()) - prevTime) < (1000000L / MAX_FPS));
154 |   prevTime = t;
155 |
156 |   // Display the current pixels (every other time through the loop)
157 |   // Since we have velocities of less than 1 pixel, this allows for movement up to 2 pixels
158 |   // per display update and still looks smooth since there are fractional velocities
159 |   if ((iFrame & 1) == 0)
160 |      oledDumpBuffer(img);
161 |   iFrame++;
162 |
163 |   // Read accelerometer...
164 |   mpu6050ReadAccel(&x, &y, &z);
165 |   ax = -x / 512;      // Transform accelerometer axes
166 |   ay = -y / 512;      // to grain coordinate space
167 |   az = abs(z) / 2048; // Random motion factor
168 |   az = (az >= 3) ? 1 : 4 - az;      // Clip & invert
169 |   ax -= az;                         // Subtract motion factor from X, Y
170 |   ay -= az;
171 |
172 |   // Apply 2D accelerometer vector to grain velocities...
173 |   //
174 |   // Theory of operation:
175 |   // if the 2D vector of the new velocity is too big (sqrt is > 256), this means it might jump
176 |   // over pixels. We want to limit the velocity to 1 pixel as a maximum.
177 |   // To avoid using floating point math (sqrt + 2 multiplies + 2 divides)
178 |   // Instead of normalizing the velocity to keep the same direction, we can trim the new
179 |   // velocity to 5/8 of it's value. This is a reasonable approximation since the maximum
180 |   // velocity impulse from the accelerometer is +/-64 (16384 / 256) and it gets added every frame
181 |   //
182 |   for(i=0; i<N_GRAINS; i++) {
183 |     grain[i].vx += ax + random(5); // Add a little random impulse to each grain
184 |     grain[i].vy += ay + random(5);
185 |     v2 = (int32_t)(grain[i].vx*grain[i].vx) + (int32_t)(grain[i].vy*grain[i].vy);
186 |     if (v2 > 65536) // too big, trim it
187 |     {
188 |       grain[i].vx = (grain[i].vx * 5)/8; // quick and dirty way to avoid doing a 'real' divide
189 |       grain[i].vy = (grain[i].vy * 5)/8;
190 |     }
191 |   } // for i
192 |
193 |   // Update the position of each grain, one at a time, checking for
194 |   // collisions and having them react.  This really seems like it shouldn't
195 |   // work, as only one grain is considered at a time while the rest are
196 |   // regarded as stationary.  Yet this naive algorithm, taking many not-
197 |   // technically-quite-correct steps, and repeated quickly enough,
198 |   // visually integrates into something that somewhat resembles physics.
199 |   // (I'd initially tried implementing this as a bunch of concurrent and
200 |   // "realistic" elastic collisions among circular grains, but the
201 |   // calculations and volument of code quickly got out of hand for both
202 |   // the tiny 8-bit AVR microcontroller and my tiny dinosaur brain.)
203 |   //
204 |   // (x,y) to bytes mapping:
205 |   // The SSD1306 has 8 rows of 128 bytes with the LSB of each byte at the top
206 |   // In other words, bytes are oriented vertically with bit 0 as the top pixel
207 |   // Part of my optimizations were writing the pixels into memory the same way they'll be
208 |   // written to the display. This means calculating an offset and bit to test/set each pixel
209 |   //
210 |   for(i=0; i<N_GRAINS; i++) {
211 |     newx = grain[i].x + grain[i].vx; // New position in grain space
212 |     newy = grain[i].y + grain[i].vy;
213 |     if(newx > MAX_X) {               // If grain would go out of bounds
214 |       newx         = MAX_X;          // keep it inside, and
215 |       grain[i].vx /= -2;             // give a slight bounce off the wall
216 |     } else if(newx < 0) {
217 |       newx         = 0;
218 |       grain[i].vx /= -2;
219 |     }
220 |     if(newy > MAX_Y) {
221 |       newy         = MAX_Y;
222 |       grain[i].vy /= -2;
223 |     } else if(newy < 0) {
224 |       newy         = 0;
225 |       grain[i].vy /= -2;
226 |     }
227 |
228 |     x1 = grain[i].x / 256; y1 = grain[i].y / 256;
229 |     oldidx = ((y1/8) * WIDTH + x1); // Prior pixel #
230 |     oldbit = 1 << (y1 & 7);
231 |     x2 = newx / 256; y2 = newy / 256;
232 |     newidx = ((y2/8) * WIDTH + x2); // New pixel #
233 |     newbit = 1 << (y2 & 7);
234 |     if((oldidx != newidx || oldbit != newbit) && // If grain is moving to a new pixel...
235 |         (img[newidx] & newbit) != 0) {       // but if that pixel is already occupied...
236 |         // Try skidding along just one axis of motion if possible (start w/faster axis)
237 |         if(abs(grain[i].vx) > abs(grain[i].vy)) { // X axis is faster
238 |           x1 = newx / 256; y1 = grain[i].y / 256;
239 |           newidx = ((y1 / 8) * WIDTH + x1);
240 |           newbit = 1 << (y1 & 7);
241 |           if((img[newidx] & newbit) == 0) { // That pixel's free!  Take it!  But...
242 |             newy         = grain[i].y; // Cancel Y motion
243 |             grain[i].vy /= -2;         // and bounce Y velocity
244 |           } else { // X pixel is taken, so try Y...
245 |             y1 = newy / 256; x1 = grain[i].x / 256;
246 |             newidx = ((y1 / 8) * WIDTH + x1);
247 |             newbit = 1 << (y1 & 7);
248 |             if((img[newidx] & newbit) == 0) { // Pixel is free, take it, but first...
249 |               newx         = grain[i].x; // Cancel X motion
250 |               grain[i].vx /= -2;         // and bounce X velocity
251 |             } else { // Both spots are occupied
252 |               newx         = grain[i].x; // Cancel X & Y motion
253 |               newy         = grain[i].y;
254 |               grain[i].vx /= -2;         // Bounce X & Y velocity
255 |               grain[i].vy /= -2;
256 |             }
257 |           }
258 |         } else { // Y axis is faster
259 |           y1 = newy / 256; x1 = grain[i].x / 256;
260 |           newidx = ((y1 / 8) * WIDTH + x1);
261 |           newbit = 1 << (y1 & 7);
262 |           if((img[newidx] & newbit) == 0) { // Pixel's free!  Take it!  But...
263 |             newx         = grain[i].x; // Cancel X motion
264 |             grain[i].vx /= -2;         // and bounce X velocity
265 |           } else { // Y pixel is taken, so try X...
266 |             y1 = grain[i].y / 256; x1 = newx / 256;
267 |             newidx = ((y1 / 8) * WIDTH + x1);
268 |             newbit = 1 << (y1 & 7);
269 |             if((img[newidx] & newbit) == 0) { // Pixel is free, take it, but first...
270 |               newy         = grain[i].y; // Cancel Y motion
271 |               grain[i].vy /= -2;         // and bounce Y velocity
272 |             } else { // Both spots are occupied
273 |               newx         = grain[i].x; // Cancel X & Y motion
274 |               newy         = grain[i].y;
275 |               grain[i].vx /= -2;         // Bounce X & Y velocity
276 |               grain[i].vy /= -2;
277 |             }
278 |           }
279 |         }
280 |     }
281 |     if (grain[i].x != newx || grain[i].y != newy)
282 |     {
283 |       y1 = newy / 256; x1 = newx / 256;
284 |       newidx = ((y1 / 8) * WIDTH + x1);
285 |       newbit = 1 << (y1 & 7);
286 |       grain[i].x  = newx; // Update grain position
287 |       grain[i].y  = newy;
288 |       img[oldidx] &= ~oldbit; // erase old pixel
289 |       img[newidx] |= newbit;  // Set new pixel
290 |     }
291 |   }
292 |  } // loop
293 |


--------------------------------------------------------------------------------
