├── .gitignore
├── README.md
├── _old
├── calc
│ ├── README.md
│ ├── package.json
│ ├── public
│ │ └── index.html
│ ├── src
│ │ ├── App.js
│ │ ├── actions.js
│ │ ├── fsm.test.js
│ │ ├── guards.js
│ │ ├── helpers.js
│ │ ├── index.js
│ │ ├── machine.js
│ │ ├── styles.css
│ │ ├── ui.test.js
│ │ └── xstateImmer.js
│ └── yarn.lock
├── fsm-service-1-callback
│ ├── README.md
│ ├── package.json
│ ├── public
│ │ └── index.html
│ └── src
│ │ ├── app.js
│ │ ├── compressionService.js
│ │ ├── fsm.test.js
│ │ ├── helpers.js
│ │ ├── index.js
│ │ ├── machine.js
│ │ ├── styles.css
│ │ ├── ui.test.js
│ │ ├── useMachine.js
│ │ └── xstateImmer.js
├── fsm-service-2-submachine
│ ├── README.md
│ ├── package.json
│ ├── public
│ │ └── index.html
│ └── src
│ │ ├── app.js
│ │ ├── compressionService.js
│ │ ├── fsm.test.js
│ │ ├── helpers.js
│ │ ├── index.js
│ │ ├── machine.js
│ │ ├── row.js
│ │ ├── styles.css
│ │ ├── ui.test.js
│ │ ├── useMachine.js
│ │ ├── workerMachine.js
│ │ └── xstateImmer.js
├── fsm-service-3-actor
│ ├── README.md
│ ├── package.json
│ ├── public
│ │ └── index.html
│ └── src
│ │ ├── __tests__
│ │ ├── fsm.test.js
│ │ └── ui.test.js
│ │ ├── components
│ │ ├── app.js
│ │ ├── row.js
│ │ └── styles.css
│ │ ├── fsm
│ │ ├── compressionService.js
│ │ ├── guards.js
│ │ ├── mainActions.js
│ │ ├── mainMachine.js
│ │ ├── services.js
│ │ ├── workerActions.js
│ │ └── workerMachine.js
│ │ ├── index.js
│ │ ├── utils
│ │ └── helpers.js
│ │ └── xstate-custom
│ │ ├── useMyMachine.js
│ │ └── xstateImmer.js
└── word-paralell-state
│ ├── README.md
│ ├── package.json
│ ├── public
│ └── index.html
│ ├── src
│ ├── App.js
│ ├── actions.js
│ ├── fsm.test.js
│ ├── guards.js
│ ├── helpers.js
│ ├── index.js
│ ├── machine.js
│ ├── services.js
│ ├── styles.css
│ ├── ui.test.js
│ └── xstateImmer.js
│ └── yarn.lock
├── crud-v1-services
├── README.md
├── package.json
├── public
│ └── index.html
├── src
│ ├── __tests__
│ │ ├── fsm.test.js
│ │ └── ui.test.js
│ ├── components
│ │ ├── app.js
│ │ └── styles.css
│ ├── fsm
│ │ ├── actions.js
│ │ ├── fsm.js
│ │ ├── guards.js
│ │ ├── machine.js
│ │ └── services.js
│ ├── index.js
│ └── utils
│ │ ├── helpers.js
│ │ └── useMyHooks.js
└── yarn.lock
├── crud-v2-optimistic-update
├── README.md
├── package.json
├── public
│ └── index.html
├── src
│ ├── __tests__
│ │ ├── fsm.test.js
│ │ └── ui.test.js
│ ├── components
│ │ ├── app.js
│ │ └── styles.css
│ ├── fsm
│ │ ├── actions.js
│ │ ├── fsm.js
│ │ ├── guards.js
│ │ ├── machine.js
│ │ └── services.js
│ ├── index.js
│ └── utils
│ │ ├── helpers.js
│ │ └── useMyHooks.js
└── yarn.lock
├── crud-v3-promises
├── README.md
├── package.json
├── public
│ └── index.html
├── src
│ ├── __tests__
│ │ ├── fsm.test.js
│ │ └── ui.test.js
│ ├── components
│ │ ├── app.js
│ │ └── styles.css
│ ├── fsm
│ │ ├── actions.js
│ │ ├── fsm.js
│ │ ├── guards.js
│ │ ├── machine.js
│ │ └── services.js
│ ├── index.js
│ └── utils
│ │ ├── helpers.js
│ │ └── useMyHooks.js
└── yarn.lock
└── crud-v4-actors
├── .gitignore
├── README.md
├── package.json
├── public
└── index.html
├── src
├── .editorconfig
├── .gitattributes
├── .gitignore
├── Todo.jsx
├── Todos.jsx
├── index.js
├── todoMachine.js
├── todosMachine.js
├── useHashChange.js
└── useMyHooks.js
└── yarn.lock
/.gitignore:
--------------------------------------------------------------------------------
1 | # See https://help.github.com/articles/ignoring-files/ for more about ignoring files.
2 |
3 | # dependencies
4 | /node_modules
5 | /.pnp
6 | .pnp.js
7 |
8 | # testing
9 | /coverage
10 |
11 | # production
12 | # /demo
13 | /build
14 |
15 | # misc
16 | .DS_Store
17 | .env.local
18 | .env.development.local
19 | .env.test.local
20 | .env.production.local
21 | .env
22 |
23 | npm-debug.log*
24 | yarn-debug.log*
25 | yarn-error.log*
26 |
27 | # Local Netlify folder
28 | .netlify
29 |
--------------------------------------------------------------------------------
/README.md:
--------------------------------------------------------------------------------
1 |
2 | ## Here are four examples showing different usages of xstate.
3 |
4 | Each one was built upon the previous one, hence it's recommended to start with `crud-v1-services` and move forward from there. All examples also available on codesandbox, feel free to play and fork those examples, and report any issues you found here, PRs welcome too.
5 |
6 | All these examples are built with [StatesKit](https://stateskit.com) - a visual statechart editor where you can drag and drop to creat states, events and stuff, no need to code at all, the goal is to help dumping the ideas from your brain to states real quick, don't forget to give it shot! 😎
7 |
8 | Also [here's a detailed write up](https://gist.github.com/coodoo/0a7658a6c6580cb11101a9c22904d425) on statecharts introducing it's core benefits.
9 |
10 | ## Core features of each example
11 |
12 | ### `crud-v1-services`
13 |
14 | - A typical CRUD app showing how to `model` application states with `statechart` and implement the basic functionalities in `xstate`, pay attention to how `invoked` Services are used to serve different API calls.
15 |
16 | - There are four kind of services in `xstate`, which are `Promise, Callback, Observable and Machine`, for this example we are focused on `Callback` because it's the most commonly used services in a real world application.
17 |
18 | - Read about different kind of [Services here](https://xstate.js.org/docs/guides/communication.html#invoking-services)
19 |
20 | - Play on [[codesandbox]](https://codesandbox.io/s/crud-v1-services-fy1du)
21 |
22 | ### `crud-v2-optimistic-update`
23 |
24 | - `v2` is built upon `v1`, but with more delicate handling of `optimistic update` processing and used different child state to model the app, observe how `parallel` states were used to handle different steps of each operation also pay attention to both `happy` and `sorrow` paths.
25 |
26 | - Play on [[codesandbox]](https://codesandbox.io/s/crud-v2-optimistic-update-3bc58)
27 |
28 | ### `crud-v3-promises`
29 |
30 | - `v3` is a slightly differnt version based on `v2` using a different `invoked` Service called `Promise`, pay attention to `services.js` and see how `loadItems` and `deleteItem` worked.
31 |
32 | - Key different between `Callback` and `Promise` service is you get to dispatch events back to the parent just once with `Promise`, whereas in `Callback` you could use `cb` and `onReceive` functions to dispatch events multiple times, both has it's own place in an application, hence this example.
33 |
34 | - Play on [[codesandbox]](https://codesandbox.io/s/crud-v3-promises-h9d5t)
35 |
36 | ### `crud-v4-actors`
37 |
38 | - `v4` is based on [David's](https://github.com/davidkpiano)[TodoMVC](https://codesandbox.io/s/xstate-todomvc-33wr94qv1) example but with a couple of improvements.
39 |
40 | - This is by far the most complicated example, it showcased how to use the latest `Actor` model for communication between child components and their parent.
41 |
42 | - Pay attention to how `TodosMachine` spawned child `TodoMachine`s and pass it's ref to each child component as a local single truth that handles the component state., more details in the folder's `Readme.md`
43 |
44 | - See detailed docs on [actor here](https://xstate.js.org/docs/guides/actors.html), this is something you don't want to miss 😎
45 |
46 | - In short, `Service` and `Actor` are basically the same thing but used differently, rule of thumb:
47 |
48 | - Statically invoke services (you have to write all services in machine statemenet in advance)
49 | - Dynamically spawn actors (you can spawn new actors from any events whenever needed)
50 |
51 | - Play on [[codesandbox]](https://codesandbox.io/s/crud-v4-actors-oxx7y)
52 |
53 | ## Notes
54 |
55 | - Generic naming convention for `states` and `events` are:
56 |
57 | - `camelCaseForState`
58 |
59 | - `UPPER.CASE.FOR.EVENT`
60 |
61 | - By using `dots` for event it is possible in the future to implement wildcase event matching, for example `UPPER.*` to match all events starting with `UPPER`
62 |
63 | - Basic guiding rule for all these example are hoping to make `ui` a `dumb layer`
64 | - meaning ui only does two things
65 | - draw the user interface
66 | - accept user inputs (keyboard/mouse events)
67 | - then delegate those events to `xstate` to handle, where all business logics are encapsulated
68 |
69 | ## Todo
70 |
71 | - Rewrite tests
72 |
73 | - Enable `whyDidYouRender` to eliminate unnecessary renders.
74 |
--------------------------------------------------------------------------------
/_old/calc/README.md:
--------------------------------------------------------------------------------
1 |
2 | This is a simple calculator implemented as depicted in the book [`Constructing the User Interface with Statecharts`](https://dl.acm.org/citation.cfm?id=520870)
3 |
4 |
5 |
6 | ## This is the statecharts generated from the actually implemented version
7 |
8 |
9 |
--------------------------------------------------------------------------------
/_old/calc/package.json:
--------------------------------------------------------------------------------
1 | {
2 | "name": "a1",
3 | "license": "Apache-2.0",
4 | "version": "1.0.0",
5 | "description": "",
6 | "keywords": [],
7 | "main": "src/index.js",
8 | "dependencies": {
9 | "@xstate/react": "^0.2.0",
10 | "jest-dom": "^3.1.3",
11 | "react": "16.8.3",
12 | "react-dom": "16.8.3",
13 | "react-scripts": "2.1.8",
14 | "react-testing-library": "^7.0.0",
15 | "sprintf-js": "^1.1.2",
16 | "xstate": "^4.5.0"
17 | },
18 | "devDependencies": {
19 | "typescript": "3.3.3"
20 | },
21 | "scripts": {
22 | "start": "react-scripts start",
23 | "build": "react-scripts build",
24 | "test": "react-scripts test --env=jsdom",
25 | "eject": "react-scripts eject"
26 | },
27 | "browserslist": [
28 | ">0.2%",
29 | "not dead",
30 | "not ie <= 11",
31 | "not op_mini all"
32 | ]
33 | }
34 |
--------------------------------------------------------------------------------
/_old/calc/public/index.html:
--------------------------------------------------------------------------------
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
12 |
13 |
14 |
23 | React App
24 |
25 |
26 |
27 |
30 |
31 |
41 |
42 |
43 |
--------------------------------------------------------------------------------
/_old/calc/src/App.js:
--------------------------------------------------------------------------------
1 | /* eslint-disable */
2 | import React, { useRef, useEffect } from "react"
3 | import ReactDOM from "react-dom"
4 | import { useMachine } from "@xstate/react"
5 | import { interpret } from 'xstate'
6 | import machine from './machine'
7 | import "./styles.css"
8 | import {
9 | isNumber,
10 | isOperator,
11 | current,
12 | } from './helpers'
13 |
14 | export const App = () => {
15 |
16 | // fsm hook - 這是唯一用到 useState 的地方
17 | const [state, send ] = useMachine( machine, {log: true} )
18 |
19 | // 畫面顯示用的變數
20 | const input = useRef([])
21 | const resetInput = useRef(false)
22 |
23 | // 是否要改顯示 fsm 返還的計算結果
24 | const useAns = useRef(false)
25 |
26 | // console.log( '\n[現在狀態] = ', state.value, '\n[context] = ', state.context )
27 |
28 | // console.log( '顯示答案嗎？', useAns.current )
29 |
30 | // divideByZero 時要顯示錯誤訊息
31 | if( current(state) === 'alert' ){
32 | console.log( '強迫顯示 fsm 狀態', )
33 | useAns.current = true
34 | }
35 |
36 | // fsm 有返還計算後的答案，就要改顯示它
37 | if( useAns.current ){
38 | // 用 fsm.context.display 內容取代本地 input 變數
39 | input.current = [state.context.display]
40 | // 重置這個變數
41 | useAns.current = false
42 | }
43 |
44 | const handleNumber = item => {
45 |
46 | // 如在 'operator' 狀態就要清空 input 內容值來存 operand2
47 | if( current(state) === 'operator' ){
48 |
49 | input.current = [item]
50 | resetInput.current = false
51 |
52 | } else {
53 |
54 | // 只準有一個 dot, 要判斷是 1.1 或 1.1.2 不可出現兩個 dot
55 | if(item === '.' && input.current.indexOf('.') != -1 ) return
56 |
57 | // 1+2=3 接著輸入數字時，要先清空 3 這個舊值
58 | if( resetInput.current === true ){
59 | input.current = []
60 | resetInput.current = false
61 | }
62 |
63 | // 如果當前 input 值為 0，將其移除並用 [] 取代
64 | if( +input.current[0] === 0) {
65 | input.current = []
66 | }
67 |
68 | input.current.push(item)
69 | }
70 |
71 | send({ type: 'NUMBER', value: +input.current.join('') })
72 | }
73 |
74 | const handleOperator = item => {
75 |
76 | useAns.current = true
77 |
78 | // send() 一定要放在設定完區域變數後面才能執行
79 | if( item === '-'){
80 | send({ type: 'OPERATOR_MINUS', value: item })
81 | } else {
82 | send({ type: 'OPERATOR_OTHERS', value: item })
83 | }
84 | }
85 |
86 | const handleEqual = item => {
87 | useAns.current = true
88 | resetInput.current = true
89 | send({ type: 'EQUAL', value: null })
90 | }
91 |
92 | const handleC = item => {
93 | useAns.current = true
94 | send({ type: 'C', value: null })
95 | }
96 |
97 | const handleAC = item => {
98 | useAns.current = true
99 | send({ type: 'AC', value: null })
100 | }
101 |
102 | const handleInput = item => {
103 | // console.log( 'button 拿到: ', item )
104 |
105 | if ( isNumber(+item) || item === '.' ) {
106 | handleNumber(item)
107 | // } else if ( item === '.' ) {
108 | // handleDot(item)
109 | } else if (isOperator(item)) {
110 | handleOperator(item)
111 | } else if (item === '=' || item === 'enter') {
112 | handleEqual(item)
113 | } else if (item === 'C') {
114 | // C 是清楚最後一次的輸入值
115 | handleC(item)
116 | } else if (item === 'AC' || item === 'escape') {
117 | // AC = all clear 重設一切
118 | handleAC(item)
119 | } else if (item === "%") {
120 | // not implemented
121 | } else {
122 | console.log( '未知鍵: ', item )
123 | }
124 | }
125 |
126 | // 處理 mouse
127 | const handleClick = item => {
128 | // console.log( 'click 按了: ', item )
129 | handleInput(item)
130 | }
131 |
132 | // 處理 keyboard
133 | const handleKeyDown = evt => {
134 | const { key } = evt
135 | // console.log( '鍵盤: ', key.toLowerCase() )
136 | handleInput( key.toLowerCase() )
137 | }
138 |
139 | const calcButtons = () => {
140 | //
141 | const buttons = [
142 | "C",
143 | "AC",
144 | "/",
145 | "7",
146 | "8",
147 | "9",
148 | "*",
149 | "4",
150 | "5",
151 | "6",
152 | "-",
153 | "1",
154 | "2",
155 | "3",
156 | "+",
157 | "0",
158 | ".",
159 | "=",
160 | "%"
161 | ];
162 |
163 | return buttons.map((itm, idx) => {
164 | let classNames = "calc-button";
165 |
166 | if (itm === "C") {
167 | classNames += " two-span";
168 | }
169 |
170 | return (
171 |
179 | );
180 | });
181 | }
182 |
183 | const display = () => {
184 | let val = input.current.join('')
185 | // console.log( '顯示:', val, ' > ', input.current )
186 | return val.length == 0 ? '0' : val
187 | }
188 |
189 | useEffect(() => {
190 | // 讓 focus 自動放在 container 身上，可接收鍵盤事件
191 | window.addEventListener('keydown', handleKeyDown )
192 | return () => window.removeEventListener('keydown', handleKeyDown )
193 | });
194 |
195 | return (
196 |
200 |
205 |
206 |
{calcButtons()}
207 |
48 | {it.id + ':' + it.progress}
49 |
50 |
51 |
52 |
53 | )
54 | })
55 |
56 | const allDone = cnt == rows.length
57 | // console.log( 'cnt:', cnt, allDone)
58 |
59 | const handleAddFile = () => {
60 | send({
61 | type: 'addFile',
62 | data: {
63 | id: ++uid,
64 | name: `Song_${uid}.flac`,
65 | progress: 0,
66 | },
67 | })
68 | }
69 |
70 | const handleCancel = id => {
71 | send({
72 | type: 'cancelFile',
73 | id
74 | })
75 | }
76 |
77 | const handlePause = id => {
78 | send({
79 | type: 'pauseFile',
80 | id
81 | })
82 | }
83 | const handleResume = (id, progress) => {
84 | send({
85 | type: 'resumeFile',
86 | id, progress
87 | })
88 | }
89 |
90 | useEffect(() => {
91 | handleAddFile()
92 | // handleAddFile()
93 | // handleAddFile()
94 | // handleAddFile()
95 | // handleAddFile()
96 | }, [])
97 |
98 | const jobStyle = {
99 | border: allDone ? '10px solid red' : null,
100 | width: 150,
101 | }
102 |
103 | // return
104 |
105 | return (
106 |
107 |
108 |
109 | { rows }
110 |
111 |
|
)
49 | })
50 |
51 | const allDone = songs.every(it => it.progress == 100)
52 |
53 | const handleAddFile = () => {
54 | send({
55 | type: 'addFile',
56 | data: {
57 | id: ++uid,
58 | name: `Song_${uid}.flac`,
59 | progress: 0,
60 | },
61 | })
62 | }
63 |
64 | useEffect(() => {
65 | handleAddFile()
66 | handleAddFile()
67 | handleAddFile()
68 | handleAddFile()
69 | handleAddFile()
70 | }, [])
71 |
72 | const jobStyle = {
73 | border: allDone ? '10px solid red' : null,
74 | width: 150,
75 | }
76 |
77 | // return
78 |
79 | return (
80 |
81 |
82 |
{rows}
83 |
67 | {item.id + ':' + state.context.progress}
68 |
69 |
70 |
71 |
72 | )
73 | }
74 |
75 | Row.whyDidYouRender = true
76 |
77 | export default memo(Row)
78 |
--------------------------------------------------------------------------------
/_old/fsm-service-2-submachine/src/styles.css:
--------------------------------------------------------------------------------
1 | html {
2 | box-sizing: border-box;
3 | }
4 | div {
5 | box-sizing: border-box;
6 | }
7 | *,
8 | *:before,
9 | *:after {
10 | box-sizing: inherit;
11 | }
12 |
--------------------------------------------------------------------------------
/_old/fsm-service-2-submachine/src/ui.test.js:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/coodoo/xstate-examples/5dcd1c810fa0d0a10594e3bef80dc5019cbfd873/_old/fsm-service-2-submachine/src/ui.test.js
--------------------------------------------------------------------------------
/_old/fsm-service-2-submachine/src/useMachine.js:
--------------------------------------------------------------------------------
1 | import { useState, useMemo, useEffect } from "react";
2 | import { interpret } from "xstate";
3 |
4 | export function useMachine(machine, options = {}) {
5 |
6 | const [current, setCurrent] = useState(machine.initialState);
7 |
8 | const service = useMemo(
9 | () =>
10 |
11 | // 啟動 fsm 的必要過程
12 | interpret(machine, { execute: false })
13 | // 這支主要目地是為了打印當前狀態，順便操作 internal state 指令 setCurrent
14 | .onTransition(state => {
15 | options.log && console.log("CONTEXT:", state.context);
16 | setCurrent(state);
17 | })
18 | .onEvent(e => options.log && console.log("EVENT:", e)),
19 | []
20 | );
21 |
22 | useEffect(
23 | () => {
24 | service.execute(current);
25 | },
26 | [current]
27 | );
28 |
29 | useEffect(() => {
30 | service.start();
31 |
32 | return () => service.stop();
33 | }, []);
34 |
35 | return [current, service.send];
36 | }
37 |
--------------------------------------------------------------------------------
/_old/fsm-service-2-submachine/src/workerMachine.js:
--------------------------------------------------------------------------------
1 | /* eslint-disable */
2 | import { Machine, send, sendParent } from 'xstate'
3 | import { updater, assign } from './xstateImmer'
4 | import { compressionService } from './compressionService'
5 |
6 | export default Machine(
7 | {
8 | id: 'WorkerMachine',
9 | initial: 'idle',
10 | context: {
11 | dumb: 'foo',
12 | },
13 |
14 | invoke: {
15 | id: 'CompressionService',
16 | src: compressionService,
17 | },
18 |
19 | states: {
20 | idle: {
21 | on: {
22 | addFile: {
23 | target: 'progress',
24 | actions: [
25 | assign((ctx, e) => {
26 | // console.log('單支 machine > addFile: ', e, ctx)
27 | }),
28 | send(
29 | (ctx, e) => ({
30 | type: 'compressSong',
31 | data: e.data,
32 | }),
33 | { to: 'CompressionService' },
34 | ),
35 | ],
36 | },
37 | },
38 | },
39 |
40 | progress: {
41 | on: {
42 | // 進度更新
43 | workerProgress: {
44 | target: '',
45 | actions: [
46 | assign((ctx, e) => {
47 | const { id, progress } = e.job
48 | // console.log( `收到 ${id}: ${progress}` )
49 | ctx.progress = progress
50 | return ctx
51 | }),
52 | 'notifyProgress',
53 | ],
54 | },
55 |
56 | // 進度完成
57 | workerDone: {
58 | target: 'completed',
59 | actions: [
60 | assign((ctx, e) => {
61 | // console.log( '\t完工:', ctx, e )
62 | const { id, progress } = e.job
63 | ctx.progress = progress
64 | return ctx
65 | }),
66 | 'notifyProgress',
67 | ],
68 | },
69 |
70 | // 工作暫停
71 | pauseFile: {
72 | target: 'paused',
73 | actions: [
74 | assign((ctx, e) => {
75 | console.log('\t暫停:', e.id)
76 | }),
77 | send(
78 | (ctx, e) => ({
79 | type: 'pauseSong',
80 | data: e.id,
81 | }),
82 | { to: 'CompressionService' },
83 | ),
84 | ],
85 | },
86 | },
87 | },
88 |
89 | //
90 | paused: {
91 | on: {
92 | resumeFile: {
93 | target: 'progress',
94 | actions: [
95 | assign((ctx, e) => {
96 | console.log('\t繼續:', e.id, ctx.progress)
97 | }),
98 | send(
99 | (ctx, e) => ({
100 | type: 'resumeSong',
101 | data: { id: e.id, progress: ctx.progress },
102 | }),
103 | { to: 'CompressionService' },
104 | ),
105 | ],
106 | },
107 | },
108 | },
109 |
110 | completed: {
111 | type: 'final',
112 | },
113 |
114 | cancelled: {
115 | type: 'final',
116 | },
117 | },
118 |
119 | // onEntry: assign((ctx, e) => console.log( '\n\n啟動時 ctx: ', ctx )),
120 |
121 | on: {
122 | // 取消工作
123 | cancelFile: {
124 | target: 'cancelled',
125 | actions: [
126 | assign((ctx, e) => {
127 | console.log('\t取消:', e.id)
128 | }),
129 | send(
130 | (ctx, e) => ({
131 | type: 'cancelSong',
132 | data: e.id,
133 | }),
134 | { to: 'CompressionService' },
135 | ),
136 | 'notifyCancel',
137 | ],
138 | },
139 | },
140 | },
141 |
142 | {
143 | // actions,
144 | // services,
145 | // guards,
146 | updater,
147 | },
148 | )
149 |
--------------------------------------------------------------------------------
/_old/fsm-service-2-submachine/src/xstateImmer.js:
--------------------------------------------------------------------------------
1 | import { produce } from 'immer';
2 | import { actionTypes } from 'xstate/lib/actions';
3 |
4 | export function assign( assignment ) {
5 | return {
6 | type: actionTypes.assign,
7 | assignment
8 | }
9 | }
10 |
11 | export function updater( context, event, assignActions ) {
12 | const updatedContext = context
13 |
14 | ? assignActions.reduce((acc, assignAction) => {
15 | const { assignment } = assignAction
16 | const update = produce(acc, interim => assignment(interim, event))
17 | return update
18 | }, context)
19 |
20 | : context
21 |
22 | return updatedContext
23 | }
24 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/README.md:
--------------------------------------------------------------------------------
1 | This is a simple song conversion app which allows user to add multiple files and convert them from one format to antoher, concurrently.
2 |
3 | ## Goal
4 |
5 | Demonstrating how to model multi-thread application with `xstate` which requires frequent parent <-> child communcation, and how to separate concerns between parent and child machines in an `actor` manner.
6 |
7 | ## Key Features
8 |
9 | - Modeling multi-thread application with `xstate`
10 |
11 | - Create one thread for each song for the compression job, modeled as an `actor`(`workMachine`)
12 |
13 | - Utilizing `spawn(actor)` command to create multiple threads
14 |
15 | - Each actor creates it's own `service` as a side effect to process file conversion (say invoking `ffmpeg` for example)
16 |
17 | - Communcation between `mainMachine` and `workMachine` using `sned` and `sendParent`
18 |
19 | - See how child component hooks up with `actor`(`workMachine`) by passing in the instance via `props`
20 |
21 | ## Sub Features
22 |
23 | - See how `fsm.test.js` made sure all key `fsm` scenarios are tested
24 |
25 | - See how `ui.test.js` uses `react-testing-library` to test the ui parts as a black box and covered all key use cases
26 |
27 | - Also note tests and implementations were done side by side, not before nor after, which means when you are implementing the feature, you are also writing the test on the side (to verify the feature you just implemented actually works), gone are the day of manually testing during development, then add unit tests right before openning the PR just for the sake of it.
28 |
29 | As a side note, this is not `TDD` either, for that it requires one to write test up-front, instead, I'm proposing to write test along with the implementation, hence making writing tests part of the implementation, and vice versa.
30 |

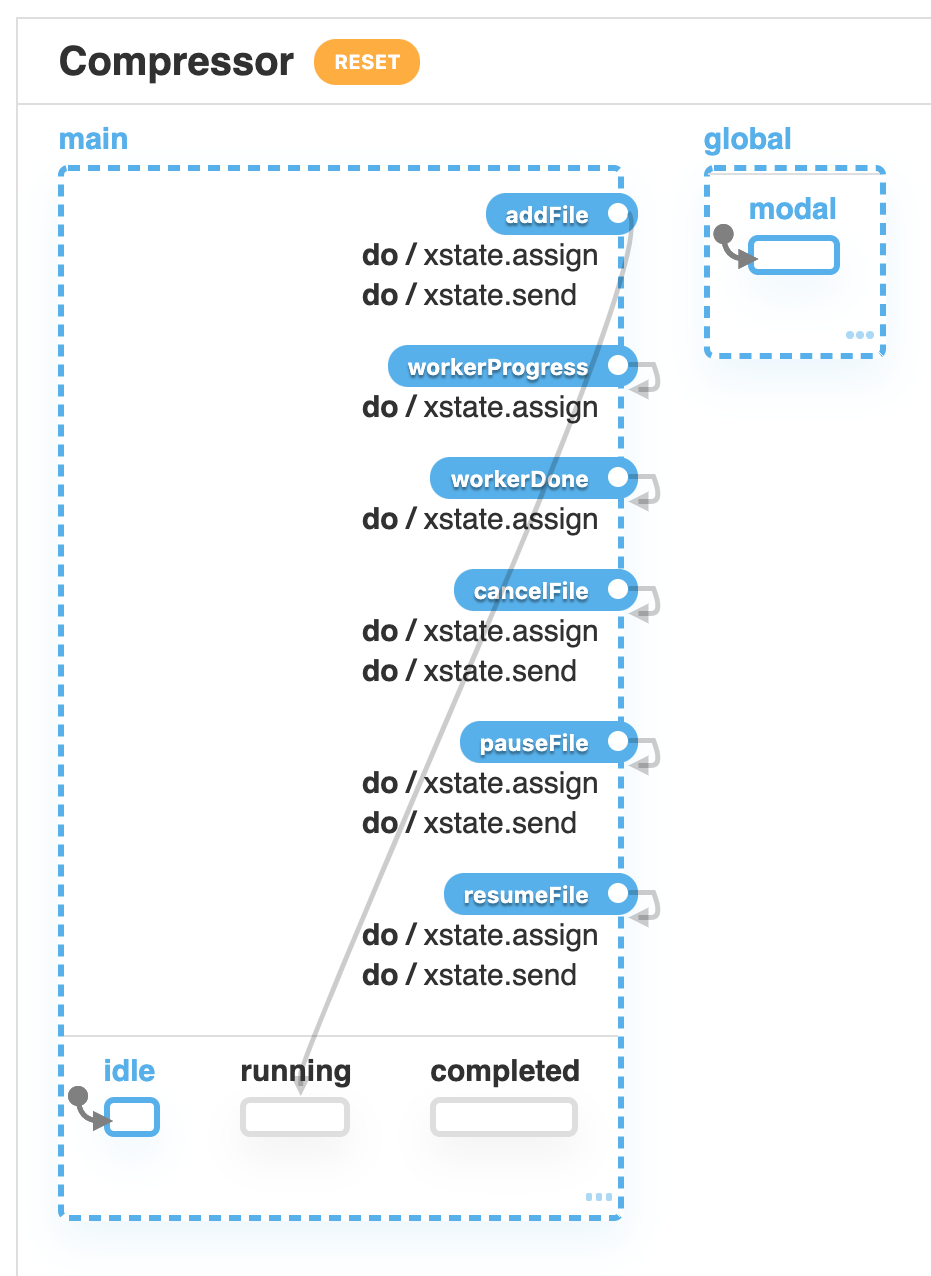

31 | ## Statechart
32 |
33 |
34 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/package.json:
--------------------------------------------------------------------------------
1 | {
2 | "name": "a1",
3 | "license": "Apache-2.0",
4 | "version": "1.0.0",
5 | "description": "",
6 | "keywords": [],
7 | "main": "src/index.js",
8 | "dependencies": {
9 | "@welldone-software/why-did-you-render": "^3.0.7",
10 | "@xstate/react": "^0.2.0",
11 | "enumify": "^1.0.4",
12 | "jest-dom": "^3.1.3",
13 | "react": "16.8.3",
14 | "react-dom": "16.8.3",
15 | "react-scripts": "2.1.8",
16 | "react-testing-library": "^7.0.0",
17 | "toasted-notes": "^2.1.5",
18 | "xstate": "https://github.com/davidkpiano/xstate"
19 | },
20 | "devDependencies": {
21 | "typescript": "3.3.3"
22 | },
23 | "scripts": {
24 | "start": "react-scripts start",
25 | "build": "react-scripts build",
26 | "test": "react-scripts test --env=jsdom",
27 | "eject": "react-scripts eject"
28 | },
29 | "browserslist": [
30 | ">0.2%",
31 | "not dead",
32 | "not ie <= 11",
33 | "not op_mini all"
34 | ]
35 | }
36 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/public/index.html:
--------------------------------------------------------------------------------
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
12 |
13 |
14 |
23 | React App
24 |
25 |
26 |
27 |
30 |
31 |
41 |
42 |
43 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/__tests__/ui.test.js:
--------------------------------------------------------------------------------
1 | import 'jest-dom/extend-expect'
2 | import 'react-testing-library/cleanup-after-each'
3 | import React from 'react'
4 | import { render, cleanup, act, fireEvent, prettyDOM } from 'react-testing-library'
5 | import { findByText } from 'dom-testing-library'
6 | import App from '../components/App'
7 | import { timer } from '../utils/helpers'
8 |
9 | let dom, container
10 |
11 | const $ = sel => document.querySelector.call(document, sel)
12 | const $$ = sel => document.querySelectorAll.call(document, sel)
13 |
14 | // query non-existent str to dump the DOM, for debugging
15 | const dump = () => console.log( prettyDOM(container) )
16 |
17 | beforeEach(() => {
18 | dom = render()
19 | container = dom.container
20 | })
21 |
22 | afterEach(cleanup)
23 |
24 | describe('add songs', () => {
25 |
26 | it('add one song', () => {
27 |
28 | fireEvent.click( dom.getByTestId('btnAdd') )
29 |
30 | const rows = dom.getByTestId('rows')
31 | expect(rows.children.length).toEqual(1)
32 |
33 | const item = $('#song_1')
34 | expect(item.querySelector('#songId').textContent).toEqual('1')
35 | expect(item.querySelector('#songProgress').textContent).not.toEqual(0)
36 |
37 | })
38 |
39 | it('add many song', () => {
40 |
41 | const btn = dom.getByTestId('btnAdd')
42 | fireEvent.click( btn )
43 | fireEvent.click( btn )
44 | fireEvent.click( btn )
45 |
46 | // dump()
47 | const rows = dom.getByTestId('rows')
48 | expect(rows.children.length).toEqual(3)
49 |
50 | const item1 = rows.firstChild
51 | expect(item1.querySelector('#songId').textContent).toEqual('2')
52 | expect(item1.querySelector('#songProgress').textContent).not.toEqual(0)
53 |
54 | const item2 = rows.children[1]
55 | expect(item2.querySelector('#songId').textContent).toEqual('3')
56 | expect(item2.querySelector('#songProgress').textContent).not.toEqual(0)
57 |
58 | const item3 = rows.children[2]
59 | expect(item3.querySelector('#songId').textContent).toEqual('4')
60 | expect(item3.querySelector('#songProgress').textContent).not.toEqual(0)
61 |
62 | })
63 | })
64 |
65 | describe('delete songs', () => {
66 |
67 | it('delete one song', () => {
68 |
69 | fireEvent.click( dom.getByTestId('btnAdd') )
70 |
71 | const rows = dom.getByTestId('rows')
72 | expect(rows.children.length).toEqual(1)
73 |
74 | fireEvent.click( dom.getByTestId('btnCancel') )
75 | expect(rows.children.length).toEqual(0)
76 | })
77 |
78 | it('delete many song', () => {
79 |
80 | // add 3 songs
81 | const add = dom.getByTestId('btnAdd')
82 | fireEvent.click( add )
83 | fireEvent.click( add )
84 | fireEvent.click( add )
85 |
86 | const rows = dom.getByTestId('rows')
87 | expect(rows.children.length).toEqual(3)
88 |
89 | const btns = $$('[data-testid="btnCancel"]')
90 | expect(btns.length).toEqual(3)
91 |
92 | // click remove btn 3 times
93 | btns.forEach( b => fireEvent.click(b) )
94 | expect(dom.getByTestId('rows').children.length).toEqual(0)
95 | })
96 | })
97 |
98 | describe('pause songs', () => {
99 | it('pause one song', () => {
100 |
101 | fireEvent.click( dom.getByTestId('btnAdd') )
102 | const rows = dom.getByTestId('rows')
103 | expect(rows.children.length).toEqual(1)
104 |
105 | const btn = dom.getByTestId('btnPause')
106 | fireEvent.click( btn )
107 | expect(btn).toHaveAttribute('style', 'background-color: black;')
108 | })
109 | })
110 |
111 | describe('resume songs', () => {
112 | it('resume one song', () => {
113 |
114 | fireEvent.click( dom.getByTestId('btnAdd') )
115 | const rows = dom.getByTestId('rows')
116 | expect(rows.children.length).toEqual(1)
117 |
118 | const pause = dom.getByTestId('btnPause')
119 | fireEvent.click( pause )
120 |
121 | const resume = dom.getByTestId('btnResume')
122 | fireEvent.click(resume)
123 | expect(pause).not.toHaveAttribute('style', 'background-color: black;')
124 | expect(pause).toHaveAttribute('style', 'background-color: white;')
125 | })
126 | })
127 |
128 | describe('async job', () => {
129 |
130 | it.only('one done', async () => {
131 |
132 | cleanup()
133 |
134 | act(() => {
135 | dom = render()
136 | const add = dom.getByTestId('btnAdd')
137 | fireEvent.click( add )
138 | })
139 |
140 | await dom.findByText(/100/i)
141 |
142 | const song = dom.getByTestId('rows').firstChild
143 |
144 | // show green backgorund when item completed
145 | expect( song ).toHaveAttribute('style', 'background-color: green; color: white;')
146 |
147 | // show red border when all completed
148 | expect(dom.getByTestId('rows')).toHaveAttribute('style', 'width: 150px; border: 10px solid red;')
149 |
150 | // dump()
151 | })
152 |
153 | it.only('all done', async () => {
154 |
155 | cleanup()
156 |
157 | act(() => {
158 | dom = render()
159 | const add = dom.getByTestId('btnAdd')
160 | fireEvent.click( add )
161 | fireEvent.click( add )
162 | fireEvent.click( add )
163 | })
164 |
165 | const rows = dom.getByTestId('rows')
166 |
167 | const s1 = rows.children[0]
168 | const s2 = rows.children[1]
169 | const s3 = rows.children[2]
170 |
171 | // wait till 3 rows were completed
172 | // notice it's not using `dom.findByText` from `RTL`
173 | await findByText( s1, /100/i)
174 | await findByText( s2, /100/i)
175 | await findByText( s3, /100/i)
176 |
177 | // show green backgorund when each item was completed
178 | expect( s1 ).toHaveAttribute('style', 'background-color: green; color: white;')
179 | expect( s2 ).toHaveAttribute('style', 'background-color: green; color: white;')
180 | expect( s3 ).toHaveAttribute('style', 'background-color: green; color: white;')
181 |
182 | // show red border when all items was completed
183 | expect(dom.getByTestId('rows')).toHaveAttribute('style', 'width: 150px; border: 10px solid red;')
184 |
185 | // dump()
186 | })
187 |
188 | })
189 |
190 | describe('xxx', () => {
191 |
192 | })
193 |
194 | describe('xxx', () => {
195 |
196 | })
197 |
198 | describe('xxx', () => {
199 |
200 | })
201 |
202 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/components/app.js:
--------------------------------------------------------------------------------
1 | import React, { useEffect, memo } from 'react'
2 | import { useMachine } from '../xstate-custom/useMyMachine'
3 | import { MainMachine, MainTypes } from '../fsm/mainMachine'
4 | import Row from './row'
5 |
6 | import './styles.css'
7 |
8 | import { StateChart } from '@statecharts/xstate-viz'
9 |
10 | import whyDidYouRender from '@welldone-software/why-did-you-render'
11 | whyDidYouRender(React)
12 |
13 | let uid = 0
14 |
15 | const App = () => {
16 | const [state, send] = useMachine(MainMachine, { debug: false })
17 |
18 | const { songs, completed } = state.context
19 |
20 | // console.log(
21 | // '\n\n[Parent State] = ',
22 | // state.value,
23 | // '\n[context] = ',
24 | // state.context,
25 | // )
26 |
27 | const rows = songs.map((it, idx) => {
28 | return |
29 | })
30 |
31 | const allDone = songs.length === completed.length
32 |
33 | const handleAddFile = () => {
34 | send({
35 | type: MainTypes.addFile,
36 | song: {
37 | id: ++uid,
38 | name: `Song_${uid}.flac`,
39 | progress: 0,
40 | },
41 | })
42 | }
43 |
44 | // add some jobs to run
45 | useEffect(() => {
46 | // handleAddFile()
47 | // handleAddFile()
48 | // handleAddFile()
49 | // handleAddFile()
50 | // handleAddFile()
51 | }, [])
52 |
53 | const jobStyle = {
54 | border: allDone ? '10px solid red' : null,
55 | width: 150,
56 | }
57 |
58 | // return
59 |
60 | return (
61 |
62 |
65 |
68 | {rows}
69 |
70 |
50 | {id}
51 | :
52 | {progress}
53 |
58 |
59 |
65 |
66 |
71 |
72 | )
73 | }
74 |
75 | Row.whyDidYouRender = true
76 |
77 | export default memo(Row)
78 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/components/styles.css:
--------------------------------------------------------------------------------
1 | html {
2 | box-sizing: border-box;
3 | }
4 | div {
5 | box-sizing: border-box;
6 | }
7 | *,
8 | *:before,
9 | *:after {
10 | box-sizing: inherit;
11 | }
12 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/fsm/compressionService.js:
--------------------------------------------------------------------------------
1 | import { random } from '../utils/helpers'
2 | import { WorkerTypes } from './workerMachine'
3 | import { Enum } from 'enumify'
4 |
5 | export class CompServiceTypes extends Enum {}
6 | CompServiceTypes.initEnum([
7 | 'pauseSong',
8 | 'cancelSong',
9 | 'resumeSong',
10 | 'compressSong',
11 | ])
12 |
13 |
14 | export const compressionService = (ctx, e) => (cb, onReceive) => {
15 | let workers = {}
16 |
17 | onReceive(evt => {
18 | switch (evt.type) {
19 | case CompServiceTypes.pauseSong:
20 | case CompServiceTypes.cancelSong:
21 | const id = evt.data
22 | clearTimeout(workers[id])
23 | workers[id] = null
24 | // console.log( '[CompService pause|cancel song]', evt, workers )
25 | break
26 |
27 | case CompServiceTypes.resumeSong:
28 | case CompServiceTypes.compressSong:
29 | // console.log('[CompService initJob]', evt, workers)
30 |
31 | const { data } = evt
32 |
33 | // resume job by restoring last progress
34 | let progress = evt.type === 'compressSong' ? 0 : data.progress
35 |
36 | const run = () => {
37 | progress = Math.min(100, progress + random(5, 15))
38 |
39 | // console.log(`\n[Service] ${data.id}:${progress}`)
40 |
41 | if (progress < 100) {
42 | cb({
43 | type: WorkerTypes.workerProgress,
44 | job: { id: data.id, progress },
45 | })
46 |
47 | // random update time
48 | const time = 60
49 | workers[data.id] = setTimeout(run, random(time, time))
50 | } else {
51 | cb({
52 | type: WorkerTypes.workerDone,
53 | job: { id: data.id, progress },
54 | })
55 | }
56 | }
57 |
58 | run()
59 | break
60 |
61 | default:
62 | console.error('[CompService unhandled event]', evt.type)
63 | }
64 | })
65 | }
66 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/fsm/guards.js:
--------------------------------------------------------------------------------
1 | export const unknownMaster = ctx => ctx.exitNewItemTo === 'master'
2 | export const unknownDetails = ctx => ctx.exitNewItemTo === 'details'
3 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/fsm/mainActions.js:
--------------------------------------------------------------------------------
1 | import { assign } from '../xstate-custom/xstateImmer'
2 | import { send, spawn } from 'xstate'
3 | import { WorkerMachine, WorkerTypes } from './workerMachine'
4 |
5 | export const addJobAssign = assign((ctx, e) => {
6 | const { song } = e
7 | // feeding in inital context for the child actor
8 | // notice it's not `machine.withConfig()`
9 | song.actor = spawn( WorkerMachine.withContext(song) )
10 | ctx.songs.push(song)
11 | return ctx
12 | })
13 |
14 | export const addFileSend = send(
15 | { type: WorkerTypes.startJob },
16 | { to: (ctx, e) => ctx.songs.find(it => it.id === e.song.id).actor },
17 | )
18 |
19 | export const updateJob = assign((ctx, e) => {
20 | ctx.completed.push(e.song.id)
21 | return ctx
22 | })
23 |
24 | // fix: when songs were completed and deleted, they need to be removed from `completed[]` too
25 | export const cancelJob = assign((ctx, e) => {
26 | ctx.songs = ctx.songs.filter(it => it.id !== e.id)
27 | ctx.completed = ctx.completed.filter(it => it !== e.id)
28 | return ctx
29 | })
30 |
31 | export const onUpdate = assign((ctx, e) => {
32 | // console.log( '[onUpdate]', e)
33 | })
34 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/fsm/mainMachine.js:
--------------------------------------------------------------------------------
1 | import { Machine } from 'xstate'
2 | import { updater } from '../xstate-custom/xstateImmer'
3 | import * as actions from './mainActions'
4 | // import * as services from './services'
5 | // import * as guards from './guards'
6 | import { Enum } from 'enumify'
7 |
8 | export class MainTypes extends Enum {}
9 | MainTypes.initEnum([
10 | 'addFile',
11 | 'updateJob',
12 | 'cancelJob',
13 | ])
14 |
15 | export const MainMachine = Machine(
16 | {
17 | id: 'Compressor',
18 | type: 'parallel',
19 | context: {
20 | songs: [],
21 | completed: [],
22 | },
23 | states: {
24 | main: {
25 | initial: 'idle',
26 | states: {
27 | idle: {},
28 | progress: {},
29 | completed: {},
30 | unknown: {
31 | on: {
32 | '': [
33 | {
34 | target: '#Compressor.main.progress',
35 | cond: ctx => ctx.completed.length !== ctx.songs.length
36 | },
37 | {
38 | target: '#Compressor.main.completed',
39 | cond: ctx => ctx.completed.length === ctx.songs.length
40 | }
41 | ]
42 | }
43 | }
44 | },
45 |
46 | // global event
47 | on: {
48 | //
49 | [MainTypes.addFile]: {
50 | target: '.progress',
51 | actions: [
52 | 'addJobAssign', // fire up a child actor
53 | 'addFileSend', // then kick start the actor with an init event
54 | ],
55 | },
56 |
57 | [MainTypes.updateJob]: {
58 | actions: 'updateJob',
59 | target: '.unknown',
60 | },
61 |
62 | [MainTypes.cancelJob]: {
63 | actions: 'cancelJob',
64 | },
65 | },
66 |
67 | // onUpdate: '',
68 | },
69 | global: {
70 | initial: 'modal',
71 | states: {
72 | modal: {},
73 | },
74 | },
75 | },
76 | },
77 |
78 | {
79 | actions,
80 | // services,
81 | // guards,
82 |
83 | // immer version of updater
84 | updater,
85 | },
86 | )
87 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/fsm/services.js:
--------------------------------------------------------------------------------
1 | import { uuid } from '../utils/helpers'
2 | import { Enum } from 'enumify'
3 | import { Types } from '../fsm/machine'
4 |
5 | export class ServiceTypes extends Enum {}
6 | ServiceTypes.initEnum([
7 | 'loadItems',
8 | 'itemDeleteConfirm',
9 | 'createItems',
10 | ])
11 |
12 | // Not used, for demo purpose only
13 | export const itemService = (ctx, e) => (cb, onReceive) => {
14 |
15 | onReceive(evt => {
16 |
17 | switch( evt.type ){
18 |
19 | case ServiceTypes.loadItems:
20 |
21 | const newItem = () => {
22 | const id = uuid()
23 | const d = {
24 | id,
25 | label: `Label_${id}`,
26 | }
27 | return d
28 | }
29 | const arr = [newItem(), newItem(), newItem()]
30 |
31 | cb({
32 | type: Types.itemLoadSuccess,
33 | data: arr,
34 | })
35 |
36 | // cb({
37 | // type: Types.itemLoadFail,
38 | // data: 'network error',
39 | // })
40 |
41 | break
42 |
43 | case ServiceTypes.itemDeleteConfirm:
44 |
45 | const item = evt.data
46 |
47 | new Promise((resolve, reject) => {
48 | setTimeout(() => {
49 |
50 | resolve({
51 | info: `item: ${item.id} deleted successfully`,
52 | })
53 |
54 | // reject({
55 | // info: `Delete item: ${item.id} failed`,
56 | // payload: item,
57 | // })
58 | }, 1200)
59 | })
60 |
61 | .then( result => {
62 | // console.log( '\tconfirmHandler 跑完了，返還: ', result )
63 | cb({
64 | type: Types.modalDeleteItemSuccess,
65 | result
66 | })
67 | })
68 |
69 | .catch( error => {
70 | cb({
71 | type: Types.modalDeleteItemFail,
72 | error
73 | })
74 | })
75 |
76 | break
77 |
78 | case ServiceTypes.createItems:
79 |
80 | const localItem = evt.payload
81 |
82 | return new Promise((resolve, reject) => {
83 |
84 | const serverId = 'server_' + localItem.id.split('tmp_')[1]
85 |
86 | setTimeout(() => {
87 | resolve({
88 | info: `item: ${localItem.id} - ${localItem.label} created successfully`,
89 | serverItem: { ...localItem, id: serverId },
90 | localItem,
91 | })
92 | // reject({
93 | // info: `Create item: ${localItem.id} failed`,
94 | // localItem,
95 | // })
96 | }, 1000)
97 | })
98 | .then( result => {
99 | console.log( '\tnewItem done: ', result )
100 | cb({
101 | type: Types.newItemSuccess,
102 | result,
103 | })
104 | })
105 | .catch( error => {
106 | console.log( 'newItem failed', )
107 | cb({
108 | type: Types.newItemFail,
109 | error,
110 | })
111 | })
112 |
113 | default:
114 | console.log( 'unhandled method call=', evt.type )
115 | }
116 | })
117 |
118 | }
119 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/fsm/workerActions.js:
--------------------------------------------------------------------------------
1 | import { assign } from '../xstate-custom/xstateImmer'
2 | import { send, sendParent } from 'xstate'
3 | import { CompServiceTypes } from './compressionService'
4 | import { MainTypes } from './mainMachine'
5 |
6 | export const onEntry = assign((ctx, e) => {
7 | // console.log('[WorkerMachine ctx]', ctx.name)
8 | })
9 |
10 | export const startJobAssign = assign((ctx, e) => {
11 | // console.log('[SubMachine startJob]', e)
12 | })
13 |
14 | export const startJobSend = send(
15 | (ctx, e) => ({
16 | type: CompServiceTypes.compressSong,
17 | data: ctx,
18 | }),
19 | { to: 'CompressionService' },
20 | )
21 |
22 |
23 | export const workerProgressAssign = assign((ctx, e) => {
24 | const { progress } = e.job
25 | // console.log( `workerMachine ${id}: ${progress}` )
26 | ctx.progress = progress
27 | return ctx
28 | })
29 |
30 | export const workerDoneAssign = assign((ctx, e) => {
31 | // console.log( '\t[workerDone]', ctx, e )
32 | const { progress } = e.job
33 | ctx.progress = progress
34 | return ctx
35 | })
36 |
37 | export const workerDoneSend = sendParent((ctx, e) => ({
38 | type: MainTypes.updateJob,
39 | song: ctx,
40 | }))
41 |
42 | export const pauseFileAssign = assign((ctx, e) => {
43 | // console.log('\t[pauseFile]', e.id)
44 | })
45 |
46 | export const pauseFileSend = send(
47 | (ctx, e) => ({
48 | type: CompServiceTypes.pauseSong,
49 | data: ctx.id,
50 | }),
51 | { to: 'CompressionService' },
52 | )
53 |
54 | export const resumeFileSend = send(
55 | (ctx, e) => ({
56 | type: CompServiceTypes.resumeSong,
57 | data: { id: ctx.id, progress: ctx.progress },
58 | }),
59 | { to: 'CompressionService' },
60 | )
61 |
62 | export const cancelFileSend = send(
63 | (ctx, e) => ({
64 | type: CompServiceTypes.cancelSong,
65 | data: ctx.id,
66 | }),
67 | { to: 'CompressionService' },
68 | )
69 |
70 | export const cancelFileSendParent = sendParent((ctx, e) => ({
71 | type: MainTypes.cancelJob,
72 | id: ctx.id,
73 | }))
74 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/fsm/workerMachine.js:
--------------------------------------------------------------------------------
1 | import { Machine } from 'xstate'
2 | import { updater } from '../xstate-custom/xstateImmer'
3 | import * as actions from '../fsm/workerActions'
4 | import { compressionService } from '../fsm/compressionService'
5 | import { Enum } from 'enumify'
6 |
7 | export class WorkerTypes extends Enum {}
8 | WorkerTypes.initEnum([
9 | 'startJob',
10 | 'workerProgress',
11 | 'workerDone',
12 | 'pauseFile',
13 | 'resumeFile',
14 | 'cancelFile',
15 | ])
16 |
17 | /*
18 | Create a standalone actor machine for each song,
19 | each actor starts an internal service as a side effect to do the compression job
20 | */
21 | export const WorkerMachine = Machine(
22 | {
23 | id: 'WorkerMachine',
24 | initial: 'idle',
25 |
26 | //
27 | context: {
28 | id: null,
29 | name: null,
30 | progress: null,
31 | },
32 |
33 | invoke: {
34 | id: 'CompressionService',
35 | src: compressionService,
36 | },
37 |
38 | states: {
39 |
40 | idle: {
41 | onEntry: 'onEntry',
42 | on: {
43 | [WorkerTypes.startJob]: {
44 | target: 'progress',
45 | actions: [
46 | 'startJobAssign',
47 | 'startJobSend',
48 | ],
49 | },
50 | },
51 | },
52 |
53 | progress: {
54 | on: {
55 | //
56 | [WorkerTypes.workerProgress]: {
57 | actions: [
58 | 'workerProgressAssign',
59 | // 'workerProgressSend',
60 | ],
61 | },
62 |
63 | //
64 | [WorkerTypes.workerDone]: {
65 | target: 'completed',
66 | actions: [
67 | 'workerDoneAssign',
68 | 'workerDoneSend',
69 | ],
70 | },
71 |
72 | //
73 | [WorkerTypes.pauseFile]: {
74 | target: 'paused',
75 | actions: [
76 | 'pauseFileAssign',
77 | 'pauseFileSend'
78 | ],
79 | },
80 | },
81 | },
82 |
83 | //
84 | paused: {
85 | on: {
86 | [WorkerTypes.resumeFile]: {
87 | target: 'progress',
88 | actions: [
89 | 'resumeFileSend',
90 | ],
91 | },
92 | },
93 | },
94 |
95 | completed: {
96 | type: 'final',
97 | },
98 |
99 | cancelled: {
100 | type: 'final',
101 | },
102 | },
103 |
104 | // onEntry: 'onEntry',
105 |
106 | on: {
107 |
108 | // cancel job
109 | [WorkerTypes.cancelFile]: {
110 | target: 'cancelled',
111 | actions: [
112 | 'cancelFileSend',
113 | 'cancelFileSendParent',
114 | ],
115 | },
116 | },
117 | },
118 |
119 | {
120 | actions,
121 | // services,
122 | // guards,
123 | updater,
124 | },
125 | )
126 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/index.js:
--------------------------------------------------------------------------------
1 | import React from 'react'
2 | import ReactDOM from 'react-dom'
3 | import App from './components/app'
4 |
5 | const rootElement = document.getElementById('root')
6 | ReactDOM.render(, rootElement)
7 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/utils/helpers.js:
--------------------------------------------------------------------------------
1 | /* eslint-disable */
2 |
3 | import { sprintf } from 'sprintf-js'
4 |
5 | export const uuid = () => {
6 | return ([1e7]+-1e3+-4e3+-8e3+-1e11).replace(/[018]/g, c =>
7 | (c ^ crypto.getRandomValues(new Uint8Array(1))[0] & 15 >> c / 4).toString(16)
8 | )
9 | }
10 |
11 | export const noop = () => {}
12 |
13 | // dump state tree in string format
14 | export const dumpState = (item, depth=100) => {
15 | const MAX_DEPTH = 100
16 | depth = depth || 0
17 | let isString = typeof item === 'string'
18 | let isDeep = depth > MAX_DEPTH
19 |
20 | if (isString || isDeep) {
21 | console.log(item)
22 | return
23 | }
24 |
25 | for (var key in item) {
26 | console.group(key)
27 | dump(item[key], depth + 1)
28 | console.groupEnd()
29 | }
30 | }
31 |
32 | // for fsm test
33 | export const dump = svc =>
34 | console.log(
35 | '\n--------------------------------------\n[state]',
36 | svc.state.value,
37 | '\n [ctx]',
38 | svc.state.context,
39 | '\n--------------------------------------',
40 | )
41 |
42 |
43 | export const current = state => state.toStrings().pop()
44 |
45 | export const timer = time => {
46 | return new Promise((resolve, reject) => {
47 | setTimeout(resolve, time)
48 | })
49 | }
50 |
51 | export const randomFloat = (min=0, max=999) => {
52 | return Math.random() * (max - min) + min;
53 | }
54 |
55 | export const random = (min=0, max=999) => {
56 | min = Math.ceil(min);
57 | max = Math.floor(max);
58 | return Math.floor(Math.random() * (max - min + 1)) + min;
59 | }
60 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/xstate-custom/useMyMachine.js:
--------------------------------------------------------------------------------
1 | import { useState, useRef, useEffect } from 'react'
2 | import { interpret } from 'xstate'
3 |
4 | export function useMachine(machine, options={}) {
5 |
6 | // Keep track of the current machine state
7 | const [current, setCurrent] = useState(machine.initialState)
8 |
9 | // Reference the service
10 | const serviceRef = useRef(null)
11 |
12 | if (serviceRef.current === null) {
13 |
14 | serviceRef.current = interpret(machine, options)
15 |
16 | //
17 | .onTransition( state => {
18 | if (state.changed) {
19 | setCurrent(state)
20 | }
21 |
22 | const { debug = false } = options
23 |
24 | // DEBUG
25 | if( debug === true && state.changed === false ){
26 | console.error(
27 | `\n\n💣💣💣 [UNHANDLED EVENT]💣💣💣\nEvent=`,
28 | state.event,
29 |
30 | '\nState=',
31 | state.value, state,
32 |
33 | '\nContext=',
34 | state.context,
35 | '\n\n' )
36 |
37 | // console.log( 'state:', state )
38 | }
39 |
40 | })
41 |
42 | //
43 | .onEvent( e => {
44 | const { debug = false } = options
45 | if( debug === true ) console.log( '\t[Event]', e )
46 | })
47 |
48 | }
49 |
50 | const service = serviceRef.current
51 |
52 | useEffect(() => {
53 | // Start the service when the component mounts
54 | service.start()
55 |
56 | return () => {
57 | // Stop the service when the component unmounts
58 | service.stop()
59 | }
60 | }, [])
61 |
62 | return [current, service.send, service]
63 | }
64 |
65 | export function useService(service) {
66 | const [current, setCurrent] = useState(service.state)
67 |
68 | useEffect(() => {
69 | const listener = state => {
70 | if (state.changed) {
71 | setCurrent(state)
72 | }
73 | }
74 |
75 | service.onTransition(listener)
76 |
77 | return () => {
78 | service.off(listener)
79 | }
80 | }, [])
81 |
82 | return [current, service.send, service]
83 | }
84 |
--------------------------------------------------------------------------------
/_old/fsm-service-3-actor/src/xstate-custom/xstateImmer.js:
--------------------------------------------------------------------------------
1 | import { produce } from 'immer';
2 | import { actionTypes } from 'xstate/lib/actions';
3 |
4 | export function assign( assignment ) {
5 | return {
6 | type: actionTypes.assign,
7 | assignment
8 | }
9 | }
10 |
11 | export function updater( context, event, assignActions ) {
12 | const updatedContext = context
13 |
14 | ? assignActions.reduce((acc, assignAction) => {
15 | const { assignment } = assignAction
16 | const update = produce(acc, interim => assignment(interim, event))
17 | return update
18 | }, context)
19 |
20 | : context
21 |
22 | return updatedContext
23 | }
24 |
--------------------------------------------------------------------------------
/_old/word-paralell-state/README.md:
--------------------------------------------------------------------------------
1 |
2 | A extremely simplified text editor, this is one of the examples used in the book [`Constructing the User Interface with Statecharts`](https://dl.acm.org/citation.cfm?id=520870)
3 |
4 |
5 | ## Goal
6 |
7 | to show case the relationship between `fsm` and `ui` not necessarily 1:1, also shows how to model a program with `parallel`states,
8 |
9 | ## Key Features
10 |
11 | - pay attention to the `global` states, where it houses `selection` and `clipboard` for managing parallel states
12 |
13 | - also notice how `selection` state manages it's own parallel child states (this is `bold`, `italic` and `underline`)
14 |
15 | - this examples show cases the power of modeling a program with a mix of `parallel` and `hierarchy` states, this is a must-have capability when modeling program with statecharts
16 |
17 | ## Statechart
18 |
19 |
20 |
--------------------------------------------------------------------------------
/_old/word-paralell-state/package.json:
--------------------------------------------------------------------------------
1 | {
2 | "name": "a1",
3 | "license": "Apache-2.0",
4 | "version": "1.0.0",
5 | "description": "",
6 | "keywords": [],
7 | "main": "src/index.js",
8 | "dependencies": {
9 | "@xstate/react": "^0.2.0",
10 | "classnames": "^2.2.6",
11 | "jest-dom": "^3.1.3",
12 | "react": "16.8.3",
13 | "react-dom": "16.8.3",
14 | "react-scripts": "2.1.8",
15 | "react-testing-library": "^7.0.0",
16 | "sprintf-js": "^1.1.2",
17 | "xstate": "^4.5.0"
18 | },
19 | "devDependencies": {
20 | "typescript": "3.3.3"
21 | },
22 | "scripts": {
23 | "start": "react-scripts start",
24 | "build": "react-scripts build",
25 | "test": "react-scripts test --env=jsdom",
26 | "eject": "react-scripts eject"
27 | },
28 | "browserslist": [
29 | ">0.2%",
30 | "not dead",
31 | "not ie <= 11",
32 | "not op_mini all"
33 | ]
34 | }
35 |
--------------------------------------------------------------------------------
/_old/word-paralell-state/public/index.html:
--------------------------------------------------------------------------------
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
12 |
13 |
14 |
23 | React App
24 |
25 |
26 |
27 |
30 |
31 |
41 |
42 |
43 |
--------------------------------------------------------------------------------
/_old/word-paralell-state/src/App.js:
--------------------------------------------------------------------------------
1 | /* eslint-disable */
2 | import React, { useRef, useEffect } from 'react'
3 | import ReactDOM from 'react-dom'
4 | import { useMachine } from '@xstate/react'
5 | import { interpret } from 'xstate'
6 | import machine from './machine'
7 | import './styles.css'
8 | import { isNumber, isOperator, current, dump } from './helpers'
9 | import classNames from 'classnames'
10 |
11 | function insertMetachars(oMsgInput, sStartTag, sEndTag) {
12 | var bDouble = arguments.length > 1,
13 | // oMsgInput = document.myForm.myTxtArea,
14 | nSelStart = oMsgInput.selectionStart,
15 | nSelEnd = oMsgInput.selectionEnd,
16 | sOldText = oMsgInput.value
17 | oMsgInput.value =
18 | sOldText.substring(0, nSelStart) +
19 | (bDouble
20 | ? sStartTag + sOldText.substring(nSelStart, nSelEnd) + sEndTag
21 | : sStartTag) +
22 | sOldText.substring(nSelEnd)
23 | oMsgInput.setSelectionRange(
24 | bDouble || nSelStart === nSelEnd ? nSelStart + sStartTag.length : nSelStart,
25 | (bDouble ? nSelEnd : nSelStart) + sStartTag.length,
26 | )
27 | oMsgInput.focus()
28 | }
29 |
30 | export const App = () => {
31 | const [state, send] = useMachine(machine, { log: true })
32 |
33 | console.clear()
34 | dump(state.value, 3)
35 | // console.log('\n[State] = ', state.toStrings(), '\n[context] = ', state.context)
36 |
37 | const ta = useRef()
38 | const sel = useRef(null)
39 | const clip = useRef(null)
40 |
41 | useEffect(() => {
42 | window.addEventListener('keydown', handleKey )
43 | return () => window.removeEventListener('keydown', handleKey )
44 | })
45 |
46 | const handleKey = evt => {
47 | if( evt.metaKey == true && evt.key == 'b'){
48 | handleBold()
49 | } else if ( evt.metaKey == true && evt.key == 'u'){
50 | handleUnderline()
51 | } else if ( evt.metaKey == true && evt.key == 'i'){
52 | handleItalic()
53 | } else if ( evt.metaKey == true && evt.key == 'c'){
54 | handleCopy()
55 | } else if ( evt.metaKey == true && evt.key == 'p'){
56 | handlePaste()
57 | }
58 | }
59 |
60 | const handleBold = () => {
61 | send('toggleBold')
62 | insertMetachars(ta.current, '', '')
63 | }
64 |
65 | const handleItalic = () => {
66 | send('toggleItalic')
67 | insertMetachars(ta.current, '', '')
68 | }
69 |
70 | const handleUnderline = () => {
71 | send('toggleUnderline')
72 | insertMetachars(ta.current, '', '')
73 | }
74 |
75 | const handleCopy = () => {
76 | document.execCommand('copy')
77 | const txt = navigator.clipboard
78 | .readText()
79 | .then(res => clip.current = res)
80 | .catch(e => console.log( 'Failed accessing clipboard: ', e ))
81 | ta.current.focus()
82 | send('setClipboardContent')
83 | }
84 |
85 | const handlePaste = () => {
86 | ta.current.focus()
87 | ta.current.setRangeText( clip.current, sel.current.start, sel.current.end)
88 | }
89 |
90 | const handleSelection = () => {
91 | const start = ta.current.selectionStart
92 | const end = ta.current.selectionEnd
93 | // console.log( 'select change:', start, end )
94 | if (start === end) {
95 | send('textUnselected')
96 | } else {
97 | send('textSelected')
98 | }
99 | sel.current = {
100 | start,
101 | end,
102 | }
103 | }
104 |
105 | const btnDisabled = state.matches('globals.selection.notSelected')
106 | const pasteDisabled = state.matches('globals.clipboard.notFilled')
107 |
108 | return (
109 |
110 |
117 |
118 |
125 |
126 |
133 |
134 |
141 |
148 |
149 |
156 |
{JSON.stringify(state.value)}
157 |
33 | todoRef.send('TOGGLE_COMPLETE')}
37 | value={completed}
38 | checked={completed}
39 | />
40 | {' '}
45 |
47 |
48 | {
53 | // when hitting ESC, 'CANCEL' event will be triggered first and switch to `reading.pending`
54 | // so when later 'BLUR' event happens there will be no one there to handle it
55 | // hence we check it's the correct state before dispatching the event
56 | state.matches('editing') && send('BLUR')
57 | }}
58 |
59 | onChange={e => send('CHANGE', { value: e.target.value })}
60 |
61 | onKeyPress={e => {
62 | if (e.key === 'Enter') {
63 | send('COMMIT')
64 | }
65 | }}
66 |
67 | onKeyDown={e => {
68 | if (e.key === 'Escape') send('CANCEL')
69 | }}
70 |
71 | ref={inputRef}
72 | />
73 |
74 | )
75 | }
76 |
--------------------------------------------------------------------------------
/crud-v4-actors/src/Todos.jsx:
--------------------------------------------------------------------------------
1 | import React from "react";
2 | import cn from "classnames";
3 | import "todomvc-app-css/index.css";
4 | import { useHashChange } from "./useHashChange";
5 | import { Todo } from "./Todo";
6 | import { todosMachine } from "./todosMachine";
7 | import { useMachineEx } from './useMyHooks'
8 |
9 | function filterTodos(state, todos) {
10 | if (state.matches("active")) {
11 | return todos.filter(todo => !todo.completed);
12 | }
13 |
14 | if (state.matches("completed")) {
15 | return todos.filter(todo => todo.completed);
16 | }
17 |
18 | return todos;
19 | }
20 |
21 | const persistedTodosMachine = todosMachine.withConfig(
22 | {
23 | actions: {
24 | persist: ctx => {
25 | localStorage.setItem("todos-xstate", JSON.stringify(ctx.todos));
26 | }
27 | }
28 | },
29 |
30 | {
31 | todo: "Learn state machines",
32 |
33 | // IIFE
34 | todos: (() => {
35 | try {
36 | return JSON.parse(localStorage.getItem("todos-xstate")) || [];
37 | } catch (e) {
38 | return [];
39 | }
40 | })()
41 | }
42 | );
43 |
44 | export function Todos() {
45 |
46 | const [state, send ] = useMachineEx(persistedTodosMachine, {debug: true, name: 'Parent'});
47 |
48 | console.log( '\nParent render' )
49 |
50 | useHashChange(() => {
51 | send(`SHOW.${window.location.hash.slice(2) || "all"}`);
52 | });
53 |
54 | const { todos, todo } = state.context;
55 |
56 | const numActiveTodos = todos.filter(todo => !todo.completed).length;
57 | const allCompleted = todos.length > 0 && numActiveTodos === 0;
58 | const mark = !allCompleted ? "completed" : "active";
59 | const markEvent = `MARK.${mark}`;
60 | const filteredTodos = filterTodos(state, todos);
61 |
62 |
63 | return (
64 |
65 |
80 |
101 |
102 | {!!todos.length && (
103 |
149 | )}
150 |
151 | );
152 | }
153 |
--------------------------------------------------------------------------------
/crud-v4-actors/src/index.js:
--------------------------------------------------------------------------------
1 | /* eslint-disable */
2 | import React from "react";
3 | import ReactDOM from "react-dom";
4 | import "todomvc-app-css/index.css";
5 |
6 | import { Todos } from "./Todos";
7 |
8 | ReactDOM.render(, document.querySelector("#app"));
9 |
--------------------------------------------------------------------------------
/crud-v4-actors/src/todoMachine.js:
--------------------------------------------------------------------------------
1 | import { Machine, actions, sendParent } from "xstate";
2 | const { assign } = actions;
3 |
4 | export const todoMachine = Machine({
5 | id: "todo",
6 | initial: "reading",
7 |
8 | context: {
9 | id: undefined,
10 | title: "",
11 | prevTitle: ""
12 | },
13 |
14 | on: {
15 | DELETE: "deleted"
16 | },
17 |
18 | //
19 | states: {
20 | //
21 | reading: {
22 | initial: "unknown",
23 | states: {
24 |
25 | unknown: {
26 | on: {
27 | "": [
28 | { target: "completed", cond: ctx => ctx.completed },
29 | { target: "pending" }
30 | ]
31 | }
32 | },
33 |
34 | pending: {
35 | on: {
36 | TOGGLE_COMPLETE: {
37 | target: "completed",
38 | actions: [
39 | assign({ completed: true }),
40 | sendParent(ctx => ({ type: "TODO.COMMIT", todo: ctx }))
41 | ]
42 | },
43 |
44 | SET_COMPLETED: {
45 | target: "completed",
46 | actions: [
47 | assign({ completed: true }),
48 | sendParent(ctx => ({ type: "TODO.COMMIT", todo: ctx }))
49 | ]
50 | }
51 | }
52 | },
53 |
54 | //
55 | completed: {
56 | on: {
57 | TOGGLE_COMPLETE: {
58 | target: "pending",
59 | actions: [
60 | assign({ completed: false }),
61 | sendParent(ctx => ({ type: "TODO.COMMIT", todo: ctx }))
62 | ]
63 | },
64 |
65 | SET_ACTIVE: {
66 | target: "pending",
67 | actions: [
68 | assign({ completed: false }),
69 | sendParent(ctx => ({ type: "TODO.COMMIT", todo: ctx }))
70 | ]
71 | }
72 | }
73 | },
74 |
75 | hist: {
76 | type: "history"
77 | }
78 | },
79 | on: {
80 | EDIT: {
81 | target: "editing",
82 | }
83 | }
84 | },
85 |
86 | //
87 | editing: {
88 | onEntry: assign({ prevTitle: ctx => ctx.title }),
89 | on: {
90 |
91 | CHANGE: {
92 | actions: assign({
93 | title: (ctx, e) => e.value
94 | })
95 | },
96 |
97 | COMMIT: [
98 | {
99 | target: "reading.hist",
100 | actions: sendParent(ctx => ({ type: "TODO.COMMIT", todo: ctx })),
101 | cond: ctx => ctx.title.trim().length > 0
102 | },
103 | { target: "deleted" }
104 | ],
105 |
106 | BLUR: {
107 | target: "reading",
108 | actions: sendParent(ctx => ({ type: "TODO.COMMIT", todo: ctx }))
109 | },
110 |
111 | CANCEL: {
112 | target: "reading",
113 | actions: assign({ title: ctx => ctx.prevTitle })
114 | }
115 | }
116 | },
117 |
118 | //
119 | deleted: {
120 | onEntry: sendParent(ctx => ({ type: "TODO.DELETE", id: ctx.id }))
121 | }
122 | }
123 | });
124 |
--------------------------------------------------------------------------------
/crud-v4-actors/src/todosMachine.js:
--------------------------------------------------------------------------------
1 | import { Machine, assign, spawn } from "xstate";
2 | import uuid from "uuid-v4";
3 | import { todoMachine } from "./todoMachine";
4 |
5 | const createTodo = title => {
6 | return {
7 | id: uuid(),
8 | title: title,
9 | completed: false
10 | };
11 | };
12 |
13 | export const todosMachine = Machine({
14 | id: "todos",
15 | context: {
16 | todo: "", // new todo
17 | todos: []
18 | },
19 | initial: "initializing",
20 |
21 | states: {
22 |
23 | //
24 | initializing: {
25 | entry: assign({
26 | todos: (ctx, e) => {
27 | return ctx.todos.map(todo => ({
28 | ...todo,
29 | ref: spawn(todoMachine.withContext(todo))
30 | }));
31 | }
32 | }),
33 | on: {
34 | "": "all"
35 | }
36 | },
37 | all: {},
38 | active: {},
39 | completed: {}
40 | },
41 |
42 | on: {
43 | "NEWTODO.CHANGE": {
44 | actions: assign({
45 | todo: (ctx, e) => e.value
46 | })
47 | },
48 | "NEWTODO.COMMIT": {
49 | actions: [
50 | assign({
51 | todo: "", // clear todo
52 | todos: (ctx, e) => {
53 | const newTodo = createTodo(e.value.trim());
54 | return ctx.todos.concat({
55 | ...newTodo,
56 | ref: spawn(todoMachine.withContext(newTodo))
57 | });
58 | }
59 | }),
60 | "persist"
61 | ],
62 | cond: (ctx, e) => e.value.trim().length
63 | },
64 |
65 | "TODO.COMMIT": {
66 | actions: [
67 | assign({
68 | todos: (ctx, e) =>
69 | ctx.todos.map(todo => {
70 | return todo.id === e.todo.id
71 | ? { ...todo, ...e.todo, ref: todo.ref }
72 | : todo;
73 | })
74 | }),
75 | "persist"
76 | ]
77 | },
78 |
79 | "SHOW.all": ".all",
80 | "SHOW.active": ".active",
81 | "SHOW.completed": ".completed",
82 |
83 | "MARK.completed": {
84 | actions: ctx => {
85 | ctx.todos.forEach(todo => todo.ref.send("SET_COMPLETED"));
86 | }
87 | },
88 |
89 | "MARK.active": {
90 | actions: ctx => {
91 | ctx.todos.forEach(todo => todo.ref.send("SET_ACTIVE"));
92 | }
93 | },
94 |
95 | "TODO.DELETE": {
96 | actions: [
97 | assign({
98 | todos: (ctx, e) => ctx.todos.filter(todo => todo.id !== e.id)
99 | }),
100 | "persist"
101 | ]
102 | },
103 |
104 | CLEAR_COMPLETED: {
105 | actions: assign({
106 | todos: ctx => ctx.todos.filter(todo => !todo.completed)
107 | })
108 | }
109 | }
110 | });
111 |
--------------------------------------------------------------------------------
/crud-v4-actors/src/useHashChange.js:
--------------------------------------------------------------------------------
1 | import { useEffect } from "react";
2 |
3 | export function useHashChange(onHashChange) {
4 | useEffect(() => {
5 | window.addEventListener("hashchange", onHashChange);
6 |
7 | return () => window.removeEventListener("hashchange", onHashChange);
8 | }, [onHashChange]);
9 | }
10 |
--------------------------------------------------------------------------------
/crud-v4-actors/src/useMyHooks.js:
--------------------------------------------------------------------------------
1 | import { useState, useRef, useEffect } from 'react'
2 | import {
3 | interpret,
4 | } from 'xstate'
5 |
6 | // machine is raw state machine, will run it with the interpreter
7 | export const useMachineEx = (machine, { debug=false, name='', interpreterOptions={}}) => {
8 | // eslint-disable-next-line
9 | const [_, force] = useState(0)
10 | const machineRef = useRef(null)
11 | const serviceRef = useRef() // started Interpreter
12 |
13 | if(machineRef.current !== machine){
14 |
15 | machineRef.current = machine
16 |
17 | serviceRef.current = interpret(machineRef.current, interpreterOptions)
18 | .onTransition( state => {
19 |
20 | if(state.event.type === 'xstate.init') {
21 | // debugger //
22 | return
23 | }
24 | //
25 | if( state.changed === false && debug === true ){
26 | console.error(
27 | `\n\n💣💣💣 [UNHANDLED EVENT][useMachine]💣💣💣\nEvent=`,
28 | state.event,
29 |
30 | '\nState=',
31 | state.value, state,
32 |
33 | '\nContext=',
34 | state.context,
35 | '\n\n' )
36 |
37 | return
38 | }
39 |
40 | if( debug === true ){
41 | console.group(`%c[useMachine ${name}]`, 'color: darkblue')
42 | dumpState(state.value)
43 | console.log( 'ctx=', state.context )
44 | console.log( 'evt=', state.event )
45 | console.log( '\n', )
46 | console.groupEnd()
47 | }
48 |
49 | // re-render if the state changed
50 | force(x => x+1)
51 | })
52 |
53 | // start immediately, as it's in the constructor
54 | serviceRef.current.start()
55 | }
56 |
57 | // didMount
58 | useEffect(() => {
59 | return () => {
60 | console.log( 'useMachine unload')
61 | serviceRef.current.stop()
62 | }
63 | }, [])
64 |
65 | return [serviceRef.current.state, serviceRef.current.send, serviceRef.current]
66 | }
67 |
68 | // service is Interpreter, already started
69 | export const useServiceEx = (service, { debug=false, name=''}) => {
70 | const lastRef = useRef(null)
71 |
72 | // eslint-disable-next-line
73 | const [_, force] = useState(0)
74 |
75 | if(lastRef.current !== service){
76 |
77 | lastRef.current = service
78 |
79 | service.onTransition( state => {
80 |
81 | // unhandled events
82 | if( state.changed === false && debug === true ){
83 | console.error(
84 | `\n\n💣💣💣 [UNHANDLED EVENT][useService]💣💣💣\nEvent=`,
85 | state.event,
86 |
87 | '\nState=',
88 | state.value, state,
89 |
90 | '\nContext=',
91 | state.context,
92 | '\n\n' )
93 |
94 | return
95 | }
96 |
97 | if( debug === true ){
98 | console.group(`%c[useService ${name}]`, 'color: green')
99 | console.log(state.value)
100 | console.log( `ctx=`, state.context )
101 | console.log( 'evt=', state.event )
102 | console.log( '\n', )
103 | console.groupEnd()
104 | }
105 |
106 | force(x => x+1)
107 | })
108 | }
109 |
110 | return [service.state, service.send, service]
111 |
112 | }
113 |
114 | // +TBD
115 | export const useActorEx = p => {}
116 |
117 | // helper
118 | export const dumpState = (item, depth = 1) => {
119 | // if (depth == 1) console.log('\n')
120 |
121 | const MAX_DEPTH = 100
122 | depth = depth || 0
123 | let isString = typeof item === 'string'
124 | let isDeep = depth > MAX_DEPTH
125 |
126 | if (isString || isDeep) {
127 | console.log(item)
128 | return
129 | }
130 |
131 | for (var key in item) {
132 | console.group(key)
133 | dumpState(item[key], depth + 1)
134 | console.groupEnd()
135 | }
136 | }
137 |
--------------------------------------------------------------------------------
