25 |
26 |
27 |
28 |

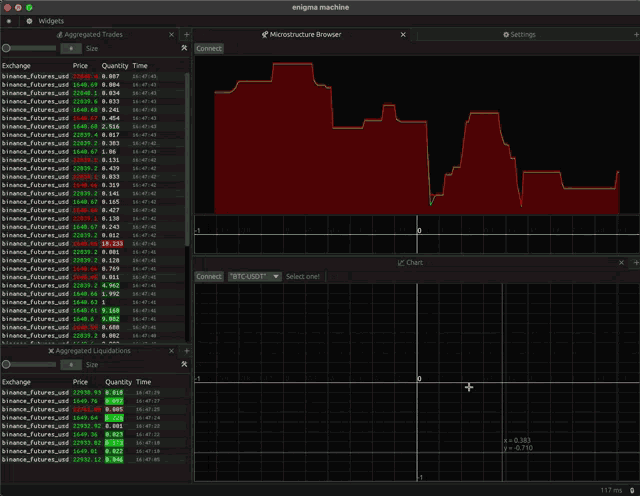

29 | GIF is rendered at 10fps, can't upload larger size for some reason, but it's really much faster than how it looks here
30 |
31 |
32 |
33 |
34 |
35 | * **Lock-free**: Lock-free data structures have significantly higher throughput (no contention) as well as lower latencies as compared to alternatives that use locks under periods of heavy load.
36 | * **Real-Time**: Utilizes Barter-Data with real-time WebSocket integrations enabling the consumption of normalised tick-by-tick data.
37 | * **Multithreaded**: Uses the **[fork-join model](https://en.wikipedia.org/wiki/Fork%E2%80%93join_model)** for delegating non-blocking market event streams into different worker threads.
38 | * **High-throughput**: Uses crossbeam's unbounded MPMC channel under the hood, benchmarked to support _10 million_ market events **per second**.
39 |
40 | ## Technologies used
41 | - [Tokio](https://crates.io/crates/tokio) ([Tonic](https://github.com/hyperium/tonic) & [Tungstenite](https://github.com/snapview/tokio-tungstenite))
42 | - [Barter-data](https://crates.io/crates/barter-data)
43 | - [Barter-integration](https://crates.io/crates/barter-integration)
44 | - [egui](https://crates.io/crates/egui)
45 | - [futures](https://crates.io/crates/futures)
46 | - [Serde](https://serde.rs/)
47 |
48 | ## Getting started
49 | Just clone it and run it bro it's easy. No more CMake shenanigans 😊.
50 | ```rust
51 | cargo run
52 | ```
53 |
54 | ## 🛣️ Roadmap
55 | - Tracing subscriber for debugging and async-aware diagnostics.
56 | - Notifications (PARTIALLY DONE): See [egui-notify branch](https://github.com/g-tejas/enigma/tree/egui-notify)
57 | - Tabs and Workspace functionality to preserve layouts for traders. [Like this](https://discord.com/channels/900275882684477440/904461220592119849/1012443669451776041) is what I mean.
58 | - Improve multi-threading by delegating and scheduling new jobs to pre-initialized worker thread pool.
59 | - More widgets: Look at the [widget branch](https://github.com/g-tejas/enigma/tree/master/src/widgets) for more deets. (e.g Liquidity heatmap, watchlist)
60 | - Especially this one
61 |
62 | https://user-images.githubusercontent.com/76802638/209623672-22191104-5f69-47c7-a359-19326c5f8c14.mp4
63 |
64 |
65 | ## 📚 Resources / Other stuff
66 | - [Naming conventions](https://rust-lang.github.io/api-guidelines/naming.html)
67 | - [Egui navigation: basic centralpanel, layout stuff](https://github.com/mikael-nilsson-github/rust-egui-basic-navigation)
68 | - [Egui, to spawn separate thread for loading data](https://github.com/mikael-nilsson-github/egui-alpaca-crypto-trading)
69 | - [Egui + Reqwest + Tokio + Alpaca](https://github.com/mikael-nilsson-github/egui-async-reqwest-tokio-alpaca/blob/main/src/main.rs)
70 | - [Parasyte Tokio Original implementation](https://github.com/parasyte/egui-tokio-example/blob/main/src/main.rs)
71 | - [Chartbot by SwayStar (but it's not multithreaded)](https://github.com/SwayStar123/chart_bot/blob/master/src/chartbot.rs): For drawing lines on plots and loading data from csv.
72 |
--------------------------------------------------------------------------------
/resources/ProggyClean.ttf:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/g-tejas/enigma-rs/c18d5152f3d6cecd10d60d785c74bd91a5907e95/resources/ProggyClean.ttf
--------------------------------------------------------------------------------
/rustfmt.toml:
--------------------------------------------------------------------------------
1 | edition = "2021"
2 |
3 |
--------------------------------------------------------------------------------
/src/README.md:
--------------------------------------------------------------------------------
1 | # The async drama
2 | [The original discussion](https://github.com/emilk/egui/discussions/521)
3 |
4 | Because Egui is immediate mode (updated 60 times every second or smth), async stuff works differently.
5 | We want to update our UI using data from websocket feeds. But some of this stuff is blocking, so we can't run
6 | the websocket stuff on the same thread as the main thread (the one running the egui frame). Otherwise, our await on websocket feeds would simply block the GUI process and it'd run super slow.
7 |
8 | Solution:
9 | It's possible, you just have to run the async runtime off the main thread (because most operating systems want the main thread to handle UI events, and the event loop blocks). You can spawn the tokio executor in a thread instead of trying to transform the main function into an async function with the #[tokio::main] proc macro.
10 |
11 | [Example implementation](https://github.com/parasyte/egui-tokio-example/blob/main/src/main.rs)
12 | [Plotting time series using this method](https://github.com/mikael-nilsson-github/egui-alpaca-crypto-trading/blob/main/src/app.rs)
13 |
14 | `26/12`: Trying to figure how to do it via the MPSC method to make the program lock-free and run faster. We need to initialize the channel within Machine::default()
15 |
16 | `27/12`: Lock-free concurrency with `std::sync::mpsc` implemented. A new tokio runtime is initiated in the main fn and pressing the "Connect" button spawns a new thread that will run the websocket loop. It's also passed a tx, which is the transmitter. The channel is instantiated in Machine::default(). The websocket messages are passed to the rx, receiver that will be handled in the App::update() loop, with `try_recv` and update the data accordingly.
17 | Plan is to append to a VecDeque or something.
18 |
19 | `28/12`: parasyte replied to my issue [here](https://github.com/parasyte/egui-tokio-example/issues/1). Basically, he suggested that in order to stop the spawned threads, u can simply pass in a "stop event" channel, that will listen for stop events. But leave this to the end, because, it's very unlikely we will hit any sort of performance issue this early.
20 |
21 |
22 | # Todo List
23 | - [ ] Persistence, with serde. Make sure not to serialize the fields containing marketevents. There's some #[dont serialize] i think.
24 | - [ ] OHLCV is messed up, need to fix the x axis and stuff.
25 | `01/01`: Need to add
--------------------------------------------------------------------------------
/src/app.rs:
--------------------------------------------------------------------------------
1 | use crate::defines::*;
2 | use crate::{
3 | defines, utils,
4 | widgets::{self, Widget},
5 | };
6 | use barter_data::model::{DataKind, MarketEvent};
7 | use eframe::egui;
8 | use eframe::egui::plot::PlotPoint;
9 | use egui_notify::Toasts;
10 | use std::collections::{HashMap, HashSet, VecDeque};
11 | use std::sync::mpsc::{Receiver, Sender};
12 | use std::time::Duration;
13 |
14 | // TODO: Add unique identifier to widget names OrderBook::spot::BTCUSD for example.
15 | // This is so we can have multiple orderbooks up at the same time
16 | #[allow(dead_code)]
17 | pub struct State<'a> {
18 | // Style-related fields
19 | open_tabs: HashSet,
20 | style: Option,
21 | lock_layout: bool,
22 |
23 | // Lock-free! Channel
24 | tx: Sender,
25 | rx: Receiver,
26 |
27 | // Widgets
28 | gizmos: HashMap<&'a str, Box>,
29 |
30 | // Vector of pointers to a trait value Widget, might change to Hashmap
31 | trades: VecDeque,
32 | candles: VecDeque,
33 | //orderbooks: VecDeque,
34 | best_bids: VecDeque,
35 | best_asks: VecDeque,
36 | liquidations: VecDeque,
37 |
38 | // Notifications
39 | toasts: Toasts,
40 | events_tx: Sender,
41 | events_rx: Receiver,
42 | }
43 |
44 | impl egui_dock::TabViewer for State<'_> {
45 | type Tab = String;
46 |
47 | fn ui(&mut self, ui: &mut egui::Ui, tab: &mut Self::Tab) {
48 | // let final_result = self.gizmos.get_mut(tab.as_str());
49 | match self.gizmos.get_mut(tab.as_str()) {
50 | Some(widget) => widget.show(
51 | ui,
52 | self.tx.clone(),
53 | self.events_tx.clone(),
54 | &mut self.trades,
55 | &mut self.candles,
56 | &mut self.best_bids,
57 | &mut self.best_asks,
58 | &mut self.liquidations,
59 | ),
60 | _ => {
61 | ui.heading("NO WIDGET FOUND");
62 | }
63 | }
64 | }
65 |
66 | // when you right click a tab
67 | fn context_menu(&mut self, ui: &mut egui::Ui, tab: &mut Self::Tab) {
68 | match self.gizmos.get_mut(tab.as_str()) {
69 | Some(widget) => widget.context_menu(ui),
70 | _ => {
71 | ui.label("No context menu found");
72 | }
73 | }
74 | }
75 |
76 | fn title(&mut self, tab: &mut Self::Tab) -> egui::WidgetText {
77 | tab.as_str().into()
78 | }
79 |
80 | fn on_close(&mut self, tab: &mut Self::Tab) -> bool {
81 | self.open_tabs.remove(tab);
82 | true
83 | }
84 | }
85 |
86 | // impl State<'_> {
87 | // // The only things that should be stored here are styling / open_tabs related stuff
88 | // // since the things that can be accessed from self, are very limited. Or we can store the financial
89 | // // data here itself.
90 | // }
91 |
92 | pub struct Machine<'a> {
93 | state: State<'a>,
94 | tree: egui_dock::Tree,
95 | ping: i64,
96 | }
97 |
98 | impl Machine<'_> {
99 | pub fn new(cc: &eframe::CreationContext<'_>) -> Self {
100 | #[allow(unused_mut)]
101 | let mut default = Self::default();
102 |
103 | #[cfg(feature = "persistence")]
104 | if let Some(storage) = cc.storage {
105 | if let Some(state) = eframe::get_value(storage, eframe::APP_KEY) {
106 | default.state = state;
107 | }
108 | }
109 | utils::configure_fonts(&cc.egui_ctx);
110 | default
111 | }
112 | }
113 |
114 | impl Default for Machine<'_> {
115 | // Default Layout
116 | fn default() -> Self {
117 | let mut tree = egui_dock::Tree::new(vec![
118 | MICROSTRUCTURE_TITLE.to_owned(),
119 | SETTINGS_TITLE.to_owned(),
120 | ]);
121 | let [a, b] = tree.split_left(
122 | egui_dock::NodeIndex::root(),
123 | 0.2,
124 | vec![AGGR_TRADES_TITLE.to_owned()],
125 | );
126 | let [_, _] = tree.split_below(b, 0.5, vec![AGGR_LIQS_TITLE.to_owned()]);
127 | let [_, _] = tree.split_below(a, 0.5, vec![CHART_TITLE.to_owned()]);
128 | let mut open_tabs = HashSet::new();
129 | for node in tree.iter() {
130 | if let egui_dock::Node::Leaf { tabs, .. } = node {
131 | for tab in tabs {
132 | open_tabs.insert(tab.clone());
133 | }
134 | }
135 | }
136 |
137 | // Create channel for different components to communicate
138 | let (tx, rx) = std::sync::mpsc::channel();
139 | let (events_tx, events_rx) = std::sync::mpsc::channel();
140 |
141 | // Create a Hashmap of widgets
142 | let aggr_trades_widget: Box =
143 | Box::new(widgets::aggr_trades::AggrTrades::default());
144 | let aggr_liqs_widget: Box =
145 | Box::new(widgets::aggr_liqs::AggrLiquidations::default());
146 | let chart_widget: Box = Box::new(widgets::chart::Chart::default());
147 | let settings_widget: Box = Box::new(widgets::settings::Settings::default());
148 | let dom_widget: Box =
149 | Box::new(widgets::microstructure::MicrostructureBrowser::default());
150 |
151 | let mut gizmos: HashMap<&str, Box> = HashMap::new();
152 | gizmos.insert(aggr_trades_widget.name(), aggr_trades_widget);
153 | gizmos.insert(chart_widget.name(), chart_widget);
154 | gizmos.insert(settings_widget.name(), settings_widget);
155 | gizmos.insert(dom_widget.name(), dom_widget);
156 | gizmos.insert(aggr_liqs_widget.name(), aggr_liqs_widget);
157 |
158 | let state = State {
159 | open_tabs,
160 | style: None,
161 | lock_layout: false,
162 | tx,
163 | rx,
164 | gizmos,
165 | trades: VecDeque::new(),
166 | candles: VecDeque::new(),
167 | best_bids: VecDeque::new(),
168 | best_asks: VecDeque::new(),
169 | liquidations: VecDeque::new(),
170 | toasts: Toasts::default(),
171 | events_tx,
172 | events_rx,
173 | };
174 |
175 | Self {
176 | state,
177 | tree,
178 | ping: 0,
179 | }
180 | }
181 | }
