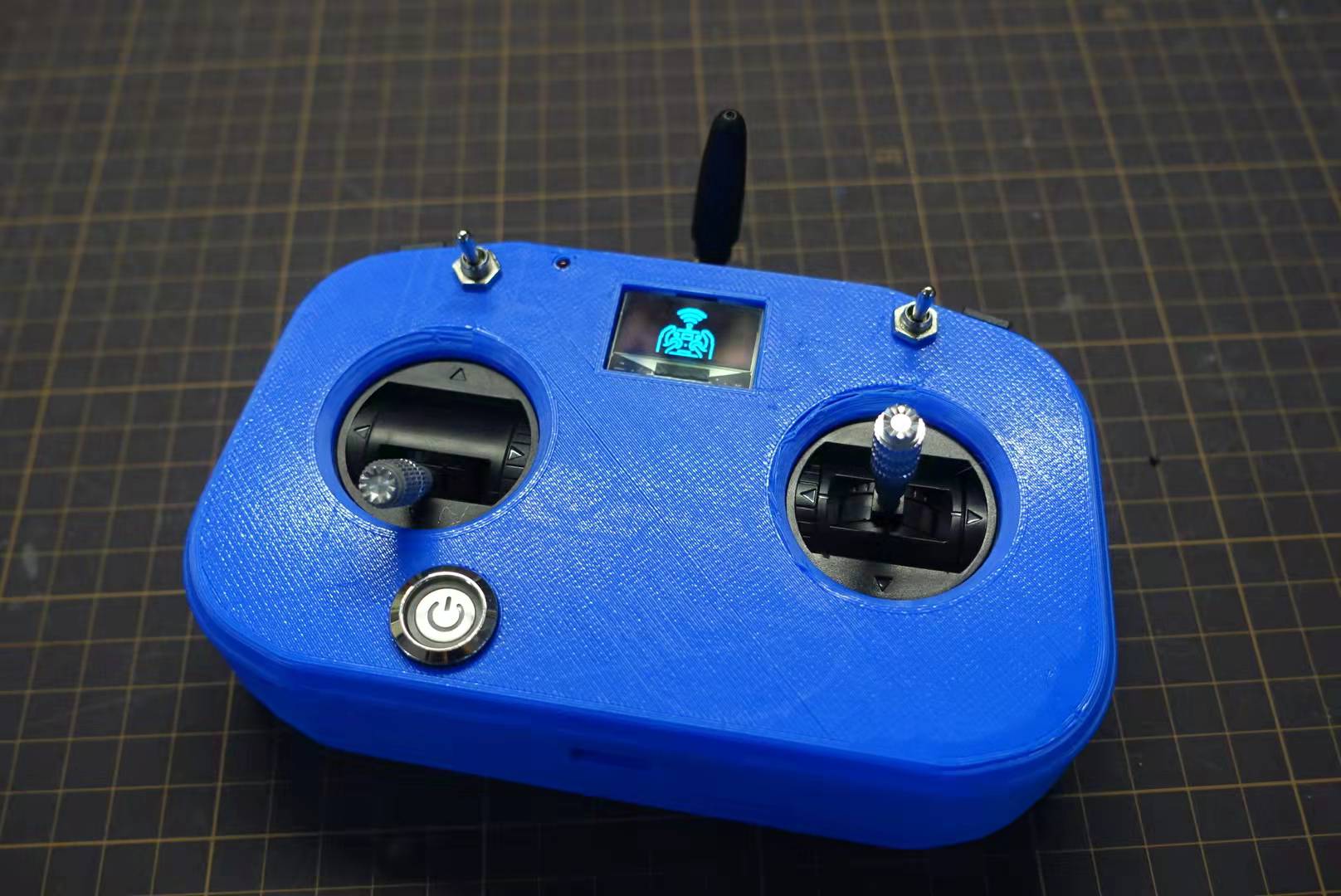

├── LICENSE ├── PCB ├── Gerber_PCB_Arduino_transmitter_V0.9_2022-01-06.zip └── Readme.md ├── PPMtoCRSF ├── PPMtoCRSF.ino └── Readme.md ├── README.md ├── STL ├── Front_Shell_REV-A_M7_kkbin_modify.stl ├── Front_Shell_REV-A_M7_kkbin_modify_gimbal Cover v2.stl ├── Readme.md ├── SimpleTX_Battery_Bay v15.stl ├── SimpleTX_Buttom Frsky_X9Lite_S.stl ├── SimpleTX_Buttom v15.stl ├── SimpleTX_Top_Frsky_X9Lite_S.stl ├── SimpleTX_Top_v15.stl ├── SimpleTX_V2_Back.stl ├── SimpleTX_V2_Battery_Cover.stl └── SimpleTX_V2_Front.stl └── SimpleTX ├── .vscode ├── arduino.json └── c_cpp_properties.json ├── NonBlockingRtttl.cpp ├── NonBlockingRtttl.h ├── SimpleTX.ino ├── config.h ├── crsf.cpp ├── crsf.h ├── led.h └── tone.h /LICENSE: -------------------------------------------------------------------------------- 1 | GNU GENERAL PUBLIC LICENSE 2 | Version 3, 29 June 2007 3 | 4 | Copyright (C) 2007 Free Software Foundation, Inc. 5 | Everyone is permitted to copy and distribute verbatim copies 6 | of this license document, but changing it is not allowed. 7 | 8 | Preamble 9 | 10 | The GNU General Public License is a free, copyleft license for 11 | software and other kinds of works. 12 | 13 | The licenses for most software and other practical works are designed 14 | to take away your freedom to share and change the works. By contrast, 15 | the GNU General Public License is intended to guarantee your freedom to 16 | share and change all versions of a program--to make sure it remains free 17 | software for all its users. We, the Free Software Foundation, use the 18 | GNU General Public License for most of our software; it applies also to 19 | any other work released this way by its authors. You can apply it to 20 | your programs, too. 21 | 22 | When we speak of free software, we are referring to freedom, not 23 | price. Our General Public Licenses are designed to make sure that you 24 | have the freedom to distribute copies of free software (and charge for 25 | them if you wish), that you receive source code or can get it if you 26 | want it, that you can change the software or use pieces of it in new 27 | free programs, and that you know you can do these things. 28 | 29 | To protect your rights, we need to prevent others from denying you 30 | these rights or asking you to surrender the rights. Therefore, you have 31 | certain responsibilities if you distribute copies of the software, or if 32 | you modify it: responsibilities to respect the freedom of others. 33 | 34 | For example, if you distribute copies of such a program, whether 35 | gratis or for a fee, you must pass on to the recipients the same 36 | freedoms that you received. You must make sure that they, too, receive 37 | or can get the source code. And you must show them these terms so they 38 | know their rights. 39 | 40 | Developers that use the GNU GPL protect your rights with two steps: 41 | (1) assert copyright on the software, and (2) offer you this License 42 | giving you legal permission to copy, distribute and/or modify it. 43 | 44 | For the developers' and authors' protection, the GPL clearly explains 45 | that there is no warranty for this free software. For both users' and 46 | authors' sake, the GPL requires that modified versions be marked as 47 | changed, so that their problems will not be attributed erroneously to 48 | authors of previous versions. 49 | 50 | Some devices are designed to deny users access to install or run 51 | modified versions of the software inside them, although the manufacturer 52 | can do so. This is fundamentally incompatible with the aim of 53 | protecting users' freedom to change the software. The systematic 54 | pattern of such abuse occurs in the area of products for individuals to 55 | use, which is precisely where it is most unacceptable. Therefore, we 56 | have designed this version of the GPL to prohibit the practice for those 57 | products. If such problems arise substantially in other domains, we 58 | stand ready to extend this provision to those domains in future versions 59 | of the GPL, as needed to protect the freedom of users. 60 | 61 | Finally, every program is threatened constantly by software patents. 62 | States should not allow patents to restrict development and use of 63 | software on general-purpose computers, but in those that do, we wish to 64 | avoid the special danger that patents applied to a free program could 65 | make it effectively proprietary. To prevent this, the GPL assures that 66 | patents cannot be used to render the program non-free. 67 | 68 | The precise terms and conditions for copying, distribution and 69 | modification follow. 70 | 71 | TERMS AND CONDITIONS 72 | 73 | 0. Definitions. 74 | 75 | "This License" refers to version 3 of the GNU General Public License. 76 | 77 | "Copyright" also means copyright-like laws that apply to other kinds of 78 | works, such as semiconductor masks. 79 | 80 | "The Program" refers to any copyrightable work licensed under this 81 | License. Each licensee is addressed as "you". "Licensees" and 82 | "recipients" may be individuals or organizations. 83 | 84 | To "modify" a work means to copy from or adapt all or part of the work 85 | in a fashion requiring copyright permission, other than the making of an 86 | exact copy. The resulting work is called a "modified version" of the 87 | earlier work or a work "based on" the earlier work. 88 | 89 | A "covered work" means either the unmodified Program or a work based 90 | on the Program. 91 | 92 | To "propagate" a work means to do anything with it that, without 93 | permission, would make you directly or secondarily liable for 94 | infringement under applicable copyright law, except executing it on a 95 | computer or modifying a private copy. Propagation includes copying, 96 | distribution (with or without modification), making available to the 97 | public, and in some countries other activities as well. 98 | 99 | To "convey" a work means any kind of propagation that enables other 100 | parties to make or receive copies. Mere interaction with a user through 101 | a computer network, with no transfer of a copy, is not conveying. 102 | 103 | An interactive user interface displays "Appropriate Legal Notices" 104 | to the extent that it includes a convenient and prominently visible 105 | feature that (1) displays an appropriate copyright notice, and (2) 106 | tells the user that there is no warranty for the work (except to the 107 | extent that warranties are provided), that licensees may convey the 108 | work under this License, and how to view a copy of this License. If 109 | the interface presents a list of user commands or options, such as a 110 | menu, a prominent item in the list meets this criterion. 111 | 112 | 1. Source Code. 113 | 114 | The "source code" for a work means the preferred form of the work 115 | for making modifications to it. "Object code" means any non-source 116 | form of a work. 117 | 118 | A "Standard Interface" means an interface that either is an official 119 | standard defined by a recognized standards body, or, in the case of 120 | interfaces specified for a particular programming language, one that 121 | is widely used among developers working in that language. 122 | 123 | The "System Libraries" of an executable work include anything, other 124 | than the work as a whole, that (a) is included in the normal form of 125 | packaging a Major Component, but which is not part of that Major 126 | Component, and (b) serves only to enable use of the work with that 127 | Major Component, or to implement a Standard Interface for which an 128 | implementation is available to the public in source code form. A 129 | "Major Component", in this context, means a major essential component 130 | (kernel, window system, and so on) of the specific operating system 131 | (if any) on which the executable work runs, or a compiler used to 132 | produce the work, or an object code interpreter used to run it. 133 | 134 | The "Corresponding Source" for a work in object code form means all 135 | the source code needed to generate, install, and (for an executable 136 | work) run the object code and to modify the work, including scripts to 137 | control those activities. However, it does not include the work's 138 | System Libraries, or general-purpose tools or generally available free 139 | programs which are used unmodified in performing those activities but 140 | which are not part of the work. For example, Corresponding Source 141 | includes interface definition files associated with source files for 142 | the work, and the source code for shared libraries and dynamically 143 | linked subprograms that the work is specifically designed to require, 144 | such as by intimate data communication or control flow between those 145 | subprograms and other parts of the work. 146 | 147 | The Corresponding Source need not include anything that users 148 | can regenerate automatically from other parts of the Corresponding 149 | Source. 150 | 151 | The Corresponding Source for a work in source code form is that 152 | same work. 153 | 154 | 2. Basic Permissions. 155 | 156 | All rights granted under this License are granted for the term of 157 | copyright on the Program, and are irrevocable provided the stated 158 | conditions are met. This License explicitly affirms your unlimited 159 | permission to run the unmodified Program. The output from running a 160 | covered work is covered by this License only if the output, given its 161 | content, constitutes a covered work. This License acknowledges your 162 | rights of fair use or other equivalent, as provided by copyright law. 163 | 164 | You may make, run and propagate covered works that you do not 165 | convey, without conditions so long as your license otherwise remains 166 | in force. You may convey covered works to others for the sole purpose 167 | of having them make modifications exclusively for you, or provide you 168 | with facilities for running those works, provided that you comply with 169 | the terms of this License in conveying all material for which you do 170 | not control copyright. Those thus making or running the covered works 171 | for you must do so exclusively on your behalf, under your direction 172 | and control, on terms that prohibit them from making any copies of 173 | your copyrighted material outside their relationship with you. 174 | 175 | Conveying under any other circumstances is permitted solely under 176 | the conditions stated below. Sublicensing is not allowed; section 10 177 | makes it unnecessary. 178 | 179 | 3. Protecting Users' Legal Rights From Anti-Circumvention Law. 180 | 181 | No covered work shall be deemed part of an effective technological 182 | measure under any applicable law fulfilling obligations under article 183 | 11 of the WIPO copyright treaty adopted on 20 December 1996, or 184 | similar laws prohibiting or restricting circumvention of such 185 | measures. 186 | 187 | When you convey a covered work, you waive any legal power to forbid 188 | circumvention of technological measures to the extent such circumvention 189 | is effected by exercising rights under this License with respect to 190 | the covered work, and you disclaim any intention to limit operation or 191 | modification of the work as a means of enforcing, against the work's 192 | users, your or third parties' legal rights to forbid circumvention of 193 | technological measures. 194 | 195 | 4. Conveying Verbatim Copies. 196 | 197 | You may convey verbatim copies of the Program's source code as you 198 | receive it, in any medium, provided that you conspicuously and 199 | appropriately publish on each copy an appropriate copyright notice; 200 | keep intact all notices stating that this License and any 201 | non-permissive terms added in accord with section 7 apply to the code; 202 | keep intact all notices of the absence of any warranty; and give all 203 | recipients a copy of this License along with the Program. 204 | 205 | You may charge any price or no price for each copy that you convey, 206 | and you may offer support or warranty protection for a fee. 207 | 208 | 5. Conveying Modified Source Versions. 209 | 210 | You may convey a work based on the Program, or the modifications to 211 | produce it from the Program, in the form of source code under the 212 | terms of section 4, provided that you also meet all of these conditions: 213 | 214 | a) The work must carry prominent notices stating that you modified 215 | it, and giving a relevant date. 216 | 217 | b) The work must carry prominent notices stating that it is 218 | released under this License and any conditions added under section 219 | 7. This requirement modifies the requirement in section 4 to 220 | "keep intact all notices". 221 | 222 | c) You must license the entire work, as a whole, under this 223 | License to anyone who comes into possession of a copy. This 224 | License will therefore apply, along with any applicable section 7 225 | additional terms, to the whole of the work, and all its parts, 226 | regardless of how they are packaged. This License gives no 227 | permission to license the work in any other way, but it does not 228 | invalidate such permission if you have separately received it. 229 | 230 | d) If the work has interactive user interfaces, each must display 231 | Appropriate Legal Notices; however, if the Program has interactive 232 | interfaces that do not display Appropriate Legal Notices, your 233 | work need not make them do so. 234 | 235 | A compilation of a covered work with other separate and independent 236 | works, which are not by their nature extensions of the covered work, 237 | and which are not combined with it such as to form a larger program, 238 | in or on a volume of a storage or distribution medium, is called an 239 | "aggregate" if the compilation and its resulting copyright are not 240 | used to limit the access or legal rights of the compilation's users 241 | beyond what the individual works permit. Inclusion of a covered work 242 | in an aggregate does not cause this License to apply to the other 243 | parts of the aggregate. 244 | 245 | 6. Conveying Non-Source Forms. 246 | 247 | You may convey a covered work in object code form under the terms 248 | of sections 4 and 5, provided that you also convey the 249 | machine-readable Corresponding Source under the terms of this License, 250 | in one of these ways: 251 | 252 | a) Convey the object code in, or embodied in, a physical product 253 | (including a physical distribution medium), accompanied by the 254 | Corresponding Source fixed on a durable physical medium 255 | customarily used for software interchange. 256 | 257 | b) Convey the object code in, or embodied in, a physical product 258 | (including a physical distribution medium), accompanied by a 259 | written offer, valid for at least three years and valid for as 260 | long as you offer spare parts or customer support for that product 261 | model, to give anyone who possesses the object code either (1) a 262 | copy of the Corresponding Source for all the software in the 263 | product that is covered by this License, on a durable physical 264 | medium customarily used for software interchange, for a price no 265 | more than your reasonable cost of physically performing this 266 | conveying of source, or (2) access to copy the 267 | Corresponding Source from a network server at no charge. 268 | 269 | c) Convey individual copies of the object code with a copy of the 270 | written offer to provide the Corresponding Source. This 271 | alternative is allowed only occasionally and noncommercially, and 272 | only if you received the object code with such an offer, in accord 273 | with subsection 6b. 274 | 275 | d) Convey the object code by offering access from a designated 276 | place (gratis or for a charge), and offer equivalent access to the 277 | Corresponding Source in the same way through the same place at no 278 | further charge. You need not require recipients to copy the 279 | Corresponding Source along with the object code. If the place to 280 | copy the object code is a network server, the Corresponding Source 281 | may be on a different server (operated by you or a third party) 282 | that supports equivalent copying facilities, provided you maintain 283 | clear directions next to the object code saying where to find the 284 | Corresponding Source. Regardless of what server hosts the 285 | Corresponding Source, you remain obligated to ensure that it is 286 | available for as long as needed to satisfy these requirements. 287 | 288 | e) Convey the object code using peer-to-peer transmission, provided 289 | you inform other peers where the object code and Corresponding 290 | Source of the work are being offered to the general public at no 291 | charge under subsection 6d. 292 | 293 | A separable portion of the object code, whose source code is excluded 294 | from the Corresponding Source as a System Library, need not be 295 | included in conveying the object code work. 296 | 297 | A "User Product" is either (1) a "consumer product", which means any 298 | tangible personal property which is normally used for personal, family, 299 | or household purposes, or (2) anything designed or sold for incorporation 300 | into a dwelling. In determining whether a product is a consumer product, 301 | doubtful cases shall be resolved in favor of coverage. For a particular 302 | product received by a particular user, "normally used" refers to a 303 | typical or common use of that class of product, regardless of the status 304 | of the particular user or of the way in which the particular user 305 | actually uses, or expects or is expected to use, the product. A product 306 | is a consumer product regardless of whether the product has substantial 307 | commercial, industrial or non-consumer uses, unless such uses represent 308 | the only significant mode of use of the product. 309 | 310 | "Installation Information" for a User Product means any methods, 311 | procedures, authorization keys, or other information required to install 312 | and execute modified versions of a covered work in that User Product from 313 | a modified version of its Corresponding Source. The information must 314 | suffice to ensure that the continued functioning of the modified object 315 | code is in no case prevented or interfered with solely because 316 | modification has been made. 317 | 318 | If you convey an object code work under this section in, or with, or 319 | specifically for use in, a User Product, and the conveying occurs as 320 | part of a transaction in which the right of possession and use of the 321 | User Product is transferred to the recipient in perpetuity or for a 322 | fixed term (regardless of how the transaction is characterized), the 323 | Corresponding Source conveyed under this section must be accompanied 324 | by the Installation Information. But this requirement does not apply 325 | if neither you nor any third party retains the ability to install 326 | modified object code on the User Product (for example, the work has 327 | been installed in ROM). 328 | 329 | The requirement to provide Installation Information does not include a 330 | requirement to continue to provide support service, warranty, or updates 331 | for a work that has been modified or installed by the recipient, or for 332 | the User Product in which it has been modified or installed. Access to a 333 | network may be denied when the modification itself materially and 334 | adversely affects the operation of the network or violates the rules and 335 | protocols for communication across the network. 336 | 337 | Corresponding Source conveyed, and Installation Information provided, 338 | in accord with this section must be in a format that is publicly 339 | documented (and with an implementation available to the public in 340 | source code form), and must require no special password or key for 341 | unpacking, reading or copying. 342 | 343 | 7. Additional Terms. 344 | 345 | "Additional permissions" are terms that supplement the terms of this 346 | License by making exceptions from one or more of its conditions. 347 | Additional permissions that are applicable to the entire Program shall 348 | be treated as though they were included in this License, to the extent 349 | that they are valid under applicable law. If additional permissions 350 | apply only to part of the Program, that part may be used separately 351 | under those permissions, but the entire Program remains governed by 352 | this License without regard to the additional permissions. 353 | 354 | When you convey a copy of a covered work, you may at your option 355 | remove any additional permissions from that copy, or from any part of 356 | it. (Additional permissions may be written to require their own 357 | removal in certain cases when you modify the work.) You may place 358 | additional permissions on material, added by you to a covered work, 359 | for which you have or can give appropriate copyright permission. 360 | 361 | Notwithstanding any other provision of this License, for material you 362 | add to a covered work, you may (if authorized by the copyright holders of 363 | that material) supplement the terms of this License with terms: 364 | 365 | a) Disclaiming warranty or limiting liability differently from the 366 | terms of sections 15 and 16 of this License; or 367 | 368 | b) Requiring preservation of specified reasonable legal notices or 369 | author attributions in that material or in the Appropriate Legal 370 | Notices displayed by works containing it; or 371 | 372 | c) Prohibiting misrepresentation of the origin of that material, or 373 | requiring that modified versions of such material be marked in 374 | reasonable ways as different from the original version; or 375 | 376 | d) Limiting the use for publicity purposes of names of licensors or 377 | authors of the material; or 378 | 379 | e) Declining to grant rights under trademark law for use of some 380 | trade names, trademarks, or service marks; or 381 | 382 | f) Requiring indemnification of licensors and authors of that 383 | material by anyone who conveys the material (or modified versions of 384 | it) with contractual assumptions of liability to the recipient, for 385 | any liability that these contractual assumptions directly impose on 386 | those licensors and authors. 387 | 388 | All other non-permissive additional terms are considered "further 389 | restrictions" within the meaning of section 10. If the Program as you 390 | received it, or any part of it, contains a notice stating that it is 391 | governed by this License along with a term that is a further 392 | restriction, you may remove that term. If a license document contains 393 | a further restriction but permits relicensing or conveying under this 394 | License, you may add to a covered work material governed by the terms 395 | of that license document, provided that the further restriction does 396 | not survive such relicensing or conveying. 397 | 398 | If you add terms to a covered work in accord with this section, you 399 | must place, in the relevant source files, a statement of the 400 | additional terms that apply to those files, or a notice indicating 401 | where to find the applicable terms. 402 | 403 | Additional terms, permissive or non-permissive, may be stated in the 404 | form of a separately written license, or stated as exceptions; 405 | the above requirements apply either way. 406 | 407 | 8. Termination. 408 | 409 | You may not propagate or modify a covered work except as expressly 410 | provided under this License. Any attempt otherwise to propagate or 411 | modify it is void, and will automatically terminate your rights under 412 | this License (including any patent licenses granted under the third 413 | paragraph of section 11). 414 | 415 | However, if you cease all violation of this License, then your 416 | license from a particular copyright holder is reinstated (a) 417 | provisionally, unless and until the copyright holder explicitly and 418 | finally terminates your license, and (b) permanently, if the copyright 419 | holder fails to notify you of the violation by some reasonable means 420 | prior to 60 days after the cessation. 421 | 422 | Moreover, your license from a particular copyright holder is 423 | reinstated permanently if the copyright holder notifies you of the 424 | violation by some reasonable means, this is the first time you have 425 | received notice of violation of this License (for any work) from that 426 | copyright holder, and you cure the violation prior to 30 days after 427 | your receipt of the notice. 428 | 429 | Termination of your rights under this section does not terminate the 430 | licenses of parties who have received copies or rights from you under 431 | this License. If your rights have been terminated and not permanently 432 | reinstated, you do not qualify to receive new licenses for the same 433 | material under section 10. 434 | 435 | 9. Acceptance Not Required for Having Copies. 436 | 437 | You are not required to accept this License in order to receive or 438 | run a copy of the Program. Ancillary propagation of a covered work 439 | occurring solely as a consequence of using peer-to-peer transmission 440 | to receive a copy likewise does not require acceptance. However, 441 | nothing other than this License grants you permission to propagate or 442 | modify any covered work. These actions infringe copyright if you do 443 | not accept this License. Therefore, by modifying or propagating a 444 | covered work, you indicate your acceptance of this License to do so. 445 | 446 | 10. Automatic Licensing of Downstream Recipients. 447 | 448 | Each time you convey a covered work, the recipient automatically 449 | receives a license from the original licensors, to run, modify and 450 | propagate that work, subject to this License. You are not responsible 451 | for enforcing compliance by third parties with this License. 452 | 453 | An "entity transaction" is a transaction transferring control of an 454 | organization, or substantially all assets of one, or subdividing an 455 | organization, or merging organizations. If propagation of a covered 456 | work results from an entity transaction, each party to that 457 | transaction who receives a copy of the work also receives whatever 458 | licenses to the work the party's predecessor in interest had or could 459 | give under the previous paragraph, plus a right to possession of the 460 | Corresponding Source of the work from the predecessor in interest, if 461 | the predecessor has it or can get it with reasonable efforts. 462 | 463 | You may not impose any further restrictions on the exercise of the 464 | rights granted or affirmed under this License. For example, you may 465 | not impose a license fee, royalty, or other charge for exercise of 466 | rights granted under this License, and you may not initiate litigation 467 | (including a cross-claim or counterclaim in a lawsuit) alleging that 468 | any patent claim is infringed by making, using, selling, offering for 469 | sale, or importing the Program or any portion of it. 470 | 471 | 11. Patents. 472 | 473 | A "contributor" is a copyright holder who authorizes use under this 474 | License of the Program or a work on which the Program is based. The 475 | work thus licensed is called the contributor's "contributor version". 476 | 477 | A contributor's "essential patent claims" are all patent claims 478 | owned or controlled by the contributor, whether already acquired or 479 | hereafter acquired, that would be infringed by some manner, permitted 480 | by this License, of making, using, or selling its contributor version, 481 | but do not include claims that would be infringed only as a 482 | consequence of further modification of the contributor version. For 483 | purposes of this definition, "control" includes the right to grant 484 | patent sublicenses in a manner consistent with the requirements of 485 | this License. 486 | 487 | Each contributor grants you a non-exclusive, worldwide, royalty-free 488 | patent license under the contributor's essential patent claims, to 489 | make, use, sell, offer for sale, import and otherwise run, modify and 490 | propagate the contents of its contributor version. 491 | 492 | In the following three paragraphs, a "patent license" is any express 493 | agreement or commitment, however denominated, not to enforce a patent 494 | (such as an express permission to practice a patent or covenant not to 495 | sue for patent infringement). To "grant" such a patent license to a 496 | party means to make such an agreement or commitment not to enforce a 497 | patent against the party. 498 | 499 | If you convey a covered work, knowingly relying on a patent license, 500 | and the Corresponding Source of the work is not available for anyone 501 | to copy, free of charge and under the terms of this License, through a 502 | publicly available network server or other readily accessible means, 503 | then you must either (1) cause the Corresponding Source to be so 504 | available, or (2) arrange to deprive yourself of the benefit of the 505 | patent license for this particular work, or (3) arrange, in a manner 506 | consistent with the requirements of this License, to extend the patent 507 | license to downstream recipients. "Knowingly relying" means you have 508 | actual knowledge that, but for the patent license, your conveying the 509 | covered work in a country, or your recipient's use of the covered work 510 | in a country, would infringe one or more identifiable patents in that 511 | country that you have reason to believe are valid. 512 | 513 | If, pursuant to or in connection with a single transaction or 514 | arrangement, you convey, or propagate by procuring conveyance of, a 515 | covered work, and grant a patent license to some of the parties 516 | receiving the covered work authorizing them to use, propagate, modify 517 | or convey a specific copy of the covered work, then the patent license 518 | you grant is automatically extended to all recipients of the covered 519 | work and works based on it. 520 | 521 | A patent license is "discriminatory" if it does not include within 522 | the scope of its coverage, prohibits the exercise of, or is 523 | conditioned on the non-exercise of one or more of the rights that are 524 | specifically granted under this License. You may not convey a covered 525 | work if you are a party to an arrangement with a third party that is 526 | in the business of distributing software, under which you make payment 527 | to the third party based on the extent of your activity of conveying 528 | the work, and under which the third party grants, to any of the 529 | parties who would receive the covered work from you, a discriminatory 530 | patent license (a) in connection with copies of the covered work 531 | conveyed by you (or copies made from those copies), or (b) primarily 532 | for and in connection with specific products or compilations that 533 | contain the covered work, unless you entered into that arrangement, 534 | or that patent license was granted, prior to 28 March 2007. 535 | 536 | Nothing in this License shall be construed as excluding or limiting 537 | any implied license or other defenses to infringement that may 538 | otherwise be available to you under applicable patent law. 539 | 540 | 12. No Surrender of Others' Freedom. 541 | 542 | If conditions are imposed on you (whether by court order, agreement or 543 | otherwise) that contradict the conditions of this License, they do not 544 | excuse you from the conditions of this License. If you cannot convey a 545 | covered work so as to satisfy simultaneously your obligations under this 546 | License and any other pertinent obligations, then as a consequence you may 547 | not convey it at all. For example, if you agree to terms that obligate you 548 | to collect a royalty for further conveying from those to whom you convey 549 | the Program, the only way you could satisfy both those terms and this 550 | License would be to refrain entirely from conveying the Program. 551 | 552 | 13. Use with the GNU Affero General Public License. 553 | 554 | Notwithstanding any other provision of this License, you have 555 | permission to link or combine any covered work with a work licensed 556 | under version 3 of the GNU Affero General Public License into a single 557 | combined work, and to convey the resulting work. The terms of this 558 | License will continue to apply to the part which is the covered work, 559 | but the special requirements of the GNU Affero General Public License, 560 | section 13, concerning interaction through a network will apply to the 561 | combination as such. 562 | 563 | 14. Revised Versions of this License. 564 | 565 | The Free Software Foundation may publish revised and/or new versions of 566 | the GNU General Public License from time to time. Such new versions will 567 | be similar in spirit to the present version, but may differ in detail to 568 | address new problems or concerns. 569 | 570 | Each version is given a distinguishing version number. If the 571 | Program specifies that a certain numbered version of the GNU General 572 | Public License "or any later version" applies to it, you have the 573 | option of following the terms and conditions either of that numbered 574 | version or of any later version published by the Free Software 575 | Foundation. If the Program does not specify a version number of the 576 | GNU General Public License, you may choose any version ever published 577 | by the Free Software Foundation. 578 | 579 | If the Program specifies that a proxy can decide which future 580 | versions of the GNU General Public License can be used, that proxy's 581 | public statement of acceptance of a version permanently authorizes you 582 | to choose that version for the Program. 583 | 584 | Later license versions may give you additional or different 585 | permissions. However, no additional obligations are imposed on any 586 | author or copyright holder as a result of your choosing to follow a 587 | later version. 588 | 589 | 15. Disclaimer of Warranty. 590 | 591 | THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY 592 | APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT 593 | HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY 594 | OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, 595 | THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR 596 | PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM 597 | IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF 598 | ALL NECESSARY SERVICING, REPAIR OR CORRECTION. 599 | 600 | 16. Limitation of Liability. 601 | 602 | IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING 603 | WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MODIFIES AND/OR CONVEYS 604 | THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY 605 | GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE 606 | USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF 607 | DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD 608 | PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), 609 | EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF 610 | SUCH DAMAGES. 611 | 612 | 17. Interpretation of Sections 15 and 16. 613 | 614 | If the disclaimer of warranty and limitation of liability provided 615 | above cannot be given local legal effect according to their terms, 616 | reviewing courts shall apply local law that most closely approximates 617 | an absolute waiver of all civil liability in connection with the 618 | Program, unless a warranty or assumption of liability accompanies a 619 | copy of the Program in return for a fee. 620 | 621 | END OF TERMS AND CONDITIONS 622 | 623 | How to Apply These Terms to Your New Programs 624 | 625 | If you develop a new program, and you want it to be of the greatest 626 | possible use to the public, the best way to achieve this is to make it 627 | free software which everyone can redistribute and change under these terms. 628 | 629 | To do so, attach the following notices to the program. It is safest 630 | to attach them to the start of each source file to most effectively 631 | state the exclusion of warranty; and each file should have at least 632 | the "copyright" line and a pointer to where the full notice is found. 633 | 634 | 635 | Copyright (C) 636 | 637 | This program is free software: you can redistribute it and/or modify 638 | it under the terms of the GNU General Public License as published by 639 | the Free Software Foundation, either version 3 of the License, or 640 | (at your option) any later version. 641 | 642 | This program is distributed in the hope that it will be useful, 643 | but WITHOUT ANY WARRANTY; without even the implied warranty of 644 | MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the 645 | GNU General Public License for more details. 646 | 647 | You should have received a copy of the GNU General Public License 648 | along with this program. If not, see . 649 | 650 | Also add information on how to contact you by electronic and paper mail. 651 | 652 | If the program does terminal interaction, make it output a short 653 | notice like this when it starts in an interactive mode: 654 | 655 | Copyright (C) 656 | This program comes with ABSOLUTELY NO WARRANTY; for details type `show w'. 657 | This is free software, and you are welcome to redistribute it 658 | under certain conditions; type `show c' for details. 659 | 660 | The hypothetical commands `show w' and `show c' should show the appropriate 661 | parts of the General Public License. Of course, your program's commands 662 | might be different; for a GUI interface, you would use an "about box". 663 | 664 | You should also get your employer (if you work as a programmer) or school, 665 | if any, to sign a "copyright disclaimer" for the program, if necessary. 666 | For more information on this, and how to apply and follow the GNU GPL, see 667 | . 668 | 669 | The GNU General Public License does not permit incorporating your program 670 | into proprietary programs. If your program is a subroutine library, you 671 | may consider it more useful to permit linking proprietary applications with 672 | the library. If this is what you want to do, use the GNU Lesser General 673 | Public License instead of this License. But first, please read 674 | . 675 | -------------------------------------------------------------------------------- /PCB/Gerber_PCB_Arduino_transmitter_V0.9_2022-01-06.zip: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/kkbin505/Arduino-Transmitter-for-ELRS/6c4cbdd912e15320894de9e5d142b5f3c9b14724/PCB/Gerber_PCB_Arduino_transmitter_V0.9_2022-01-06.zip -------------------------------------------------------------------------------- /PCB/Readme.md: -------------------------------------------------------------------------------- 1 | Add PCB V0.9 2 | 3 | BOM : 4 | 1. Frsky M7 Gimbal *2 5 | 2. Arduino Nano 6 | 3. XH2.54 3P *6 7 | 4. PH2.0 2P 8 | 5. 1.25 6P 9 | 6. 2 Position Switch *5 10 | 7. LED *1 11 | 8. 100 ohm resister 12 | 9. 10K 0805 resister 13 | 10. 20K 0805 resister 14 | 11. UFL to SMA connector 15 | 12. 2.4G SMA antenna 16 | 13. ExpressLRS 2.4G TX module 17 | 14. 2S battery 18 | 15. PCB https://oshwlab.com/kkbinmail/arduino_transmitter 19 | 20 | Build order: 21 | 22 | 1. Print shell from:https://github.com/cruwaller/elrs_handset/tree/master/revision_A/shell 23 | 2. Order PCB from JLB PCB 24 | 3. Sold 10K and 20K resiter to PCB 25 | 4. Sold 1.25 6P male header 26 | 5. Sold Arduino Nano 27 | 6. Sold XH2.45 (Double check the pole of the battery header, make sure ground is to ground) 28 | 7. Sold PH2.0 29 | 8. Down load firmware 30 | 9. Build and Flash to Arduino Nano with IDE 31 | 10. Flash TX module use ExpressLRS un-check UART_INVERTOR & OpenTX_SYNC 32 | 11. Assemble switch to shell 33 | 12. Assemble M7 Gimbal 34 | 13. Assemble SMA connector 35 | 14. Connect everything 36 | 37 | 38 | 39 | SCHEAM 40 | 41 | ![EasyEDA(标准版) - 免费、易用、强大的在线电路设计软件 - Google Chrome 2022_1_23 19_47_16](https://user-images.githubusercontent.com/43392862/150677345-1feb8e57-7f06-45fc-b877-a0eb61f51f26.png) 42 | 43 | ![微信图片_20220123194957](https://user-images.githubusercontent.com/43392862/150677353-b007ecf4-92b2-4e32-adc0-9507a2886bab.jpg) 44 | -------------------------------------------------------------------------------- /PPMtoCRSF/PPMtoCRSF.ino: -------------------------------------------------------------------------------- 1 | /* 2 | ------------------------------------------------------------------------- 3 | Simple Arduino trasmisster (PPM to ELRS) 4 | Decode PPM to CRSF protocol 5 | Arduino Nano 6 | ELRS 2.4G TX moduel 7 | Custom PCB from JLCPCB 8 | https://github.com/kkbin505/Arduino-Transmitter-for-ELRS 9 | * This file is part of Simple TX 10 | * 11 | * Simple TX is free software: you can redistribute it and/or modify 12 | * it under the terms of the GNU General Public License as published by 13 | * the Free Software Foundation, either version 3 of the License, or 14 | * (at your option) any later version. 15 | * 16 | * Simple TX is distributed in the hope that it will be useful, 17 | * but WITHOUT ANY WARRANTY; without even the implied warranty of 18 | * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the 19 | * GNU General Public License for more details. 20 | * 21 | * You should have received a copy of the GNU General Public License 22 | * along with Cleanflight. If not, see . 23 | */ 24 | 25 | //Use this lib https://github.com/DzikuVx/PPMReader 26 | #include "PPMReader.h" 27 | //Setup ppm read on pin 2, 28 | 29 | PPMReader ppmReader(2, 0, false); 30 | 31 | byte channelAmount = 8; 32 | 33 | //default channel order is AETR 34 | #define TAER 35 | 36 | #define RADIO_ADDRESS 0xEA 37 | #define ADDR_MODULE 0xEE // Crossfire transmitter 38 | #define TYPE_CHANNELS 0x16 39 | 40 | // internal crsf variables 41 | #define CRSF_CHANNEL_MIN 172 42 | #define CRSF_CHANNEL_MID 991 43 | #define CRSF_CHANNEL_MAX 1811 44 | #define CRSF_TIME_NEEDED_PER_FRAME_US 1100 // 700 ms + 400 ms for potential ad-hoc request 45 | #define CRSF_TIME_BETWEEN_FRAMES_US 4000 // 4 ms 250Hz 46 | #define CRSF_PAYLOAD_OFFSET offsetof(crsfFrameDef_t, type) 47 | #define CRSF_MAX_CHANNEL 16 48 | #define CRSF_FRAME_SIZE_MAX 64 49 | #define SERIAL_BAUDRATE 400000 50 | #define CRSF_MSP_RX_BUF_SIZE 128 51 | #define CRSF_MSP_TX_BUF_SIZE 128 52 | #define CRSF_PAYLOAD_SIZE_MAX 60 53 | #define CRSF_PACKET_LENGTH 22 54 | #define CRSF_PACKET_SIZE 26 55 | #define CRSF_FRAME_LENGTH 24; // length of type + payload + crc 56 | 57 | uint8_t crsfPacket[CRSF_PACKET_SIZE]; 58 | int rcChannels[CRSF_MAX_CHANNEL]; 59 | uint32_t crsfTime = 0; 60 | 61 | #ifdef TAER 62 | enum chan_order{ 63 | THROTTLE, 64 | AILERON, 65 | ELEVATOR, 66 | RUDDER, 67 | AUX1, // (CH5) ARM switch for Expresslrs 68 | AUX2, // (CH6) angel / airmode change 69 | AUX3, // (CH7) flip after crash 70 | AUX4, // (CH8) 71 | AUX5, // (CH9) 72 | AUX6, // (CH10) 73 | AUX7, // (CH11) 74 | AUX8, // (CH12) 75 | }; 76 | #else 77 | enum chan_order{ 78 | AILERON, 79 | ELEVATOR, 80 | THROTTLE, 81 | RUDDER, 82 | AUX1, // (CH5) ARM switch for Expresslrs 83 | AUX2, // (CH6) angel / airmode change 84 | AUX3, // (CH7) flip after crash 85 | AUX4, // (CH8) 86 | AUX5, // (CH9) 87 | AUX6, // (CH10) 88 | AUX7, // (CH11) 89 | AUX8, // (CH12) 90 | }; 91 | #endif 92 | 93 | void setup() 94 | { 95 | /* 96 | TCCR1A = 0; //reset timer1 97 | TCCR1B = 0; 98 | TCCR1B |= (1 << CS11); //set timer1 to increment every 0,5 us or 1us on 8MHz 99 | */ 100 | for (uint8_t i = 0; i < CRSF_MAX_CHANNEL; i++) { 101 | rcChannels[i] = CRSF_CHANNEL_MID; 102 | } 103 | rcChannels[THROTTLE] = CRSF_CHANNEL_MIN; // Throttle 104 | 105 | delay(1000); 106 | Serial.begin(SERIAL_BAUDRATE); 107 | 108 | //Serial.begin(115200); 109 | //Serial.println("ready"); 110 | } 111 | 112 | void loop() 113 | { 114 | uint32_t currentMicros = micros(); 115 | 116 | if(ppmReader.isReceiving()==true){ 117 | int count; 118 | while(ppmReader.get(count) != 0){ //print out the servo values 119 | int value = ppmReader.get(count);; 120 | rcChannels[count]=map(value,1000,2000,CRSF_CHANNEL_MIN,CRSF_CHANNEL_MAX); 121 | //Serial.print(ppmReader.get(count)); 122 | //Serial.print(" "); 123 | count++; 124 | } 125 | } 126 | //set fail safe value 127 | else{ 128 | rcChannels[THROTTLE] = CRSF_CHANNEL_MIN; // 129 | rcChannels[AILERON] = CRSF_CHANNEL_MID; // 130 | rcChannels[ELEVATOR] = CRSF_CHANNEL_MID; // 131 | rcChannels[RUDDER] = CRSF_CHANNEL_MID; // 132 | rcChannels[AUX1] = CRSF_CHANNEL_MIN; // ARM Low 133 | } 134 | 135 | if (currentMicros > crsfTime) { 136 | crsfPreparePacket(crsfPacket, rcChannels); 137 | Serial.write(crsfPacket, CRSF_PACKET_SIZE); 138 | crsfTime = currentMicros + CRSF_TIME_BETWEEN_FRAMES_US; 139 | } 140 | 141 | } 142 | 143 | // crc implementation from CRSF protocol document rev7 144 | static u8 crsf_crc8tab[256] = { 145 | 0x00, 0xD5, 0x7F, 0xAA, 0xFE, 0x2B, 0x81, 0x54, 0x29, 0xFC, 0x56, 0x83, 0xD7, 0x02, 0xA8, 0x7D, 146 | 0x52, 0x87, 0x2D, 0xF8, 0xAC, 0x79, 0xD3, 0x06, 0x7B, 0xAE, 0x04, 0xD1, 0x85, 0x50, 0xFA, 0x2F, 147 | 0xA4, 0x71, 0xDB, 0x0E, 0x5A, 0x8F, 0x25, 0xF0, 0x8D, 0x58, 0xF2, 0x27, 0x73, 0xA6, 0x0C, 0xD9, 148 | 0xF6, 0x23, 0x89, 0x5C, 0x08, 0xDD, 0x77, 0xA2, 0xDF, 0x0A, 0xA0, 0x75, 0x21, 0xF4, 0x5E, 0x8B, 149 | 0x9D, 0x48, 0xE2, 0x37, 0x63, 0xB6, 0x1C, 0xC9, 0xB4, 0x61, 0xCB, 0x1E, 0x4A, 0x9F, 0x35, 0xE0, 150 | 0xCF, 0x1A, 0xB0, 0x65, 0x31, 0xE4, 0x4E, 0x9B, 0xE6, 0x33, 0x99, 0x4C, 0x18, 0xCD, 0x67, 0xB2, 151 | 0x39, 0xEC, 0x46, 0x93, 0xC7, 0x12, 0xB8, 0x6D, 0x10, 0xC5, 0x6F, 0xBA, 0xEE, 0x3B, 0x91, 0x44, 152 | 0x6B, 0xBE, 0x14, 0xC1, 0x95, 0x40, 0xEA, 0x3F, 0x42, 0x97, 0x3D, 0xE8, 0xBC, 0x69, 0xC3, 0x16, 153 | 0xEF, 0x3A, 0x90, 0x45, 0x11, 0xC4, 0x6E, 0xBB, 0xC6, 0x13, 0xB9, 0x6C, 0x38, 0xED, 0x47, 0x92, 154 | 0xBD, 0x68, 0xC2, 0x17, 0x43, 0x96, 0x3C, 0xE9, 0x94, 0x41, 0xEB, 0x3E, 0x6A, 0xBF, 0x15, 0xC0, 155 | 0x4B, 0x9E, 0x34, 0xE1, 0xB5, 0x60, 0xCA, 0x1F, 0x62, 0xB7, 0x1D, 0xC8, 0x9C, 0x49, 0xE3, 0x36, 156 | 0x19, 0xCC, 0x66, 0xB3, 0xE7, 0x32, 0x98, 0x4D, 0x30, 0xE5, 0x4F, 0x9A, 0xCE, 0x1B, 0xB1, 0x64, 157 | 0x72, 0xA7, 0x0D, 0xD8, 0x8C, 0x59, 0xF3, 0x26, 0x5B, 0x8E, 0x24, 0xF1, 0xA5, 0x70, 0xDA, 0x0F, 158 | 0x20, 0xF5, 0x5F, 0x8A, 0xDE, 0x0B, 0xA1, 0x74, 0x09, 0xDC, 0x76, 0xA3, 0xF7, 0x22, 0x88, 0x5D, 159 | 0xD6, 0x03, 0xA9, 0x7C, 0x28, 0xFD, 0x57, 0x82, 0xFF, 0x2A, 0x80, 0x55, 0x01, 0xD4, 0x7E, 0xAB, 160 | 0x84, 0x51, 0xFB, 0x2E, 0x7A, 0xAF, 0x05, 0xD0, 0xAD, 0x78, 0xD2, 0x07, 0x53, 0x86, 0x2C, 0xF9}; 161 | 162 | u8 crsf_crc8(const u8 *ptr, u8 len) { 163 | u8 crc = 0; 164 | for (u8 i=0; i < len; i++) { 165 | crc = crsf_crc8tab[crc ^ *ptr++]; 166 | } 167 | return crc; 168 | } 169 | 170 | void crsfPreparePacket(uint8_t packet[], int channels[]){ 171 | 172 | static int output[CRSF_MAX_CHANNEL] = {0}; 173 | const uint8_t crc = crsf_crc8(&packet[2], CRSF_PACKET_SIZE-3); 174 | /* 175 | * Map 1000-2000 with middle at 1500 chanel values to 176 | * 173-1811 with middle at 992 S.BUS protocol requires 177 | */ 178 | for (uint8_t i = 0; i < CRSF_MAX_CHANNEL; i++) { 179 | output[i] = channels[i]; 180 | } 181 | /* 182 | Serial.print("crsf "); 183 | Serial.print(output[0]); 184 | Serial.print(" i"); 185 | Serial.print(output[1]); 186 | Serial.print(" i"); 187 | Serial.print(output[2]); 188 | Serial.print(" i"); 189 | Serial.print(output[3]); 190 | Serial.println(); */ 191 | 192 | // packet[0] = UART_SYNC; //Header 193 | packet[0] = ADDR_MODULE; //Header 194 | packet[1] = 24; // length of type (24) + payload + crc 195 | packet[2] = TYPE_CHANNELS; 196 | packet[3] = (uint8_t) (channels[0] & 0x07FF); 197 | packet[4] = (uint8_t) ((channels[0] & 0x07FF)>>8 | (channels[1] & 0x07FF)<<3); 198 | packet[5] = (uint8_t) ((channels[1] & 0x07FF)>>5 | (channels[2] & 0x07FF)<<6); 199 | packet[6] = (uint8_t) ((channels[2] & 0x07FF)>>2); 200 | packet[7] = (uint8_t) ((channels[2] & 0x07FF)>>10 | (channels[3] & 0x07FF)<<1); 201 | packet[8] = (uint8_t) ((channels[3] & 0x07FF)>>7 | (channels[4] & 0x07FF)<<4); 202 | packet[9] = (uint8_t) ((channels[4] & 0x07FF)>>4 | (channels[5] & 0x07FF)<<7); 203 | packet[10] = (uint8_t) ((channels[5] & 0x07FF)>>1); 204 | packet[11] = (uint8_t) ((channels[5] & 0x07FF)>>9 | (channels[6] & 0x07FF)<<2); 205 | packet[12] = (uint8_t) ((channels[6] & 0x07FF)>>6 | (channels[7] & 0x07FF)<<5); 206 | packet[13] = (uint8_t) ((channels[7] & 0x07FF)>>3); 207 | packet[14] = (uint8_t) ((channels[8] & 0x07FF)); 208 | packet[15] = (uint8_t) ((channels[8] & 0x07FF)>>8 | (channels[9] & 0x07FF)<<3); 209 | packet[16] = (uint8_t) ((channels[9] & 0x07FF)>>5 | (channels[10] & 0x07FF)<<6); 210 | packet[17] = (uint8_t) ((channels[10] & 0x07FF)>>2); 211 | packet[18] = (uint8_t) ((channels[10] & 0x07FF)>>10 | (channels[11] & 0x07FF)<<1); 212 | packet[19] = (uint8_t) ((channels[11] & 0x07FF)>>7 | (channels[12] & 0x07FF)<<4); 213 | packet[20] = (uint8_t) ((channels[12] & 0x07FF)>>4 | (channels[13] & 0x07FF)<<7); 214 | packet[21] = (uint8_t) ((channels[13] & 0x07FF)>>1); 215 | packet[22] = (uint8_t) ((channels[13] & 0x07FF)>>9 | (channels[14] & 0x07FF)<<2); 216 | packet[23] = (uint8_t) ((channels[14] & 0x07FF)>>6 | (channels[15] & 0x07FF)<<5); 217 | packet[24] = (uint8_t) ((channels[15] & 0x07FF)>>3); 218 | 219 | packet[25] = crsf_crc8(&packet[2], CRSF_PACKET_SIZE-3); //CRC 220 | 221 | 222 | } 223 | -------------------------------------------------------------------------------- /PPMtoCRSF/Readme.md: -------------------------------------------------------------------------------- 1 | PPM to ELRS conveter 2 | 3 | Use simpleTX PCB to make a ppm to ELRS converter 4 | 5 | Plug PPM to D2 (switch 4 in pcb) and GND 6 | 7 | This code is highly expermental, and unstable. 8 | 9 | Make sure your transmitter output ppm correctly, otherwise the TX will receive noise singal, and transmit unexpected singal. 10 | 11 | Use this arduino library: 12 | 13 | https://github.com/DzikuVx/PPMReader 14 | 15 | -------------------------------------------------------------------------------- /README.md: -------------------------------------------------------------------------------- 1 | # Simple TX 2 | 3 | 现已增加中文介绍，详情请看Wiki页面 4 | 5 | This is an Arduino based RC transmitter TX. I want to design a RC transmitter (soft and hardware) that is simple to build, and use arduino board wich I am familler with, and it should supoort ELRS. 6 | 7 | ![微信图片_20220213205906](https://user-images.githubusercontent.com/43392862/153756463-16c5e99b-b1b6-4f23-9fea-cefb4bb9df04.jpg) 8 | 9 | 10 | video: 11 | 12 | https://www.youtube.com/watch?v=BPLFkZUoV28 13 | 14 | # Features: 15 | - Support ExpressLRS 2.4G external TX module 16 | - Up to 500Hz packet rate 17 | - 4 analog channel 18 | - 4 AUX channel 19 | 20 | This project includes code, stl file for transmitter shell and pcb board, you can easily diy your own rc transmitter from arduino development board in a very simple way. 21 | 22 | I have tested for 6 month since the first prototype (mod from an old Devo7), it works pretty well. 23 | 24 | * Simple TX is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY. 25 | 26 | I use superslim module in the shell, but any esp32 based tx module should be working. 27 | 28 | It was tested for ELRS 1.0 and 2.0. 29 | 30 | ### Update: 31 | 32 | ### 2025/03/07 Update STL file to V2 33 | 34 | 1. Redesign battery bay 35 | 36 | 2. Add 2 additional switch postion, now support up to 10 channels (The firmware is under test) 37 | 38 | 3. Add buzzer hold 39 | 40 | This version is slight thicker then V1, because I enlarged the battery tray to support bigger batteries. And I redesigned the battery tray cover, now it is clip on. 41 | 42 | ![SimpleTX_V2](https://github.com/user-attachments/assets/0ff9ad77-3488-408c-a4b3-d2a0daaffb8a) 43 | 44 | ![SimpleTX_V2_Battery](https://github.com/user-attachments/assets/8c68900a-a139-49c6-9f36-e9c2819744a5) 45 | 46 | ![SimpleTX_Module](https://github.com/user-attachments/assets/ab1801c1-266a-41e7-8c01-66b66d4fe646) 47 | 48 | ![battery_cover](https://github.com/user-attachments/assets/800b2b06-b9ff-4771-8fd6-f5cfa7a5a56c) 49 | 50 | 51 | 52 | ### 2025/03/04 Release ELRS 3.0 support 53 | 54 | Merge 3.0 support to main 55 | 56 | Fix buzzer issue 57 | 58 | Change channel 6 to 3 postion AUX 59 | 60 | 61 | 62 | ### 2025/2/12 Add support for ELRS 3.0 63 | Thanks to the great work doing by dbloemhard now the SimpleTX support 3.0, I merged the update into the main branch. 64 | You can change pocket rate, power and tune on/off dynamic power by gesutre. 65 | His repo: 66 | https://github.com/dbloemhard/Arduino-Transmitter-for-ELRS3.x 67 | 68 | 69 | ### 2022/11/5 Move IDE to VSCODE and Arduino Extension 70 | 71 | Add buzzer support on pin 6 72 | 73 | The PIO becomes unusable dude to unstalbe network, so I switch back to arduino extension, still in VSCODE, because the original Arduino IDE is low efficient. 74 | 75 | The code still works in Arduino IDE, you can compile in both enviroment 76 | 77 | The PIO will be saved in a seprate branch and will unliked be updated 78 | 79 | ### 2022/6/3 Optimize Calibration 80 | 81 | 1. Add center stick calibration 82 | 2. Optimze channel reverse 83 | use 4 values to handdle reverse in config.h 84 | 85 | // Define Reverse 1 = reverse, 0 = normal 86 | 87 | Is_Aileron_Reverse =1; 88 | 89 | Is_Elevator_Reverse =1; 90 | 91 | Is_Throttle_Reverse =0; 92 | 93 | Is_Rudder_Reverse =0; 94 | 95 | ### 2022/5/29 Calibration added 96 | 97 | Calibration function added by erstec in Platformio_test_branch, thanks 98 | 99 | 1. enter debug mode by uncomment #define DEBUG 100 | 2. flash firmware to arduino nano 101 | 4. open serial monitor at 115200 baud, center stick and keep for 5 seconds 102 | 5. move stick full range within 20 seconds untill you see "Calibration Done" 103 | 6. comment //#define DEBUG and flash firmware to arduino nano 104 | 7. test in bf configurator 105 | 8. done 106 | 107 | ### 2022/4/6 Test branch 108 | 109 | platformio 110 | 111 | 112 | ### Update Log 2022/4/3 113 | 114 | Add Test branch for ppm output 115 | 116 | 117 | ### Update Log 2022/3/26 118 | 119 | Update STL File： 120 | 121 | Solve gimbal & switch interference 122 | 123 | Add battery tray 124 | 125 | ![ASSEMBLE](https://user-images.githubusercontent.com/43392862/160218062-a254729a-f0f7-474e-8428-6ba044f421b5.jpg) 126 | 127 | 128 | 129 | ### Update Log 2022/3/20 130 | 131 | 132 | 133 | Update PPM to ELRS library, siginal is more stable, still need more test 134 | 135 | 136 | https://github.com/kkbin505/Arduino-Transmitter-for-ELRS/tree/main/PPMtoCRSF 137 | 138 | 139 | 140 | ### Update Log V0.9.3 141 | Increase baud rate to 400K 142 | 143 | *** In 400k baud, theoretical maxmum packet rate is 500Hz (400000/320bit per second, 1.6ms per frame). RC data pcket is 32byte=320bit(plus 1 start bit and 1 end bit). 144 | 145 | Now simpleTX is supporting 500Hz 146 | 147 | Add 3rd pre seeting for 500Hz 25mW 148 | 149 | Gestrue: 150 | Hold AILERON left and ELEVATOR up at power up. 151 | 152 | ### Update Log V0.9.2 153 | Update cmd to elrs 2.0 (power setting commond of 2.0 is different from 1.0) 154 | 155 | Re write gimbal calibation method, add center stick offset in config file 156 | 157 | 158 | ### Update Log V0.9.1 159 | Add 2 pre settings for power and package rate: 160 | 161 | 162 | Now you can enter setting 1 and 2 by gesutre: 163 | 164 | Setting 1: 165 | //250Hz 25mW 166 | 167 | Hold AILERON left and ELEVATOR down at power up. 168 | 169 | Setting 2: 170 | //150Hz 100mW 171 | 172 | Hold AILERON right and ELEVATOR up at power up. 173 | 174 | Center stick will keep your previous setting. 175 | 176 | 177 | Due to the hardware limitation of the ATMega328p, the follow functions are not supported: 178 | 179 | * The 328p do not support inverted UART (which OpenTX use), there are 2 options: 180 | 1. Tun UART_INVERTED off. 181 | 2. Adding a digital invert IC (I tested with SN74LS06N) 182 | 183 | ** Telemetray is off, 328p do not support half duplex. 184 | 185 | 186 | 187 | The uart logic voltage of ESP32 is 3.3V, my ATMega328p is 5V. However mine TX work fine, it seems ESP32 UART is 5V tolerance. 188 | 189 | #### Tips 190 | Default RC channel order is AETR, you can change channel order whatever you like, by changing the RC channel order. 191 | Current gimbal calibratin method is complex (but you need to do only once): 192 | - Enter debug mode by delete "//" before #define DEBUG 193 | - Flash with arduino IDE 194 | - Open serialmonitor change baud rate to 115200 195 | - Record max and min RC channel value and write in map() function (reverse order if neede) 196 | example:map(Aileron_value,893,223,RC_CHANNEL_MIN,RC_CHANNEL_MAX) 197 | - Add "//" back before #define DEBUG 198 | - Flash with arduino IDE 199 | 200 | There are many amazing Expreslrs handset. But I want a simple arduino based transmitter for my DIY 2.4G external TX module. 201 | 202 | https://youtu.be/PrfSfnqcBgk 203 | 204 | ### Add PCB V0.9 205 | 206 | 207 | I replace the control board with my PCB and system. 208 | 209 | 210 | ![微信图片_20220123195005](https://user-images.githubusercontent.com/43392862/150677082-80ab29c4-f2e4-475e-a4b3-db004aeacba5.jpg) 211 | 212 | 213 | ### 1. Project Intro: 214 | 215 | ### 1.1 Hardware (PCB) 216 | 217 | In PCB folder, you can find the PCB and BOM, the PCB is designed in Easyeda and files in Gerber type. I orderd my PCB use the Gerber file from JLCpcb. 218 | 219 | ![EasyEDA(标准版) - 免费、易用、强大的在线电路设计软件 - Google Chrome 2022_1_23 19_47_16](https://user-images.githubusercontent.com/43392862/150677345-1feb8e57-7f06-45fc-b877-a0eb61f51f26.png) 220 | 221 | The PCB is v0.9 means it is not complete, but it works well at least for me. 222 | 223 | The version includes 4 digital switch, but I forget to wire out the LED pint, so I use one channel for LED only 3 digital available. 224 | 225 | The analogy channel support 3.3v gimbal (hall and poentional meter both works), the pin use 1.25 6p plug, it is the same pin order as most frsky gimbal (M7 for example). If you use orther gimbal pay attention to the pin order. I find jumper gimbal reversed GND(red) and 3.3V(black). 226 | 227 | I powered my board with 2S battery, the arduino nano have a decent LDO （ASM1117）, and the ELRS module also powerd from 2S. 228 | 229 | ### 1.2 Firmware 230 | 231 | All source codes are in SimpleTX folder. 232 | 233 | It is writen in arduino frame use VScode, but arduino IDE should also work. 234 | 235 | ### 1.3 CAD-Model 236 | 237 | 3 versions of transmitter shell are available. 238 | 239 | 1 is a remix from https://github.com/cruwaller/elrs_handset 240 | 241 | ![DSC00981](https://user-images.githubusercontent.com/43392862/206710142-ffb84e65-c567-4101-8fe2-d68fe21cae29.JPG) 242 | 243 | I removed 2 switch, and modify switch in front side from Switches to Tango2 like switch 244 | 245 | ![DSC00982](https://user-images.githubusercontent.com/43392862/206710187-ea65c351-b675-4ccc-97e1-455140d3e338.JPG) 246 | 247 | Front_Shell_REV-A_M7_kkbin_modify.stl 248 | 249 | 2 is my design, it is compatibal with jumper TX 12 hall gimbal, very compact. 250 | 251 | ![DSC00988](https://user-images.githubusercontent.com/43392862/206710049-68ed9d0f-3812-43b5-ade6-776c0b12b786.JPG) 252 | 253 | 254 | SimpleTX_Top_v15.stl 255 | 256 | 3 is for X9 lite gimbal, it feels too big for me. 257 | 258 | 259 | !!! Do not solder the buzzer, need to add triode in next version, I burned my board. 260 | ![buzzer](https://user-images.githubusercontent.com/43392862/202906574-64efb654-1023-4be7-9c3d-3a5a70b9f1aa.jpg) 261 | 262 | 263 | This Transmitter is inspired by cruwallero: 264 | https://github.com/cruwaller/elrs_handset 265 | 266 | Some code are based on Pawel's amazing work on SBUS generate code. 267 | 268 | https://quadmeup.com/generate-s-bus-with-arduino-in-a-simple-way/ 269 | -------------------------------------------------------------------------------- /STL/Front_Shell_REV-A_M7_kkbin_modify.stl: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/kkbin505/Arduino-Transmitter-for-ELRS/6c4cbdd912e15320894de9e5d142b5f3c9b14724/STL/Front_Shell_REV-A_M7_kkbin_modify.stl -------------------------------------------------------------------------------- /STL/Front_Shell_REV-A_M7_kkbin_modify_gimbal Cover v2.stl: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/kkbin505/Arduino-Transmitter-for-ELRS/6c4cbdd912e15320894de9e5d142b5f3c9b14724/STL/Front_Shell_REV-A_M7_kkbin_modify_gimbal Cover v2.stl -------------------------------------------------------------------------------- /STL/Readme.md: -------------------------------------------------------------------------------- 1 | Add STL file for print 2 | 3 | ![微信图片_20220213205906](https://user-images.githubusercontent.com/43392862/153756403-789029c5-4441-459e-934f-d02f58a66610.jpg) 4 | 5 | 6 | ![ASSEMBLE](https://user-images.githubusercontent.com/43392862/160217729-81108e26-133e-49e3-99d4-6dcfcf1451c4.jpg) 7 | 8 | 9 | Add a modify file from: https://github.com/cruwaller/elrs_handset/tree/master/revision_A/shell 10 | 11 | Delete 2 top side switchs, modify front side switch to rectangle 19*7mm switch， give this design more tango2 kind of taste 12 | 13 | Add gimbal protect for M7, print in TPU 20% 14 | 15 | Add a open on the lower side for usb 16 | 17 | -------------------------------------------------------------------------------- /STL/SimpleTX_Battery_Bay v15.stl: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/kkbin505/Arduino-Transmitter-for-ELRS/6c4cbdd912e15320894de9e5d142b5f3c9b14724/STL/SimpleTX_Battery_Bay v15.stl -------------------------------------------------------------------------------- /STL/SimpleTX_Buttom v15.stl: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/kkbin505/Arduino-Transmitter-for-ELRS/6c4cbdd912e15320894de9e5d142b5f3c9b14724/STL/SimpleTX_Buttom v15.stl -------------------------------------------------------------------------------- /STL/SimpleTX_Top_v15.stl: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/kkbin505/Arduino-Transmitter-for-ELRS/6c4cbdd912e15320894de9e5d142b5f3c9b14724/STL/SimpleTX_Top_v15.stl -------------------------------------------------------------------------------- /STL/SimpleTX_V2_Back.stl: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/kkbin505/Arduino-Transmitter-for-ELRS/6c4cbdd912e15320894de9e5d142b5f3c9b14724/STL/SimpleTX_V2_Back.stl -------------------------------------------------------------------------------- /STL/SimpleTX_V2_Battery_Cover.stl: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/kkbin505/Arduino-Transmitter-for-ELRS/6c4cbdd912e15320894de9e5d142b5f3c9b14724/STL/SimpleTX_V2_Battery_Cover.stl -------------------------------------------------------------------------------- /STL/SimpleTX_V2_Front.stl: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/kkbin505/Arduino-Transmitter-for-ELRS/6c4cbdd912e15320894de9e5d142b5f3c9b14724/STL/SimpleTX_V2_Front.stl -------------------------------------------------------------------------------- /SimpleTX/.vscode/arduino.json: -------------------------------------------------------------------------------- 1 | { 2 | "board": "arduino:avr:nano", 3 | "port": "COM4", 4 | "sketch": "SimpleTX.ino" 5 | } -------------------------------------------------------------------------------- /SimpleTX/.vscode/c_cpp_properties.json: -------------------------------------------------------------------------------- 1 | { 2 | "version": 4, 3 | "configurations": [ 4 | { 5 | "name": "Arduino", 6 | "compilerPath": "C:\\Program Files (x86)\\Arduino\\hardware\\tools\\avr\\bin\\avr-g++", 7 | "compilerArgs": [ 8 | "-w", 9 | "-std=gnu++11", 10 | "-fpermissive", 11 | "-fno-exceptions", 12 | "-ffunction-sections", 13 | "-fdata-sections", 14 | "-fno-threadsafe-statics" 15 | ], 16 | "intelliSenseMode": "gcc-x64", 17 | "includePath": [ 18 | "C:\\Program Files (x86)\\Arduino\\hardware\\arduino\\avr\\cores\\arduino", 19 | "C:\\Program Files (x86)\\Arduino\\hardware\\arduino\\avr\\variants\\eightanaloginputs", 20 | "C:\\Program Files (x86)\\Arduino\\hardware\\arduino\\avr\\libraries\\EEPROM\\src", 21 | "c:\\program files (x86)\\arduino\\hardware\\tools\\avr\\lib\\gcc\\avr\\4.9.2\\include", 22 | "c:\\program files (x86)\\arduino\\hardware\\tools\\avr\\lib\\gcc\\avr\\4.9.2\\include-fixed", 23 | "c:\\program files (x86)\\arduino\\hardware\\tools\\avr\\avr\\include" 24 | ], 25 | "forcedInclude": [ 26 | "C:\\Program Files (x86)\\Arduino\\hardware\\arduino\\avr\\cores\\arduino\\Arduino.h" 27 | ], 28 | "cStandard": "c11", 29 | "cppStandard": "c++11", 30 | "defines": [ 31 | "F_CPU=16000000L", 32 | "ARDUINO=10800", 33 | "ARDUINO_AVR_NANO", 34 | "ARDUINO_ARCH_AVR", 35 | "__DBL_MIN_EXP__=(-125)", 36 | "__HQ_FBIT__=15", 37 | "__UINT_LEAST16_MAX__=65535U", 38 | "__ATOMIC_ACQUIRE=2", 39 | "__SFRACT_IBIT__=0", 40 | "__FLT_MIN__=1.17549435e-38F", 41 | "__GCC_IEC_559_COMPLEX=0", 42 | "__BUILTIN_AVR_SLEEP=1", 43 | "__BUILTIN_AVR_COUNTLSULLK=1", 44 | "__BUILTIN_AVR_COUNTLSULLR=1", 45 | "__UFRACT_MAX__=0XFFFFP-16UR", 46 | "__UINT_LEAST8_TYPE__=unsigned char", 47 | "__DQ_FBIT__=63", 48 | "__INTMAX_C(c)=c ## LL", 49 | "__ULFRACT_FBIT__=32", 50 | "__SACCUM_EPSILON__=0x1P-7HK", 51 | "__CHAR_BIT__=8", 52 | "__USQ_IBIT__=0", 53 | "__UINT8_MAX__=255", 54 | "__ACCUM_FBIT__=15", 55 | "__WINT_MAX__=32767", 56 | "__USFRACT_FBIT__=8", 57 | "__ORDER_LITTLE_ENDIAN__=1234", 58 | "__SIZE_MAX__=65535U", 59 | "__WCHAR_MAX__=32767", 60 | "__LACCUM_IBIT__=32", 61 | "__DBL_DENORM_MIN__=double(1.40129846e-45L)", 62 | "__GCC_ATOMIC_CHAR_LOCK_FREE=1", 63 | "__GCC_IEC_559=0", 64 | "__FLT_EVAL_METHOD__=0", 65 | "__BUILTIN_AVR_LLKBITS=1", 66 | "__cpp_binary_literals=201304", 67 | "__LLACCUM_MAX__=0X7FFFFFFFFFFFFFFFP-47LLK", 68 | "__GCC_ATOMIC_CHAR32_T_LOCK_FREE=1", 69 | "__BUILTIN_AVR_HKBITS=1", 70 | "__BUILTIN_AVR_BITSLLK=1", 71 | "__FRACT_FBIT__=15", 72 | "__BUILTIN_AVR_BITSLLR=1", 73 | "__UINT_FAST64_MAX__=18446744073709551615ULL", 74 | "__SIG_ATOMIC_TYPE__=char", 75 | "__BUILTIN_AVR_UHKBITS=1", 76 | "__UACCUM_FBIT__=16", 77 | "__DBL_MIN_10_EXP__=(-37)", 78 | "__FINITE_MATH_ONLY__=0", 79 | "__LFRACT_IBIT__=0", 80 | "__GNUC_PATCHLEVEL__=2", 81 | "__LFRACT_MAX__=0X7FFFFFFFP-31LR", 82 | "__UINT_FAST8_MAX__=255", 83 | "__has_include(STR)=__has_include__(STR)", 84 | "__DEC64_MAX_EXP__=385", 85 | "__INT8_C(c)=c", 86 | "__UINT_LEAST64_MAX__=18446744073709551615ULL", 87 | "__SA_FBIT__=15", 88 | "__SHRT_MAX__=32767", 89 | "__LDBL_MAX__=3.40282347e+38L", 90 | "__FRACT_MAX__=0X7FFFP-15R", 91 | "__UFRACT_FBIT__=16", 92 | "__UFRACT_MIN__=0.0UR", 93 | "__UINT_LEAST8_MAX__=255", 94 | "__GCC_ATOMIC_BOOL_LOCK_FREE=1", 95 | "__UINTMAX_TYPE__=long long unsigned int", 96 | "__LLFRACT_EPSILON__=0x1P-63LLR", 97 | "__BUILTIN_AVR_DELAY_CYCLES=1", 98 | "__DEC32_EPSILON__=1E-6DF", 99 | "__UINT32_MAX__=4294967295UL", 100 | "__ULFRACT_MAX__=0XFFFFFFFFP-32ULR", 101 | "__TA_IBIT__=16", 102 | "__LDBL_MAX_EXP__=128", 103 | "__WINT_MIN__=(-__WINT_MAX__ - 1)", 104 | "__ULLFRACT_MIN__=0.0ULLR", 105 | "__SCHAR_MAX__=127", 106 | "__WCHAR_MIN__=(-__WCHAR_MAX__ - 1)", 107 | "__INT64_C(c)=c ## LL", 108 | "__DBL_DIG__=6", 109 | "__GCC_ATOMIC_POINTER_LOCK_FREE=1", 110 | "__AVR_HAVE_SPH__=1", 111 | "__LLACCUM_MIN__=(-0X1P15LLK-0X1P15LLK)", 112 | "__BUILTIN_AVR_KBITS=1", 113 | "__BUILTIN_AVR_ABSK=1", 114 | "__BUILTIN_AVR_ABSR=1", 115 | "__SIZEOF_INT__=2", 116 | "__SIZEOF_POINTER__=2", 117 | "__GCC_ATOMIC_CHAR16_T_LOCK_FREE=1", 118 | "__USACCUM_IBIT__=8", 119 | "__USER_LABEL_PREFIX__", 120 | "__STDC_HOSTED__=1", 121 | "__LDBL_HAS_INFINITY__=1", 122 | "__LFRACT_MIN__=(-0.5LR-0.5LR)", 123 | "__HA_IBIT__=8", 124 | "__TQ_IBIT__=0", 125 | "__FLT_EPSILON__=1.19209290e-7F", 126 | "__GXX_WEAK__=1", 127 | "__USFRACT_IBIT__=0", 128 | "__LDBL_MIN__=1.17549435e-38L", 129 | "__FRACT_MIN__=(-0.5R-0.5R)", 130 | "__AVR_SFR_OFFSET__=0x20", 131 | "__DEC32_MAX__=9.999999E96DF", 132 | "__DA_IBIT__=32", 133 | "__INT32_MAX__=2147483647L", 134 | "__UQQ_FBIT__=8", 135 | "__SIZEOF_LONG__=4", 136 | "__UACCUM_MAX__=0XFFFFFFFFP-16UK", 137 | "__UINT16_C(c)=c ## U", 138 | "__DECIMAL_DIG__=9", 139 | "__LFRACT_EPSILON__=0x1P-31LR", 140 | "__AVR_2_BYTE_PC__=1", 141 | "__ULFRACT_MIN__=0.0ULR", 142 | "__has_include_next(STR)=__has_include_next__(STR)", 143 | "__BUILTIN_AVR_ULLRBITS=1", 144 | "__LDBL_HAS_QUIET_NAN__=1", 145 | "__ULACCUM_IBIT__=32", 146 | "__UACCUM_EPSILON__=0x1P-16UK", 147 | "__BUILTIN_AVR_SEI=1", 148 | "__GNUC__=4", 149 | "__ULLACCUM_MAX__=0XFFFFFFFFFFFFFFFFP-48ULLK", 150 | "__HQ_IBIT__=0", 151 | "__BUILTIN_AVR_SWAP=1", 152 | "__FLT_HAS_DENORM__=1", 153 | "__SIZEOF_LONG_DOUBLE__=4", 154 | "__BIGGEST_ALIGNMENT__=1", 155 | "__UINT24_MAX__=16777215UL", 156 | "__BUILTIN_AVR_NOP=1", 157 | "__DQ_IBIT__=0", 158 | "__DBL_MAX__=double(3.40282347e+38L)", 159 | "__ULFRACT_IBIT__=0", 160 | "__INT_FAST32_MAX__=2147483647L", 161 | "__DBL_HAS_INFINITY__=1", 162 | "__INT64_MAX__=9223372036854775807LL", 163 | "__ACCUM_IBIT__=16", 164 | "__DEC32_MIN_EXP__=(-94)", 165 | "__BUILTIN_AVR_UKBITS=1", 166 | "__BUILTIN_AVR_FMULSU=1", 167 | "__LACCUM_MAX__=0X7FFFFFFFFFFFFFFFP-31LK", 168 | "__INT_FAST16_TYPE__=int", 169 | "__LDBL_HAS_DENORM__=1", 170 | "__BUILTIN_AVR_BITSK=1", 171 | "__BUILTIN_AVR_BITSR=1", 172 | "__cplusplus=199711L", 173 | "__DEC128_MAX__=9.999999999999999999999999999999999E6144DL", 174 | "__INT_LEAST32_MAX__=2147483647L", 175 | "__USING_SJLJ_EXCEPTIONS__=1", 176 | "__DEC32_MIN__=1E-95DF", 177 | "__ACCUM_MAX__=0X7FFFFFFFP-15K", 178 | "__DEPRECATED=1", 179 | "__DBL_MAX_EXP__=128", 180 | "__USACCUM_EPSILON__=0x1P-8UHK", 181 | "__DEC128_EPSILON__=1E-33DL", 182 | "__SFRACT_MAX__=0X7FP-7HR", 183 | "__FRACT_IBIT__=0", 184 | "__PTRDIFF_MAX__=32767", 185 | "__UACCUM_MIN__=0.0UK", 186 | "__UACCUM_IBIT__=16", 187 | "__BUILTIN_AVR_WDR=1", 188 | "__GNUG__=4", 189 | "__LONG_LONG_MAX__=9223372036854775807LL", 190 | "__SIZEOF_SIZE_T__=2", 191 | "__ULACCUM_MAX__=0XFFFFFFFFFFFFFFFFP-32ULK", 192 | "__SIZEOF_WINT_T__=2", 193 | "__SA_IBIT__=16", 194 | "__ULLACCUM_MIN__=0.0ULLK", 195 | "__BUILTIN_AVR_ROUNDUHK=1", 196 | "__BUILTIN_AVR_ROUNDUHR=1", 197 | "__GXX_ABI_VERSION=1002", 198 | "__INT24_MAX__=8388607L", 199 | "__UTA_FBIT__=48", 200 | "__FLT_MIN_EXP__=(-125)", 201 | "__USFRACT_MAX__=0XFFP-8UHR", 202 | "__UFRACT_IBIT__=0", 203 | "__BUILTIN_AVR_ROUNDFX=1", 204 | "__BUILTIN_AVR_ROUNDULK=1", 205 | "__BUILTIN_AVR_ROUNDULR=1", 206 | "__BUILTIN_AVR_COUNTLSLLK=1", 207 | "__BUILTIN_AVR_COUNTLSLLR=1", 208 | "__BUILTIN_AVR_ROUNDHK=1", 209 | "__INT_FAST64_TYPE__=long long int", 210 | "__BUILTIN_AVR_ROUNDHR=1", 211 | "__DBL_MIN__=double(1.17549435e-38L)", 212 | "__BUILTIN_AVR_COUNTLSK=1", 213 | "__BUILTIN_AVR_ROUNDLK=1", 214 | "__BUILTIN_AVR_COUNTLSR=1", 215 | "__BUILTIN_AVR_ROUNDLR=1", 216 | "__FLT_MIN_10_EXP__=(-37)", 217 | "__LACCUM_MIN__=(-0X1P31LK-0X1P31LK)", 218 | "__ULLACCUM_FBIT__=48", 219 | "__BUILTIN_AVR_LKBITS=1", 220 | "__ULLFRACT_EPSILON__=0x1P-64ULLR", 221 | "__DEC128_MIN__=1E-6143DL", 222 | "__REGISTER_PREFIX__", 223 | "__UINT16_MAX__=65535U", 224 | "__DBL_HAS_DENORM__=1", 225 | "__BUILTIN_AVR_ULKBITS=1", 226 | "__ACCUM_MIN__=(-0X1P15K-0X1P15K)", 227 | "__AVR_ARCH__=2", 228 | "__SQ_IBIT__=0", 229 | "__UINT8_TYPE__=unsigned char", 230 | "__BUILTIN_AVR_ROUNDUK=1", 231 | "__BUILTIN_AVR_ROUNDUR=1", 232 | "__UHA_FBIT__=8", 233 | "__NO_INLINE__=1", 234 | "__SFRACT_MIN__=(-0.5HR-0.5HR)", 235 | "__UTQ_FBIT__=128", 236 | "__FLT_MANT_DIG__=24", 237 | "__VERSION__=\"4.9.2\"", 238 | "__UINT64_C(c)=c ## ULL", 239 | "__ULLFRACT_FBIT__=64", 240 | "__FRACT_EPSILON__=0x1P-15R", 241 | "__ULACCUM_MIN__=0.0ULK", 242 | "__UDA_FBIT__=32", 243 | "__LLACCUM_EPSILON__=0x1P-47LLK", 244 | "__GCC_ATOMIC_INT_LOCK_FREE=1", 245 | "__BUILTIN_AVR_BITSUHK=1", 246 | "__BUILTIN_AVR_BITSUHR=1", 247 | "__FLOAT_WORD_ORDER__=__ORDER_LITTLE_ENDIAN__", 248 | "__USFRACT_MIN__=0.0UHR", 249 | "__BUILTIN_AVR_BITSULK=1", 250 | "__ULLACCUM_IBIT__=16", 251 | "__BUILTIN_AVR_BITSULR=1", 252 | "__UQQ_IBIT__=0", 253 | "__BUILTIN_AVR_LLRBITS=1", 254 | "__BUILTIN_AVR_BITSULLK=1", 255 | "__BUILTIN_AVR_BITSULLR=1", 256 | "__INT32_C(c)=c ## L", 257 | "__DEC64_EPSILON__=1E-15DD", 258 | "__ORDER_PDP_ENDIAN__=3412", 259 | "__DEC128_MIN_EXP__=(-6142)", 260 | "__UHQ_FBIT__=16", 261 | "__LLACCUM_FBIT__=47", 262 | "__BUILTIN_AVR_ROUNDULLK=1", 263 | "__BUILTIN_AVR_ROUNDULLR=1", 264 | "__INT_FAST32_TYPE__=long int", 265 | "__BUILTIN_AVR_HRBITS=1", 266 | "__UINT_LEAST16_TYPE__=unsigned int", 267 | "__BUILTIN_AVR_UHRBITS=1", 268 | "__INT16_MAX__=32767", 269 | "__SIZE_TYPE__=unsigned int", 270 | "__UINT64_MAX__=18446744073709551615ULL", 271 | "__UDQ_FBIT__=64", 272 | "__INT8_TYPE__=signed char", 273 | "__ELF__=1", 274 | "__ULFRACT_EPSILON__=0x1P-32ULR", 275 | "__LLFRACT_FBIT__=63", 276 | "__FLT_RADIX__=2", 277 | "__INT_LEAST16_TYPE__=int", 278 | "__BUILTIN_AVR_ABSFX=1", 279 | "__LDBL_EPSILON__=1.19209290e-7L", 280 | "__UINTMAX_C(c)=c ## ULL", 281 | "__INT24_MIN__=(-__INT24_MAX__-1)", 282 | "__SACCUM_MAX__=0X7FFFP-7HK", 283 | "__BUILTIN_AVR_ABSHR=1", 284 | "__SIG_ATOMIC_MAX__=127", 285 | "__GCC_ATOMIC_WCHAR_T_LOCK_FREE=1", 286 | "__SIZEOF_PTRDIFF_T__=2", 287 | "__AVR=1", 288 | "__BUILTIN_AVR_ABSLK=1", 289 | "__BUILTIN_AVR_ABSLR=1", 290 | "__LACCUM_EPSILON__=0x1P-31LK", 291 | "__DEC32_SUBNORMAL_MIN__=0.000001E-95DF", 292 | "__INT_FAST16_MAX__=32767", 293 | "__UINT_FAST32_MAX__=4294967295UL", 294 | "__UINT_LEAST64_TYPE__=long long unsigned int", 295 | "__USACCUM_MAX__=0XFFFFP-8UHK", 296 | "__SFRACT_EPSILON__=0x1P-7HR", 297 | "__FLT_HAS_QUIET_NAN__=1", 298 | "__FLT_MAX_10_EXP__=38", 299 | "__LONG_MAX__=2147483647L", 300 | "__DEC128_SUBNORMAL_MIN__=0.000000000000000000000000000000001E-6143DL", 301 | "__FLT_HAS_INFINITY__=1", 302 | "__USA_FBIT__=16", 303 | "__UINT_FAST16_TYPE__=unsigned int", 304 | "__DEC64_MAX__=9.999999999999999E384DD", 305 | "__BUILTIN_AVR_RBITS=1", 306 | "__CHAR16_TYPE__=unsigned int", 307 | "__PRAGMA_REDEFINE_EXTNAME=1", 308 | "__INT_LEAST16_MAX__=32767", 309 | "__DEC64_MANT_DIG__=16", 310 | "__UINT_LEAST32_MAX__=4294967295UL", 311 | "__SACCUM_FBIT__=7", 312 | "__GCC_ATOMIC_LONG_LOCK_FREE=1", 313 | "__INT_LEAST64_TYPE__=long long int", 314 | "__INT16_TYPE__=int", 315 | "__INT_LEAST8_TYPE__=signed char", 316 | "__SQ_FBIT__=31", 317 | "__DEC32_MAX_EXP__=97", 318 | "__INT_FAST8_MAX__=127", 319 | "__INTPTR_MAX__=32767", 320 | "__QQ_FBIT__=7", 321 | "__UTA_IBIT__=16", 322 | "__AVR_ERRATA_SKIP__=1", 323 | "__LDBL_MANT_DIG__=24", 324 | "__SFRACT_FBIT__=7", 325 | "__SACCUM_MIN__=(-0X1P7HK-0X1P7HK)", 326 | "__DBL_HAS_QUIET_NAN__=1", 327 | "__SIG_ATOMIC_MIN__=(-__SIG_ATOMIC_MAX__ - 1)", 328 | "AVR=1", 329 | "__BUILTIN_AVR_FMULS=1", 330 | "__INTPTR_TYPE__=int", 331 | "__UINT16_TYPE__=unsigned int", 332 | "__WCHAR_TYPE__=int", 333 | "__SIZEOF_FLOAT__=4", 334 | "__AVR__=1", 335 | "__BUILTIN_AVR_INSERT_BITS=1", 336 | "__USQ_FBIT__=32", 337 | "__UINTPTR_MAX__=65535U", 338 | "__DEC64_MIN_EXP__=(-382)", 339 | "__INT_FAST64_MAX__=9223372036854775807LL", 340 | "__GCC_ATOMIC_TEST_AND_SET_TRUEVAL=1", 341 | "__FLT_DIG__=6", 342 | "__UINT_FAST64_TYPE__=long long unsigned int", 343 | "__BUILTIN_AVR_BITSHK=1", 344 | "__BUILTIN_AVR_BITSHR=1", 345 | "__INT_MAX__=32767", 346 | "__LACCUM_FBIT__=31", 347 | "__USACCUM_MIN__=0.0UHK", 348 | "__UHA_IBIT__=8", 349 | "__INT64_TYPE__=long long int", 350 | "__BUILTIN_AVR_BITSLK=1", 351 | "__BUILTIN_AVR_BITSLR=1", 352 | "__FLT_MAX_EXP__=128", 353 | "__UTQ_IBIT__=0", 354 | "__DBL_MANT_DIG__=24", 355 | "__BUILTIN_AVR_ULLKBITS=1", 356 | "__INT_LEAST64_MAX__=9223372036854775807LL", 357 | "__DEC64_MIN__=1E-383DD", 358 | "__WINT_TYPE__=int", 359 | "__UINT_LEAST32_TYPE__=long unsigned int", 360 | "__SIZEOF_SHORT__=2", 361 | "__ULLFRACT_IBIT__=0", 362 | "__LDBL_MIN_EXP__=(-125)", 363 | "__UDA_IBIT__=32", 364 | "__INT_LEAST8_MAX__=127", 365 | "__LFRACT_FBIT__=31", 366 | "__LDBL_MAX_10_EXP__=38", 367 | "__ATOMIC_RELAXED=0", 368 | "__DBL_EPSILON__=double(1.19209290e-7L)", 369 | "__BUILTIN_AVR_BITSUK=1", 370 | "__BUILTIN_AVR_BITSUR=1", 371 | "__UINT8_C(c)=c", 372 | "__INT_LEAST32_TYPE__=long int", 373 | "__BUILTIN_AVR_URBITS=1", 374 | "__SIZEOF_WCHAR_T__=2", 375 | "__UINT64_TYPE__=long long unsigned int", 376 | "__LLFRACT_MAX__=0X7FFFFFFFFFFFFFFFP-63LLR", 377 | "__TQ_FBIT__=127", 378 | "__INT_FAST8_TYPE__=signed char", 379 | "__ULLACCUM_EPSILON__=0x1P-48ULLK", 380 | "__BUILTIN_AVR_ROUNDK=1", 381 | "__BUILTIN_AVR_ROUNDR=1", 382 | "__UHQ_IBIT__=0", 383 | "__LLACCUM_IBIT__=16", 384 | "__DBL_DECIMAL_DIG__=9", 385 | "__DEC_EVAL_METHOD__=2", 386 | "__TA_FBIT__=47", 387 | "__UDQ_IBIT__=0", 388 | "__ORDER_BIG_ENDIAN__=4321", 389 | "__WITH_AVRLIBC__=1", 390 | "__ACCUM_EPSILON__=0x1P-15K", 391 | "__UINT32_C(c)=c ## UL", 392 | "__BUILTIN_AVR_COUNTLSUHK=1", 393 | "__INTMAX_MAX__=9223372036854775807LL", 394 | "__BUILTIN_AVR_COUNTLSUHR=1", 395 | "__BYTE_ORDER__=__ORDER_LITTLE_ENDIAN__", 396 | "__FLT_DENORM_MIN__=1.40129846e-45F", 397 | "__LLFRACT_IBIT__=0", 398 | "__INT8_MAX__=127", 399 | "__UINT_FAST32_TYPE__=long unsigned int", 400 | "__CHAR32_TYPE__=long unsigned int", 401 | "__BUILTIN_AVR_COUNTLSULK=1", 402 | "__BUILTIN_AVR_COUNTLSULR=1", 403 | "__FLT_MAX__=3.40282347e+38F", 404 | "__USACCUM_FBIT__=8", 405 | "__BUILTIN_AVR_COUNTLSFX=1", 406 | "__INT32_TYPE__=long int", 407 | "__SIZEOF_DOUBLE__=4", 408 | "__UFRACT_EPSILON__=0x1P-16UR", 409 | "__BUILTIN_AVR_COUNTLSHK=1", 410 | "__BUILTIN_AVR_COUNTLSHR=1", 411 | "__INTMAX_TYPE__=long long int", 412 | "__BUILTIN_AVR_ABSLLK=1", 413 | "__BUILTIN_AVR_ABSLLR=1", 414 | "__DEC128_MAX_EXP__=6145", 415 | "__AVR_HAVE_16BIT_SP__=1", 416 | "__ATOMIC_CONSUME=1", 417 | "__GNUC_MINOR__=9", 418 | "__UINTMAX_MAX__=18446744073709551615ULL", 419 | "__DEC32_MANT_DIG__=7", 420 | "__HA_FBIT__=7", 421 | "__BUILTIN_AVR_COUNTLSLK=1", 422 | "__BUILTIN_AVR_COUNTLSLR=1", 423 | "__BUILTIN_AVR_CLI=1", 424 | "__DBL_MAX_10_EXP__=38", 425 | "__LDBL_DENORM_MIN__=1.40129846e-45L", 426 | "__INT16_C(c)=c", 427 | "__STDC__=1", 428 | "__PTRDIFF_TYPE__=int", 429 | "__LLFRACT_MIN__=(-0.5LLR-0.5LLR)", 430 | "__BUILTIN_AVR_LRBITS=1", 431 | "__ATOMIC_SEQ_CST=5", 432 | "__DA_FBIT__=31", 433 | "__UINT32_TYPE__=long unsigned int", 434 | "__BUILTIN_AVR_ROUNDLLK=1", 435 | "__UINTPTR_TYPE__=unsigned int", 436 | "__BUILTIN_AVR_ROUNDLLR=1", 437 | "__USA_IBIT__=16", 438 | "__BUILTIN_AVR_ULRBITS=1", 439 | "__DEC64_SUBNORMAL_MIN__=0.000000000000001E-383DD", 440 | "__DEC128_MANT_DIG__=34", 441 | "__LDBL_MIN_10_EXP__=(-37)", 442 | "__BUILTIN_AVR_COUNTLSUK=1", 443 | "__BUILTIN_AVR_COUNTLSUR=1", 444 | "__SIZEOF_LONG_LONG__=8", 445 | "__ULACCUM_EPSILON__=0x1P-32ULK", 446 | "__SACCUM_IBIT__=8", 447 | "__GCC_ATOMIC_LLONG_LOCK_FREE=1", 448 | "__LDBL_DIG__=6", 449 | "__FLT_DECIMAL_DIG__=9", 450 | "__UINT_FAST16_MAX__=65535U", 451 | "__GNUC_GNU_INLINE__=1", 452 | "__GCC_ATOMIC_SHORT_LOCK_FREE=1", 453 | "__BUILTIN_AVR_ABSHK=1", 454 | "__BUILTIN_AVR_FLASH_SEGMENT=1", 455 | "__ULLFRACT_MAX__=0XFFFFFFFFFFFFFFFFP-64ULLR", 456 | "__UINT_FAST8_TYPE__=unsigned char", 457 | "__USFRACT_EPSILON__=0x1P-8UHR", 458 | "__ULACCUM_FBIT__=32", 459 | "__QQ_IBIT__=0", 460 | "__ATOMIC_ACQ_REL=4", 461 | "__ATOMIC_RELEASE=3", 462 | "__BUILTIN_AVR_FMUL=1", 463 | "USBCON" 464 | ] 465 | } 466 | ] 467 | } -------------------------------------------------------------------------------- /SimpleTX/NonBlockingRtttl.cpp: -------------------------------------------------------------------------------- 1 | // --------------------------------------------------------------------------- 2 | // Created by Antoine Beauchamp based on the code from the ToneLibrary 3 | // 4 | // See "NonBlockingRtttl.h" for purpose, syntax, version history, links, and more. 5 | // --------------------------------------------------------------------------- 6 | 7 | #include "Arduino.h" 8 | #include "NonBlockingRtttl.h" 9 | 10 | /********************************************************* 11 | * RTTTL Library data 12 | *********************************************************/ 13 | 14 | namespace rtttl 15 | { 16 | 17 | const int notes[] = { 0, 18 | NOTE_C4, NOTE_CS4, NOTE_D4, NOTE_DS4, NOTE_E4, NOTE_F4, NOTE_FS4, NOTE_G4, NOTE_GS4, NOTE_A4, NOTE_AS4, NOTE_B4, 19 | NOTE_C5, NOTE_CS5, NOTE_D5, NOTE_DS5, NOTE_E5, NOTE_F5, NOTE_FS5, NOTE_G5, NOTE_GS5, NOTE_A5, NOTE_AS5, NOTE_B5, 20 | NOTE_C6, NOTE_CS6, NOTE_D6, NOTE_DS6, NOTE_E6, NOTE_F6, NOTE_FS6, NOTE_G6, NOTE_GS6, NOTE_A6, NOTE_AS6, NOTE_B6, 21 | NOTE_C7, NOTE_CS7, NOTE_D7, NOTE_DS7, NOTE_E7, NOTE_F7, NOTE_FS7, NOTE_G7, NOTE_GS7, NOTE_A7, NOTE_AS7, NOTE_B7 22 | }; 23 | 24 | //#define isdigit(n) (n >= '0' && n <= '9') 25 | #define OCTAVE_OFFSET 0 26 | 27 | const char * buffer = ""; 28 | int bufferIndex = -32760; 29 | byte default_dur = 4; 30 | byte default_oct = 5; 31 | int bpm = 63; 32 | long wholenote; 33 | byte pin = -1; 34 | unsigned long noteDelay = 0; //m will always be after which means the last note is done playing 35 | bool playing = false; 36 | 37 | //pre-declaration 38 | void nextnote(); 39 | 40 | // tone() and noTone() are not implemented for Arduino core for the ESP32 41 | // See https://github.com/espressif/arduino-esp32/issues/980 42 | // and https://github.com/espressif/arduino-esp32/issues/1720 43 | #if defined(ESP32) 44 | void noTone(){ 45 | ledcWrite(0, 0); // channel, volume 46 | } 47 | 48 | void noTone(int pin){ 49 | noTone(); 50 | } 51 | 52 | void tone(int frq) { 53 | ledcWriteTone(0, frq); // channel, freq 54 | ledcWrite(0, 255); // channel, volume 55 | } 56 | 57 | void tone(int pin, int frq, int duration){ 58 | tone(frq); 59 | } 60 | #endif 61 | 62 | void begin(byte iPin, const char * iSongBuffer) 63 | { 64 | #ifdef RTTTL_NONBLOCKING_DEBUG 65 | Serial.print("playing: "); 66 | Serial.println(iSongBuffer); 67 | #endif 68 | 69 | //init values 70 | pin = iPin; 71 | #if defined(ESP32) 72 | ledcSetup(0, 1000, 10); // resolution always seems to be 10bit, no matter what is given 73 | ledcAttachPin(pin, 0); 74 | #endif 75 | buffer = iSongBuffer; 76 | bufferIndex = 0; 77 | default_dur = 4; 78 | default_oct = 6; 79 | bpm=63; 80 | playing = true; 81 | noteDelay = 0; 82 | #ifdef RTTTL_NONBLOCKING_DEBUG 83 | Serial.print("noteDelay="); 84 | Serial.println(noteDelay); 85 | #endif 86 | 87 | //stop current note 88 | noTone(pin); 89 | 90 | //read buffer until first note 91 | int num; 92 | 93 | // format: d=N,o=N,b=NNN: 94 | // find the start (skip name, etc) 95 | 96 | while(*buffer != ':') buffer++; // ignore name 97 | buffer++; // skip ':' 98 | 99 | // get default duration 100 | if(*buffer == 'd') 101 | { 102 | buffer++; buffer++; // skip "d=" 103 | num = 0; 104 | while(isdigit(*buffer)) 105 | { 106 | num = (num * 10) + (*buffer++ - '0'); 107 | } 108 | if(num > 0) default_dur = num; 109 | buffer++; // skip comma 110 | } 111 | 112 | #ifdef RTTTL_NONBLOCKING_INFO 113 | Serial.print("ddur: "); Serial.println(default_dur, 10); 114 | #endif 115 | 116 | // get default octave 117 | if(*buffer == 'o') 118 | { 119 | buffer++; buffer++; // skip "o=" 120 | num = *buffer++ - '0'; 121 | if(num >= 3 && num <=7) default_oct = num; 122 | buffer++; // skip comma 123 | } 124 | 125 | #ifdef RTTTL_NONBLOCKING_INFO 126 | Serial.print("doct: "); Serial.println(default_oct, 10); 127 | #endif 128 | 129 | // get BPM 130 | if(*buffer == 'b') 131 | { 132 | buffer++; buffer++; // skip "b=" 133 | num = 0; 134 | while(isdigit(*buffer)) 135 | { 136 | num = (num * 10) + (*buffer++ - '0'); 137 | } 138 | bpm = num; 139 | buffer++; // skip colon 140 | } 141 | 142 | #ifdef RTTTL_NONBLOCKING_INFO 143 | Serial.print("bpm: "); Serial.println(bpm, 10); 144 | #endif 145 | 146 | // BPM usually expresses the number of quarter notes per minute 147 | wholenote = (60 * 1000L / bpm) * 4; // this is the time for whole note (in milliseconds) 148 | 149 | #ifdef RTTTL_NONBLOCKING_INFO 150 | Serial.print("wn: "); Serial.println(wholenote, 10); 151 | #endif 152 | } 153 | 154 | void nextnote() 155 | { 156 | long duration; 157 | byte note; 158 | byte scale; 159 | 160 | //stop current note 161 | noTone(pin); 162 | 163 | // first, get note duration, if available 164 | int num = 0; 165 | while(isdigit(*buffer)) 166 | { 167 | num = (num * 10) + (*buffer++ - '0'); 168 | } 169 | 170 | if(num) duration = wholenote / num; 171 | else duration = wholenote / default_dur; // we will need to check if we are a dotted note after 172 | 173 | // now get the note 174 | note = 0; 175 | 176 | switch(*buffer) 177 | { 178 | case 'c': 179 | note = 1; 180 | break; 181 | case 'd': 182 | note = 3; 183 | break; 184 | case 'e': 185 | note = 5; 186 | break; 187 | case 'f': 188 | note = 6; 189 | break; 190 | case 'g': 191 | note = 8; 192 | break; 193 | case 'a': 194 | note = 10; 195 | break; 196 | case 'b': 197 | note = 12; 198 | break; 199 | case 'p': 200 | default: 201 | note = 0; 202 | } 203 | buffer++; 204 | 205 | // now, get optional '#' sharp 206 | if(*buffer == '#') 207 | { 208 | note++; 209 | buffer++; 210 | } 211 | 212 | // now, get optional '.' dotted note 213 | if(*buffer == '.') 214 | { 215 | duration += duration/2; 216 | buffer++; 217 | } 218 | 219 | // now, get scale 220 | if(isdigit(*buffer)) 221 | { 222 | scale = *buffer - '0'; 223 | buffer++; 224 | } 225 | else 226 | { 227 | scale = default_oct; 228 | } 229 | 230 | scale += OCTAVE_OFFSET; 231 | 232 | // now, get optional '.' dotted note again. 233 | // A dot /after/ the octave is allowed too, depending on which 234 | // RTTTL specification you read. 235 | // See https://github.com/end2endzone/NonBlockingRTTTL/issues/10 236 | if(*buffer == '.') 237 | { 238 | duration += duration/2; 239 | buffer++; 240 | } 241 | 242 | if(*buffer == ',') 243 | buffer++; // skip comma for next note (or we may be at the end) 244 | 245 | // now play the note 246 | 247 | if(note) 248 | { 249 | #ifdef RTTTL_NONBLOCKING_INFO 250 | Serial.print("Playing: "); 251 | Serial.print(scale, 10); Serial.print(' '); 252 | Serial.print(note, 10); Serial.print(" ("); 253 | Serial.print(notes[(scale - 4) * 12 + note], 10); 254 | Serial.print(") "); 255 | Serial.println(duration, 10); 256 | #endif 257 | 258 | tone(pin, notes[(scale - 4) * 12 + note], duration); 259 | 260 | noteDelay = millis() + (duration+1); 261 | } 262 | else 263 | { 264 | #ifdef RTTTL_NONBLOCKING_INFO 265 | Serial.print("Pausing: "); 266 | Serial.println(duration, 10); 267 | #endif 268 | 269 | noteDelay = millis() + (duration); 270 | } 271 | } 272 | 273 | void play() 274 | { 275 | //if done playing the song, return 276 | if (!playing) 277 | { 278 | #ifdef RTTTL_NONBLOCKING_DEBUG 279 | Serial.println("done playing..."); 280 | #endif 281 | 282 | return; 283 | } 284 | 285 | //are we still playing a note ? 286 | unsigned long m = millis(); 287 | if (m < noteDelay) 288 | { 289 | #ifdef RTTTL_NONBLOCKING_DEBUG 290 | Serial.println("still playing a note..."); 291 | #endif 292 | 293 | //wait until the note is completed 294 | return; 295 | } 296 | 297 | //ready to play the next note 298 | if (*buffer == '\0') 299 | { 300 | //no more notes. Reached the end of the last note 301 | 302 | #ifdef RTTTL_NONBLOCKING_DEBUG 303 | Serial.println("end of note..."); 304 | #endif 305 | 306 | //issue #6: Bug for ESP8266 environment - noTone() not called at end of sound. 307 | //disable sound at the end of a normal playback. 308 | stop(); 309 | 310 | return; //end of the song 311 | } 312 | else 313 | { 314 | //more notes to play... 315 | 316 | #ifdef RTTTL_NONBLOCKING_DEBUG 317 | Serial.println("next note..."); 318 | #endif 319 | 320 | nextnote(); 321 | } 322 | } 323 | 324 | void stop() 325 | { 326 | if (playing) 327 | { 328 | //increase song buffer until the end 329 | while (*buffer != '\0') 330 | { 331 | buffer++; 332 | } 333 | 334 | //issue #6: Bug for ESP8266 environment - noTone() not called at end of sound. 335 | //disable sound if one abort playback using the stop() command. 336 | noTone(pin); 337 | 338 | playing = false; 339 | } 340 | } 341 | 342 | bool done() 343 | { 344 | return !playing; 345 | } 346 | 347 | bool isPlaying() 348 | { 349 | return playing; 350 | } 351 | 352 | }; //namespace 353 | -------------------------------------------------------------------------------- /SimpleTX/NonBlockingRtttl.h: -------------------------------------------------------------------------------- 1 | // --------------------------------------------------------------------------- 2 | // AUTHOR/LICENSE: 3 | // The following code was written by Antoine Beauchamp. For other authors, see AUTHORS file. 4 | // The code & updates for the library can be found at http://github.com/end2endzone/NonBlockingRTTTL 5 | // Original source code for the RTTL player: https://code.google.com/archive/p/rogue-code/wikis/ToneLibraryDocumentation.wiki 6 | // MIT License: http://www.opensource.org/licenses/mit-license.php 7 | // --------------------------------------------------------------------------- 8 | 9 | #ifndef NonBlockingRtttl_h 10 | #define NonBlockingRtttl_h 11 | 12 | #define NONBLOCKINGRTTTL_VERSION 1.3.0 13 | 14 | #include "Arduino.h" 15 | 16 | //if notes are not already defined 17 | #ifndef NOTE_B0 18 | 19 | #define NOTE_H 0 20 | #define NOTE_B0 31 21 | #define NOTE_C1 33 22 | #define NOTE_CS1 35 23 | #define NOTE_D1 37 24 | #define NOTE_DS1 39 25 | #define NOTE_E1 41 26 | #define NOTE_F1 44 27 | #define NOTE_FS1 46 28 | #define NOTE_G1 49 29 | #define NOTE_GS1 52 30 | #define NOTE_A1 55 31 | #define NOTE_AS1 58 32 | #define NOTE_B1 62 33 | #define NOTE_C2 65 34 | #define NOTE_CS2 69 35 | #define NOTE_D2 73 36 | #define NOTE_DS2 78 37 | #define NOTE_E2 82 38 | #define NOTE_F2 87 39 | #define NOTE_FS2 93 40 | #define NOTE_G2 98 41 | #define NOTE_GS2 104 42 | #define NOTE_A2 110 43 | #define NOTE_AS2 117 44 | #define NOTE_B2 123 45 | #define NOTE_C3 131 46 | #define NOTE_CS3 139 47 | #define NOTE_D3 147 48 | #define NOTE_DS3 156 49 | #define NOTE_E3 165 50 | #define NOTE_F3 175 51 | #define NOTE_FS3 185 52 | #define NOTE_G3 196 53 | #define NOTE_GS3 208 54 | #define NOTE_A3 220 55 | #define NOTE_AS3 233 56 | #define NOTE_B3 247 57 | #define NOTE_C4 262 58 | #define NOTE_CS4 277 59 | #define NOTE_D4 294 60 | #define NOTE_DS4 311 61 | #define NOTE_E4 330 62 | #define NOTE_F4 349 63 | #define NOTE_FS4 370 64 | #define NOTE_G4 392 65 | #define NOTE_GS4 415 66 | #define NOTE_A4 440 67 | #define NOTE_AS4 466 68 | #define NOTE_B4 494 69 | #define NOTE_C5 523 70 | #define NOTE_CS5 554 71 | #define NOTE_D5 587 72 | #define NOTE_DS5 622 73 | #define NOTE_E5 659 74 | #define NOTE_F5 698 75 | #define NOTE_FS5 740 76 | #define NOTE_G5 784 77 | #define NOTE_GS5 831 78 | #define NOTE_A5 880 79 | #define NOTE_AS5 932 80 | #define NOTE_B5 988 81 | #define NOTE_C6 1047 82 | #define NOTE_CS6 1109 83 | #define NOTE_D6 1175 84 | #define NOTE_DS6 1245 85 | #define NOTE_E6 1319 86 | #define NOTE_F6 1397 87 | #define NOTE_FS6 1480 88 | #define NOTE_G6 1568 89 | #define NOTE_GS6 1661 90 | #define NOTE_A6 1760 91 | #define NOTE_AS6 1865 92 | #define NOTE_B6 1976 93 | #define NOTE_C7 2093 94 | #define NOTE_CS7 2217 95 | #define NOTE_D7 2349 96 | #define NOTE_DS7 2489 97 | #define NOTE_E7 2637 98 | #define NOTE_F7 2794 99 | #define NOTE_FS7 2960 100 | #define NOTE_G7 3136 101 | #define NOTE_GS7 3322 102 | #define NOTE_A7 3520 103 | #define NOTE_AS7 3729 104 | #define NOTE_B7 3951 105 | #define NOTE_C8 4186 106 | #define NOTE_CS8 4435 107 | #define NOTE_D8 4699 108 | #define NOTE_DS8 4978 109 | 110 | //if notes are not already defined 111 | #endif 112 | 113 | //#define RTTTL_NONBLOCKING_DEBUG 114 | //#define RTTTL_NONBLOCKING_INFO 115 | 116 | namespace rtttl 117 | { 118 | 119 | /**************************************************************************** 120 | * Description: 121 | * begin() setups the NON-BLOCKING RTTTL library for 122 | * decoding a new RTTTL song. 123 | * Parameters: 124 | * iPin: The pin which is connected to the piezo buffer. 125 | * iSongBuffer: The string buffer of the RTTTL song. 126 | ****************************************************************************/ 127 | void begin(byte iPin, const char * iSongBuffer); 128 | 129 | /**************************************************************************** 130 | * Description: 131 | * play() automatically plays a new note when required. 132 | * This function must constantly be called within the loop() function. 133 | * Warning: inserting too long delays within the loop function may 134 | * disrupt the NON-BLOCKING RTTTL library from playing properly. 135 | ****************************************************************************/ 136 | void play(); 137 | 138 | /**************************************************************************** 139 | * Description: 140 | * stop() stops playing the current song. 141 | ****************************************************************************/ 142 | void stop(); 143 | 144 | /**************************************************************************** 145 | * Description: 146 | * isPlaying() return true when the library is playing 147 | * the given RTTTL song. 148 | ****************************************************************************/ 149 | bool isPlaying(); 150 | 151 | /**************************************************************************** 152 | * Description: 153 | * done() return true when the library is done playing 154 | * the given RTTTL song. 155 | ****************************************************************************/ 156 | bool done(); 157 | 158 | }; //namespace 159 | 160 | //NonBlockingRtttl_h 161 | #endif 162 | -------------------------------------------------------------------------------- /SimpleTX/SimpleTX.ino: -------------------------------------------------------------------------------- 1 | /* 2 | // Simple Arduino trasmisster 3 | // Arduino Nano 4 | // ELRS 2.4G TX moduel 5 | // Custom PCB from JLCPCB 6 | // const float codeVersion = 0.92; // Software revision 7 | // https://github.com/kkbin505/Arduino-Transmitter-for-ELRS 8 | 9 | * This file is part of Simple TX 10 | * 11 | * Simple TX is free software: you can redistribute it and/or modify 12 | * it under the terms of the GNU General Public License as published by 13 | * the Free Software Foundation, either version 3 of the License, or 14 | * (at your option) any later version. 15 | * 16 | * Simple TX is distributed in the hope that it will be useful, 17 | * but WITHOUT ANY WARRANTY; without even the implied warranty of 18 | * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the 19 | * GNU General Public License for more details. 20 | * 21 | * You should have received a copy of the GNU General Public License 22 | * along with Cleanflight. If not, see . 23 | */ 24 | 25 | #include 26 | #include "NonBlockingRtttl.h" 27 | #include "EEPROM.h" 28 | #include "config.h" 29 | #include "crsf.h" 30 | #include "led.h" 31 | #include "tone.h" 32 | 33 | //#define DEBUG // if not commented out, Serial.print() is active! For debugging only!! 34 | //#define GIMBAL_CALIBRATION // if not commented out, Serial.print() is active! For debugging only!! 35 | 36 | int Aileron_value = 0; // values read from the pot 37 | int Elevator_value = 0; 38 | int Throttle_value = 0; 39 | int Rudder_value = 0; 40 | int previous_throttle = 191; 41 | 42 | int loopCount = 0; // for ELRS seeting 43 | 44 | int AUX1_Arm = 0; // switch values read from the digital pin 45 | #ifdef USE_3POS_SWITCH_AS_CHANNEL_6 46 | int AUX2_value_HIGH= 0; 47 | int AUX2_value_LOW = 0; 48 | #else 49 | int AUX2_value_LOW = 0; 50 | #endif 51 | int AUX2_value = 0; 52 | int AUX3_value = 0; 53 | int AUX4_value = 0; 54 | 55 | float batteryVoltage; 56 | 57 | int currentPktRate = 0; 58 | int currentPower = 0; 59 | int currentDynamic = 0; 60 | int currentSetting = 0; 61 | int stickMoved = 0; 62 | int stickInt = 0; 63 | uint32_t stickMovedMillis = 0; 64 | 65 | uint32_t currentMillis = 0; 66 | 67 | uint8_t crsfPacket[CRSF_PACKET_SIZE]; 68 | uint8_t crsfCmdPacket[CRSF_CMD_PACKET_SIZE]; 69 | int16_t rcChannels[CRSF_MAX_CHANNEL]; 70 | uint32_t crsfTime = 0; 71 | 72 | CRSF crsfClass; 73 | 74 | bool calStatus=false; 75 | 76 | // ----------------------------------------------------------------------------------------------------- 77 | // Calibration 78 | 79 | #define CALIB_MARK 0x55 80 | #define CALIB_MARK_ADDR 0x00 81 | #define CALIB_VAL_ADDR CALIB_MARK_ADDR + 1 82 | 83 | #define CALIB_CNT 5 // times of switch on/off 84 | #define CALIB_CENT_TMO 5000 //ms 85 | #define CALIB_TMO 20000 // ms 86 | int cal_reset = 0 ; 87 | 88 | struct CalibValues { 89 | int aileronMin; 90 | int aileronMax; 91 | int aileronCenter; 92 | int elevatorMin; 93 | int elevatorMax; 94 | int elevatorCenter; 95 | int thrMin; 96 | int thrMax; 97 | int rudderMin; 98 | int rudderMax; 99 | int rudderCenter; 100 | }; 101 | 102 | CalibValues calValues; 103 | 104 | bool calibrationPresent() { 105 | return EEPROM.read(CALIB_MARK_ADDR) == CALIB_MARK; 106 | } 107 | 108 | void calibrationSave() { 109 | EEPROM.update(CALIB_MARK_ADDR, CALIB_MARK); 110 | EEPROM.put(CALIB_VAL_ADDR, calValues); 111 | } 112 | 113 | void calibrationLoad() { 114 | EEPROM.get(CALIB_VAL_ADDR, calValues); 115 | } 116 | 117 | void calibrationReset() { 118 | EEPROM.put(CALIB_MARK_ADDR, (uint8_t)0xFF); 119 | calValues = { 120 | .aileronMin = ANALOG_CUTOFF, 121 | .aileronMax = 1023 - ANALOG_CUTOFF, 122 | .aileronCenter = 988, 123 | .elevatorMin = ANALOG_CUTOFF, 124 | .elevatorMax = 1023 - ANALOG_CUTOFF, 125 | .elevatorCenter = 988, 126 | .thrMin = ANALOG_CUTOFF, 127 | .thrMax = 1023 - ANALOG_CUTOFF, 128 | .rudderMin = ANALOG_CUTOFF, 129 | .rudderMax = 1023 - ANALOG_CUTOFF, 130 | .rudderCenter = 988, 131 | }; 132 | EEPROM.put(CALIB_VAL_ADDR, calValues); 133 | } 134 | 135 | uint8_t aux2cnt = 0; 136 | 137 | unsigned long calibrationTimerStart; 138 | 139 | //Flash LED and beep for (times) 140 | void calibrationChirp(uint8_t times) { 141 | 142 | digitalWrite(DIGITAL_PIN_LED, HIGH); 143 | delay(1000); 144 | digitalWrite(DIGITAL_PIN_LED, LOW); 145 | delay(1000); 146 | 147 | for (uint8_t i = 0; i < times; i++) { 148 | #ifdef ACTIVE_BUZZER 149 | digitalWrite(DIGITAL_PIN_BUZZER, HIGH); 150 | #else 151 | tone(DIGITAL_PIN_BUZZER,5000,100); 152 | #endif 153 | digitalWrite(DIGITAL_PIN_LED, HIGH); 154 | delay(100); 155 | #ifdef ACTIVE_BUZZER 156 | digitalWrite(DIGITAL_PIN_BUZZER, LOW); 157 | #endif 158 | digitalWrite(DIGITAL_PIN_LED, LOW); 159 | delay(100); 160 | } 161 | digitalWrite(DIGITAL_PIN_LED, LOW); 162 | } 163 | 164 | void calibrationCount(int aux1, int aux2) { 165 | static uint8_t preAux2 = 0; 166 | 167 | // Don't do anything if ARMED 168 | if (aux1 != 0) { 169 | aux2cnt = 0; 170 | preAux2 = 0; 171 | return; 172 | } 173 | 174 | else{ 175 | // Start timer window // Arm = DISARMED 176 | if (aux2cnt == 0) { 177 | calibrationTimerStart = millis(); 178 | } 179 | 180 | // Timeout 181 | if (calibrationTimerStart + CALIB_TMO > millis()) { 182 | aux2cnt = 0; 183 | preAux2 = 0; 184 | return; 185 | } 186 | 187 | // Analyze AUX2 switch, count only one side of the switch 188 | if (aux2 == 1 && preAux2 == 0) { 189 | aux2cnt++; 190 | preAux2 = 1; 191 | } else if (aux2 == 0 && preAux2 == 1) { 192 | preAux2 = 0; 193 | } 194 | } 195 | } 196 | 197 | bool calibrationRequested() { 198 | //return aux2cnt > CALIB_CNT; 199 | return calStatus; 200 | } 201 | 202 | bool calibrationProcess() { 203 | aux2cnt = 0; 204 | 205 | //calibrationChirp(2); // start calibration 206 | 207 | // Reset variables to "centers" 208 | 209 | while(cal_reset<1){ 210 | const int centerValue = (1023 - ANALOG_CUTOFF - ANALOG_CUTOFF) / 2; 211 | calValues.aileronMin = centerValue; 212 | calValues.aileronMax = centerValue; 213 | calValues.aileronCenter = centerValue; 214 | calValues.elevatorMin = centerValue; 215 | calValues.elevatorMax = centerValue; 216 | calValues.elevatorCenter = centerValue; 217 | calValues.thrMin = centerValue; 218 | calValues.thrMax = centerValue; 219 | calValues.rudderMin = centerValue; 220 | calValues.rudderMax = centerValue; 221 | calValues.rudderCenter = centerValue; 222 | cal_reset++; 223 | } 224 | 225 | currentMillis = millis(); 226 | 227 | if (currentMillis CALIB_CENT_TMO && currentMillis < CALIB_TMO){ 252 | //while ((calibrationTimerStart + CALIB_TMO ) < millis()) { 253 | // A Min-Max 254 | int val = analogRead(analogInPinAileron); 255 | if (val < calValues.aileronMin) { 256 | calValues.aileronMin = val; 257 | } 258 | if (val > calValues.aileronMax) { 259 | calValues.aileronMax = val; 260 | } 261 | // E Min-Max 262 | val = analogRead(analogInPinElevator); 263 | if (val < calValues.elevatorMin) { 264 | calValues.elevatorMin = val; 265 | } 266 | if (val > calValues.elevatorMax) { 267 | calValues.elevatorMax = val; 268 | } 269 | 270 | // T Min-Max 271 | val = analogRead(analogInPinThrottle); 272 | if (val < calValues.thrMin) { 273 | calValues.thrMin = val; 274 | } 275 | if (val > calValues.thrMax) { 276 | calValues.thrMax = val; 277 | } 278 | 279 | // R Min-Max 280 | val = analogRead(analogInPinRudder); 281 | if (val < calValues.rudderMin) { 282 | calValues.rudderMin = val; 283 | } 284 | if (val > calValues.rudderMax) { 285 | calValues.rudderMax = val; 286 | } 287 | 288 | // Double beep and blink every 500ms 289 | if (millis() % 500 == 0) { 290 | // calibrationChirp(2); 291 | } 292 | Serial.print("Mover stick full range: Aileron_Min:"); 293 | Serial.print(calValues.aileronMin); 294 | Serial.print(" Max:"); 295 | Serial.print(calValues.aileronMax); 296 | Serial.print(" ElevatorMin:"); 297 | Serial.print(calValues.elevatorMin); 298 | Serial.print(" Max:"); 299 | Serial.print(calValues.elevatorMax); 300 | Serial.print(" RudderMin:"); 301 | Serial.print(calValues.rudderMin); 302 | Serial.print(" Max:"); 303 | Serial.print(calValues.rudderMax); 304 | Serial.print(" ThrottleMin:"); 305 | Serial.print(calValues.thrMin); 306 | Serial.print(" Max:"); 307 | Serial.print(calValues.thrMax); 308 | Serial.println(); 309 | 310 | 311 | } 312 | else { 313 | Serial.println("Calibration Done"); 314 | calibrationSave(); 315 | calStatus = false; 316 | } 317 | return true; 318 | 319 | } 320 | 321 | void calibrationRun(int aux1, int aux2) { 322 | if (calibrationRequested()) { 323 | //calibrationReset(); 324 | if (calibrationProcess()) { 325 | //calibrationSave(); 326 | //calibrationChirp(3); // ok 327 | // Serial.println("Calibration OK"); 328 | } else { 329 | //calibrationReset(); 330 | // calibrationChirp(10); // error 331 | Serial.println("Calibration error!"); 332 | } 333 | } else { 334 | calibrationCount(aux1, aux2); 335 | } 336 | } 337 | 338 | // ----------------------------------------------------------------------------------------------------- 339 | 340 | void selectSetting() { 341 | // startup stick commands (rate/power selection / initiate bind / turn on tx module wifi) 342 | // Right stick: 343 | // Up Left - Rate/Power setting 1 (250hz / 100mw / Dynamic) 344 | // Up Right - Rate/Power setting 2 (50hz / 100mw) 345 | // Down Left - Start TX bind (for 3.4.2 it is now possible to bind to RX easily). Power cycle after binding 346 | // Down Right - Start TX module wifi (for firmware update etc) 347 | 348 | if (rcChannels[AILERON] < RC_MIN_COMMAND && rcChannels[ELEVATOR] > RC_MAX_COMMAND) { // Elevator up + aileron left 349 | currentPktRate = SETTING_1_PktRate; 350 | currentPower = SETTING_1_Power; 351 | currentDynamic = SETTING_1_Dynamic; 352 | currentSetting = 1; 353 | } else if (rcChannels[AILERON] > RC_MAX_COMMAND && rcChannels[ELEVATOR] > RC_MAX_COMMAND) { // Elevator up + aileron right 354 | currentPktRate = SETTING_2_PktRate; 355 | currentPower = SETTING_2_Power; 356 | currentDynamic = SETTING_2_Dynamic; 357 | currentSetting = 2; 358 | } else if (rcChannels[AILERON] < RC_MIN_COMMAND && rcChannels[ELEVATOR] < RC_MIN_COMMAND) { // Elevator down + aileron left 359 | currentSetting = 3; // Bind 360 | } else if (rcChannels[AILERON] > RC_MAX_COMMAND && rcChannels[ELEVATOR] < RC_MIN_COMMAND) { // Elevator down + aileron right 361 | currentSetting = 4; // TX Wifi 362 | } else { 363 | currentSetting = 0; 364 | } 365 | } 366 | 367 | bool checkStickMove(){ 368 | // check if stick moved, warring after 10 minutes 369 | if(abs(previous_throttle - rcChannels[THROTTLE]) < 30){ 370 | stickMoved = 0; 371 | //Serial.println(abs(previous_throttle - rcChannels[THROTTLE])); 372 | }else{ 373 | previous_throttle = rcChannels[THROTTLE]; 374 | stickMovedMillis = millis(); 375 | stickMoved = 1; 376 | } 377 | 378 | if (millis() - stickMovedMillis > STICK_ALARM_TIME){ 379 | // Serial.println((millis() - stickMovedMillis)); 380 | return true; 381 | }else{ 382 | return false; 383 | } 384 | } 385 | 386 | void setup() 387 | { 388 | // inialize rc data 389 | for (uint8_t i = 0; i < CRSF_MAX_CHANNEL; i++) { 390 | rcChannels[i] = CRSF_DIGITAL_CHANNEL_MIN; 391 | } 392 | 393 | analogReference(EXTERNAL); 394 | pinMode(DIGITAL_PIN_SWITCH_ARM, INPUT_PULLUP); 395 | #ifdef USE_3POS_SWITCH_AS_CHANNEL_6 396 | pinMode(DIGITAL_PIN_SWITCH_AUX2_HIGH, INPUT_PULLUP); 397 | pinMode(DIGITAL_PIN_SWITCH_AUX2_LOW, INPUT_PULLUP); 398 | #else 399 | pinMode(DIGITAL_PIN_SWITCH_AUX2, INPUT_PULLUP); 400 | #endif 401 | pinMode(DIGITAL_PIN_SWITCH_AUX3, INPUT_PULLUP); 402 | if (DIGITAL_PIN_SWITCH_AUX4 != 0){ 403 | pinMode(DIGITAL_PIN_SWITCH_AUX4, INPUT_PULLUP); 404 | } 405 | pinMode(DIGITAL_PIN_LED, OUTPUT); // LED 406 | pinMode(DIGITAL_PIN_BUZZER, OUTPUT); // BUZZER 407 | #ifdef PASSIVE_BUZZER 408 | digitalWrite(DIGITAL_PIN_BUZZER, LOW); // BUZZER OFF 409 | if(STARTUP_MELODY!=""){ 410 | rtttl::begin(DIGITAL_PIN_BUZZER, STARTUP_MELODY); 411 | } 412 | #endif 413 | // inialize voltage: 414 | batteryVoltage = 0.0; 415 | #ifdef PPMOUTPUT 416 | pinMode(ppmPin, OUTPUT); 417 | digitalWrite(ppmPin, !onState); // set the PPM signal pin to the default state (off) 418 | cli(); 419 | TCCR1A = 0; // set entire TCCR1 register to 0 420 | TCCR1B = 0; 421 | OCR1A = 100; // compare match register, change this 422 | TCCR1B |= (1 << WGM12); // turn on CTC mode 423 | TCCR1B |= (1 << CS11); // 8 prescaler: 0,5 microseconds at 16mhz 424 | TIMSK1 |= (1 << OCIE1A); // enable timer compare interrupt 425 | sei(); 426 | #endif 427 | 428 | #ifdef PASSIVE_BUZZER 429 | if(STARTUP_MELODY!="") { 430 | while( !rtttl::done() ) { 431 | rtttl::play(); 432 | } 433 | } 434 | else { 435 | delay(2000); // Give enough time for uploading firmware (2 seconds) 436 | } 437 | #else 438 | digitalWrite(DIGITAL_PIN_BUZZER, LOW); //BUZZER ON 439 | delay(100); // beep 440 | digitalWrite(DIGITAL_PIN_BUZZER, HIGH); //BUZZER OFF 441 | delay(200); 442 | digitalWrite(DIGITAL_PIN_BUZZER, LOW); //BUZZER ON 443 | delay(100); // beep 444 | digitalWrite(DIGITAL_PIN_BUZZER, HIGH); //BUZZER OFF 445 | delay(200); 446 | digitalWrite(DIGITAL_PIN_BUZZER, LOW); //BUZZER ON 447 | delay(200); // beep 448 | digitalWrite(DIGITAL_PIN_BUZZER, HIGH); //BUZZER OFF 449 | delay(2000); // Give enough time for uploading firmware (2 seconds) 450 | #endif 451 | 452 | #ifdef DEBUG 453 | Serial.begin(115200); 454 | 455 | #else 456 | crsfClass.begin(); 457 | #endif 458 | 459 | #ifdef GIMBAL_CALIBRATION 460 | Serial.begin(115200); 461 | //calibrationReset(); 462 | calStatus = true; 463 | Serial.println("Start Calibration"); 464 | #endif 465 | 466 | digitalWrite(DIGITAL_PIN_LED, HIGH); // LED ON 467 | 468 | //calibrationReset(); 469 | calibrationLoad(); 470 | } 471 | 472 | void loop() 473 | { 474 | // melody player needs to be first in the loop in order to play correctly. 475 | rtttl::play(); 476 | 477 | #ifdef GIMBAL_CALIBRATION 478 | if(calStatus ){ 479 | calibrationRun(AUX1_Arm, AUX2_value); 480 | } 481 | #endif 482 | uint32_t currentMicros = micros(); 483 | 484 | // Read Voltage 485 | batteryVoltage = analogRead(VOLTAGE_READ_PIN) / VOLTAGE_SCALE; //98.5 486 | #ifdef DEBUG 487 | Serial.print("batteryVoltage:"); 488 | Serial.print(batteryVoltage); 489 | Serial.print("v "); 490 | #endif 491 | if (batteryVoltage < WARNING_VOLTAGE && batteryVoltage >= BEEPING_VOLTAGE) { 492 | blinkLED(DIGITAL_PIN_LED, 1000); 493 | }else if(batteryVoltage < BEEPING_VOLTAGE && batteryVoltage >= ON_USB){ 494 | blinkLED(DIGITAL_PIN_LED, 250); 495 | playingTones(2); 496 | }else if(currentSetting == 3){ 497 | blinkLED(DIGITAL_PIN_LED, 100); // Bind (fast flash) 498 | }else if(currentSetting == 4){ 499 | blinkLED(DIGITAL_PIN_LED, 1000); // Wifi (slow flash) 500 | } 501 | 502 | if (checkStickMove() == true){ 503 | blinkLED(DIGITAL_PIN_LED, 100); 504 | playingTones(5); 505 | } 506 | #ifdef PASSIVE_BUZZER 507 | else { // Stop the stick warning tone if you move the sticks 508 | if ( rtttl::isPlaying() ) { 509 | rtttl::stop(); 510 | } 511 | } 512 | #endif 513 | 514 | /* 515 | * Handle analog input 516 | */ 517 | // constrain to avoid overflow 518 | int analogVal = analogRead(analogInPinAileron); 519 | if (analogVal <= calValues.aileronCenter){ 520 | Aileron_value = map(analogVal,calValues.aileronMin, calValues.aileronCenter, ADC_MIN, ADC_MID); 521 | } 522 | else{ 523 | Aileron_value = map(analogVal,calValues.aileronCenter, calValues.aileronMax, ADC_MID+1, ADC_MAX); 524 | } 525 | 526 | analogVal = analogRead(analogInPinElevator); 527 | if (analogVal <= calValues.elevatorCenter){ 528 | Elevator_value = map(analogVal,calValues.elevatorMin, calValues.elevatorCenter, ADC_MIN, ADC_MID); 529 | } 530 | else{ 531 | Elevator_value = map(analogVal,calValues.elevatorCenter, calValues.elevatorMax, ADC_MID+1, ADC_MAX); 532 | } 533 | 534 | analogVal = analogRead(analogInPinThrottle); 535 | Throttle_value = map(analogVal, calValues.thrMax, calValues.thrMin, ADC_MIN, ADC_MAX); 536 | 537 | analogVal = analogRead(analogInPinRudder); 538 | if (analogVal <= calValues.rudderCenter){ 539 | Rudder_value = map(analogVal,calValues.rudderMin, calValues.rudderCenter, ADC_MIN, ADC_MID); 540 | } 541 | else{ 542 | Rudder_value = map(analogVal,calValues.rudderCenter, calValues.rudderMax, ADC_MID+1, ADC_MAX); 543 | } 544 | 545 | //Constrain value to avoid overflow 546 | Aileron_value = constrain(Aileron_value, ADC_MIN, ADC_MAX); 547 | Elevator_value = constrain(Elevator_value, ADC_MIN, ADC_MAX); 548 | Throttle_value = constrain(Throttle_value, ADC_MIN, ADC_MAX); 549 | Rudder_value = constrain(Rudder_value, ADC_MIN, ADC_MAX); 550 | 551 | //Handdle reverse 552 | if (Is_Aileron_Reverse == 1){ 553 | Aileron_value = 1023-Aileron_value; 554 | } 555 | if (Is_Elevator_Reverse == 1){ 556 | Elevator_value = 1023-Elevator_value; 557 | } 558 | if (Is_Throttle_Reverse == 1){ 559 | Throttle_value = 1023-Throttle_value; 560 | } 561 | if (Is_Rudder_Reverse == 1){ 562 | Rudder_value = 1023-Rudder_value; 563 | } 564 | // rcChannels[AILERON] = map(Aileron_value, 1023 - ANALOG_CUTOFF, ANALOG_CUTOFF, CRSF_DIGITAL_CHANNEL_MIN, CRSF_DIGITAL_CHANNEL_MAX); // reverse 565 | // rcChannels[ELEVATOR] = map(Elevator_value, 1023 - ANALOG_CUTOFF, ANALOG_CUTOFF, CRSF_DIGITAL_CHANNEL_MIN, CRSF_DIGITAL_CHANNEL_MAX); // reverse 566 | // rcChannels[THROTTLE] = map(Throttle_value, 1023 - ANALOG_CUTOFF, ANALOG_CUTOFF, CRSF_DIGITAL_CHANNEL_MIN, CRSF_DIGITAL_CHANNEL_MAX); // reverse 567 | // rcChannels[RUDDER] = map(Rudder_value, ANALOG_CUTOFF, 1023 - ANALOG_CUTOFF, CRSF_DIGITAL_CHANNEL_MIN, CRSF_DIGITAL_CHANNEL_MAX); 568 | rcChannels[AILERON] = map(Aileron_value, ADC_MIN, ADC_MAX, CRSF_DIGITAL_CHANNEL_MIN, CRSF_DIGITAL_CHANNEL_MAX); 569 | rcChannels[ELEVATOR] = map(Elevator_value, ADC_MIN, ADC_MAX, CRSF_DIGITAL_CHANNEL_MIN, CRSF_DIGITAL_CHANNEL_MAX); 570 | rcChannels[THROTTLE] = map(Throttle_value, ADC_MIN, ADC_MAX, CRSF_DIGITAL_CHANNEL_MIN, CRSF_DIGITAL_CHANNEL_MAX); 571 | rcChannels[RUDDER] = map(Rudder_value, ADC_MIN, ADC_MAX, CRSF_DIGITAL_CHANNEL_MIN, CRSF_DIGITAL_CHANNEL_MAX); 572 | 573 | /* 574 | * Handel digital input 575 | */ 576 | AUX1_Arm = digitalRead(DIGITAL_PIN_SWITCH_ARM); 577 | #ifdef USE_3POS_SWITCH_AS_CHANNEL_6 578 | AUX2_value_HIGH= digitalRead(DIGITAL_PIN_SWITCH_AUX2_HIGH); 579 | AUX2_value_LOW = digitalRead(DIGITAL_PIN_SWITCH_AUX2_LOW); 580 | #else 581 | AUX2_value = digitalRead(DIGITAL_PIN_SWITCH_AUX2); 582 | #endif 583 | AUX3_value = digitalRead(DIGITAL_PIN_SWITCH_AUX3); 584 | if (DIGITAL_PIN_SWITCH_AUX4 != 0){ 585 | AUX4_value = digitalRead(DIGITAL_PIN_SWITCH_AUX4); 586 | }else { 587 | AUX4_value = 0; 588 | } 589 | 590 | // Aux Channels 591 | rcChannels[AUX1] = (AUX1_Arm == 1) ? CRSF_DIGITAL_CHANNEL_MIN : CRSF_DIGITAL_CHANNEL_MAX; 592 | #ifdef USE_3POS_SWITCH_AS_CHANNEL_6 593 | rcChannels[AUX2] = (AUX2_value_HIGH == 0) ? CRSF_DIGITAL_CHANNEL_MAX : 594 | (AUX2_value_LOW == 0) ? CRSF_DIGITAL_CHANNEL_MIN : 595 | CRSF_DIGITAL_CHANNEL_MID; 596 | #else 597 | rcChannels[AUX2] = (AUX2_value == 1) ? CRSF_DIGITAL_CHANNEL_MIN : CRSF_DIGITAL_CHANNEL_MAX; 598 | #endif 599 | rcChannels[AUX3] = (AUX3_value == 1) ? CRSF_DIGITAL_CHANNEL_MIN : CRSF_DIGITAL_CHANNEL_MAX; 600 | if (DIGITAL_PIN_SWITCH_AUX4 != 0){ 601 | rcChannels[AUX4] = (AUX4_value == 1) ? CRSF_DIGITAL_CHANNEL_MIN : CRSF_DIGITAL_CHANNEL_MAX; 602 | } 603 | if(stickInt=0){ 604 | previous_throttle=rcChannels[THROTTLE]; 605 | stickInt=1; 606 | } 607 | if (loopCount == 0) { 608 | // Check if sticks are held in specific position on startup (bind/wifi/packet rate select) 609 | selectSetting(); 610 | } 611 | 612 | if (currentMicros > crsfTime) { 613 | #ifdef DEBUG 614 | //Serial.println("DEBUG"); 615 | Serial.print(" AILERON:"); 616 | Serial.print(rcChannels[AILERON]); 617 | Serial.print(" ELEVATOR:"); 618 | Serial.print(rcChannels[ELEVATOR] ); 619 | Serial.print(" THROTTLE:"); 620 | Serial.print(rcChannels[THROTTLE]); 621 | Serial.print(" RUDDER:"); 622 | Serial.print(rcChannels[RUDDER] ); 623 | Serial.print(" stickstatus:"); 624 | Serial.print(stickMoved); 625 | Serial.print(" previous_throttle:"); 626 | Serial.print(previous_throttle); 627 | Serial.println(); 628 | #else 629 | if (loopCount <= 500) { // repeat 500 packets to build connection to TX module 630 | // Build commond packet 631 | crsfClass.crsfPrepareDataPacket(crsfPacket, rcChannels); 632 | crsfClass.CrsfWritePacket(crsfPacket, CRSF_PACKET_SIZE); 633 | loopCount++; 634 | } 635 | 636 | if (loopCount > 500 && loopCount <= 505) { // repeat 5 packets to avoid bad packet, change rate setting 637 | // Build commond packet 638 | if (currentSetting == 1 || currentSetting == 2) { 639 | crsfClass.crsfPrepareCmdPacket(crsfCmdPacket, ELRS_PKT_RATE_COMMAND, currentPktRate); 640 | crsfClass.CrsfWritePacket(crsfCmdPacket, CRSF_CMD_PACKET_SIZE); 641 | } else if (currentSetting == 3) { 642 | crsfClass.crsfPrepareCmdPacket(crsfCmdPacket, ELRS_BIND_COMMAND, ELRS_START_COMMAND); 643 | crsfClass.CrsfWritePacket(crsfCmdPacket, CRSF_CMD_PACKET_SIZE); 644 | } else if (currentSetting == 4) { 645 | crsfClass.crsfPrepareCmdPacket(crsfCmdPacket, ELRS_WIFI_COMMAND, ELRS_START_COMMAND); 646 | crsfClass.CrsfWritePacket(crsfCmdPacket, CRSF_CMD_PACKET_SIZE); 647 | } 648 | loopCount++; 649 | } else if (loopCount > 505 && loopCount <= 510) { // repeat 5 packets to avoid bad packet, change TX power level 650 | if (currentSetting == 1 || currentSetting == 2) { 651 | crsfClass.crsfPrepareCmdPacket(crsfCmdPacket, ELRS_POWER_COMMAND, currentPower); 652 | crsfClass.CrsfWritePacket(crsfCmdPacket, CRSF_CMD_PACKET_SIZE); 653 | } 654 | loopCount++; 655 | } else if (loopCount > 510 && loopCount <= 515) { // repeat 5 packets to avoid bad packet, change TX dynamic power setting 656 | if (currentSetting == 1 || currentSetting == 2) { 657 | crsfClass.crsfPrepareCmdPacket(crsfCmdPacket, ELRS_DYNAMIC_POWER_COMMAND, currentDynamic); 658 | crsfClass.CrsfWritePacket(crsfCmdPacket, CRSF_CMD_PACKET_SIZE); 659 | } 660 | loopCount++; 661 | } else { 662 | crsfClass.crsfPrepareDataPacket(crsfPacket, rcChannels); 663 | crsfClass.CrsfWritePacket(crsfPacket, CRSF_PACKET_SIZE); 664 | } 665 | 666 | #endif 667 | crsfTime = currentMicros + CRSF_TIME_BETWEEN_FRAMES_US; 668 | } 669 | } 670 | 671 | ISR(TIMER1_COMPA_vect) { // leave this alone 672 | static boolean state = true; 673 | 674 | TCNT1 = 0; 675 | 676 | if (state) { // start pulse 677 | digitalWrite(ppmPin, onState); 678 | OCR1A = PULSE_LENGTH * 2; 679 | state = false; 680 | } else { // end pulse and calculate when to start the next pulse 681 | static byte cur_chan_numb; 682 | static unsigned int calc_rest; 683 | 684 | digitalWrite(ppmPin, !onState); 685 | state = true; 686 | 687 | if (cur_chan_numb >= CHANNEL_NUMBER) { 688 | cur_chan_numb = 0; 689 | calc_rest = calc_rest + PULSE_LENGTH; // 690 | OCR1A = (FRAME_LENGTH - calc_rest) * 2; 691 | calc_rest = 0; 692 | } else { 693 | OCR1A = (map(rcChannels[cur_chan_numb], CRSF_DIGITAL_CHANNEL_MIN, CRSF_DIGITAL_CHANNEL_MAX, 1000, 2000) - PULSE_LENGTH) * 2; 694 | calc_rest = calc_rest + map(rcChannels[cur_chan_numb], CRSF_DIGITAL_CHANNEL_MIN, CRSF_DIGITAL_CHANNEL_MAX, 1000, 2000); 695 | cur_chan_numb++; 696 | } 697 | } 698 | } 699 | -------------------------------------------------------------------------------- /SimpleTX/config.h: -------------------------------------------------------------------------------- 1 | /* 2 | * This file is part of Simple TX 3 | * 4 | * Simple TX is free software: you can redistribute it and/or modify 5 | * it under the terms of the GNU General Public License as published by 6 | * the Free Software Foundation, either version 3 of the License, or 7 | * (at your option) any later version. 8 | * 9 | * Simple TX is distributed in the hope that it will be useful, 10 | * but WITHOUT ANY WARRANTY; without even the implied warranty of 11 | * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the 12 | * GNU General Public License for more details. 13 | * 14 | * You should have received a copy of the GNU General Public License 15 | * along with Cleanflight. If not, see . 16 | */ 17 | 18 | //#define USE_M7 19 | 20 | /* 21 | ======================================================================================================= 22 | Simple TX CONFIG OPTIONS (comment out unneeded options) 23 | ======================================================================================================= 24 | */ 25 | // Define analogy input limite 26 | 27 | #define ADC_MIN 0 28 | #define ADC_MID 511 29 | #define ADC_MAX 1023 30 | 31 | #define USE_3POS_SWITCH_AS_CHANNEL_6 32 | 33 | #define ANALOG_CUTOFF 150 // cut off lower and upper end to avoid un-symmetric joystick range in trade off resolution 34 | 35 | // Define RC input Offset 36 | #ifdef USE_M7 37 | // M7 38 | int Aileron_OFFSET = -46; 39 | int Elevator_OFFSET = 57; 40 | int Throttle_OFFSET = 0; 41 | int Rudder_OFFSET = -18; 42 | #else 43 | // stat war 44 | int Aileron_OFFSET = 0; 45 | int Elevator_OFFSET = 0; 46 | int Throttle_OFFSET = 0; 47 | int Rudder_OFFSET = 0; 48 | #endif 49 | 50 | // Define Reverse 1=reverse 51 | int Is_Aileron_Reverse =1; 52 | int Is_Elevator_Reverse =0; 53 | int Is_Throttle_Reverse =0; 54 | int Is_Rudder_Reverse =0; 55 | int Is_Arm_Reverse =0; 56 | 57 | // IO setup 58 | // pins that used for the Joystick 59 | const int analogInPinAileron = A4; 60 | const int analogInPinElevator = A3; 61 | const int analogInPinThrottle = A2; 62 | const int analogInPinRudder = A1; 63 | const int VOLTAGE_READ_PIN = A0; 64 | 65 | // pins that used for the switch 66 | const int DIGITAL_PIN_SWITCH_ARM = 4; // Arm switch 67 | #ifdef USE_3POS_SWITCH_AS_CHANNEL_6 68 | const int DIGITAL_PIN_SWITCH_AUX2_HIGH = 3; // 3 stage switch for mode setup 69 | const int DIGITAL_PIN_SWITCH_AUX2_LOW = 8; // 70 | #else 71 | const int DIGITAL_PIN_SWITCH_AUX2 = 3; 72 | #endif 73 | const int DIGITAL_PIN_SWITCH_AUX3 = 2; // 74 | // If the following line is uncommented, the 3 position switch will send low/mid/high on channel 6 75 | // Alternatively it will send one position as Ch6 high, middle as nothing, 3rd position as ch7 high 76 | const int DIGITAL_PIN_SWITCH_AUX4 = 5; //set to 0 if not use AUX4 77 | 78 | // pins that used for output 79 | const int DIGITAL_PIN_LED = 7; 80 | 81 | // pins that used for buzzer 82 | // Active buzzer only plays one tone (often used on Flight controllers as a beeper) 83 | #define ACTIVE_BUZZER 84 | //#define PASSIVE_BUZZER 85 | const int DIGITAL_PIN_BUZZER = 6; 86 | 87 | // If using a passive buzzer, you can enjoy an RTTTL melody on startup (set to "" to disable) 88 | // if using other melodies from bluejay etc. note that the first three parameters need to be in this order: 89 | // d=,o=,b= (bluejay melodies are often in different order) 90 | #ifdef PASSIVE_BUZZER 91 | const char * STARTUP_MELODY = "Melody:d=32,o=4,b=570:4b,p,4e5,p,4b,p,4f#5,2p,4e5,2b5,8b5,1p,8e4,2p,8f#5"; 92 | const char * STICK_MOVE_WARNING ="tetris:d=4,o=5,b=160:e6,8b,8c6,8d6,16e6,16d6,8c6,8b,a,8a,8c6,e6,8d6,8c6,b,8b,8c6,d6,e6,c6,a,2a,8p,d6,8f6,a6,8g6,8f6,e6,8e6,8c6,e6,8d6,8c6,b,8b,8c6,d6,e6,c6,a,a"; 93 | #endif 94 | //----- Voltage monitoring ------------------------- 95 | // Define battery warning voltage 96 | const float VOLTAGE_SCALE = 103.0; 97 | const float WARNING_VOLTAGE = 7.4; // 2S Lipo 3.7v per cell 98 | const float BEEPING_VOLTAGE = 7.0; // 2S Lipo 3.5v per cell 99 | const float ON_USB = 5.2; // On USB power / no battery 100 | 101 | // Define Commond for start Up Setting 102 | #define RC_MIN_COMMAND 600 103 | #define RC_MAX_COMMAND 1400 104 | 105 | // Define stick unmove alarm time 106 | #define STICK_ALARM_TIME 300000 // 300s or 5 minutes 107 | 108 | // ELRS 3.x (ESP8266 based TX module): with thanks to r-u-t-r-A (https://github.com/r-u-t-r-A/STM32-ELRS-Handset/tree/v4.5) 109 | // 1 : Set Lua [Packet Rate]= 0 - 50Hz / 1 - 100Hz Full / 2- 150Hz / 3 - 250Hz / 4 - 333Hz Full / 5 - 500Hz 110 | // 2 : Set Lua [Telem Ratio]= 0 - Std / 1 - Off / 2 - 1:128 / 3 - 1:64 / 4 - 1:32 / 5 - 1:16 / 6 - 1:8 / 7 - 1:4 / 8 - 1:2 / 9 - Race 111 | // 3 : Set Lua [Switch Mode]=0 -> Hybrid;Wide 112 | // 4 : Set Lua [Model Match]=0 -> Off;On 113 | // 5 : Set Lua [TX Power]=0 Submenu 114 | // 6 : Set Lua [Max Power]=0 - 10mW / 1 - 25mW / 2 - 50mW /3 - 100mW/4 - 250mW // dont force to change, but change after reboot if last power was greater 115 | // 7 : Set Lua [Dynamic]=0 - Off / 1 - Dyn / 2 - AUX9 / 3 - AUX10 / 4 - AUX11 / 5 - AUX12 116 | // 8 : Set Lua [VTX Administrator]=0 Submenu 117 | // 9 : Set Lua [Band]=0 -> Off;A;B;E;F;R;L 118 | // 10: Set Lua [Channel]=0 -> 1;2;3;4;5;6;7;8 119 | // 11 : Set Lua [Pwr Lvl]=0 -> -;1;2;3;4;5;6;7;8 120 | // 12 : Set Lua [Pitmode]=0 -> Off;On 121 | // 13 : Set Lua [Send VTx]=0 sending response for [Send VTx] chunk=0 step=2 122 | // 14 : Set Lua [WiFi Connectivity]=0 Submenu 123 | // 15 : Set Lua [Enable WiFi]=0 sending response for [Enable WiFi] chunk=0 step=0 124 | // 16 : Set Lua [Enable Rx WiFi]=0 sending response for [Enable Rx WiFi] chunk=0 step=2 125 | // //17 : Set Lua [BLE Joystick]=0 sending response for [BLE Joystick] chunk=0 step=0 // not on ESP8266?? 126 | // // Set Lua [BLE Joystick]=1 sending response for [BLE Joystick] chunk=0 step=3 127 | // // Set Lua [BLE Joystick]=2 sending response for [BLE Joystick] chunk=0 step=3 128 | // 17: Set Lua [Bind]=0 -> 129 | 130 | // 3 Default Settings 131 | #define SETTING_1_PktRate 3 // 250Hz (-108dB) 132 | #define SETTING_1_Power 1 // 25mW 133 | #define SETTING_1_Dynamic 1 // Dynamic power on 134 | 135 | #define SETTING_2_PktRate 0 // 50Hz (-115dB) 136 | #define SETTING_2_Power 3 // 100mW 137 | #define SETTING_2_Dynamic 0 // Dynamic power off 138 | 139 | enum chan_order 140 | { 141 | AILERON, 142 | ELEVATOR, 143 | THROTTLE, 144 | RUDDER, 145 | AUX1, // (CH5) ARM switch for Expresslrs 146 | AUX2, // (CH6) angel / airmode change 147 | AUX3, // (CH7) flip after crash 148 | AUX4, // (CH8) 149 | AUX5, // (CH9) 150 | AUX6, // (CH10) 151 | AUX7, // (CH11) 152 | AUX8, // (CH12) 153 | }; 154 | 155 | //#define PPMOUTPUT 156 | //-------------------- PPM Config------------------------- 157 | #define CHANNEL_NUMBER 12 // set the number of chanels 158 | #define CHANNEL_DEFAULT_VALUE 1500 // set the default servo value 159 | #define FRAME_LENGTH 22500 // set the PPM frame length in microseconds (1ms = 1000µs) 160 | #define PULSE_LENGTH 300 // set the pulse length 161 | #define onState 1 // set polarity of the pulses: 1 is positive, 0 is negative 162 | #define ppmPin 2 // set PPM signal output pin on the arduino 163 | -------------------------------------------------------------------------------- /SimpleTX/crsf.cpp: -------------------------------------------------------------------------------- 1 | /* 2 | * This file is part of Simple TX 3 | * 4 | * Simple TX is free software: you can redistribute it and/or modify 5 | * it under the terms of the GNU General Public License as published by 6 | * the Free Software Foundation, either version 3 of the License, or 7 | * (at your option) any later version. 8 | * 9 | * Simple TX is distributed in the hope that it will be useful, 10 | * but WITHOUT ANY WARRANTY; without even the implied warranty of 11 | * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the 12 | * GNU General Public License for more details. 13 | * 14 | * You should have received a copy of the GNU General Public License 15 | * along with Cleanflight. If not, see . 16 | */ 17 | /* 18 | ======================================================================================================= 19 | * CRSF protocol 20 | * 21 | * CRSF protocol uses a single wire half duplex uart connection. 22 | * The master sends one frame every 4ms and the slave replies between two frames from the master. 23 | * 24 | * 420000 baud 25 | * not inverted 26 | * 8 Bit 27 | * 1 Stop bit 28 | * Big endian 29 | * ELRS uses crossfire protocol at many different baud rates supported by EdgeTX i.e. 115k, 400k, 921k, 1.87M, 3.75M 30 | * 115000 bit/s = 14400 byte/s 31 | * 420000 bit/s = 46667 byte/s (including stop bit) = 21.43us per byte 32 | * Max frame size is 64 bytes 33 | * A 64 byte frame plus 1 sync byte can be transmitted in 1393 microseconds. 34 | * 35 | * CRSF_TIME_NEEDED_PER_FRAME_US is set conservatively at 1500 microseconds 36 | * 37 | * Every frame has the structure: 38 | * 39 | * 40 | * Device address: (uint8_t) 41 | * Frame length: length in bytes including Type (uint8_t) 42 | * Type: (uint8_t) 43 | * CRC: (uint8_t) 44 | * 45 | */ 46 | 47 | #include "crsf.h" 48 | 49 | // crc implementation from CRSF protocol document rev7 50 | static uint8_t crsf_crc8tab[256] = { 51 | 0x00, 0xD5, 0x7F, 0xAA, 0xFE, 0x2B, 0x81, 0x54, 0x29, 0xFC, 0x56, 0x83, 0xD7, 0x02, 0xA8, 0x7D, 52 | 0x52, 0x87, 0x2D, 0xF8, 0xAC, 0x79, 0xD3, 0x06, 0x7B, 0xAE, 0x04, 0xD1, 0x85, 0x50, 0xFA, 0x2F, 53 | 0xA4, 0x71, 0xDB, 0x0E, 0x5A, 0x8F, 0x25, 0xF0, 0x8D, 0x58, 0xF2, 0x27, 0x73, 0xA6, 0x0C, 0xD9, 54 | 0xF6, 0x23, 0x89, 0x5C, 0x08, 0xDD, 0x77, 0xA2, 0xDF, 0x0A, 0xA0, 0x75, 0x21, 0xF4, 0x5E, 0x8B, 55 | 0x9D, 0x48, 0xE2, 0x37, 0x63, 0xB6, 0x1C, 0xC9, 0xB4, 0x61, 0xCB, 0x1E, 0x4A, 0x9F, 0x35, 0xE0, 56 | 0xCF, 0x1A, 0xB0, 0x65, 0x31, 0xE4, 0x4E, 0x9B, 0xE6, 0x33, 0x99, 0x4C, 0x18, 0xCD, 0x67, 0xB2, 57 | 0x39, 0xEC, 0x46, 0x93, 0xC7, 0x12, 0xB8, 0x6D, 0x10, 0xC5, 0x6F, 0xBA, 0xEE, 0x3B, 0x91, 0x44, 58 | 0x6B, 0xBE, 0x14, 0xC1, 0x95, 0x40, 0xEA, 0x3F, 0x42, 0x97, 0x3D, 0xE8, 0xBC, 0x69, 0xC3, 0x16, 59 | 0xEF, 0x3A, 0x90, 0x45, 0x11, 0xC4, 0x6E, 0xBB, 0xC6, 0x13, 0xB9, 0x6C, 0x38, 0xED, 0x47, 0x92, 60 | 0xBD, 0x68, 0xC2, 0x17, 0x43, 0x96, 0x3C, 0xE9, 0x94, 0x41, 0xEB, 0x3E, 0x6A, 0xBF, 0x15, 0xC0, 61 | 0x4B, 0x9E, 0x34, 0xE1, 0xB5, 0x60, 0xCA, 0x1F, 0x62, 0xB7, 0x1D, 0xC8, 0x9C, 0x49, 0xE3, 0x36, 62 | 0x19, 0xCC, 0x66, 0xB3, 0xE7, 0x32, 0x98, 0x4D, 0x30, 0xE5, 0x4F, 0x9A, 0xCE, 0x1B, 0xB1, 0x64, 63 | 0x72, 0xA7, 0x0D, 0xD8, 0x8C, 0x59, 0xF3, 0x26, 0x5B, 0x8E, 0x24, 0xF1, 0xA5, 0x70, 0xDA, 0x0F, 64 | 0x20, 0xF5, 0x5F, 0x8A, 0xDE, 0x0B, 0xA1, 0x74, 0x09, 0xDC, 0x76, 0xA3, 0xF7, 0x22, 0x88, 0x5D, 65 | 0xD6, 0x03, 0xA9, 0x7C, 0x28, 0xFD, 0x57, 0x82, 0xFF, 0x2A, 0x80, 0x55, 0x01, 0xD4, 0x7E, 0xAB, 66 | 0x84, 0x51, 0xFB, 0x2E, 0x7A, 0xAF, 0x05, 0xD0, 0xAD, 0x78, 0xD2, 0x07, 0x53, 0x86, 0x2C, 0xF9}; 67 | 68 | uint8_t crsf_crc8(const uint8_t *ptr, uint8_t len) { 69 | uint8_t crc = 0; 70 | for (uint8_t i = 0; i < len; i++){ 71 | crc = crsf_crc8tab[crc ^ *ptr++]; 72 | } 73 | return crc; 74 | } 75 | 76 | // Serial begin 77 | void CRSF::begin() { 78 | port.begin(SERIAL_BAUDRATE); 79 | } 80 | 81 | // prepare data packet 82 | void CRSF::crsfPrepareDataPacket(uint8_t packet[], int16_t channels[]) { 83 | 84 | // const uint8_t crc = crsf_crc8(&packet[2], CRSF_PACKET_SIZE-3); 85 | /* 86 | * Map 1000-2000 with middle at 1500 chanel values to 87 | * 173-1811 with middle at 992 S.BUS protocol requires 88 | */ 89 | 90 | // packet[0] = UART_SYNC; //Header 91 | packet[0] = ELRS_ADDRESS; // Header 92 | packet[1] = 24; // length of type (24) + payload + crc 93 | packet[2] = TYPE_CHANNELS; 94 | packet[3] = (uint8_t)(channels[0] & 0x07FF); 95 | packet[4] = (uint8_t)((channels[0] & 0x07FF) >> 8 | (channels[1] & 0x07FF) << 3); 96 | packet[5] = (uint8_t)((channels[1] & 0x07FF) >> 5 | (channels[2] & 0x07FF) << 6); 97 | packet[6] = (uint8_t)((channels[2] & 0x07FF) >> 2); 98 | packet[7] = (uint8_t)((channels[2] & 0x07FF) >> 10 | (channels[3] & 0x07FF) << 1); 99 | packet[8] = (uint8_t)((channels[3] & 0x07FF) >> 7 | (channels[4] & 0x07FF) << 4); 100 | packet[9] = (uint8_t)((channels[4] & 0x07FF) >> 4 | (channels[5] & 0x07FF) << 7); 101 | packet[10] = (uint8_t)((channels[5] & 0x07FF) >> 1); 102 | packet[11] = (uint8_t)((channels[5] & 0x07FF) >> 9 | (channels[6] & 0x07FF) << 2); 103 | packet[12] = (uint8_t)((channels[6] & 0x07FF) >> 6 | (channels[7] & 0x07FF) << 5); 104 | packet[13] = (uint8_t)((channels[7] & 0x07FF) >> 3); 105 | packet[14] = (uint8_t)((channels[8] & 0x07FF)); 106 | packet[15] = (uint8_t)((channels[8] & 0x07FF) >> 8 | (channels[9] & 0x07FF) << 3); 107 | packet[16] = (uint8_t)((channels[9] & 0x07FF) >> 5 | (channels[10] & 0x07FF) << 6); 108 | packet[17] = (uint8_t)((channels[10] & 0x07FF) >> 2); 109 | packet[18] = (uint8_t)((channels[10] & 0x07FF) >> 10 | (channels[11] & 0x07FF) << 1); 110 | packet[19] = (uint8_t)((channels[11] & 0x07FF) >> 7 | (channels[12] & 0x07FF) << 4); 111 | packet[20] = (uint8_t)((channels[12] & 0x07FF) >> 4 | (channels[13] & 0x07FF) << 7); 112 | packet[21] = (uint8_t)((channels[13] & 0x07FF) >> 1); 113 | packet[22] = (uint8_t)((channels[13] & 0x07FF) >> 9 | (channels[14] & 0x07FF) << 2); 114 | packet[23] = (uint8_t)((channels[14] & 0x07FF) >> 6 | (channels[15] & 0x07FF) << 5); 115 | packet[24] = (uint8_t)((channels[15] & 0x07FF) >> 3); 116 | 117 | packet[25] = crsf_crc8(&packet[2], packet[1] - 1); // CRC 118 | } 119 | 120 | // prepare elrs setup packet (power, packet rate...) 121 | void CRSF::crsfPrepareCmdPacket(uint8_t packetCmd[], uint8_t command, uint8_t value) { 122 | packetCmd[0] = ELRS_ADDRESS; 123 | packetCmd[1] = 6; // length of Command (4) + payload + crc 124 | packetCmd[2] = TYPE_SETTINGS_WRITE; 125 | packetCmd[3] = ELRS_ADDRESS; 126 | packetCmd[4] = ADDR_RADIO; 127 | packetCmd[5] = command; 128 | packetCmd[6] = value; 129 | packetCmd[7] = crsf_crc8(&packetCmd[2], packetCmd[1] - 1); // CRC 130 | } 131 | 132 | void CRSF::CrsfWritePacket(uint8_t packet[], uint8_t packetLength) { 133 | port.write(packet, packetLength); 134 | } 135 | -------------------------------------------------------------------------------- /SimpleTX/crsf.h: -------------------------------------------------------------------------------- 1 | #include 2 | #include 3 | 4 | /* 5 | * This file is part of Simple TX 6 | * 7 | * Simple TX is free software: you can redistribute it and/or modify 8 | * it under the terms of the GNU General Public License as published by 9 | * the Free Software Foundation, either version 3 of the License, or 10 | * (at your option) any later version. 11 | * 12 | * Simple TX is distributed in the hope that it will be useful, 13 | * but WITHOUT ANY WARRANTY; without even the implied warranty of 14 | * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the 15 | * GNU General Public License for more details. 16 | * 17 | * You should have received a copy of the GNU General Public License 18 | * along with Cleanflight. If not, see . 19 | */ 20 | 21 | // Basic setup 22 | #define CRSF_MAX_CHANNEL 16 23 | #define CRSF_FRAME_SIZE_MAX 64 24 | // Device address & type 25 | #define RADIO_ADDRESS 0xEA 26 | // #define ADDR_MODULE 0xEE // Crossfire transmitter 27 | #define TYPE_CHANNELS 0x16 28 | 29 | // Define AUX channel input limite 30 | #define CRSF_DIGITAL_CHANNEL_MIN 172 31 | #define CRSF_DIGITAL_CHANNEL_MAX 1811 32 | #define CRSF_DIGITAL_CHANNEL_MID 992 33 | 34 | // internal crsf variables 35 | #define CRSF_TIME_NEEDED_PER_FRAME_US 1100 // 700 ms + 400 ms for potential ad-hoc request 36 | //#define SERIAL_BAUDRATE 115200 //low baud for Arduino Nano , the TX module will auto detect baud. 115200/400000 37 | //#define CRSF_TIME_BETWEEN_FRAMES_US 4000 // 4 ms 250Hz 38 | #define SERIAL_BAUDRATE 400000 39 | #define CRSF_TIME_BETWEEN_FRAMES_US 1666 // 1.6 ms up to 500Hz 40 | #define CRSF_PAYLOAD_OFFSET offsetof(crsfFrameDef_t, type) 41 | #define CRSF_MSP_RX_BUF_SIZE 128 42 | #define CRSF_MSP_TX_BUF_SIZE 128 43 | #define CRSF_PAYLOAD_SIZE_MAX 60 44 | #define CRSF_PACKET_LENGTH 22 45 | #define CRSF_PACKET_SIZE 26 46 | #define CRSF_FRAME_LENGTH 24 // length of type + payload + crc 47 | #define CRSF_CMD_PACKET_SIZE 8 48 | 49 | // ELRS command 50 | #define ELRS_ADDRESS 0xEE 51 | #define ELRS_PKT_RATE_COMMAND 0x01 52 | #define ELRS_TLM_RATIO_COMMAND 0x02 53 | #define ELRS_SWITCH_MODE_COMMAND 0x03 54 | #define ELRS_MODEL_MATCH_COMMAND 0x04 55 | #define ELRS_POWER_COMMAND 0x06 56 | #define ELRS_DYNAMIC_POWER_COMMAND 0x07 57 | #define ELRS_BLE_JOYSTIC_COMMAND 0x11 58 | #define ELRS_WIFI_COMMAND 0x0F 59 | #define ELRS_BIND_COMMAND 0x11 60 | #define ELRS_START_COMMAND 0x04 61 | #define TYPE_SETTINGS_WRITE 0x2D 62 | #define ADDR_RADIO 0xEA // Radio Transmitter 63 | #define port Serial 64 | 65 | class CRSF { 66 | public: 67 | void begin(void); 68 | void crsfPrepareDataPacket(uint8_t packet[], int16_t channels[]); 69 | void crsfPrepareCmdPacket(uint8_t packetCmd[], uint8_t command, uint8_t value); 70 | void CrsfWritePacket(uint8_t packet[], uint8_t packetLength); 71 | }; 72 | 73 | /* ESP32 Team900 74 | https://github.com/danxdz/simpleTx_esp32/blob/master/src/Simple_TX.cpp 75 | 76 | // buildElrsPacket(crsfCmdPacket,X,3); 77 | // 0 : ELRS status request => ?? 78 | // 1 : Set Lua [Packet Rate]= 0 - 25Hz / 1 - 50Hz / 2 - 100Hz / 3 - 200Hz 79 | // 2 : Set Lua [Telem Ratio]= 0 - off / 1 - 1:128 / 2 - 1:64 / 3 - 1:32 / 4 - 1:16 / 5 - 1:8 / 6 - 1:4 / 7 - 1:2 80 | // 3 : Set Lua [Switch Mode]=0 -> Hybrid;Wide 81 | // 4 : Set Lua [Model Match]=0 -> Off;On 82 | // 5 : Set Lua [TX Power]=0 - 10mW / 1 - 25mW 83 | // 6 : Set Lua [Max Power]=0 - 10mW / 1 - 25mW *dont force to change, but change after reboot if last power was greater 84 | // 7 : Set Lua [Dynamic]=0 -> Off;On;AUX9;AUX10;AUX11;AUX12 -> * @ ttgo screen 85 | // 8 : Set Lua [VTX Administrator]=0 86 | // 9 : Set Lua [Band]=0 -> Off;A;B;E;F;R;L 87 | // 10: Set Lua [Channel]=0 -> 1;2;3;4;5;6;7;8 88 | // 11: Set Lua [Pwr Lvl]=0 -> -;1;2;3;4;5;6;7;8 89 | // 12: Set Lua [Pitmode]=0 -> Off;On 90 | // 13: Set Lua [Send VTx]=0 sending response for [Send VTx] chunk=0 step=2 91 | // 14: Set Lua [WiFi Connectivity]=0 92 | // 15: Set Lua [Enable WiFi]=0 sending response for [Enable WiFi] chunk=0 step=0 93 | // 16: Set Lua [Enable Rx WiFi]=0 sending response for [Enable Rx WiFi] chunk=0 step=2 94 | // 17: Set Lua [BLE Joystick]=0 sending response for [BLE Joystick] chunk=0 step=0 95 | // Set Lua [BLE Joystick]=1 sending response for [BLE Joystick] chunk=0 step=3 96 | // Set Lua [BLE Joystick]=2 sending response for [BLE Joystick] chunk=0 step=3 97 | // Set Lua [BLE Joystick]=3 sending response for [BLE Joystick] chunk=0 step=3 98 | // Set Lua [BLE Joystick]=4 to enable 99 | // hwTimer stop 100 | // Set Lua [TX Power]=0 101 | // hwTimer interval: 5000 102 | // Adjusted max packet size 22-22 103 | // Starting BLE Joystick! 104 | // 19: Set Lua [Bad/Good]=0 105 | // 20: Set Lua [2.1.0 EU868]=0 =1 ?? get 106 | 107 | 0:Packet Rate:0:9:0:4:4;25Hz(-123dBm):50Hz(-120dBm):100Hz(-117dBm):100Hz Full(-112dBm):200Hz(-112dBm): :: OPT 108 | 1:Telem Ratio:0:9:0:9:0;Std:Off:1:128:1:64:1:32:1:16:1:8:1:4:1:2:Race: :: OPT 109 | 2:Switch Mode:0:9:0:1:0;Wide:Hybrid: :: OPT 110 | 3:Model Match:0:9:0:1:0;Off:On: :: OPT 111 | 4:TX Power (50mW):0:11:0:0:0 :: MainMenuItem 112 | 5:Max Power:5:9:0:2:2;10:25:50: :: OPT 113 | 6:Dynamic:5:9:0:5:0;Off:Dyn:AUX9:AUX10:AUX11:AUX12: :: OPT 114 | 7:VTX Administrator:0:11:0:0:0 :: MainMenuItem 115 | 8:Band:8:9:0:6:0;Off:A:B:E:F:R:L: :: OPT 116 | 9:Channel:8:9:0:7:0;1:2:3:4:5:6:7:8: :: OPT 117 | 10:Pwr Lvl:8:9:0:8:0;-:1:2:3:4:5:6:7:8: :: OPT 118 | 11:Pitmode:8:9:0:8:79;Off:On:AUX1�:AUX1�:AUX2�:AUX2�:AUX3�:AUX3�:AUX Pitmode: :: OPT 119 | 12:Send VTx:8:13:0:0:0 :: CMD 120 | 13:WiFi Connectivity:0:11:0:0:0 :: MainMenuItem 121 | 14:Enable WiFi:14:13:0:0:0 :: CMD 122 | 15:Enable Rx WiFi:14:13:0:0:0 :: CMD 123 | 16:BLE Joystick:0:13:0:0:0 :: CMD 124 | 17:Bind:0:13:0:0:0 :: CMD 125 | 18:Bad/Good:0:12:0:0:0 :: INFO 126 | 19:3.1.2 EU868:0:12:0:0:0 :: INFO 127 | 128 | as menu: 129 | 130 | Main Menu 131 | |- Packet Rate (OPT) 132 | |- 25Hz(-123dBm) 133 | |- 50Hz(-120dBm) 134 | |- 100Hz(-117dBm) 135 | |- 100Hz Full(-112dBm) 136 | |- 200Hz(-112dBm) 137 | |- Telem Ratio (OPT) 138 | |- Std 139 | |- Off 140 | |- 1:128 141 | |- 1:64 142 | |- 1:32 143 | |- 1:16 144 | |- 1:8 145 | |- 1:4 146 | |- 1:2 147 | |- Race 148 | |- Switch Mode (OPT) 149 | |- Wide 150 | |- Hybrid 151 | |- Model Match (OPT) 152 | |- Off 153 | |- On 154 | |- TX Power (50mW) 155 | | |- Max Power (OPT) 156 | | |- 10 157 | | |- 25 158 | | |- 50 159 | |- Dynamic (OPT) 160 | | |- Off 161 | | |- Dyn 162 | | |- AUX9 163 | | |- AUX10 164 | | |- AUX11 165 | | |- AUX12 166 | |- VTX Administrator 167 | | |- Band (OPT) 168 | | |- Off 169 | | |- A 170 | | |- B 171 | | |- E 172 | | |- F 173 | | |- R 174 | | |- L 175 | |- Channel (OPT) 176 | | |- 1 177 | | |- 2 178 | | |- 3 179 | | |- 4 180 | | |- 5 181 | | |- 6 182 | | |- 7 183 | | |- 8 184 | |- Pwr Lvl (OPT) 185 | | |- - 186 | | |- 1 187 | | |- 2 188 | | |- 3 189 | | |- 4 190 | | |- 5 191 | | |- 6 192 | | |- 7 193 | | |- 8 194 | |- Pitmode (OPT) 195 | |- Off 196 | |- On 197 | |- Send VTx 198 | |- WiFi Connectivity 199 | | |- Enable WiFi 200 | |- Enable Rx WiFi 201 | |- BLE Joystick 202 | |- Bind 203 | |- Bad/Good 204 | |- 3.1.2 EU868 205 | 206 | 207 | 208 | */ 209 | -------------------------------------------------------------------------------- /SimpleTX/led.h: -------------------------------------------------------------------------------- 1 | /* 2 | * This file is part of Simple TX 3 | * 4 | * Simple TX is free software: you can redistribute it and/or modify 5 | * it under the terms of the GNU General Public License as published by 6 | * the Free Software Foundation, either version 3 of the License, or 7 | * (at your option) any later version. 8 | * 9 | * Simple TX is distributed in the hope that it will be useful, 10 | * but WITHOUT ANY WARRANTY; without even the implied warranty of 11 | * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the 12 | * GNU General Public License for more details. 13 | * 14 | * You should have received a copy of the GNU General Public License 15 | * along with Cleanflight. If not, see . 16 | */ 17 | 18 | uint8_t ledState = LOW; 19 | unsigned long previousMillis = 0; 20 | 21 | void blinkLED(int ledPin, uint16_t blinkRate) { 22 | unsigned long currentMillis = millis(); 23 | 24 | if (currentMillis - previousMillis >= blinkRate) { 25 | previousMillis = currentMillis; // save the last time you blinked the LED 26 | ledState ^= 1; // if the LED is off turn it on and vice-versa 27 | digitalWrite(ledPin, ledState); 28 | } 29 | } 30 | -------------------------------------------------------------------------------- /SimpleTX/tone.h: -------------------------------------------------------------------------------- 1 | /* 2 | * This file is part of Simple TX 3 | * 4 | * Simple TX is free software: you can redistribute it and/or modify 5 | * it under the terms of the GNU General Public License as published by 6 | * the Free Software Foundation, either version 3 of the License, or 7 | * (at your option) any later version. 8 | * 9 | * Simple TX is distributed in the hope that it will be useful, 10 | * but WITHOUT ANY WARRANTY; without even the implied warranty of 11 | * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the 12 | * GNU General Public License for more details. 13 | * 14 | * You should have received a copy of the GNU General Public License 15 | * along with Cleanflight. If not, see . 16 | */ 17 | //----- global variables for tones generation -------------- 18 | unsigned long previousToneMillis = 0; 19 | bool started=false; 20 | 21 | // ---------------------------------------------------------------------------- 22 | void playingTones(uint8_t timeSeconde) { 23 | unsigned long currentMillis = millis(); 24 | 25 | #ifdef ACTIVE_BUZZER 26 | if (currentMillis - previousToneMillis <= timeSeconde*100) { 27 | digitalWrite(DIGITAL_PIN_BUZZER, LOW); 28 | }else if(currentMillis - previousToneMillis > timeSeconde*100 && currentMillis - previousToneMillis <= timeSeconde*200){ 29 | digitalWrite(DIGITAL_PIN_BUZZER, HIGH); 30 | }else if(currentMillis - previousToneMillis > timeSeconde*200 && currentMillis - previousToneMillis <= timeSeconde*300){ 31 | digitalWrite(DIGITAL_PIN_BUZZER, LOW); 32 | }else if(currentMillis - previousToneMillis > timeSeconde*300 && currentMillis - previousToneMillis <= 5000){ 33 | digitalWrite(DIGITAL_PIN_BUZZER, HIGH); 34 | }else{ 35 | previousToneMillis = currentMillis; // save the last time buzzer play tone 36 | digitalWrite(DIGITAL_PIN_BUZZER, 0); 37 | } 38 | #endif 39 | 40 | #ifdef PASSIVE_BUZZER 41 | if ( !rtttl::isPlaying()) { 42 | if ( !started ) { // 43 | if (timeSeconde == 2) { // Low Battery 44 | // The following two tones mimick the old Nokia 3310 battery warning 45 | if (currentMillis - previousToneMillis <= 100) { 46 | tone(DIGITAL_PIN_BUZZER,1568,100); 47 | }else if(currentMillis - previousToneMillis > 100 && currentMillis - previousToneMillis <= 300){ 48 | tone(DIGITAL_PIN_BUZZER,784,100); 49 | }else if(currentMillis - previousToneMillis > 300 && currentMillis - previousToneMillis <= 5000){ 50 | noTone(DIGITAL_PIN_BUZZER); 51 | }else{ 52 | previousToneMillis = currentMillis; // save the last time buzzer play tone 53 | noTone(DIGITAL_PIN_BUZZER); 54 | } 55 | // Tones did not work for the low battery warning 56 | // const char * LOW_BATT_WARNING = "nokia:d=4,o=5,b=140:16g6,8g,16p,16g6,8g,16p,16g6,8g"; 57 | // rtttl::begin(DIGITAL_PIN_BUZZER, LOW_BATT_WARNING); 58 | } 59 | else if (timeSeconde == 5) { // Stick move timeout 60 | rtttl::begin(DIGITAL_PIN_BUZZER, STICK_MOVE_WARNING); 61 | started = true; 62 | previousToneMillis = currentMillis; // save the last time buzzer play tone 63 | } 64 | } 65 | else { 66 | if (currentMillis - previousToneMillis > 5000) { 67 | started = false; 68 | } 69 | } 70 | } 71 | #endif 72 | 73 | } 74 | 75 | --------------------------------------------------------------------------------
