├── .gitattributes
├── README.md
├── docs
    ├── panasonic_fs-a1
    │   ├── Instalation.txt
    │   ├── panasonic_fs-a1_mapper01.jpg
    │   ├── panasonic_fs-a1_mapper02.jpg
    │   ├── panasonic_fs-a1_mapper03.jpg
    │   ├── panasonic_fs-a1_mapper04.jpg
    │   └── panasonic_fs-a1_mapper05.jpg
    └── sony_hb-f1xd
    │   └── sony_hb-f1xd_mapper01.jpg
└── ver-B
    ├── BOM
        └── ibom.html
    └── gerbers
        └── msx-ram-vB-gerber.zip


/.gitattributes:
--------------------------------------------------------------------------------
1 | # Auto detect text files and perform LF normalization
2 | * text=auto
3 |


--------------------------------------------------------------------------------
/README.md:
--------------------------------------------------------------------------------
 1 | # MSX2 Memory Mapper - 2MB
 2 |
 3 | I made a slightly smaller PCB.
 4 |
 5 | ver B was tested with:
 6 | * Panasonic FS-A1
 7 | * Sony HB-F1XD
 8 |
 9 | Original work by Andrey Koryakin
10 | https://hansotten.file-hunter.com/do-it-yourself/memory-mappers-slots/2mb-4mb-internal-slot-expander/
11 |
12 | ## Mapper tests on YouTube
13 |

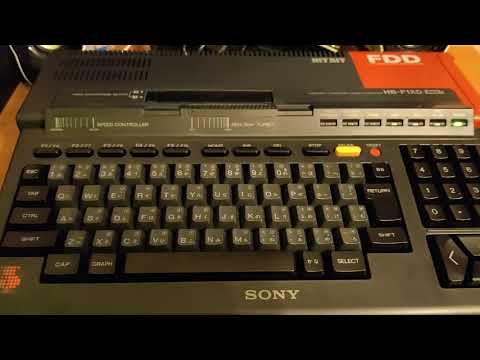

14 | [![Mapper test Sony HB-F1XD](https://img.youtube.com/vi/D8B8vpNFS8c/0.jpg)](https://www.youtube.com/watch?v=D8B8vpNFS8c)
15 |
16 |

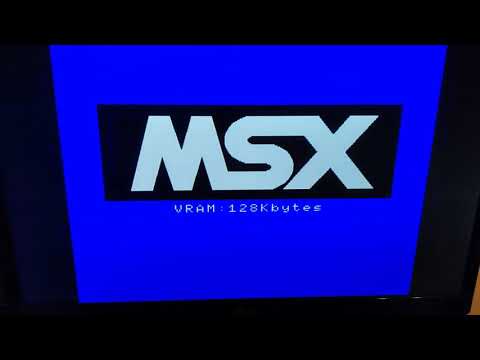

17 | [![Mapper test Panasonic FS-A1](https://img.youtube.com/vi/FxIIxCRcBFI/0.jpg)](https://www.youtube.com/watch?v=FxIIxCRcBFI)
18 |
19 |
20 |


--------------------------------------------------------------------------------
/docs/panasonic_fs-a1/Instalation.txt:
--------------------------------------------------------------------------------
 1 | #Installing the 2MB mapper (ver.B) in the Panasonic FS-A1
 2 |
 3 | 1. The chips marked with numbers (1) CPU and (2) DRAM memory should be desoldered.
 4 | 2. If possible, gently put the capacitor (3). If not, solder a new one lying down.
 5 | 3. In place of the CPU (1), solder the precision socket.
 6 | 4. In place of the DRAM memory (2), you can solder the sockets, if you want to return to the previous configuration.
 7 | 5. Put the mapper module into the CPU socket (1).
 8 | 6. The point marked on the mapper PCB as SLTSL is connected with a cable to the place where pin 16 of one of the DRAM chips was.
 9 |
10 | All modifications are reversible. It is enough to unsolder the cable, remove the module and insert the CPU and DRAM into the sockets.


--------------------------------------------------------------------------------
/docs/panasonic_fs-a1/panasonic_fs-a1_mapper01.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/konkotgit/MSX-Memory-Mapper/ee29530e48dfa346cf178752b1e42c6c0f41bbe5/docs/panasonic_fs-a1/panasonic_fs-a1_mapper01.jpg


--------------------------------------------------------------------------------
/docs/panasonic_fs-a1/panasonic_fs-a1_mapper02.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/konkotgit/MSX-Memory-Mapper/ee29530e48dfa346cf178752b1e42c6c0f41bbe5/docs/panasonic_fs-a1/panasonic_fs-a1_mapper02.jpg


--------------------------------------------------------------------------------
/docs/panasonic_fs-a1/panasonic_fs-a1_mapper03.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/konkotgit/MSX-Memory-Mapper/ee29530e48dfa346cf178752b1e42c6c0f41bbe5/docs/panasonic_fs-a1/panasonic_fs-a1_mapper03.jpg


--------------------------------------------------------------------------------
/docs/panasonic_fs-a1/panasonic_fs-a1_mapper04.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/konkotgit/MSX-Memory-Mapper/ee29530e48dfa346cf178752b1e42c6c0f41bbe5/docs/panasonic_fs-a1/panasonic_fs-a1_mapper04.jpg


--------------------------------------------------------------------------------
/docs/panasonic_fs-a1/panasonic_fs-a1_mapper05.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/konkotgit/MSX-Memory-Mapper/ee29530e48dfa346cf178752b1e42c6c0f41bbe5/docs/panasonic_fs-a1/panasonic_fs-a1_mapper05.jpg


--------------------------------------------------------------------------------
/docs/sony_hb-f1xd/sony_hb-f1xd_mapper01.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/konkotgit/MSX-Memory-Mapper/ee29530e48dfa346cf178752b1e42c6c0f41bbe5/docs/sony_hb-f1xd/sony_hb-f1xd_mapper01.jpg


--------------------------------------------------------------------------------
