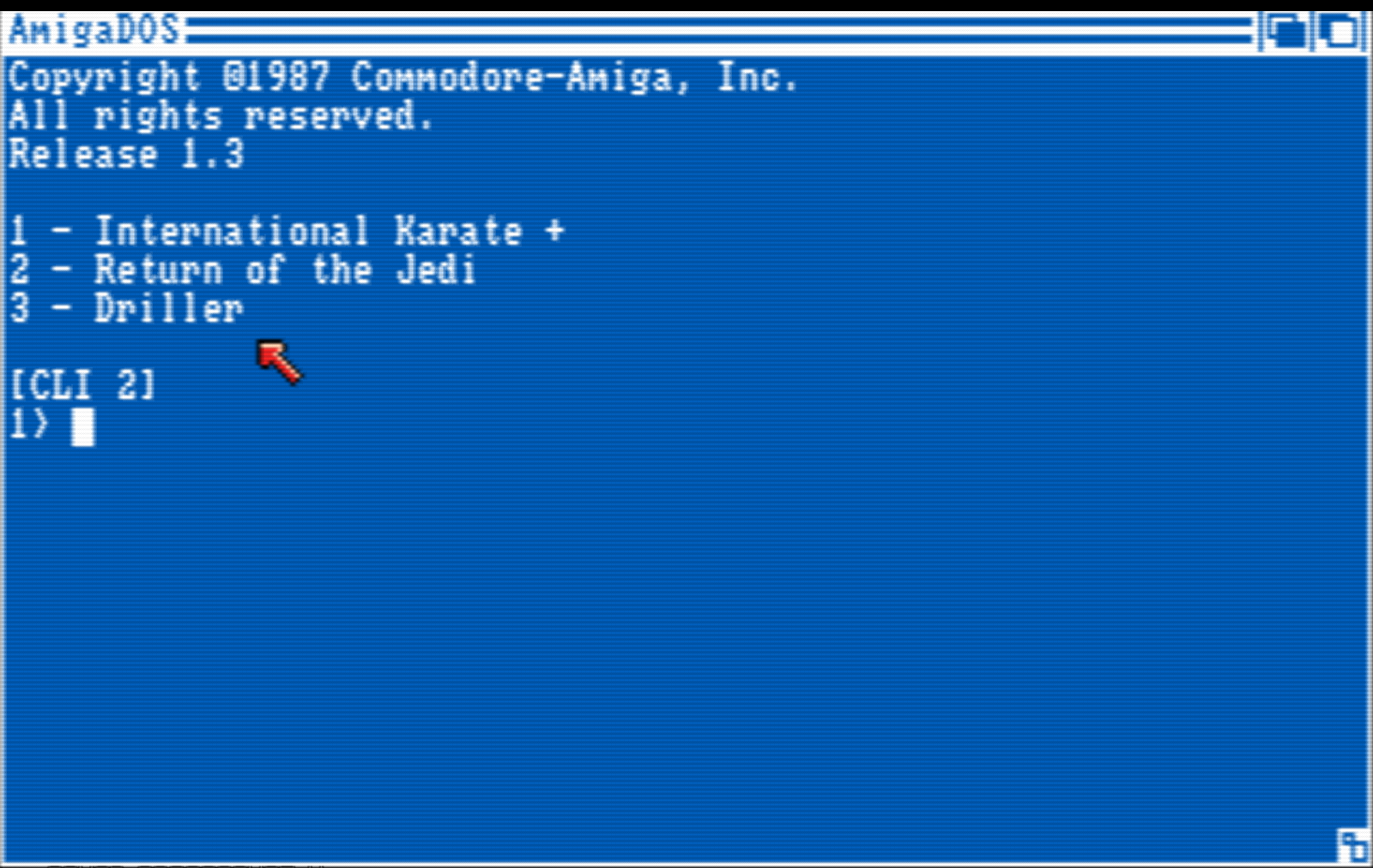

3 | ![crt-kurg_v2.shader](https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/master/Amiga/amiga_example_crt-kurg_v2.png)
4 |


--------------------------------------------------------------------------------
/Amiga/amiga_example_crt-kurg_v2.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/b511b855d25f69d8d80e02d38c9924c946de4ea9/Amiga/amiga_example_crt-kurg_v2.png


--------------------------------------------------------------------------------
/Amiga/crt-kurg.shader:
--------------------------------------------------------------------------------
 1 | <?xml version="1.0" encoding="UTF-8"?>
 2 | <!--
 3 |     CRT shader
 4 |
 5 |     Copyright (C) 2014 kurg, SKR!
 6 |
 7 |     This program is free software; you can redistribute it and/or modify it
 8 |     under the terms of the GNU General Public License as published by the Free
 9 |     Software Foundation; either version 2 of the License, or (at your option)
10 |     any later version.
11 |     -->
12 | <shader language="GLSL">
13 |
14 | <vertex><![CDATA[
15 |
16 | void main(void) {
17 |     gl_Position = ftransform();
18 |     gl_TexCoord[0] = gl_MultiTexCoord0;
19 | }
20 |
21 | ]]></vertex>
22 |
23 | <fragment><![CDATA[
24 | 	uniform sampler2D rubyTexture;
25 | 	uniform vec2 rubyTextureSize;
26 |
27 |     void main(void) {
28 |         float column = gl_TexCoord[0].s * rubyTextureSize.x;
29 |         float line = gl_TexCoord[0].t * rubyTextureSize.y;
30 |         float dx = mod(column, 2.0);
31 |         float dy = mod(line, 2.0);
32 |
33 |         vec2 texel;
34 |         texel.x = gl_TexCoord[0].s - dx/rubyTextureSize.x + 1.0/rubyTextureSize.x/2.0;
35 |         texel.y = gl_TexCoord[0].t - dy/rubyTextureSize.y + 1.0/rubyTextureSize.y/2.0;
36 |         vec4 rgb = texture2D(rubyTexture, gl_TexCoord[0].st);
37 |         vec4 rgb2 = texture2D(rubyTexture, gl_TexCoord[0].st + vec2(-1.0 / rubyTextureSize.x, 0));
38 |         vec4 rgb3 = texture2D(rubyTexture, gl_TexCoord[0].st + vec2(+1.0 / rubyTextureSize.x, 0));
39 |         vec4 rgb4 = texture2D(rubyTexture, gl_TexCoord[0].st + vec2(-2.0 / rubyTextureSize.x, 0));
40 |
41 | 		float l = (rgb.r + rgb.g + rgb.b) / 3.0;
42 | 		l = l / 4.0;
43 |
44 | 		//scanlines
45 | 		float ety = abs((dy-1.0)*1.6); //last multiplier is more or less height of scanline
46 |         float dimy = 1.0 - pow(ety*0.8, 0.4);
47 |         dimy = dimy + 0.5 + l;
48 |         dimy = clamp(dimy, 0.4, 1.0);
49 |
50 | 		//very very discreet gap between horizontal pixels
51 | 		float etx = abs((dx-0.5)*0.05);
52 |         float dimx = 1.0 - pow(etx, 1.4);
53 | 		dimx = dimx + 0.4;
54 |         //dimx = clamp(dimx, 0.4, 1.5);
55 |
56 | 		//float dim = dimy;
57 | 		float dim = (dimx + dimy) / 2.2;
58 |
59 |         vec4 tex;
60 |         tex = mix(rgb, mix(mix(rgb2, rgb4, 0.4), rgb3, 0.3), 0.5);
61 |         gl_FragColor = vec4(dim, dim, dim, 1.0) * tex;
62 |     }
63 |
64 | 	]]></fragment>
65 | </shader>


--------------------------------------------------------------------------------
/Amiga/crt-kurg_v2.shader:
--------------------------------------------------------------------------------
  1 | <?xml version="1.0" encoding="UTF-8"?>
  2 | <!--
  3 |     CRT shader
  4 |
  5 |     Copyright (C) 2014 kurg, SKR!
  6 |
  7 |     This program is free software; you can redistribute it and/or modify it
  8 |     under the terms of the GNU General Public License as published by the Free
  9 |     Software Foundation; either version 2 of the License, or (at your option)
 10 |     any later version.
 11 |     -->
 12 | <shader language="GLSL">
 13 |
 14 | <vertex><![CDATA[
 15 |
 16 | void main(void) {
 17 |     gl_Position = ftransform();
 18 |     gl_TexCoord[0] = gl_MultiTexCoord0;
 19 | }
 20 |
 21 | ]]></vertex>
 22 |
 23 | <fragment><![CDATA[
 24 | 	uniform sampler2D rubyTexture;
 25 | 	uniform vec2 rubyTextureSize;
 26 |
 27 |     #define ILLUMASPECT  2.4
 28 | 	#define DIST(dx, dy)  clamp((2.0 - sqrt(dx*dx+(dy*ILLUMASPECT)*(dy*ILLUMASPECT))) / 2.0, 0.0, 1.0)
 29 |     #define ATT(dx, dy)   DIST(dx, pow(dy, 1.3) * 0.6)
 30 |
 31 |     void main(void) {
 32 | 		//rubyTextureSize = vec2(320,400);
 33 | 		rubyTextureSize.x = rubyTextureSize.x / 1.0; rubyTextureSize.y = rubyTextureSize.y / 2.0;
 34 |         float column = gl_TexCoord[0].s * rubyTextureSize.x;
 35 |         float line = gl_TexCoord[0].t * rubyTextureSize.y;
 36 |         float dx1 = fract(column);
 37 |         float dy1 = fract(line);
 38 |
 39 |         vec2 texel;
 40 |         texel.x = gl_TexCoord[0].s - dx1/rubyTextureSize.x + 1.0/rubyTextureSize.x/2.0;
 41 |         texel.y = gl_TexCoord[0].t - dy1/rubyTextureSize.y + 1.0/rubyTextureSize.y/2.0;
 42 |         vec4 rgb1 = texture2D(rubyTexture, texel.xy);
 43 |         vec4 rgb2 = texture2D(rubyTexture, vec2(texel.s + 1.0/rubyTextureSize.x, texel.t));
 44 |         vec4 rgb3 = texture2D(rubyTexture, vec2(texel.s, texel.t + 1.0/rubyTextureSize.y));
 45 |         vec4 rgb4 = texture2D(rubyTexture, vec2(texel.s + 1.0/rubyTextureSize.x, texel.t + 1.0/rubyTextureSize.y));
 46 |
 47 |         vec4 rgb5 = texture2D(rubyTexture, vec2(texel.s - 1.0/rubyTextureSize.x, texel.t - 1.0/rubyTextureSize.y));
 48 |         vec4 rgb6 = texture2D(rubyTexture, vec2(texel.s + 0.0/rubyTextureSize.x, texel.t - 1.0/rubyTextureSize.y));
 49 |         vec4 rgb7 = texture2D(rubyTexture, vec2(texel.s + 1.0/rubyTextureSize.x, texel.t - 1.0/rubyTextureSize.y));
 50 |         vec4 rgb8 = texture2D(rubyTexture, vec2(texel.s + 2.0/rubyTextureSize.x, texel.t - 1.0/rubyTextureSize.y));
 51 |
 52 |         vec4 rgb9 = texture2D(rubyTexture, vec2(texel.s - 1.0/rubyTextureSize.x, texel.t + 0.0/rubyTextureSize.y));
 53 |         vec4 rgb10 = texture2D(rubyTexture, vec2(texel.s + 2.0/rubyTextureSize.x, texel.t + 0.0/rubyTextureSize.y));
 54 |         vec4 rgb11 = texture2D(rubyTexture, vec2(texel.s - 1.0/rubyTextureSize.x, texel.t + 1.0/rubyTextureSize.y));
 55 |         vec4 rgb12 = texture2D(rubyTexture, vec2(texel.s + 2.0/rubyTextureSize.x, texel.t + 1.0/rubyTextureSize.y));
 56 |
 57 |         vec4 rgb13 = texture2D(rubyTexture, vec2(texel.s - 1.0/rubyTextureSize.x, texel.t + 2.0/rubyTextureSize.y));
 58 |         vec4 rgb14 = texture2D(rubyTexture, vec2(texel.s + 0.0/rubyTextureSize.x, texel.t + 2.0/rubyTextureSize.y));
 59 |         vec4 rgb15 = texture2D(rubyTexture, vec2(texel.s + 1.0/rubyTextureSize.x, texel.t + 2.0/rubyTextureSize.y));
 60 |         vec4 rgb16 = texture2D(rubyTexture, vec2(texel.s + 2.0/rubyTextureSize.x, texel.t + 2.0/rubyTextureSize.y));
 61 |
 62 |         mat4 dist;
 63 |         dist[0][0] = DIST(dx1, dy1);
 64 |         dist[0][1] = DIST((1.0 - dx1), dy1);
 65 |         dist[0][2] = DIST(dx1, (1.0 - dy1));
 66 |         dist[0][3] = DIST((1.0 - dx1), (1.0 - dy1));
 67 |
 68 |         dist[1][0] = DIST((1.0 + dx1), (1.0 + dy1));
 69 |         dist[1][1] = DIST((0.0 + dx1), (1.0 + dy1));
 70 |         dist[1][2] = DIST((1.0 - dx1), (1.0 + dy1));
 71 |         dist[1][3] = DIST((2.0 - dx1), (1.0 + dy1));
 72 |
 73 |         dist[2][0] = DIST((1.0 + dx1), dy1);
 74 |         dist[2][1] = DIST((2.0 - dx1), dy1);
 75 |         dist[2][2] = DIST((1.0 + dx1), (1.0 - dy1));
 76 |         dist[2][3] = DIST((2.0 - dx1), (1.0 - dy1));
 77 |
 78 |         dist[3][0] = DIST((1.0 + dx1), (2.0 - dy1));
 79 |         dist[3][1] = DIST((0.0 + dx1), (2.0 - dy1));
 80 |         dist[3][2] = DIST((1.0 - dx1), (2.0 - dy1));
 81 |         dist[3][3] = DIST((2.0 - dx1), (2.0 - dy1));
 82 |
 83 |         vec4 tex1 = (rgb1*dist[0][0] + rgb2*dist[0][1] + rgb3*dist[0][2] + rgb4*dist[0][3]);
 84 |         vec4 tex2 = (rgb5*dist[1][0] + rgb6*dist[1][1] + rgb7*dist[1][2] + rgb8*dist[1][3]);
 85 |         vec4 tex3 = (rgb9*dist[2][0] + rgb10*dist[2][1] + rgb11*dist[2][2] + rgb12*dist[2][3]);
 86 |         vec4 tex4 = (rgb13*dist[3][0] + rgb14*dist[3][1] + rgb15*dist[3][2] + rgb16*dist[3][3]);
 87 |
 88 |         vec4 tex = (tex1 + tex2 + tex3 + tex4 + ((rgb9+rgb11)/2.0)*0.3) / 2.0;
 89 |         gl_FragColor = vec4(tex.rgb, 1.0);
 90 |     }
 91 |
 92 | 	// +-------------------+
 93 | 	// | 05 | 06 | 07 | 08 |
 94 | 	// +-------------------+
 95 | 	// | 09 | 01 | 02 | 10 |
 96 | 	// +-------------------+
 97 | 	// | 11 | 03 | 04 | 12 |
 98 | 	// +-------------------+
 99 | 	// | 13 | 14 | 15 | 16 |
100 | 	// +-------------------+
101 |
102 | 	]]></fragment>
103 | </shader>


--------------------------------------------------------------------------------
/Images/outrun_scanlines.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/b511b855d25f69d8d80e02d38c9924c946de4ea9/Images/outrun_scanlines.jpg


--------------------------------------------------------------------------------
/Images/outrun_withoutscanlines.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/b511b855d25f69d8d80e02d38c9924c946de4ea9/Images/outrun_withoutscanlines.jpg


--------------------------------------------------------------------------------
/Images/scan_broken.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/b511b855d25f69d8d80e02d38c9924c946de4ea9/Images/scan_broken.jpg


--------------------------------------------------------------------------------
/Images/scan_ok.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/b511b855d25f69d8d80e02d38c9924c946de4ea9/Images/scan_ok.jpg


--------------------------------------------------------------------------------
/README.md:
--------------------------------------------------------------------------------
  1 | # RetrOrangePi_shaders
  2 | Shaders for mimic CRT scanlines.
  3 |
  4 | If you prefer this
  5 |
  6 | <a href="https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/master/Images/outrun_scanlines.jpg"><img src="https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/master/Images/outrun_scanlines.jpg" height="300"></a>
  7 |
  8 | over this
  9 |
 10 | <a href="https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/master/Images/outrun_withoutscanlines.jpg"><img src="https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/master/Images/outrun_withoutscanlines.jpg" height="300"></a>
 11 |
 12 | you are in right place.
 13 |
 14 | Works/tested with:
 15 | - neogeo
 16 | - nes
 17 | - pcengine
 18 | - n64
 19 | - msx
 20 | - playstation *
 21 | - megadrive *
 22 | - many mame/fba games
 23 | - many others
 24 |
 25 | \* Some games with some consoles have interlaced (double vertical resolution) display modes (e.g. Playstation Gran Turismo menus, Megadrive Sonic The Hedgehog 2 2-player mode). Interlaced modes are better without shader.
 26 |
 27 | ## Install
 28 |
 29 | - Create `shader` directory to `/home/pi/RetroPie/roms` (or \\\\RetrOrangePi\roms).
 30 | - Copy `kurg-ROPi-scanlines-3x.glsl` and `kurg-ROPi-scanlines-3x.glslp` to `/home/pi/RetroPie/roms/shader` (or \\\\RetrOrangePi\roms\shader)
 31 | - Edit emulator settings file `/opt/retropie/configs/neogeo/retroarch.cfg` (this example is for neogeo) (add lines before #include... -line):
 32 | ```
 33 | video_scale_integer = true
 34 | video_shader = "/home/pi/RetroPie/roms/shader/kurg-ROPi-scanlines-3x.glslp"
 35 | video_shader_enable = true
 36 | ```
 37 |
 38 | Vertical size is fixed (3 times emulator image vertical resolution).
 39 |
 40 | Works best with 720p display mode and with emulators with vertical resolution 240 or less. If vertical resolution of image is less than 240, image is not fullscreen.
 41 |
 42 | ### kurg-ROPi-scanlines-3x_v2.glslp / .glsl
 43 | Totally rewritten shader, which activates only when vertical resolution is between 221-241.
 44 |
 45 | Better than old one because now screen is centered and e.g. in PSX-emulator shader doesn't activate in interlacer "hires" modes.
 46 |
 47 | If you use overlay, 4:3 screen area with 224-lines is 896x672.
 48 |
 49 | Most common 8-bit and 16-bit emulators uses 224-line mode (with NTSC-games): NES, SNES, Megadrive
 50 |
 51 | 240-linemode: PSX, PC-engine
 52 |
 53 | Remember activate Integer Scaling from Video-settings!
 54 |
 55 | ### 2.5.2!
 56 | RetrOrangePi 2.5.2 default is to overwrite retroarch.cfg. If you want edit retroarch.cfg by hand, turn override off:
 57 |
 58 | RetroPie -> Retroarch -> Settings -> Configuration -> Load override files automatically = off
 59 |
 60 | or
 61 |
 62 | `sed -i 's/auto_overrides_enable = "true"/auto_overrides_enable = "false"/g' /opt/retropie/configs/all/retroarch.cfg`
 63 |
 64 |
 65 | ## Theory
 66 |
 67 | Modern televisions have panels which have fixed resolutions. If that resolution would be very large compared to emulated device, we wouldn't have any problems. But because most displays have only 2 to 4 times of emulated device vertical resolution, scanlines have to be in "sync", or otherwise we get uneven scanlines and artifacts.
 68 |
 69 | Because ROPi can't change refresh rate between emulators and because it works best with 60hz, I assume that 60hz is used. This is important because then it is assumed/recommended that roms are NTSC (USA/JAPAN). And then we can assume that in most emulators vertical resolution is 240 (or 224). This is good, because most common vertical resolutions in modern televisions are 720 and 1080 (not coincidence, 720 and 1080 comes from NTSC vertical resolution).
 70 |
 71 | If we get image with vertical resolution 224 from emulator, we cannot fill whole screen. If our screenmode is 720p, 3 times 224 are only 672, so there inevitably 48 lines are unused (black area under and/or top of image). Other option is to use 4 times 224 (=896), but then big areas are clipped from top and/or bottom. In 1080p display we could use 4 times 224 (=896), but then there is even more black area. If we use 5 times 224 (=1120), we have to chop only 40 pixels (8 scanlines from original image).
 72 |
 73 | If we want some simulated separation for pixels in horizontal direction, we have to lock also horizontal scaling to integer multiplication. That leads to situation, where we cannot keep aspect ratio correct, if pixels are originally something else than square.
 74 |
 75 | It is possible to make good quality scanline shader with scaling (normal 1080p display scales 720p image without big artifacts), but if I try more complicated shaders with OPi, it slows down too much.
 76 |
 77 |
 78 | Example of "broken" scanlines, where image is not scaled with integer factor:
 79 |
 80 | <a href="https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/master/Images/scan_broken.jpg"><img src="https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/master/Images/scan_broken.jpg" height="200"></a>
 81 |
 82 |
 83 | Example of working scanlines, where image is scaled with integer factor (3x):
 84 |
 85 | <a href="https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/master/Images/scan_ok.jpg"><img src="https://raw.githubusercontent.com/mcgurk/RetrOrangePi_shaders/master/Images/scan_ok.jpg" height="200"></a>
 86 |
 87 | ### Why scanline exists?
 88 |
 89 | CRT-televisions updated screen 50 or 60 times per second. In normal television broadcast every other frame only odd or even lines was drawn (this saved bandwith to half). These are called fields. Many old consoles and computers had half of television resolution. Television standard allowed to draw same lines in consecutive draw, so with many computers and consoles odd (or even) lines are newer drawn -> every other line are permanently black. This arrangement can be called 240p (normal television broadcast was 480i) (NTSC).
 90 |
 91 | ## experimenting
 92 |
 93 | test-shader tries to mimic gap between pixels in one scanline. Downside is that you cannot scale image at all and aspect ratio can be very distorted (depends aspect ratio of pixel).
 94 |
 95 | make "shader" directory to /home/pi/RetroPie/roms (or \\\\RetrOrangePi\roms).
 96 | copy test720.glsl and test720.glslp to /home/pi/RetroPie/roms/shader (or \\\\RetrOrangePi\roms\shader)
 97 |
 98 | Edit emulator settings file /opt/retropie/configs/neogeo/retroarch.cfg (this example is for neogeo):
 99 | ```
100 | video_shader = "/home/pi/RetroPie/roms/shader/test720.glslp"
101 | video_shader_enable = true
102 | ```
103 | test720 doesn't obey any aspect ratio settings! All pixels are assumed to be square. Every pixel are scaled by 3, so size of image are fixed (you can't scale it).
104 |


--------------------------------------------------------------------------------
/kurg-ROPi-scanlines-3x.glsl:
--------------------------------------------------------------------------------
 1 | #if defined(VERTEX)
 2 |
 3 |
 4 | attribute vec4 VertexCoord;
 5 | attribute vec4 TexCoord;
 6 | varying vec4 TEX0;
 7 | uniform mat4 MVPMatrix;
 8 |
 9 | void main() {
10 |   gl_Position = VertexCoord.x*MVPMatrix[0] + VertexCoord.y*MVPMatrix[1] + VertexCoord.z*MVPMatrix[2] + VertexCoord.w*MVPMatrix[3];
11 |   TEX0.xy = TexCoord.xy;
12 | }
13 |
14 |
15 | #elif defined(FRAGMENT)
16 |
17 |
18 | precision mediump float;
19 |
20 | uniform sampler2D Texture;
21 | varying vec4 TEX0;
22 | uniform vec2 TextureSize;
23 |
24 | void main() {
25 |
26 |   vec3 col;
27 |   float x = TEX0.x * TextureSize.x;
28 |   float y = floor(gl_FragCoord.y / 3.0) + 0.5;
29 |   float ymod = mod(gl_FragCoord.y, 3.0);
30 |   vec2 f0 = vec2(x, y);
31 |   vec2 uv0 = f0 / TextureSize.xy;
32 |   vec3 t0 = texture2D(Texture, uv0).xyz;
33 |   if (ymod > 2.0) {
34 |     vec2 f1 = vec2(x, y + 1.0);
35 |     vec2 uv1 = f1 / TextureSize.xy;
36 |     vec3 t1 = texture2D(Texture, uv1).xyz;
37 |     col = (t0 + t1) / 2.0 * 0.6;
38 |   } else {
39 |     col = t0;
40 |   }
41 |
42 |   gl_FragColor = vec4( col, 1.0 );
43 |
44 | }
45 |
46 |
47 | #endif
48 |


--------------------------------------------------------------------------------
/kurg-ROPi-scanlines-3x.glslp:
--------------------------------------------------------------------------------
 1 | shaders = 1
 2 | shader0 = kurg-ROPi-scanlines-3x.glsl
 3 |
 4 | filter_linear0 = true
 5 |
 6 | scale_type_x0 = "viewport"
 7 | scale_x0 = "1.000000"
 8 | scale_type_y0 = "viewport"
 9 | scale_y0 = "1.000000"
10 |


--------------------------------------------------------------------------------
/kurg-ROPi-scanlines-3x_v2.glsl:
--------------------------------------------------------------------------------
 1 | #if defined(VERTEX)
 2 |
 3 |
 4 | attribute vec4 VertexCoord;
 5 | attribute vec4 TexCoord;
 6 | varying vec4 TEX0;
 7 | uniform mat4 MVPMatrix;
 8 |
 9 | void main() {
10 |   gl_Position = MVPMatrix * VertexCoord;
11 |   TEX0.xy = TexCoord.xy;
12 | }
13 |
14 |
15 | #elif defined(FRAGMENT)
16 |
17 |
18 | precision mediump float;
19 |
20 | uniform sampler2D Texture;
21 | varying vec4 TEX0;
22 | uniform vec2 TextureSize;
23 | uniform vec2 InputSize;
24 |
25 | void main() {
26 |   vec3 col;
27 |   if (InputSize.y > 220.0 && InputSize.y < 242.0) {
28 |     float x = TEX0.x;
29 |     float y = TEX0.y + (0.25 / TextureSize.y);
30 |     col = texture2D(Texture, vec2(x, y)).xyz;
31 |       float texel_y = TEX0.y * TextureSize.y * 3.0;
32 |     float ymod = mod(texel_y, 3.0);
33 |     if (ymod >= 1.5) {
34 |       col = col * 0.6;
35 |     }
36 |   } else {
37 |     col = texture2D(Texture, TEX0.xy).xyz;
38 |   }
39 |
40 |   gl_FragColor = vec4( col, 1.0 );
41 |
42 | }
43 |
44 |
45 | #endif
46 |


--------------------------------------------------------------------------------
/kurg-ROPi-scanlines-3x_v2.glslp:
--------------------------------------------------------------------------------
 1 | shaders = 1
 2 | shader0 = kurg-ROPi-scanlines-3x_v2.glsl
 3 |
 4 | filter_linear0 = true
 5 |
 6 | scale_type_x0 = "viewport"
 7 | scale_x0 = "1.000000"
 8 | scale_type_y0 = "viewport"
 9 | scale_y0 = "1.000000"
10 |


--------------------------------------------------------------------------------
/stuff.txt:
--------------------------------------------------------------------------------
 1 | Shaders:
 2 | https://www.dropbox.com/s/ol6yutuy4anens4/glsl.zip?dl=0
 3 | Roy Corser Sure...a link for a complete pack. Use only glsl....cg are not supported. I have a good result using "2xsal, x2, nearest" but first disable hw bilinear filtering. Have fun!
 4 | (~/.config/retroarch/shaders ?)
 5 | /opt/retropie/emulators/retroarch/shader
 6 | Jälkimmäinen näyttäs olevan ainakin retroarchin oletushakemisto.
 7 | interlaced.glsl ei näyttäny hyvältä.
 8 | Ei toiminu suoraan RetroPiestä otettu crt-pi.glsl/crt-pi.glslp.
 9 | https://mega.nz/#!ON501ZwT!MSxPmeSCn55G-GmYxiay0zL6NGyU6HTrUbApanJ16nY
10 | /opt/retropie/emulators/retroarch/shader
11 | RetroArch-menu: Settings->Video->Integer scale
12 | https://www.facebook.com/groups/1131759626884432/permalink/1157090121018049/
13 |
14 | UTF-8, UNIX
15 |
16 | http://www.shaderific.com/glsl-functions/
17 |
18 | http://www.khronos.org/files/opengl-quick-reference-card.pdf
19 |
20 | https://github.com/libretro/RetroArch/wiki/GLSL-shaders
21 |
22 | https://github.com/libretro/common-shaders/tree/master/docs
23 | -  scale_typeN (string): This can be set to one of these values:
24 |    "source":   Output size of shader pass N is relative to the input size
25 |                as found in IN.video_size. Value is float.
26 |    "viewport": Output size of shader pass N is relative to the size of the
27 |                window viewport. Value is float.
28 |                This value can change over time if the user
29 |                resizes his/her window!
30 |    "absolute": Output size is statically defined to a certain size.
31 |                Useful for hi-res blenders or similiar.
32 |
33 |    If no scale type is assumed, it is assumed that it is set to "source"
34 |    with scaleN set to 1.0.
35 |
36 |    It is possible to set scale_type_xN and scale_type_yN to specialize
37 |    the scaling type in either direction. scale_typeN however
38 |    overrides both of these.
39 |
40 |    IN.video_size: The size of the actual video data in the texture,
41 |    e.g for a SNES this will be generally
42 |    (256, 224) for normal resolution frames.
43 |
44 |    IN.texture_size: This is the size of the texture itself.
45 |    Optimally power-of-two sized.
46 |
47 |    IN.output_size: The size of the video output.
48 |    This is the size of the viewport shown on screen.
49 |
50 |
51 | uniform COMPAT_PRECISION vec2 OutputSize;
52 | uniform COMPAT_PRECISION vec2 TextureSize;
53 | uniform COMPAT_PRECISION vec2 InputSize;
54 |
55 | scale_type_x0 = "viewport"
56 | scale_x0 = "1.000000"
57 | scale_type_y0 = "viewport"
58 | scale_y0 = "1.000000"
59 |
60 | scale_type_x0 = "source"
61 | scale_x0 = "1.000000"
62 | scale_type_y0 = "source"
63 | scale_y0 = "3.000000"
64 |
65 |   //viewport
66 |   vec4 _res;
67 |   _res = COMPAT_TEXTURE(Texture, TEX0.xy);
68 |   _TMP1 = TEX0.y*TextureSize.y;
69 |   _TMP1 = gl_FragCoord.y;
70 |   _TMP1 = mod(_TMP1-1.5, 3.0) / 3.0;
71 |   FragColor = _res - (_TMP1*0.5);
72 |
73 |   //source
74 |   vec4 _res;
75 |   _res = COMPAT_TEXTURE(Texture, TEX0.xy);
76 |   _TMP1 = TEX0.y*TextureSize.y;
77 |   _TMP2 = fract(_TMP1);
78 |   if (_TMP2 < 0.5) {
79 |     FragColor = _res;
80 |   } else {
81 |     FragColor = _res * 0.5;
82 |   }
83 |


--------------------------------------------------------------------------------
/test1080.glsl:
--------------------------------------------------------------------------------
  1 | #if defined(VERTEX)
  2 |
  3 | #if __VERSION__ >= 130
  4 | #define COMPAT_VARYING out
  5 | #define COMPAT_ATTRIBUTE in
  6 | #define COMPAT_TEXTURE texture
  7 | #else
  8 | #define COMPAT_VARYING varying
  9 | #define COMPAT_ATTRIBUTE attribute
 10 | #define COMPAT_TEXTURE texture2D
 11 | #endif
 12 |
 13 | #ifdef GL_ES
 14 | #define COMPAT_PRECISION mediump
 15 | #else
 16 | #define COMPAT_PRECISION
 17 | #endif
 18 | COMPAT_VARYING     float _frame_rotation;
 19 |
 20 | struct input_dummy {
 21 |     vec2 _video_size;
 22 |     vec2 _texture_size;
 23 |     vec2 _output_dummy_size;
 24 |     float _frame_count;
 25 |     float _frame_direction;
 26 |     float _frame_rotation;
 27 | };
 28 |
 29 | COMPAT_ATTRIBUTE vec4 VertexCoord;
 30 | COMPAT_ATTRIBUTE vec4 COLOR;
 31 | COMPAT_VARYING vec4 COL0;
 32 | COMPAT_ATTRIBUTE vec4 TexCoord;
 33 | COMPAT_VARYING vec4 TEX0;
 34 |
 35 | uniform mat4 MVPMatrix;
 36 | uniform int FrameDirection;
 37 | uniform int FrameCount;
 38 | uniform COMPAT_PRECISION vec2 OutputSize;
 39 | uniform COMPAT_PRECISION vec2 TextureSize;
 40 | uniform COMPAT_PRECISION vec2 InputSize;
 41 |
 42 | void main() {
 43 |   gl_Position = VertexCoord.x*MVPMatrix[0] + VertexCoord.y*MVPMatrix[1] + VertexCoord.z*MVPMatrix[2] + VertexCoord.w*MVPMatrix[3];
 44 |   TEX0.xy = TexCoord.xy;
 45 | }
 46 |
 47 | #elif defined(FRAGMENT)
 48 |
 49 | #if __VERSION__ >= 130
 50 | #define COMPAT_VARYING in
 51 | #define COMPAT_TEXTURE texture
 52 | out vec4 FragColor;
 53 | #else
 54 | #define COMPAT_VARYING varying
 55 | #define FragColor gl_FragColor
 56 | #define COMPAT_TEXTURE texture2D
 57 | #endif
 58 |
 59 | #ifdef GL_ES
 60 | #ifdef GL_FRAGMENT_PRECISION_HIGH
 61 | precision highp float;
 62 | #else
 63 | precision mediump float;
 64 | #endif
 65 | #define COMPAT_PRECISION mediump
 66 | #else
 67 | #define COMPAT_PRECISION
 68 | #endif
 69 | COMPAT_VARYING     float _frame_rotation;
 70 |
 71 | struct input_dummy {
 72 |     vec2 _video_size;
 73 |     vec2 _texture_size;
 74 |     vec2 _output_dummy_size;
 75 |     float _frame_count;
 76 |     float _frame_direction;
 77 |     float _frame_rotation;
 78 | };
 79 |
 80 | float _TMP2;
 81 | float _TMP1;
 82 | uniform sampler2D Texture;
 83 | input_dummy _IN1;
 84 | COMPAT_VARYING vec4 TEX0;
 85 |
 86 | uniform int FrameDirection;
 87 | uniform int FrameCount;
 88 | uniform COMPAT_PRECISION vec2 OutputSize;
 89 | uniform COMPAT_PRECISION vec2 TextureSize;
 90 | uniform COMPAT_PRECISION vec2 InputSize;
 91 |
 92 |
 93 | void main() {
 94 |
 95 |   vec3 col;
 96 |   float x = floor(gl_FragCoord.x / 4.0) - 0.5;
 97 |   float y = floor(gl_FragCoord.y / 4.0) - 0.5;
 98 |   float xmod = mod(gl_FragCoord.x, 4.0);
 99 |   float ymod = mod(gl_FragCoord.y, 4.0);
100 |   vec2 f0 = vec2(x, y);
101 |   vec2 f1 = vec2(x, y + 1.0);
102 |   vec2 uv0 = f0 / TextureSize.xy;
103 |   vec2 uv1 = f1 / TextureSize.xy;
104 |   vec3 t0 = COMPAT_TEXTURE(Texture, uv0).xyz;
105 |   vec3 t1 = COMPAT_TEXTURE(Texture, uv1).xyz;
106 |   //vec3 t2 = COMPAT_TEXTURE(Texture, vec2(x+1.0,y)/TextureSize.xy).xyz;
107 |   float p = 1.0;
108 |   if (xmod < 1.0) p = 0.9;
109 |   if (ymod < 1.0) col = t0 * 0.8; else
110 |   	if (ymod < 2.0) col = t0; else
111 |       if (ymod < 3.0) col = t0 * 0.8; else
112 |         col = (t0 + t1) / 2.0 * 0.6;
113 |   FragColor = vec4( col * p, 1.0 );
114 |   //FragColor = vec4( col * t2, 1.0 );
115 |
116 | }
117 |
118 |
119 | #endif
120 |


--------------------------------------------------------------------------------
/test1080.glslp:
--------------------------------------------------------------------------------
 1 | shaders = 1
 2 | shader0 = test1080.glsl
 3 |
 4 | filter_linear0 = false
 5 | #filter_linear0 = true
 6 |
 7 | scale_type_x0 = "viewport"
 8 | scale_x0 = "1.000000"
 9 | scale_type_y0 = "viewport"
10 | scale_y0 = "1.000000"
11 |


--------------------------------------------------------------------------------
/test720.glsl:
--------------------------------------------------------------------------------
  1 | #if defined(VERTEX)
  2 |
  3 | #if __VERSION__ >= 130
  4 | #define COMPAT_VARYING out
  5 | #define COMPAT_ATTRIBUTE in
  6 | #define COMPAT_TEXTURE texture
  7 | #else
  8 | #define COMPAT_VARYING varying
  9 | #define COMPAT_ATTRIBUTE attribute
 10 | #define COMPAT_TEXTURE texture2D
 11 | #endif
 12 |
 13 | #ifdef GL_ES
 14 | #define COMPAT_PRECISION mediump
 15 | #else
 16 | #define COMPAT_PRECISION
 17 | #endif
 18 | COMPAT_VARYING     float _frame_rotation;
 19 |
 20 | struct input_dummy {
 21 |     vec2 _video_size;
 22 |     vec2 _texture_size;
 23 |     vec2 _output_dummy_size;
 24 |     float _frame_count;
 25 |     float _frame_direction;
 26 |     float _frame_rotation;
 27 | };
 28 |
 29 | COMPAT_ATTRIBUTE vec4 VertexCoord;
 30 | COMPAT_ATTRIBUTE vec4 COLOR;
 31 | COMPAT_VARYING vec4 COL0;
 32 | COMPAT_ATTRIBUTE vec4 TexCoord;
 33 | COMPAT_VARYING vec4 TEX0;
 34 |
 35 | uniform mat4 MVPMatrix;
 36 | uniform int FrameDirection;
 37 | uniform int FrameCount;
 38 | uniform COMPAT_PRECISION vec2 OutputSize;
 39 | uniform COMPAT_PRECISION vec2 TextureSize;
 40 | uniform COMPAT_PRECISION vec2 InputSize;
 41 |
 42 | void main() {
 43 |   gl_Position = VertexCoord.x*MVPMatrix[0] + VertexCoord.y*MVPMatrix[1] + VertexCoord.z*MVPMatrix[2] + VertexCoord.w*MVPMatrix[3];
 44 |   TEX0.xy = TexCoord.xy;
 45 | }
 46 |
 47 | #elif defined(FRAGMENT)
 48 |
 49 | #if __VERSION__ >= 130
 50 | #define COMPAT_VARYING in
 51 | #define COMPAT_TEXTURE texture
 52 | out vec4 FragColor;
 53 | #else
 54 | #define COMPAT_VARYING varying
 55 | #define FragColor gl_FragColor
 56 | #define COMPAT_TEXTURE texture2D
 57 | #endif
 58 |
 59 | #ifdef GL_ES
 60 | #ifdef GL_FRAGMENT_PRECISION_HIGH
 61 | precision highp float;
 62 | #else
 63 | precision mediump float;
 64 | #endif
 65 | #define COMPAT_PRECISION mediump
 66 | #else
 67 | #define COMPAT_PRECISION
 68 | #endif
 69 | COMPAT_VARYING     float _frame_rotation;
 70 |
 71 | struct input_dummy {
 72 |     vec2 _video_size;
 73 |     vec2 _texture_size;
 74 |     vec2 _output_dummy_size;
 75 |     float _frame_count;
 76 |     float _frame_direction;
 77 |     float _frame_rotation;
 78 | };
 79 |
 80 | float _TMP2;
 81 | float _TMP1;
 82 | uniform sampler2D Texture;
 83 | input_dummy _IN1;
 84 | COMPAT_VARYING vec4 TEX0;
 85 |
 86 | uniform int FrameDirection;
 87 | uniform int FrameCount;
 88 | uniform COMPAT_PRECISION vec2 OutputSize;
 89 | uniform COMPAT_PRECISION vec2 TextureSize;
 90 | uniform COMPAT_PRECISION vec2 InputSize;
 91 |
 92 |
 93 | void main() {
 94 |
 95 |   vec3 col;
 96 |   float x = floor(gl_FragCoord.x / 3.0) + 0.5;
 97 |   float y = floor(gl_FragCoord.y / 3.0) + 0.5;
 98 |   float xmod = mod(gl_FragCoord.x, 3.0);
 99 |   float ymod = mod(gl_FragCoord.y, 3.0);
100 |   vec2 f0 = vec2(x, y);
101 |   vec2 uv0 = f0 / TextureSize.xy;
102 |   float p = 1.0;
103 |   vec3 t0 = COMPAT_TEXTURE(Texture, uv0).xyz;
104 |   if (ymod > 2.0) {
105 |     vec2 f1 = vec2(x, y + 1.0);
106 |     vec2 uv1 = f1 / TextureSize.xy;
107 |     vec3 t1 = COMPAT_TEXTURE(Texture, uv1).xyz;
108 |     if (xmod > 2.0) p = 0.8;
109 |     col = (t0 + t1) / 2.0 * 0.6 * p;
110 |   } else {
111 |     if (xmod > 2.0) {
112 |       vec2 f1 = vec2(x + 1.0, y);
113 |       vec2 uv1 = f1 / TextureSize.xy;
114 |       vec3 t1 = COMPAT_TEXTURE(Texture, uv1).xyz;
115 |       col = (t0 + t1) / 2.0 * 1.0;//0.95;
116 |     } else col = t0;
117 |   }
118 |   FragColor = vec4( col, 1.0 );
119 |
120 | }
121 |
122 |
123 | #endif
124 |


--------------------------------------------------------------------------------
/test720.glslp:
--------------------------------------------------------------------------------
 1 | shaders = 1
 2 | #shader0 = /home/pi/RetroPie/roms/kurg_scanlines_source.glsl
 3 | shader0 = test720.glsl
 4 |
 5 | filter_linear0 = false
 6 | #filter_linear0 = true
 7 |
 8 | scale_type_x0 = "viewport"
 9 | scale_x0 = "1.000000"
10 | scale_type_y0 = "viewport"
11 | scale_y0 = "1.000000"
12 |


--------------------------------------------------------------------------------
/test720_0.2.glsl:
--------------------------------------------------------------------------------
  1 | #if defined(VERTEX)
  2 |
  3 | #if __VERSION__ >= 130
  4 | #define COMPAT_VARYING out
  5 | #define COMPAT_ATTRIBUTE in
  6 | #define COMPAT_TEXTURE texture
  7 | #else
  8 | #define COMPAT_VARYING varying
  9 | #define COMPAT_ATTRIBUTE attribute
 10 | #define COMPAT_TEXTURE texture2D
 11 | #endif
 12 |
 13 | #ifdef GL_ES
 14 | #define COMPAT_PRECISION mediump
 15 | #else
 16 | #define COMPAT_PRECISION
 17 | #endif
 18 | COMPAT_VARYING     float _frame_rotation;
 19 |
 20 | struct input_dummy {
 21 |     vec2 _video_size;
 22 |     vec2 _texture_size;
 23 |     vec2 _output_dummy_size;
 24 |     float _frame_count;
 25 |     float _frame_direction;
 26 |     float _frame_rotation;
 27 | };
 28 |
 29 | COMPAT_ATTRIBUTE vec4 VertexCoord;
 30 | COMPAT_ATTRIBUTE vec4 COLOR;
 31 | COMPAT_VARYING vec4 COL0;
 32 | COMPAT_ATTRIBUTE vec4 TexCoord;
 33 | COMPAT_VARYING vec4 TEX0;
 34 |
 35 | uniform mat4 MVPMatrix;
 36 | uniform int FrameDirection;
 37 | uniform int FrameCount;
 38 | uniform COMPAT_PRECISION vec2 OutputSize;
 39 | uniform COMPAT_PRECISION vec2 TextureSize;
 40 | uniform COMPAT_PRECISION vec2 InputSize;
 41 |
 42 | void main() {
 43 |   gl_Position = VertexCoord.x*MVPMatrix[0] + VertexCoord.y*MVPMatrix[1] + VertexCoord.z*MVPMatrix[2] + VertexCoord.w*MVPMatrix[3];
 44 |   TEX0.xy = TexCoord.xy;
 45 | }
 46 |
 47 | #elif defined(FRAGMENT)
 48 |
 49 | #if __VERSION__ >= 130
 50 | #define COMPAT_VARYING in
 51 | #define COMPAT_TEXTURE texture
 52 | out vec4 FragColor;
 53 | #else
 54 | #define COMPAT_VARYING varying
 55 | #define FragColor gl_FragColor
 56 | #define COMPAT_TEXTURE texture2D
 57 | #endif
 58 |
 59 | #ifdef GL_ES
 60 | #ifdef GL_FRAGMENT_PRECISION_HIGH
 61 | precision highp float;
 62 | #else
 63 | precision mediump float;
 64 | #endif
 65 | #define COMPAT_PRECISION mediump
 66 | #else
 67 | #define COMPAT_PRECISION
 68 | #endif
 69 | COMPAT_VARYING     float _frame_rotation;
 70 |
 71 | struct input_dummy {
 72 |     vec2 _video_size;
 73 |     vec2 _texture_size;
 74 |     vec2 _output_dummy_size;
 75 |     float _frame_count;
 76 |     float _frame_direction;
 77 |     float _frame_rotation;
 78 | };
 79 |
 80 | float _TMP2;
 81 | float _TMP1;
 82 | uniform sampler2D Texture;
 83 | input_dummy _IN1;
 84 | COMPAT_VARYING vec4 TEX0;
 85 |
 86 | uniform int FrameDirection;
 87 | uniform int FrameCount;
 88 | uniform COMPAT_PRECISION vec2 OutputSize;
 89 | uniform COMPAT_PRECISION vec2 TextureSize;
 90 | uniform COMPAT_PRECISION vec2 InputSize;
 91 |
 92 |
 93 | void main() {
 94 |
 95 |   vec3 col;
 96 |   float x = TEX0.x * TextureSize.x;
 97 |   //float x = floor(gl_FragCoord.x / 3.0) + 0.5;
 98 |   float y = floor(gl_FragCoord.y / 3.0) + 0.5;
 99 |   //float xmod = mod(gl_FragCoord.x, 3.0);
100 |   float ymod = mod(gl_FragCoord.y, 3.0);
101 |   vec2 f0 = vec2(x, y);
102 |   vec2 uv0 = f0 / TextureSize.xy;
103 |   //vec2 uv0 = vec2(TEX0.x, f0.y / TextureSize.y);
104 |   float p = 1.0;
105 |   vec3 t0 = COMPAT_TEXTURE(Texture, uv0).xyz;
106 |   if (ymod > 2.0) {
107 |     vec2 f1 = vec2(x, y + 1.0);
108 |     vec2 uv1 = f1 / TextureSize.xy;
109 |     vec3 t1 = COMPAT_TEXTURE(Texture, uv1).xyz;
110 |     //if (xmod > 2.0) p = 0.8;
111 |     col = (t0 + t1) / 2.0 * 0.6 * p;
112 |   } else {
113 |     /*if (xmod > 2.0) {
114 |       vec2 f1 = vec2(x + 1.0, y);
115 |       vec2 uv1 = f1 / TextureSize.xy;
116 |       vec3 t1 = COMPAT_TEXTURE(Texture, uv1).xyz;
117 |       col = (t0 + t1) / 2.0 * 1.0;//0.95;
118 |     } else*/ col = t0;
119 |   }
120 |   FragColor = vec4( col, 1.0 );
121 |
122 | }
123 |
124 |
125 | #endif
126 |


--------------------------------------------------------------------------------
