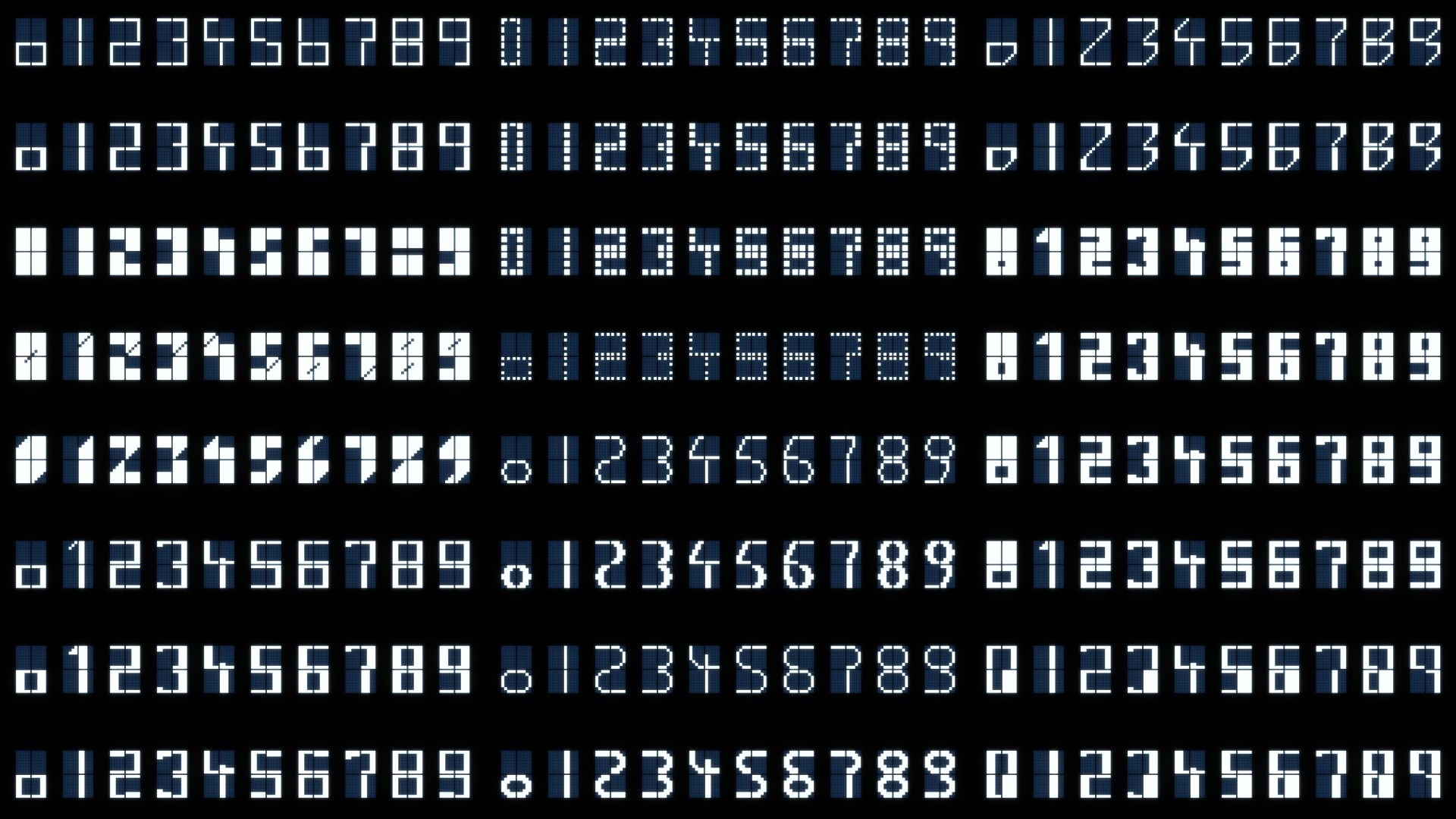

├── .gitattributes ├── LED ├── OLED_I2C_ASC │ ├── Font_12x24.py │ ├── Font_16x32.py │ ├── Font_6x8.py │ ├── Font_8x16.py │ ├── README.md │ ├── demo.py │ ├── oled.jpg │ └── oled.py ├── README.md ├── TM1637 │ ├── 4-LED.jpg │ ├── README.md │ ├── TM1637.py │ └── test.py └── TM1650 │ ├── 4-LED.jpg │ ├── FourDigitDisplay.py │ ├── README.md │ └── test.py ├── LICENSE ├── README.md ├── gnss └── ugnss.py ├── keyboard └── mechanical-button │ └── single-button │ ├── README.md │ ├── key.JPG │ └── keyboard.py ├── lcd ├── 3Wire-HT1621B-GDC03849 │ ├── DataSheet │ │ ├── GDC03849C1P6.8.pdf │ │ ├── HT1621CN.pdf │ │ ├── HT1621EN.pdf │ │ └── README.md │ ├── README.md │ ├── README_CN.md │ ├── gdc03849.py │ ├── ht1621x.py │ └── images │ │ ├── README.md │ │ ├── ht1621b_gdc.png │ │ └── ht1621b_gdc_en.png ├── I2C_LCD1602 │ ├── README.md │ ├── demo.gif │ ├── i2c_lcd1602.py │ └── test.py ├── LCD1602_BIG_DIGITS │ ├── README.md │ ├── bigdigit_test.py │ ├── lcd1602_bigdigit.py │ └── mkfont.py └── README.md ├── misc ├── AT24XX │ ├── AT24XX.py │ ├── README.md │ ├── ds1307.jpg │ └── test.py ├── DS1302 │ ├── DS1302.py │ ├── README.md │ ├── ds1302.jpg │ └── test.py ├── DS1307 │ ├── DS1307.py │ ├── README.md │ ├── ds1307.jpg │ └── test.py ├── DS3231 │ ├── DS3231.py │ ├── README.md │ ├── ds3231.jpg │ └── test.py ├── MCP401x │ ├── README.md │ └── mcp401x.py ├── README.md ├── irqUART │ ├── README.md │ ├── demo.jpg │ ├── irqUART.py │ ├── irqUART_esp32_demo.py │ └── irqUART_pyb_demo.py └── pcf8563 │ └── pcf8563.py ├── neopixel ├── README.md ├── neo_16x16 │ ├── 16x16.gif │ ├── README.md │ ├── neo16x16.py │ └── test.py └── neo_16x16_img │ ├── 16x16_img.gif │ ├── README.md │ ├── demo.bmp │ ├── neo16x16_img.py │ └── test.py └── sensor ├── AHT20 ├── READMD.md └── aht20.py ├── APDS9930 ├── ALS_demo.py ├── APDS9930.py ├── Proximity_demo.py ├── README.md └── apds9930.jpg ├── HTS221 ├── README.md ├── hts221.py ├── hts221_demo.py └── hts221_irq_demo.py ├── INA219 ├── README.md ├── ina219.jpg └── ina219.py ├── LIS2DW12 ├── LIS2DW12.py ├── LIS2DW12_demo.py ├── LIS2DW12_irq_demo.py └── README.md ├── LIS2MDL ├── LIS2MDL.py ├── LIS2MDL_demo.py ├── LIS2MDL_irq_demo.py └── README.md ├── LPS22 ├── LPS22.py ├── LPS22_demo.py ├── LPS22_irq_demo.py ├── README.md └── en.LPS22HB_pressure_sensor_web.jpg ├── LSM303AH ├── READMD.md └── lsm303ah.py ├── LSM6DS33 ├── READMD.md └── lsm6ds33.py ├── LSM6DSO ├── LSM6DSO.py ├── LSM6DSO_demo.py ├── LSM6DSO_irq_demo.py └── README.md ├── MMC5603 ├── MMC5603.py └── READMD.md ├── NTC ├── README.md ├── ntc.jpg ├── ntc.py └── ntc1.jpg ├── README.md ├── SC7A20 ├── READMD.md └── SC7A20.py ├── SHT3x ├── I2C_16bit │ ├── README.md │ ├── sht30.jpg │ └── sht3x_16bit.py └── I2C_8bit │ ├── README.md │ ├── sht30.jpg │ └── sht3x.py ├── STTS751 ├── README.md ├── STTS751.py ├── STTS751_demo.py └── STTS751_irq_demo.py ├── bme280 ├── README.md ├── bme280.jpg ├── bme280.py └── test.py ├── bmp180 ├── BMP180.py ├── README.md └── test.py ├── bmp280 ├── README.md ├── bmp280.jpg ├── bmp280.py └── test.py ├── sht20 ├── README.md ├── sht20.jpg └── sht20.py └── si7051 └── si7051.py /.gitattributes: -------------------------------------------------------------------------------- 1 | # Auto detect text files and perform LF normalization 2 | * text=auto 3 | -------------------------------------------------------------------------------- /LED/OLED_I2C_ASC/Font_6x8.py: -------------------------------------------------------------------------------- 1 | ''' 2 | FONT 6x8 for OLED 3 | ''' 4 | # ' ' - '~' 0x20 - 0x7E 5 | Font_6x8 = bytes(b'\ 6 | \x00\x00\x00\x00\x00\ 7 | \x00\x00\x5F\x00\x00\ 8 | \x00\x07\x00\x07\x00\ 9 | \x14\x7F\x14\x7F\x14\ 10 | \x24\x2A\x07\x2A\x12\ 11 | \x23\x13\x08\x64\x62\ 12 | \x37\x49\x55\x22\x50\ 13 | \x00\x05\x03\x00\x00\ 14 | \x00\x1C\x22\x41\x00\ 15 | \x00\x41\x22\x1C\x00\ 16 | \x08\x2A\x1C\x2A\x08\ 17 | \x08\x08\x3E\x08\x08\ 18 | \x00\x50\x30\x00\x00\ 19 | \x08\x08\x08\x08\x08\ 20 | \x00\x60\x60\x00\x00\ 21 | \x20\x10\x08\x04\x02\ 22 | \x3E\x51\x49\x45\x3E\ 23 | \x00\x42\x7F\x40\x00\ 24 | \x42\x61\x51\x49\x46\ 25 | \x21\x41\x45\x4B\x31\ 26 | \x18\x14\x12\x7F\x10\ 27 | \x27\x45\x45\x45\x39\ 28 | \x3C\x4A\x49\x49\x30\ 29 | \x01\x71\x09\x05\x03\ 30 | \x36\x49\x49\x49\x36\ 31 | \x06\x49\x49\x29\x1E\ 32 | \x00\x36\x36\x00\x00\ 33 | \x00\x56\x36\x00\x00\ 34 | \x00\x08\x14\x22\x41\ 35 | \x14\x14\x14\x14\x14\ 36 | \x41\x22\x14\x08\x00\ 37 | \x02\x01\x51\x09\x06\ 38 | \x32\x49\x79\x41\x3E\ 39 | \x7E\x11\x11\x11\x7E\ 40 | \x7F\x49\x49\x49\x36\ 41 | \x3E\x41\x41\x41\x22\ 42 | \x7F\x41\x41\x22\x1C\ 43 | \x7F\x49\x49\x49\x41\ 44 | \x7F\x09\x09\x01\x01\ 45 | \x3E\x41\x41\x51\x32\ 46 | \x7F\x08\x08\x08\x7F\ 47 | \x00\x41\x7F\x41\x00\ 48 | \x20\x40\x41\x3F\x01\ 49 | \x7F\x08\x14\x22\x41\ 50 | \x7F\x40\x40\x40\x40\ 51 | \x7F\x02\x04\x02\x7F\ 52 | \x7F\x04\x08\x10\x7F\ 53 | \x3E\x41\x41\x41\x3E\ 54 | \x7F\x09\x09\x09\x06\ 55 | \x3E\x41\x51\x21\x5E\ 56 | \x7F\x09\x19\x29\x46\ 57 | \x46\x49\x49\x49\x31\ 58 | \x01\x01\x7F\x01\x01\ 59 | \x3F\x40\x40\x40\x3F\ 60 | \x1F\x20\x40\x20\x1F\ 61 | \x7F\x20\x18\x20\x7F\ 62 | \x63\x14\x08\x14\x63\ 63 | \x03\x04\x78\x04\x03\ 64 | \x61\x51\x49\x45\x43\ 65 | \x00\x00\x7F\x41\x41\ 66 | \x02\x04\x08\x10\x20\ 67 | \x41\x41\x7F\x00\x00\ 68 | \x04\x02\x01\x02\x04\ 69 | \x40\x40\x40\x40\x40\ 70 | \x00\x01\x02\x04\x00\ 71 | \x20\x54\x54\x54\x78\ 72 | \x7F\x48\x44\x44\x38\ 73 | \x38\x44\x44\x44\x20\ 74 | \x38\x44\x44\x48\x7F\ 75 | \x38\x54\x54\x54\x18\ 76 | \x08\x7E\x09\x01\x02\ 77 | \x08\x14\x54\x54\x3C\ 78 | \x7F\x08\x04\x04\x78\ 79 | \x00\x44\x7D\x40\x00\ 80 | \x20\x40\x44\x3D\x00\ 81 | \x00\x7F\x10\x28\x44\ 82 | \x00\x41\x7F\x40\x00\ 83 | \x7C\x04\x18\x04\x78\ 84 | \x7C\x08\x04\x04\x78\ 85 | \x38\x44\x44\x44\x38\ 86 | \x7C\x14\x14\x14\x08\ 87 | \x08\x14\x14\x18\x7C\ 88 | \x7C\x08\x04\x04\x08\ 89 | \x48\x54\x54\x54\x20\ 90 | \x04\x3F\x44\x40\x20\ 91 | \x3C\x40\x40\x20\x7C\ 92 | \x1C\x20\x40\x20\x1C\ 93 | \x3C\x40\x30\x40\x3C\ 94 | \x44\x28\x10\x28\x44\ 95 | \x0C\x50\x50\x50\x3C\ 96 | \x44\x64\x54\x4C\x44\ 97 | \x00\x08\x36\x41\x00\ 98 | \x00\x00\x7F\x00\x00\ 99 | \x00\x41\x36\x08\x00\ 100 | \x02\x01\x02\x04\x02\ 101 | ') 102 | -------------------------------------------------------------------------------- /LED/OLED_I2C_ASC/Font_8x16.py: -------------------------------------------------------------------------------- 1 | ''' 2 | FONT 8x16 for OLED 3 | ''' 4 | # ' ' - '~' 0x20 - 0x7E 5 | Font_8x16 = bytes(b'\ 6 | \x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\ 7 | \x00\x00\x38\xFC\xFC\x38\x00\x00\x00\x00\x0D\x0D\x00\x00\ 8 | \x00\x0E\x1E\x00\x00\x1E\x0E\x00\x00\x00\x00\x00\x00\x00\ 9 | \x20\xF8\xF8\x20\xF8\xF8\x20\x02\x0F\x0F\x02\x0F\x0F\x02\ 10 | \x38\x7C\x44\x47\x47\xCC\x98\x06\x0C\x08\x38\x38\x0F\x07\ 11 | \x30\x30\x00\x80\xC0\x60\x30\x0C\x06\x03\x01\x00\x0C\x0C\ 12 | \x80\xD8\x7C\xE4\xBC\xD8\x40\x07\x0F\x08\x08\x07\x0F\x08\ 13 | \x00\x10\x1E\x0E\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\ 14 | \x00\x00\xF0\xF8\x0C\x04\x00\x00\x00\x03\x07\x0C\x08\x00\ 15 | \x00\x00\x04\x0C\xF8\xF0\x00\x00\x00\x08\x0C\x07\x03\x00\ 16 | \x80\xA0\xE0\xC0\xC0\xE0\xA0\x00\x02\x03\x01\x01\x03\x02\ 17 | \x00\x80\x80\xE0\xE0\x80\x80\x00\x00\x00\x03\x03\x00\x00\ 18 | \x00\x00\x00\x00\x00\x00\x00\x00\x00\x10\x1E\x0E\x00\x00\ 19 | \x80\x80\x80\x80\x80\x80\x80\x00\x00\x00\x00\x00\x00\x00\ 20 | \x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x0C\x0C\x00\x00\ 21 | \x00\x00\x00\x80\xC0\x60\x30\x0C\x06\x03\x01\x00\x00\x00\ 22 | \xF0\xF8\x0C\xC4\x0C\xF8\xF0\x03\x07\x0C\x08\x0C\x07\x03\ 23 | \x00\x10\x18\xFC\xFC\x00\x00\x00\x08\x08\x0F\x0F\x08\x08\ 24 | \x08\x0C\x84\xC4\x64\x3C\x18\x0E\x0F\x09\x08\x08\x0C\x0C\ 25 | \x08\x0C\x44\x44\x44\xFC\xB8\x04\x0C\x08\x08\x08\x0F\x07\ 26 | \xC0\xE0\xB0\x98\xFC\xFC\x80\x00\x00\x00\x08\x0F\x0F\x08\ 27 | \x7C\x7C\x44\x44\x44\xC4\x84\x04\x0C\x08\x08\x08\x0F\x07\ 28 | \xF0\xF8\x4C\x44\x44\xC0\x80\x07\x0F\x08\x08\x08\x0F\x07\ 29 | \x0C\x0C\x04\x84\xC4\x7C\x3C\x00\x00\x0F\x0F\x00\x00\x00\ 30 | \xB8\xFC\x44\x44\x44\xFC\xB8\x07\x0F\x08\x08\x08\x0F\x07\ 31 | \x38\x7C\x44\x44\x44\xFC\xF8\x00\x08\x08\x08\x0C\x07\x03\ 32 | \x00\x00\x00\x30\x30\x00\x00\x00\x00\x00\x06\x06\x00\x00\ 33 | \x00\x00\x00\x30\x30\x00\x00\x00\x00\x08\x0E\x06\x00\x00\ 34 | \x00\x80\xC0\x60\x30\x18\x08\x00\x00\x01\x03\x06\x0C\x08\ 35 | \x00\x20\x20\x20\x20\x20\x20\x00\x01\x01\x01\x01\x01\x01\ 36 | \x00\x08\x18\x30\x60\xC0\x80\x00\x08\x0C\x06\x03\x01\x00\ 37 | \x18\x1C\x04\xC4\xE4\x3C\x18\x00\x00\x00\x0D\x0D\x00\x00\ 38 | \xF0\xF8\x08\xC8\xC8\xF8\xF0\x07\x0F\x08\x0B\x0B\x0B\x01\ 39 | \xE0\xF0\x98\x8C\x98\xF0\xE0\x0F\x0F\x00\x00\x00\x0F\x0F\ 40 | \x04\xFC\xFC\x44\x44\xFC\xB8\x08\x0F\x0F\x08\x08\x0F\x07\ 41 | \xF0\xF8\x0C\x04\x04\x0C\x18\x03\x07\x0C\x08\x08\x0C\x06\ 42 | \x04\xFC\xFC\x04\x0C\xF8\xF0\x08\x0F\x0F\x08\x0C\x07\x03\ 43 | \x04\xFC\xFC\x44\xE4\x0C\x1C\x08\x0F\x0F\x08\x08\x0C\x0E\ 44 | \x04\xFC\xFC\x44\xE4\x0C\x1C\x08\x0F\x0F\x08\x00\x00\x00\ 45 | \xF0\xF8\x0C\x84\x84\x8C\x98\x03\x07\x0C\x08\x08\x07\x0F\ 46 | \xFC\xFC\x40\x40\x40\xFC\xFC\x0F\x0F\x00\x00\x00\x0F\x0F\ 47 | \x00\x00\x04\xFC\xFC\x04\x00\x00\x00\x08\x0F\x0F\x08\x00\ 48 | \x00\x00\x00\x04\xFC\xFC\x04\x07\x0F\x08\x08\x0F\x07\x00\ 49 | \x04\xFC\xFC\xC0\xE0\x3C\x1C\x08\x0F\x0F\x00\x01\x0F\x0E\ 50 | \x04\xFC\xFC\x04\x00\x00\x00\x08\x0F\x0F\x08\x08\x0C\x0E\ 51 | \xFC\xFC\x38\x70\x38\xFC\xFC\x0F\x0F\x00\x00\x00\x0F\x0F\ 52 | \xFC\xFC\x38\x70\xE0\xFC\xFC\x0F\x0F\x00\x00\x00\x0F\x0F\ 53 | \xF8\xFC\x04\x04\x04\xFC\xF8\x07\x0F\x08\x08\x08\x0F\x07\ 54 | \x04\xFC\xFC\x44\x44\x7C\x38\x08\x0F\x0F\x08\x00\x00\x00\ 55 | \xF8\xFC\x04\x04\x04\xFC\xF8\x07\x0F\x08\x0E\x3C\x3F\x27\ 56 | \x04\xFC\xFC\x44\xC4\xFC\x38\x08\x0F\x0F\x00\x00\x0F\x0F\ 57 | \x18\x3C\x64\x44\xC4\x9C\x18\x06\x0E\x08\x08\x08\x0F\x07\ 58 | \x00\x1C\x0C\xFC\xFC\x0C\x1C\x00\x00\x08\x0F\x0F\x08\x00\ 59 | \xFC\xFC\x00\x00\x00\xFC\xFC\x07\x0F\x08\x08\x08\x0F\x07\ 60 | \xFC\xFC\x00\x00\x00\xFC\xFC\x01\x03\x06\x0C\x06\x03\x01\ 61 | \xFC\xFC\x00\xC0\x00\xFC\xFC\x07\x0F\x0E\x03\x0E\x0F\x07\ 62 | \x0C\x3C\xF0\xE0\xF0\x3C\x0C\x0C\x0F\x03\x01\x03\x0F\x0C\ 63 | \x00\x3C\x7C\xC0\xC0\x7C\x3C\x00\x00\x08\x0F\x0F\x08\x00\ 64 | \x1C\x0C\x84\xC4\x64\x3C\x1C\x0E\x0F\x09\x08\x08\x0C\x0E\ 65 | \x00\x00\xFC\xFC\x04\x04\x00\x00\x00\x0F\x0F\x08\x08\x00\ 66 | \x38\x70\xE0\xC0\x80\x00\x00\x00\x00\x00\x01\x03\x07\x0E\ 67 | \x00\x00\x04\x04\xFC\xFC\x00\x00\x00\x08\x08\x0F\x0F\x00\ 68 | \x08\x0C\x06\x03\x06\x0C\x08\x00\x00\x00\x00\x00\x00\x00\ 69 | \x00\x00\x00\x00\x00\x00\x00\x20\x20\x20\x20\x20\x20\x20\ 70 | \x00\x00\x03\x07\x04\x00\x00\x00\x00\x00\x00\x00\x00\x00\ 71 | \x00\xA0\xA0\xA0\xE0\xC0\x00\x07\x0F\x08\x08\x07\x0F\x08\ 72 | \x04\xFC\xFC\x20\x60\xC0\x80\x00\x0F\x0F\x08\x08\x0F\x07\ 73 | \xC0\xE0\x20\x20\x20\x60\x40\x07\x0F\x08\x08\x08\x0C\x04\ 74 | \x80\xC0\x60\x24\xFC\xFC\x00\x07\x0F\x08\x08\x07\x0F\x08\ 75 | \xC0\xE0\xA0\xA0\xA0\xE0\xC0\x07\x0F\x08\x08\x08\x0C\x04\ 76 | \x40\xF8\xFC\x44\x0C\x18\x00\x08\x0F\x0F\x08\x00\x00\x00\ 77 | \xC0\xE0\x20\x20\xC0\xE0\x20\x27\x6F\x48\x48\x7F\x3F\x00\ 78 | \x04\xFC\xFC\x40\x20\xE0\xC0\x08\x0F\x0F\x00\x00\x0F\x0F\ 79 | \x00\x00\x20\xEC\xEC\x00\x00\x00\x00\x08\x0F\x0F\x08\x00\ 80 | \x00\x00\x00\x00\x20\xEC\xEC\x00\x30\x70\x40\x40\x7F\x3F\ 81 | \x04\xFC\xFC\x80\xC0\x60\x20\x08\x0F\x0F\x01\x03\x0E\x0C\ 82 | \x00\x00\x04\xFC\xFC\x00\x00\x00\x00\x08\x0F\x0F\x08\x00\ 83 | \xE0\xE0\x60\xC0\x60\xE0\xC0\x0F\x0F\x00\x07\x00\x0F\x0F\ 84 | \x20\xE0\xC0\x20\x20\xE0\xC0\x00\x0F\x0F\x00\x00\x0F\x0F\ 85 | \xC0\xE0\x20\x20\x20\xE0\xC0\x07\x0F\x08\x08\x08\x0F\x07\ 86 | \x20\xE0\xC0\x20\x20\xE0\xC0\x40\x7F\x7F\x48\x08\x0F\x07\ 87 | \xC0\xE0\x20\x20\xC0\xE0\x20\x07\x0F\x08\x48\x7F\x7F\x40\ 88 | \x20\xE0\xC0\x60\x20\xE0\xC0\x08\x0F\x0F\x08\x00\x00\x00\ 89 | \x40\xE0\xA0\x20\x20\x60\x40\x04\x0C\x09\x09\x0B\x0E\x04\ 90 | \x20\x20\xF8\xFC\x20\x20\x00\x00\x00\x07\x0F\x08\x0C\x04\ 91 | \xE0\xE0\x00\x00\xE0\xE0\x00\x07\x0F\x08\x08\x07\x0F\x08\ 92 | \x00\xE0\xE0\x00\x00\xE0\xE0\x00\x03\x07\x0C\x0C\x07\x03\ 93 | \xE0\xE0\x00\x80\x00\xE0\xE0\x07\x0F\x0C\x07\x0C\x0F\x07\ 94 | \x20\x60\xC0\x80\xC0\x60\x20\x08\x0C\x07\x03\x07\x0C\x08\ 95 | \xE0\xE0\x00\x00\x00\xE0\xE0\x47\x4F\x48\x48\x68\x3F\x1F\ 96 | \x60\x60\x20\xA0\xE0\x60\x20\x0C\x0E\x0B\x09\x08\x0C\x0C\ 97 | \x00\x40\x40\xF8\xBC\x04\x04\x00\x00\x00\x07\x0F\x08\x08\ 98 | \x00\x00\x00\xBC\xBC\x00\x00\x00\x00\x00\x0F\x0F\x00\x00\ 99 | \x00\x04\x04\xBC\xF8\x40\x40\x00\x08\x08\x0F\x07\x00\x00\ 100 | \x08\x0C\x04\x0C\x08\x0C\x04\x00\x00\x00\x00\x00\x00\x00\ 101 | ') 102 | -------------------------------------------------------------------------------- /LED/OLED_I2C_ASC/README.md: -------------------------------------------------------------------------------- 1 | # I2C OLED ASCII display drive 2 | 3 | A simple ascii display drive for I2C OLED, it may display 4 font. 4 | 5 | ![](oled.jpg) 6 | 7 | 8 | 9 | ## example 10 | 11 | 12 | ``` 13 | from machine import I2C, Pin 14 | from oled import OLED12864_I2C 15 | 16 | i2c = I2C(-1, scl = Pin(27, pull = Pin.PULL_UP), sda = Pin(13, pull = Pin.PULL_UP)) 17 | 18 | oled = OLED12864_I2C(i2c) 19 | oled.text(0, 0, '0123456789') 20 | oled.Font('Font_8x16') 21 | oled.text(0, 1, '0123456789') 22 | oled.Font('Font_12x24') 23 | oled.text(0, 3, '0123456789') 24 | ``` 25 | 26 | 27 | From microbit/micropython Chinese community. 28 | www.micropython.org.cn 29 | -------------------------------------------------------------------------------- /LED/OLED_I2C_ASC/demo.py: -------------------------------------------------------------------------------- 1 | from machine import I2C, Pin 2 | from oled import OLED12864_I2C 3 | 4 | i2c = I2C(-1, scl = Pin(27, pull = Pin.PULL_UP), sda = Pin(13, pull = Pin.PULL_UP)) 5 | 6 | oled = OLED12864_I2C(i2c) 7 | oled.text(0, 0, '0123456789') 8 | oled.Font('Font_8x16') 9 | oled.text(0, 1, '0123456789') 10 | oled.Font('Font_12x24') 11 | oled.text(0, 3, '0123456789') 12 | -------------------------------------------------------------------------------- /LED/OLED_I2C_ASC/oled.jpg: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/micropython-Chinese-Community/mpy-lib/e1f3e29d6ebcf6f5170f4ba3509e49979a79b664/LED/OLED_I2C_ASC/oled.jpg -------------------------------------------------------------------------------- /LED/README.md: -------------------------------------------------------------------------------- 1 | # LED-libs 2 | 3 | 4 | * [Four Digit Display (TM1650)](TM1650) 5 | * [Four Digit Display (TM1637)](TM1637) 6 | 7 | * [I2C OLED ASCII display drive](OLED_I2C_ASC) 8 | 9 | From microbit/micropython Chinese community. 10 | www.micropython.org.cn 11 | -------------------------------------------------------------------------------- /LED/TM1637/4-LED.jpg: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/micropython-Chinese-Community/mpy-lib/e1f3e29d6ebcf6f5170f4ba3509e49979a79b664/LED/TM1637/4-LED.jpg -------------------------------------------------------------------------------- /LED/TM1637/README.md: -------------------------------------------------------------------------------- 1 | # Four Digit Display TM1637 drive 2 | 3 | Four Digit Display is a Module with four 7-segment LED, it can show number. It has TM1637 chip inside, control with a two line interface. 4 | 5 | This drive base on mcauser's TM1637 LED driver: 6 | https://github.com/mcauser/micropython-tm1637 7 | 8 | ![](4-LED.jpg) 9 | 10 | 11 | ## API 12 | 13 | * **TM1637(clk, dio, intensity=7, number = 4)** 14 | initial TM1637 display. 15 | clk, clock singal. 16 | dio, data input/output signal. 17 | intensity, display intensity. 18 | number, LED number. 19 | 20 | * **intensity(val=None)** 21 | set display intensity. 22 | **val** is intensity will be set, it can be [0 - 8]. if dat is zero, display will be turn off. 23 | if not dat given, it will return current intensity. 24 | 25 | * **on()** 26 | turn on display 27 | 28 | * **off()** 29 | turn off display 30 | 31 | * **clear（）** 32 | clear content of the display 33 | 34 | * **shownum(num)** 35 | show a interger number in display. 36 | 37 | * **showhex(num)** 38 | show a hex number. 39 | 40 | * **showDP(bit = 1, show = True)** 41 | show or hide dot piont in give bit 42 | bit is dot piont position, [0 - 3] 43 | show, True will show DP, other will hide it 44 | 45 | ## example 46 | 47 | 48 | ``` 49 | from machine import Pin 50 | import time 51 | import TM1637 52 | 53 | dio = Pin(5, Pin.OUT) 54 | clk = Pin(4, Pin.OUT) 55 | tm=TM1637.TM1637(dio=dio,clk=clk) 56 | 57 | n = 0 58 | while 1: 59 | tm.shownum(n) 60 | n += 1 61 | time.sleep_ms(1000) 62 | ``` 63 | 64 | From microbit/micropython Chinese community. 65 | www.micropython.org.cn 66 | -------------------------------------------------------------------------------- /LED/TM1637/TM1637.py: -------------------------------------------------------------------------------- 1 | ''' 2 | mpy drive for Four Digit LED Display (TM1637) 3 | 4 | Author: shaoziyang 5 | Date: 2018.3 6 | 7 | http://www.micropython.org.cn 8 | 9 | ''' 10 | from machine import Pin 11 | from time import sleep_us 12 | 13 | TM1637_CMD1 = (64) # 0x40 data command 14 | TM1637_CMD2 = (192) # 0xC0 address command 15 | TM1637_CMD3 = (128) # 0x80 display control command 16 | TM1637_DELAY = (10) # 10us delay between clk/dio pulses 17 | 18 | 19 | ''' 20 | 0x00-0x0F 21 | 0x10-0x1F 22 | 0x20-0x2F 23 | 0x30-0x39 0 ~ 9 24 | 0x3A-0x40 25 | 0x41-0x5A A - Z 26 | 0x5B-0x60 27 | ''' 28 | _FONT1 = b'\ 29 | \x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\ 30 | \x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\ 31 | \x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x40\x00\x00\ 32 | \x3F\x06\x5B\x4F\x66\x6D\x7D\x07\x7F\x6F\ 33 | \x00\x00\x00\x00\x00\x00\x00\ 34 | \x77\x7C\x39\x5E\x79\x71\x3D\x76\x00\x0E\x00\x38\x00\x54\x5C\x73\x67\x00\x00\x78\x3E\x1C\x00\x00\x00\x00\x00\ 35 | \x00\x00\x00\x00\x08\x00\ 36 | ' 37 | _FONT2 = b'\ 38 | \x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\ 39 | \x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\ 40 | \x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x40\x00\x00\ 41 | \x3F\x30\x5B\x79\x74\x6D\x6F\x38\x7F\x7D\ 42 | \x00\x00\x00\x00\x00\x00\x00\ 43 | \x7E\x67\x0F\x73\x4F\x4E\x2F\x76\x00\x31\x00\x07\x00\x62\x63\x5E\x7C\x00\x00\x47\x37\x23\x00\x00\x00\x00\x00\ 44 | \x00\x00\x00\x00\x01\x00\ 45 | ' 46 | 47 | class TM1637(): 48 | def __init__(self, clk, dio, intensity=7, number = 4): 49 | self.clk = clk 50 | self.dio = dio 51 | 52 | self._intensity = intensity%8 53 | self._LEDS = number 54 | self._ON = 8 55 | self.dbuf = [0]*number 56 | self._reverse = False 57 | self.FONT = _FONT1 58 | 59 | self.clk.init(Pin.OUT, value=0) 60 | self.dio.init(Pin.OUT, value=0) 61 | sleep_us(TM1637_DELAY) 62 | 63 | self.clear() 64 | 65 | def _start(self): 66 | self.dio(0) 67 | sleep_us(TM1637_DELAY) 68 | self.clk(0) 69 | sleep_us(TM1637_DELAY) 70 | 71 | def _stop(self): 72 | self.dio(0) 73 | sleep_us(TM1637_DELAY) 74 | self.clk(1) 75 | sleep_us(TM1637_DELAY) 76 | self.dio(1) 77 | 78 | def _write_data_cmd(self): 79 | # automatic address increment, normal mode 80 | self._start() 81 | self._write_byte(TM1637_CMD1) 82 | self._stop() 83 | 84 | def _write_dsp_ctrl(self): 85 | # display on, set brightness 86 | self._start() 87 | self._write_byte(TM1637_CMD3 | self._ON | self._intensity) 88 | self._stop() 89 | 90 | def _write_byte(self, b): 91 | for i in range(8): 92 | self.dio((b >> i) & 1) 93 | sleep_us(TM1637_DELAY) 94 | self.clk(1) 95 | sleep_us(TM1637_DELAY) 96 | self.clk(0) 97 | sleep_us(TM1637_DELAY) 98 | self.clk(1) 99 | sleep_us(TM1637_DELAY) 100 | self.clk(0) 101 | sleep_us(TM1637_DELAY) 102 | 103 | def on(self): 104 | self._ON = 8 105 | self._write_data_cmd() 106 | self._write_dsp_ctrl() 107 | 108 | def off(self): 109 | self._ON = 0 110 | self._write_data_cmd() 111 | self._write_dsp_ctrl() 112 | 113 | def intensity(self, val=None): 114 | if val is None: 115 | return self._intensity 116 | val = max(0, min(val, 8)) 117 | if val == 0: 118 | self.off() 119 | else: 120 | self._ON = 8 121 | self._intensity = val-1 122 | self._write_data_cmd() 123 | self._write_dsp_ctrl() 124 | 125 | def reverse(self, reverse=False): 126 | self._reverse = reverse 127 | if reverse: 128 | self.FONT = _FONT2 129 | else: 130 | self.FONT = _FONT1 131 | 132 | def dat(self, dat, bit=0): 133 | if self._reverse: 134 | bit = self._LEDS - bit - 1 135 | self._write_data_cmd() 136 | self._start() 137 | self._write_byte(TM1637_CMD2 | (bit%self._LEDS)) 138 | self._write_byte(dat) 139 | self._stop() 140 | self._write_dsp_ctrl() 141 | 142 | def clear(self): 143 | for i in range(self._LEDS): 144 | self.dat(0, i) 145 | self.dbuf[i] = 0 146 | 147 | def showDP(self, show = True, bit = 1): 148 | bit = bit%self._LEDS 149 | if show: 150 | self.dat(self.dbuf[bit] | 0x80, bit) 151 | else: 152 | self.dat(self.dbuf[bit] & 0x7F, bit) 153 | 154 | def show(self, s): 155 | _s = s.upper() 156 | for i in range(self._LEDS): 157 | if i < len(_s): 158 | self.dbuf[i] = self.FONT[min(0x60, ord(_s[i]))] 159 | else: 160 | self.dbuf[i] = 0 161 | self.dat(self.dbuf[i], i) 162 | 163 | def shownum(self, num): 164 | self.show(str(num)) 165 | 166 | 167 | -------------------------------------------------------------------------------- /LED/TM1637/test.py: -------------------------------------------------------------------------------- 1 | ''' 2 | Four Digit Display (TM1637) demo 3 | 4 | Author: shaoziyang 5 | Date: 2018.3 6 | 7 | http://www.micropython.org.cn 8 | 9 | ''' 10 | from machine import Pin 11 | import time 12 | import TM1637 13 | 14 | dio = Pin(5, Pin.OUT) 15 | clk = Pin(4, Pin.OUT) 16 | tm=TM1637.TM1637(dio=dio,clk=clk) 17 | 18 | n = 0 19 | while 1: 20 | tm.shownum(n) 21 | n += 1 22 | time.sleep_ms(1000) 23 | -------------------------------------------------------------------------------- /LED/TM1650/4-LED.jpg: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/micropython-Chinese-Community/mpy-lib/e1f3e29d6ebcf6f5170f4ba3509e49979a79b664/LED/TM1650/4-LED.jpg -------------------------------------------------------------------------------- /LED/TM1650/FourDigitDisplay.py: -------------------------------------------------------------------------------- 1 | ''' 2 | mpy drive for Four Digit LED Display (TM1650) 3 | 4 | Author: shaoziyang 5 | Date: 2018.3 6 | 7 | http://www.micropython.org.cn 8 | 9 | ''' 10 | from micropython import const 11 | from machine import I2C 12 | 13 | COMMAND_I2C_ADDRESS = const(0x24) 14 | DISPLAY_I2C_ADDRESS = const(0x34) 15 | 16 | buf = (0x3F,0x06,0x5B,0x4F,0x66,0x6D,0x7D,0x07,0x7F,0x6F,0x77,0x7C,0x39,0x5E,0x79,0x71) 17 | 18 | class FourDigitDisplay(): 19 | def __init__(self, i2c): 20 | self.i2c = i2c 21 | self._intensity = 3 22 | self.dbuf = [0, 0, 0, 0] 23 | self.tbuf = bytearray(1) 24 | self.on() 25 | 26 | def intensity(self, dat = -1): 27 | if dat < 0 or dat > 8: 28 | return self._intensity 29 | if dat == 0: 30 | self.off() 31 | else: 32 | self._intensity = dat 33 | self.cmd((dat<<4)|0x01) 34 | 35 | def cmd(self, c): 36 | self.tbuf[0] = c 37 | self.i2c.writeto(COMMAND_I2C_ADDRESS, self.tbuf) 38 | 39 | def dat(self, bit, d): 40 | self.tbuf[0] = d 41 | self.i2c.writeto(DISPLAY_I2C_ADDRESS + bit%4, self.tbuf) 42 | 43 | def on(self): 44 | self.cmd((self._intensity<<4)|0x01) 45 | 46 | def off(self): 47 | self._intensity = 0 48 | self.cmd(0) 49 | 50 | def clear(self): 51 | self.dat(0, 0) 52 | self.dat(1, 0) 53 | self.dat(2, 0) 54 | self.dat(3, 0) 55 | self.dbuf = [0, 0, 0, 0] 56 | 57 | def showbit(self, num, bit = 0): 58 | self.dbuf[bit%4] = buf[num%16] 59 | self.dat(bit, buf[num%16]) 60 | 61 | def shownum(self, num): 62 | if num < 0: 63 | self.dat(0, 0x40) # '-' 64 | num = -num 65 | else: 66 | self.showbit((num // 1000) % 10) 67 | self.showbit(num % 10, 3) 68 | self.showbit((num // 10) % 10, 2) 69 | self.showbit((num // 100) % 10, 1) 70 | 71 | def showhex(self, num): 72 | if num < 0: 73 | self.dat(0, 0x40) # '-' 74 | num = -num 75 | else: 76 | self.showbit((num >> 12) % 16) 77 | self.showbit(num % 16, 3) 78 | self.showbit((num >> 4) % 16, 2) 79 | self.showbit((num >> 8) % 16, 1) 80 | 81 | def showDP(self, bit = 1, show = True): 82 | if show: 83 | self.dat(bit, self.dbuf[bit] | 0x80) 84 | else: 85 | self.dat(bit, self.dbuf[bit] & 0x7F) 86 | -------------------------------------------------------------------------------- /LED/TM1650/README.md: -------------------------------------------------------------------------------- 1 | # Four Digit Display TM1650/HBS650 drive 2 | 3 | Four Digit Display is a Module with four 7-segment LED, it can show number. It has TM1650 chip inside, control with a I2C bus. 4 | 5 | ![](4-LED.jpg) 6 | 7 | ## I2C Address 8 | 9 | | command | Display | 10 | | --- | --- | 11 | | 0x24 | 0x34 - 0x37 | 12 | 13 | 14 | ## API 15 | 16 | * **intensity(dat = -1)** 17 | set display intensity. 18 | **dat** is intensity will be set, it can be [0 - 8]. if dat is zero, display will be turn off. 19 | if not dat given, or dat > 8, or dat < 0, it will return current intensity. 20 | 21 | * **on()** 22 | turn on display 23 | 24 | * **off()** 25 | turn off display 26 | 27 | * **clear（）** 28 | clear content of the display 29 | 30 | * **shownum(num)** 31 | show a interger number in display. 32 | 33 | * **showhex(num)** 34 | show a hex number. 35 | 36 | * **showDP(bit = 1, show = True)** 37 | show or hide dot piont in give bit 38 | bit is dot piont position, [0 - 3] 39 | show, True will show DP, other will hide it 40 | 41 | ## example 42 | 43 | 44 | ``` 45 | import machine 46 | import time 47 | import FourDigitDisplay 48 | 49 | i2c = machine.I2C(1) 50 | fdd = FourDigitDisplay.FourDigitDisplay(i2c) 51 | 52 | n = 0 53 | while 1: 54 | fdd.shownum(n) 55 | n += 1 56 | time.sleep_ms(1000) 57 | ``` 58 | 59 | From microbit/micropython Chinese community. 60 | www.micropython.org.cn 61 | -------------------------------------------------------------------------------- /LED/TM1650/test.py: -------------------------------------------------------------------------------- 1 | ''' 2 | Four Digit Display demo 3 | 4 | Author: shaoziyang 5 | Date: 2018.3 6 | 7 | http://www.micropython.org.cn 8 | 9 | ''' 10 | import machine 11 | import time 12 | import FourDigitDisplay 13 | 14 | i2c = machine.I2C(1) 15 | fdd = FourDigitDisplay.FourDigitDisplay(i2c) 16 | 17 | n = 0 18 | while 1: 19 | fdd.shownum(n) 20 | n += 1 21 | time.sleep_ms(1000) 22 | -------------------------------------------------------------------------------- /LICENSE: -------------------------------------------------------------------------------- 1 | MIT License 2 | 3 | Copyright (c) 2018 shaoziyang 4 | 5 | Permission is hereby granted, free of charge, to any person obtaining a copy 6 | of this software and associated documentation files (the "Software"), to deal 7 | in the Software without restriction, including without limitation the rights 8 | to use, copy, modify, merge, publish, distribute, sublicense, and/or sell 9 | copies of the Software, and to permit persons to whom the Software is 10 | furnished to do so, subject to the following conditions: 11 | 12 | The above copyright notice and this permission notice shall be included in all 13 | copies or substantial portions of the Software. 14 | 15 | THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR 16 | IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, 17 | FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE 18 | AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER 19 | LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, 20 | OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE 21 | SOFTWARE. -------------------------------------------------------------------------------- /README.md: -------------------------------------------------------------------------------- 1 | # micropython-libs 2 | 3 | All kinds of micropython drives, examples, libraries. 4 | 5 | * [LCD](lcd) 6 | * [LED](LED) 7 | * [Sensor](sensor) 8 | * [Neopixel](neopixel) 9 | * keyboard 10 | * radio 11 | * bluetooth 12 | * [misc](misc) 13 | 14 | From microbit/micropython Chinese community. 15 | www.micropython.org.cn 16 | -------------------------------------------------------------------------------- /gnss/ugnss.py: -------------------------------------------------------------------------------- 1 | ''' 2 | mini GNSS Data analysis 3 | 4 | ''' 5 | 6 | class uGNSS(): 7 | 8 | GNSS_DIR = ('N', 'NNE', 'NE', 'ENE', 'E', 'ESE', 'SE', 'SSE', 'S', 9 | 'SSW', 'SW', 'WSW', 'W', 'WNW', 'NW', 'NNW') 10 | GNSS_VALID = (b'1', b'2') 11 | 12 | def __init__(self, bufsize = 2048): 13 | 14 | self.latitude = 0.0 15 | self.longitude = 0.0 16 | self.latitude_dir = 'N' 17 | self.longitude_dir = 'E' 18 | self.speed = 0.0 19 | self.course = 0.0 20 | self.altitude = 0.0 21 | self.geoid_height = 0.0 22 | self.date = [0, 0, 0] 23 | self.time = [0, 0, 0] 24 | self.datetime = [0, 0, 0, 0, 0, 0, 0, 0] 25 | self.valid = False 26 | self.satellites_in_view = 0 27 | self.satellites_in_use = 0 28 | self.satellites_used = [] 29 | self.hdop = 0.0 30 | self.pdop = 0.0 31 | self.vdop = 0.0 32 | self._crc = bytearray(1) 33 | self._buf = bytearray(256) 34 | self._pos = 0 35 | self._seg = [] 36 | 37 | def DM2DMS(dm): 38 | return 39 | 40 | def checksum(self, buf, length): 41 | self._crc[0] = 0 42 | for i in range(1, length): 43 | self._crc[0] ^= buf[i] 44 | try: 45 | d = int(b'0x'+buf[length+1:length+3]) 46 | except: 47 | return False 48 | return self._crc[0] == d 49 | 50 | def parse(self): 51 | try: 52 | if not self.checksum(self._buf, self._pos-4): 53 | return False 54 | 55 | self._seg = bytes(self._buf[1:self._pos-4]).split(b',') 56 | if self._seg[0] in self.GNSS_CMD: 57 | try: 58 | self.GNSS_CMD[self._seg[0]](self) 59 | return True 60 | except: 61 | return False 62 | 63 | return False 64 | finally: 65 | self._pos = 0 66 | 67 | def update_char(self, c): 68 | if self._pos: 69 | if self._pos > 250: 70 | self._pos = 0 71 | return False 72 | else: 73 | if type(c) is int: 74 | self._buf[self._pos] = c 75 | elif type(c) is str: 76 | self._buf[self._pos] = ord(c) 77 | else: 78 | self._pos = 0 79 | return False 80 | 81 | if self._buf[self._pos] == ord('\n'): 82 | return self.parse() 83 | else: 84 | self._pos += 1 85 | else: 86 | if c == '$' or c == ord(b'$'): 87 | self._buf[0] = 36 88 | self._pos = 1 89 | 90 | def update(self, dat): 91 | if not dat: 92 | return False 93 | 94 | for i in range(len(dat)): 95 | self.update_char(dat[i]) 96 | return self.valid 97 | 98 | def _time(self, dat): 99 | h, m, s = dat[0:2], dat[2:4], dat[4:6] 100 | self.time = [int(h), int(m), int(s)] 101 | self.datetime[4:7] = self.time 102 | 103 | def _date(self, dat): 104 | d, m, y = dat[0:2], dat[2:4], dat[4:6] 105 | self.date = [int(y), int(m), int(d)] 106 | self.datetime[0:3] = self.date 107 | 108 | def _latlon(self, dat): 109 | t = float(dat) 110 | d, m = divmod(t, 100) 111 | return d + m/60 112 | 113 | def _GNGGA(self): 114 | self._time(self._seg[1]) 115 | self.latitude = self._latlon(self._seg[2]) 116 | self.latitude_dir = self._seg[3].decode() 117 | self.longitude = self._latlon(self._seg[4]) 118 | self.longitude_dir = self._seg[5].decode() 119 | self.valid = self._seg[6] in self.GNSS_VALID 120 | self.satellites_in_use = int(self._seg[7]) 121 | self.hdop = float(self._seg[8]) 122 | self.altitude = float(self._seg[9]) 123 | self.geoid_height = float(self._seg[11]) 124 | 125 | def _GNRMC(self): 126 | self._time(self._seg[1]) 127 | self._date(self._seg[9]) 128 | self.valid = (self._seg[2] == b'A') 129 | self.latitude = self._latlon(self._seg[3]) 130 | self.latitude_dir = self._seg[4].decode() 131 | self.longitude = self._latlon(self._seg[5]) 132 | self.longitude_dir = self._seg[6].decode() 133 | self.speed = float(self._seg[7]) 134 | self.course = float(self._seg[8]) 135 | 136 | def _GNVTG(self): 137 | self.course = float(self._seg[1]) 138 | self.speed = float(self._seg[7]) 139 | 140 | def _GNGLL(self): 141 | self.latitude = self._latlon(self._seg[1]) 142 | self.latitude_dir = self._seg[2] 143 | self.longitude = self._latlon(self._seg[3]) 144 | self.longitude_dir = self._seg[4] 145 | self._time(self._seg[5]) 146 | self.valid = (self._seg[6] == b'A') 147 | 148 | def _GNGSA(self): 149 | self.pdop = float(self._seg[15]) 150 | self.hdop = float(self._seg[16]) 151 | self.vdop = float(self._seg[17]) 152 | 153 | def _GPGSV(self): 154 | self.satellites_in_view = int(self._seg[3]) 155 | 156 | GNSS_CMD = { 157 | b'GNGGA': _GNGGA, 158 | b'GNRMC': _GNRMC, 159 | b'GNVTG': _GNVTG, 160 | b'GNGLL': _GNGLL, 161 | b'GPGSV': _GPGSV, 162 | b'GNGSA': _GNGSA 163 | } 164 | 165 | def print(self): 166 | print('GNSS valid:', self.valid) 167 | print('lat:', self.latitude, self.latitude_dir) 168 | print('lon:', self.longitude, self.longitude_dir) 169 | print('speed:', self.speed) 170 | print('altitude:', self.altitude, self.geoid_height) 171 | print('hdop:', self.hdop) 172 | print('pdop:', self.pdop) 173 | print('vdop:', self.vdop) 174 | print('UTC:', self.datetime, self.date, self.time) 175 | print('satellites') 176 | print(' in view:', self.satellites_in_view) 177 | print(' in use: ', self.satellites_in_use) 178 | print(' list: ', self.satellites_used) 179 | 180 | -------------------------------------------------------------------------------- /keyboard/mechanical-button/single-button/README.md: -------------------------------------------------------------------------------- 1 | ### 单个机械按键驱动模块 2 | --- 3 | 4 | ![轻触按键](./key.JPG) 5 | 6 | ---- 7 | **简介** 8 | 9 | > 单个机械按键的操作，通常分为两种模式，即长按和短按。其中，长按又可分为定时长按与计时长按，定时长按即按下按键并保持按下状态达到设定时间后触发事件，且只触发一次，常用于设备复位。而计时长按则为在保持按下状态的情况下，达到设定时间（长度）值便触发一次事件，直到松开按键为止，此种方式常用于长按自动累加调整数值。短按则又可以分为单次点击和连续多次点击两种，单次点击就是按一下按键然后就松开，常用于普通的按键控制等；多次点击就是在设定的时间内连续按下、松开、再按下、再松开，来回多次，常用于一些设备的快速控制，如静电放电枪的扳机（开关），在停止状态下，扣动一次，则会切换电压极性，在停止状态下，连续扣动2次则会增加实验电压值，连续扣动3次则会减少实验电压值，连续扣动4次则会开始实验。 10 | 11 | #### 模块 12 | 13 | KEYBOARD *（\_btnKey, \_tmBtn, \_btnDef = 1, even_djlong = None, even_lj = None, \_pull = None）* 14 | 15 | ###### 参数说明 16 | ------ 17 | **\_btnKey** 18 | > 按钮引脚，按键所对应的IO引脚 19 | 20 | **\_tmBtn** 21 | > 定时器，用于定时扫描按键对应的IO状态。 22 | 23 | **\_btnDef** 24 | > 按键初始状态，若为1，则为高电平，低电平闭合。 25 | 26 | * 取值范围：`0` 或 `1` 27 | * 默认值：`1` 28 | 29 | 30 | **even_djlong** 31 | > 长按事件，若为None则为不启用，否则将调用指定的函数。 32 | 33 | * 取值范围：`None` 或 `其它` 34 | * 默认值：`None`（即不启用） 35 | 36 | **even_lj** 37 | > 连续点击事件，若为None则为不启用，否则将调用指定的函数。 38 | 39 | * 取值范围：`None` 或 `其它` 40 | * 默认值：`None`（即不启用） 41 | 42 | **\_pull** 43 | > 触发方式，按键弹起后触发或按下后触发。 44 | 45 | * 取值范围：`UP`、`DOWN`、`None` 46 | * 默认值：`UP` 47 | 48 | 49 | ###### 事件说明 50 | ------ 51 | **even_djlong(con)** 52 | > * 按键长按事件，若不带参数，则表示触发了一次固定时长的长按事件，若带参数，则会返回当前按下并保持按钮状态的时长； 53 | > * con为返回的连续有效的计时次数，时间间隔与定时器的设置有关。统计时间时可以使用 （con×时间间隔）÷1000； 54 | > * 事件名称可在引用时自定义； 55 | > * 长按计时与长按事件不可同时触发，两者二选一。 56 | 57 | 58 | **even_lj(con)** 59 | > * 按键连续点击事件，在规定的时间间隔内连续按下并松开按键的次数； 60 | > * con 为事件返回的按键点击次数，若为`1`则表示为单击。 61 | 62 | 63 | #### 用法举例： 64 | 65 | ```python 66 | from keyboard import KEYBOARD 67 | 68 | # 按键引脚 69 | p = Pin('B3') 70 | 71 | # 定时器,按键时钟使用 72 | s = Timer(1) 73 | 74 | # 长按事件 75 | def evn_long(con): 76 | print("您按下按键已保持 ", (con*10)/1000," 秒的时间了") 77 | 78 | # 连续点击事件 79 | def evn_con(con): 80 | print("您已连续点击了：", con, " 次") 81 | 82 | # 声明按键对象，并设置事件 83 | sw = KEYBOARD(p, s, 0, evn_long, evn_con, "UP") 84 | 85 | 86 | 87 | ``` 88 | -------------------------------------------------------------------------------- /keyboard/mechanical-button/single-button/key.JPG: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/micropython-Chinese-Community/mpy-lib/e1f3e29d6ebcf6f5170f4ba3509e49979a79b664/keyboard/mechanical-button/single-button/key.JPG -------------------------------------------------------------------------------- /keyboard/mechanical-button/single-button/keyboard.py: -------------------------------------------------------------------------------- 1 | # -*- coding:UTF-8 -*- 2 | 3 | ''' 4 | MIT License 5 | Copyright (c) 2018 Robin Chen 6 | Permission is hereby granted, free of charge, to any person obtaining a copy 7 | of this software and associated documentation files (the "Software"), to deal 8 | in the Software without restriction, including without limitation the rights 9 | to use, copy, modify, merge, publish, distribute, sublicense, and/or sell 10 | copies of the Software, and to permit persons to whom the Software is 11 | furnished to do so, subject to the following conditions: 12 | The above copyright notice and this permission notice shall be included in all 13 | copies or substantial portions of the Software. 14 | THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR 15 | IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, 16 | FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE 17 | AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER 18 | LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, 19 | OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE 20 | SOFTWARE. 21 | ''' 22 | 23 | ''' 24 | ****************************************************************************** 25 | * 文 件：keyboard.py 26 | * 概 述：识别单个机械按键的单击、连击（暂未限制连击次数）、长按、短按动作，并返回事件。 27 | * 版 本：V0.10 28 | * 作 者：Robin Chen 29 | * 日 期：2018年7月26日 30 | * 历 史： 日期 编辑 版本 记录 31 | 2018年7月26日 Robin Chen V0.10 创建文件 32 | ` 33 | ******************************************************************************''' 34 | class KEYBOARD: 35 | cont = 0 36 | def __init__(self, _btnKey, _tmBtn, _btnDef = 1, even_djlong = None, even_lj = None, _pull = None): 37 | self.btn = _btnKey 38 | if _pull == "UP": 39 | self.btn.init(_btnKey.IN, _btnKey.PULL_UP) 40 | elif _pull == "DOWN": 41 | self.btn.init(_btnKey.IN, _btnKey.PULL_DOWN) 42 | else: 43 | self.btn.init(_btnKey.IN) 44 | self.btnDef = _btnDef 45 | self.eve_btnLon = even_djlong 46 | self.evn_Continuous_Clicks = even_lj 47 | self.btnLabDown = 0 # 按钮扫描记次,按下状态 48 | self.btnLabUp = 0 # 按钮扫描记次,弹起状态 49 | self.Continuous_Clicks = 0 # 连续点击次数 50 | self.clock = 10 # 定时器时钟，单位毫秒 51 | _tmBtn.init(freq = (1000 / self.clock)) 52 | _tmBtn.callback(self.doBtnScan) 53 | self.staLon = 1 # 长按标志字，1：长按计时，0:长按计次 54 | self.tLon = 3000 # 计时或计次延时，单位毫秒 55 | self.TIME_CONT_CLICKS = 50 # 连击时间间隔，按下和松开的状态保持时间长度，单位，次 56 | 57 | '''************************************************************************* 58 | * 功 能：按键扫描 59 | * 说 明：定时器回调函数，用于识别当前按键是否动作，并判断其动作形式。 60 | * 输入参数： 61 | t : 定时器无参回调函数必备，否则调用不成功。 62 | * 输出参数：None 63 | * 返 回 值：True 64 | **************************************************************************''' 65 | # 扫描按键，定时中断调用函数 66 | def doBtnScan(self, t): 67 | global cont 68 | self.btnLabUp = (self.btnLabUp * int(not(self.btn.value() ^ int(not(self.btnDef))))) + int(not(self.btn.value() ^ int(not(self.btnDef)))) 69 | btdown = self.btnLabDown 70 | self.btnLabDown = (self.btnLabDown * int(not(self.btn.value() ^ self.btnDef))) + int(not(self.btn.value() ^ self.btnDef)) 71 | 72 | # 长按计时/计次 73 | # t1:按键保持按下的时长 74 | if (self.btnLabDown * self.clock) == self.tLon: 75 | if self.staLon == 1: 76 | if self.eve_btnLon != None: 77 | self.eve_btnLon() # 按键长按事件，请勿在事件中执行过长时间的程序，否则会报定时器错误。 78 | elif self.staLon == 0: 79 | if self.eve_btnLon != None: 80 | cont += 1 81 | self.eve_btnLon(cont) # 按键长按事件，请勿在事件中执行过长时间的程序，否则会报定时器错误。 82 | self.btnLabDown = 0 83 | if self.btnLabUp > 5: 84 | cont = 0 85 | 86 | # 连续点击 87 | if (btdown > 5 and btdown < self.TIME_CONT_CLICKS) and self.btnLabUp > 0: 88 | self.Continuous_Clicks += 1 89 | 90 | if (self.btnLabUp > self.TIME_CONT_CLICKS) and (self.Continuous_Clicks > 0) or (self.btnLabDown > self.TIME_CONT_CLICKS) and (self.Continuous_Clicks > 0): 91 | if self.evn_Continuous_Clicks != None: 92 | self.evn_Continuous_Clicks(self.Continuous_Clicks) # 连续点击事件，次数为1时为单击，请勿在事件中执行过长时间的程序，否则会报定时器错误。 93 | self.Continuous_Clicks = 0 94 | -------------------------------------------------------------------------------- /lcd/3Wire-HT1621B-GDC03849/DataSheet/GDC03849C1P6.8.pdf: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/micropython-Chinese-Community/mpy-lib/e1f3e29d6ebcf6f5170f4ba3509e49979a79b664/lcd/3Wire-HT1621B-GDC03849/DataSheet/GDC03849C1P6.8.pdf -------------------------------------------------------------------------------- /lcd/3Wire-HT1621B-GDC03849/DataSheet/HT1621CN.pdf: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/micropython-Chinese-Community/mpy-lib/e1f3e29d6ebcf6f5170f4ba3509e49979a79b664/lcd/3Wire-HT1621B-GDC03849/DataSheet/HT1621CN.pdf -------------------------------------------------------------------------------- /lcd/3Wire-HT1621B-GDC03849/DataSheet/HT1621EN.pdf: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/micropython-Chinese-Community/mpy-lib/e1f3e29d6ebcf6f5170f4ba3509e49979a79b664/lcd/3Wire-HT1621B-GDC03849/DataSheet/HT1621EN.pdf -------------------------------------------------------------------------------- /lcd/3Wire-HT1621B-GDC03849/DataSheet/README.md: -------------------------------------------------------------------------------- 1 | The DataSheet of IC. 2 | -------------------------------------------------------------------------------- /lcd/3Wire-HT1621B-GDC03849/README_CN.md: -------------------------------------------------------------------------------- 1 | [:uk:English][EN] 2 | 3 | 3Wire-HT1621B-GDC03849 4 | ==== 5 | ![Frame diagram](./images/ht1621b_gdc.png) 6 | > 3Wire-HT1621B-GDC03849 为ht1621b作为驱动芯片的GDC03849液晶驱动模块。驱动芯片与主CPU为3+CS总线通讯方式进行数据交换。 7 | 8 | 9 | HT1621B 10 | ---- 11 | > HT1621是由[台湾合泰半导体公司][HT]生产的一款128点内存映象和多功能的LCD驱动器，HT1621 的软件配置特性使它适用于多种LCD应用场合包括LCD模块和显示子系统用于连接主控制器和HT1621的管脚只有4或5条，HT1621 还有一个节电命令用于降低系统功耗。详细资料请阅读 [HT1621B数据手册][1] 12 | 13 | 14 | #### 接口 15 | 16 | * **init(_timer = CMD_TIMER_DIS, _wdt = CMD_WDT_DIS, _scs = CMD_RC256K, _bias = CMD_B3C4, _tone = CMD_TONE4K, _irq = CMD_IRQ_DIS, _twc = CMD_F128, _mod = CMD_NORMAL)**
17 | *芯片功能与参数初始化* 18 | _timer: 时基输出设置
19 | _wdt: WDT溢出标志输出设置
20 | _scs: 系统时钟源设置
21 | _bias: 偏压和公共端设置
22 | _tone: 声音设置
23 | _irq: IRQ设置（生效/失效）
24 | _twc: 时基/WDT时钟输出设置（F1～F128）
25 | _mod: 模式设置（测试模式和普通模式）
26 | 27 | * **HT1621xWrCmd(_cmd)**
28 | *发送单个命令。*
29 | _cmd: 命令。（16进制）
30 | ```python 31 | # 向ht1621b发送打开LCD偏置电压（即打开LCD电源）的命令 32 | HT1621xWrCmd(0x006) # 在这里已经设置了常量（LCDON）来代替命令值（0x006)。 33 | ``` 34 | * **HT1621xWrOneData(_addr, _htdata)**
35 | *指定地址发送单个数据。*
36 | _addr: 地址（16进制）
37 | _htdata:数据，通常为1个字节。（16进制）
38 | ```python 39 | # 将温度最左侧(1号位)的数字显示为2 40 | HT1621xWrOneData(0x13, ((0x0B, 0x06))) 41 | ``` 42 | 43 | * **HT1621xWrAllData(_addr, _htdata)**
44 | *指定起始地址，连续发送多个数据。*
45 | _addr：起始地址（16进制）
46 | _htdata：连续的数据（16进制列表）
47 | ```python 48 | # 将温度值区全部显示为2。 49 | ALLSHOW(0x00, ((0x0B, 0x06), (0x0B, 0x06), (0x0B, 0x06), (0x0B, 0x06), (0x0B, 0x06), (0x0B, 0x06))) 50 | ``` 51 | 52 | * **ALLSHOW(_addr, _nbit)**
53 | *指定起始地址连续发送指定个数的 1。*
54 | _addr:起始地址（16进制）
55 | _nbit:数据SEG位数(1-32)。
56 | ```python 57 | # 清除内存中所有内容，即全部置1 58 | ALLSHOW(0x00, 32) 59 | ``` 60 | 61 | * **ALLCLEAR(_addr, _nbit)**
62 | *指定起始地址连续发送指定个数的 0。*
63 | _addr: 起始地址。（0x00-0x)
64 | _nbit: RAM区（SEG）个数（1-32）。
65 | ```python 66 | # 清除内存中所有内容，即全部置0 67 | ALLCLEAR(0x00, 32) 68 | ``` 69 | * **LCDON()**
70 | *打开LCD偏压发生器。* 71 | 72 | * **LCDOFF()**
73 | *关闭LCD偏压发生器。* 74 | 75 | * **HTBEEP(_t)**
76 | *使蜂鸣器一直响指定的时间后不响。*
77 | _t:保持时间，单位：毫秒
78 | ```python 79 | # 蜂鸣器持续响500毫秒 80 | HTBEEP(500) 81 | ``` 82 | 83 | #### 常量 84 | 85 | * 功能符号(标志字) 86 | 87 | 名称 | 描述 88 | --- | --- 89 | FLAG_CMD | 命令 90 | FLAG_READ | 只读RAM 91 | FLAG_WRITE | 只写RAM 92 | FLAG_MODIFY | 读和写RAM(即修改RAM)READ-MODIFY-WRITE 93 | 94 | * 液晶控制 95 | 96 | 名称 | 描述 97 | --- | --- 98 | CMD_LCDON | 打开LCD偏压发生器 99 | CMD_LCDOFF | 关闭LCD偏压发生器（上电时默认设置） 100 | 101 | * 系统控制 102 | 103 | 名称 | 描述 104 | --- | --- 105 | CMD_SYSEN | 打开系统振荡器 106 | CMD_SYSDIS | 关半系统振荡器和LCD偏压发生器 （上电时默认设置） 107 | 108 | * Bias与COM设置，即偏置电压与COM端,当前参数根据液晶的资料文件进行选择，比如1/4DUTY,1/3BIAL，则选择"B3C4" 109 | * 1/2偏压设置 110 | 111 | 名称 | 描述 112 | --- | --- 113 | CMD_B2C2 | 2COM,1/2 bias 114 | CMD_B2C3 | 001001000 3COM,1/2 bias 115 | CMD_B2C4 | 4COM,1/2 bias 116 | 117 | * 1/3偏压设置 118 | 119 | 名称 | 描述 120 | --- | --- 121 | CMD_B3C2 | 2COM,1/3 bias 122 | CMD_B3C3 | 3COM,1/3 bias 123 | CMD_B3C4 | 4COM,1/3 bias 124 | 125 | * 时钟设置 126 | 127 | 名称 | 描述 128 | --- | --- 129 | CMD_RC256K | 系统时钟源，片内RC振荡器 （上电时默认设置） 130 | CMD_EXT256K | 系统时钟源，外部时钟 131 | CMD_XTAL32K | 系统时钟源（晶振） 132 | 133 | * 时基设置 134 | 135 | 名称 | 描述 136 | --- | --- 137 | CMD_TIMER_EN | 时基输出使能 138 | CMD_TIMER_DIS | 时基输出失效 139 | CMD_CLR_TIMER | 时基发生器清零 140 | 141 | * WDT设置 142 | 143 | 名称 | 描述 144 | --- | --- 145 | CMD_WDT_DIS | WDT溢出标志输出失效，禁用看门狗 146 | CMD_WDT_EN | WDT溢出标志输出有效，启用看门狗 147 | CMD_CLR_WDT | 清除WDT状态 148 | 149 | * 声音输出设置 150 | 151 | 名称 | 描述 152 | --- | --- 153 | CMD_TONE2K | 设置声音频率输出为2KHz 154 | CMD_TONE4K | 设置声音频率输出为4KHz 155 | CMD_TONEON | 打开声音输出 156 | CMD_TONEOFF | 关闭声音输出（上电时默认设置） 157 | 158 | * 时基/WDT输出设置 159 | 160 | 名称 | 描述 161 | --- | --- 162 | CMD_F1 | 时基/WDT时钟输出:1Hz
WDT超时标志后: 4s 163 | CMD_F2 | 时基/WDT时钟输出:2Hz
WDT超时标志后: 2s 164 | CMD_F4 | 时基/WDT时钟输出:4Hz
WDT超时标志后: 1s 165 | CMD_F8 | 时基/WDT时钟输出:8Hz
WDT超时标志后: 1/2s 166 | CMD_F16 | 时基/WDT时钟输出:16Hz
WDT超时标志后: 1/4s 167 | CMD_F32 | 时基/WDT时钟输出:32Hz
WDT超时标志后: 1/8s 168 | CMD_F64 | 时基/WDT时钟输出:64Hz
WDT超时标志后: 1/16s 169 | CMD_F128 | 时基/WDT时钟输出:128Hz
WDT超时标志后: 1/32s（上电时默认设置） 170 | 171 | * IRQ设置 172 | 173 | 名称 | 描述 174 | --- | --- 175 | CMD_IRQ_DIS | 使IRQ输出失效（上电时默认设置） 176 | CMD_IRQ_EN | 使IRQ输出有效 177 | 178 | * 工作模式设置 179 | 180 | 名称 | 描述 181 | --- | --- 182 | CMD_TEST | 测试模式 183 | CMD_NORMAL | 普通模式（上电时默认设置） 184 | 185 |

186 | 187 | 188 | 189 | GDC03849 190 | ---- 191 | > GDC03849 是一款由[大连佳显][DL]公司生产的液晶屏幕,仅用于显示3位整数与2位小数的温度与温度值。详细信息请阅读 [GDC03849数据手册][2]。 192 | 193 | #### 接口 194 | 195 | * **viewTemp(_gdcdata)**
