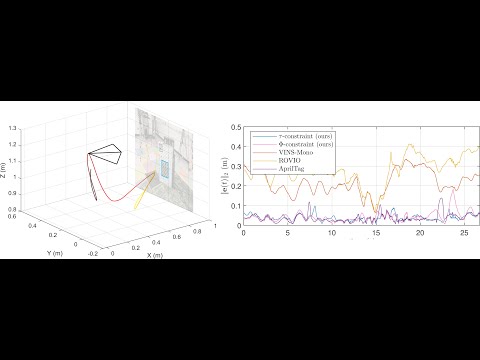

├── .gitignore ├── LICENSE ├── README.md ├── affine_flow.py ├── affine_flow_time_to_contact.py ├── apriltag_odometry.py ├── phi_depth_integrals_accel_bias.py ├── phi_pose_observer.py ├── robomaster_pickle_mat.py ├── ros ├── README.md ├── VINS-Mono │ ├── Dockerfile │ ├── attach.sh │ ├── build.sh │ ├── realsense_435i.launch │ ├── realsense_435i_config.yaml │ ├── run.sh │ └── vins_rviz.launch ├── ros_convert_rovio.py ├── ros_convert_vins_mono.py ├── ros_publish_folder_recording.py └── rovio │ ├── .dockerignore │ ├── Dockerfile │ ├── attach.sh │ ├── build.sh │ ├── d435i_cam0.yaml │ ├── d435i_rovio.info │ ├── rovio_node.launch │ ├── rovio_rosbag_node_ttc.launch │ └── run.sh ├── rpg_align_trajectory ├── LICENSE ├── __init__.py └── rpg_align_trajectory.py ├── ttc_depth.py ├── ttc_depth_calc_error.py ├── ttc_depth_from_folder.py ├── ttc_depth_integrals_accel_bias.py ├── ttc_depth_plot_live.py ├── ttc_depth_realsense.py ├── ttc_depth_robomaster.py ├── ttc_pose_observer.py ├── utilities.py └── zmq_vector_publisher.py /.gitignore: -------------------------------------------------------------------------------- 1 | results 2 | 3 | # Byte-compiled / optimized / DLL files 4 | __pycache__/ 5 | *.py[cod] 6 | *$py.class 7 | 8 | # C extensions 9 | *.so 10 | 11 | # Distribution / packaging 12 | .Python 13 | build/ 14 | develop-eggs/ 15 | dist/ 16 | downloads/ 17 | eggs/ 18 | .eggs/ 19 | lib/ 20 | lib64/ 21 | parts/ 22 | sdist/ 23 | var/ 24 | wheels/ 25 | share/python-wheels/ 26 | *.egg-info/ 27 | .installed.cfg 28 | *.egg 29 | MANIFEST 30 | 31 | # PyInstaller 32 | # Usually these files are written by a python script from a template 33 | # before PyInstaller builds the exe, so as to inject date/other infos into it. 34 | *.manifest 35 | *.spec 36 | 37 | # Installer logs 38 | pip-log.txt 39 | pip-delete-this-directory.txt 40 | 41 | # Unit test / coverage reports 42 | htmlcov/ 43 | .tox/ 44 | .nox/ 45 | .coverage 46 | .coverage.* 47 | .cache 48 | nosetests.xml 49 | coverage.xml 50 | *.cover 51 | *.py,cover 52 | .hypothesis/ 53 | .pytest_cache/ 54 | cover/ 55 | 56 | # Translations 57 | *.mo 58 | *.pot 59 | 60 | # Django stuff: 61 | *.log 62 | local_settings.py 63 | db.sqlite3 64 | db.sqlite3-journal 65 | 66 | # Flask stuff: 67 | instance/ 68 | .webassets-cache 69 | 70 | # Scrapy stuff: 71 | .scrapy 72 | 73 | # Sphinx documentation 74 | docs/_build/ 75 | 76 | # PyBuilder 77 | .pybuilder/ 78 | target/ 79 | 80 | # Jupyter Notebook 81 | .ipynb_checkpoints 82 | 83 | # IPython 84 | profile_default/ 85 | ipython_config.py 86 | 87 | # pyenv 88 | # For a library or package, you might want to ignore these files since the code is 89 | # intended to run in multiple environments; otherwise, check them in: 90 | # .python-version 91 | 92 | # pipenv 93 | # According to pypa/pipenv#598, it is recommended to include Pipfile.lock in version control. 94 | # However, in case of collaboration, if having platform-specific dependencies or dependencies 95 | # having no cross-platform support, pipenv may install dependencies that don't work, or not 96 | # install all needed dependencies. 97 | #Pipfile.lock 98 | 99 | # poetry 100 | # Similar to Pipfile.lock, it is generally recommended to include poetry.lock in version control. 101 | # This is especially recommended for binary packages to ensure reproducibility, and is more 102 | # commonly ignored for libraries. 103 | # https://python-poetry.org/docs/basic-usage/#commit-your-poetrylock-file-to-version-control 104 | #poetry.lock 105 | 106 | # pdm 107 | # Similar to Pipfile.lock, it is generally recommended to include pdm.lock in version control. 108 | #pdm.lock 109 | # pdm stores project-wide configurations in .pdm.toml, but it is recommended to not include it 110 | # in version control. 111 | # https://pdm.fming.dev/#use-with-ide 112 | .pdm.toml 113 | 114 | # PEP 582; used by e.g. github.com/David-OConnor/pyflow and github.com/pdm-project/pdm 115 | __pypackages__/ 116 | 117 | # Celery stuff 118 | celerybeat-schedule 119 | celerybeat.pid 120 | 121 | # SageMath parsed files 122 | *.sage.py 123 | 124 | # Environments 125 | .env 126 | .venv 127 | env/ 128 | venv/ 129 | ENV/ 130 | env.bak/ 131 | venv.bak/ 132 | 133 | # Spyder project settings 134 | .spyderproject 135 | .spyproject 136 | 137 | # Rope project settings 138 | .ropeproject 139 | 140 | # mkdocs documentation 141 | /site 142 | 143 | # mypy 144 | .mypy_cache/ 145 | .dmypy.json 146 | dmypy.json 147 | 148 | # Pyre type checker 149 | .pyre/ 150 | 151 | # pytype static type analyzer 152 | .pytype/ 153 | 154 | # Cython debug symbols 155 | cython_debug/ 156 | 157 | # PyCharm 158 | # JetBrains specific template is maintained in a separate JetBrains.gitignore that can 159 | # be found at https://github.com/github/gitignore/blob/main/Global/JetBrains.gitignore 160 | # and can be added to the global gitignore or merged into this file. For a more nuclear 161 | # option (not recommended) you can uncomment the following to ignore the entire idea folder. 162 | #.idea/ -------------------------------------------------------------------------------- /LICENSE: -------------------------------------------------------------------------------- 1 | Copyright 2022 Levi Burner 2 | 3 | Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: 4 | 5 | The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. 6 | 7 | THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. -------------------------------------------------------------------------------- /README.md: -------------------------------------------------------------------------------- 1 | # TTCDist: Fast Distance Estimation From an Active Monocular Camera Using Time-to-Contact 2 | 3 | This repository contains code for *TTCDist: Fast Distance Estimation From an Active Monocular Camera Using Time-to-Contact* by Levi Burner, Nitin J. Sanket, Cornelia Fermuller, and Yiannis Aloimonos. 4 | 5 | You can find a pdf of the paper [here](https://arxiv.org/abs/2203.07530). 6 | 7 | [![TTCDistVideo](https://img.youtube.com/vi/CGS2FIZujnQ/0.jpg)](https://www.youtube.com/watch?v=CGS2FIZujnQ) 8 | 9 | ## Setup 10 | We use standard scientific Python (`>=3.8`) libraries like NumPy, SciPy, Matplotlib, and Numba. Make sure these are installed. 11 | 12 | The python bindings of the official [`apriltag`](https://github.com/AprilRobotics/apriltag) library are needed to use the `--april` flag in any of the scripts below. 13 | 14 | The Python package `pyrealsense2` is needed to run the algorithms in realtime with a RealSense D435i camera. The following links may be helpful when tring to install `pyrealsense2` on Ubuntu 22.04 and newer. Older versions of Ubuntu should use the standard instructions. 15 | 16 | * https://github.com/IntelRealSense/librealsense/blob/master/doc/installation.md 17 | * https://github.com/IntelRealSense/librealsense/tree/master/wrappers/python 18 | 19 | ## Running from a recording in a folder 20 | ### Data 21 | We provide the data for the 10 sequences considered in TTCDist [here](https://drive.google.com/file/d/1XPYIrPPVfR7nqbWSclclwrIp4igqRGyS/view?usp=sharing). 22 | 23 | Download and extract to `TTCDist/recordings_21_11_12` 24 | 25 | ### Running on one sequence 26 | ```bash 27 | python3 ttc_depth_from_folder.py --dir recordings_21_11_12/record_000000 --visualize 28 | ``` 29 | 30 | ### Benchmark on a single sequence 31 | 32 | *Note:* On the first run, the Numba functions will be compiled which will significantly affect the runtime. However, when run a second time, a compilation cache will be used instead. 33 | 34 | ```bash 35 | python3 ttc_depth_from_folder.py --dir recordings_21_11_12/record_000000 --bench 36 | ``` 37 | 38 | ### Benchmark on all sequences 39 | 40 | *Note:* On the first run, the Numba functions will be compiled which will significantly affect the runtime. However, when run a second time, a compilation cache will be used instead. 41 | 42 | ```bash 43 | python3 ttc_depth_from_folder.py --dir recordings_21_11_12 --all --bench 44 | ``` 45 | 46 | ### Calculate Average Trajectory Error 47 | We provide the data produced by all methods on the sequences in TTCDist [here](https://drive.google.com/file/d/1bO09vdTp8yazhRv755r_PQv2GPik6mY1/view?usp=sharing). 48 | 49 | Download and extract to `TTCDist/results` 50 | 51 | Then run the following to regenerate the results for the Tau, Phi, and AprilTag methods and calculate error. 52 | 53 | ```bash 54 | python3 ttc_depth_from_folder.py --dir recordings_21_11_12 --all --save --april 55 | python3 ttc_depth_calc_error.py --dir results --calc --latex 56 | ``` 57 | 58 | To use the `--april` flag the python bindings for the official apriltag package must be installed from [here](https://github.com/AprilRobotics/apriltag). 59 | 60 | If you wish to reevaluate ROVIO and VINS-Mono on the recorded sequences the scripts in the `ros/` folder may be 61 | 62 | ## Running in realtime with an Intel Realsense D435i 63 | ### Without apriltag package 64 | Assuming the `pyrealsense2` package is installed just run the following 65 | 66 | ```bash 67 | python3 ttc_depth_realsense.py --visualize 68 | ``` 69 | 70 | A live output will run and the Z distance between the camera and the object will be shown. The top number is from the Tau constraint and the bottom is from the Phi constraint. 71 | 72 | The `r` key can be used to reset the patch being tracked. The `q` key will close the application. 73 | 74 | ### With apriltag ground truth 75 | If the python bindings for the official apriltag package are installed from [here](https://github.com/AprilRobotics/apriltag) then the following will work 76 | 77 | ```bash 78 | python3 ttc_depth_realsense.py --visualize --april 79 | ``` 80 | 81 | in another terminal run 82 | 83 | 84 | ```bash 85 | python3 ttc_depth_plot_live.py 86 | ``` 87 | 88 | A live plot will show. The top row shows the X, Y, and Z positions of the tracked object. `x_hat` is from the Tau Constraint. `x_gt` is from the AprilTag, and `phi_x_hat` is from the Phi Constraint. 89 | 90 | 91 | ## Running the RoboMaster experiments 92 | Install the [RoboMaster-SDK Python package](https://github.com/dji-sdk/RoboMaster-SDK). Make sure your RoboMaster robot works with some of the examples included in the SDK. Then to run the experiments from TTCDist use the command: 93 | 94 | ```bash 95 | python3 ttc_depth_robomaster.py --visualize --b 2.0 --efference 96 | ``` 97 | 98 | Remove the `--efference` flag to use measured acceleration as described in the paper. 99 | 100 | 101 | ## Acknowledgements 102 | Part of the [rpg_trajectory_evaluation](https://github.com/uzh-rpg/rpg_trajectory_evaluation) toolbox is reproduced in `rpg_align_trajectory/` and is available under its respective license. 103 | -------------------------------------------------------------------------------- /affine_flow.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: affine_flow.py 4 | # Available under MIT license 5 | # 6 | # Estimate affine flow for a predetermined patch 7 | # 8 | # History: 9 | # 04-23-20 - Levi Burner - Created file 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import time 15 | 16 | import cv2 17 | import numpy as np 18 | import numba as nb 19 | from scipy.spatial.transform import Rotation as R 20 | 21 | def derotate_image(frame, K, q_c_to_fc): 22 | R_c_to_fc = R.from_quat((q_c_to_fc[1], q_c_to_fc[2], q_c_to_fc[3], q_c_to_fc[0])).as_matrix() 23 | R_fc_to_c = R_c_to_fc.T 24 | 25 | # Derive this by considering p1 = (K R K_inv) (Z(X)/Z(RX)) p0 26 | top_two_rows = (K @ R_fc_to_c @ np.linalg.inv(K))[0:2, :] 27 | bottom_row = (R_fc_to_c @ np.linalg.inv(K))[2, :] 28 | 29 | map_pixel_c_to_fc = np.vstack((top_two_rows, bottom_row)) 30 | map_pixel_c_to_fc_opencv = np.float32(map_pixel_c_to_fc.flatten().reshape(3,3)) 31 | 32 | frame_derotated = cv2.warpPerspective(frame, map_pixel_c_to_fc_opencv, (frame.shape[1], frame.shape[0]), flags=cv2.WARP_INVERSE_MAP+cv2.INTER_LINEAR) 33 | return frame_derotated 34 | 35 | def calculate_dW_dp_mults(rect, stride): 36 | region_size = (int((rect[2] - rect[0])/stride), int((rect[3] - rect[1])/stride)) 37 | 38 | x_mult = stride*np.tile(np.arange(0, region_size[0]), region_size[1]) + rect[0] 39 | y_mult = stride*np.repeat(np.arange(0, region_size[1]), region_size[0]) + rect[1] 40 | return x_mult, y_mult 41 | 42 | # From eq 35 of LK 20 years on 43 | def invert_delta_p(last_p, T_considered, I_warped_back_considered, grad_T_dW, H_T_dW_inv): 44 | diff_T_I_shaped = (T_considered - I_warped_back_considered).flatten() 45 | 46 | grad_J_to_p = diff_T_I_shaped @ grad_T_dW 47 | delta_p_inv = H_T_dW_inv @ grad_J_to_p 48 | 49 | p = -delta_p_inv 50 | 51 | p_inv_unscaled = np.array( 52 | (-p[0] - p[0]*p[3] + p[1] * p[2], 53 | -p[1], 54 | -p[2], 55 | -p[3] - p[0]*p[3] + p[1]*p[2], 56 | -p[4] - p[3]*p[4] + p[2]*p[5], 57 | -p[5] - p[0]*p[5] + p[1]*p[4]), 58 | dtype=np.float32) 59 | scale = 1.0 / ((1+p[0])*(1+p[3])-p[1]*p[2]) 60 | delta_p = scale * p_inv_unscaled 61 | 62 | last_p = compose_warp(last_p, delta_p) 63 | 64 | return delta_p, last_p 65 | invert_delta_p = nb.jit(nopython = True, cache = True, fastmath=True)(invert_delta_p) 66 | 67 | # Calculate p_c s.t. W(p_c, x) = W(p, W_(dp, x)) 68 | # from eq 18 of LK 20 years on 69 | def compose_warp(p, dp): 70 | p_c = np.array( 71 | (p[0] + dp[0] + p[0] * dp[0] + p[2] * dp[1], 72 | p[1] + dp[1] + p[1] * dp[0] + p[3] * dp[1], 73 | p[2] + dp[2] + p[0] * dp[2] + p[2] * dp[3], 74 | p[3] + dp[3] + p[1] * dp[2] + p[3] * dp[3], 75 | p[4] + dp[4] + p[0] * dp[4] + p[2] * dp[5], 76 | p[5] + dp[5] + p[1] * dp[4] + p[3] * dp[5])) 77 | return p_c 78 | compose_warp = nb.jit(nopython = True, cache = True, fastmath=True)(compose_warp) 79 | 80 | def make_rot_times_affine(stride, p, rect, R_fc_to_c, K, K_inv): 81 | # Affine matrix parameterized by p 82 | A_p = np.array([[stride*(1.0+p[0]), stride*p[2], p[4] + (1.0+p[0])*rect[0] + p[2]*rect[1]], 83 | [stride*(p[1]), stride*(1.0+p[3]), p[5] + p[1]*rect[0] + (1.0+p[3])*rect[1]], 84 | [ 0.0, 0.0, 1.0]], dtype=np.float32) 85 | # Derived directly from perspective projection equations 86 | tmp = R_fc_to_c @ K_inv @ A_p 87 | 88 | K_cropped = np.ascontiguousarray(K[0:2, :]) 89 | top = K_cropped @ tmp 90 | bot = tmp[2, :] 91 | 92 | rot_times_affine = np.vstack((top, np.atleast_2d(bot))) 93 | 94 | return rot_times_affine 95 | make_rot_times_affine = nb.jit(nopython = True, cache = True, fastmath=True)(make_rot_times_affine) 96 | 97 | def nb_norm(p, delta_p_stop): 98 | return np.linalg.norm(p) < delta_p_stop 99 | nb_norm = nb.jit(nopython = True, cache = True, fastmath=True)(nb_norm) 100 | 101 | def affineLKTracker(frame, 102 | T_considered, 103 | rect, 104 | region_size, 105 | p, 106 | K, K_inv, 107 | R_fc_to_c, 108 | dW_dp_x_mult=None, dW_dp_y_mult=None, 109 | stride=1, 110 | inverse=True, 111 | grad_T_dW=None, 112 | H_T_dW_inv=None): 113 | #if dW_dp_x_mult is None or dW_dp_y_mult is None: 114 | # dW_dp_x_mult, dW_dp_y_mult = calculate_dW_dp_mults(rect, region_size, stride) 115 | #start = time.time() 116 | rot_times_affine = make_rot_times_affine(stride, p, rect, R_fc_to_c, K, K_inv) 117 | I_warped_back_considered = cv2.warpPerspective(frame, rot_times_affine, region_size, flags=cv2.WARP_INVERSE_MAP+cv2.INTER_LINEAR) 118 | 119 | #mid = time.time() 120 | 121 | #bit_start = time.time() 122 | 123 | if not inverse: 124 | #bit_start = time.time() 125 | 126 | normalization_factor = 0.125 # 1/8 for sobel of size 3 127 | sobel_x = cv2.Sobel(I_warped_back_considered, cv2.CV_32F, 1, 0, ksize=3, scale=normalization_factor).flatten() 128 | sobel_y = cv2.Sobel(I_warped_back_considered, cv2.CV_32F, 0, 1, ksize=3, scale=normalization_factor).flatten() 129 | 130 | 131 | x_mult_sobel_x = dW_dp_x_mult * sobel_x 132 | x_mult_sobel_y = dW_dp_x_mult * sobel_y 133 | y_mult_sobel_x = dW_dp_y_mult * sobel_x 134 | y_mult_sobel_y = dW_dp_y_mult * sobel_y 135 | # vstack and transpose is faster than column stack 136 | grad_I_dW = np.vstack((x_mult_sobel_x, x_mult_sobel_y, y_mult_sobel_x, y_mult_sobel_y, sobel_x, sobel_y)).transpose() 137 | 138 | # TODO this may not be exploiting symmetry, is almost half the computation time 139 | H = np.einsum('ij,ik->jk', grad_I_dW, grad_I_dW, optimize=True) 140 | 141 | grad_J_to_p = diff_T_I_shaped @ grad_I_dW 142 | 143 | delta_p = np.linalg.solve(H, grad_J_to_p).reshape((6,)) 144 | 145 | #bit_end = time.time() 146 | else: 147 | #bit_start = time.time() 148 | 149 | 150 | 151 | #delta_p_inv = np.sum(diff_T_I_shaped) * (H_T_dW_inv @ grad_T_dW) 152 | #print(delta_p_inv.shape) 153 | 154 | # Negative because we used T - I instead of I - T as in LK 20 years on 155 | #bit_end = time.time() 156 | 157 | delta_p, p = invert_delta_p(p, T_considered, I_warped_back_considered, grad_T_dW, H_T_dW_inv) 158 | #bit_end = time.time() 159 | 160 | #end = time.time() 161 | #print('end {:.2f} bit {:.2f} mid {:.2f}'.format(1000000*(end-bit_end), 1000000*(bit_end-mid), 1000000*(mid-start))) 162 | 163 | return delta_p, p, I_warped_back_considered 164 | 165 | 166 | def draw_warped_patch_location(frame, rect, p, q_c_to_fc, K): 167 | points = np.array([ 168 | (rect[0], rect[1], 1), 169 | (rect[2], rect[1], 1), 170 | (rect[2], rect[3], 1), 171 | (rect[0], rect[3], 1) 172 | ]) 173 | 174 | A_p = np.array([[1+p[0], p[2], p[4]], 175 | [p[1], 1+p[3], p[5]], 176 | [ 0, 0, 1]], dtype=np.float32) 177 | 178 | # Derived directly from perspective projection equations 179 | R_fc_to_c = R.from_quat([q_c_to_fc[1], q_c_to_fc[2], q_c_to_fc[3], q_c_to_fc[0]]).as_matrix().astype(np.float32).transpose() 180 | K_inv = np.linalg.inv(K) 181 | 182 | tmp = R_fc_to_c @ K_inv @ A_p 183 | rot_times_affine = np.vstack((K[0:2, :] @ tmp, tmp[2, :])) 184 | 185 | points_warped = [] 186 | for point in points: 187 | point = rot_times_affine @ point 188 | px = point[0]/point[2] 189 | py = point[1]/point[2] 190 | points_warped.append([px, py]) 191 | points_warped = np.array(points_warped) 192 | 193 | points_warped = points_warped.reshape((-1, 1, 2)).astype(np.int32) 194 | 195 | cv2.polylines(frame, [points_warped], isClosed=True, color=255, thickness=2) 196 | 197 | def draw_derotated(frame, q_c_to_fc, K): 198 | R_fc_to_c = R.from_quat([q_c_to_fc[1], q_c_to_fc[2], q_c_to_fc[3], q_c_to_fc[0]]).as_matrix().astype(np.float32).transpose() 199 | K_inv = np.linalg.inv(K) 200 | 201 | tmp = R_fc_to_c @ K_inv 202 | rot = np.vstack((K[0:2, :] @ tmp, tmp[2, :])) 203 | frame_derotated = cv2.warpPerspective(frame, rot, (frame.shape[1], frame.shape[0]), flags=cv2.WARP_INVERSE_MAP+cv2.INTER_LINEAR) 204 | return frame_derotated 205 | 206 | def draw_full_reverse_warp(frame, rect, p, q_c_to_fc, K): 207 | R_fc_to_c = R.from_quat([q_c_to_fc[1], q_c_to_fc[2], q_c_to_fc[3], q_c_to_fc[0]]).as_matrix().astype(np.float32).transpose() 208 | K_inv = np.linalg.inv(K) 209 | 210 | # Affine matrix parameterized by p 211 | A_p = np.array([[1+p[0], p[2], p[4]], 212 | [p[1], 1+p[3], p[5]], 213 | [ 0, 0, 1]], dtype=np.float32) 214 | 215 | # Derived directly from perspective projection equations 216 | tmp = R_fc_to_c @ K_inv @ A_p 217 | rot_times_affine = np.vstack((K[0:2, :] @ tmp, tmp[2, :])) 218 | 219 | frame_warped_back = cv2.warpPerspective(frame, rot_times_affine, (frame.shape[1], frame.shape[0]), flags=cv2.WARP_INVERSE_MAP+cv2.INTER_LINEAR) 220 | 221 | points = np.array([ 222 | (rect[0], rect[1]), 223 | (rect[2], rect[1]), 224 | (rect[2], rect[3]), 225 | (rect[0], rect[3]) 226 | ]) 227 | points = points.reshape((-1, 1, 2)).astype(np.int32) 228 | cv2.polylines(frame_warped_back, [points], isClosed=True, color=(0, 255, 0), thickness=1) 229 | 230 | return frame_warped_back 231 | 232 | class AffineTrackRotInvariant: 233 | def __init__(self, 234 | patch_coordinates, 235 | template_image, 236 | template_q_c_to_fc, 237 | K, 238 | delta_p_stop=0.1, 239 | delta_p_mult=1.0, 240 | visualize=False, 241 | visualize_verbose=False, 242 | wait_key=0, 243 | stride=1.0, 244 | inverse=True, 245 | max_update_time=None): 246 | self._patch_coordinates = patch_coordinates 247 | self._K = K.astype(np.float32) 248 | self._K_inv = np.linalg.inv(K).astype(np.float32) 249 | self._delta_p_stop = delta_p_stop 250 | self._delta_p_mult = delta_p_mult 251 | self._stride = stride 252 | self._inverse = inverse 253 | self._max_update_time = max_update_time 254 | 255 | self._visualize = visualize 256 | self._visualize_verbose = visualize_verbose 257 | self._wait_key = wait_key 258 | 259 | if template_image is not None: 260 | self.set_template(patch_coordinates, template_image, template_q_c_to_fc) 261 | 262 | def set_template(self, patch_coordinates, template_image, template_q_c_to_fc): 263 | dW_dp_x_mult, dW_dp_y_mult = calculate_dW_dp_mults(patch_coordinates, self._stride) 264 | self._dW_dp_x_mult = dW_dp_x_mult 265 | self._dW_dp_y_mult = dW_dp_y_mult 266 | 267 | self._patch_coordinates = patch_coordinates 268 | self._template_image = template_image 269 | self._template_q_c_to_fc = template_q_c_to_fc 270 | 271 | # Get the image in the fixed orientation frame 272 | template_image_derotated = derotate_image(self._template_image, self._K, template_q_c_to_fc) 273 | 274 | self._template_image_derotated = template_image_derotated[self._patch_coordinates[1]:self._patch_coordinates[3], self._patch_coordinates[0]:self._patch_coordinates[2]] 275 | 276 | size_y = int((self._patch_coordinates[3] - self._patch_coordinates[1])/self._stride) 277 | size_x = int((self._patch_coordinates[2] - self._patch_coordinates[0])/self._stride) 278 | 279 | self._template_image_derotated = cv2.resize(self._template_image_derotated, (size_x, size_y)) 280 | 281 | if self._inverse: 282 | normalization_factor = 0.125 # 1/8 for sobel of size 3 283 | sobel_x = cv2.Sobel(self._template_image_derotated, cv2.CV_32F, 1, 0, ksize=3, scale=normalization_factor).flatten() 284 | sobel_y = cv2.Sobel(self._template_image_derotated, cv2.CV_32F, 0, 1, ksize=3, scale=normalization_factor).flatten() 285 | 286 | x_mult_sobel_x = self._dW_dp_x_mult * sobel_x 287 | x_mult_sobel_y = self._dW_dp_x_mult * sobel_y 288 | y_mult_sobel_x = self._dW_dp_y_mult * sobel_x 289 | y_mult_sobel_y = self._dW_dp_y_mult * sobel_y 290 | # vstack and transpose is faster than column stack 291 | self._grad_T_dW = np.vstack((x_mult_sobel_x, x_mult_sobel_y, y_mult_sobel_x, y_mult_sobel_y, sobel_x, sobel_y)).transpose().astype(np.float32) 292 | 293 | # TODO this may not be exploiting symmetry, is almost half the computation time 294 | self._H_T_dW_inv = np.linalg.inv(np.einsum('ij,ik->jk', self._grad_T_dW, self._grad_T_dW, optimize=True)).astype(np.float32) 295 | else: 296 | self._grad_T_dW = None 297 | self._H_T_dW_inv = None 298 | 299 | def update(self, p, frame_gray, R_fc_to_c): 300 | steps = 0 301 | 302 | rect = self._patch_coordinates 303 | region_size = (int((rect[2] - rect[0])/self._stride), int((rect[3] - rect[1])/self._stride)) 304 | 305 | p, I_warped_back_considered = affine_flow_loop( 306 | frame_gray, 307 | self._template_image_derotated, 308 | self._patch_coordinates, 309 | region_size, 310 | p, 311 | self._K, 312 | self._K_inv, 313 | R_fc_to_c, 314 | dW_dp_x_mult=self._dW_dp_x_mult, 315 | dW_dp_y_mult=self._dW_dp_y_mult, 316 | stride=self._stride, 317 | inverse=self._inverse, 318 | grad_T_dW=self._grad_T_dW, 319 | H_T_dW_inv=self._H_T_dW_inv, 320 | delta_p_stop = self._delta_p_stop, 321 | max_update_time = self._max_update_time) 322 | 323 | if self._visualize: 324 | cv2.imshow('affine flow progress', np.hstack((I_warped_back_considered, self._template_image_derotated))) 325 | #cv2.waitKey(self._wait_key) 326 | 327 | #print('Update time {} steps {} seconds'.format(steps, t_current - t_start)) 328 | return p 329 | 330 | def affine_flow_loop(frame, 331 | T_considered, 332 | rect, 333 | region_size, 334 | p, 335 | K, K_inv, 336 | R_fc_to_c, 337 | dW_dp_x_mult=None, dW_dp_y_mult=None, 338 | stride=1, 339 | inverse=True, 340 | grad_T_dW=None, 341 | H_T_dW_inv=None, 342 | delta_p_stop=None, 343 | max_update_time=None): 344 | steps = 0 345 | t_start = time.time() 346 | old_p = p 347 | while True: 348 | #start = time.time() 349 | delta_p, p, I_warped_back_considered = affineLKTracker( 350 | frame, 351 | T_considered, 352 | rect, 353 | region_size, 354 | p, 355 | K, 356 | K_inv, 357 | R_fc_to_c, 358 | dW_dp_x_mult, 359 | dW_dp_y_mult, 360 | stride, 361 | inverse, 362 | grad_T_dW, 363 | H_T_dW_inv) 364 | 365 | #p = compose_warp(p, delta_p) 366 | 367 | #if self._visualize_verbose: 368 | # cv2.imshow('affine flow progress verbose', np.hstack((I_warped_back_considered, self._template_image_derotated))) 369 | #cv2.waitKey(self._wait_key) 370 | 371 | #mid = time.time() 372 | steps += 1 373 | t_current = time.time() 374 | 375 | #if np.linalg.norm(delta_p) < delta_p_stop: 376 | #if nb_norm(delta_p) < delta_p_stop: 377 | if not nb_norm(p, 1e4): # sanity 378 | p = old_p 379 | break 380 | if nb_norm(delta_p, delta_p_stop): 381 | #print('Small delta_p {} steps {:.01f} hz'.format(steps, steps/(t_current - t_start))) 382 | break 383 | #end = time.time() 384 | #print(end-mid, mid-start) 385 | 386 | 387 | if max_update_time is not None: 388 | if t_current - t_start > max_update_time: 389 | print('Max update time {} steps {} seconds'.format(steps, t_current - t_start)) 390 | break 391 | return p, I_warped_back_considered 392 | -------------------------------------------------------------------------------- /affine_flow_time_to_contact.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: affine_flow_time_to_contact.py 4 | # Available under MIT license 5 | # 6 | # Calculate time to contact from affine flow parameters 7 | # 8 | # History: 9 | # 04-23-20 - Levi Burner - Created file 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import numpy as np 15 | 16 | class AffineFlowTimeToContactEstimator(object): 17 | def __init__(self, patch_coordinates, K, stride=None): 18 | self._patch_coordinates = patch_coordinates 19 | self._K = K 20 | self._K_inv = np.linalg.inv(self._K) 21 | self._patch_center_xy = np.array([(self._patch_coordinates[2] + self._patch_coordinates[0]) / 2.0, 22 | (self._patch_coordinates[3] + self._patch_coordinates[1]) / 2.0]) 23 | self._X_0_ttc = np.array([self._patch_center_xy[0], self._patch_center_xy[1], 1]) 24 | self._last_p = None 25 | 26 | def estimate_ttc(self, p): 27 | if self._last_p is None: 28 | self._last_p = p 29 | return False 30 | 31 | A_0 = self._K_inv @ np.array([[1+self._last_p[0], self._last_p[2], self._last_p[4]], 32 | [self._last_p[1], 1+self._last_p[3], self._last_p[5]], 33 | [ 0, 0, 1]]) @ self._K 34 | 35 | A_1 = self._K_inv @ np.array([[1+p[0], p[2], p[4]], 36 | [p[1], 1+p[3], p[5]], 37 | [ 0, 0, 1]]) @ self._K 38 | self._last_p = p 39 | 40 | try: 41 | # dp = I - A_0 A_1^-1 42 | dp = np.linalg.solve(A_1.transpose(), (A_1 - A_0).transpose()).transpose() 43 | except np.linalg.LinAlgError: 44 | return False 45 | 46 | a = np.array([0, 0, dp[0, 0], dp[0, 1], dp[0, 2], dp[1, 0], dp[1, 1], dp[1, 2]]) 47 | 48 | # Select a point to return the ttc for 49 | X_ttc = A_1 @ self._K_inv @ self._X_0_ttc 50 | 51 | EPS_XY = 1E-3 52 | x_dot_over_z, y_dot_over_z, _ = a_to_frequency_of_contact(a, X_ttc, EPS_XY) 53 | 54 | EPS_Z = 2E-3 55 | _, _, z_dot_over_z = a_to_frequency_of_contact(a, X_ttc, EPS_Z) 56 | 57 | return x_dot_over_z, y_dot_over_z, z_dot_over_z, X_ttc 58 | 59 | def a_to_frequency_of_contact(a, X_ttc, EPS): 60 | if abs(a[4]) < EPS and abs(a[7]) < EPS: # Don't divide by a[4], a[7], assume U,V=0 61 | W_c = (a[2] + a[6]) / 2 62 | U_a = -(a[2] - W_c) 63 | V_b = -(a[6] - W_c) 64 | 65 | W_a = 0 66 | W_b = 0 67 | 68 | elif abs(a[4]) < EPS: # Don't divide by a[4], assume U=0 69 | U_a = -a[5]*(a[4]/a[7]) 70 | W_c = a[2] + U_a 71 | V_b = -(a[6] - W_c) 72 | 73 | W_a = W_c * a[5] / a[7] 74 | W_b = 0 75 | 76 | elif abs(a[7]) < EPS: # Don't divide by a[7], assume V=0 77 | V_b = -a[3]*(a[7]/a[4]) 78 | W_c = a[6] + V_b 79 | U_a = -(a[2] - W_c) 80 | 81 | W_a = 0 82 | W_b = W_c * a[3] / a[4] 83 | 84 | else: 85 | U_a = -a[5]*(a[4]/a[7]) 86 | V_b = -a[3]*(a[7]/a[4]) 87 | W_c = ((a[2] + U_a) + (a[6] + V_b)) / 2 88 | 89 | W_a = W_c * a[5] / a[7] 90 | W_b = W_c * a[3] / a[4] 91 | 92 | x_dot_over_z = U_a * X_ttc[0] - a[3] * X_ttc[1] - a[4] 93 | y_dot_over_z = -a[5] * X_ttc[0] + V_b * X_ttc[1] - a[7] 94 | z_dot_over_z = W_a * X_ttc[0] + W_b * X_ttc[1] + W_c 95 | 96 | return x_dot_over_z, y_dot_over_z, z_dot_over_z 97 | -------------------------------------------------------------------------------- /apriltag_odometry.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: apriltag_odometry.py 4 | # Available under MIT license 5 | # 6 | # Find an apriltag in an image and estimate pose relative to it 7 | # 8 | # History: 9 | # 04-23-20 - Levi Burner - Created file 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import cv2 15 | import numpy as np 16 | 17 | from apriltag import apriltag 18 | 19 | class AprilPose(object): 20 | def __init__(self, K, family='tagStandard41h12', marker_size_m=(4.5 * 2.54 / 100)): 21 | # Hard code a bunch of defaults for now, they are not important 22 | family = family 23 | threads = 8 24 | max_hamming = 0 25 | decimate = 1 26 | blur = 0.8 27 | refine_edges = False 28 | debug = False 29 | 30 | # Camera intrinsics 31 | self._K = K 32 | 33 | self._detector = apriltag(family, threads, max_hamming, decimate, blur, refine_edges, debug) 34 | 35 | m_half_size = marker_size_m / 2 36 | 37 | marker_center = np.array((0, 0, 0)) 38 | marker_points = [] 39 | marker_points.append(marker_center + (-m_half_size, m_half_size, 0)) 40 | marker_points.append(marker_center + ( m_half_size, m_half_size, 0)) 41 | marker_points.append(marker_center + ( m_half_size, -m_half_size, 0)) 42 | marker_points.append(marker_center + (-m_half_size, -m_half_size, 0)) 43 | self._marker_points = np.array(marker_points) 44 | 45 | def find_tags(self, frame_gray): 46 | detections = self._detector.detect(frame_gray) 47 | return detections 48 | 49 | def find_detection(self, detections, id): 50 | for (i, detection) in enumerate(detections): 51 | if detection['id'] == id: 52 | return detection 53 | return None 54 | 55 | def find_pose_from_tag(self, detection): 56 | object_points = self._marker_points 57 | image_points = detection['lb-rb-rt-lt'] 58 | 59 | pnp_ret = cv2.solvePnP(object_points, image_points, self._K, distCoeffs=None,flags=cv2.SOLVEPNP_IPPE_SQUARE) 60 | if pnp_ret[0] == False: 61 | raise Exception('Error solving PnP') 62 | 63 | r = pnp_ret[1] 64 | p = pnp_ret[2] 65 | 66 | return p.reshape((3,)), r.reshape((3,)) 67 | 68 | def draw_detections(self, frame, detections): 69 | for detection in detections: 70 | pts = detection['lb-rb-rt-lt'].reshape((-1, 1, 2)).astype(np.int32) 71 | frame = cv2.polylines(frame, [pts], isClosed=True, color=(0, 0, 255), thickness=5) 72 | cv2.circle(frame, tuple(detection['center'].astype(np.int32)), 5, (0, 0, 255), -1) 73 | -------------------------------------------------------------------------------- /phi_depth_integrals_accel_bias.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: phi_depth_integrals_accel_bias.py 4 | # Available under MIT license 5 | # 6 | # Estimate distance using the Phi constraint in the presence of 7 | # a constant acceleration bias 8 | # 9 | # History: 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import numpy as np 15 | import numba as nb 16 | 17 | def cumulative_int(dt, x): 18 | return dt * np.cumsum(x) 19 | 20 | def accel_z_phi_constraint(times, z_over_z0, accel_z): 21 | z_over_z0 = z_over_z0 / z_over_z0[0] 22 | 23 | # TODO all times are needed but they are assumed to be evenly spaced 24 | dt = times[1] - times[0] 25 | int_accel = cumulative_int(dt, accel_z) 26 | iint_accel = cumulative_int(dt, int_accel) 27 | 28 | E = z_over_z0 - 1 29 | R = -(times - times[0]) 30 | D1 = 0.5 * np.square(R) 31 | Da = iint_accel 32 | 33 | A = np.stack((E, R, D1), axis=1) 34 | b = Da.reshape((A.shape[0], 1)) 35 | 36 | z, res, rank, s = np.linalg.lstsq(A, b, rcond=-1) 37 | return z.reshape((3,)), res 38 | 39 | def accel_z_phi_constraint_tf(times, z_over_z0, accel_z): 40 | z_star, res = accel_z_phi_constraint(np.flip(times), np.flip(z_over_z0), np.flip(accel_z)) 41 | return z_star, res 42 | 43 | def accel_x_phi_constraint(times, x_over_z, z_over_z0, accel_x): 44 | dx_over_z0 = x_over_z * (z_over_z0 / z_over_z0[0]) 45 | dx_over_z0 -= dx_over_z0[0] 46 | 47 | # TODO all times are needed but they are assumed to be evenly spaced 48 | dt = times[1] - times[0] 49 | int_accel = cumulative_int(dt, accel_x) 50 | iint_accel = cumulative_int(dt, int_accel) 51 | 52 | P = dx_over_z0 53 | R = -(times - times[0]) 54 | D1 = 0.5 * np.square(R) 55 | Da = iint_accel 56 | 57 | A = np.stack((P, R, D1), axis=1) 58 | b = Da.reshape((A.shape[0], 1)) 59 | 60 | x, res, rank, s = np.linalg.lstsq(A, b, rcond=-1) 61 | 62 | return x.reshape((3,)), res 63 | 64 | def accel_x_phi_constraint_tf(times, x_over_z, z_over_z0, accel_x): 65 | x_star, res = accel_x_phi_constraint(np.flip(times), np.flip(x_over_z), np.flip(z_over_z0), np.flip(accel_x)) 66 | return x_star, res 67 | 68 | # Setup numba 69 | # TODO No fast math because lots of the values are super tiny and might be sub-normal (not sure) 70 | cumulative_int = nb.jit(nopython = True, cache = True, fastmath=False)(cumulative_int) 71 | accel_z_phi_constraint = nb.jit(nopython = True, cache = True, fastmath=False)(accel_z_phi_constraint) 72 | accel_z_phi_constraint_tf = nb.jit(nopython = True, cache = True, fastmath=False)(accel_z_phi_constraint_tf) 73 | accel_x_phi_constraint = nb.jit(nopython = True, cache = True, fastmath=False)(accel_x_phi_constraint) 74 | accel_x_phi_constraint_tf = nb.jit(nopython = True, cache = True, fastmath=False)(accel_x_phi_constraint_tf) 75 | -------------------------------------------------------------------------------- /phi_pose_observer.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: phi_pose_observer.py 4 | # Available under MIT license 5 | # 6 | # Position observer from phi and acceleration 7 | # 8 | # History: 9 | # 08-18-22 - Levi Burner - Created file 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import numpy as np 15 | from phi_depth_integrals_accel_bias import accel_x_phi_constraint_tf, accel_z_phi_constraint_tf 16 | 17 | def feedback_good(accel_power, accel_z, max_z, accel_power_thresh): 18 | return (accel_z != np.NAN and accel_power > accel_power_thresh and accel_z < max_z) 19 | 20 | class PhiPoseObserver(object): 21 | def __init__(self, 22 | z_0=None, 23 | z_0_dot=0.0, 24 | dt=0.005, 25 | max_z=-0.1, 26 | z_hat_gain=2.0, 27 | seconds_to_keep = 1.0, 28 | accel_power_thresh = 2.0): 29 | self._dt = dt 30 | self._z_0 = None 31 | self._z_hat = self._z_0 32 | self._max_z = max_z 33 | self._min_initial_z = -7.5 34 | 35 | self._seconds_to_keep = seconds_to_keep 36 | self._num_samples_to_keep = int(self._seconds_to_keep / self._dt) 37 | 38 | self._t_list = [] 39 | self._phi_list = [] 40 | self._a_fc_list = [] 41 | 42 | self._A = np.array(((0, 1), (0, 0))) 43 | self._B = np.array((0, 1)) 44 | self._L = np.array(((2, 0), (0, 20))) 45 | 46 | self._accel_power_thresh = accel_power_thresh 47 | 48 | def reset_ic(self): 49 | self._z_hat = self._z_0 50 | 51 | def update(self, t, phi, a_fc): 52 | self._t_list.append(t) 53 | self._phi_list.append(phi.tolist()) 54 | self._a_fc_list.append(a_fc.tolist()) 55 | 56 | accel_z_bias = None 57 | if len(self._t_list) == self._num_samples_to_keep: 58 | self._t_list = self._t_list[1:] 59 | self._phi_list = self._phi_list[1:] 60 | self._a_fc_list = self._a_fc_list[1:] 61 | 62 | # TODO NO! 63 | t = np.array(self._t_list) 64 | 65 | phis = np.array(self._phi_list) 66 | 67 | phis_x = phis[:, 0] 68 | phis_y = phis[:, 1] 69 | phis_z = phis[:, 2] 70 | 71 | a_fc = np.array(self._a_fc_list) 72 | a_x = a_fc[:, 0] 73 | a_y = a_fc[:, 1] 74 | a_z = a_fc[:, 2] 75 | 76 | (accel_x_z_tf, accel_x_dz_tf, accel_x_bias), x_res = accel_x_phi_constraint_tf(t, phis_x, phis_z, a_x) 77 | if accel_x_z_tf != np.NAN: 78 | a_x_power = np.linalg.norm(a_x-accel_x_bias) / np.sqrt(self._num_samples_to_keep) 79 | else: 80 | a_x_power = 0.0 81 | print('x singular') 82 | 83 | (accel_y_z_tf, accel_y_dz_tf, accel_y_bias), y_res = accel_x_phi_constraint_tf(t, phis_y, phis_z, a_y) 84 | if accel_y_z_tf != np.NAN: 85 | a_y_power = np.linalg.norm(a_y-accel_y_bias) / np.sqrt(self._num_samples_to_keep) 86 | else: 87 | a_y_power = 0.0 88 | print('y singular') 89 | 90 | (accel_z_z_tf, accel_z_dz_tf, accel_z_bias), z_res = accel_z_phi_constraint_tf(t, phis_z, a_z) 91 | if accel_z_z_tf != np.NAN: 92 | a_z_power = np.linalg.norm(a_z-accel_z_bias) / np.sqrt(self._num_samples_to_keep) 93 | else: 94 | a_z_power = 0.0 95 | print('z singular') 96 | else: 97 | return None 98 | 99 | accel_z_hat = 0.0 100 | accel_z_dot_hat = 0.0 101 | num_feedback = 0 102 | if feedback_good(a_x_power, accel_x_z_tf, self._max_z, self._accel_power_thresh): 103 | accel_z_hat += accel_x_z_tf 104 | accel_z_dot_hat += accel_x_dz_tf 105 | num_feedback += 1 106 | else: 107 | accel_x_z_tf = 0.0 108 | 109 | if feedback_good(a_y_power, accel_y_z_tf, self._max_z, self._accel_power_thresh): 110 | accel_z_hat += accel_y_z_tf 111 | accel_z_dot_hat += accel_y_dz_tf 112 | num_feedback += 1 113 | else: 114 | accel_y_z_tf = 0.0 115 | 116 | if feedback_good(a_z_power, accel_z_z_tf, self._max_z, self._accel_power_thresh): 117 | accel_z_hat += accel_z_z_tf 118 | accel_z_dot_hat += accel_z_dz_tf 119 | num_feedback += 1 120 | else: 121 | accel_z_z_tf = 0.0 122 | 123 | if num_feedback > 0 and accel_z_bias is not None and self._z_hat is not None: 124 | accel_z_hat /= num_feedback 125 | accel_z_dot_hat /= num_feedback 126 | 127 | e = np.array((accel_z_hat, accel_z_dot_hat)) - self._z_hat 128 | 129 | z_hat_dot = self._A @ self._z_hat + self._B * (a_z[-1]-accel_z_bias) + self._L @ e 130 | 131 | self._z_hat = self._z_hat + z_hat_dot * self._dt 132 | elif num_feedback > 0 and self._z_hat is None: 133 | accel_z_hat /= num_feedback 134 | accel_z_dot_hat /= num_feedback 135 | 136 | # _min_initial_z is to filter an insane spike at the beginning of one sequence 137 | if accel_z_hat > self._min_initial_z: 138 | self._z_hat = np.array((accel_z_hat, accel_z_dot_hat)) 139 | else: 140 | return None 141 | 142 | elif self._z_hat is not None: 143 | new_z = self._z_hat[0] * phi[2] / phis[-2, 2] 144 | new_dz = (new_z - self._z_hat[0]) / self._dt 145 | self._z_hat = np.array((new_z, new_dz)) 146 | else: 147 | return None 148 | 149 | if self._z_hat[0] > self._max_z: 150 | self._z_hat[0] = self._max_z 151 | 152 | return self._z_hat[0], accel_x_z_tf, accel_y_z_tf, accel_z_z_tf 153 | 154 | -------------------------------------------------------------------------------- /robomaster_pickle_mat.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: robomaster_pickle_mat.py 4 | # Available under MIT license 5 | # 6 | # Export recordings made by ttc_depth_robomaster.py to Matlab .mat files 7 | # for plotting 8 | # 9 | # History: 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import pickle 15 | from scipy.io import savemat 16 | import os 17 | import glob 18 | import numpy as np 19 | 20 | BASE_RESULTS_PATH = '../robomaster_recordings' 21 | 22 | if __name__ == '__main__': 23 | recordings = sorted(glob.glob(os.path.join(BASE_RESULTS_PATH, 'record_*'))) 24 | 25 | for recording in recordings: 26 | print('Processing: {}'.format(recording)) 27 | with open(os.path.join(recording, 'imu.pickle'), 'rb') as f: 28 | p = pickle.load(f) 29 | 30 | dictionary = {} 31 | for key in p: 32 | dictionary[key] = np.array(p[key]) 33 | 34 | savemat(os.path.join(recording, 'imu.mat'), dictionary) -------------------------------------------------------------------------------- /ros/README.md: -------------------------------------------------------------------------------- 1 | # Docker containers for other VIO Stereo methods 2 | 3 | ## Host setup 4 | * Install docker 5 | ** https://docs.docker.com/engine/install/ubuntu/ 6 | ** https://docs.docker.com/engine/install/linux-postinstall/ 7 | * Install rocker https://github.com/osrf/rocker 8 | * Install nvidia-docker 2 https://docs.nvidia.com/datacenter/cloud-native/container-toolkit/install-guide.html#docker 9 | 10 | ## To run 11 | * ./build.sh 12 | * ./run.sh 13 | -------------------------------------------------------------------------------- /ros/VINS-Mono/Dockerfile: -------------------------------------------------------------------------------- 1 | # Adapted from: 2 | # https://github.com/HKUST-Aerial-Robotics/VINS-Mono/blob/master/docker/Dockerfile 3 | 4 | FROM ros:kinetic-perception 5 | 6 | ENV CERES_VERSION="1.12.0" 7 | ENV CATKIN_WS=/root/catkin_ws 8 | 9 | # set up thread number for building 10 | RUN if [ "x$(nproc)" = "x1" ] ; then export USE_PROC=1 ; \ 11 | else export USE_PROC=$(($(nproc)/2)) ; fi && \ 12 | apt-get update && apt-get install -y \ 13 | cmake \ 14 | libatlas-base-dev \ 15 | libeigen3-dev \ 16 | libgoogle-glog-dev \ 17 | libsuitesparse-dev \ 18 | python-catkin-tools \ 19 | ros-${ROS_DISTRO}-cv-bridge \ 20 | ros-${ROS_DISTRO}-image-transport \ 21 | ros-${ROS_DISTRO}-message-filters \ 22 | ros-${ROS_DISTRO}-tf && \ 23 | rm -rf /var/lib/apt/lists/* && \ 24 | # Build and install Ceres 25 | git clone https://ceres-solver.googlesource.com/ceres-solver && \ 26 | cd ceres-solver && \ 27 | git checkout tags/${CERES_VERSION} && \ 28 | mkdir build && cd build && \ 29 | cmake .. && \ 30 | make -j$(USE_PROC) install && \ 31 | rm -rf ../../ceres-solver && \ 32 | mkdir -p $CATKIN_WS/src 33 | 34 | # Clone VINS-Mono 35 | WORKDIR $CATKIN_WS 36 | 37 | RUN cd src && \ 38 | git clone --depth 1 https://github.com/HKUST-Aerial-Robotics/VINS-Mono.git 39 | 40 | # Build VINS-Mono 41 | ENV TERM xterm 42 | ENV PYTHONIOENCODING UTF-8 43 | RUN catkin config \ 44 | --extend /opt/ros/$ROS_DISTRO \ 45 | --cmake-args \ 46 | -DCMAKE_BUILD_TYPE=Release && \ 47 | catkin build && \ 48 | sed -i '/exec "$@"/i \ 49 | source "/root/catkin_ws/devel/setup.bash"' /ros_entrypoint.sh 50 | 51 | RUN apt-get update && \ 52 | apt-get install -y ros-${ROS_DISTRO}-rviz python-numpy python-scipy python3-numpy python3-scipy python3-yaml 53 | -------------------------------------------------------------------------------- /ros/VINS-Mono/attach.sh: -------------------------------------------------------------------------------- 1 | #!/bin/bash 2 | 3 | docker exec -it vins_mono bash -------------------------------------------------------------------------------- /ros/VINS-Mono/build.sh: -------------------------------------------------------------------------------- 1 | #!/bin/bash 2 | docker build --tag ros:vins-mono -f ./Dockerfile . 3 | -------------------------------------------------------------------------------- /ros/VINS-Mono/realsense_435i.launch: -------------------------------------------------------------------------------- 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | -------------------------------------------------------------------------------- /ros/VINS-Mono/realsense_435i_config.yaml: -------------------------------------------------------------------------------- 1 | %YAML:1.0 2 | 3 | #common parameters 4 | imu_topic: "/imu" 5 | image_topic: "/frames" 6 | output_path: "/home/levi/NormalFlyt/time_to_contact_depth/recordings/vins_mono_out" 7 | 8 | #camera calibration 9 | model_type: PINHOLE 10 | camera_name: camera 11 | image_width: 848 12 | image_height: 480 13 | distortion_parameters: 14 | k1: 0.0 15 | k2: 0.0 16 | p1: 0.0 17 | p2: 0.0 18 | projection_parameters: 19 | fx: 423.5357 20 | fy: 423.5357 21 | cx: 429.74478 22 | cy: 239.89632 23 | 24 | # Extrinsic parameter between IMU and Camera. 25 | estimate_extrinsic: 0 # 0 Have an accurate extrinsic parameters. We will trust the following imu^R_cam, imu^T_cam, don't change it. 26 | # 1 Have an initial guess about extrinsic parameters. We will optimize around your initial guess. 27 | # 2 Don't know anything about extrinsic parameters. You don't need to give R,T. We will try to calibrate it. Do some rotation movement at beginning. 28 | #If you choose 0 or 1, you should write down the following matrix. 29 | #Rotation from camera frame to imu frame, imu^R_cam 30 | 31 | # Self reported extrinsics from realsense from imu to infrared 32 | # accel extrinsics rotation: [1, 0, 0, 0, 1, 0, 0, 0, 1] 33 | # translation: [0.00552, -0.0051, -0.01174] 34 | # gyro exstrinsics rotation: [1, 0, 0, 0, 1, 0, 0, 0, 1] 35 | # translation: [0.00552, -0.0051, -0.01174] 36 | extrinsicRotation: !!opencv-matrix 37 | rows: 3 38 | cols: 3 39 | dt: d 40 | data: [1, 0, 0, 41 | 0, 1, 0, 42 | 0, 0, 1] 43 | #Translation from camera frame to imu frame, imu^T_cam 44 | extrinsicTranslation: !!opencv-matrix 45 | rows: 3 46 | cols: 1 47 | dt: d 48 | data: [-0.00552, 0.0051, 0.01174] 49 | 50 | #feature traker paprameters 51 | max_cnt: 120 # max feature number in feature tracking 52 | min_dist: 30 # min distance between two features 53 | freq: 100 # frequence (Hz) of publish tracking result. At least 10Hz for good estimation. If set 0, the frequence will be same as raw image 54 | F_threshold: 1.0 # ransac threshold (pixel) 55 | show_track: 0 # publish tracking image as topic 56 | equalize: 0 # if image is too dark or light, trun on equalize to find enough features 57 | fisheye: 0 # if using fisheye, trun on it. A circle mask will be loaded to remove edge noisy points 58 | 59 | #optimization parameters 60 | max_solver_time: 0.04 # max solver itration time (ms), to guarantee real time 61 | max_num_iterations: 8 # max solver itrations, to guarantee real time 62 | keyframe_parallax: 10.0 # keyframe selection threshold (pixel) 63 | 64 | #imu parameters The more accurate parameters you provide, the better performance 65 | acc_n: 0.08 # accelerometer measurement noise standard deviation. #0.2 0.04 66 | gyr_n: 0.004 # gyroscope measurement noise standard deviation. #0.05 0.004 67 | acc_w: 0.00004 # accelerometer bias random work noise standard deviation. #0.02 68 | gyr_w: 2.0e-6 # gyroscope bias random work noise standard deviation. #4.0e-5 69 | g_norm: 9.805 # gravity magnitude 70 | 71 | #loop closure parameters 72 | loop_closure: 0 # start loop closure 73 | fast_relocalization: 1 # useful in real-time and large project 74 | load_previous_pose_graph: 0 # load and reuse previous pose graph; load from 'pose_graph_save_path' 75 | pose_graph_save_path: "/home/levi/NormalFlyt/time_to_contact_depth/recordings/vins_mono_out/pose_graph" # save and load path 76 | 77 | #unsynchronization parameters 78 | estimate_td: 0 # online estimate time offset between camera and imu 79 | td: 0.000 # initial value of time offset. unit: s. readed image clock + td = real image clock (IMU clock) 80 | 81 | #rolling shutter parameters 82 | rolling_shutter: 0 # 0: global shutter camera, 1: rolling shutter camera 83 | rolling_shutter_tr: 0 # unit: s. rolling shutter read out time per frame (from data sheet). 84 | 85 | #visualization parameters 86 | save_image: 0 # save image in pose graph for visualization prupose; you can close this function by setting 0 87 | visualize_imu_forward: 0 # output imu forward propogation to achieve low latency and high frequence results 88 | visualize_camera_size: 0.4 # size of camera marker in RVIZ 89 | -------------------------------------------------------------------------------- /ros/VINS-Mono/run.sh: -------------------------------------------------------------------------------- 1 | #!/bin/bash 2 | 3 | rocker --volume ../../../../time_to_contact_depth --nvidia --x11 --name vins_mono ros:vins-mono bash 4 | 5 | # docker run -it --rm ros:vins-mono \ 6 | # /bin/bash -c \ 7 | # "cd /root/catkin_ws/; \ 8 | # source devel/setup.bash; \ 9 | # roslaunch vins_estimator ${1}" 10 | -------------------------------------------------------------------------------- /ros/VINS-Mono/vins_rviz.launch: -------------------------------------------------------------------------------- 1 | 2 | 3 | 4 | -------------------------------------------------------------------------------- /ros/ros_convert_rovio.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: ros_convert_rovio.py 4 | # 5 | # Record rovio output to a npy file for comparison 6 | # 7 | # History: 8 | # 11-09-20 - Levi Burner - Created file 9 | # 10 | ############################################################################### 11 | 12 | import argparse 13 | import json 14 | import os 15 | import glob 16 | import pickle 17 | import time 18 | 19 | import numpy as np 20 | 21 | import rospy 22 | from nav_msgs.msg import Odometry 23 | import rosbag 24 | import pickle 25 | 26 | last_timestamp = None 27 | all_recorded = False 28 | 29 | def odometry_callback(odom): 30 | global last_timestamp 31 | global all_recorded 32 | 33 | if all_recorded: 34 | print('All recorded') 35 | return 36 | 37 | p = [odom.pose.pose.position.x, 38 | odom.pose.pose.position.y, 39 | odom.pose.pose.position.z] 40 | t = odom.header.stamp.to_sec() 41 | 42 | if last_timestamp is None: 43 | last_timestamp = t 44 | 45 | if t < last_timestamp: 46 | all_recorded = True 47 | 48 | print(t, p) 49 | 50 | if __name__ == '__main__': 51 | parser = argparse.ArgumentParser() 52 | parser.add_argument('--rec', dest='recording', type=str, help='Bag file') 53 | #parser.add_argument('--allspeed', dest='allspeed', type=str, help='Run over all to calculate average speed') 54 | parser.add_argument('--allspeed', dest='allspeed', action='store_true', help='Run over all to calculate average speed') 55 | 56 | args = parser.parse_args() 57 | 58 | 59 | if not args.allspeed: 60 | record_dir = os.path.dirname(args.recording) 61 | recording = os.path.basename(args.recording) 62 | 63 | bag = rosbag.Bag(os.path.join(record_dir, recording)) 64 | 65 | poses = [] 66 | message_t = [] 67 | for topic, odom, t in bag.read_messages(topics=['/rovio/odometry']): 68 | x = [odom.header.stamp.to_sec(), 69 | odom.pose.pose.position.x, 70 | odom.pose.pose.position.y, 71 | odom.pose.pose.position.z] 72 | poses.append(x) 73 | message_t.append(t.to_sec()) 74 | 75 | poses = np.array(poses) 76 | message_t = np.array(message_t) 77 | 78 | print('================================') 79 | print(1.0 / np.mean(np.gradient(message_t))) 80 | print(1.0 / np.mean(np.gradient(poses[:, 0]))) 81 | 82 | 83 | with open(os.path.join(record_dir, 'results.pickle'), 'wb') as file: 84 | pickle.dump({'poses': np.array(poses)}, file, protocol=2) 85 | 86 | bag.close() 87 | else: 88 | BASE_RESULTS_PATH = 'results' 89 | bags = sorted(glob.glob('results/record_*/rovio/*.bag')) 90 | 91 | print(bags) 92 | 93 | total_poses = 0.0 94 | total_pose_time_span = 0.0 95 | total_message_time_span = 0.0 96 | for bag_name in bags: 97 | bag = rosbag.Bag(bag_name) 98 | 99 | poses = [] 100 | message_t = [] 101 | for topic, odom, t in bag.read_messages(topics=['/rovio/odometry']): 102 | x = [odom.header.stamp.to_sec(), 103 | odom.pose.pose.position.x, 104 | odom.pose.pose.position.y, 105 | odom.pose.pose.position.z] 106 | poses.append(x) 107 | message_t.append(t.to_sec()) 108 | bag.close() 109 | 110 | poses = np.array(poses) 111 | message_t = np.array(message_t) 112 | 113 | total_poses += poses.shape[0] 114 | total_pose_time_span += poses[-1,0]-poses[0,0] 115 | total_message_time_span += message_t[-1] - message_t[0] 116 | 117 | print('================================') 118 | #print('Pose HZ'.format((poses[-1,0]-poses[0,0]) / poses.shape[0])) 119 | #print('Pose HZ'.format((poses[-1,0]-poses[0,0]) / poses.shape[0])) 120 | #print(1.0 / np.mean(np.gradient(message_t))) 121 | #print(1.0 / np.mean(np.gradient(poses[:, 0]))) 122 | 123 | 124 | print('============ Overall ==============') 125 | print('Total pose messages {}'.format(total_poses)) 126 | print('Total wall time of poses {}'.format(total_pose_time_span)) 127 | print('Total time to generate poses {}'.format(total_message_time_span)) 128 | print('Times realtime {}'.format(total_pose_time_span/total_message_time_span)) 129 | #print(1.0 / np.mean(np.gradient(message_t))) 130 | #print(1.0 / np.mean(np.gradient(poses[:, 0]))) -------------------------------------------------------------------------------- /ros/ros_convert_vins_mono.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: ros_record_vins_mono.py 4 | # 5 | # Record vins mono output to a npy file for comparison 6 | # 7 | # History: 8 | # 11-09-20 - Levi Burner - Created file 9 | # 10 | ############################################################################### 11 | 12 | import argparse 13 | import json 14 | import os 15 | import glob 16 | import pickle 17 | import time 18 | 19 | import numpy as np 20 | 21 | import rospy 22 | from nav_msgs.msg import Odometry 23 | import rosbag 24 | import pickle 25 | 26 | last_timestamp = None 27 | all_recorded = False 28 | 29 | def odometry_callback(odom): 30 | global last_timestamp 31 | global all_recorded 32 | 33 | if all_recorded: 34 | print('All recorded') 35 | return 36 | 37 | p = [odom.pose.pose.position.x, 38 | odom.pose.pose.position.y, 39 | odom.pose.pose.position.z] 40 | t = odom.header.stamp.to_sec() 41 | 42 | if last_timestamp is None: 43 | last_timestamp = t 44 | 45 | if t < last_timestamp: 46 | all_recorded = True 47 | 48 | print(t, p) 49 | 50 | if __name__ == '__main__': 51 | parser = argparse.ArgumentParser() 52 | parser.add_argument('--rec', dest='recording', type=str, help='Bag file') 53 | #parser.add_argument('--allspeed', dest='allspeed', type=str, help='Run over all to calculate average speed') 54 | parser.add_argument('--allspeed', dest='allspeed', action='store_true', help='Run over all to calculate average speed') 55 | 56 | args = parser.parse_args() 57 | 58 | 59 | if not args.allspeed: 60 | record_dir = os.path.dirname(args.recording) 61 | recording = os.path.basename(args.recording) 62 | 63 | bag = rosbag.Bag(os.path.join(record_dir, recording)) 64 | 65 | poses = [] 66 | message_t = [] 67 | for topic, odom, t in bag.read_messages(topics=['/vins_estimator/odometry']): 68 | x = [odom.header.stamp.to_sec(), 69 | odom.pose.pose.position.x, 70 | odom.pose.pose.position.y, 71 | odom.pose.pose.position.z] 72 | poses.append(x) 73 | message_t.append(t.to_sec()) 74 | 75 | poses = np.array(poses) 76 | message_t = np.array(message_t) 77 | 78 | print('================================') 79 | print(1.0 / np.mean(np.gradient(message_t))) 80 | print(1.0 / np.mean(np.gradient(poses[:, 0]))) 81 | 82 | 83 | with open(os.path.join(record_dir, 'results.pickle'), 'wb') as file: 84 | pickle.dump({'poses': np.array(poses)}, file, protocol=2) 85 | 86 | bag.close() 87 | else: 88 | BASE_RESULTS_PATH = 'results' 89 | bags = sorted(glob.glob('results/record_*/vins_mono/*.bag')) 90 | 91 | print(bags) 92 | 93 | total_poses = 0.0 94 | total_pose_time_span = 0.0 95 | total_message_time_span = 0.0 96 | for bag_name in bags: 97 | bag = rosbag.Bag(bag_name) 98 | 99 | poses = [] 100 | message_t = [] 101 | for topic, odom, t in bag.read_messages(topics=['/vins_estimator/odometry']): 102 | x = [odom.header.stamp.to_sec(), 103 | odom.pose.pose.position.x, 104 | odom.pose.pose.position.y, 105 | odom.pose.pose.position.z] 106 | poses.append(x) 107 | message_t.append(t.to_sec()) 108 | bag.close() 109 | 110 | poses = np.array(poses) 111 | message_t = np.array(message_t) 112 | 113 | total_poses += poses.shape[0] 114 | total_pose_time_span += poses[-1,0]-poses[0,0] 115 | total_message_time_span += message_t[-1] - message_t[0] 116 | 117 | print('================================') 118 | #print('Pose HZ'.format((poses[-1,0]-poses[0,0]) / poses.shape[0])) 119 | #print('Pose HZ'.format((poses[-1,0]-poses[0,0]) / poses.shape[0])) 120 | #print(1.0 / np.mean(np.gradient(message_t))) 121 | #print(1.0 / np.mean(np.gradient(poses[:, 0]))) 122 | 123 | 124 | print('============ Overall ==============') 125 | print('Total pose messages {}'.format(total_poses)) 126 | print('Total wall time of poses {}'.format(total_pose_time_span)) 127 | print('Total time to generate poses {}'.format(total_message_time_span)) 128 | print('Times realtime {}'.format(total_pose_time_span/total_message_time_span)) 129 | #print(1.0 / np.mean(np.gradient(message_t))) 130 | #print(1.0 / np.mean(np.gradient(poses[:, 0]))) -------------------------------------------------------------------------------- /ros/ros_publish_folder_recording.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: ros_publish_folder_recording.py 4 | # 5 | # Publish a recording to ROS 6 | # 7 | # History: 8 | # 11-08-20 - Levi Burner - Created file 9 | # 10 | ############################################################################### 11 | 12 | import argparse 13 | import json 14 | import os 15 | import glob 16 | import pickle 17 | import time 18 | 19 | import numpy as np 20 | from scipy import interpolate 21 | 22 | from utilities import latest_recording_dir 23 | 24 | import rospy 25 | from sensor_msgs.msg import Image, Imu 26 | from cv_bridge import CvBridge, CvBridgeError 27 | 28 | class RecordedIMUSource(object): 29 | def __init__(self, record_dir): 30 | sensor_data = pickle.load(open(os.path.join(record_dir, 'imu.pickle'), 'rb')) 31 | self._accel_samples = sensor_data['accel'] 32 | self._gyro_samples = sensor_data['gyro'] 33 | self._sample_index = 0 34 | 35 | # TODO resampling like this should occur live as well 36 | interpolater = interpolate.interp1d(self._accel_samples[:, 0], 37 | self._accel_samples[:, 1:4], 38 | axis=0, 39 | bounds_error=False, 40 | fill_value='extrapolate') 41 | accel_samples_interpolated = interpolater(self._gyro_samples[:, 0]) 42 | 43 | self._imu_samples = np.hstack((np.atleast_2d(self._gyro_samples[:, 0]).transpose(), 44 | accel_samples_interpolated, 45 | self._gyro_samples[:, 1:4])) 46 | 47 | def earliest_timestamp(self): 48 | if self._sample_index >= len(self._imu_samples): 49 | return None 50 | return self._imu_samples[0, 0] 51 | 52 | def latest_timestamp(self): 53 | if self._sample_index >= len(self._imu_samples): 54 | return None 55 | return self._imu_samples[-1, 0] 56 | 57 | def next_sample(self): 58 | if self._sample_index >= len(self._imu_samples): 59 | return None 60 | 61 | sample = self._imu_samples[self._sample_index] 62 | self._sample_index += 1 63 | return sample 64 | 65 | def preprocess_image(frame): 66 | return frame 67 | 68 | class RecordedFrameSource(object): 69 | def __init__(self, record_dir, preload=False, preprocess=False): 70 | self._preload = preload 71 | self._preprocess = preprocess 72 | 73 | self._frame_names = sorted(list(glob.glob(os.path.join(record_dir, 'images/frame_*.npy')))) 74 | 75 | frame_metadata = pickle.load(open(os.path.join(record_dir, 'frame_metadata.pickle'), 'rb')) 76 | self._frame_ts = frame_metadata['ts'] 77 | 78 | self._sample_index = 0 79 | 80 | if self._preload: 81 | if self._preprocess: 82 | self._preloaded_frames = [preprocess_image(np.load(frame_name)) for frame_name in self._frame_names] 83 | else: 84 | self._preloaded_frames = [np.load(frame_name) for frame_name in self._frame_names] 85 | 86 | def earliest_timestamp(self): 87 | return self._frame_ts[0] 88 | 89 | def latest_timestamp(self): 90 | if self._sample_index >= len(self._frame_ts): 91 | return None 92 | return self._frame_ts[-1] 93 | 94 | def next_sample(self): 95 | if self._sample_index >= len(self._frame_ts): 96 | return None 97 | 98 | if not self._preload: 99 | frame = np.load(self._frame_names[self._sample_index]) 100 | frame_gray = preprocess_image(frame) 101 | sample = (self._frame_ts[self._sample_index], frame_gray) 102 | else: 103 | if not self._preprocess: 104 | sample = (self._frame_ts[self._sample_index], preprocess_image(self._preloaded_frames[self._sample_index])) 105 | else: 106 | sample = (self._frame_ts[self._sample_index], self._preloaded_frames[self._sample_index]) 107 | 108 | self._sample_index += 1 109 | return sample 110 | 111 | def free_sample(self): 112 | pass 113 | 114 | class ROSFrameIMUPublisher(object): 115 | def __init__ (self, frame_source, imu_source): 116 | self._frame_source = frame_source 117 | self._imu_source = imu_source 118 | 119 | self._image_pub = rospy.Publisher('frames', Image, queue_size=10) 120 | self._imu_pub = rospy.Publisher('imu', Imu, queue_size=10) 121 | 122 | frame_first_timestamp = self._frame_source.earliest_timestamp() 123 | imu_first_timestamp = self._imu_source.earliest_timestamp() 124 | self._first_timestamp = min(frame_first_timestamp, imu_first_timestamp) 125 | 126 | 127 | frame_last_timestamp = self._frame_source.latest_timestamp() 128 | imu_last_timestamp = self._imu_source.latest_timestamp() 129 | self._last_timestamp = max(frame_last_timestamp, imu_last_timestamp) 130 | 131 | self._first_ros_time = rospy.get_rostime().to_sec() 132 | self._time_delta = self._first_ros_time - self._first_timestamp 133 | self._rate_limiter = rospy.Rate(1000) 134 | 135 | self._next_frame = None 136 | self._next_imu = None 137 | 138 | def run(self): 139 | while not rospy.is_shutdown(): 140 | now = rospy.get_rostime().to_sec() 141 | sensor_time = now - self._time_delta 142 | 143 | if sensor_time > self._last_timestamp: 144 | break 145 | 146 | if self._next_frame is None: 147 | self._next_frame = self._frame_source.next_sample() 148 | 149 | if self._next_frame is not None: 150 | if self._next_frame[0] < sensor_time: 151 | image_msg = CvBridge().cv2_to_imgmsg(self._next_frame[1]) 152 | image_msg.header.stamp = rospy.Time.from_sec(self._next_frame[0]) 153 | self._image_pub.publish(image_msg) 154 | 155 | self._next_frame = None 156 | 157 | if self._next_imu is None: 158 | self._next_imu = self._imu_source.next_sample() 159 | 160 | if self._next_imu is not None: 161 | if self._next_imu[0] < sensor_time: 162 | imu_msg = Imu() 163 | imu_msg.header.stamp = rospy.Time.from_sec(self._next_imu[0]) 164 | imu_msg.angular_velocity.x = self._next_imu[4] 165 | imu_msg.angular_velocity.y = self._next_imu[5] 166 | imu_msg.angular_velocity.z = self._next_imu[6] 167 | imu_msg.linear_acceleration.x = self._next_imu[1] 168 | imu_msg.linear_acceleration.y = self._next_imu[2] 169 | imu_msg.linear_acceleration.z = self._next_imu[3] 170 | 171 | self._imu_pub.publish(imu_msg) 172 | 173 | self._next_imu = None 174 | 175 | self._rate_limiter.sleep() 176 | 177 | if __name__ == '__main__': 178 | parser = argparse.ArgumentParser() 179 | parser.add_argument('--dir', dest='dir', type=str, help='Directory to load data from. If not specified the latest in the default location is used') 180 | parser.add_argument('--visualize', dest='visualize', action='store_true', help='Visualize') 181 | parser.add_argument('--wait', dest='wait', action='store_true', help='Wait for key press when visualizing') 182 | parser.add_argument('--april', dest='april', action='store_true', help='Use apriltag for ground truth') 183 | parser.add_argument('--preload', dest='preload', action='store_true', help='Read all images before processing for benchmarking') 184 | parser.add_argument('--preprocess', dest='preprocess', action='store_true', help='Preprocess all images when preloading') 185 | parser.add_argument('--nopublish', dest='nopublish', action='store_true', help='Dont publish with ZMQ') 186 | parser.add_argument('--bench', dest='bench', action='store_true', help='Activate preload nopublish and some other things') 187 | parser.add_argument('--realtime', dest='realtime', action='store_true', help='Test ability to run in realtime with april feedback') 188 | 189 | args = parser.parse_args() 190 | 191 | if not args.dir: 192 | record_dir = latest_recording_dir() 193 | else: 194 | record_dir = args.dir 195 | 196 | rospy.init_node('ttc_recording_pub') 197 | 198 | frame_source = RecordedFrameSource(record_dir, preload=args.preload, preprocess=args.preprocess) 199 | imu_source = RecordedIMUSource(record_dir) 200 | ros_publisher = ROSFrameIMUPublisher(frame_source, imu_source) 201 | 202 | ros_publisher.run() 203 | -------------------------------------------------------------------------------- /ros/rovio/.dockerignore: -------------------------------------------------------------------------------- 1 | recordings/* 2 | -------------------------------------------------------------------------------- /ros/rovio/Dockerfile: -------------------------------------------------------------------------------- 1 | # Adapted from: 2 | # https://github.com/HKUST-Aerial-Robotics/VINS-Mono/blob/master/docker/Dockerfile 3 | 4 | FROM ros:kinetic-perception 5 | 6 | #ENV CERES_VERSION="1.12.0" 7 | ENV CATKIN_WS=/root/catkin_ws 8 | 9 | # set up thread number for building 10 | RUN if [ "x$(nproc)" = "x1" ] ; then export USE_PROC=1 ; \ 11 | else export USE_PROC=$(($(nproc)/2)) ; fi && \ 12 | apt-get update && apt-get install -y \ 13 | cmake \ 14 | libatlas-base-dev \ 15 | libeigen3-dev \ 16 | libgoogle-glog-dev \ 17 | libsuitesparse-dev \ 18 | python-catkin-tools \ 19 | ros-${ROS_DISTRO}-cv-bridge \ 20 | ros-${ROS_DISTRO}-image-transport \ 21 | ros-${ROS_DISTRO}-message-filters \ 22 | ros-${ROS_DISTRO}-tf && \ 23 | rm -rf /var/lib/apt/lists/* && \ 24 | mkdir -p $CATKIN_WS/src 25 | 26 | # Build and install Ceres 27 | #git clone https://ceres-solver.googlesource.com/ceres-solver && \ 28 | #cd ceres-solver && \ 29 | #git checkout tags/${CERES_VERSION} && \ 30 | #mkdir build && cd build && \ 31 | #cmake .. && \ 32 | #make -j$(USE_PROC) install && \ 33 | #rm -rf ../../ceres-solver && \ 34 | 35 | # Clone Rovio, Kindr 36 | WORKDIR $CATKIN_WS 37 | 38 | RUN cd src && \ 39 | git clone --depth 1 https://github.com/ethz-asl/rovio.git && \ 40 | cd rovio && \ 41 | git submodule update --init --recursive && \ 42 | cd .. && \ 43 | git clone --depth 1 https://github.com/ethz-asl/kindr.git 44 | 45 | # Build Rovio 46 | ENV TERM xterm 47 | ENV PYTHONIOENCODING UTF-8 48 | RUN catkin config \ 49 | --extend /opt/ros/$ROS_DISTRO \ 50 | --cmake-args \ 51 | -DCMAKE_BUILD_TYPE=Release -DMAKE_SCENE=OFF && \ 52 | catkin build && \ 53 | sed -i '/exec "$@"/i \ 54 | source "/root/catkin_ws/devel/setup.bash"' /ros_entrypoint.sh 55 | 56 | #RUN catkin build rovio --cmake-args -DCMAKE_BUILD_TYPE=Release 57 | 58 | RUN apt-get update && \ 59 | apt-get install -y ros-${ROS_DISTRO}-rviz python-numpy python-scipy python3-numpy python3-scipy python3-yaml 60 | -------------------------------------------------------------------------------- /ros/rovio/attach.sh: -------------------------------------------------------------------------------- 1 | #!/bin/bash 2 | 3 | docker exec -it rovio bash -------------------------------------------------------------------------------- /ros/rovio/build.sh: -------------------------------------------------------------------------------- 1 | #!/bin/bash 2 | docker build --tag ros:vins-mono -f ./Dockerfile . 3 | -------------------------------------------------------------------------------- /ros/rovio/d435i_cam0.yaml: -------------------------------------------------------------------------------- 1 | ###### Camera Calibration File For D435i ###### 2 | image_width: 848 3 | image_height: 480 4 | camera_name: cam0 5 | camera_matrix: 6 | rows: 3 7 | cols: 3 8 | data: [423.5357, 0.0, 429.74478, 0.0, 423.5357, 239.89632, 0.0, 0.0, 1.0] 9 | distortion_model: plumb_bob 10 | distortion_coefficients: 11 | rows: 1 12 | cols: 5 13 | data: [0.0, 0.0, 0.0, 0.0, 0.0] 14 | 15 | 16 | -------------------------------------------------------------------------------- /ros/rovio/d435i_rovio.info: -------------------------------------------------------------------------------- 1 | ; You can partially override parameter set in this file by creating your own subset of parameter in a separate info-file and include it with: 2 | ; #include "/home/user/workspace/rovio/cfg/rovio_custom.info" 3 | Common 4 | { 5 | doVECalibration true; Should the camera-IMU extrinsics be calibrated online 6 | depthType 1; Type of depth parametrization (0: normal, 1: inverse depth, 2: log, 3: hyperbolic) 7 | verbose false; Is the verbose active 8 | } 9 | Camera0 10 | { 11 | CalibrationFile ; Camera-Calibration file for intrinsics 12 | qCM_x 0.0; X-entry of IMU to Camera quaterion (Hamilton) 13 | qCM_y 0.0; Y-entry of IMU to Camera quaterion (Hamilton) 14 | qCM_z 0.0; Z-entry of IMU to Camera quaterion (Hamilton) 15 | qCM_w 1.0; W-entry of IMU to Camera quaterion (Hamilton) 16 | MrMC_x 0.00552; X-entry of IMU to Camera vector (expressed in IMU CF) [m] 17 | MrMC_y -0.0051; Y-entry of IMU to Camera vector (expressed in IMU CF) [m] 18 | MrMC_z -0.01174; Z-entry of IMU to Camera vector (expressed in IMU CF) [m] 19 | } 20 | Camera1 21 | { 22 | CalibrationFile ; Camera-Calibration file for intrinsics 23 | qCM_x 0.00151329637706; X-entry of IMU to Camera quaterion (Hamilton) 24 | qCM_y -0.0123329249764; Y-entry of IMU to Camera quaterion (Hamilton) 25 | qCM_z -0.702657352863; Z-entry of IMU to Camera quaterion (Hamilton) 26 | qCM_w 0.711419885414; W-entry of IMU to Camera quaterion (Hamilton) 27 | MrMC_x -0.0091929160801; X-entry of IMU to Camera vector (expressed in IMU CF) [m] 28 | MrMC_y 0.0540646643676; Y-entry of IMU to Camera vector (expressed in IMU CF) [m] 29 | MrMC_z 0.0190387660614; Z-entry of IMU to Camera vector (expressed in IMU CF) [m] 30 | } 31 | Init 32 | { 33 | State 34 | { 35 | pos_0 0; X-entry of initial position (world to IMU in world) [m] 36 | pos_1 0; Y-entry of initial position (world to IMU in world) [m] 37 | pos_2 0; Z-entry of initial position (world to IMU in world) [m] 38 | vel_0 0; X-entry of initial velocity (robocentric, IMU) [m/s] 39 | vel_1 0; Y-entry of initial velocity (robocentric, IMU) [m/s] 40 | vel_2 0; Z-entry of initial velocity (robocentric, IMU) [m/s] 41 | acb_0 0; X-entry of accelerometer bias [m/s^2] 42 | acb_1 0; Y-entry of accelerometer bias [m/s^2] 43 | acb_2 0; Z-entry of accelerometer bias [m/s^2] 44 | gyb_0 0; X-entry of gyroscope bias [rad/s] 45 | gyb_1 0; Y-entry of gyroscope bias [rad/s] 46 | gyb_2 0; Z-entry of gyroscope bias [rad/s] 47 | att_x 0; X-entry of initial attitude (IMU to world, Hamilton) 48 | att_y 0; Y-entry of initial attitude (IMU to world, Hamilton) 49 | att_z 0; Z-entry of initial attitude (IMU to world, Hamilton) 50 | att_w 1; W-entry of initial attitude (IMU to world, Hamilton) 51 | } 52 | Covariance 53 | { 54 | pos_0 0.0001; X-Covariance of initial position [m^2] 55 | pos_1 0.0001; Y-Covariance of initial position [m^2] 56 | pos_2 0.0001; Z-Covariance of initial position [m^2] 57 | vel_0 1.0; X-Covariance of initial velocity [m^2/s^2] 58 | vel_1 1.0; Y-Covariance of initial velocity [m^2/s^2] 59 | vel_2 1.0; Z-Covariance of initial velocity [m^2/s^2] 60 | acb_0 4e-4; X-Covariance of initial accelerometer bias [m^2/s^4] 61 | acb_1 4e-4; Y-Covariance of initial accelerometer bias [m^2/s^4] 62 | acb_2 4e-4; Z-Covariance of initial accelerometer bias [m^2/s^4] 63 | gyb_0 3e-4; X-Covariance of initial gyroscope bias [rad^2/s^2] 64 | gyb_1 3e-4; Y-Covariance of initial gyroscope bias [rad^2/s^2] 65 | gyb_2 3e-4; Z-Covariance of initial gyroscope bias [rad^2/s^2] 66 | vep 0.0001; Covariance of initial linear camera-IMU extrinsics, same for all entries [m^2] 67 | att_0 0.1; X-Covariance of initial attitude [rad^2] 68 | att_1 0.1; Y-Covariance of initial attitude [rad^2] 69 | att_2 0.1; Z-Covariance of initial attitude [rad^2] 70 | vea 0.01; Covariance of initial rotational camera-IMU extrinsics, same for all entries [rad^2] 71 | } 72 | } 73 | ImgUpdate 74 | { 75 | updateVecNormTermination 1e-4; 76 | maxNumIteration 20; 77 | doPatchWarping true; Should the patches be warped 78 | doFrameVisualisation false; Should the frames be visualized 79 | visualizePatches false; Should the patches be visualized 80 | useDirectMethod true; Should the EKF-innovation be based on direct intensity error (o.w. reprojection error) 81 | startLevel 2; Highest patch level which is being employed (must be smaller than the hardcoded template parameter) 82 | endLevel 1; Lowest patch level which is being employed 83 | nDetectionBuckets 100; Number of discretization buckets used during the candidates selection 84 | MahalanobisTh 9.21; Mahalanobis treshold for the update, 5.8858356 85 | UpdateNoise 86 | { 87 | pix 2; Covariance used for the reprojection error, 1/focal_length is roughly 1 pixel std [rad] (~1/f ~ 1/400^2 = 1/160000) 88 | int 400; Covariance used for the photometric error [intensity^2] 89 | } 90 | initCovFeature_0 0.5; Covariance for the initial distance (Relative to initialization depth [m^2/m^2]) 91 | initCovFeature_1 1e-5; Covariance for the initial bearing vector, x-component [rad^2] 92 | initCovFeature_2 1e-5; Covariance for the initial bearing vector, y-component [rad^2] 93 | initDepth 0.5; Initial value for the initial distance parameter 94 | startDetectionTh 0.8; Threshold for detecting new features (min: 0, max: 1) 95 | scoreDetectionExponent 0.25; Exponent used for weighting the distance between candidates 96 | penaltyDistance 100; Maximal distance which gets penalized during bucketing [pix] 97 | zeroDistancePenalty 100; Penalty for zero distance (max: nDetectionBuckets) 98 | statLocalQualityRange 10; Number of frames for local quality evaluation 99 | statLocalVisibilityRange 100; Number of frames for local visibility evaluation 100 | statMinGlobalQualityRange 100; Minimum number of frames for obtaining maximal global quality 101 | trackingUpperBound 0.9; Threshold for local quality for min overall global quality 102 | trackingLowerBound 0.8; Threshold for local quality for max overall global quality 103 | minTrackedAndFreeFeatures 0.75; Minimum of amount of feature which are either tracked or free 104 | removalFactor 1.1; Factor for enforcing feature removal if not enough free 105 | minRelativeSTScore 0.75; Minimum relative ST-score for extracting new feature patch 106 | minAbsoluteSTScore 5.0; Minimum absolute ST-score for extracting new feature patch 107 | minTimeBetweenPatchUpdate 1.0; Minimum time between new multilevel patch extrection [s] 108 | fastDetectionThreshold 5; Fast corner detector treshold while adding new feature 109 | alignConvergencePixelRange 10; Assumed convergence range for image alignment (gets scaled with the level) [pixels] 110 | alignCoverageRatio 2; How many sigma of the uncertainty should be covered in the adaptive alignement 111 | alignMaxUniSample 1; Maximal number of alignment seeds on one side -> total number of sample = 2n+1. Carefull can get very costly if diverging! 112 | patchRejectionTh 50.0; If the average itensity error is larger than this the feauture is rejected [intensity], if smaller 0 the no check is performed 113 | alignmentHuberNormThreshold 10; Intensity error threshold for Huber norm (enabled if > 0) 114 | alignmentGaussianWeightingSigma -1; Width of Gaussian which is used for pixel error weighting (enabled if > 0) 115 | alignmentGradientExponent 0.0; Exponent used for gradient based weighting of residuals 116 | useIntensityOffsetForAlignment true; Should an intensity offset between the patches be considered 117 | useIntensitySqewForAlignment true; Should an intensity sqew between the patches be considered 118 | removeNegativeFeatureAfterUpdate true; Should feature with negative distance get removed 119 | maxUncertaintyToDepthRatioForDepthInitialization 0.3; If set to 0.0 the depth is initialized with the standard value provided above, otherwise ROVIO attempts to figure out a median depth in each frame 120 | useCrossCameraMeasurements true; Should cross measurements between frame be used. Might be turned of in calibration phase. 121 | doStereoInitialization true; Should a stereo match be used for feature initialization. 122 | noiseGainForOffCamera 10.0; Factor added on update noise if not main camera 123 | discriminativeSamplingDistance 0.02; Sampling distance for checking discriminativity of patch (if <= 0.0 no check is performed). 124 | discriminativeSamplingGain 1.1; Gain for threshold above which the samples must lie (if <= 1.0 the patchRejectionTh is used). 125 | MotionDetection 126 | { 127 | isEnabled 0; Is the motion detection enabled 128 | rateOfMovingFeaturesTh 0.5; Amount of feature with motion for overall motion detection 129 | pixelCoordinateMotionTh 1.0; Threshold for motion detection for patched [pixels] 130 | minFeatureCountForNoMotionDetection 5; Min feature count in frame for motion detection 131 | } 132 | ZeroVelocityUpdate 133 | { 134 | UpdateNoise 135 | { 136 | vel_0 0.01; X-Covariance of zero velocity update [m^2/s^2] 137 | vel_1 0.01; Y-Covariance of zero velocity update [m^2/s^2] 138 | vel_2 0.01; Z-Covariance of zero velocity update [m^2/s^2] 139 | } 140 | MahalanobisTh0 7.689997599999999; Mahalanobid distance for zero velocity updates 141 | minNoMotionTime 1.0; Min duration of no-motion 142 | isEnabled 0; Should zero velocity update be applied, only works if MotionDetection.isEnabled is true 143 | } 144 | } 145 | Prediction 146 | { 147 | PredictionNoise 148 | { 149 | pos_0 1e-4; X-covariance parameter of position prediction [m^2/s] 150 | pos_1 1e-4; Y-covariance parameter of position prediction [m^2/s] 151 | pos_2 1e-4; Z-covariance parameter of position prediction [m^2/s] 152 | vel_0 4e-6; X-covariance parameter of velocity prediction [m^2/s^3] 153 | vel_1 4e-6; Y-covariance parameter of velocity prediction [m^2/s^3] 154 | vel_2 4e-6; Z-covariance parameter of velocity prediction [m^2/s^3] 155 | acb_0 1e-8; X-covariance parameter of accelerometer bias prediction [m^2/s^5] 156 | acb_1 1e-8; Y-covariance parameter of accelerometer bias prediction [m^2/s^5] 157 | acb_2 1e-8; Z-covariance parameter of accelerometer bias prediction [m^2/s^5] 158 | gyb_0 3.8e-7; X-covariance parameter of gyroscope bias prediction [rad^2/s^3] 159 | gyb_1 3.8e-7; Y-covariance parameter of gyroscope bias prediction [rad^2/s^3] 160 | gyb_2 3.8e-7; Z-covariance parameter of gyroscope bias prediction [rad^2/s^3] 161 | vep 1e-8; Covariance parameter of linear extrinsics prediction [m^2/s] 162 | att_0 7.6e-7; X-Covariance parameter of attitude prediction [rad^2/s] 163 | att_1 7.6e-7; Y-Covariance parameter of attitude prediction [rad^2/s] 164 | att_2 7.6e-7; Z-Covariance parameter of attitude prediction [rad^2/s] 165 | vea 1e-8; Covariance parameter of rotational extrinsics prediction [rad^2/s] 166 | dep 0.0001; Covariance parameter of distance prediction [m^2/s] 167 | nor 0.00001; Covariance parameter of bearing vector prediction [rad^2/s] 168 | } 169 | MotionDetection 170 | { 171 | inertialMotionRorTh 0.1; Treshold on rotational rate for motion detection [rad/s] 172 | inertialMotionAccTh 0.5; Treshold on acceleration for motion detection [m/s^2] 173 | } 174 | } 175 | PoseUpdate 176 | { 177 | UpdateNoise 178 | { 179 | pos_0 0.01; X-Covariance of linear pose measurement update [m^2] 180 | pos_1 0.01; Y-Covariance of linear pose measurement update [m^2] 181 | pos_2 0.01; Z-Covariance of linear pose measurement update [m^2] 182 | att_0 0.01; X-Covariance of rotational pose measurement update [rad^2] 183 | att_1 0.01; Y-Covariance of rotational pose measurement update [rad^2] 184 | att_2 0.01; Z-Covariance of rotational pose measurement update [rad^2] 185 | } 186 | init_cov_IrIW 1; Covariance of initial pose between inertial frames, linear part [m^2] 187 | init_cov_qWI 1; Covariance of initial pose between inertial frames, rotational part [rad^2] 188 | init_cov_MrMV 1; Covariance of initial pose between inertial frames, linear part [m^2] 189 | init_cov_qVM 1; Covariance of initial pose between inertial frames, rotational part [rad^2] 190 | pre_cov_IrIW 1e-4; Covariance parameter of pose between inertial frames, linear part [m^2/s] 191 | pre_cov_qWI 1e-4; Covariance parameter of pose between inertial frames, rotational part [rad^2/s] 192 | pre_cov_MrMV 1e-4; Covariance parameter of pose between inertial frames, linear part [m^2/s] 193 | pre_cov_qVM 1e-4; Covariance parameter of pose between inertial frames, rotational part [rad^2/s] 194 | MahalanobisTh0 12.6511204; Mahalonobis distance treshold of pose measurement 195 | doVisualization false; Should the measured poses be vizualized 196 | enablePosition true; Should the linear part be used during the update 197 | enableAttitude true; Should the rotation part be used during the update (e.g. set to fals eif feeding GPS-measurement) 198 | noFeedbackToRovio true; By default the pose update is only used for aligning coordinate frame. Set to false if ROVIO should benefit frome the posed measurements. 199 | doInertialAlignmentAtStart true; Should the transformation between I and W be explicitly computed and set with the first pose measurement. 200 | timeOffset 0.0; Time offset added to the pose measurement timestamps 201 | useOdometryCov false; Should the UpdateNoise position covariance be scaled using the covariance in the Odometry message 202 | qVM_x 0; X-entry of quaterion representing IMU to reference body coordinate frame of pose measurement (Hamilton) 203 | qVM_y 0; Y-entry of quaterion representing IMU to reference body coordinate frame of pose measurement (Hamilton) 204 | qVM_z 0; Z-entry of quaterion representing IMU to reference body coordinate frame of pose measurement (Hamilton) 205 | qVM_w 1; W-entry of quaterion representing IMU to reference body coordinate frame of pose measurement (Hamilton) 206 | MrMV_x 0; X-entry of vector representing IMU to reference body coordinate frame of pose measurement 207 | MrMV_y 0; Y-entry of vector representing IMU to reference body coordinate frame of pose measurement 208 | MrMV_z 0; Z-entry of vector representing IMU to reference body coordinate frame of pose measurement 209 | qWI_x 0; X-entry of quaterion representing World to reference inertial coordinate frame of pose measurement (Hamilton) 210 | qWI_y 0; Y-entry of quaterion representing World to reference inertial coordinate frame of pose measurement (Hamilton) 211 | qWI_z 0; Z-entry of quaterion representing World to reference inertial coordinate frame of pose measurement (Hamilton) 212 | qWI_w 1; W-entry of quaterion representing World to reference inertial coordinate frame of pose measurement (Hamilton) 213 | IrIW_x 0; X-entry of vector representing World to reference inertial coordinate frame of pose measurement 214 | IrIW_y 0; Y-entry of vector representing World to reference inertial coordinate frame of pose measurement 215 | IrIW_z 0; Z-entry of vector representing World to reference inertial coordinate frame of pose measurement 216 | } 217 | VelocityUpdate 218 | { 219 | UpdateNoise 220 | { 221 | vel_0 0.0001 222 | vel_1 0.0001 223 | vel_2 0.0001 224 | } 225 | MahalanobisTh0 7.689997599999999 226 | qAM_x 0 227 | qAM_y 0 228 | qAM_z 0 229 | qAM_w 1 230 | } 231 | -------------------------------------------------------------------------------- /ros/rovio/rovio_node.launch: -------------------------------------------------------------------------------- 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | -------------------------------------------------------------------------------- /ros/rovio/rovio_rosbag_node_ttc.launch: -------------------------------------------------------------------------------- 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | -------------------------------------------------------------------------------- /ros/rovio/run.sh: -------------------------------------------------------------------------------- 1 | #!/bin/bash 2 | 3 | rocker --volume ../../../../time_to_contact_depth --nvidia --x11 --name rovio ros:rovio bash 4 | 5 | # docker run -it --rm ros:vins-mono \ 6 | # /bin/bash -c \ 7 | # "cd /root/catkin_ws/; \ 8 | # source devel/setup.bash; \ 9 | # roslaunch vins_estimator ${1}" 10 | -------------------------------------------------------------------------------- /rpg_align_trajectory/LICENSE: -------------------------------------------------------------------------------- 1 | MIT License 2 | 3 | Copyright (c) 2018 Zichao Zhang (Robotics and Perception Group, University of Zurich, Switzerland) 4 | 5 | Permission is hereby granted, free of charge, to any person obtaining a copy 6 | of this software and associated documentation files (the "Software"), to deal 7 | in the Software without restriction, including without limitation the rights 8 | to use, copy, modify, merge, publish, distribute, sublicense, and/or sell 9 | copies of the Software, and to permit persons to whom the Software is 10 | furnished to do so, subject to the following conditions: 11 | 12 | The above copyright notice and this permission notice shall be included in all 13 | copies or substantial portions of the Software. 14 | 15 | THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR 16 | IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, 17 | FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE 18 | AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER 19 | LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, 20 | OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE 21 | SOFTWARE. 22 | -------------------------------------------------------------------------------- /rpg_align_trajectory/__init__.py: -------------------------------------------------------------------------------- https://raw.githubusercontent.com/prgumd/TTCDist/c76dff31c96ff97a97a8e5d4d99133cbc9bd2d23/rpg_align_trajectory/__init__.py -------------------------------------------------------------------------------- /rpg_align_trajectory/rpg_align_trajectory.py: -------------------------------------------------------------------------------- 1 | # Downloaded from: 2 | # https://github.com/uzh-rpg/rpg_trajectory_evaluation/blob/master/src/rpg_trajectory_evaluation/align_trajectory.py 3 | # Available under MIT license 4 | 5 | #!/usr/bin/env python2 6 | # -*- coding: utf-8 -*- 7 | 8 | import numpy as np 9 | #import transformations as tfs 10 | 11 | 12 | def get_best_yaw(C): 13 | ''' 14 | maximize trace(Rz(theta) * C) 15 | ''' 16 | assert C.shape == (3, 3) 17 | 18 | A = C[0, 1] - C[1, 0] 19 | B = C[0, 0] + C[1, 1] 20 | theta = np.pi / 2 - np.arctan2(B, A) 21 | 22 | return theta 23 | 24 | 25 | def rot_z(theta): 26 | R = tfs.rotation_matrix(theta, [0, 0, 1]) 27 | R = R[0:3, 0:3] 28 | 29 | return R 30 | 31 | 32 | def align_umeyama(model, data, known_scale=False, yaw_only=False): 33 | """Implementation of the paper: S. Umeyama, Least-Squares Estimation 34 | of Transformation Parameters Between Two Point Patterns, 35 | IEEE Trans. Pattern Anal. Mach. Intell., vol. 13, no. 4, 1991. 36 | 37 | model = s * R * data + t 38 | 39 | Input: 40 | model -- first trajectory (nx3), numpy array type 41 | data -- second trajectory (nx3), numpy array type 42 | 43 | Output: 44 | s -- scale factor (scalar) 45 | R -- rotation matrix (3x3) 46 | t -- translation vector (3x1) 47 | t_error -- translational error per point (1xn) 48 | 49 | """ 50 | 51 | # substract mean 52 | mu_M = model.mean(0) 53 | mu_D = data.mean(0) 54 | model_zerocentered = model - mu_M 55 | data_zerocentered = data - mu_D 56 | n = np.shape(model)[0] 57 | 58 | # correlation 59 | C = 1.0/n*np.dot(model_zerocentered.transpose(), data_zerocentered) 60 | sigma2 = 1.0/n*np.multiply(data_zerocentered, data_zerocentered).sum() 61 | U_svd, D_svd, V_svd = np.linalg.linalg.svd(C) 62 | D_svd = np.diag(D_svd) 63 | V_svd = np.transpose(V_svd) 64 | 65 | S = np.eye(3) 66 | if(np.linalg.det(U_svd)*np.linalg.det(V_svd) < 0): 67 | S[2, 2] = -1 68 | 69 | if yaw_only: 70 | rot_C = np.dot(data_zerocentered.transpose(), model_zerocentered) 71 | theta = get_best_yaw(rot_C) 72 | R = rot_z(theta) 73 | else: 74 | R = np.dot(U_svd, np.dot(S, np.transpose(V_svd))) 75 | 76 | if known_scale: 77 | s = 1 78 | else: 79 | s = 1.0/sigma2*np.trace(np.dot(D_svd, S)) 80 | 81 | t = mu_M-s*np.dot(R, mu_D) 82 | 83 | return s, R, t 84 | -------------------------------------------------------------------------------- /ttc_depth_calc_error.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: ttc_depth_calc_error.py 4 | # Available under MIT license 5 | # 6 | # Calculate the error for all sequences released with the TTCDist paper 7 | # 8 | # History: 9 | # 09-26-22 - Levi Burner - Open source release 10 | # 11 | ############################################################################### 12 | 13 | import argparse 14 | import csv 15 | import glob 16 | import os 17 | os.environ['OPENBLAS_NUM_THREADS'] = '1' # Attempt to disable OpenBLAS multithreading, it makes the script slower 18 | import pickle 19 | 20 | import numpy as np 21 | 22 | import matplotlib.pyplot as plt 23 | 24 | from scipy.interpolate import interp1d 25 | from scipy.io import savemat 26 | 27 | from rpg_align_trajectory.rpg_align_trajectory import align_umeyama 28 | 29 | def signal_to_array(signal): 30 | times = [t for t, d in signal] 31 | data = [d for t, d in signal] 32 | 33 | times_array = np.array(times) 34 | data_array = np.vstack(data) 35 | 36 | return np.hstack((np.atleast_2d(times_array).transpose(), data_array)) 37 | 38 | def load_april(directory): 39 | results_name = os.path.join(directory, 'results.pickle') 40 | ttc_data = pickle.load(open(results_name, 'rb'))['results'] 41 | 42 | if 'ground_truth_pose' in ttc_data.keys(): 43 | april_signal = ttc_data['ground_truth_pose'] 44 | april_data = signal_to_array(april_signal) 45 | return april_data 46 | else: 47 | return None 48 | 49 | def load_ttc(directory): 50 | results_name = os.path.join(directory, 'results.pickle') 51 | ttc_data = pickle.load(open(results_name, 'rb'))['results'] 52 | 53 | pose_signal = ttc_data['pose_hat'] 54 | pose_data = signal_to_array(pose_signal) 55 | 56 | return pose_data 57 | 58 | def load_phi(directory): 59 | results_name = os.path.join(directory, 'results.pickle') 60 | ttc_data = pickle.load(open(results_name, 'rb'))['results'] 61 | 62 | pose_signal = ttc_data['phi_pose_hat'] 63 | pose_data = signal_to_array(pose_signal) 64 | 65 | return pose_data 66 | 67 | def load_vins_mono(directory): 68 | results_name = os.path.join(directory, 'results.pickle') 69 | vins_mono_data = pickle.load(open(results_name, 'rb'), encoding='latin1') 70 | 71 | vins_mono_data = vins_mono_data['poses'] 72 | 73 | return vins_mono_data 74 | 75 | def load_rovio(directory): 76 | results_name = os.path.join(directory, 'results.pickle') 77 | 78 | if not os.path.exists(results_name): 79 | return None 80 | 81 | rovio_data = pickle.load(open(results_name, 'rb'), encoding='latin1') 82 | 83 | rovio_data = rovio_data['poses'] 84 | 85 | return rovio_data 86 | 87 | def load_vicon(directory): 88 | results_name = os.path.join(directory, 'results.csv') 89 | 90 | # Unfortunately cannot use genfromtxt because vicon leaves out 91 | # delimiters when data is bad 92 | #vicon_data = np.genfromtxt(results_name, skip_header=5, delimiter=',', filling_values=np.nan, invalid_raise=False) 93 | 94 | vicon_data_list = [] 95 | with open(results_name) as results_file: 96 | csv_reader = csv.reader(results_file, delimiter=',') 97 | for i in range(5): 98 | csv_reader.__next__() 99 | 100 | for row in csv_reader: 101 | if len(row) == 9: 102 | row_float = [float(x) for x in row] 103 | t = (row_float[0] - 1) * (1.0/200.0) 104 | vicon_data_list.append([t,] + row_float[6:9]) 105 | 106 | vicon_data = np.array(vicon_data_list) 107 | vicon_data[:, 1:4] /= 1000.0 108 | return vicon_data 109 | 110 | def plot_all_naive(data, abs=False): 111 | plt.figure() 112 | data_abs = {} 113 | for method in data.keys(): 114 | if abs: 115 | data_abs[method] = np.abs(data[method]) 116 | else: 117 | data_abs = data 118 | 119 | plt.subplot(3, 1, 1) 120 | 121 | t = data_abs[method][:, 0] 122 | 123 | x = data_abs[method][:, 1] 124 | plt.plot(t, x) 125 | plt.legend(data.keys()) 126 | plt.grid(True) 127 | 128 | plt.subplot(3, 1, 2) 129 | y = data_abs[method][:, 2] 130 | plt.plot(t, y) 131 | plt.legend(data.keys()) 132 | plt.grid(True) 133 | 134 | plt.subplot(3, 1, 3) 135 | z = data_abs[method][:, 3] 136 | plt.plot(t, z) 137 | plt.legend(data.keys()) 138 | plt.grid(True) 139 | 140 | 141 | def select_data(data, min_t, max_t): 142 | t = data[:, 0] 143 | data_selected = data[(t >= min_t) & (t <= max_t)] 144 | return data_selected 145 | 146 | def calc_valid_path_length(data, ground_truth='vicon'): 147 | ground_truth_data = data[ground_truth] 148 | 149 | min_t = None 150 | max_t = None 151 | for method in data.keys(): 152 | if method == ground_truth: 153 | continue 154 | data_times = data[method][:, 0] 155 | if min_t is None or data_times[0] > min_t: 156 | min_t = data_times[0] 157 | if max_t is None or data_times[-1] < max_t: 158 | max_t = data_times[-1] 159 | 160 | ground_truth_times = ground_truth_data[:, 0] 161 | ground_truth_trimmed = ground_truth_data[(ground_truth_times >= min_t) * (ground_truth_times <= max_t), :] 162 | 163 | dist_traveled_samples = np.linalg.norm(ground_truth_trimmed[1:, 1:4] - ground_truth_trimmed[:-1, 1:4], axis=1) 164 | path_length = np.sum(dist_traveled_samples) 165 | return path_length 166 | 167 | 168 | def calc_error(data, ground_truth='april'): 169 | ground_truth_data = data[ground_truth] 170 | 171 | min_t = None 172 | max_t = None 173 | for method in data.keys(): 174 | if method == ground_truth: 175 | continue 176 | data_times = data[method][:, 0] 177 | if min_t is None or data_times[0] > min_t: 178 | min_t = data_times[0] 179 | if max_t is None or data_times[-1] < max_t: 180 | max_t = data_times[-1] 181 | 182 | error_data = {} 183 | for method in data.keys(): 184 | if method == ground_truth: 185 | continue 186 | 187 | data_times = data[method][:, 0] 188 | data_selected = select_data(data[method], min_t, max_t) 189 | 190 | data_interp = interp1d(data_selected[:, 0], data_selected[:, 1:4], axis=0) 191 | 192 | data_times_min = data_selected[:, 0].min() 193 | data_times_max = data_selected[:, 0].max() 194 | 195 | ground_truth_times = ground_truth_data[:, 0] 196 | ground_truth_trimmed = ground_truth_data[(ground_truth_times >= data_times_min) * (ground_truth_times <= data_times_max), :] 197 | 198 | data_resampled = data_interp(ground_truth_trimmed[:, 0]) 199 | 200 | error = data_resampled - ground_truth_trimmed[:, 1:4] 201 | 202 | 203 | name = method + '-' + ground_truth 204 | error_data[name] = np.hstack((np.atleast_2d(ground_truth_trimmed[:, 0]).transpose(), error)) 205 | 206 | return error_data 207 | 208 | def calc_error_stats(error_data): 209 | error_stats = {} 210 | for method in error_data.keys(): 211 | rmse = 100*np.linalg.norm(error_data[method][:, 1:4], axis=0) / (error_data[method].shape[0]**0.5) 212 | 213 | ate_samples = error_data[method][:, 1:4].flatten() 214 | ate = 100*np.linalg.norm(ate_samples) / (ate_samples.shape[0]**0.5) 215 | 216 | error_stats[method] = (rmse, ate) 217 | return error_stats 218 | 219 | def print_error_stats(error_stats): 220 | for method in error_stats.keys(): 221 | rmse = error_stats[method][0] 222 | ate = error_stats[method][1] 223 | print('{:<40}: rmse {:0.3f} {:0.3f} {:0.3f} (cm) ate: {:0.3f} (cm)'.format(method, rmse[0], rmse[1], rmse[2], ate)) 224 | 225 | def find_transform_time_sync_to_ground_truth(data, ground_truth='april'): 226 | ground_truth_data = data['vicon'] 227 | 228 | ground_truth_data = data[ground_truth] 229 | 230 | min_t = None 231 | max_t = None 232 | for method in data.keys(): 233 | if method == ground_truth: 234 | continue 235 | data_times = data[method][:, 0] 236 | if min_t is None or data_times[0] > min_t: 237 | min_t = data_times[0] 238 | if max_t is None or data_times[-1] < max_t: 239 | max_t = data_times[-1] 240 | 241 | transformation = {} 242 | min_ate = {} 243 | for method in data.keys(): 244 | if method == ground_truth: 245 | continue 246 | 247 | data_selected = select_data(data[method], min_t, max_t) 248 | data_interp = interp1d(data_selected[:, 0], data_selected[:, 1:4], axis=0, bounds_error=False) 249 | 250 | ground_truth_length = ground_truth_data[-1, 0] - ground_truth_data[0, 0] 251 | if (ground_truth_length < (max_t - min_t)): 252 | raise Exception('ground truth must be longer than data for now') 253 | 254 | # TODO handle ground truth sample rate correctly 255 | ground_truth_samples = int(np.floor((max_t - min_t) * 200.0)) 256 | 257 | for i in range(0, ground_truth_data.shape[0] - ground_truth_samples): 258 | if ('record_000004' in recording 259 | and (method == 'ttc_wy_bias_2' 260 | or method =='rovio') 261 | and i < 2000): # Hack to fix incorrect correlations that cause insane ATE errors for these two cases 262 | continue 263 | 264 | ground_truth_selected = ground_truth_data[i:i+ground_truth_samples, :] 265 | ground_truth_times_shifted = (ground_truth_selected[:, 0] - ground_truth_selected[0, 0]) + min_t 266 | valid = (ground_truth_times_shifted >= data_selected[0, 0]) & (ground_truth_times_shifted <= data_selected[-1, 0]) 267 | ground_truth_times_shifted = ground_truth_times_shifted[valid] 268 | ground_truth_selected = ground_truth_selected[valid] 269 | 270 | data_resampled = data_interp(ground_truth_times_shifted) 271 | 272 | try: 273 | s, R, t = align_umeyama(ground_truth_selected[:, 1:4], data_resampled, known_scale=True) 274 | assert s == 1 275 | except np.linalg.LinAlgError: 276 | #print('error, should not happen') 277 | continue 278 | 279 | transformed = ((s * R) @ data_resampled.transpose()).transpose() + t 280 | 281 | error = (transformed - ground_truth_selected[:, 1:4]).flatten() 282 | ate = 100*np.linalg.norm(error) / (error.shape[0]**0.5) 283 | 284 | if method not in min_ate.keys() or ate < min_ate[method]: 285 | min_ate[method] = ate 286 | transformation[method] = (s, R, t, i / 200.0 - min_t) 287 | #print(method, i, i / 200.0, min_ate[method]) 288 | 289 | return transformation 290 | 291 | def transform_data_to_ground_truth(data, transformations, ground_truth='april'): 292 | data_transformed = {ground_truth: data[ground_truth]} 293 | for method in data.keys(): 294 | if method == ground_truth: 295 | continue 296 | 297 | if method not in transformations: 298 | continue 299 | 300 | transformation = transformations[method] 301 | 302 | s = transformation[0] 303 | R = transformation[1] 304 | t = transformation[2] 305 | delta_t = transformation[3] 306 | 307 | data_times = data[method][:, 0] + delta_t 308 | 309 | transformed = ((s * R) @ data[method][:, 1:4].transpose()).transpose() + t 310 | data_transformed[method] = np.hstack((np.atleast_2d(data_times).transpose(), transformed)) 311 | return data_transformed 312 | 313 | if __name__ == '__main__': 314 | parser = argparse.ArgumentParser() 315 | parser.add_argument('--dir', help='directory containing results files') 316 | parser.add_argument('--calc', action='store_true', help='Align trajectories with ground truth, save results to file') 317 | parser.add_argument('--latex', action='store_true', help='Process results file to latex') 318 | args = parser.parse_args() 319 | 320 | 321 | if args.calc: 322 | # Find all the recordings 323 | recordings = sorted(glob.glob(os.path.join(args.dir, 'record_*'))) 324 | 325 | results = {} 326 | 327 | for recording in recordings: 328 | print('Processing: {}'.format(recording)) 329 | # Find all the algorithms 330 | algorithms = sorted(glob.glob(os.path.join(recording, '*'))) 331 | 332 | data = {} 333 | for algorithm in algorithms: 334 | method = os.path.basename(algorithm) 335 | 336 | #print(method) 337 | 338 | if method[:3] == 'ttc': 339 | if method[3:] == '': 340 | april_data = load_april(algorithm) 341 | if april_data is not None: 342 | data['april'] = april_data 343 | data[method] = load_ttc(algorithm) 344 | data['phi'] = load_phi(algorithm) 345 | elif method[:9] == 'vins_mono': 346 | if 'record_000004' not in recording: # Skip recording where VINS-Mono did not work 347 | data[method] = load_vins_mono(algorithm) 348 | elif method[:5] == 'rovio': 349 | data[method] = load_rovio(algorithm) 350 | elif method[:5] == 'vicon': 351 | data[method] = load_vicon(algorithm) 352 | elif method == 'visualization': 353 | pass 354 | else: 355 | raise Exception('unsupported method') 356 | 357 | transformation = find_transform_time_sync_to_ground_truth(data, ground_truth='vicon') 358 | transformed_data = transform_data_to_ground_truth(data, transformation, ground_truth='vicon') 359 | 360 | error_data = calc_error(transformed_data, ground_truth='vicon') 361 | 362 | #plot_all_naive(transformed_data) 363 | #plot_all_naive(error_data, abs=True) 364 | error_stats = calc_error_stats(error_data) 365 | print_error_stats(error_stats) 366 | 367 | for key in transformation.keys(): 368 | print(transformation[key][3] - transformation[list(transformation.keys())[0]][3], key) 369 | 370 | recording_name = os.path.split(recording)[-1] 371 | results[recording_name] = {'transformed_data': transformed_data, 372 | 'error_data': error_data} 373 | 374 | results_save_name = os.path.join(args.dir, 'processed_results.pickle') 375 | with open(results_save_name, 'wb') as file: 376 | pickle.dump(results, file) 377 | 378 | results_save_name = os.path.join(args.dir, 'processed_results.mat') 379 | savemat(results_save_name, mdict=results) 380 | 381 | plt.show() 382 | 383 | if args.latex: 384 | results_save_name = os.path.join(args.dir, 'processed_results.pickle') 385 | results_data = pickle.load(open(results_save_name, 'rb')) 386 | 387 | methods_to_error_name = { 388 | 'AprilTag 3': 'april-vicon', 389 | 'VINS-Mono': 'vins_mono-vicon', 390 | 'ROVIO': 'rovio-vicon', 391 | 392 | '$\\Phi$-constraint (ours)': 'phi-vicon', 393 | '$\\tau$-constraint (ours)': 'ttc-vicon', 394 | #'$\\tau$-constraint (ours) (45 Hz LK output)': 'ttc_affine_skip_1-vicon', 395 | # '$\\tau$-constraint (ours) (30 Hz LK output)': 'ttc_affine_skip_2-vicon', 396 | # '$\\tau$-constraint (ours) (15 Hz LK output)': 'ttc_affine_skip_3-vicon', 397 | 398 | #'$\\tau$-constraint (ours) (0.5 deg/s $\\Omega_y$ bias)': 'ttc_wy_bias_0_5-vicon', 399 | # '$\\tau$-constraint (ours) (1.0 deg/s $\\Omega_y$ bias)': 'ttc_wy_bias_1-vicon', 400 | # '$\\tau$-constraint (ours) (2.0 deg/s $\\Omega_y$ bias)': 'ttc_wy_bias_2-vicon', 401 | #'$\\tau$-constraint (ours) (3.0 deg/s $\\Omega_y$ bias)': 'ttc_wy_bias_3-vicon', 402 | #'$\\tau$-constraint (ours) (4.0 deg/s $\\Omega_y$ bias)': 'ttc_wy_bias_4-vicon', 403 | 404 | #'$\\tau$-constraint (ours) (0.5 deg/s $\\Omega_z$ bias)': 'ttc_wz_bias_0_5-vicon', 405 | # '$\\tau$-constraint (ours) (1.0 deg/s $\\Omega_z$ bias)': 'ttc_wz_bias_1-vicon', 406 | # '$\\tau$-constraint (ours) (2.0 deg/s $\\Omega_z$ bias)': 'ttc_wz_bias_2-vicon', 407 | #'$\\tau$-constraint (ours) (3.0 deg/s $\\Omega_z$ bias)': 'ttc_wz_bias_3-vicon', 408 | #'$\\tau$-constraint (ours) (4.0 deg/s $\\Omega_z$ bias)': 'ttc_wz_bias_4-vicon', 409 | } 410 | 411 | latex_table_str = '\\begin{table*}\n' 412 | latex_table_str += ' \\centering\n' 413 | latex_table_str += ' \\begin{tabular}{@{}lcccccccccc@{}}\n' 414 | latex_table_str += ' \\toprule\n' 415 | latex_table_str += ' & \\textit{Seq. 1} & \\textit{Seq. 2} & \\textit{Seq. 3} & \\textit{Seq. 4} & \\textit{Seq. 5} & \\textit{Seq. 6} & \\textit{Seq. 7} & \\textit{Seq. 8} & \\textit{Seq. 9} & \\textit{Seq. 10}\\\\\n' 416 | latex_table_str += ' \\midrule\n' 417 | 418 | line_str = 'Sequence Duration (s)' 419 | line2_str = 'Distance Traveled (m)' 420 | for recording in results_data.keys(): 421 | #if recording != 'record_000004': 422 | # continue 423 | 424 | error_data = results_data[recording]['error_data'] 425 | dt = error_data['ttc-vicon'][-1, 0] - error_data['ttc-vicon'][0, 0] 426 | #dt2 = error_data['vins_mono-vicon'][-1, 0] - error_data['vins_mono-vicon'][0, 0] 427 | #print(dt, dt2) 428 | line_str += ' & {:1.2f}'.format(dt) 429 | 430 | transformed_data = results_data[recording]['transformed_data'] 431 | path_length = calc_valid_path_length(transformed_data) 432 | line2_str += ' & {:1.2f}'.format(float(path_length)) 433 | 434 | latex_table_str += line_str + '\\\\\n' 435 | latex_table_str += line2_str + '\\\\\n' 436 | 437 | latex_table_str += ' \\midrule\n' 438 | latex_table_str += ' Method & &&&& ATE (cm) &&&& \\\\\n' 439 | latex_table_str += ' \\midrule\n' 440 | 441 | for method in methods_to_error_name.keys(): 442 | results_line = '{} &'.format(method) 443 | for recording in results_data.keys(): 444 | #if recording != 'record_000004': 445 | # continue 446 | 447 | 448 | transformed_data = results_data[recording]['transformed_data'] 449 | error_data = results_data[recording]['error_data'] 450 | 451 | error_stats = calc_error_stats(error_data) 452 | 453 | if methods_to_error_name[method] in error_stats: 454 | rmse, ate = error_stats[methods_to_error_name[method]] 455 | results_line += ' {:.2f} &'.format(ate) 456 | else: 457 | results_line += ' - &' 458 | 459 | latex_table_str += results_line[:-1] + '\\\\\n' 460 | 461 | latex_table_str += ' \\bottomrule\n' 462 | latex_table_str += ' \\end{tabular}\n' 463 | latex_table_str += ' \\caption{All results in (cm).}\n' 464 | latex_table_str += ' \\label{tab:atecompare}\n' 465 | latex_table_str += '\\end{table*}' 466 | print(latex_table_str) 467 | 468 | error_data_total = {'ttc-vicon': [], 469 | 'phi-vicon': [], 470 | 'vins_mono-vicon': [], 471 | 'april-vicon': [], 472 | 'rovio-vicon': [], 473 | # 'ttc_affine_skip_2-vicon': [], 474 | # 'ttc_affine_skip_3-vicon': [], 475 | # 'ttc_wy_bias_1-vicon': [], 476 | # 'ttc_wy_bias_2-vicon': [], 477 | # 'ttc_wz_bias_1-vicon': [], 478 | # 'ttc_wz_bias_2-vicon': [], 479 | } 480 | for recording in results_data.keys(): 481 | error_data = results_data[recording]['error_data'] 482 | for method in error_data.keys(): 483 | if recording == 'record_000004' and method == 'vins_mono-vicon': # Skip recording where VINS-Mono did not work 484 | continue 485 | error_data_total[method].append(error_data[method]) 486 | 487 | for key in error_data_total.keys(): 488 | error_data_total[key] = np.vstack(error_data_total[key]) 489 | 490 | error_stats = calc_error_stats(error_data_total) 491 | 492 | for key in error_data_total.keys(): 493 | rmse, ate = error_stats[key] 494 | print(key) 495 | print(ate) 496 | -------------------------------------------------------------------------------- /ttc_depth_from_folder.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: ttc_depth_from_folder.py 4 | # Available under MIT license 5 | # 6 | # Run Phi and TTC distance estimation using recordings made with ttc_depth_realsense.py 7 | # 8 | # History: 9 | # 04-21-20 - Levi Burner - Adapted file from early prototype code 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import argparse 15 | import json 16 | import os 17 | os.environ['OPENBLAS_NUM_THREADS'] = '1' # Attempt to disable OpenBLAS multithreading, it makes the script slower 18 | import glob 19 | import pickle 20 | import json 21 | import time 22 | 23 | import cv2 24 | import numpy as np 25 | from scipy import interpolate 26 | 27 | from ttc_depth import TTCDepth 28 | from utilities import (latest_recording_dir, 29 | load_calibration_from_dir) 30 | from zmq_vector_publisher import ZMQVectorPublisher, ZMQVectorPublisherSaver 31 | from shutil import copyfile 32 | 33 | class RecordedIMUSource(object): 34 | def __init__(self, record_dir, wy_bias = 0.0, wz_bias = 0.0): 35 | self._wy_bias = wy_bias 36 | self._wz_bias = wz_bias 37 | 38 | sensor_data = pickle.load(open(os.path.join(record_dir, 'imu.pickle'), 'rb')) 39 | self._accel_samples = sensor_data['accel'] 40 | self._gyro_samples = sensor_data['gyro'] 41 | 42 | self._gyro_samples[:, 2] += self._wy_bias * np.pi / 180.0 43 | self._gyro_samples[:, 3] += self._wz_bias * np.pi / 180.0 44 | 45 | self._sample_index = 0 46 | 47 | # TODO resampling like this should occur live as well 48 | interpolater = interpolate.interp1d(self._accel_samples[:, 0], 49 | self._accel_samples[:, 1:4], 50 | axis=0, 51 | bounds_error=False, 52 | fill_value='extrapolate') 53 | accel_samples_interpolated = interpolater(self._gyro_samples[:, 0]) 54 | 55 | self._imu_samples = np.hstack((np.atleast_2d(self._gyro_samples[:, 0]).transpose(), 56 | accel_samples_interpolated, 57 | self._gyro_samples[:, 1:4])) 58 | 59 | def earliest_timestamp(self): 60 | if self._sample_index >= len(self._imu_samples): 61 | return None 62 | return self._imu_samples[0, 0] 63 | 64 | def latest_timestamp(self): 65 | if self._sample_index >= len(self._imu_samples): 66 | return None 67 | return self._imu_samples[-1, 0] 68 | 69 | def next_sample(self): 70 | if self._sample_index >= len(self._imu_samples): 71 | return None 72 | 73 | sample = self._imu_samples[self._sample_index] 74 | self._sample_index += 1 75 | return sample 76 | 77 | def preprocess_image(frame): 78 | frame_gray = frame.astype(np.float32) * (1.0 / 255.0) 79 | return frame_gray 80 | 81 | class RecordedFrameSource(object): 82 | def __init__(self, 83 | record_dir, 84 | preload=False, 85 | preprocess=False, 86 | frame_skip=0): 87 | self._preload = preload 88 | self._preprocess = preprocess 89 | self._frame_skip = frame_skip 90 | 91 | self._frame_names_orig = sorted(list(glob.glob(os.path.join(record_dir, 'images/frame_*.npy')))) 92 | 93 | self._frame_names = self._frame_names_orig[::(frame_skip+1)] 94 | 95 | frame_metadata = pickle.load(open(os.path.join(record_dir, 'frame_metadata.pickle'), 'rb')) 96 | self._frame_ts = frame_metadata['ts'][::(frame_skip + 1)] 97 | 98 | self._sample_index = 0 99 | 100 | if self._preload: 101 | if self._preprocess: 102 | self._preloaded_frames = [preprocess_image(np.load(frame_name)) for frame_name in self._frame_names] 103 | else: 104 | self._preloaded_frames = [np.load(frame_name) for frame_name in self._frame_names] 105 | 106 | def earliest_timestamp(self): 107 | return self._frame_ts[0] 108 | 109 | def latest_timestamp(self): 110 | if self._sample_index >= len(self._frame_ts): 111 | return None 112 | return self._frame_ts[-1] 113 | 114 | def next_sample(self): 115 | if self._sample_index >= len(self._frame_ts): 116 | return None 117 | 118 | if not self._preload: 119 | frame = np.load(self._frame_names[self._sample_index]) 120 | frame_gray = preprocess_image(frame) 121 | sample = (self._frame_ts[self._sample_index], frame_gray) 122 | else: 123 | if not self._preprocess: 124 | sample = (self._frame_ts[self._sample_index], preprocess_image(self._preloaded_frames[self._sample_index])) 125 | else: 126 | sample = (self._frame_ts[self._sample_index], self._preloaded_frames[self._sample_index]) 127 | 128 | self._sample_index += 1 129 | return sample 130 | 131 | def free_sample(self): 132 | pass 133 | 134 | class RecordedTemplateSource(object): 135 | def __init__(self, record_dir): 136 | templates = pickle.load(open(os.path.join(record_dir, 'templates_live.pickle'), 'rb')) 137 | self._patches = templates['patches'] 138 | 139 | # WIDTH = 848 140 | # HEIGHT = 480 141 | # patch_dim = 50 142 | 143 | # self._patch_params = { 144 | # 'patch_start_time': time.time() + 2.5, 145 | # 'patch_end_time': time.time() + 10000.0, 146 | # 'patch_coordinates': (int(WIDTH/2 - patch_dim), int(HEIGHT/2 - patch_dim), int(WIDTH/2 + patch_dim), int(HEIGHT/2 + patch_dim)) 147 | # } 148 | 149 | self._patch_index = -1 150 | 151 | # def _create_patch(self, time): 152 | # self._patches.append((time, 153 | # time + 100000.0, 154 | # self._patch_params['patch_coordinates'])) 155 | 156 | def current_patch_valid(self, time): 157 | # TODO allow creating patches on the fly 158 | # if True: #self._resettable: 159 | # key = cv2.pollKey() 160 | # #if key != -1: 161 | # # print('key {}'.format(key)) 162 | # if key == 114: # r key 163 | # self._create_patch(time) 164 | # return False 165 | # elif key == 116: # t key 166 | # return 'reset observer' 167 | # elif key == 113: # q key 168 | # self._exit = True 169 | 170 | if self._patch_index < 0: 171 | raise Exception('Current patch valid called before patch selected') 172 | 173 | valid = True 174 | 175 | if time > self._patches[self._patch_index][1]: 176 | valid = False 177 | 178 | if self._patch_index + 1 < len(self._patches): 179 | if time > self._patches[self._patch_index + 1][0]: 180 | valid = False 181 | 182 | return valid 183 | 184 | def get_new_patch(self, time): 185 | next_patch_index = self._patch_index + 1 186 | 187 | if next_patch_index >= len(self._patches): 188 | return None 189 | 190 | if time >= self._patches[next_patch_index][0]: 191 | self._patch_index = next_patch_index 192 | return self._patches[next_patch_index][2] 193 | 194 | def make_results_dir(recording_name, ttc_append='', vicon=False): 195 | if not os.path.isdir('results'): 196 | os.mkdir('results') 197 | 198 | results_dir = os.path.join('results', recording_name) 199 | if not os.path.isdir(results_dir): 200 | os.mkdir(results_dir) 201 | 202 | results_dir_ttc = os.path.join(results_dir, 'ttc'+ttc_append) 203 | if not os.path.isdir(results_dir_ttc): 204 | os.mkdir(results_dir_ttc) 205 | 206 | visualization_dir = os.path.join(results_dir, 'visualization') 207 | if not os.path.isdir(visualization_dir): 208 | os.mkdir(visualization_dir) 209 | 210 | if vicon: 211 | results_dir_vicon = os.path.join(results_dir, 'vicon') 212 | if not os.path.isdir(results_dir_vicon): 213 | os.mkdir(results_dir_vicon) 214 | 215 | 216 | return results_dir_ttc, visualization_dir 217 | 218 | def vicon_file_name(record_dir, recording_name): 219 | record_number = int(recording_name[-6:]) 220 | 221 | if record_number == 0: 222 | vicon_file_number_str = '' 223 | else: 224 | vicon_file_number_str = ' {}'.format(record_number) 225 | 226 | vicon_file_name = os.path.join(record_dir, '../vicon/d435i_ttc{}.csv'.format(vicon_file_number_str)) 227 | return vicon_file_name 228 | 229 | def run_on_directory(record_dir, args, max_visualize_rate, save_visualization, settings_name=''): 230 | K, D, map1, map2, resolution = load_calibration_from_dir(record_dir) 231 | 232 | params_file_name = os.path.join(record_dir, 'params.json') 233 | if os.path.exists(params_file_name): 234 | params = json.load(open(params_file_name)) 235 | else: 236 | params = {'trim_end': 0.0} 237 | 238 | if args.save or save_visualization: 239 | recording_name = os.path.split(record_dir)[-1] 240 | 241 | vicon_file = vicon_file_name(record_dir, recording_name) 242 | if os.path.exists(vicon_file): 243 | results_dir, visualization_dir = make_results_dir(recording_name, ttc_append=settings_name, vicon=True) 244 | vicon_file_dest = os.path.join('results', recording_name, 'vicon', 'results.csv') 245 | copyfile(vicon_file, vicon_file_dest) 246 | else: 247 | results_dir, visualization_dir = make_results_dir(recording_name, vicon=False) 248 | 249 | vector_pub = ZMQVectorPublisherSaver() 250 | else: 251 | vector_pub = ZMQVectorPublisher() 252 | visualization_dir = None 253 | 254 | if args.nopublish: 255 | vector_pub = None 256 | 257 | frame_source = RecordedFrameSource(record_dir, 258 | preload=args.preload, 259 | preprocess=args.preprocess, 260 | frame_skip=args.frame_skip) 261 | imu_source = RecordedIMUSource(record_dir, 262 | wy_bias=args.wy_bias, 263 | wz_bias=args.wz_bias) 264 | template_source = RecordedTemplateSource(record_dir) 265 | 266 | strided_patch_size = 4000 267 | 268 | max_flow_time = 0.8 * (1.0/90.0) # Not important since real time isn't the problem here 269 | 270 | last_time = imu_source.latest_timestamp() 271 | 272 | ttc_depth = TTCDepth(frame_source, imu_source, template_source, K, 273 | visualize=args.visualize, 274 | wait_key=wait_key, 275 | max_flow_time=max_flow_time, 276 | max_visualize_rate=max_visualize_rate, 277 | save_visualization=save_visualization, 278 | save_visualization_dir=visualization_dir, 279 | plot_start_t=args.plot_start, 280 | plot_end_t=args.plot_end, 281 | strided_patch_size=strided_patch_size, 282 | april_ground_truth=args.april, 283 | april_resize_to=april_resize_to, 284 | max_april_rate=max_april_rate, 285 | max_delta=max_delta, 286 | vector_pub=vector_pub, 287 | print_timing=print_timing, 288 | ground_truth_source=ground_truth_source, 289 | affine_skip=args.affine_skip) 290 | 291 | print('Beginning') 292 | start_time = time.time() 293 | 294 | track_start_time = None 295 | track_start_frame_count = None 296 | track_end_time = None 297 | track_end_frame_count = None 298 | while True: 299 | ttc_depth.update() 300 | cv2.waitKey(wait_key) 301 | 302 | if track_start_time is None: 303 | if ttc_depth._affine_tracker is not None: 304 | track_start_time = time.time() 305 | track_start_frame_count = ttc_depth._frames_processed 306 | 307 | if frame_source.latest_timestamp() is None or imu_source.latest_timestamp() is None: 308 | track_end_time = time.time() 309 | track_end_frame_count = ttc_depth._frames_processed 310 | print('Out of data') 311 | break 312 | 313 | if ttc_depth._ttc_pose_observer_time_computed_to > last_time - params['trim_end']: 314 | track_end_time = time.time() 315 | track_end_frame_count = ttc_depth._frames_processed 316 | print('Early end') 317 | break 318 | 319 | end_time = time.time() 320 | 321 | tracked_time = track_end_time - track_start_time 322 | tracked_frames = track_end_frame_count - track_start_frame_count 323 | 324 | num_samples = tracked_frames 325 | frames_start_time = track_start_time 326 | frames_stop_time = track_end_time 327 | print('======================================================') 328 | print('Took {:.3f} seconds'.format(track_end_time-track_start_time)) 329 | print('Processed {} frames {:.2f} ms per frame'.format(num_samples, 1000*(track_end_time-track_start_time)/num_samples)) 330 | print('{:.2f} Hz'.format(num_samples / (frames_stop_time-frames_start_time))) 331 | print('======================================================') 332 | 333 | #print('{:.2f}x realtime'.format((frames_stop_time-frames_start_time)/ (end_time-start_time))) 334 | 335 | # num_samples = frame_source._sample_index 336 | # frames_start_time = frame_source._frame_ts.min() 337 | # frames_stop_time = frame_source._frame_ts.max() 338 | # print('Took {:.3f} seconds'.format(end_time-start_time)) 339 | # print('Processed {} frames {:.2f} ms per frame'.format(num_samples, 1000*(end_time-start_time)/num_samples)) 340 | # print('{:.2f} Hz'.format(num_samples / (end_time-start_time))) 341 | # print('{:.2f}x realtime'.format((frames_stop_time-frames_start_time)/ (end_time-start_time))) 342 | 343 | if args.save: 344 | file_name = os.path.join(results_dir, 'results.pickle') 345 | results_dict = vector_pub.get_data() 346 | with open(file_name, 'wb') as file: 347 | pickle.dump({'params': None, 348 | 'results': results_dict}, file) 349 | 350 | return num_samples, (frames_stop_time - frames_start_time) 351 | 352 | if __name__ == '__main__': 353 | parser = argparse.ArgumentParser() 354 | parser.add_argument('--dir', dest='dir', type=str, help='Directory to load data from. If not specified the latest in the default location is used') 355 | parser.add_argument('--all', dest='all', action='store_true', help='Run through all recordings in folder') 356 | parser.add_argument('--visualize', dest='visualize', action='store_true', help='Visualize') 357 | parser.add_argument('--wait', dest='wait', action='store_true', help='Wait for key press when visualizing') 358 | parser.add_argument('--april', dest='april', action='store_true', help='Use apriltag for ground truth') 359 | parser.add_argument('--preload', dest='preload', action='store_true', help='Read all images before processing for benchmarking') 360 | parser.add_argument('--preprocess', dest='preprocess', action='store_true', help='Preprocess all images when preloading') 361 | parser.add_argument('--nopublish', dest='nopublish', action='store_true', help='Dont publish with ZMQ') 362 | parser.add_argument('--bench', dest='bench', action='store_true', help='Activate preload nopublish and some other things') 363 | parser.add_argument('--realtime', dest='realtime', action='store_true', help='Test ability to run in realtime with april feedback') 364 | parser.add_argument('--gt', dest='ground_truth_file', type=str, help='Load ground truth from file') 365 | parser.add_argument('--save', dest='save', action='store_true', help='Save results to results folder') 366 | parser.add_argument('--save_vis', dest='save_vis', action='store_true', help='Save visualization results at 30fps for video') 367 | parser.add_argument('--frame_skip', dest='frame_skip', type=int, default=0, help='camera frames to skip (decimation)') 368 | parser.add_argument('--affine_skip', dest='affine_skip', type=int, default=0, help='affine samples to skip (decimation)') 369 | parser.add_argument('--wy_bias', dest='wy_bias', type=float, default=0, help='Gyro bias y axis in deg per second') 370 | parser.add_argument('--wz_bias', dest='wz_bias', type=float, default=0, help='Gyro bias z axis in deg per second') 371 | parser.add_argument('--plot_start', dest='plot_start', type=float, default=0, help='Default visualization plot start time') 372 | parser.add_argument('--plot_end', dest='plot_end', type=float, default=60.0, help='Default visualization plot end time') 373 | 374 | args = parser.parse_args() 375 | 376 | if args.wait: 377 | wait_key = 0 378 | else: 379 | wait_key = 1 380 | 381 | if not args.dir: 382 | record_dir = latest_recording_dir() 383 | else: 384 | record_dir = args.dir 385 | 386 | if args.bench: 387 | args.preload = True 388 | #args.preprocess = True #Pre-converting to floating point is cheating 389 | args.nopublish = True 390 | num_runs = 1 391 | max_delta = 0.1 392 | print_timing = False # Can turn on for detailed info 393 | else: 394 | num_runs = 1 395 | max_delta = 0.01 396 | print_timing = False 397 | 398 | if args.realtime: 399 | args.preload = True 400 | args.april = True 401 | max_april_rate = 30.0 402 | max_delta = 0.1 403 | print_timing = False 404 | april_resize_to = None #(270,480) 405 | else: 406 | max_april_rate = 100.0 407 | april_resize_to=None 408 | 409 | if args.ground_truth_file: 410 | # TODO https://stackoverflow.com/questions/11305790/pickle-incompatibility-of-numpy-arrays-between-python-2-and-3 411 | ground_truth_source = pickle.load(open(args.ground_truth_file, 'rb'), encoding='latin1')['poses'] 412 | else: 413 | ground_truth_source = None 414 | 415 | if args.save_vis: 416 | max_visualize_rate = 30.0 417 | save_visualization = True 418 | else: 419 | max_visualize_rate = 60.0 420 | save_visualization = False 421 | 422 | # TODO how to disable threading 423 | cv2.setNumThreads(1) 424 | 425 | if not args.bench: 426 | SETTINGS = { 427 | '': {'affine_skip': 0, 'wy_bias': 0, 'wz_bias': 0, 'april': True}, 428 | #'_affine_skip_1': {'affine_skip': 1, 'wy_bias': 0, 'wz_bias': 0}, 429 | # '_affine_skip_2': {'affine_skip': 2, 'wy_bias': 0, 'wz_bias': 0, 'april': False}, 430 | # '_affine_skip_3': {'affine_skip': 3, 'wy_bias': 0, 'wz_bias': 0, 'april': False}, 431 | #'_wy_bias_0_5': {'affine_skip': 0, 'wy_bias': 0.5, 'wz_bias': 0}, 432 | # '_wy_bias_1': {'affine_skip': 0, 'wy_bias': 1, 'wz_bias': 0, 'april': False}, 433 | # '_wy_bias_2': {'affine_skip': 0, 'wy_bias': 2, 'wz_bias': 0, 'april': False}, 434 | #'_wy_bias_3': {'affine_skip': 0, 'wy_bias': 3, 'wz_bias': 0}, 435 | #'_wy_bias_4': {'affine_skip': 0, 'wy_bias': 4, 'wz_bias': 0}, 436 | #'_wz_bias_0_5': {'affine_skip': 0, 'wy_bias': 0, 'wz_bias': 0.5}, 437 | # '_wz_bias_1': {'affine_skip': 0, 'wy_bias': 0, 'wz_bias': 1, 'april': False}, 438 | # '_wz_bias_2': {'affine_skip': 0, 'wy_bias': 0, 'wz_bias': 2, 'april': False}, 439 | #'_wz_bias_3': {'affine_skip': 0, 'wy_bias': 0, 'wz_bias': 3}, 440 | #'_wz_bias_4': {'affine_skip': 0, 'wy_bias': 0, 'wz_bias': 4}, 441 | #'_wz_bias_5': {'affine_skip': 0, 'wy_bias': 0, 'wz_bias': 5}, 442 | } 443 | else: 444 | SETTINGS = { 445 | '': {'affine_skip': 0, 'wy_bias': 0, 'wz_bias': 0, 'april': False}, 446 | } 447 | 448 | if not args.all: 449 | for i in range(num_runs): 450 | run_on_directory(record_dir, args, max_visualize_rate, save_visualization) 451 | else: 452 | recording_dirs = sorted(glob.glob(os.path.join(record_dir, 'record_*'))) 453 | 454 | total_track_time = 0 455 | total_frames = 0 456 | 457 | for directory in recording_dirs: 458 | #if directory != '../recordings_21_11_12/record_000004': 459 | # continue 460 | 461 | for key in SETTINGS.keys(): 462 | print('Processing: {}'.format(directory)) 463 | print('Settings', SETTINGS[key]) 464 | args.affine_skip = SETTINGS[key]['affine_skip'] 465 | args.wy_bias = SETTINGS[key]['wy_bias'] 466 | args.wz_bias = SETTINGS[key]['wz_bias'] 467 | args.april = SETTINGS[key]['april'] 468 | 469 | for i in range(num_runs): 470 | track_frames, track_time = run_on_directory(directory, args, max_visualize_rate, save_visualization, 471 | settings_name=key) 472 | 473 | total_track_time += track_time 474 | total_frames += track_frames 475 | 476 | 477 | print('===================== Overall ========================') 478 | print('Took {:.3f} seconds'.format(total_track_time)) 479 | print('Processed {} frames {:.2f} ms per frame'.format(total_frames, 1000*total_track_time/total_frames)) 480 | print('{:.2f} Hz'.format(total_frames / total_track_time)) 481 | print('======================================================') 482 | -------------------------------------------------------------------------------- /ttc_depth_integrals_accel_bias.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: ttc_depth_integrals_accel_bias.py 4 | # Available under MIT license 5 | # 6 | # Estimate distance using the Tau constraint in the presence of 7 | # a constant acceleration bias 8 | # 9 | # History: 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import numpy as np 15 | import numba as nb 16 | import time 17 | 18 | def cumulative_int(dt, x): 19 | return dt * np.cumsum(x) 20 | 21 | # Calculate Phi 22 | def Phi_t_t_0(dt, dot_z_over_z): 23 | int_dot_z_over_z = cumulative_int(dt, dot_z_over_z) 24 | phi = np.exp(int_dot_z_over_z) 25 | return phi 26 | 27 | def accel_z_z_star_t0_no_inv(times, dot_z_over_z, accel_z): 28 | # TODO all times are needed but they are assumed to be evenly spaced 29 | #mid0 = time.time() 30 | dt = times[1] - times[0] 31 | 32 | int_accel = cumulative_int(dt, accel_z) 33 | iint_accel = cumulative_int(dt, int_accel) 34 | 35 | phi = Phi_t_t_0(dt, dot_z_over_z) 36 | 37 | F_action = phi - (1 + ((times - times[0]) * dot_z_over_z[0])) 38 | 39 | times_squared = np.square(times-times[0]) 40 | #total_time = (times[-1] - times[0]) 41 | #int_times_squared_squared = (1./5.)*(total_time * total_time * total_time * total_time * total_time) 42 | 43 | a = dt * np.sum(np.square(F_action)) 44 | b = dt * np.sum(times_squared*F_action) 45 | #c = (1./4.) * int_times_squared_squared 46 | c = (1./4.) * dt * np.sum(np.square(times_squared)) 47 | 48 | d = -2.0 * dt * np.sum(iint_accel*F_action) 49 | e = - dt * np.sum(iint_accel*times_squared) 50 | 51 | P = np.array(((a, b/2), 52 | (b/2, c))) 53 | c = np.array((d, e)) 54 | 55 | return P, c 56 | 57 | def accel_z_z_star_t0(times, dot_z_over_z, accel_z): 58 | P, c = accel_z_z_star_t0_no_inv(times, dot_z_over_z, accel_z) 59 | 60 | try: 61 | z_star = np.linalg.solve(P, -0.5*c) 62 | except np.linalg.LinAlgError: 63 | z_star = (np.NAN, np.NAN) 64 | 65 | return z_star 66 | 67 | def accel_z_z_star_tf(times, dot_z_over_z, accel_z): 68 | #start = time.time() 69 | z_star = accel_z_z_star_t0(np.flip(times), np.flip(dot_z_over_z), np.flip(accel_z)) 70 | #end = time.time() 71 | #print(end-start) 72 | return z_star 73 | 74 | def accel_x_z_star_t0_no_inv(times, dot_x_over_z, dot_z_over_z, accel_x): 75 | # TODO all times are needed but they are assumed to be evenly spaced 76 | #mid0 = time.time() 77 | dt = times[1] - times[0] 78 | 79 | int_accel = cumulative_int(dt, accel_x) 80 | iint_accel = cumulative_int(dt, int_accel) 81 | 82 | phi = Phi_t_t_0(dt, dot_z_over_z) 83 | 84 | F_action = cumulative_int(dt, dot_x_over_z*phi) - ((times-times[0])*dot_x_over_z[0]) 85 | 86 | times_squared = np.square(times-times[0]) 87 | # TODO using the closed form makes the results worse... 88 | #int_times_squared_squared = (1./5.)*((times[-1] - times[0])**5) 89 | 90 | a = dt * np.sum(np.square(F_action)) 91 | b = dt * np.sum(times_squared*F_action) 92 | #c = (1./4.) * int_times_squared_squared 93 | c = (1./4.) * dt * np.sum(np.square(times_squared)) 94 | 95 | d = -2.0 * dt * np.sum(iint_accel*F_action) 96 | e = - dt * np.sum(iint_accel*times_squared) 97 | 98 | P = np.array(((a, b/2), 99 | (b/2, c))) 100 | c = np.array((d, e)) 101 | 102 | return P, c 103 | 104 | def accel_x_z_star_t0(times, dot_x_over_z, dot_z_over_z, accel_x): 105 | P, c = accel_x_z_star_t0_no_inv(times, dot_x_over_z, dot_z_over_z, accel_x) 106 | 107 | try: 108 | z_star = np.linalg.solve(P, -0.5*c) 109 | except np.linalg.LinAlgError: 110 | z_star = (np.NAN, np.NAN) 111 | 112 | return z_star 113 | 114 | def accel_x_z_star_tf(times, dot_x_over_z, dot_z_over_z, accel_x): 115 | #start = time.time() 116 | z_star = accel_x_z_star_t0(np.flip(times), np.flip(dot_x_over_z), np.flip(dot_z_over_z), np.flip(accel_x)) 117 | #end = time.time() 118 | #print(end-start) 119 | return z_star 120 | 121 | # Setup numba 122 | # No fast math because lots of the values are super tiny and might be sub-normal (not sure) 123 | cumulative_int = nb.jit(nopython = True, cache = True, fastmath=False)(cumulative_int) 124 | Phi_t_t_0 = nb.jit(nopython = True, cache = True, fastmath=False)(Phi_t_t_0) 125 | accel_z_z_star_t0_no_inv = nb.jit(nopython = True, cache = True, fastmath=False)(accel_z_z_star_t0_no_inv) 126 | # accel_z_z_star_tf = nb.jit(nopython = True, cache = True, fastmath=False)(accel_z_z_star_tf) 127 | accel_x_z_star_t0_no_inv = nb.jit(nopython = True, cache = True, fastmath=False)(accel_x_z_star_t0_no_inv) 128 | # accel_x_z_star_tf = nb.jit(nopython = True, cache = True, fastmath=False)(accel_x_z_star_tf) 129 | -------------------------------------------------------------------------------- /ttc_depth_plot_live.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: ttc_depth_plot_live.py 4 | # Available under MIT license 5 | # 6 | # Plot states published by ttc_depth.py over a ZMQ socket 7 | # 8 | # History: 9 | # 08-30-21 - Levi Burner - Created File 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import struct 15 | import threading 16 | 17 | import numpy as np 18 | import zmq 19 | 20 | import matplotlib.pyplot as plt 21 | import matplotlib.animation as animation 22 | 23 | port = '5556' 24 | STOPPED = False 25 | 26 | sensors = {} 27 | sensors[b'R_fc_to_c'] = [] 28 | sensors[b'p'] = [] 29 | sensors[b'ttc_inv'] = [] 30 | sensors[b'ttc_inv_gt'] = [] 31 | sensors[b'pose_hat'] = [] 32 | sensors[b'phi_pose_hat'] = [] 33 | sensors[b'ground_truth_pose'] = [] 34 | sensors[b'accel_meas_c'] = [] 35 | sensors[b'gyro'] = [] 36 | sensors[b'accel_z_hat'] = [] 37 | sensors[b'phi_accel_z_hat'] = [] 38 | 39 | def zmq_receive_thread(port): 40 | # Socket to talk to server 41 | context = zmq.Context() 42 | socket = context.socket(zmq.SUB) 43 | 44 | print('Collecting updates from server...') 45 | socket.connect ("tcp://localhost:{}".format(port)) 46 | 47 | topicfilter = "ttc_depth".encode('ascii') 48 | socket.setsockopt(zmq.SUBSCRIBE, topicfilter) 49 | 50 | while not STOPPED: 51 | topic = socket.recv() 52 | base_name, sensor = topic.split(b'/') 53 | 54 | time_bytes = socket.recv() 55 | t = struct.unpack('d', time_bytes) 56 | 57 | md = socket.recv_json() 58 | msg = socket.recv() 59 | buf = memoryview(msg) 60 | x = np.frombuffer(buf, dtype=md['dtype']).reshape(md['shape']) 61 | 62 | try: 63 | sensors[sensor].append((t, x)) 64 | except KeyError as e: 65 | print('Unrecognized sensor: {}'.format(sensor)) 66 | 67 | # Plotting based on: https://learn.sparkfun.com/tutorials/graph-sensor-data-with-python-and-matplotlib/speeding-up-the-plot-animation 68 | def ttc_depth_plot_live_process(): 69 | x_len = 300 70 | xs = list(range(0, x_len)) 71 | fig = plt.figure() 72 | 73 | ROWS = 4 74 | COLS = 3 75 | 76 | Z_LIM = (-4.0, 0.5) 77 | 78 | F_LIM = (-4.0, 4.0) 79 | 80 | # Setup pose plots 81 | ly1 = [0] * x_len 82 | ly2 = [0] * x_len 83 | ly3 = [0] * x_len 84 | ly4 = [0] * x_len 85 | ly5 = [0] * x_len 86 | ly6 = [0] * x_len 87 | 88 | 89 | ax = fig.add_subplot(ROWS, COLS, 1) 90 | ax.set_ylim([-1, 1]) 91 | lline1, = ax.plot(xs, ly1) 92 | lline4, = ax.plot(xs, ly4) 93 | llllllllllly1 = [0] * x_len 94 | lllllllllllline1, = ax.plot(xs, llllllllllly1) 95 | plt.ylabel('X (m)') 96 | plt.legend(['x_hat', 'x_gt', 'phi_x_hat']) 97 | plt.grid() 98 | 99 | ax = fig.add_subplot(ROWS, COLS, 2) 100 | ax.set_ylim([-1, 1]) 101 | lline2, = ax.plot(xs, ly2) 102 | lline5, = ax.plot(xs, ly5) 103 | llllllllllly2 = [0] * x_len 104 | lllllllllllline2, = ax.plot(xs, llllllllllly2) 105 | plt.ylabel('Y (m)') 106 | plt.legend(['y_hat', 'y_gt', 'phi_y_hat']) 107 | plt.grid() 108 | 109 | ax = fig.add_subplot(ROWS, COLS, 3) 110 | ax.set_ylim(Z_LIM) 111 | lline3, = ax.plot(xs, ly3) 112 | lline6, = ax.plot(xs, ly6) 113 | llllllllllly3 = [0] * x_len 114 | lllllllllllline3, = ax.plot(xs, llllllllllly3) 115 | plt.ylabel('Z (m)') 116 | plt.legend(['z_hat', 'z_gt', 'phi_z_hat']) 117 | plt.grid() 118 | 119 | # Setup Orientation plot 120 | ax = fig.add_subplot(ROWS, COLS, 4, projection='3d') 121 | axis = np.array([[1, 0, 0], [0, 1, 0], [0, 0, 1]]) 122 | 123 | lines = [] 124 | for a in axis: 125 | line_data = np.array([[0, 0, 0], [a[0], a[1], a[2]]]).transpose() 126 | line = ax.plot(line_data[0, :], line_data[1, :], line_data[2, :])[0] 127 | lines.append(line) 128 | 129 | ax.set_xlim3d([-1.0, 1.0]) 130 | ax.set_xlabel('X') 131 | ax.set_ylim3d([-1.0, 1.0]) 132 | ax.set_ylabel('Y') 133 | ax.set_zlim3d([-1.0, 1.0]) 134 | ax.set_title('Integrated Orientation') 135 | plt.legend(['x', 'y', 'z']) 136 | 137 | ax = fig.add_subplot(ROWS, COLS, 5) 138 | ax.set_ylim([-10, 10]) 139 | llly1 = [0] * x_len 140 | llly2 = [0] * x_len 141 | llly3 = [0] * x_len 142 | lllline1, = ax.plot(xs, llly1) 143 | lllline2, = ax.plot(xs, llly2) 144 | lllline3, = ax.plot(xs, llly3) 145 | plt.ylabel('accel (m/s^2)') 146 | plt.legend(['x','y','z']) 147 | plt.grid() 148 | 149 | ax = fig.add_subplot(ROWS, COLS, 6) 150 | ax.set_ylim([-np.pi, np.pi]) 151 | lllly1 = [0] * x_len 152 | lllly2 = [0] * x_len 153 | lllly3 = [0] * x_len 154 | llllline1, = ax.plot(xs, lllly1) 155 | llllline2, = ax.plot(xs, lllly2) 156 | llllline3, = ax.plot(xs, lllly3) 157 | plt.ylabel('gyro (rad/s)') 158 | plt.legend(['x','y','z']) 159 | plt.grid() 160 | 161 | 162 | ax = fig.add_subplot(ROWS, COLS, 7) 163 | ax.set_ylim(F_LIM) 164 | llllly1 = [0] * x_len 165 | llllly2 = [0] * x_len 166 | lllllline1, = ax.plot(xs, llllly1) 167 | lllllline2, = ax.plot(xs, llllly2) 168 | plt.ylabel('depth scaled velocity 1/s') 169 | plt.legend(['dot x / z', 'dot x / z gt']) 170 | plt.grid() 171 | 172 | 173 | ax = fig.add_subplot(ROWS, COLS, 8) 174 | ax.set_ylim(F_LIM) 175 | lllllly1 = [0] * x_len 176 | lllllly2 = [0] * x_len 177 | llllllline1, = ax.plot(xs, lllllly1) 178 | llllllline2, = ax.plot(xs, lllllly2) 179 | plt.ylabel('depth scaled velocity 1/s') 180 | plt.legend(['dot y / z', 'dot y / z gt']) 181 | plt.grid() 182 | 183 | ax = fig.add_subplot(ROWS, COLS, 9) 184 | ax.set_ylim(F_LIM) 185 | llllllly1 = [0] * x_len 186 | llllllly2 = [0] * x_len 187 | lllllllline1, = ax.plot(xs, llllllly1) 188 | lllllllline2, = ax.plot(xs, llllllly2) 189 | plt.ylabel('depth scaled velocity 1/s') 190 | plt.legend(['dot z / z', 'dot z / z gt']) 191 | plt.grid() 192 | 193 | ax = fig.add_subplot(ROWS, COLS, 10) 194 | ax.set_ylim(Z_LIM) 195 | lllllllly1 = [0] * x_len 196 | llllllllly1 = [0] * x_len 197 | lllllllllly1 = [0] * x_len 198 | lllllllllllly1 = [0] * x_len 199 | llllllllllllly1 = [0] * x_len 200 | llllllllline1, = ax.plot(xs, lllllllly1) 201 | lllllllllline1, = ax.plot(xs, llllllllly1) 202 | llllllllllline1, = ax.plot(xs, lllllllllly1) 203 | llllllllllllline1, = ax.plot(xs, lllllllllllly1) 204 | lllllllllllllline1, = ax.plot(xs, llllllllllllly1) 205 | plt.ylabel('X (m)') 206 | plt.legend(['accel_x_gt', 'x_hat', 'x_gt', 'phi_x_hat', 'p_accel_x_gt']) 207 | plt.grid() 208 | 209 | 210 | ax = fig.add_subplot(ROWS, COLS, 11) 211 | ax.set_ylim(Z_LIM) 212 | lllllllly2 = [0] * x_len 213 | llllllllly2 = [0] * x_len 214 | lllllllllly2 = [0] * x_len 215 | lllllllllllly2 = [0] * x_len 216 | llllllllllllly2 = [0] * x_len 217 | llllllllline2, = ax.plot(xs, lllllllly2) 218 | lllllllllline2, = ax.plot(xs, llllllllly2) 219 | llllllllllline2, = ax.plot(xs, lllllllllly2) 220 | llllllllllllline2, = ax.plot(xs, lllllllllllly2) 221 | lllllllllllllline2, = ax.plot(xs, llllllllllllly2) 222 | plt.ylabel('Y (m)') 223 | plt.legend(['accel_y_gt', 'y_hat', 'y_gt', 'phi_y_hat', 'p_accel_y_gt']) 224 | plt.grid() 225 | 226 | ax = fig.add_subplot(ROWS, COLS, 12) 227 | ax.set_ylim(Z_LIM) 228 | lllllllly3 = [0] * x_len 229 | llllllllly3 = [0] * x_len 230 | lllllllllly3 = [0] * x_len 231 | lllllllllllly3 = [0] * x_len 232 | llllllllllllly3 = [0] * x_len 233 | llllllllline3, = ax.plot(xs, lllllllly3) 234 | lllllllllline3, = ax.plot(xs, llllllllly3) 235 | llllllllllline3, = ax.plot(xs, lllllllllly3) 236 | llllllllllllline3, = ax.plot(xs, lllllllllllly3) 237 | lllllllllllllline3, = ax.plot(xs, llllllllllllly3) 238 | plt.ylabel('Z (m)') 239 | plt.legend(['accel_z_gt', 'z_hat', 'z_gt', 'phi_z_hat', 'p_accel_z_gt']) 240 | plt.grid() 241 | 242 | # This function is called periodically from FuncAnimation 243 | def animate(i, 244 | sensors, 245 | ly1, ly2, ly3, ly4, ly5, ly6, 246 | lines, 247 | llly1, llly2, llly3, 248 | lllly1, lllly2, lllly3, 249 | llllly1, llllly2, 250 | lllllly1, lllllly2, 251 | llllllly1, llllllly2, 252 | lllllllly1, lllllllly2, lllllllly3, 253 | llllllllly1, llllllllly2, llllllllly3, 254 | lllllllllly1, lllllllllly2, lllllllllly3, 255 | llllllllllly1, llllllllllly2, llllllllllly3, 256 | lllllllllllly1, lllllllllllly2, lllllllllllly3, 257 | llllllllllllly1, llllllllllllly2, llllllllllllly3): 258 | # Plot linear acceleration 259 | if len(sensors[b'pose_hat']) > 0: 260 | ly1.append(sensors[b'pose_hat'][-1][1][0]) 261 | ly2.append(sensors[b'pose_hat'][-1][1][1]) 262 | ly3.append(sensors[b'pose_hat'][-1][1][2]) 263 | 264 | ly1 = ly1[-x_len:] 265 | ly2 = ly2[-x_len:] 266 | ly3 = ly3[-x_len:] 267 | 268 | lline1.set_ydata(ly1) 269 | lline2.set_ydata(ly2) 270 | lline3.set_ydata(ly3) 271 | 272 | # On 4th row 3 plots 273 | llllllllly1.append(sensors[b'pose_hat'][-1][1][2]) 274 | llllllllly2.append(sensors[b'pose_hat'][-1][1][2]) 275 | llllllllly3.append(sensors[b'pose_hat'][-1][1][2]) 276 | 277 | llllllllly1 = llllllllly1[-x_len:] 278 | llllllllly2 = llllllllly2[-x_len:] 279 | llllllllly3 = llllllllly3[-x_len:] 280 | 281 | lllllllllline1.set_ydata(llllllllly1) 282 | lllllllllline2.set_ydata(llllllllly2) 283 | lllllllllline3.set_ydata(llllllllly3) 284 | 285 | if len(sensors[b'phi_pose_hat']) > 0: 286 | llllllllllly1.append(sensors[b'phi_pose_hat'][-1][1][0]) 287 | llllllllllly2.append(sensors[b'phi_pose_hat'][-1][1][1]) 288 | llllllllllly3.append(sensors[b'phi_pose_hat'][-1][1][2]) 289 | 290 | llllllllllly1 = llllllllllly1[-x_len:] 291 | llllllllllly2 = llllllllllly2[-x_len:] 292 | llllllllllly3 = llllllllllly3[-x_len:] 293 | 294 | lllllllllllline1.set_ydata(llllllllllly1) 295 | lllllllllllline2.set_ydata(llllllllllly2) 296 | lllllllllllline3.set_ydata(llllllllllly3) 297 | 298 | # On 4th row 3 plots 299 | lllllllllllly1.append(sensors[b'phi_pose_hat'][-1][1][2]) 300 | lllllllllllly2.append(sensors[b'phi_pose_hat'][-1][1][2]) 301 | lllllllllllly3.append(sensors[b'phi_pose_hat'][-1][1][2]) 302 | 303 | lllllllllllly1 = lllllllllllly1[-x_len:] 304 | lllllllllllly2 = lllllllllllly2[-x_len:] 305 | lllllllllllly3 = lllllllllllly3[-x_len:] 306 | 307 | llllllllllllline1.set_ydata(lllllllllllly1) 308 | llllllllllllline2.set_ydata(lllllllllllly2) 309 | llllllllllllline3.set_ydata(lllllllllllly3) 310 | 311 | if len(sensors[b'ground_truth_pose']) > 0: 312 | ly4.append(sensors[b'ground_truth_pose'][-1][1][0]) 313 | ly5.append(sensors[b'ground_truth_pose'][-1][1][1]) 314 | ly6.append(sensors[b'ground_truth_pose'][-1][1][2]) 315 | 316 | ly4 = ly4[-x_len:] 317 | ly5 = ly5[-x_len:] 318 | ly6 = ly6[-x_len:] 319 | 320 | lline4.set_ydata(ly4) 321 | lline5.set_ydata(ly5) 322 | lline6.set_ydata(ly6) 323 | 324 | # On 4th row 3 plots 325 | lllllllllly1.append(sensors[b'ground_truth_pose'][-1][1][2]) 326 | lllllllllly2.append(sensors[b'ground_truth_pose'][-1][1][2]) 327 | lllllllllly3.append(sensors[b'ground_truth_pose'][-1][1][2]) 328 | 329 | lllllllllly1 = lllllllllly1[-x_len:] 330 | lllllllllly2 = lllllllllly2[-x_len:] 331 | lllllllllly3 = lllllllllly3[-x_len:] 332 | 333 | llllllllllline1.set_ydata(lllllllllly1) 334 | llllllllllline2.set_ydata(lllllllllly2) 335 | llllllllllline3.set_ydata(lllllllllly3) 336 | 337 | # Plot orientation axis 338 | if len(sensors[b'R_fc_to_c']) > 0: 339 | t, R_fc_to_c = sensors[b'R_fc_to_c'][-1] 340 | else: 341 | R_fc_to_c = np.eye(3) 342 | 343 | axis_rotated = R_fc_to_c @ axis 344 | 345 | for a, line in zip(axis_rotated.transpose(), lines): 346 | line_data = np.array([[0, 0, 0], [a[0], a[1], a[2]]]).transpose() 347 | line.set_data(line_data[0:2, :]) 348 | line.set_3d_properties(line_data[2, :]) 349 | 350 | # Plot acceleration 351 | if len(sensors[b'accel_meas_c']) > 0: 352 | llly1.append(sensors[b'accel_meas_c'][-1][1][0]) 353 | llly2.append(sensors[b'accel_meas_c'][-1][1][1]) 354 | llly3.append(sensors[b'accel_meas_c'][-1][1][2]) 355 | llly1 = llly1[-x_len:] 356 | llly2 = llly2[-x_len:] 357 | llly3 = llly3[-x_len:] 358 | 359 | lllline1.set_ydata(llly1) 360 | lllline2.set_ydata(llly2) 361 | lllline3.set_ydata(llly3) 362 | 363 | # Plot gyro 364 | if len(sensors[b'gyro']) > 0: 365 | lllly1.append(sensors[b'gyro'][-1][1][0]) 366 | lllly2.append(sensors[b'gyro'][-1][1][1]) 367 | lllly3.append(sensors[b'gyro'][-1][1][2]) 368 | lllly1 = lllly1[-x_len:] 369 | lllly2 = lllly2[-x_len:] 370 | lllly3 = lllly3[-x_len:] 371 | 372 | llllline1.set_ydata(lllly1) 373 | llllline2.set_ydata(lllly2) 374 | llllline3.set_ydata(lllly3) 375 | 376 | 377 | # Plot ttc_inv 378 | if len(sensors[b'ttc_inv']) > 0: 379 | llllly1.append(sensors[b'ttc_inv'][-1][1][0]) 380 | llllly1 = llllly1[-x_len:] 381 | 382 | lllllly1.append(sensors[b'ttc_inv'][-1][1][1]) 383 | lllllly1 = lllllly1[-x_len:] 384 | 385 | llllllly1.append(sensors[b'ttc_inv'][-1][1][2]) 386 | llllllly1 = llllllly1[-x_len:] 387 | 388 | lllllline1.set_ydata(llllly1) 389 | llllllline1.set_ydata(lllllly1) 390 | lllllllline1.set_ydata(llllllly1) 391 | 392 | # Plot ttc_inv_gt 393 | if len(sensors[b'ttc_inv_gt']) > 0: 394 | llllly2.append(sensors[b'ttc_inv_gt'][-1][1][0]) 395 | llllly2 = llllly2[-x_len:] 396 | 397 | lllllly2.append(sensors[b'ttc_inv_gt'][-1][1][1]) 398 | lllllly2 = lllllly2[-x_len:] 399 | 400 | llllllly2.append(sensors[b'ttc_inv_gt'][-1][1][2]) 401 | llllllly2 = llllllly2[-x_len:] 402 | 403 | lllllline2.set_ydata(llllly2) 404 | llllllline2.set_ydata(lllllly2) 405 | lllllllline2.set_ydata(llllllly2) 406 | 407 | 408 | # Plot accel_z_hat 409 | if len(sensors[b'accel_z_hat']) > 0: 410 | lllllllly1.append(sensors[b'accel_z_hat'][-1][1][0]) 411 | lllllllly1 = lllllllly1[-x_len:] 412 | 413 | llllllllline1.set_ydata(lllllllly1) 414 | 415 | lllllllly2.append(sensors[b'accel_z_hat'][-1][1][1]) 416 | lllllllly2 = lllllllly2[-x_len:] 417 | 418 | llllllllline2.set_ydata(lllllllly2) 419 | 420 | lllllllly3.append(sensors[b'accel_z_hat'][-1][1][2]) 421 | lllllllly3 = lllllllly3[-x_len:] 422 | 423 | llllllllline3.set_ydata(lllllllly3) 424 | 425 | # Plot phi_accel_z_hat 426 | if len(sensors[b'phi_accel_z_hat']) > 0: 427 | llllllllllllly1.append(sensors[b'phi_accel_z_hat'][-1][1][0]) 428 | llllllllllllly1 = llllllllllllly1[-x_len:] 429 | 430 | lllllllllllllline1.set_ydata(llllllllllllly1) 431 | 432 | llllllllllllly2.append(sensors[b'phi_accel_z_hat'][-1][1][1]) 433 | llllllllllllly2 = llllllllllllly2[-x_len:] 434 | 435 | lllllllllllllline2.set_ydata(llllllllllllly2) 436 | 437 | llllllllllllly3.append(sensors[b'phi_accel_z_hat'][-1][1][2]) 438 | llllllllllllly3 = llllllllllllly3[-x_len:] 439 | 440 | lllllllllllllline3.set_ydata(llllllllllllly3) 441 | 442 | return (lline1, lline2, lline3, lline4, lline5, lline6, 443 | lines[0], lines[1], lines[2], 444 | lllline1, lllline2, lllline3, 445 | llllline1, llllline2, llllline3, 446 | lllllline1, lllllline2, 447 | llllllline1, llllllline2, 448 | lllllllline1, lllllllline2, 449 | llllllllline1, llllllllline2, llllllllline3, 450 | lllllllllline1, lllllllllline2, lllllllllline3, 451 | llllllllllline1, llllllllllline2, llllllllllline3, 452 | lllllllllllline1, lllllllllllline2, lllllllllllline3, 453 | llllllllllllline1, llllllllllllline2, llllllllllllline3, 454 | lllllllllllllline1, lllllllllllllline2, lllllllllllllline3) 455 | 456 | # Set up plot to call animate() function periodically 457 | ani = animation.FuncAnimation(fig, 458 | animate, 459 | fargs=(sensors, 460 | ly1, ly2, ly3, ly4, ly5, ly6, 461 | lines, 462 | llly1, llly2, llly3, 463 | lllly1, lllly2, lllly3, 464 | llllly1, llllly2, 465 | lllllly1, lllllly2, 466 | llllllly1, llllllly2, 467 | lllllllly1, lllllllly2, lllllllly3, 468 | llllllllly1, llllllllly2, llllllllly3, 469 | lllllllllly1, lllllllllly2, lllllllllly3, 470 | llllllllllly1, llllllllllly2, llllllllllly3, 471 | lllllllllllly1, lllllllllllly2, lllllllllllly3, 472 | llllllllllllly1, llllllllllllly2, llllllllllllly3), 473 | interval=10, 474 | blit=True) 475 | 476 | plt.show() 477 | print('ttc_depth_live_plot_process exiting') 478 | 479 | if __name__ == '__main__': 480 | zmq_thread = threading.Thread(target=zmq_receive_thread, args=(port,)) 481 | zmq_thread.start() 482 | 483 | ttc_depth_plot_live_process() 484 | 485 | STOPPED = True 486 | zmq_thread.join() 487 | -------------------------------------------------------------------------------- /ttc_depth_realsense.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: ttc_depth_realsense.py 4 | # Available under MIT license 5 | # 6 | # Estimate distance in realtime with Phi, TTC, and AprilTag using a Realsense D435i camera 7 | # Supports saving the data to disk for later evaluation with ttc_depth_from_folder.py 8 | # and ttc_depth_calc_error.py 9 | # 10 | # History: 11 | # 07-22-21 - Levi Burner - Adapted file from ttc_depth_nx.py 12 | # 09-26-22 - Levi Burner - Open source release 13 | # 14 | ############################################################################### 15 | 16 | import argparse 17 | import json 18 | import glob 19 | from multiprocessing import (Process, 20 | Queue, 21 | resource_tracker, 22 | shared_memory, 23 | Value) 24 | import queue 25 | import os 26 | import pickle 27 | import time 28 | import traceback 29 | 30 | import cv2 31 | import numpy as np 32 | 33 | # If pyrealsense2 is able to be installed with 34 | # pip install pyrealsense2 35 | # then the first import metho works 36 | # but if installed from source (as needed for Ubuntu 22.04 and on) 37 | # the second import is needed 38 | try: 39 | import pyrealsense2 as rs 40 | rs.__version__ 41 | except AttributeError as e: 42 | from pyrealsense2 import pyrealsense2 as rs 43 | 44 | from ttc_depth import TTCDepth 45 | 46 | from zmq_vector_publisher import ZMQVectorPublisher 47 | 48 | BASE_RECORD_PATH = '../recordings' 49 | 50 | def remove_shm_from_resource_tracker(): 51 | """Monkey-patch multiprocessing.resource_tracker so SharedMemory won't be tracked 52 | 53 | More details at: https://bugs.python.org/issue38119 54 | """ 55 | 56 | def fix_register(name, rtype): 57 | if rtype == "shared_memory": 58 | return 59 | return resource_tracker._resource_tracker.register(self, name, rtype) 60 | resource_tracker.register = fix_register 61 | 62 | def fix_unregister(name, rtype): 63 | if rtype == "shared_memory": 64 | return 65 | return resource_tracker._resource_tracker.unregister(self, name, rtype) 66 | resource_tracker.unregister = fix_unregister 67 | 68 | if "shared_memory" in resource_tracker._CLEANUP_FUNCS: 69 | del resource_tracker._CLEANUP_FUNCS["shared_memory"] 70 | 71 | class RealsenseIMUSource(object): 72 | def __init__(self, no_gyro, record_dir = None): 73 | self._no_gyro = no_gyro 74 | self._record_dir = record_dir 75 | 76 | self._queue = Queue() 77 | self._stop_process = Value('b', False) 78 | self._earliest_timestamp = Value('d', -1.0) 79 | self._earliest_timestamp_set = False 80 | self._latest_timestamp = Value('d', -1.0) 81 | self._backup = [] 82 | 83 | self._last_accel_sample = np.array((0.0, 0.0, 0.0), dtype=np.float32) 84 | self._last_gyro_sample = np.array((0.0, 0.0, 0.0), dtype=np.float32) 85 | 86 | self._accel_list = [] 87 | self._gyro_list = [] 88 | 89 | def _add_sample(self, sample): 90 | self._latest_timestamp.value = sample[0] 91 | self._backup.append(sample) 92 | 93 | if not self._earliest_timestamp_set: 94 | self._earliest_timestamp.value = sample[0] 95 | self._earliest_timestamp_set = True 96 | 97 | # Fill the multiprocess queue, TODO is this needed? 98 | while len(self._backup) > 0: 99 | try: 100 | self._queue.put_nowait(self._backup[0]) 101 | self._backup.pop(0) 102 | except queue.Full: 103 | break 104 | 105 | def add_accel_sample(self, accel): 106 | ts = accel.timestamp / 1000.0 107 | 108 | data = accel.get_motion_data() 109 | 110 | # Transform the data from the realsense frame to the camera is identity 111 | accel_c = np.array((data.x, data.y, data.z), dtype=np.float32) 112 | 113 | self._last_accel_sample = accel_c 114 | sample = np.concatenate(((ts,), accel_c, self._last_gyro_sample)) 115 | 116 | self._accel_list.append(np.concatenate(((ts,), accel_c)).tolist()) 117 | 118 | self._add_sample(sample) 119 | 120 | def add_gyro_sample(self, gyro): 121 | if not self._no_gyro: 122 | ts = gyro.timestamp / 1000.0 123 | 124 | data = gyro.get_motion_data() 125 | gyro = np.array((data.x, data.y, data.z), dtype=np.float32) 126 | 127 | self._last_gyro_sample = gyro 128 | sample = np.concatenate(((ts,), self._last_accel_sample, gyro)) 129 | 130 | self._gyro_list.append(np.concatenate(((ts,), gyro)).tolist()) 131 | 132 | self._add_sample(sample) 133 | 134 | def earliest_timestamp(self): 135 | return float(self._earliest_timestamp.value) 136 | 137 | def latest_timestamp(self): 138 | return float(self._latest_timestamp.value) 139 | 140 | def next_sample(self): 141 | try: 142 | sample = self._queue.get_nowait() 143 | except queue.Empty: 144 | sample = None 145 | return sample 146 | 147 | def signal_stop(self): 148 | self._stop_process.value = True 149 | 150 | def save_data(self): 151 | file_name = os.path.join(self._record_dir, 'imu.pickle') 152 | 153 | with open(file_name, 'wb') as file: 154 | pickle.dump({'accel': np.array(self._accel_list), 155 | 'gyro': np.array(self._gyro_list)}, file, protocol=2) 156 | 157 | def preprocess_image(frame, frame_gray): 158 | frame_gray[...] = frame.astype(np.float32) * (1.0 / 255.0) 159 | # = tmp # cv2.remap(tmp, map1, map2, interpolation=cv2.INTER_LINEAR, borderMode=cv2.BORDER_CONSTANT) 160 | 161 | class RealsenseFrameSource(Process): 162 | def __init__(self, realsense_imu_source, record_dir=None): 163 | super(RealsenseFrameSource, self).__init__() 164 | self._queue = Queue() 165 | self._stop_process = Value('b', False) 166 | self._earliest_timestamp = Value('d', -1.0) 167 | self._earliest_timestamp_set = False 168 | self._latest_timestamp = Value('d', -1.0) 169 | self._width = WIDTH 170 | self._height = HEIGHT 171 | self._fps = FPS 172 | self._imager = 1 173 | self._num_frames = 0 174 | 175 | self._accel_hz = 250 176 | self._gyro_hz = 400 177 | 178 | self._template_buffer = np.zeros((self._height, self._width), dtype=np.float32) 179 | 180 | self._shared_memories = [] 181 | 182 | self._realsense_imu_source = realsense_imu_source 183 | self._record_dir = record_dir 184 | 185 | self._frame_times = [] 186 | 187 | cv2.setNumThreads(1) 188 | 189 | def run(self): 190 | remove_shm_from_resource_tracker() 191 | 192 | pipeline = rs.pipeline() 193 | 194 | config = rs.config() 195 | config.enable_stream(rs.stream.infrared, self._imager, self._width, self._height, rs.format.y8, self._fps) 196 | config.enable_stream(rs.stream.accel, rs.format.motion_xyz32f, self._accel_hz) 197 | config.enable_stream(rs.stream.gyro, rs.format.motion_xyz32f, self._gyro_hz) 198 | 199 | queue = rs.frame_queue(200) 200 | self._pipeline_profile = pipeline.start(config, queue) 201 | 202 | # https://community.intel.com/t5/Items-with-no-label/How-to-enable-disable-emitter-through-python-wrapper/td-p/547900 203 | device = self._pipeline_profile.get_device() 204 | depth_sensor = device.query_sensors()[0] # TODO NO!!!! 205 | depth_sensor.set_option(rs.option.emitter_enabled, 0) 206 | 207 | try: 208 | while not self._stop_process.value: 209 | frame = queue.wait_for_frame() 210 | if frame: 211 | if frame.is_frameset(): 212 | self._process_frameset(frame.as_frameset()) 213 | elif frame.is_motion_frame(): 214 | profile = frame.get_profile() 215 | if profile.stream_type() == rs.stream.accel: 216 | self._process_accel(frame.as_motion_frame()) 217 | elif profile.stream_type() == rs.stream.gyro: 218 | self._process_gyro(frame.as_motion_frame()) 219 | else: 220 | time.sleep(0.001) 221 | finally: 222 | pipeline.stop() 223 | 224 | if self._record_dir: 225 | self._realsense_imu_source.save_data() 226 | 227 | file_name = os.path.join(self._record_dir, 'frame_metadata.pickle') 228 | with open(file_name, 'wb') as file: 229 | pickle.dump({'ts': np.array(self._frame_times)}, file, protocol=2) 230 | 231 | def _process_frameset(self, frameset): 232 | ts = frameset.timestamp / 1000.0 233 | self._frame_times.append(ts) 234 | 235 | frame = np.asanyarray(frameset.get_infrared_frame().get_data()) 236 | 237 | shm = shared_memory.SharedMemory(create=True, size=self._template_buffer.nbytes) 238 | frame_gray = np.ndarray(self._template_buffer.shape, 239 | dtype=self._template_buffer.dtype, 240 | buffer=shm.buf) 241 | preprocess_image(frame, frame_gray) 242 | 243 | self._queue.put((ts, shm)) 244 | shm.close() 245 | 246 | if not self._earliest_timestamp_set: 247 | self._earliest_timestamp.value = ts 248 | self._earliest_timestamp_set = True 249 | self._latest_timestamp.value = ts 250 | 251 | if self._record_dir: 252 | image_dir = os.path.join(record_dir, 'images') 253 | frame_name = os.path.join(image_dir, 'frame_{:06d}.npy'.format(self._num_frames)) 254 | with open(frame_name, 'wb') as f: 255 | np.save(f, frame) 256 | 257 | self._num_frames += 1 258 | 259 | def _process_accel(self, motion_frame): 260 | self._realsense_imu_source.add_accel_sample(motion_frame) 261 | 262 | def _process_gyro(self, motion_frame): 263 | self._realsense_imu_source.add_gyro_sample(motion_frame) 264 | 265 | def earliest_timestamp(self): 266 | return float(self._earliest_timestamp.value) 267 | 268 | def latest_timestamp(self): 269 | return float(self._latest_timestamp.value) 270 | 271 | def next_sample(self): 272 | try: 273 | (ts, shm) = self._queue.get_nowait() 274 | frame_gray = np.ndarray(self._template_buffer.shape, 275 | dtype=self._template_buffer.dtype, 276 | buffer=shm.buf) 277 | sample = (ts, frame_gray) 278 | self._shared_memories.append(shm) 279 | return sample 280 | except queue.Empty: 281 | sample = None 282 | return sample 283 | 284 | def free_sample(self): 285 | if len(self._shared_memories) > 0: 286 | shm = self._shared_memories.pop(0) 287 | shm.close() 288 | shm.unlink() 289 | 290 | def signal_stop(self): 291 | self._stop_process.value = True 292 | 293 | class RealsenseTemplateSource(object): 294 | def __init__(self, patch_dim=50, resettable=True, record_dir=None): 295 | self._resettable = resettable 296 | self._record_dir = record_dir 297 | self._patch_params = { 298 | 'patch_start_time': time.time() + 2.5, 299 | 'patch_end_time': time.time() + 10000.0, 300 | 'patch_coordinates': (int(WIDTH/2 - patch_dim), int(HEIGHT/2 - patch_dim), int(WIDTH/2 + patch_dim), int(HEIGHT/2 + patch_dim)) 301 | } 302 | self._patches = [] 303 | self._create_patch(self._patch_params['patch_start_time']) 304 | 305 | self._patch_index = -1 306 | 307 | self._exit = False 308 | 309 | self._force_new_patch = False 310 | 311 | def force_new_patch(self): 312 | self._force_new_patch = True 313 | 314 | def _create_patch(self, time): 315 | self._patches.append((time, 316 | time + 100000.0, 317 | self._patch_params['patch_coordinates'])) 318 | 319 | def current_patch_valid(self, time): 320 | if True: #self._resettable: 321 | key = cv2.pollKey() 322 | #if key != -1: 323 | # print('key {}'.format(key)) 324 | if key == 114 or self._force_new_patch: # r key 325 | self._create_patch(time) 326 | self._force_new_patch = False 327 | return False 328 | elif key == 116: # t key 329 | return 'reset observer' 330 | elif key == 113: # q key 331 | self._exit = True 332 | 333 | if self._patch_index < 0: 334 | raise Exception('Current patch valid called before patch selected') 335 | return time < self._patches[self._patch_index][1] 336 | 337 | def get_new_patch(self, time): 338 | next_patch_index = self._patch_index + 1 339 | 340 | if next_patch_index >= len(self._patches): 341 | return None 342 | 343 | if time >= self._patches[next_patch_index][0]: 344 | self._patch_index = next_patch_index 345 | return self._patches[next_patch_index][2] 346 | 347 | def save_data(self): 348 | file_name = os.path.join(self._record_dir, 'templates_live.pickle') 349 | with open(file_name, 'wb') as file: 350 | pickle.dump({'patches': self._patches}, file, protocol=2) 351 | 352 | # Hacky way to get the realsense intrinsics from the camera 353 | def get_realsense_intrinsics(): 354 | pipeline = rs.pipeline() 355 | 356 | config = rs.config() 357 | config.enable_stream(rs.stream.infrared, 1, WIDTH, HEIGHT, rs.format.y8, FPS) 358 | config.enable_stream(rs.stream.accel, rs.format.motion_xyz32f, 250) 359 | config.enable_stream(rs.stream.gyro, rs.format.motion_xyz32f, 400) 360 | 361 | queue = rs.frame_queue(200) 362 | pipeline_profile = pipeline.start(config, queue) 363 | pipeline.stop() 364 | 365 | # TODO Shouldn't the imager be specified? 366 | profile = pipeline_profile.get_stream(rs.stream.infrared) 367 | intrinsics = profile.as_video_stream_profile().get_intrinsics() 368 | fx = intrinsics.fx 369 | fy = intrinsics.fy 370 | ppx = intrinsics.ppx 371 | ppy = intrinsics.ppy 372 | 373 | dist_coeffs = intrinsics.coeffs # TODO use these, they are all zero right now 374 | 375 | K = np.array(((fx, 0, ppx), 376 | (0, fy, ppy), 377 | (0, 0, 1)), 378 | dtype=np.float32) 379 | D = np.array((0.0, 0.0, 0.0, 0.0), dtype=np.float32) 380 | resolution = (WIDTH, HEIGHT) 381 | 382 | map1, map2 = cv2.fisheye.initUndistortRectifyMap(K, D, np.eye(3), K, resolution, cv2.CV_16SC2) 383 | 384 | accel_profile = pipeline_profile.get_stream(rs.stream.accel) 385 | gyro_profile = pipeline_profile.get_stream(rs.stream.gyro) 386 | 387 | accel_extrinsics = accel_profile.get_extrinsics_to(profile) 388 | gyro_extrinsics = gyro_profile.get_extrinsics_to(profile) 389 | 390 | print('accel extrinsics {}'.format(accel_extrinsics)) 391 | print('gyro exstrinsics {}'.format(gyro_extrinsics)) 392 | 393 | return K, D, map1, map2, resolution 394 | 395 | def make_record_dir(): 396 | previous_directories = sorted(glob.glob(os.path.join(BASE_RECORD_PATH, 'record_*'))) 397 | if len(previous_directories) == 0: 398 | next_recording_number = 0 399 | else: 400 | next_recording_number = int(previous_directories[-1][-6:]) + 1 401 | 402 | record_dir = os.path.join(BASE_RECORD_PATH, 'record_{:06d}'.format(next_recording_number)) 403 | images_dir = os.path.join(record_dir, 'images') 404 | 405 | os.mkdir(record_dir) 406 | os.mkdir(images_dir) 407 | return record_dir 408 | 409 | 410 | if __name__ == '__main__': 411 | parser = argparse.ArgumentParser() 412 | parser.add_argument('--visualize', dest='visualize', action='store_true', help='Visualize') 413 | parser.add_argument('--wait', dest='wait', action='store_true', help='Wait for key press when visualizing') 414 | parser.add_argument('--high', dest='high', action='store_true', help='Highest fps possible with limited fov') 415 | parser.add_argument('--nogyro', dest='no_gyro', action='store_true', help='Disable gyro stabilization') 416 | parser.add_argument('--april', dest='april', action='store_true', help='Use apriltag for ground truth') 417 | parser.add_argument('--record', dest='record', action='store_true', help='Record data and events') 418 | 419 | args = parser.parse_args() 420 | 421 | if args.wait: 422 | wait_key = 0 423 | else: 424 | wait_key = 1 425 | 426 | if args.high: 427 | # Highest fps super narrow vertical fov 428 | WIDTH = 848 429 | HEIGHT = 100 430 | FPS = 300 431 | patch_dim = HEIGHT / 4 432 | strided_patch_size = patch_dim**2 433 | max_flow_time = 0.5 * (1.0/FPS) # Works well enough 434 | else: 435 | # Highest fps with standard fov 436 | WIDTH = 848 437 | HEIGHT = 480 438 | FPS = 90 439 | patch_dim = 50 440 | strided_patch_size = 4000 # Track 400 pixels 441 | max_flow_time = 0.5 * (1.0/FPS) # Works well enough 442 | 443 | 444 | if args.record: 445 | record_dir = make_record_dir() 446 | else: 447 | record_dir = None 448 | 449 | K, D, map1, map2, resolution = get_realsense_intrinsics() 450 | 451 | if record_dir: 452 | file_name = os.path.join(record_dir, 'intrinsics.pickle') 453 | with open(file_name, 'wb') as file: 454 | pickle.dump({'K': K, 455 | 'D': D, 456 | 'resolution': resolution}, file, protocol=2) 457 | 458 | imu_source = RealsenseIMUSource(no_gyro = args.no_gyro, record_dir=record_dir) 459 | frame_source = RealsenseFrameSource(imu_source, record_dir=record_dir) 460 | template_source = RealsenseTemplateSource(patch_dim=patch_dim, 461 | resettable = not args.high, 462 | record_dir = record_dir) 463 | 464 | vector_pub = ZMQVectorPublisher() 465 | 466 | ttc_depth = TTCDepth(frame_source, imu_source, template_source, K, 467 | visualize=args.visualize, 468 | wait_key=wait_key, 469 | max_flow_time=max_flow_time, 470 | strided_patch_size=strided_patch_size, 471 | april_ground_truth=args.april, 472 | april_resize_to=None, #(270, 480), 473 | vector_pub = vector_pub) 474 | 475 | cv2.setNumThreads(1) 476 | try: 477 | frame_source.start() 478 | 479 | start_collection_time = time.time() 480 | 481 | while not template_source._exit: 482 | #print(time.time() - start_time) 483 | imu_start_compute_time = ttc_depth._imu_time_computed_to 484 | flow_start_compute_time = ttc_depth._flow_time_computed_to 485 | observer_start_compute_time = ttc_depth._ttc_pose_observer_time_computed_to 486 | start_time = time.time() 487 | ttc_depth.update() 488 | end_time = time.time() 489 | imu_end_compute_time = ttc_depth._imu_time_computed_to 490 | flow_end_compute_time = ttc_depth._flow_time_computed_to 491 | observer_end_compute_time = ttc_depth._ttc_pose_observer_time_computed_to 492 | 493 | if imu_start_compute_time is not None: 494 | real_delta = end_time-start_time 495 | imu_delta = imu_end_compute_time - imu_start_compute_time 496 | flow_delta = flow_end_compute_time - flow_start_compute_time 497 | observer_delta = observer_end_compute_time - observer_start_compute_time 498 | 499 | if imu_delta > 0: 500 | # TODO this compares system time with hardware timestamps, it doens't make sense 501 | imu_lag = end_time - imu_end_compute_time 502 | flow_lag = end_time - flow_end_compute_time 503 | observer_lag = end_time - observer_end_compute_time 504 | 505 | if (observer_lag > 0.25): 506 | template_source.force_new_patch() 507 | 508 | print('real {:.03f} imu {:.03f} ratio {:.03f} imu lag {:.03f} flow lag {:.03f} obs lag {:.03f}'.format( 509 | real_delta, imu_delta, imu_delta/real_delta, imu_lag, flow_lag, observer_lag)) 510 | #print('{:.02f}'.format(ttc_depth._ttc_list[-1][1])) 511 | #print('{:.01f}'.format(ttc_depth._z_hat_list[-1][1])) 512 | 513 | if time.time() - start_collection_time > 10000.0: 514 | print('Ran for 10000 seconds, exiting') 515 | frame_source.signal_stop() 516 | 517 | print('Join frame source1') 518 | frame_source.join() 519 | break 520 | 521 | if imu_start_compute_time is None or observer_delta < 0.1: 522 | update_delta = end_time - start_time 523 | # Rate limit 524 | sleep_delta = (1.0/1000.0) - update_delta 525 | if sleep_delta > 0: 526 | time.sleep(sleep_delta) 527 | 528 | except Exception as e: 529 | print('Exception caught') 530 | print(traceback.format_exc()) 531 | 532 | finally: 533 | print('Attempting to clean up data sources') 534 | imu_source.signal_stop() 535 | frame_source.signal_stop() 536 | frame_source.join() 537 | 538 | if args.record: 539 | template_source.save_data() 540 | 541 | print('Success, ignore the resource tracker') 542 | -------------------------------------------------------------------------------- /ttc_depth_robomaster.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: ttc_depth_robomaster.py 4 | # Available under MIT license 5 | # 6 | # Run experiments with RoboMaster robot for TTCDist paper 7 | # 8 | # History: 9 | # 09-02-22 - Levi Burner - Adapted file from ttc_depth_realsense.py 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import argparse 15 | import json 16 | import glob 17 | from multiprocessing import (Process, 18 | Queue, 19 | resource_tracker, 20 | shared_memory, 21 | Value) 22 | import queue 23 | import os 24 | import pickle 25 | import time 26 | import traceback 27 | 28 | import cv2 29 | import numpy as np 30 | 31 | from ttc_depth import TTCDepth 32 | 33 | from zmq_vector_publisher import ZMQVectorPublisher 34 | 35 | import robomaster 36 | from robomaster import robot 37 | 38 | BASE_RECORD_PATH = '../robomaster_recordings' 39 | 40 | def remove_shm_from_resource_tracker(): 41 | """Monkey-patch multiprocessing.resource_tracker so SharedMemory won't be tracked 42 | 43 | More details at: https://bugs.python.org/issue38119 44 | """ 45 | 46 | def fix_register(name, rtype): 47 | if rtype == "shared_memory": 48 | return 49 | return resource_tracker._resource_tracker.register(self, name, rtype) 50 | resource_tracker.register = fix_register 51 | 52 | def fix_unregister(name, rtype): 53 | if rtype == "shared_memory": 54 | return 55 | return resource_tracker._resource_tracker.unregister(self, name, rtype) 56 | resource_tracker.unregister = fix_unregister 57 | 58 | if "shared_memory" in resource_tracker._CLEANUP_FUNCS: 59 | del resource_tracker._CLEANUP_FUNCS["shared_memory"] 60 | 61 | class RoboMasterIMUSource(object): 62 | def __init__(self, no_gyro, record_dir = None, b=1.0, efference=False): 63 | self._no_gyro = no_gyro 64 | self._record_dir = record_dir 65 | 66 | self._queue = Queue() 67 | self._pose_hat_queue = Queue() 68 | self._earliest_timestamp = Value('d', -1.0) 69 | self._earliest_timestamp_set = False 70 | self._latest_timestamp = Value('d', -1.0) 71 | self._exit_everything = Value('b', False) 72 | self._backup = [] 73 | 74 | self._last_accel_sample = np.array((0.0, 0.0, 0.0), dtype=np.float32) 75 | self._last_gyro_sample = np.array((0.0, 0.0, 0.0), dtype=np.float32) 76 | 77 | self._accel_list = [] 78 | self._gyro_list = [] 79 | self._gyro_b = None 80 | 81 | self._u_list = [] 82 | self._u_t_list = [] 83 | self._int_u_list = [] 84 | self._x_t_list = [] 85 | self._x_hat_list = [] 86 | 87 | self._E_dt = 1/50.0 88 | self._ts_hat = None 89 | self._time_filter_alpha = 0.01 90 | self._t0 = None 91 | 92 | self.int_u = np.zeros((3,)) 93 | self.last_t = None 94 | self.last_pose = None 95 | 96 | self.first_pose_t = None 97 | self.stop = False 98 | 99 | if b is None: 100 | self._b = 1.0 101 | else: 102 | self._b = b 103 | self._efference = efference 104 | 105 | def add_pose_hat(self, t, pose_hat): 106 | self._pose_hat_queue.put((t, pose_hat)) 107 | 108 | def get_latest_pose(self): 109 | sample = None 110 | while True: 111 | try: 112 | sample = self._pose_hat_queue.get_nowait() 113 | except queue.Empty: 114 | break 115 | return sample 116 | 117 | def add_sample(self, imu_sample): 118 | self._ts_hat = time.time() 119 | imu_sample = np.array(imu_sample) 120 | acc_x_r, acc_y_r, acc_z_r, gyro_x_r, gyro_y_r, gyro_z_r = imu_sample 121 | sample = np.array((self._ts_hat, acc_y_r, acc_z_r, acc_x_r, gyro_y_r, gyro_z_r, gyro_x_r)) 122 | 123 | sample[1:4] *= 9.81 # G to m/s^2 124 | 125 | if self._gyro_b is not None: 126 | sample[4:7] -= self._gyro_b 127 | 128 | if self._no_gyro: 129 | sample[4:7] = 0 130 | 131 | self._accel_list.append(np.concatenate(((self._ts_hat,), sample[1:4]))) 132 | self._gyro_list.append(np.concatenate(((self._ts_hat,), sample[4:7]))) 133 | 134 | if len(self._gyro_list) < 100: 135 | return 136 | elif len(self._gyro_list) == 100: 137 | gyro_arr = np.array(self._gyro_list) 138 | self._gyro_b = np.mean(gyro_arr[:, 1:4], axis=0) 139 | 140 | if self._t0 is None: 141 | self._t0 = time.time() 142 | 143 | t_abs = time.time() 144 | t = t_abs - self._t0 145 | 146 | if self.last_t is None: 147 | self.last_t = t - (1.0 / 50.0) 148 | 149 | dt = t - self.last_t 150 | self.last_t = t 151 | 152 | l_over_d_w = (0.2 / 1.0) 153 | 154 | w_t = np.pi 155 | x_t = np.array([[0.0, 0.0, -1.0*l_over_d_w / w_t * np.cos(w_t*t) - 5.0*l_over_d_w], 156 | [0.0, 0.0, 1.0*l_over_d_w * np.sin(w_t*t)]]) 157 | u_t = np.array( [0.0, 0.0, w_t*1.0*l_over_d_w * np.cos(w_t*t)]) 158 | 159 | try: 160 | pose = self.get_latest_pose() 161 | 162 | if pose is None and self.last_pose is None: 163 | u = u_t 164 | elif pose is None and self.last_pose is not None: 165 | pose = (self.last_pose_t, self.last_pose) 166 | 167 | if pose is not None: 168 | pose_t, pose = pose 169 | 170 | if self.first_pose_t is None: 171 | self.first_pose_t = pose_t 172 | 173 | if self.last_pose is None: 174 | self.last_pose = pose 175 | dpose = (pose - self.last_pose) / dt 176 | self.last_pose = pose 177 | self.last_pose_t = pose_t 178 | hat_x = np.vstack((pose, dpose)) 179 | self._x_hat_list.append(np.concatenate(((t_abs,), hat_x.flatten()))) 180 | 181 | K = np.array([[2/1.0, 2/1.0]]) 182 | 183 | if pose_t - self.first_pose_t > 5.0: 184 | x_t = np.array([[0.0, 0.0, -2.5*l_over_d_w], 185 | [0.0, 0.0, 0.0]]) 186 | u_t = np.array([0.0, 0.0, 0.0]) 187 | e = x_t - hat_x 188 | if False: #np.abs(e[0, 2]) < l_over_d_w / 100.0 and np.abs(e[1, 2]) < l_over_d_w / 100.0: 189 | # self._ep_gripper.close(power=50) 190 | self.stop = True 191 | self.t_stop = time.time() 192 | 193 | u_e = np.array([0.0, 0.0, 0.0]) 194 | else: 195 | u_e = (K @ e).flatten() 196 | 197 | if self.stop: 198 | if time.time() - self.t_stop > 2.0: 199 | self._exit_everything.value = True 200 | 201 | u = u_t + u_e 202 | else: 203 | u_e = (K @ (x_t - hat_x)).flatten() 204 | u = u_t + u_e 205 | 206 | self.int_u += dt*u 207 | self._u_list.append(np.concatenate(((t_abs,), u))) 208 | self._int_u_list.append(np.concatenate(((t_abs,), self.int_u))) 209 | except Exception as e: 210 | print(traceback.format_exc()) 211 | 212 | self._x_t_list.append(np.concatenate(((t_abs,), x_t.flatten()))) 213 | self._u_t_list.append(np.concatenate(((t_abs,), u_t))) 214 | 215 | try: 216 | if not self.stop: 217 | self._ep_chassis.drive_speed(x=self._b*self.int_u[2], y=self._b*self.int_u[0], timeout=0.5) 218 | a_efference = np.array([u[0], 0.0, u[2]]) 219 | else: 220 | self._ep_chassis.drive_speed(x=0, y=0, timeout=0.5) 221 | a_efference = np.array([0, 0.0, 0]) 222 | except Exception as e: 223 | print(traceback.format_exc()) 224 | # print(sample[1:4], a_efference) 225 | 226 | # Overwrite IMU measurements with efference copy 227 | if self._efference: 228 | sample[1:4] = a_efference 229 | 230 | 231 | self._latest_timestamp.value = sample[0] 232 | self._backup.append(sample) 233 | 234 | if not self._earliest_timestamp_set: 235 | self._earliest_timestamp.value = sample[0] 236 | self._earliest_timestamp_set = True 237 | 238 | # Fill the multiprocess queue, TODO is this needed? 239 | while len(self._backup) > 0: 240 | try: 241 | self._queue.put_nowait(self._backup[0]) 242 | self._backup.pop(0) 243 | except queue.Full: 244 | break 245 | 246 | def earliest_timestamp(self): 247 | return float(self._earliest_timestamp.value) 248 | 249 | def latest_timestamp(self): 250 | return float(self._latest_timestamp.value) 251 | 252 | def next_sample(self): 253 | try: 254 | sample = self._queue.get_nowait() 255 | except queue.Empty: 256 | sample = None 257 | return sample 258 | 259 | def save_data(self): 260 | file_name = os.path.join(self._record_dir, 'imu.pickle') 261 | 262 | with open(file_name, 'wb') as file: 263 | pickle.dump({'accel': np.array(self._accel_list), 264 | 'gyro': np.array(self._gyro_list), 265 | 'u': np.array(self._u_list), 266 | 'u_t': np.array(self._u_t_list), 267 | 'int_u': np.array(self._int_u_list), 268 | 'x_t': np.array(self._x_t_list), 269 | 'x_hat': np.array(self._x_hat_list), 270 | }, file, protocol=2) 271 | 272 | 273 | def preprocess_image(frame, frame_gray): 274 | frame_gray_uint8 = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY) 275 | tmp = frame_gray_uint8.astype(np.float32) * (1.0 / 255.0) 276 | frame_gray[...] = cv2.remap(tmp, map1, map2, interpolation=cv2.INTER_LINEAR, borderMode=cv2.BORDER_CONSTANT) 277 | 278 | class RoboMasterFrameSource(Process): 279 | def __init__(self, imu_source, record_dir=None): 280 | super(RoboMasterFrameSource, self).__init__() 281 | self._queue = Queue() 282 | self._stop_process = Value('b', False) 283 | self._earliest_timestamp = Value('d', -1.0) 284 | self._earliest_timestamp_set = False 285 | self._latest_timestamp = Value('d', -1.0) 286 | self._width = WIDTH 287 | self._height = HEIGHT 288 | self._fps = FPS 289 | self._num_frames = 0 290 | 291 | self._template_buffer = np.zeros((self._height, self._width), dtype=np.float32) 292 | 293 | self._shared_memories = [] 294 | 295 | self._imu_source = imu_source 296 | self._record_dir = record_dir 297 | 298 | self._frame_times = [] 299 | 300 | self._E_dt = 1/FPS 301 | self._ts_hat = None 302 | self._time_filter_alpha = 0.01 303 | 304 | # self._last_receive_ts = time.time() 305 | 306 | cv2.setNumThreads(1) 307 | 308 | def run(self): 309 | remove_shm_from_resource_tracker() 310 | 311 | ep_robot = robot.Robot() 312 | ep_robot.initialize(conn_type="sta") 313 | 314 | # ep_robot.gripper.open(power=50) 315 | ep_robot.robotic_arm.moveto(x=200, y=40).wait_for_completed() 316 | 317 | 318 | self._imu_source._ep_chassis = ep_robot.chassis 319 | self._imu_source._ep_gripper = ep_robot.gripper 320 | 321 | ep_robot.chassis.sub_imu(freq=50, callback=self._imu_source.add_sample) 322 | 323 | ep_camera = ep_robot.camera 324 | ep_camera.start_video_stream(display=False) 325 | 326 | try: 327 | while not self._stop_process.value: 328 | frame = ep_camera.read_cv2_image(strategy='pipeline') 329 | receive_ts = time.time() 330 | 331 | # delta = receive_ts - self._last_receive_ts 332 | # print(1.0 / delta) 333 | # self._last_receive_ts = receive_ts 334 | 335 | # if self._ts_hat is None: 336 | # self._ts_hat = receive_ts 337 | # else: 338 | # self._ts_hat += self._E_dt 339 | # self._ts_hat = (1-self._time_filter_alpha) * self._ts_hat + self._time_filter_alpha * receive_ts 340 | self._ts_hat = receive_ts - 0.1 #+ (-0.0242) # TODO NO! 341 | 342 | self._process_frame(self._ts_hat, frame) 343 | except KeyboardInterrupt: 344 | print('RoboMasterFrameSource KeyboardInterruptcaught') 345 | finally: 346 | ep_robot.chassis.drive_speed(x=0, y=0, z=0, timeout=5) 347 | ep_camera.stop_video_stream() 348 | print('sleeping for robot to stop') 349 | time.sleep(2) 350 | ep_robot.close() 351 | 352 | if self._record_dir: 353 | print('RoboMasterFrameSource saving') 354 | file_name = os.path.join(self._record_dir, 'frame_metadata.pickle') 355 | with open(file_name, 'wb') as file: 356 | pickle.dump({'ts': np.array(self._frame_times)}, file, protocol=2) 357 | self._imu_source.save_data() 358 | 359 | def _process_frame(self, ts, frame): 360 | self._frame_times.append(ts) 361 | 362 | shm = shared_memory.SharedMemory(create=True, size=self._template_buffer.nbytes) 363 | frame_gray = np.ndarray(self._template_buffer.shape, 364 | dtype=self._template_buffer.dtype, 365 | buffer=shm.buf) 366 | preprocess_image(frame, frame_gray) 367 | 368 | self._queue.put((ts, shm)) 369 | shm.close() 370 | 371 | if not self._earliest_timestamp_set: 372 | self._earliest_timestamp.value = ts 373 | self._earliest_timestamp_set = True 374 | self._latest_timestamp.value = ts 375 | 376 | if self._record_dir: 377 | image_dir = os.path.join(record_dir, 'images') 378 | frame_name = os.path.join(image_dir, 'frame_{:06d}.npy'.format(self._num_frames)) 379 | with open(frame_name, 'wb') as f: 380 | np.save(f, frame) 381 | 382 | self._num_frames += 1 383 | 384 | def earliest_timestamp(self): 385 | return float(self._earliest_timestamp.value) 386 | 387 | def latest_timestamp(self): 388 | return float(self._latest_timestamp.value) 389 | 390 | def next_sample(self): 391 | try: 392 | (ts, shm) = self._queue.get_nowait() 393 | frame_gray = np.ndarray(self._template_buffer.shape, 394 | dtype=self._template_buffer.dtype, 395 | buffer=shm.buf) 396 | sample = (ts, frame_gray) 397 | self._shared_memories.append(shm) 398 | return sample 399 | except queue.Empty: 400 | sample = None 401 | return sample 402 | 403 | def free_sample(self): 404 | if len(self._shared_memories) > 0: 405 | shm = self._shared_memories.pop(0) 406 | shm.close() 407 | shm.unlink() 408 | 409 | def signal_stop(self): 410 | self._stop_process.value = True 411 | 412 | class RobomasterTemplateSource(object): 413 | def __init__(self, patch_dim=50, resettable=True, record_dir=None): 414 | self._resettable = resettable 415 | self._record_dir = record_dir 416 | self._patch_params = { 417 | 'patch_start_time': time.time() + 2.5, 418 | 'patch_end_time': time.time() + 10000.0, 419 | 'patch_coordinates': (int(5.0*WIDTH/8 - patch_dim), 420 | int(2.0*HEIGHT/4 - patch_dim), 421 | int(5.0*WIDTH/8 + patch_dim), 422 | int(2.0*HEIGHT/4 + patch_dim)) 423 | } 424 | self._patches = [] 425 | self._create_patch(self._patch_params['patch_start_time']) 426 | 427 | self._patch_index = -1 428 | 429 | self._exit = False 430 | 431 | self._force_new_patch = False 432 | 433 | def force_new_patch(self): 434 | self._force_new_patch = True 435 | 436 | def _create_patch(self, time): 437 | self._patches.append((time, 438 | time + 100000.0, 439 | self._patch_params['patch_coordinates'])) 440 | 441 | def current_patch_valid(self, time): 442 | if True: #self._resettable: 443 | key = cv2.pollKey() 444 | #if key != -1: 445 | # print('key {}'.format(key)) 446 | if key == 114 or self._force_new_patch: # r key 447 | self._create_patch(time) 448 | self._force_new_patch = False 449 | return False 450 | elif key == 116: # t key 451 | return 'reset observer' 452 | elif key == 113: # q key 453 | self._exit = True 454 | 455 | if self._patch_index < 0: 456 | raise Exception('Current patch valid called before patch selected') 457 | return time < self._patches[self._patch_index][1] 458 | 459 | def get_new_patch(self, time): 460 | next_patch_index = self._patch_index + 1 461 | 462 | if next_patch_index >= len(self._patches): 463 | return None 464 | 465 | if time >= self._patches[next_patch_index][0]: 466 | self._patch_index = next_patch_index 467 | return self._patches[next_patch_index][2] 468 | 469 | def save_data(self): 470 | file_name = os.path.join(self._record_dir, 'templates_live.pickle') 471 | with open(file_name, 'wb') as file: 472 | pickle.dump({'patches': self._patches}, file, protocol=2) 473 | 474 | def make_record_dir(): 475 | previous_directories = sorted(glob.glob(os.path.join(BASE_RECORD_PATH, 'record_*'))) 476 | if len(previous_directories) == 0: 477 | next_recording_number = 0 478 | else: 479 | next_recording_number = int(previous_directories[-1][-6:]) + 1 480 | 481 | record_dir = os.path.join(BASE_RECORD_PATH, 'record_{:06d}'.format(next_recording_number)) 482 | images_dir = os.path.join(record_dir, 'images') 483 | 484 | os.mkdir(record_dir) 485 | os.mkdir(images_dir) 486 | return record_dir 487 | 488 | if __name__ == '__main__': 489 | parser = argparse.ArgumentParser() 490 | parser.add_argument('--visualize', dest='visualize', action='store_true', help='Visualize') 491 | parser.add_argument('--wait', dest='wait', action='store_true', help='Wait for key press when visualizing') 492 | parser.add_argument('--nogyro', dest='no_gyro', action='store_true', help='Disable gyro stabilization') 493 | parser.add_argument('--april', dest='april', action='store_true', help='Use apriltag for ground truth') 494 | parser.add_argument('--record', dest='record', action='store_true', help='Record data and events') 495 | parser.add_argument('--b', type=float, help='scalar gain b to apply to control effort') 496 | parser.add_argument('--efference', dest='efference', action='store_true', help='Report efference copy instead of IMU') 497 | 498 | args = parser.parse_args() 499 | 500 | if args.wait: 501 | wait_key = 0 502 | else: 503 | wait_key = 1 504 | 505 | WIDTH = 1280 506 | HEIGHT = 720 507 | FPS = 30 508 | patch_dim = 50 509 | strided_patch_size = 4000 # Track 4000 pixels 510 | max_flow_time = 0.5 * (1.0/FPS) # Works well enough 511 | 512 | if args.record: 513 | record_dir = make_record_dir() 514 | else: 515 | record_dir = None 516 | 517 | # From running calibrate_calculate.py 518 | K = np.array([[631.05345607, 0., 646.8600196 ], 519 | [ 0., 633.5803277, 357.86951071], 520 | [ 0., 0., 1. ]]) 521 | D = np.array([0.1726052, 0.43400192, -0.43320789, 0.04646433]) 522 | 523 | resolution = (WIDTH, HEIGHT) 524 | map1, map2 = cv2.fisheye.initUndistortRectifyMap(K, D, np.eye(3), K, resolution, cv2.CV_16SC2) 525 | 526 | if record_dir: 527 | file_name = os.path.join(record_dir, 'intrinsics.pickle') 528 | with open(file_name, 'wb') as file: 529 | pickle.dump({'K': K, 530 | 'D': D, 531 | 'resolution': resolution}, file, protocol=2) 532 | 533 | 534 | imu_source = RoboMasterIMUSource(no_gyro = args.no_gyro, record_dir=record_dir, 535 | b=args.b, efference=args.efference) 536 | phi_pose_subscriber = imu_source 537 | 538 | frame_source = RoboMasterFrameSource(imu_source, record_dir=record_dir) 539 | template_source = RobomasterTemplateSource(patch_dim=patch_dim, 540 | resettable = True, 541 | record_dir = record_dir) 542 | 543 | vector_pub = ZMQVectorPublisher() 544 | 545 | ttc_depth = TTCDepth(frame_source, imu_source, template_source, K, 546 | visualize=args.visualize, 547 | wait_key=wait_key, 548 | max_flow_time=max_flow_time, 549 | strided_patch_size=strided_patch_size, 550 | april_ground_truth=args.april, 551 | april_resize_to=None, #(270, 480), 552 | vector_pub = vector_pub, 553 | phi_pose_subscriber=phi_pose_subscriber, 554 | phi_accel_power_thresh=0.001) 555 | 556 | cv2.setNumThreads(1) 557 | try: 558 | frame_source.start() 559 | 560 | start_collection_time = time.time() 561 | 562 | while not template_source._exit and not imu_source._exit_everything.value: 563 | #print(time.time() - start_time) 564 | imu_start_compute_time = ttc_depth._imu_time_computed_to 565 | flow_start_compute_time = ttc_depth._flow_time_computed_to 566 | observer_start_compute_time = ttc_depth._ttc_pose_observer_time_computed_to 567 | start_time = time.time() 568 | ttc_depth.update() 569 | end_time = time.time() 570 | imu_end_compute_time = ttc_depth._imu_time_computed_to 571 | flow_end_compute_time = ttc_depth._flow_time_computed_to 572 | observer_end_compute_time = ttc_depth._ttc_pose_observer_time_computed_to 573 | 574 | if imu_start_compute_time is not None: 575 | real_delta = end_time-start_time 576 | imu_delta = imu_end_compute_time - imu_start_compute_time 577 | flow_delta = flow_end_compute_time - flow_start_compute_time 578 | observer_delta = observer_end_compute_time - observer_start_compute_time 579 | 580 | if imu_delta > 0: 581 | # TODO this compares system time with hardware timestamps, it doens't make sense 582 | imu_lag = end_time - imu_end_compute_time 583 | flow_lag = end_time - flow_end_compute_time 584 | observer_lag = end_time - observer_end_compute_time 585 | 586 | if (observer_lag > 0.25): 587 | template_source.force_new_patch() 588 | 589 | # print('real {:.03f} imu {:.03f} ratio {:.03f} imu lag {:.03f} flow lag {:.03f} obs lag {:.03f}'.format( 590 | # real_delta, imu_delta, imu_delta/real_delta, imu_lag, flow_lag, observer_lag)) 591 | #print('{:.02f}'.format(ttc_depth._ttc_list[-1][1])) 592 | # print('{:.01f}'.format(ttc_depth._z_hat_list[-1][1])) 593 | 594 | if time.time() - start_collection_time > 10000.0: 595 | print('Ran for 10000 seconds, exiting') 596 | frame_source.signal_stop() 597 | 598 | print('Join frame source1') 599 | frame_source.join() 600 | break 601 | 602 | if imu_start_compute_time is None or observer_delta < 0.1: 603 | update_delta = end_time - start_time 604 | # Rate limit 605 | sleep_delta = (1.0/1000.0) - update_delta 606 | if sleep_delta > 0: 607 | time.sleep(sleep_delta) 608 | 609 | except KeyboardInterrupt: 610 | print('Main process KeyboardInterrupt caught') 611 | 612 | finally: 613 | print('Attempting to clean up data sources') 614 | frame_source.signal_stop() 615 | frame_source.join() 616 | 617 | if args.record: 618 | template_source.save_data() 619 | 620 | print('Success, ignore the resource tracker') 621 | -------------------------------------------------------------------------------- /ttc_pose_observer.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: ttc_pose_observer.py 4 | # Available under MIT license 5 | # 6 | # Position observer from phi and acceleration 7 | # 8 | # History: 9 | # 04-26-20 - Levi Burner - Created file 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import time 15 | import numpy as np 16 | from ttc_depth_integrals_accel_bias import accel_z_z_star_tf, accel_x_z_star_tf 17 | 18 | def feedback_good(accel_power, accel_z, max_z): 19 | return (accel_z != np.NAN and accel_power > 2.0 and accel_z < max_z) 20 | 21 | class TTCPoseObserver(object): 22 | def __init__(self, 23 | z_0=None, 24 | z_0_dot=0.0, 25 | dt=0.005, 26 | max_z=-0.1, 27 | z_hat_gain=2.0, 28 | seconds_to_keep = 1.0): 29 | self._dt = dt 30 | self._z_0 = None 31 | self._z_hat = self._z_0 32 | self._max_z = max_z 33 | self._min_initial_z = -7.5 34 | 35 | self._seconds_to_keep = seconds_to_keep 36 | self._num_samples_to_keep = int(self._seconds_to_keep / self._dt) 37 | 38 | self._t_list = [] 39 | self._scaled_velocities_list = [] 40 | self._a_fc_list = [] 41 | 42 | self._A = np.array(((0, 1), (0, 0))) 43 | self._B = np.array((0, 1)) 44 | self._L = np.array(((2, 0), (0, 20))) 45 | 46 | def reset_ic(self): 47 | self._z_hat = self._z_0 48 | 49 | def update(self, t, scaled_velocities, a_fc): 50 | self._t_list.append(t) 51 | self._scaled_velocities_list.append(scaled_velocities.tolist()) 52 | self._a_fc_list.append(a_fc.tolist()) 53 | 54 | accel_z_bias = None 55 | if len(self._t_list) == self._num_samples_to_keep: 56 | self._t_list = self._t_list[1:] 57 | self._scaled_velocities_list = self._scaled_velocities_list[1:] 58 | self._a_fc_list = self._a_fc_list[1:] 59 | 60 | # TODO NO! 61 | t = np.array(self._t_list) 62 | 63 | s_v = np.array(self._scaled_velocities_list) 64 | 65 | s_v_x = s_v[:, 0] 66 | s_v_y = s_v[:, 1] 67 | s_v_z = s_v[:, 2] 68 | 69 | a_fc = np.array(self._a_fc_list) 70 | a_x = a_fc[:, 0] 71 | a_y = a_fc[:, 1] 72 | a_z = a_fc[:, 2] 73 | 74 | (accel_x_z_tf, accel_x_bias) = accel_x_z_star_tf(t, s_v_x, s_v_z, a_x) 75 | if accel_x_z_tf != np.NAN: 76 | a_x_power = np.linalg.norm(a_x-accel_x_bias) / np.sqrt(self._num_samples_to_keep) 77 | else: 78 | a_x_power = 0.0 79 | print('x singular') 80 | 81 | (accel_y_z_tf, accel_y_bias) = accel_x_z_star_tf(t, s_v_y, s_v_z, a_y) 82 | if accel_y_z_tf != np.NAN: 83 | a_y_power = np.linalg.norm(a_y-accel_y_bias) / np.sqrt(self._num_samples_to_keep) 84 | else: 85 | a_y_power = 0.0 86 | print('y singular') 87 | 88 | (accel_z_z_tf, accel_z_bias) = accel_z_z_star_tf(t, s_v_z, a_z) 89 | if accel_z_z_tf != np.NAN: 90 | a_z_power = np.linalg.norm(a_z-accel_z_bias) / np.sqrt(self._num_samples_to_keep) 91 | else: 92 | a_z_power = 0.0 93 | print('z singular') 94 | else: 95 | return None 96 | 97 | accel_z_hat = 0.0 98 | accel_z_dot_hat = 0.0 99 | num_feedback = 0 100 | if feedback_good(a_x_power, accel_x_z_tf, self._max_z): 101 | accel_z_hat += accel_x_z_tf 102 | accel_z_dot_hat += scaled_velocities[2] * accel_x_z_tf 103 | num_feedback += 1 104 | else: 105 | accel_x_z_tf = 0.0 106 | 107 | if feedback_good(a_y_power, accel_y_z_tf, self._max_z): 108 | accel_z_hat += accel_y_z_tf 109 | accel_z_dot_hat += scaled_velocities[2] * accel_y_z_tf 110 | num_feedback += 1 111 | else: 112 | accel_y_z_tf = 0.0 113 | 114 | if feedback_good(a_z_power, accel_z_z_tf, self._max_z): 115 | accel_z_hat += accel_z_z_tf 116 | accel_z_dot_hat += scaled_velocities[2] * accel_z_z_tf 117 | num_feedback += 1 118 | else: 119 | accel_z_z_tf = 0.0 120 | 121 | if num_feedback > 0 and accel_z_bias is not None and self._z_hat is not None: 122 | accel_z_hat /= num_feedback 123 | accel_z_dot_hat /= num_feedback 124 | 125 | e = np.array((accel_z_hat, accel_z_dot_hat)) - self._z_hat 126 | 127 | z_hat_dot = self._A @ self._z_hat + self._B * (a_z[-1]-accel_z_bias) + self._L @ e 128 | 129 | self._z_hat = self._z_hat + z_hat_dot * self._dt 130 | elif num_feedback > 0 and self._z_hat is None: 131 | accel_z_hat /= num_feedback 132 | accel_z_dot_hat /= num_feedback 133 | 134 | # _min_initial_z is to filter an insane spike at the beginning of one sequence 135 | if accel_z_hat > self._min_initial_z: 136 | self._z_hat = np.array((accel_z_hat, accel_z_dot_hat)) 137 | else: 138 | return None 139 | 140 | elif self._z_hat is not None: 141 | s_v_z_hat_dot = scaled_velocities[2] * self._z_hat[0] 142 | self._z_hat = np.array((self._z_hat[0] + s_v_z_hat_dot * self._dt, 143 | s_v_z_hat_dot)) 144 | else: 145 | return None 146 | 147 | if self._z_hat[0] > self._max_z: 148 | self._z_hat[0] = self._max_z 149 | 150 | return self._z_hat[0], accel_x_z_tf, accel_y_z_tf, accel_z_z_tf 151 | -------------------------------------------------------------------------------- /utilities.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: utilities.py 4 | # Available under MIT license 5 | # 6 | # Utility functions used by multiple files 7 | # 8 | # History: 9 | # 04-23-20 - Levi Burner - Created file 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import glob 15 | import os 16 | import pickle 17 | 18 | import cv2 19 | import numpy as np 20 | 21 | def latest_recording_dir(): 22 | datasets = sorted(glob.glob('../recordings/record_*/')) 23 | if len(datasets) == 0: 24 | raise Exception('No data directories in default location and no directory specified') 25 | else: 26 | dataset_dir = datasets[-1] 27 | return dataset_dir 28 | 29 | def load_calibration_from_dir(record_dir): 30 | calibration = pickle.load(open(os.path.join(record_dir, 'intrinsics.pickle'), 'rb')) 31 | resolution = calibration['resolution'] 32 | K = calibration['K'] 33 | D = calibration['D'] 34 | 35 | map1, map2 = cv2.fisheye.initUndistortRectifyMap(K, D, np.eye(3), K, resolution, cv2.CV_16SC2) 36 | 37 | return K, D, map1, map2, resolution 38 | -------------------------------------------------------------------------------- /zmq_vector_publisher.py: -------------------------------------------------------------------------------- 1 | ############################################################################### 2 | # 3 | # File: zmq_vector_publisher.py 4 | # Available under MIT license 5 | # 6 | # An object that publishes timestamped floating point vectors over a zmq socket 7 | # 8 | # History: 9 | # 09-01-21 - Levi Burner - Created file 10 | # 09-26-22 - Levi Burner - Open source release 11 | # 12 | ############################################################################### 13 | 14 | import zmq 15 | import struct 16 | 17 | class ZMQVectorPublisher(object): 18 | def __init__(self, port=5556, base_topic='ttc_depth'): 19 | self._port = port 20 | self._base_topic = base_topic 21 | self._context = zmq.Context() 22 | self._socket = self._context.socket(zmq.PUB) 23 | self._socket.bind('tcp://*:{}'.format(self._port)) 24 | 25 | def publish(self, topic, t, x, flags=0, copy=True, track=False): 26 | full_topic = self._base_topic + '/' + topic 27 | self._socket.send(full_topic.encode('ascii'), flags|zmq.SNDMORE) 28 | 29 | self._socket.send(struct.pack('d', float(t)), flags|zmq.SNDMORE) 30 | 31 | md = dict( 32 | dtype = str(x.dtype), 33 | shape = x.shape, 34 | ) 35 | 36 | self._socket.send_json(md, flags|zmq.SNDMORE) 37 | self._socket.send(x, flags, copy=copy, track=track) 38 | 39 | 40 | class ZMQVectorPublisherSaver(ZMQVectorPublisher): 41 | def __init__(self, port=5556, base_topic='ttc_depth'): 42 | super().__init__(port=port, base_topic=base_topic) 43 | self._save_dict = {} 44 | 45 | def publish(self, topic, t, x, flags=0, copy=True, track=False): 46 | if topic not in self._save_dict: 47 | self._save_dict[topic] = [] 48 | 49 | self._save_dict[topic].append((t, x)) 50 | 51 | super().publish(topic, t, x, flags=flags, copy=copy, track=track) 52 | 53 | def get_data(self): 54 | return self._save_dict 55 | --------------------------------------------------------------------------------
