├── .gitignore
├── .readthedocs.yaml
├── LICENSE
├── MANIFEST.in
├── README.md
├── article
├── A1_synthetic_data
│ ├── array_size_benchmark.ipynb
│ ├── bm_functions.py
│ ├── chrysalis_example.ipynb
│ ├── contamination_benchmark.ipynb
│ ├── data_generator
│ │ ├── generate_synthetic_datasets.py
│ │ ├── generate_truncated_samples.py
│ │ ├── tissue_generator.py
│ │ └── tools.py
│ ├── main_synthetic_benchmark.ipynb
│ └── method_scripts
│ │ ├── array_size_benchmark
│ │ ├── chrysalis.py
│ │ ├── graphst.py
│ │ ├── mefisto.py
│ │ ├── nsf.py
│ │ └── stagate.py
│ │ ├── contamination_benchmark
│ │ ├── chrysalis.py
│ │ ├── graphst.py
│ │ ├── mefisto.py
│ │ ├── nsf.py
│ │ └── stagate.py
│ │ └── main_synthetic_benchmark
│ │ ├── chrysalis.py
│ │ ├── graphst.py
│ │ ├── mefisto.py
│ │ ├── nsf.py
│ │ └── stagate.py
├── A2_human_lymph_node
│ ├── SVG_detection_methods
│ │ ├── 1_bsp_spatialde_sepal.ipynb
│ │ ├── 2_spark.R
│ │ └── 3_method_comparison.ipynb
│ ├── benchmarking
│ │ ├── graphst.py
│ │ ├── mefisto.py
│ │ ├── nsf.py
│ │ ├── spatialpca.R
│ │ └── stagate.py
│ ├── chrysalis_analysis_and_validation.ipynb
│ └── morans_i.ipynb
├── A3_human_breast_cancer
│ ├── benchmarking.ipynb
│ ├── benchmarking
│ │ ├── graphst.py
│ │ ├── mefisto.py
│ │ ├── nsf.py
│ │ ├── spatialpca.R
│ │ └── stagate.py
│ ├── chrysalis_analysis_and_validation.ipynb
│ └── morphology_integration
│ │ ├── 1_extract_image_tiles.ipynb
│ │ ├── 2_autoencoder_training.py
│ │ └── 3_integrate_morphology.ipynb
├── A4_mouse_brain
│ ├── ff
│ │ ├── mouse_brain_ff.ipynb
│ │ └── mouse_brain_integration.ipynb
│ └── ffpe
│ │ ├── benchmark
│ │ ├── graphst.py
│ │ ├── mefisto.py
│ │ ├── nsf.py
│ │ └── stagate.py
│ │ ├── map_annotations.py
│ │ ├── mouse_brain_ffpe.ipynb
│ │ └── mouse_brain_ffpe_benchmark.ipynb
├── A5_visium_hd
│ └── visium_hd_analysis.ipynb
├── A6_slide_seqv2
│ └── slide_seqv2_analysis.ipynb
├── A7_stereo_seq
│ └── stereo_seq_analysis.ipynb
└── readme.md
├── chrysalis
├── __init__.py
├── core.py
├── functions.py
├── plots.py
├── test
│ └── test.py
└── utils.py
├── docs
├── Makefile
├── _static
│ ├── css
│ │ └── custom.css
│ ├── images
│ │ ├── after.png
│ │ └── before.png
│ └── js
│ │ └── custom.js
├── api.md
├── conf.py
├── docs_logo.svg
├── docs_logo_prev.svg
├── favicon.svg
├── favicon_prev.svg
├── index.md
├── make.bat
├── overview
│ ├── getting-started.md
│ └── installation.md
├── requirements.txt
└── tutorials
│ ├── advanced_integration_tutorial.ipynb
│ ├── lymph_node_tutorial.ipynb
│ └── mouse_brain_integration_tutorial.ipynb
├── gallery
└── readme.md
├── misc
├── banner.png
├── demo.png
├── demo.svg
├── deprecated_functions.py
├── human_lymph_node.jpg
├── logo.svg
├── panel_1.png
└── panel_2.png
├── plots
├── V1_Human_Lymph_Node.png
├── V1_Human_Lymph_Node.svg

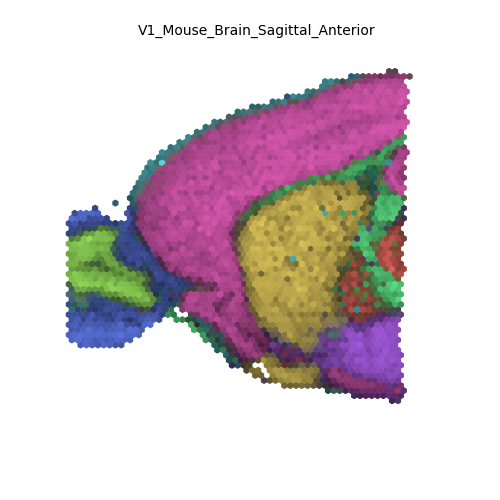

├── V1_Mouse_Brain_Sagittal_Anterior.png
├── V1_Mouse_Brain_Sagittal_Anterior.svg

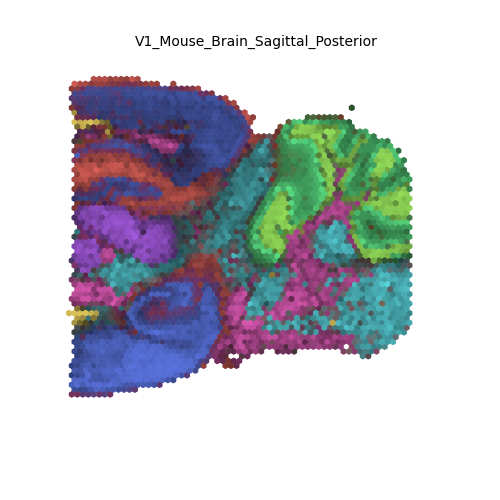

├── V1_Mouse_Brain_Sagittal_Posterior.png
├── V1_Mouse_Brain_Sagittal_Posterior.svg
├── V1_Mouse_Kidney.png
├── V1_Mouse_Kidney.svg
└── gallery

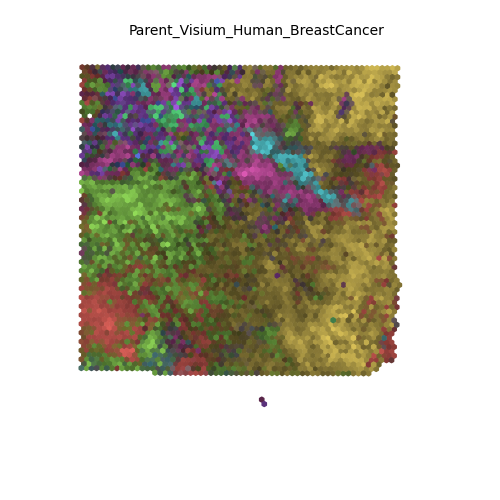

│ ├── Parent_Visium_Human_BreastCancer.png
│ ├── Parent_Visium_Human_BreastCancer.svg

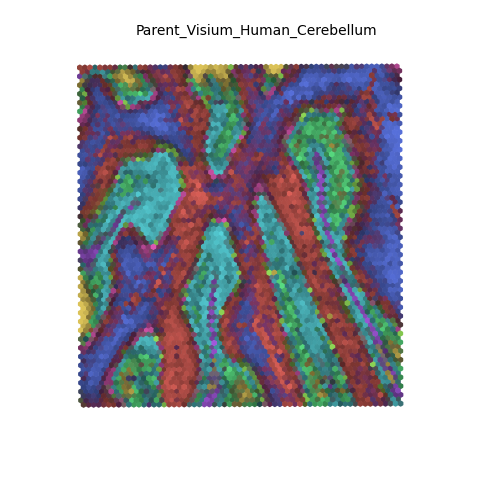

│ ├── Parent_Visium_Human_Cerebellum.png
│ ├── Parent_Visium_Human_Cerebellum.svg

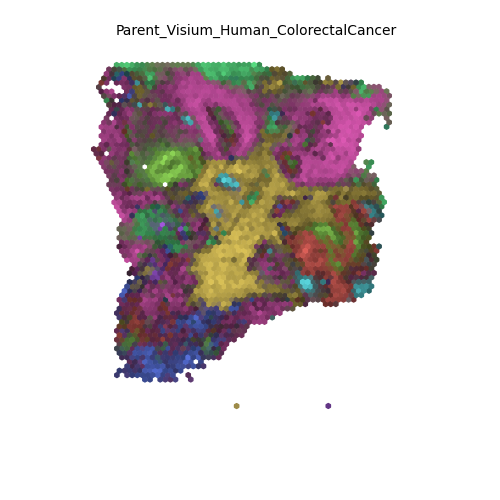

│ ├── Parent_Visium_Human_ColorectalCancer.png
│ ├── Parent_Visium_Human_ColorectalCancer.svg

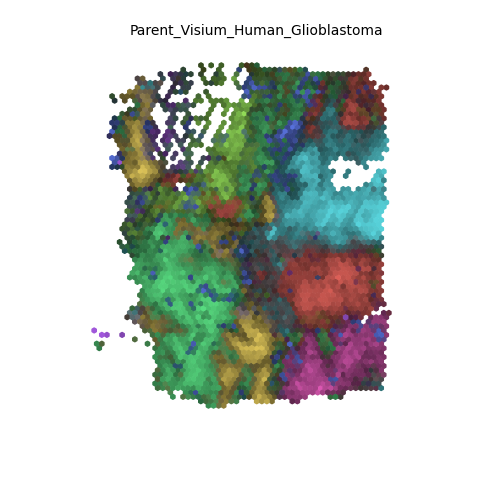

│ ├── Parent_Visium_Human_Glioblastoma.png
│ ├── Parent_Visium_Human_Glioblastoma.svg
│ ├── Parent_Visium_Human_OvarianCancer.png
│ ├── Parent_Visium_Human_OvarianCancer.svg
│ ├── V1_Adult_Mouse_Brain.png
│ ├── V1_Adult_Mouse_Brain.svg
│ ├── V1_Adult_Mouse_Brain_Coronal_Section_1.png
│ ├── V1_Adult_Mouse_Brain_Coronal_Section_1.svg
│ ├── V1_Adult_Mouse_Brain_Coronal_Section_2.png
│ ├── V1_Adult_Mouse_Brain_Coronal_Section_2.svg

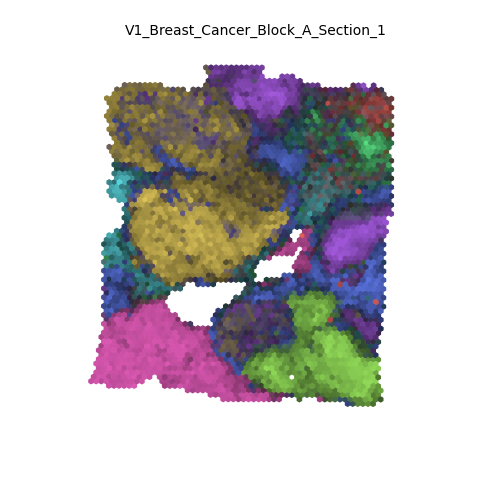

│ ├── V1_Breast_Cancer_Block_A_Section_1.png
│ ├── V1_Breast_Cancer_Block_A_Section_1.svg

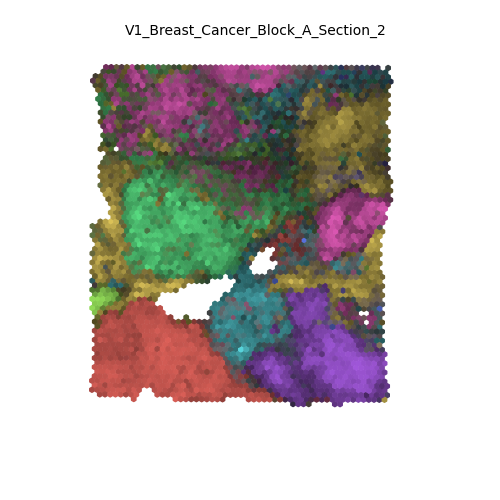

│ ├── V1_Breast_Cancer_Block_A_Section_2.png
│ ├── V1_Breast_Cancer_Block_A_Section_2.svg

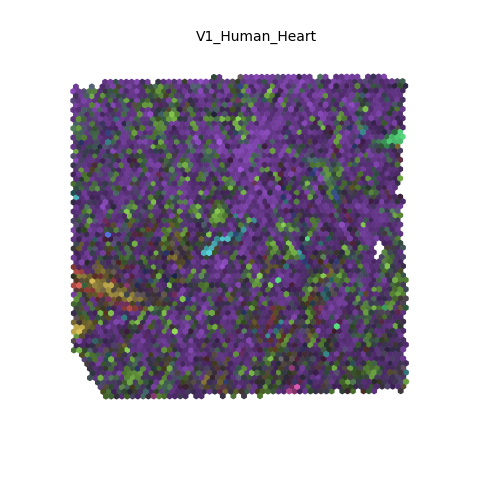

│ ├── V1_Human_Heart.png
│ ├── V1_Human_Heart.svg
│ ├── V1_Human_Lymph_Node.png
│ ├── V1_Human_Lymph_Node.svg
│ ├── V1_Mouse_Brain_Sagittal_Anterior.png
│ ├── V1_Mouse_Brain_Sagittal_Anterior.svg

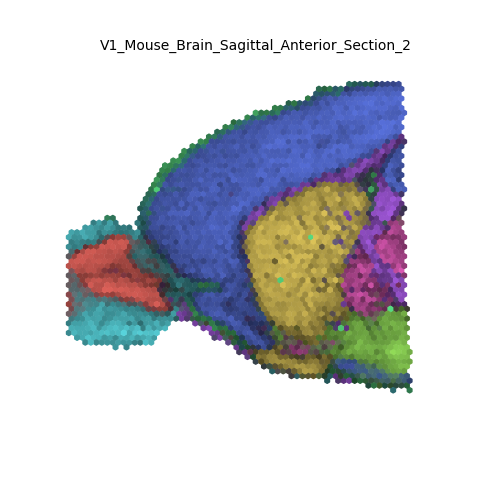

│ ├── V1_Mouse_Brain_Sagittal_Anterior_Section_2.png
│ ├── V1_Mouse_Brain_Sagittal_Anterior_Section_2.svg
│ ├── V1_Mouse_Brain_Sagittal_Posterior.png
│ ├── V1_Mouse_Brain_Sagittal_Posterior.svg

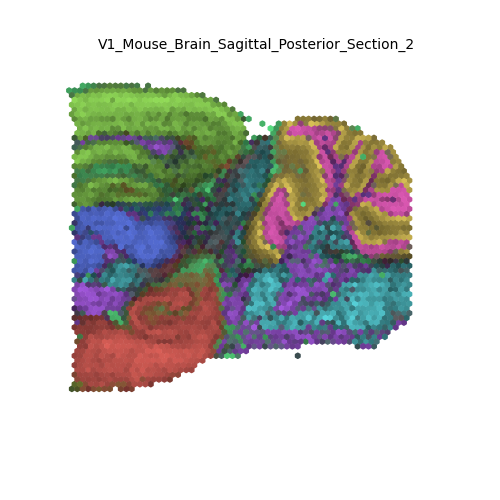

│ ├── V1_Mouse_Brain_Sagittal_Posterior_Section_2.png
│ ├── V1_Mouse_Brain_Sagittal_Posterior_Section_2.svg

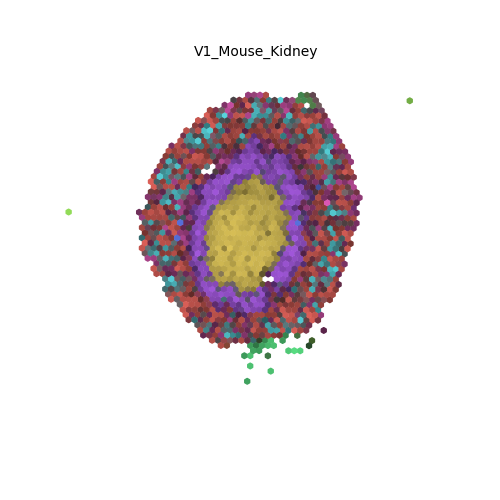

│ ├── V1_Mouse_Kidney.png
│ └── V1_Mouse_Kidney.svg
├── pyproject.toml
└── requirements.txt
/.gitignore:
--------------------------------------------------------------------------------
1 | # dev and build folders
2 | data/
3 | temp/
4 | .pytest_cache/
5 | /dist
6 | /dist_archive
7 | /dev
8 |
9 | # IDE
10 | /.idea
11 | .ipynb_checkpoints/
12 |
13 | # temp
14 | functions.py
15 |
16 | # misc
17 | .paquo.toml
18 |
--------------------------------------------------------------------------------
/.readthedocs.yaml:
--------------------------------------------------------------------------------
1 | version: 2
2 |
3 | sphinx:
4 | configuration: docs/conf.py
5 | builder: html
6 |
7 | build:
8 | os: "ubuntu-22.04"
9 | tools:
10 | python: "3.8"
11 | apt_packages:
12 | - cmake
13 | - g++
14 |
15 | python:
16 | install:
17 | - requirements: docs/requirements.txt
18 |
--------------------------------------------------------------------------------
/LICENSE:
--------------------------------------------------------------------------------
1 | BSD 3-Clause License
2 |
3 | Copyright (c) 2023, Demeter Túrós
4 | All rights reserved.
5 |
6 | Redistribution and use in source and binary forms, with or without
7 | modification, are permitted provided that the following conditions are met:
8 |
9 | 1. Redistributions of source code must retain the above copyright notice, this
10 | list of conditions and the following disclaimer.
11 |
12 | 2. Redistributions in binary form must reproduce the above copyright notice,
13 | this list of conditions and the following disclaimer in the documentation
14 | and/or other materials provided with the distribution.
15 |
16 | 3. Neither the name of the copyright holder nor the names of its
17 | contributors may be used to endorse or promote products derived from
18 | this software without specific prior written permission.
19 |
20 | THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
21 | AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
22 | IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
23 | DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE
24 | FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
25 | DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
26 | SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
27 | CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
28 | OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
29 | OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
--------------------------------------------------------------------------------
/MANIFEST.in:
--------------------------------------------------------------------------------
1 | include README.md
2 | include requirements.txt
--------------------------------------------------------------------------------
/README.md:
--------------------------------------------------------------------------------
1 |
2 |
3 |
4 |
5 | [](https://pypi.org/project/chrysalis-st)
6 | [](https://pepy.tech/project/chrysalis-st)
7 |
8 | **chrysalis** is a powerful and lightweight method designed to identify and visualise tissue compartments in spatial
9 | transcriptomics datasets, all without the need for external references.
10 | **chrysalis** achieves this by identifying spatially variable genes (SVGs) through spatial autocorrelation.
11 | It then employs dimensionality reduction and archetypal analysis to locate extremal points in the low-dimensional
12 | feature space, which represent pure tissue compartments.
13 | Each observation (i.e. capture spot) in the gene expression matrix is subsequently represented as a proportion of these
14 | distinct compartments.
15 | **chrysalis** features a unique approach based on maximum intensity projection, allowing the simultaneous visualization
16 | of diverse tissue compartments.
17 | Moreover, it seamlessly integrates into `scanpy` based pipelines.
18 |
19 | If you like **chrysalis**, consider citing our [publication](https://github.com/rockdeme/chrysalis/#reference).
20 |
21 |
22 |
23 |
24 |
25 | **chrysalis** can define distinct tissue compartments and cellular niches with specific gene expression signatures,
26 | highlighted with specific colors. For instance, in the `V1_Human_Lymph_Node` dataset, **chrysalis** identifies
27 | various regions, such as germinal centers (yellow), B cell follicles (dark orange), and T cell compartments
28 | (lime). You can find more examples in the [gallery](https://github.com/rockdeme/chrysalis/tree/master/gallery#readme) section.
29 |
30 |
31 |
32 |
33 |
34 | ## Package
35 | **chrysalis** can be used with any pre-existing `anndata` snapshot of 10X Visium, Slide-seqV2 and Stereo-seq datasets
36 | generated with `scanpy`, and on new samples without the need of preprocessing. It is designed to be as lightweight as
37 | possible, however currently it relies on `libpysal` for its fast implementation of Moran's I.
38 |
39 | **chrysalis** requires the following packages:
40 | - numpy
41 | - pandas
42 | - matplotlib
43 | - scanpy
44 | - pysal
45 | - archetypes
46 | - scikit_learn
47 | - scipy
48 | - tqdm
49 | - seaborn
50 |
51 | To install **chrysalis**:
52 | ```terminal
53 | pip install chrysalis-st
54 | ```
55 |
56 | ## Documentation, Tutorials and API details
57 |
58 | User documentation is available on: https://chrysalis.readthedocs.io/
59 |
60 | Basic tutorials covering the main functionality of **chrysalis** are available on the documentation site.
61 | - first step-by-step tutorial: https://chrysalis.readthedocs.io/en/latest/tutorials/lymph_node_tutorial.html
62 |
63 |
64 | ## Usage
65 |
66 | ```python
67 | import chrysalis as ch
68 | import scanpy as sc
69 | import matplotlib.pyplot as plt
70 |
71 | adata = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')
72 |
73 | sc.pp.calculate_qc_metrics(adata, inplace=True)
74 | sc.pp.filter_cells(adata, min_counts=6000)
75 | sc.pp.filter_genes(adata, min_cells=10)
76 |
77 | ch.detect_svgs(adata)
78 |
79 | sc.pp.normalize_total(adata, inplace=True)
80 | sc.pp.log1p(adata)
81 |
82 | ch.pca(adata)
83 |
84 | ch.aa(adata, n_pcs=20, n_archetypes=8)
85 |
86 | ch.plot(adata)
87 | plt.show()
88 | ```
89 |
90 | ## Reference
91 |
92 | **Chrysalis: decoding tissue compartments in spatial transcriptomics with archetypal analysis**
93 | *Demeter Túrós, Jelica Vasiljevic, Kerstin Hahn, Sven Rottenberg, Alberto Valdeolivas* Communications Biology 7.1 (2024): 1520.
94 | https://www.nature.com/articles/s42003-024-07165-7
95 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/bm_functions.py:
--------------------------------------------------------------------------------
1 | import numpy as np
2 | import pandas as pd
3 | import scanpy as sc
4 | from scipy.stats import pearsonr
5 |
6 |
7 | def get_correlation_df(xdf, ydf):
8 | corr_matrix = np.empty((len(xdf.columns), len(ydf.columns)))
9 | for i, col1 in enumerate(xdf.columns):
10 | for j, col2 in enumerate(ydf.columns):
11 | corr, _ = pearsonr(xdf[col1], ydf[col2])
12 | corr_matrix[i, j] = corr
13 |
14 | corr_df = pd.DataFrame(data=corr_matrix,
15 | index=xdf.columns,
16 | columns=ydf.columns).T
17 | return corr_df
18 |
19 |
20 | def collect_correlation_results(list_csv_path, enforce_symmetry=False):
21 | corr_dict = {}
22 | for idx, fp in enumerate(list_csv_path):
23 | corr_df = pd.read_csv(fp, index_col=0)
24 | corr_df = corr_df[[c for c in corr_df.columns if 'uniform' not in c]]
25 | if enforce_symmetry:
26 | col_num = corr_df.shape[1]
27 | corr_df = corr_df.iloc[:col_num, :]
28 | # get the max correlations and add it to the results_df
29 | max_corr = corr_df.max(axis=0)
30 | corr_dict[idx] = list(max_corr.values)
31 | df = pd.DataFrame(dict([(k, pd.Series(v)) for k, v in corr_dict.items()]))
32 | return df
33 |
34 |
35 | def collect_metadata(list_adata_path):
36 | meta_dict = {}
37 | for idx, fp in enumerate(list_adata_path):
38 | print(fp)
39 | adata = sc.read_h5ad(fp)
40 | adata.var["mt"] = adata.var_names.str.startswith("MT-")
41 | sc.pp.calculate_qc_metrics(adata, inplace=True, qc_vars=['mt'])
42 |
43 | # add count metrics
44 | total_counts = np.sum(adata.obs['total_counts'])
45 | med_counts = np.median(adata.obs['total_counts'])
46 | n_genes = np.median(adata.obs['n_genes_by_counts'])
47 |
48 | # add sample hash - can cause errors if we change the location of the hash in the sample name
49 | adata.uns['parameters']['hash'] = fp.split('/')[-1].split('_')[0]
50 | meta_dict[idx] = adata.uns['parameters']
51 |
52 | meta_dict[idx]['total_counts'] = total_counts
53 | meta_dict[idx]['median_counts'] = med_counts
54 | meta_dict[idx]['median_n_genes'] = n_genes
55 |
56 | meta_df = pd.DataFrame(meta_dict).T
57 | # meta_df = meta_df.drop(columns=['annot_col'])
58 | meta_df = meta_df.convert_dtypes()
59 | return meta_df
60 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/data_generator/generate_synthetic_datasets.py:
--------------------------------------------------------------------------------
1 | import os
2 | import json
3 | import hashlib
4 | import numpy as np
5 | import pandas as pd
6 | import scanpy as sc
7 | from tqdm import tqdm
8 | from itertools import product
9 | from tissue_generator import generate_synthetic_data
10 |
11 |
12 | #%%
13 | # tabula sapiens immune
14 | adata = sc.read_h5ad(f'data/tabula_sapiens_immune_subsampled_26k.h5ad')
15 | adata.X = adata.raw.X
16 |
17 | # do some QC
18 | adata.var["mt"] = adata.var['feature_name'].str.startswith("MT-")
19 | sc.pp.calculate_qc_metrics(adata, qc_vars=["mt"], percent_top=None, log1p=False, inplace=True)
20 | adata = adata[adata.obs.n_genes_by_counts < 2500, :]
21 | adata = adata[adata.obs.pct_counts_mt < 20, :]
22 |
23 | # remove cell types with less than 100 cells
24 | cell_num = pd.value_counts(adata.obs['cell_type'])
25 | low_cell_abundance = cell_num[cell_num < 100]
26 | adata = adata[~adata.obs['cell_type'].isin(low_cell_abundance.index)].copy()
27 |
28 | # remove sparse genes
29 | sc.pp.filter_genes(adata, min_cells=10)
30 |
31 | cell_types = np.unique(adata.obs['cell_type'])
32 | print(f'Number of cell types: {len(cell_types)}')
33 | print(cell_types)
34 |
35 | #%%
36 | param_dict = {
37 | 'annot_col': ['cell_type'], # annotation column containing the cell type categories
38 | # 'seed': [*range(1)], # generate different samples with seed
39 | 'seed': [42],
40 |
41 | # tissue zone generation
42 | 'n_tissue_zones': [6, 10, 14], # number of tissue zones
43 | 'uniform': [0.0, 0.5, 0.2, 0.8], # fraction of uniform zones from the total
44 | 'gp_mean': [8, 4, 10], # granularity 4-8-10 looks good
45 | 'gp_eta_true': [1.5], # controls gradient steepness we can leave this at 1.5. 1.0-2.5 can be
46 | # fine if we want to tune this
47 | 'gp_eta_true_uniform': [0.5], # same as above just with lower values
48 |
49 | # cell type abundance assignment
50 | 'cell_type_p': [0.02, 0.04], # tune number of cell types per non-uniform tissue zone
51 | 'mu_low_density': [3], # tune average abundance - 3 is around 6 cells/spot/cell type, 5 like 10-15.
52 | # Plot the histo with
53 | 'mu_high_density': [5], # the distribution for more info
54 | 'p_high_density': [0.5], # how many cell types are high density vs low density
55 |
56 | # confounder parameters
57 | 'mu_detection': [5], # detection rate shape to multiply the counts with
58 | 'mu_contamination': [0.03], # contamination shape for adding random counts to each gene per location
59 | 'mu_depth': [1], # sequencing depth shape to multiply the counts with per location
60 | 'depth_loc_mean_var_ratio': [25], # sequencing depth shape
61 | 'mu_depth_exp': [1], # sample wise sequencing depth shape - single value drawn to multiply everything with
62 | 'depth_mean_var_ratio_exp': [5], # sample wise sequencing depth scale
63 | }
64 |
65 | #%%
66 | filepath = 'data/tabula_sapiens_immune'
67 |
68 | # get the total number of combinations quickly
69 | param_combinations = product(*param_dict.values())
70 | num_combinations = len([x for x in param_combinations])
71 |
72 | # reset the iterator
73 | param_combinations = product(*param_dict.values())
74 | print(f'Number of samples generated: {num_combinations}')
75 |
76 | #%%
77 | for parameters in tqdm(param_combinations, total=num_combinations):
78 | settings = {k:v for k, v in zip(param_dict.keys(), parameters)}
79 | print(settings)
80 |
81 | # check if folder already exists
82 | sample_hash = hashlib.sha256(json.dumps(settings).encode('utf-8')).hexdigest()[:12]
83 | folder = filepath + '/' + sample_hash + '/'
84 |
85 | if not os.path.isdir(folder):
86 | try:
87 | generate_synthetic_data(adata, *parameters, parameter_dict=settings, save=True, root_folder=folder)
88 | except AssertionError as e:
89 | print(f'AssertionError: {e}')
90 | else:
91 | pass
92 |
93 | # %%
94 | # varying contamination and sequencing depth - CONTAMINATION AND DEPTH OVERRIDES
95 |
96 | param_dict = {
97 | 'annot_col': ['cell_type'], # annotation column containing the cell type categories
98 | 'seed': [37, 42, 69],
99 |
100 | # spatial pattern type
101 | 'pattern_type': ['gp'],
102 |
103 | # tissue zone generation
104 | 'n_tissue_zones': [6], # number of tissue zones
105 | 'uniform': [0.0], # fraction of uniform zones from the total
106 | 'gp_mean': [8], # granularity 4-8-10 looks good
107 | 'gp_eta_true': [1.5],
108 | # controls gradient steepness we can leave this at 1.5. 1.0-2.5 can be fine if we want to tune this
109 | 'gp_eta_true_uniform': [0.5], # same as above just with lower values
110 | # r_d
111 | 'r_d_mean': [5],
112 | 'r_d_mean_var_ratio': [0.3],
113 |
114 | # cell type abundance assignment
115 | 'cell_type_p': [0.02], # tune number of cell types per non-uniform tissue zone
116 | 'mu_low_density': [3],
117 | # tune average abundance - 3 is around 6 cells/spot/cell type, 5 like 10-15. Plot the histo with
118 | 'mu_high_density': [5], # the distribution for more info
119 | 'p_high_density': [0.5], # how many cell types are high density vs low density
120 |
121 | # confounder parameters
122 | 'mu_detection': [5], # detection rate shape to multiply the counts with
123 | 'mu_contamination': [0.03], # contamination shape for adding random counts to each gene per location
124 | 'mu_depth': [1], # sequencing depth shape to multiply the counts with per location
125 | 'depth_loc_mean_var_ratio': [25], # sequencing depth shape
126 | 'mu_depth_exp': [1], # sample wise sequencing depth shape - single value drawn to multiply everything with
127 | 'depth_mean_var_ratio_exp': [5], # sample wise sequencing depth scale
128 |
129 | # direct overrides for contamination and depth to make them more consistent
130 | 'contamination_override': [0.03, 0.09, 0.27, 0.81], # 0.03 * (3)^n
131 | 'depth_override': [1, 0.2, 0.04, 0.008, 0.0016, 0.00032], # 1.0 * (0.2)^n
132 | }
133 |
134 | #%%
135 | filepath = 'data/tabula_sapiens_immune_contamination'
136 |
137 | # get the total number of combinations quickly
138 | param_combinations = product(*param_dict.values())
139 | num_combinations = len([x for x in param_combinations])
140 |
141 | # reset the iterator
142 | param_combinations = product(*param_dict.values())
143 | print(f'Number of samples generated: {num_combinations}')
144 |
145 | #%%
146 | for parameters in tqdm(param_combinations, total=num_combinations):
147 | # for parameters in param_combinations:
148 | settings = {k:v for k, v in zip(param_dict.keys(), parameters)}
149 | print(settings)
150 |
151 | # check if folder already exists
152 | sample_hash = hashlib.sha256(json.dumps(settings).encode('utf-8')).hexdigest()[:12]
153 | folder = filepath + '/' + sample_hash + '/'
154 |
155 | if not os.path.isdir(folder):
156 | try:
157 | generate_synthetic_data(adata, *parameters, parameter_dict=settings, save=True, root_folder=folder,
158 | confounder_version='v2')
159 | except AssertionError as e:
160 | print(f'AssertionError: {e}')
161 | except Exception as e:
162 | print(f'An unexpected error occurred: {e}')
163 | else:
164 | pass
165 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/data_generator/generate_truncated_samples.py:
--------------------------------------------------------------------------------
1 | import os
2 | import scanpy as sc
3 | from tqdm import tqdm
4 | import matplotlib.pyplot as plt
5 | from glob import glob
6 |
7 |
8 | filepath = 'data/tabula_sapiens_immune_contamination'
9 | savepath = 'data/tabula_sapiens_immune_size'
10 | adatas = glob(filepath + '/*/*.h5ad')
11 |
12 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
13 | print(adp)
14 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
15 | adata = sc.read_h5ad(adp)
16 |
17 | sample_id = sample_folder.split('/')[-2]
18 |
19 | if (adata.uns['parameters']['mu_contamination'] == 0.03) & (adata.uns['parameters']['mu_depth_exp'] == 1):
20 |
21 | # 50 x 50
22 | os.makedirs(f'{savepath}/{sample_id}-5050/')
23 | adata.write_h5ad(f'{savepath}/{sample_id}-5050/{sample_id}-5050.h5ad')
24 | tissue_zones = adata.obsm['tissue_zones']
25 | n1, n2 = (50, 50)
26 | fig, ax = plt.subplots(1, 1, figsize=(5, 5))
27 | img_data = tissue_zones['tissue_zone_0'].values.reshape(n1, n2).T
28 | im = ax.imshow(img_data, cmap='mako_r', vmin=0, vmax=1)
29 | plt.tight_layout()
30 | plt.show()
31 |
32 | # 25 x 50
33 | adata = adata[adata.obsm['spatial'][:, 0] < 50]
34 | os.makedirs(f'{savepath}/{sample_id}-2550/')
35 | adata.write_h5ad(f'{savepath}/{sample_id}-2550/{sample_id}-2550.h5ad')
36 | tissue_zones = adata.obsm['tissue_zones']
37 | n1, n2 = (25, 50)
38 | fig, ax = plt.subplots(1, 1, figsize=(5, 5))
39 | img_data = tissue_zones['tissue_zone_0'].values.reshape(n1, n2).T
40 | im = ax.imshow(img_data, cmap='mako_r', vmin=0, vmax=1)
41 | plt.tight_layout()
42 | plt.show()
43 |
44 | # 25 x 25
45 | adata = adata[adata.obsm['spatial'][:, 1] < 50]
46 | os.makedirs(f'{savepath}/{sample_id}-2525/')
47 | adata.write_h5ad(f'{savepath}/{sample_id}-2525/{sample_id}-2525.h5ad')
48 | tissue_zones = adata.obsm['tissue_zones']
49 | n1, n2 = (25, 25)
50 | fig, ax = plt.subplots(1, 1, figsize=(5, 5))
51 | img_data = tissue_zones['tissue_zone_0'].values.reshape(n1, n2).T
52 | im = ax.imshow(img_data, cmap='mako_r', vmin=0, vmax=1)
53 | plt.tight_layout()
54 | plt.show()
55 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/data_generator/tissue_generator.py:
--------------------------------------------------------------------------------
1 | import os
2 | import math
3 | import json
4 | import hashlib
5 | import scanpy as sc
6 | import seaborn as sns
7 | import matplotlib.pyplot as plt
8 | from functions import plot_spatial, return_cell_types
9 | from tools import (generate_tissue_zones, assign_cell_types, assign_cell_type_abundance,
10 | construct_cell_abundance_matrix, generate_synthetic_counts, construct_adata,
11 | add_confounders, add_confounders_v2)
12 |
13 |
14 | def generate_synthetic_data(adata, annot_col, seed, pattern_type, n_tissue_zones, uniform, gp_mean, gp_eta_true,
15 | gp_eta_true_uniform, r_d_mean, r_d_mean_var_ratio, cell_type_p, mu_low_density,
16 | mu_high_density, p_high_density, mu_detection, mu_contamination, mu_depth,
17 | depth_loc_mean_var_ratio, mu_depth_exp, depth_mean_var_ratio_exp, contamination_override,
18 | depth_override, parameter_dict, save=False, root_folder=None, confounder_version='v1'):
19 |
20 | # some checks before running the generation
21 | cell_types, n_cell_types = return_cell_types(adata, annot_col)
22 | n_uniform = int(n_tissue_zones * uniform)
23 | n_sparse_ct = n_cell_types - n_uniform
24 | n_sparse_tz = n_tissue_zones - n_uniform
25 | # assert n_sparse_ct >= n_sparse_tz, (f"Sparse tissue zones = {n_sparse_tz} ({n_tissue_zones}-{n_uniform}) which is"
26 | # f"higher than the number of cell types ({n_sparse_ct}) ({n_cell_types}-"
27 | # f"{n_uniform}). Either decrease the "
28 | # f"overall number of tissue zones or the fraction of uniform zones.")
29 | assert n_uniform < n_cell_types
30 |
31 | if type(parameter_dict) != dict:
32 | raise Warning("parameter_dict is not a dictionary!")
33 | sample_hash = hashlib.sha256(json.dumps(parameter_dict).encode('utf-8')).hexdigest()[:12]
34 | if save:
35 | assert root_folder is not None
36 | os.makedirs(root_folder, exist_ok=True)
37 | assert os.path.isdir(root_folder) == True
38 |
39 | # generate tissue zones with gaussian processes or reaction-diffusion
40 | abundance_df, locs = generate_tissue_zones(grid_size=(50, 50),
41 | n_tissue_zones=n_tissue_zones,
42 | unfiform_fraction=uniform,
43 | pattern_type=pattern_type, gp_mean=gp_mean, gp_eta_true=gp_eta_true,
44 | gp_eta_true_uniform=gp_eta_true_uniform,
45 | r_d_mean=r_d_mean, seed=seed, r_d_mean_var_ratio=r_d_mean_var_ratio)
46 |
47 | # look at the tissue zones
48 |
49 | nrows = math.ceil((n_tissue_zones + 1) / 5)
50 |
51 | plt.figure(figsize=(3 * 5, 3 * nrows))
52 | plot_spatial(abundance_df.values, n=(50, 50), nrows=nrows, names=abundance_df.columns, vmax=None)
53 | plt.tight_layout()
54 | if save:
55 | plt.savefig(root_folder + 'tissue_zones.png')
56 | plt.show()
57 |
58 | # assign cell types to tissue zones
59 | cell_types_df = assign_cell_types(adata, n_tissue_zones, annot_col=annot_col, unfiform_fraction=uniform,
60 | cell_type_p=cell_type_p, seed=seed)
61 | # add average abundances
62 | # mu controls cell density per spot
63 | cell_types_df = assign_cell_type_abundance(cell_types_df, p_high_density=p_high_density,
64 | mu_low_density=mu_low_density, mu_high_density=mu_high_density,
65 | seed=seed)
66 |
67 | sns.heatmap(cell_types_df, square=True)
68 | plt.tight_layout()
69 | if save:
70 | plt.savefig(root_folder + 'heatmap.png')
71 | plt.show()
72 |
73 | # multiply the abundances with the average and take the integer values (difference between the two is the
74 | # capture eff.)
75 | cell_count_df, capture_eff_df = construct_cell_abundance_matrix(abundance_df, cell_types_df, seed=seed)
76 |
77 | n_cell_types = len(cell_types_df.T.columns)
78 | nrows = math.ceil((n_cell_types + 1) / 5)
79 |
80 | plt.figure(figsize=(3 * 5, 3 * nrows))
81 | plot_spatial(cell_count_df.values, n=(50, 50), nrows=nrows, names=cell_types_df.T.columns, vmax=None)
82 | plt.tight_layout()
83 | if save:
84 | plt.savefig(root_folder + 'cell_types.png')
85 | plt.show()
86 |
87 | synthetic_counts = generate_synthetic_counts(adata, cell_count_df, capture_eff_df, annot_col=annot_col, seed=seed)
88 |
89 | sth_adata = construct_adata(synthetic_counts, adata, abundance_df, locs, cell_count_df, capture_eff_df)
90 |
91 | if confounder_version == 'v1':
92 | sth_adata = add_confounders(sth_adata,
93 | mu_detection=mu_detection, mu_contamination=mu_contamination, mu_depth=mu_depth,
94 | depth_loc_mean_var_ratio=depth_loc_mean_var_ratio, mu_depth_exp=mu_depth_exp,
95 | depth_mean_var_ratio_exp=depth_mean_var_ratio_exp,
96 | contamination_override=contamination_override, depth_override=depth_override,
97 | seed=seed)
98 | elif confounder_version == 'v2':
99 | sth_adata = add_confounders_v2(sth_adata,
100 | mu_detection=mu_detection, mu_contamination=mu_contamination, mu_depth=mu_depth,
101 | depth_loc_mean_var_ratio=depth_loc_mean_var_ratio, mu_depth_exp=mu_depth_exp,
102 | depth_mean_var_ratio_exp=depth_mean_var_ratio_exp,
103 | contamination_override=contamination_override, depth_override=depth_override,
104 | seed=seed)
105 | else:
106 | raise KeyError("Invalid confounder_version. It should be either 'v1' or 'v2'.")
107 |
108 | sth_adata.uns['parameters'] = parameter_dict
109 |
110 | sth_adata.var['ensembl_id'] = sth_adata.var_names
111 | sth_adata.var['gene_symbol'] = adata.var['feature_name']
112 | sth_adata.var_names = sth_adata.var['gene_symbol'].astype(str)
113 |
114 | sth_adata.var["mt"] = adata.var_names.str.startswith("MT-")
115 | sc.pp.calculate_qc_metrics(sth_adata, qc_vars=['mt'], inplace=True)
116 |
117 | if save:
118 | sth_adata.write_h5ad(root_folder + f'{sample_hash}_sth_adata.h5ad')
119 |
120 | # sc.pl.highest_expr_genes(sth_adata, n_top=20)
121 | # sc.pl.spatial(sth_adata, color=["log1p_total_counts", 'MALAT1'], spot_size=2.7)
122 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/array_size_benchmark/chrysalis.py:
--------------------------------------------------------------------------------
1 | import numpy as np
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | import seaborn as sns
6 | from glob import glob
7 | import chrysalis as ch
8 | import matplotlib.pyplot as plt
9 | from article.A1_synthetic_data.bm_functions import get_correlation_df
10 |
11 |
12 | filepath = 'data/tabula_sapiens_immune_size'
13 | adatas = glob(filepath + '/*/*.h5ad')
14 |
15 | results_df = pd.DataFrame()
16 |
17 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
18 | print(adp)
19 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
20 | adata = sc.read_h5ad(adp)
21 |
22 | # number of non-uniform compartments
23 | uniform = int(adata.uns['parameters']['n_tissue_zones'] * adata.uns['parameters']['uniform'])
24 | tissue_zones = adata.uns['parameters']['n_tissue_zones'] - uniform
25 | tissue_zones = int(tissue_zones)
26 |
27 | # chrysalis pipeline
28 | ch.detect_svgs(adata, neighbors=8, top_svg=1000, min_morans=0.01)
29 | ch.plot_svgs(adata)
30 | plt.savefig(sample_folder + 'ch_svgs.png')
31 | plt.close()
32 |
33 | sc.pp.normalize_total(adata, inplace=True)
34 | sc.pp.log1p(adata)
35 |
36 | ch.pca(adata, n_pcs=40)
37 |
38 | ch.plot_explained_variance(adata)
39 | plt.savefig(sample_folder + 'ch_expl_variance.png')
40 | plt.close()
41 |
42 | ch.aa(adata, n_pcs=20, n_archetypes=tissue_zones)
43 |
44 | ch.plot(adata, dim=tissue_zones, marker='s')
45 | plt.savefig(sample_folder + 'ch_plot.png')
46 | plt.close()
47 |
48 | col_num = int(np.sqrt(tissue_zones))
49 | ch.plot_compartments(adata, marker='s', ncols=col_num)
50 | plt.savefig(sample_folder + 'ch_comps.png')
51 | plt.close()
52 |
53 | # correlation with tissue zones
54 | compartments = adata.obsm['chr_aa']
55 | compartment_df = pd.DataFrame(data=compartments, index=adata.obs.index)
56 | tissue_zone_df = adata.obsm['tissue_zones']
57 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
58 |
59 | corr_df = get_correlation_df(tissue_zone_df, compartment_df)
60 | corr_df.to_csv(sample_folder + 'pearson.csv')
61 |
62 | sns.heatmap(corr_df, square=True, center=0)
63 | plt.tight_layout()
64 | plt.savefig(sample_folder + 'corr_heatmap.png')
65 | plt.close()
66 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/array_size_benchmark/graphst.py:
--------------------------------------------------------------------------------
1 | import torch
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | from glob import glob
6 | import seaborn as sns
7 | from GraphST import GraphST
8 | import matplotlib.pyplot as plt
9 | from sklearn.decomposition import PCA
10 | from article.A1_synthetic_data.bm_functions import get_correlation_df
11 |
12 |
13 | filepath = '/storage/homefs/pt22a065/chr_data/tabula_sapiens_immune_size'
14 | adatas = glob(filepath + '/*/*.h5ad')
15 |
16 | results_df = pd.DataFrame()
17 |
18 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
19 | print(adp)
20 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
21 | device = torch.device('cuda:1' if torch.cuda.is_available() else 'cpu')
22 | adata = sc.read_h5ad(adp)
23 | adata.var_names_make_unique()
24 |
25 | # define model
26 | model = GraphST.GraphST(adata, device=torch.device('cpu'))
27 |
28 | # train model
29 | adata = model.train()
30 |
31 | graphst_df = pd.DataFrame(adata.obsm['emb'])
32 | graphst_df.index = adata.obs.index
33 |
34 | pca = PCA(n_components=20, svd_solver='arpack', random_state=42)
35 | graphst_pcs = pca.fit_transform(graphst_df)
36 | graphst_pcs_df = pd.DataFrame(data=graphst_pcs, index=graphst_df.index)
37 |
38 | graphst_pcs_df.to_csv(sample_folder + 'graphst_comps.csv')
39 |
40 |
41 | tissue_zone_df = adata.obsm['tissue_zones']
42 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
43 |
44 | corr_df = get_correlation_df(tissue_zone_df, graphst_pcs_df)
45 | corr_df.to_csv(sample_folder + 'graphst_pearson.csv')
46 |
47 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
48 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
49 | plt.tight_layout()
50 | plt.savefig(sample_folder + 'graphst_corr_heatmap.png')
51 | plt.close()
52 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/array_size_benchmark/mefisto.py:
--------------------------------------------------------------------------------
1 | import mofax
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | from glob import glob
6 | import seaborn as sns
7 | import matplotlib.pyplot as plt
8 | from mofapy2.run.entry_point import entry_point
9 | from article.A1_synthetic_data.bm_functions import get_correlation_df
10 |
11 |
12 | filepath = '/storage/homefs/pt22a065/chr_data/tabula_sapiens_immune_size'
13 | adatas = glob(filepath + '/*/*.h5ad')
14 |
15 | results_df = pd.DataFrame()
16 |
17 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
18 | print(adp)
19 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
20 | adata = sc.read_h5ad(adp)
21 |
22 | # number of non-uniform compartments
23 | uniform = int(adata.uns['parameters']['n_tissue_zones'] * adata.uns['parameters']['uniform'])
24 | tissue_zones = adata.uns['parameters']['n_tissue_zones'] - uniform
25 | tissue_zones = int(tissue_zones)
26 |
27 | sc.pp.filter_genes(adata, min_cells=len(adata) * 0.05)
28 |
29 | sc.pp.normalize_total(adata, inplace=True)
30 | sc.pp.log1p(adata)
31 | sc.pp.highly_variable_genes(adata, flavor="seurat", n_top_genes=2000)
32 |
33 | adata.obs = pd.concat([adata.obs,
34 | pd.DataFrame(adata.obsm["spatial"], columns=["imagerow", "imagecol"],
35 | index=adata.obs_names),
36 | ], axis=1)
37 |
38 | ent = entry_point()
39 | ent.set_data_options(use_float32=True)
40 | ent.set_data_from_anndata(adata, features_subset="highly_variable")
41 |
42 | ent.set_model_options(factors=tissue_zones)
43 | ent.set_train_options(save_interrupted=True)
44 | ent.set_train_options(seed=2021)
45 |
46 | # We use 1000 inducing points to learn spatial covariance patterns
47 | n_inducing = 500 # 500 for size tests
48 |
49 | ent.set_covariates([adata.obsm["spatial"]], covariates_names=["imagerow", "imagecol"])
50 | ent.set_smooth_options(sparseGP=True, frac_inducing=n_inducing / adata.n_obs,
51 | start_opt=10, opt_freq=10)
52 |
53 | ent.build()
54 | ent.run()
55 | ent.save(sample_folder + "mefisto_temp.hdf5")
56 | m = mofax.mofa_model(sample_folder + "mefisto_temp.hdf5")
57 | factor_df = m.get_factors(df=True)
58 |
59 | # factor_df = ent.model.getFactors(df=True)
60 |
61 | factor_df.to_csv(sample_folder + 'mefisto_comps.csv')
62 |
63 | # correlation with tissue zones
64 | tissue_zone_df = adata.obsm['tissue_zones']
65 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
66 |
67 | corr_df = get_correlation_df(tissue_zone_df, factor_df)
68 | corr_df.to_csv(sample_folder + 'mefisto_pearson.csv')
69 |
70 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
71 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
72 | plt.tight_layout()
73 | plt.savefig(sample_folder + 'mefisto_corr_heatmap.png')
74 | plt.close()
75 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/array_size_benchmark/nsf.py:
--------------------------------------------------------------------------------
1 | import os
2 | import math
3 | import random
4 | import numpy as np
5 | import pandas as pd
6 | import scanpy as sc
7 | from os import path
8 | from tqdm import tqdm
9 | from glob import glob
10 | import seaborn as sns
11 | from nsf.models import sf
12 | import matplotlib.pyplot as plt
13 | from numpy.linalg import LinAlgError
14 | from tensorflow_probability import math as tm
15 | from article.A1_synthetic_data.bm_functions import get_correlation_df
16 | from nsf.utils import preprocess, training, visualize, postprocess, misc
17 |
18 |
19 | filepath = '/storage/homefs/pt22a065/chr_data/tabula_sapiens_immune_size'
20 | adatas = glob(filepath + '/*/*.h5ad')
21 | tfk = tm.psd_kernels
22 |
23 | results_df = pd.DataFrame()
24 |
25 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
26 | try:
27 | print(adp)
28 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
29 |
30 | # Check if all necessary output files already exist in the sample_folder
31 | if (os.path.exists(sample_folder + 'nsf_comps.csv') and
32 | os.path.exists(sample_folder + 'nsf_pearson.csv') and
33 | os.path.exists(sample_folder + 'nsf_corr_heatmap.png')):
34 | print(f"Skipping {sample_folder} as output files already exist.")
35 | continue
36 |
37 | adata = sc.read_h5ad(adp)
38 |
39 | # number of non-uniform compartments
40 | uniform = int(adata.uns['parameters']['n_tissue_zones'] * adata.uns['parameters']['uniform'])
41 | tissue_zones = adata.uns['parameters']['n_tissue_zones'] - uniform
42 | tissue_zones = int(tissue_zones)
43 |
44 | sc.pp.calculate_qc_metrics(adata, inplace=True)
45 | # sc.pp.filter_genes(adata, min_cells=len(adata) * 0.05)
46 | sc.pp.filter_genes(adata, min_cells=1, inplace=True)
47 |
48 | try:
49 | # first attempt without any filtering
50 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
51 | except:
52 | try:
53 | # second attempt with min_counts=10
54 | sc.pp.filter_genes(adata, min_counts=10, inplace=True)
55 | # sc.pp.filter_cells(adata, min_counts=100, inplace=True)
56 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
57 | except:
58 | # final attempt with min_counts=100
59 | sc.pp.filter_genes(adata, min_counts=100, inplace=True)
60 | # sc.pp.filter_cells(adata, min_counts=100, inplace=True)
61 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
62 | adata.layers = {"counts": adata.X.copy()} # store raw counts before normalization changes ad.X
63 | sc.pp.normalize_total(adata, inplace=True, layers=None, key_added="sizefactor")
64 | sc.pp.log1p(adata)
65 |
66 | adata.var['deviance_poisson'] = preprocess.deviancePoisson(adata.layers["counts"])
67 | o = np.argsort(-adata.var['deviance_poisson'])
68 | idx = list(range(adata.shape[0]))
69 | random.shuffle(idx)
70 | adata = adata[idx, o]
71 | adata = adata[:, :2000]
72 |
73 | Dtr, Dval = preprocess.anndata_to_train_val(adata, layer="counts",
74 | sz="constant") # size factor set to constant from scanpy for
75 | # the samples with y nan error
76 | Dtr_n, Dval_n = preprocess.anndata_to_train_val(adata) # normalized data
77 | fmeans, Dtr_c, Dval_c = preprocess.center_data(Dtr_n, Dval_n) # centered features
78 | Xtr = Dtr["X"] # note this should be identical to Dtr_n["X"]
79 | Ntr = Xtr.shape[0]
80 | Dtf = preprocess.prepare_datasets_tf(Dtr, Dval=Dval, shuffle=False)
81 | Dtf_n = preprocess.prepare_datasets_tf(Dtr_n, Dval=Dval_n, shuffle=False)
82 | Dtf_c = preprocess.prepare_datasets_tf(Dtr_c, Dval=Dval_c, shuffle=False)
83 | visualize.heatmap(Xtr, Dtr["Y"][:, 0], marker="D", s=15)
84 | plt.close()
85 |
86 | # Visualize raw data
87 | plt.imshow(np.log1p(Dtr["Y"])[:50, :100], cmap="Blues")
88 | plt.close()
89 |
90 | # Visualize inducing points
91 | Z = misc.kmeans_inducing_pts(Xtr, 500)
92 | fig, ax = plt.subplots(figsize=(12, 10))
93 | ax.scatter(Xtr[:, 0], Xtr[:, 1], marker="D", s=50, )
94 | ax.scatter(Z[:, 0], Z[:, 1], c="red", s=30)
95 | plt.close()
96 |
97 | # initialize inducing points and tuning parameters
98 | Z = misc.kmeans_inducing_pts(Xtr, 500) # 2363
99 | M = Z.shape[0]
100 | ker = tfk.MaternThreeHalves
101 | S = 3 # samples for elbo approximation
102 | # NSF: Spatial only with non-negative factors
103 | L = tissue_zones # number of latent factors, ideally divisible by 2
104 | J = adata.shape[1] # 2000
105 |
106 | mpth = path.join("/storage/homefs/pt22a065/chr_benchmarks/nsf/models/V5/")
107 |
108 | fit = sf.SpatialFactorization(J, L, Z, psd_kernel=ker, nonneg=True, lik="poi")
109 | fit.elbo_avg(Xtr, Dtr["Y"], sz=Dtr["sz"])
110 | fit.init_loadings(Dtr["Y"], X=Xtr, sz=Dtr["sz"])
111 | fit.elbo_avg(Xtr, Dtr["Y"], sz=Dtr["sz"])
112 | pp = fit.generate_pickle_path("scanpy", base=mpth)
113 | tro = training.ModelTrainer(fit, pickle_path=pp)
114 | tro.train_model(*Dtf, ckpt_freq=10000)
115 |
116 | ttl = "NSF: spatial, non-negative factors, Poisson likelihood"
117 | visualize.plot_loss(tro.loss, title=ttl) # ,ss=range(2000,4000))
118 | plt.savefig(sample_folder + 'nsf_loss.png')
119 | plt.close()
120 |
121 | hmkw = {"figsize": (4, 4), "s": 0.3, "marker": "D", "subplot_space": 0,
122 | "spinecolor": "white"}
123 | insf = postprocess.interpret_nsf(fit, Xtr, S=10, lda_mode=False)
124 | tgnames = [str(i) for i in range(1, L + 1)]
125 |
126 | # fig, axes = visualize.multiheatmap(Xtr, np.sqrt(insf["factors"]), (4, 3), **hmkw)
127 | # visualize.set_titles(fig, tgnames, x=0.05, y=.85, fontsize="medium", c="white",
128 | # ha="left", va="top")
129 | # plt.savefig(sample_folder + 'nsf_comps.png')
130 | # plt.close()
131 |
132 | data = {'factors': insf, 'positions': Xtr}
133 |
134 |
135 | def transform_coords(X):
136 | # code from nsf github
137 | X[:, 1] = -X[:, 1]
138 | xmin = X.min(axis=0)
139 | X -= xmin
140 | x_gmean = np.exp(np.mean(np.log(X.max(axis=0))))
141 | X *= 4 / x_gmean
142 | return X - X.mean(axis=0)
143 |
144 |
145 | X = adata.obsm["spatial"].copy().astype('float32')
146 | tcoords = transform_coords(X)
147 |
148 | pair_idx = []
149 | for xy in data['positions']:
150 | distances = [math.dist([xy[0], xy[1]], [idx[0], idx[1]]) for idx in tcoords]
151 | pair_idx.append(np.argmin(distances))
152 |
153 | nsf_df = pd.DataFrame(data=np.zeros([len(adata), data['factors']['factors'].shape[1]]))
154 | for idx, i in enumerate(pair_idx):
155 | nsf_df.iloc[i, :] = data['factors']['factors'][idx, :]
156 | nsf_df.index = adata.obs.index
157 |
158 | nsf_df.to_csv(sample_folder + 'nsf_comps.csv')
159 | nsf_df = nsf_df[~(nsf_df.eq(0).all(axis=1))]
160 |
161 | tissue_zone_df = adata.obsm['tissue_zones'].loc[list(nsf_df.index)]
162 |
163 | corr_df = get_correlation_df(tissue_zone_df, nsf_df)
164 | corr_df.to_csv(sample_folder + 'nsf_pearson.csv')
165 |
166 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
167 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
168 | plt.tight_layout()
169 | plt.savefig(sample_folder + 'nsf_corr_heatmap.png')
170 | plt.close()
171 |
172 | except (LinAlgError, ValueError) as e:
173 | print(f"LinAlgError encountered for matrix. Continuing...{e}")
174 | break
175 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/array_size_benchmark/stagate.py:
--------------------------------------------------------------------------------
1 | import STAGATE
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | from glob import glob
6 | import seaborn as sns
7 | import sklearn.neighbors
8 | import matplotlib.pyplot as plt
9 | from article.A1_synthetic_data.bm_functions import get_correlation_df
10 |
11 |
12 | filepath = 'data/tabula_sapiens_immune_size'
13 | adatas = glob(filepath + '/*/*.h5ad')
14 |
15 | results_df = pd.DataFrame()
16 |
17 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
18 | print(adp)
19 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
20 | adata = sc.read_h5ad(adp)
21 |
22 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
23 | sc.pp.normalize_total(adata, target_sum=1e4)
24 | sc.pp.log1p(adata)
25 |
26 | # include 8 neighbours with the cutoff similarly to 6 for visium
27 | STAGATE.Cal_Spatial_Net(adata, rad_cutoff=3.3)
28 | STAGATE.Stats_Spatial_Net(adata)
29 |
30 | coor = pd.DataFrame(adata.obsm['spatial'])
31 | coor.index = adata.obs.index
32 | coor.columns = ['imagerow', 'imagecol']
33 |
34 | nbrs = sklearn.neighbors.NearestNeighbors(radius=3.3).fit(coor)
35 | distances, indices = nbrs.radius_neighbors(coor, return_distance=True)
36 | KNN_list = []
37 | for it in range(indices.shape[0]):
38 | KNN_list.append(pd.DataFrame(zip([it]*indices[it].shape[0], indices[it], distances[it])))
39 | KNN_df = pd.concat(KNN_list)
40 | KNN_df.columns = ['Cell1', 'Cell2', 'Distance']
41 |
42 | adata = STAGATE.train_STAGATE(adata, alpha=0)
43 |
44 | for i in range(30):
45 | adata.obs[f'stagate_{i}'] = adata.obsm['STAGATE'][:, i]
46 |
47 | # doesn't work without the proper anndata structure - missing some spatial info
48 | # with mpl.rc_context({'figure.figsize': [4.5, 5]}):
49 | # sc.pl.spatial(adata, color=[f'S{i}' for i in range(30)], size=2, ncols=4, show=False)
50 | # plt.savefig(sample_folder + 'stagate_comps.png')
51 | # plt.close()
52 |
53 | # correlation with tissue zones
54 | stagate_df = adata.obs[[f'stagate_{i}' for i in range(30)]]
55 | stagate_df.to_csv(sample_folder + 'stagate_comps.csv')
56 |
57 | tissue_zone_df = adata.obsm['tissue_zones']
58 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
59 |
60 | corr_df = get_correlation_df(tissue_zone_df, stagate_df)
61 | corr_df.to_csv(sample_folder + 'stagate_pearson.csv')
62 |
63 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
64 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
65 | plt.tight_layout()
66 | plt.savefig(sample_folder + 'stagate_corr_heatmap.png')
67 | plt.close()
68 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/contamination_benchmark/chrysalis.py:
--------------------------------------------------------------------------------
1 | import os
2 | import numpy as np
3 | import pandas as pd
4 | import scanpy as sc
5 | from tqdm import tqdm
6 | import seaborn as sns
7 | from glob import glob
8 | import chrysalis as ch
9 | import matplotlib.pyplot as plt
10 | from article.A1_synthetic_data.bm_functions import get_correlation_df
11 |
12 |
13 | filepath = 'data/tabula_sapiens_immune_contamination'
14 | adatas = glob(filepath + '/*/*.h5ad')
15 |
16 | results_df = pd.DataFrame()
17 |
18 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
19 | print(adp)
20 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
21 |
22 | # Check if all necessary output files already exist in the sample_folder
23 | if (os.path.exists(sample_folder + 'ch_svgs.png') and
24 | os.path.exists(sample_folder + 'ch_expl_variance.png') and
25 | os.path.exists(sample_folder + 'ch_plot.png') and
26 | os.path.exists(sample_folder + 'ch_comps.png') and
27 | os.path.exists(sample_folder + 'pearson.csv') and
28 | os.path.exists(sample_folder + 'corr_heatmap.png')):
29 | print(f"Skipping {sample_folder} as output files already exist.")
30 | continue
31 |
32 | adata = sc.read_h5ad(adp)
33 |
34 | # number of non-uniform compartments
35 | uniform = int(adata.uns['parameters']['n_tissue_zones'] * adata.uns['parameters']['uniform'])
36 | tissue_zones = adata.uns['parameters']['n_tissue_zones'] - uniform
37 | tissue_zones = int(tissue_zones)
38 |
39 | # chrysalis pipeline
40 | ch.detect_svgs(adata, neighbors=8, top_svg=1000, min_morans=-1)
41 | ch.plot_svgs(adata)
42 | plt.savefig(sample_folder + 'ch_svgs.png')
43 | plt.close()
44 |
45 | sc.pp.normalize_total(adata, inplace=True)
46 | sc.pp.log1p(adata)
47 | svg_num = len(adata.var[adata.var['spatially_variable'] == True])
48 | if svg_num < 40:
49 | ch.pca(adata, n_pcs=svg_num - 1)
50 | else:
51 | ch.pca(adata, n_pcs=40)
52 |
53 | ch.plot_explained_variance(adata)
54 | plt.savefig(sample_folder + 'ch_expl_variance.png')
55 | plt.close()
56 | if svg_num < 20:
57 | ch.aa(adata, n_pcs=svg_num, n_archetypes=tissue_zones)
58 | else:
59 | ch.aa(adata, n_pcs=20, n_archetypes=tissue_zones)
60 |
61 | ch.plot(adata, dim=tissue_zones, marker='s')
62 | plt.savefig(sample_folder + 'ch_plot.png')
63 | plt.close()
64 |
65 | col_num = int(np.sqrt(tissue_zones))
66 | ch.plot_compartments(adata, marker='s', ncols=col_num)
67 | plt.savefig(sample_folder + 'ch_comps.png')
68 | plt.close()
69 |
70 | # correlation with tissue zones
71 | compartments = adata.obsm['chr_aa']
72 | compartment_df = pd.DataFrame(data=compartments, index=adata.obs.index)
73 | tissue_zone_df = adata.obsm['tissue_zones']
74 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
75 |
76 | corr_df = get_correlation_df(tissue_zone_df, compartment_df)
77 | corr_df.to_csv(sample_folder + 'pearson.csv')
78 |
79 | sns.heatmap(corr_df, square=True, center=0)
80 | plt.tight_layout()
81 | plt.savefig(sample_folder + 'corr_heatmap.png')
82 | plt.close()
83 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/contamination_benchmark/graphst.py:
--------------------------------------------------------------------------------
1 | import os
2 | import torch
3 | import pandas as pd
4 | import scanpy as sc
5 | from tqdm import tqdm
6 | from glob import glob
7 | import seaborn as sns
8 | from GraphST import GraphST
9 | import matplotlib.pyplot as plt
10 | from sklearn.decomposition import PCA
11 | from article.A1_synthetic_data.bm_functions import get_correlation_df
12 |
13 |
14 | filepath = '/storage/homefs/pt22a065/chr_data/tabula_sapiens_immune_contamination'
15 | adatas = glob(filepath + '/*/*.h5ad')
16 |
17 | results_df = pd.DataFrame()
18 |
19 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
20 | print(adp)
21 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
22 | device = torch.device('cuda:1' if torch.cuda.is_available() else 'cpu')
23 |
24 | # Check if all necessary output files already exist in the sample_folder
25 | if (os.path.exists(sample_folder + 'graphst_comps.csv') and
26 | os.path.exists(sample_folder + 'graphst_pearson.csv') and
27 | os.path.exists(sample_folder + 'graphst_corr_heatmap.png')):
28 | print(f"Skipping {sample_folder} as output files already exist.")
29 | continue
30 |
31 | adata = sc.read_h5ad(adp)
32 | adata.var_names_make_unique()
33 |
34 | try:
35 | # first attempt without any filtering
36 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
37 | except:
38 | try:
39 | # second attempt with min_counts=10
40 | sc.pp.filter_genes(adata, min_counts=10, inplace=True)
41 | # sc.pp.filter_cells(adata, min_counts=100, inplace=True)
42 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
43 | except:
44 | # final attempt with min_counts=100
45 | sc.pp.filter_genes(adata, min_counts=100, inplace=True)
46 | # sc.pp.filter_cells(adata, min_counts=100, inplace=True)
47 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
48 |
49 | sc.pp.normalize_total(adata, target_sum=1e4)
50 | sc.pp.log1p(adata)
51 | sc.pp.scale(adata, zero_center=False, max_value=10)
52 |
53 | # define model
54 | model = GraphST.GraphST(adata, device=torch.device('cpu'))
55 |
56 | # train model
57 | adata = model.train()
58 |
59 | graphst_df = pd.DataFrame(adata.obsm['emb'])
60 | graphst_df.index = adata.obs.index
61 |
62 | pca = PCA(n_components=20, svd_solver='arpack', random_state=42)
63 | graphst_pcs = pca.fit_transform(graphst_df)
64 | graphst_pcs_df = pd.DataFrame(data=graphst_pcs, index=graphst_df.index)
65 |
66 | graphst_pcs_df.to_csv(sample_folder + 'graphst_comps.csv')
67 |
68 | tissue_zone_df = adata.obsm['tissue_zones']
69 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
70 |
71 | corr_df = get_correlation_df(tissue_zone_df, graphst_pcs_df)
72 | corr_df.to_csv(sample_folder + 'graphst_pearson.csv')
73 |
74 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
75 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
76 | plt.tight_layout()
77 | plt.savefig(sample_folder + 'graphst_corr_heatmap.png')
78 | plt.close()
79 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/contamination_benchmark/mefisto.py:
--------------------------------------------------------------------------------
1 | import os
2 | import mofax
3 | import pandas as pd
4 | import scanpy as sc
5 | from tqdm import tqdm
6 | from glob import glob
7 | import seaborn as sns
8 | import matplotlib.pyplot as plt
9 | from mofapy2.run.entry_point import entry_point
10 | from article.A1_synthetic_data.bm_functions import get_correlation_df
11 |
12 |
13 | filepath = '/storage/homefs/pt22a065/chr_data/tabula_sapiens_immune_contamination'
14 | adatas = glob(filepath + '/*/*.h5ad')
15 |
16 | results_df = pd.DataFrame()
17 |
18 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
19 | print(adp)
20 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
21 |
22 | # Check if all necessary output files already exist in the sample_folder
23 | if (os.path.exists(sample_folder + 'mefisto_comps.csv') and
24 | os.path.exists(sample_folder + 'mefisto_pearson.csv') and
25 | os.path.exists(sample_folder + 'mefisto_corr_heatmap.png')):
26 | print(f"Skipping {sample_folder} as output files already exist.")
27 | continue
28 |
29 | adata = sc.read_h5ad(adp)
30 |
31 | # number of non-uniform compartments
32 | uniform = int(adata.uns['parameters']['n_tissue_zones'] * adata.uns['parameters']['uniform'])
33 | tissue_zones = adata.uns['parameters']['n_tissue_zones'] - uniform
34 | tissue_zones = int(tissue_zones)
35 |
36 | sc.pp.filter_genes(adata, min_cells=len(adata) * 0.05)
37 |
38 | sc.pp.normalize_total(adata, inplace=True)
39 | sc.pp.log1p(adata)
40 | sc.pp.highly_variable_genes(adata, flavor="seurat", n_top_genes=2000)
41 |
42 | adata.obs = pd.concat([adata.obs,
43 | pd.DataFrame(adata.obsm["spatial"], columns=["imagerow", "imagecol"],
44 | index=adata.obs_names),
45 | ], axis=1)
46 |
47 | ent = entry_point()
48 | ent.set_data_options(use_float32=True)
49 | ent.set_data_from_anndata(adata, features_subset="highly_variable")
50 |
51 | ent.set_model_options(factors=tissue_zones)
52 | ent.set_train_options(save_interrupted=True)
53 | ent.set_train_options(seed=2021)
54 |
55 | # We use 1000 inducing points to learn spatial covariance patterns
56 | n_inducing = 1000 # 500 for size tests
57 |
58 | ent.set_covariates([adata.obsm["spatial"]], covariates_names=["imagerow", "imagecol"])
59 | ent.set_smooth_options(sparseGP=True, frac_inducing=n_inducing / adata.n_obs,
60 | start_opt=10, opt_freq=10)
61 |
62 | ent.build()
63 | ent.run()
64 | ent.save(sample_folder + "mefisto_temp.hdf5")
65 | m = mofax.mofa_model(sample_folder + "mefisto_temp.hdf5")
66 | factor_df = m.get_factors(df=True)
67 |
68 | # factor_df = ent.model.getFactors(df=True)
69 |
70 | factor_df.to_csv(sample_folder + 'mefisto_comps.csv')
71 |
72 | # correlation with tissue zones
73 | tissue_zone_df = adata.obsm['tissue_zones']
74 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
75 |
76 | corr_df = get_correlation_df(tissue_zone_df, factor_df)
77 | corr_df.to_csv(sample_folder + 'mefisto_pearson.csv')
78 |
79 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
80 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
81 | plt.tight_layout()
82 | plt.savefig(sample_folder + 'mefisto_corr_heatmap.png')
83 | plt.close()
84 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/contamination_benchmark/nsf.py:
--------------------------------------------------------------------------------
1 | import os
2 | import math
3 | import random
4 | import numpy as np
5 | import pandas as pd
6 | import scanpy as sc
7 | from os import path
8 | from tqdm import tqdm
9 | from glob import glob
10 | import seaborn as sns
11 | from nsf.models import sf
12 | import matplotlib.pyplot as plt
13 | from numpy.linalg import LinAlgError
14 | from tensorflow_probability import math as tm
15 | from article.A1_synthetic_data.bm_functions import get_correlation_df
16 | from nsf.utils import preprocess, training, visualize, postprocess, misc
17 |
18 |
19 | filepath = '/storage/homefs/pt22a065/chr_data/tabula_sapiens_immune_contamination'
20 | adatas = glob(filepath + '/*/*.h5ad')
21 | tfk = tm.psd_kernels
22 |
23 | results_df = pd.DataFrame()
24 |
25 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
26 | try:
27 | print(adp)
28 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
29 |
30 | # Check if all necessary output files already exist in the sample_folder
31 | if (os.path.exists(sample_folder + 'nsf_comps.csv') and
32 | os.path.exists(sample_folder + 'nsf_pearson.csv') and
33 | os.path.exists(sample_folder + 'nsf_corr_heatmap.png')):
34 | print(f"Skipping {sample_folder} as output files already exist.")
35 | continue
36 |
37 | adata = sc.read_h5ad(adp)
38 |
39 | # number of non-uniform compartments
40 | uniform = int(adata.uns['parameters']['n_tissue_zones'] * adata.uns['parameters']['uniform'])
41 | tissue_zones = adata.uns['parameters']['n_tissue_zones'] - uniform
42 | tissue_zones = int(tissue_zones)
43 |
44 | sc.pp.calculate_qc_metrics(adata, inplace=True)
45 | # sc.pp.filter_genes(adata, min_cells=len(adata) * 0.05)
46 | sc.pp.filter_genes(adata, min_counts=100, inplace=True)
47 |
48 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
49 | adata.layers = {"counts": adata.X.copy()} # store raw counts before normalization changes ad.X
50 | sc.pp.normalize_total(adata, inplace=True, layers=None, key_added="sizefactor")
51 | sc.pp.log1p(adata)
52 |
53 | adata.var['deviance_poisson'] = preprocess.deviancePoisson(adata.layers["counts"])
54 | o = np.argsort(-adata.var['deviance_poisson'])
55 | idx = list(range(adata.shape[0]))
56 | random.shuffle(idx)
57 | adata = adata[idx, o]
58 | adata = adata[:, :2000]
59 |
60 | Dtr, Dval = preprocess.anndata_to_train_val(adata, layer="counts",
61 | sz="constant") # size factor set to constant from scanpy for
62 | # the samples with y nan error
63 | Dtr_n, Dval_n = preprocess.anndata_to_train_val(adata) # normalized data
64 | fmeans, Dtr_c, Dval_c = preprocess.center_data(Dtr_n, Dval_n) # centered features
65 | Xtr = Dtr["X"] # note this should be identical to Dtr_n["X"]
66 | Ntr = Xtr.shape[0]
67 | Dtf = preprocess.prepare_datasets_tf(Dtr, Dval=Dval, shuffle=False)
68 | Dtf_n = preprocess.prepare_datasets_tf(Dtr_n, Dval=Dval_n, shuffle=False)
69 | Dtf_c = preprocess.prepare_datasets_tf(Dtr_c, Dval=Dval_c, shuffle=False)
70 | visualize.heatmap(Xtr, Dtr["Y"][:, 0], marker="D", s=15)
71 | plt.close()
72 |
73 | # Visualize raw data
74 | plt.imshow(np.log1p(Dtr["Y"])[:50, :100], cmap="Blues")
75 | plt.close()
76 |
77 | # Visualize inducing points
78 | Z = misc.kmeans_inducing_pts(Xtr, 500)
79 | fig, ax = plt.subplots(figsize=(12, 10))
80 | ax.scatter(Xtr[:, 0], Xtr[:, 1], marker="D", s=50, )
81 | ax.scatter(Z[:, 0], Z[:, 1], c="red", s=30)
82 | plt.close()
83 |
84 | # initialize inducing points and tuning parameters
85 | Z = misc.kmeans_inducing_pts(Xtr, 1000) # 2363
86 | M = Z.shape[0]
87 | ker = tfk.MaternThreeHalves
88 | S = 3 # samples for elbo approximation
89 | # NSF: Spatial only with non-negative factors
90 | L = tissue_zones # number of latent factors, ideally divisible by 2
91 | J = adata.shape[1] # 2000
92 |
93 | mpth = path.join("/storage/homefs/pt22a065/chr_benchmarks/nsf/models/V5/")
94 |
95 | fit = sf.SpatialFactorization(J, L, Z, psd_kernel=ker, nonneg=True, lik="poi")
96 | fit.elbo_avg(Xtr, Dtr["Y"], sz=Dtr["sz"])
97 | fit.init_loadings(Dtr["Y"], X=Xtr, sz=Dtr["sz"])
98 | fit.elbo_avg(Xtr, Dtr["Y"], sz=Dtr["sz"])
99 | pp = fit.generate_pickle_path("scanpy", base=mpth)
100 | tro = training.ModelTrainer(fit, pickle_path=pp)
101 | tro.train_model(*Dtf, ckpt_freq=10000)
102 |
103 | ttl = "NSF: spatial, non-negative factors, Poisson likelihood"
104 | visualize.plot_loss(tro.loss, title=ttl) # ,ss=range(2000,4000))
105 | plt.savefig(sample_folder + 'nsf_loss.png')
106 | plt.close()
107 |
108 | hmkw = {"figsize": (4, 4), "s": 0.3, "marker": "D", "subplot_space": 0,
109 | "spinecolor": "white"}
110 | insf = postprocess.interpret_nsf(fit, Xtr, S=10, lda_mode=False)
111 | tgnames = [str(i) for i in range(1, L + 1)]
112 |
113 | # fig, axes = visualize.multiheatmap(Xtr, np.sqrt(insf["factors"]), (4, 3), **hmkw)
114 | # visualize.set_titles(fig, tgnames, x=0.05, y=.85, fontsize="medium", c="white",
115 | # ha="left", va="top")
116 | # plt.savefig(sample_folder + 'nsf_comps.png')
117 | # plt.close()
118 |
119 | data = {'factors': insf, 'positions': Xtr}
120 |
121 |
122 | def transform_coords(X):
123 | # code from nsf github
124 | X[:, 1] = -X[:, 1]
125 | xmin = X.min(axis=0)
126 | X -= xmin
127 | x_gmean = np.exp(np.mean(np.log(X.max(axis=0))))
128 | X *= 4 / x_gmean
129 | return X - X.mean(axis=0)
130 |
131 |
132 | X = adata.obsm["spatial"].copy().astype('float32')
133 | tcoords = transform_coords(X)
134 |
135 | pair_idx = []
136 | for xy in data['positions']:
137 | distances = [math.dist([xy[0], xy[1]], [idx[0], idx[1]]) for idx in tcoords]
138 | pair_idx.append(np.argmin(distances))
139 |
140 | nsf_df = pd.DataFrame(data=np.zeros([len(adata), data['factors']['factors'].shape[1]]))
141 | for idx, i in enumerate(pair_idx):
142 | nsf_df.iloc[i, :] = data['factors']['factors'][idx, :]
143 | nsf_df.index = adata.obs.index
144 |
145 | nsf_df.to_csv(sample_folder + 'nsf_comps.csv')
146 | nsf_df = nsf_df[~(nsf_df.eq(0).all(axis=1))]
147 |
148 | tissue_zone_df = adata.obsm['tissue_zones'].loc[list(nsf_df.index)]
149 |
150 | corr_df = get_correlation_df(tissue_zone_df, nsf_df)
151 | corr_df.to_csv(sample_folder + 'nsf_pearson.csv')
152 |
153 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
154 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
155 | plt.tight_layout()
156 | plt.savefig(sample_folder + 'nsf_corr_heatmap.png')
157 | plt.close()
158 |
159 | except (LinAlgError, ValueError) as e:
160 | print(f"LinAlgError encountered for matrix. Continuing...{e}")
161 | continue
162 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/contamination_benchmark/stagate.py:
--------------------------------------------------------------------------------
1 | import os
2 | import STAGATE
3 | import pandas as pd
4 | import scanpy as sc
5 | from tqdm import tqdm
6 | from glob import glob
7 | import seaborn as sns
8 | import sklearn.neighbors
9 | import matplotlib.pyplot as plt
10 | from article.A1_synthetic_data.bm_functions import get_correlation_df
11 |
12 |
13 | filepath = 'data/tabula_sapiens_immune_contamination'
14 | adatas = glob(filepath + '/*/*.h5ad')
15 |
16 | results_df = pd.DataFrame()
17 |
18 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
19 | print(adp)
20 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
21 |
22 | # Check if all necessary output files already exist in the sample_folder
23 | if (os.path.exists(sample_folder + 'stagate_comps.csv') and
24 | os.path.exists(sample_folder + 'stagate_pearson.csv') and
25 | os.path.exists(sample_folder + 'stagate_corr_heatmap.png')):
26 | print(f"Skipping {sample_folder} as output files already exist.")
27 | continue
28 |
29 | adata = sc.read_h5ad(adp)
30 |
31 | try:
32 | # first attempt without any filtering
33 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
34 | except:
35 | try:
36 | # second attempt with min_counts=10
37 | sc.pp.filter_genes(adata, min_counts=10, inplace=True)
38 | # sc.pp.filter_cells(adata, min_counts=100, inplace=True)
39 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
40 | except:
41 | # final attempt with min_counts=100
42 | sc.pp.filter_genes(adata, min_counts=100, inplace=True)
43 | # sc.pp.filter_cells(adata, min_counts=100, inplace=True)
44 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
45 |
46 | sc.pp.normalize_total(adata, target_sum=1e4)
47 | sc.pp.log1p(adata)
48 |
49 | # include 8 neighbours with the cutoff similarly to 6 for visium
50 | STAGATE.Cal_Spatial_Net(adata, rad_cutoff=3.3)
51 | STAGATE.Stats_Spatial_Net(adata)
52 |
53 | coor = pd.DataFrame(adata.obsm['spatial'])
54 | coor.index = adata.obs.index
55 | coor.columns = ['imagerow', 'imagecol']
56 |
57 | nbrs = sklearn.neighbors.NearestNeighbors(radius=3.3).fit(coor)
58 | distances, indices = nbrs.radius_neighbors(coor, return_distance=True)
59 | KNN_list = []
60 | for it in range(indices.shape[0]):
61 | KNN_list.append(pd.DataFrame(zip([it]*indices[it].shape[0], indices[it], distances[it])))
62 | KNN_df = pd.concat(KNN_list)
63 | KNN_df.columns = ['Cell1', 'Cell2', 'Distance']
64 |
65 | adata = STAGATE.train_STAGATE(adata, alpha=0)
66 |
67 | for i in range(30):
68 | adata.obs[f'stagate_{i}'] = adata.obsm['STAGATE'][:, i]
69 |
70 | # doesn't work without the proper anndata structure - missing some spatial info
71 | # with mpl.rc_context({'figure.figsize': [4.5, 5]}):
72 | # sc.pl.spatial(adata, color=[f'S{i}' for i in range(30)], size=2, ncols=4, show=False)
73 | # plt.savefig(sample_folder + 'stagate_comps.png')
74 | # plt.close()
75 |
76 | # correlation with tissue zones
77 | stagate_df = adata.obs[[f'stagate_{i}' for i in range(30)]]
78 | stagate_df.to_csv(sample_folder + 'stagate_comps.csv')
79 |
80 | tissue_zone_df = adata.obsm['tissue_zones']
81 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
82 |
83 | corr_df = get_correlation_df(tissue_zone_df, stagate_df)
84 | corr_df.to_csv(sample_folder + 'stagate_pearson.csv')
85 |
86 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
87 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
88 | plt.tight_layout()
89 | plt.savefig(sample_folder + 'stagate_corr_heatmap.png')
90 | plt.close()
91 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/main_synthetic_benchmark/chrysalis.py:
--------------------------------------------------------------------------------
1 | import numpy as np
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | import seaborn as sns
6 | from glob import glob
7 | import chrysalis as ch
8 | import matplotlib.pyplot as plt
9 | from article.A1_synthetic_data.bm_functions import get_correlation_df
10 |
11 |
12 | filepath = 'data/tabula_sapiens_immune'
13 | adatas = glob(filepath + '/*/*.h5ad')
14 |
15 | results_df = pd.DataFrame()
16 |
17 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
18 | print(adp)
19 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
20 | adata = sc.read_h5ad(adp)
21 |
22 | # number of non-uniform compartments
23 | uniform = int(adata.uns['parameters']['n_tissue_zones'] * adata.uns['parameters']['uniform'])
24 | tissue_zones = adata.uns['parameters']['n_tissue_zones'] - uniform
25 | tissue_zones = int(tissue_zones)
26 |
27 | # chrysalis pipeline
28 | ch.detect_svgs(adata, neighbors=8, top_svg=1000, min_morans=0.01)
29 | ch.plot_svgs(adata)
30 | plt.savefig(sample_folder + 'ch_svgs.png')
31 | plt.close()
32 |
33 | sc.pp.normalize_total(adata, inplace=True)
34 | sc.pp.log1p(adata)
35 |
36 | ch.pca(adata, n_pcs=40)
37 |
38 | ch.plot_explained_variance(adata)
39 | plt.savefig(sample_folder + 'ch_expl_variance.png')
40 | plt.close()
41 |
42 | ch.aa(adata, n_pcs=20, n_archetypes=tissue_zones)
43 |
44 | ch.plot(adata, dim=tissue_zones, marker='s')
45 | plt.savefig(sample_folder + 'ch_plot.png')
46 | plt.close()
47 |
48 | col_num = int(np.sqrt(tissue_zones))
49 | ch.plot_compartments(adata, marker='s', ncols=col_num)
50 | plt.savefig(sample_folder + 'ch_comps.png')
51 | plt.close()
52 |
53 | # correlation with tissue zones
54 | compartments = adata.obsm['chr_aa']
55 | compartment_df = pd.DataFrame(data=compartments, index=adata.obs.index)
56 | tissue_zone_df = adata.obsm['tissue_zones']
57 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
58 |
59 | corr_df = get_correlation_df(tissue_zone_df, compartment_df)
60 | corr_df.to_csv(sample_folder + 'pearson.csv')
61 |
62 | sns.heatmap(corr_df, square=True, center=0)
63 | plt.tight_layout()
64 | plt.savefig(sample_folder + 'corr_heatmap.png')
65 | plt.close()
66 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/main_synthetic_benchmark/graphst.py:
--------------------------------------------------------------------------------
1 | import torch
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | from glob import glob
6 | import seaborn as sns
7 | from GraphST import GraphST
8 | import matplotlib.pyplot as plt
9 | from sklearn.decomposition import PCA
10 | from article.A1_synthetic_data.bm_functions import get_correlation_df
11 |
12 |
13 | filepath = 'data/tabula_sapiens_immune'
14 | adatas = glob(filepath + '/*/*.h5ad')
15 |
16 | results_df = pd.DataFrame()
17 |
18 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
19 | print(adp)
20 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
21 | device = torch.device('cuda:1' if torch.cuda.is_available() else 'cpu')
22 | adata = sc.read_h5ad(adp)
23 | adata.var_names_make_unique()
24 |
25 | # define model
26 | model = GraphST.GraphST(adata, device=torch.device('cpu'))
27 |
28 | # train model
29 | adata = model.train()
30 |
31 | graphst_df = pd.DataFrame(adata.obsm['emb'])
32 | graphst_df.index = adata.obs.index
33 |
34 | pca = PCA(n_components=20, svd_solver='arpack', random_state=42)
35 | graphst_pcs = pca.fit_transform(graphst_df)
36 | graphst_pcs_df = pd.DataFrame(data=graphst_pcs, index=graphst_df.index)
37 |
38 | graphst_pcs_df.to_csv(sample_folder + 'graphst_comps.csv')
39 |
40 |
41 | tissue_zone_df = adata.obsm['tissue_zones']
42 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
43 |
44 | corr_df = get_correlation_df(tissue_zone_df, graphst_pcs_df)
45 | corr_df.to_csv(sample_folder + 'graphst_pearson.csv')
46 |
47 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
48 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
49 | plt.tight_layout()
50 | plt.savefig(sample_folder + 'graphst_corr_heatmap.png')
51 | plt.close()
52 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/main_synthetic_benchmark/mefisto.py:
--------------------------------------------------------------------------------
1 | import mofax
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | from glob import glob
6 | import seaborn as sns
7 | import matplotlib.pyplot as plt
8 | from mofapy2.run.entry_point import entry_point
9 | from article.A1_synthetic_data.bm_functions import get_correlation_df
10 |
11 |
12 | filepath = '/storage/homefs/pt22a065/chr_data/tabula_sapiens_immune'
13 | adatas = glob(filepath + '/*/*.h5ad')
14 |
15 | results_df = pd.DataFrame()
16 |
17 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
18 | print(adp)
19 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
20 | adata = sc.read_h5ad(adp)
21 |
22 | # number of non-uniform compartments
23 | uniform = int(adata.uns['parameters']['n_tissue_zones'] * adata.uns['parameters']['uniform'])
24 | tissue_zones = adata.uns['parameters']['n_tissue_zones'] - uniform
25 | tissue_zones = int(tissue_zones)
26 |
27 | sc.pp.filter_genes(adata, min_cells=len(adata) * 0.05)
28 |
29 | sc.pp.normalize_total(adata, inplace=True)
30 | sc.pp.log1p(adata)
31 | sc.pp.highly_variable_genes(adata, flavor="seurat", n_top_genes=2000)
32 |
33 | adata.obs = pd.concat([adata.obs,
34 | pd.DataFrame(adata.obsm["spatial"], columns=["imagerow", "imagecol"],
35 | index=adata.obs_names),
36 | ], axis=1)
37 |
38 | ent = entry_point()
39 | ent.set_data_options(use_float32=True)
40 | ent.set_data_from_anndata(adata, features_subset="highly_variable")
41 |
42 | ent.set_model_options(factors=tissue_zones)
43 | ent.set_train_options(save_interrupted=True)
44 | ent.set_train_options(seed=2021)
45 |
46 | # We use 1000 inducing points to learn spatial covariance patterns
47 | n_inducing = 500 # 500 for size tests
48 |
49 | ent.set_covariates([adata.obsm["spatial"]], covariates_names=["imagerow", "imagecol"])
50 | ent.set_smooth_options(sparseGP=True, frac_inducing=n_inducing / adata.n_obs,
51 | start_opt=10, opt_freq=10)
52 |
53 | ent.build()
54 | ent.run()
55 | ent.save(sample_folder + "mefisto_temp.hdf5")
56 | m = mofax.mofa_model(sample_folder + "mefisto_temp.hdf5")
57 | factor_df = m.get_factors(df=True)
58 |
59 | # factor_df = ent.model.getFactors(df=True)
60 |
61 | factor_df.to_csv(sample_folder + 'mefisto_comps.csv')
62 |
63 | # correlation with tissue zones
64 | tissue_zone_df = adata.obsm['tissue_zones']
65 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
66 |
67 | corr_df = get_correlation_df(tissue_zone_df, factor_df)
68 | corr_df.to_csv(sample_folder + 'mefisto_pearson.csv')
69 |
70 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
71 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
72 | plt.tight_layout()
73 | plt.savefig(sample_folder + 'mefisto_corr_heatmap.png')
74 | plt.close()
75 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/main_synthetic_benchmark/nsf.py:
--------------------------------------------------------------------------------
1 | import os
2 | import math
3 | import random
4 | import numpy as np
5 | import pandas as pd
6 | import scanpy as sc
7 | from os import path
8 | from tqdm import tqdm
9 | from glob import glob
10 | import seaborn as sns
11 | from nsf.models import sf
12 | import matplotlib.pyplot as plt
13 | from numpy.linalg import LinAlgError
14 | from tensorflow_probability import math as tm
15 | from article.A1_synthetic_data.bm_functions import get_correlation_df
16 | from nsf.utils import preprocess, training, visualize, postprocess, misc
17 |
18 |
19 | filepath = 'data/tabula_sapiens_immune'
20 | adatas = glob(filepath + '/*/*.h5ad')
21 | tfk = tm.psd_kernels
22 |
23 | results_df = pd.DataFrame()
24 |
25 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
26 | try:
27 | print(adp)
28 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
29 |
30 | # Check if all necessary output files already exist in the sample_folder
31 | if (os.path.exists(sample_folder + 'nsf_comps.csv') and
32 | os.path.exists(sample_folder + 'nsf_pearson.csv') and
33 | os.path.exists(sample_folder + 'nsf_corr_heatmap.png')):
34 | print(f"Skipping {sample_folder} as output files already exist.")
35 | continue
36 |
37 | adata = sc.read_h5ad(adp)
38 |
39 | # number of non-uniform compartments
40 | uniform = int(adata.uns['parameters']['n_tissue_zones'] * adata.uns['parameters']['uniform'])
41 | tissue_zones = adata.uns['parameters']['n_tissue_zones'] - uniform
42 | tissue_zones = int(tissue_zones)
43 |
44 | sc.pp.calculate_qc_metrics(adata, inplace=True)
45 | # sc.pp.filter_genes(adata, min_cells=len(adata) * 0.05)
46 | sc.pp.filter_genes(adata, min_counts=100, inplace=True)
47 |
48 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
49 | adata.layers = {"counts": adata.X.copy()} # store raw counts before normalization changes ad.X
50 | sc.pp.normalize_total(adata, inplace=True, layers=None, key_added="sizefactor")
51 | sc.pp.log1p(adata)
52 |
53 | adata.var['deviance_poisson'] = preprocess.deviancePoisson(adata.layers["counts"])
54 | o = np.argsort(-adata.var['deviance_poisson'])
55 | idx = list(range(adata.shape[0]))
56 | random.shuffle(idx)
57 | adata = adata[idx, o]
58 | adata = adata[:, :2000]
59 |
60 | Dtr, Dval = preprocess.anndata_to_train_val(adata, layer="counts",
61 | sz="constant") # size factor set to constant from scanpy for
62 | # the samples with y nan error
63 | Dtr_n, Dval_n = preprocess.anndata_to_train_val(adata) # normalized data
64 | fmeans, Dtr_c, Dval_c = preprocess.center_data(Dtr_n, Dval_n) # centered features
65 | Xtr = Dtr["X"] # note this should be identical to Dtr_n["X"]
66 | Ntr = Xtr.shape[0]
67 | Dtf = preprocess.prepare_datasets_tf(Dtr, Dval=Dval, shuffle=False)
68 | Dtf_n = preprocess.prepare_datasets_tf(Dtr_n, Dval=Dval_n, shuffle=False)
69 | Dtf_c = preprocess.prepare_datasets_tf(Dtr_c, Dval=Dval_c, shuffle=False)
70 | visualize.heatmap(Xtr, Dtr["Y"][:, 0], marker="D", s=15)
71 | plt.close()
72 |
73 | # Visualize raw data
74 | plt.imshow(np.log1p(Dtr["Y"])[:50, :100], cmap="Blues")
75 | plt.close()
76 |
77 | # Visualize inducing points
78 | Z = misc.kmeans_inducing_pts(Xtr, 500)
79 | fig, ax = plt.subplots(figsize=(12, 10))
80 | ax.scatter(Xtr[:, 0], Xtr[:, 1], marker="D", s=50, )
81 | ax.scatter(Z[:, 0], Z[:, 1], c="red", s=30)
82 | plt.close()
83 |
84 | # initialize inducing points and tuning parameters
85 | Z = misc.kmeans_inducing_pts(Xtr, 2363) # 2363
86 | M = Z.shape[0]
87 | ker = tfk.MaternThreeHalves
88 | S = 3 # samples for elbo approximation
89 | # NSF: Spatial only with non-negative factors
90 | L = tissue_zones # number of latent factors, ideally divisible by 2
91 | J = adata.shape[1] # 2000
92 |
93 | mpth = path.join("/storage/homefs/pt22a065/chr_benchmarks/nsf/models/V5/")
94 |
95 | fit = sf.SpatialFactorization(J, L, Z, psd_kernel=ker, nonneg=True, lik="poi")
96 | fit.elbo_avg(Xtr, Dtr["Y"], sz=Dtr["sz"])
97 | fit.init_loadings(Dtr["Y"], X=Xtr, sz=Dtr["sz"])
98 | fit.elbo_avg(Xtr, Dtr["Y"], sz=Dtr["sz"])
99 | pp = fit.generate_pickle_path("scanpy", base=mpth)
100 | tro = training.ModelTrainer(fit, pickle_path=pp)
101 | tro.train_model(*Dtf, ckpt_freq=10000)
102 |
103 | ttl = "NSF: spatial, non-negative factors, Poisson likelihood"
104 | visualize.plot_loss(tro.loss, title=ttl) # ,ss=range(2000,4000))
105 | plt.savefig(sample_folder + 'nsf_loss.png')
106 | plt.close()
107 |
108 | hmkw = {"figsize": (4, 4), "s": 0.3, "marker": "D", "subplot_space": 0,
109 | "spinecolor": "white"}
110 | insf = postprocess.interpret_nsf(fit, Xtr, S=10, lda_mode=False)
111 | tgnames = [str(i) for i in range(1, L + 1)]
112 |
113 | # fig, axes = visualize.multiheatmap(Xtr, np.sqrt(insf["factors"]), (4, 3), **hmkw)
114 | # visualize.set_titles(fig, tgnames, x=0.05, y=.85, fontsize="medium", c="white",
115 | # ha="left", va="top")
116 | # plt.savefig(sample_folder + 'nsf_comps.png')
117 | # plt.close()
118 |
119 | data = {'factors': insf, 'positions': Xtr}
120 |
121 |
122 | def transform_coords(X):
123 | # code from nsf github
124 | X[:, 1] = -X[:, 1]
125 | xmin = X.min(axis=0)
126 | X -= xmin
127 | x_gmean = np.exp(np.mean(np.log(X.max(axis=0))))
128 | X *= 4 / x_gmean
129 | return X - X.mean(axis=0)
130 |
131 |
132 | X = adata.obsm["spatial"].copy().astype('float32')
133 | tcoords = transform_coords(X)
134 |
135 | pair_idx = []
136 | for xy in data['positions']:
137 | distances = [math.dist([xy[0], xy[1]], [idx[0], idx[1]]) for idx in tcoords]
138 | pair_idx.append(np.argmin(distances))
139 |
140 | nsf_df = pd.DataFrame(data=np.zeros([len(adata), data['factors']['factors'].shape[1]]))
141 | for idx, i in enumerate(pair_idx):
142 | nsf_df.iloc[i, :] = data['factors']['factors'][idx, :]
143 | nsf_df.index = adata.obs.index
144 |
145 | nsf_df.to_csv(sample_folder + 'nsf_comps.csv')
146 | nsf_df = nsf_df[~(nsf_df.eq(0).all(axis=1))]
147 |
148 | tissue_zone_df = adata.obsm['tissue_zones'].loc[list(nsf_df.index)]
149 |
150 | corr_df = get_correlation_df(tissue_zone_df, nsf_df)
151 | corr_df.to_csv(sample_folder + 'nsf_pearson.csv')
152 |
153 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
154 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
155 | plt.tight_layout()
156 | plt.savefig(sample_folder + 'nsf_corr_heatmap.png')
157 | plt.close()
158 |
159 | except (LinAlgError, ValueError) as e:
160 | print(f"LinAlgError encountered for matrix. Continuing...{e}")
161 | continue
162 |
--------------------------------------------------------------------------------
/article/A1_synthetic_data/method_scripts/main_synthetic_benchmark/stagate.py:
--------------------------------------------------------------------------------
1 | import STAGATE
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | from glob import glob
6 | import seaborn as sns
7 | import sklearn.neighbors
8 | import matplotlib.pyplot as plt
9 | from article.A1_synthetic_data.bm_functions import get_correlation_df
10 |
11 |
12 | filepath = 'data/tabula_sapiens_immune'
13 | adatas = glob(filepath + '/*/*.h5ad')
14 |
15 | results_df = pd.DataFrame()
16 |
17 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
18 | print(adp)
19 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
20 | adata = sc.read_h5ad(adp)
21 |
22 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
23 | sc.pp.normalize_total(adata, target_sum=1e4)
24 | sc.pp.log1p(adata)
25 |
26 | # include 8 neighbours with the cutoff similarly to 6 for visium
27 | STAGATE.Cal_Spatial_Net(adata, rad_cutoff=3.3)
28 | STAGATE.Stats_Spatial_Net(adata)
29 |
30 | coor = pd.DataFrame(adata.obsm['spatial'])
31 | coor.index = adata.obs.index
32 | coor.columns = ['imagerow', 'imagecol']
33 |
34 | nbrs = sklearn.neighbors.NearestNeighbors(radius=3.3).fit(coor)
35 | distances, indices = nbrs.radius_neighbors(coor, return_distance=True)
36 | KNN_list = []
37 | for it in range(indices.shape[0]):
38 | KNN_list.append(pd.DataFrame(zip([it]*indices[it].shape[0], indices[it], distances[it])))
39 | KNN_df = pd.concat(KNN_list)
40 | KNN_df.columns = ['Cell1', 'Cell2', 'Distance']
41 |
42 | adata = STAGATE.train_STAGATE(adata, alpha=0)
43 |
44 | for i in range(30):
45 | adata.obs[f'stagate_{i}'] = adata.obsm['STAGATE'][:, i]
46 |
47 | # doesn't work without the proper anndata structure - missing some spatial info
48 | # with mpl.rc_context({'figure.figsize': [4.5, 5]}):
49 | # sc.pl.spatial(adata, color=[f'S{i}' for i in range(30)], size=2, ncols=4, show=False)
50 | # plt.savefig(sample_folder + 'stagate_comps.png')
51 | # plt.close()
52 |
53 | # correlation with tissue zones
54 | stagate_df = adata.obs[[f'stagate_{i}' for i in range(30)]]
55 | stagate_df.to_csv(sample_folder + 'stagate_comps.csv')
56 |
57 | tissue_zone_df = adata.obsm['tissue_zones']
58 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
59 |
60 | corr_df = get_correlation_df(tissue_zone_df, stagate_df)
61 | corr_df.to_csv(sample_folder + 'stagate_pearson.csv')
62 |
63 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
64 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
65 | plt.tight_layout()
66 | plt.savefig(sample_folder + 'stagate_corr_heatmap.png')
67 | plt.close()
68 |
--------------------------------------------------------------------------------
/article/A2_human_lymph_node/SVG_detection_methods/1_bsp_spatialde_sepal.ipynb:
--------------------------------------------------------------------------------
1 | {
2 | "cells": [
3 | {
4 | "cell_type": "code",
5 | "execution_count": null,
6 | "outputs": [],
7 | "source": [
8 | "from SpatialDE import test\n",
9 | "import pickle\n",
10 | "import pandas as pd\n",
11 | "import scanpy as sc\n",
12 | "import squidpy as sq\n",
13 | "\n",
14 | "data_path = '/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/cell2loc_human_lymph_node/'"
15 | ],
16 | "metadata": {
17 | "collapsed": false
18 | }
19 | },
20 | {
21 | "cell_type": "code",
22 | "execution_count": null,
23 | "outputs": [],
24 | "source": [
25 | "# BSP\n",
26 | "\n",
27 | "adata = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')\n",
28 | "\n",
29 | "adata.var_names_make_unique()\n",
30 | "\n",
31 | "sc.pp.calculate_qc_metrics(adata, inplace=True)\n",
32 | "sc.pp.filter_cells(adata, min_counts=6000)\n",
33 | "sc.pp.filter_genes(adata, min_cells=10)\n",
34 | "\n",
35 | "data = adata.to_df().astype(int)\n",
36 | "locs = adata.obsm['spatial']\n",
37 | "locs_df = pd.DataFrame(locs, columns=['x', 'y'])\n",
38 | "\n",
39 | "data.to_csv(data_path + 'lymph_node/counts.csv')\n",
40 | "locs_df.to_csv(data_path + 'lymph_node/locs.csv', index=False)\n",
41 | "\n",
42 | "# BSP was run via CLI using counts.csv and locs.csv\n",
43 | "# python BSP.py --datasetName lymph_node --spaLocFilename locs.csv --expFilename counts.csv"
44 | ],
45 | "metadata": {
46 | "collapsed": false
47 | }
48 | },
49 | {
50 | "cell_type": "code",
51 | "execution_count": null,
52 | "id": "577377be",
53 | "metadata": {},
54 | "outputs": [],
55 | "source": [
56 | "# spatialDE\n",
57 | "\n",
58 | "adata = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')\n",
59 | "\n",
60 | "adata.var_names_make_unique()\n",
61 | "\n",
62 | "sc.pp.calculate_qc_metrics(adata, inplace=True)\n",
63 | "sc.pp.filter_cells(adata, min_counts=6000)\n",
64 | "sc.pp.filter_genes(adata, min_cells=10)\n",
65 | "\n",
66 | "# sc.pp.normalize_total(adata, inplace=True)\n",
67 | "# sc.pp.log1p(adata)\n",
68 | "\n",
69 | "results_t = test(adata)\n",
70 | "\n",
71 | "with open(data_path + 'spatialde.pickle', 'wb') as handle:\n",
72 | " pickle.dump(results_t, handle, protocol=pickle.HIGHEST_PROTOCOL)\n",
73 | "\n",
74 | "with open(data_path + 'spatialde.pickle', 'rb') as f:\n",
75 | " test = pickle.load(f)\n",
76 | "\n",
77 | "test[0].to_csv(data_path + 'spatialde.csv')"
78 | ]
79 | },
80 | {
81 | "cell_type": "code",
82 | "execution_count": null,
83 | "id": "0ee072f2",
84 | "metadata": {},
85 | "outputs": [],
86 | "source": [
87 | "# Sepal\n",
88 | "\n",
89 | "adata = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')\n",
90 | "\n",
91 | "adata.var_names_make_unique()\n",
92 | "\n",
93 | "sc.pp.calculate_qc_metrics(adata, inplace=True)\n",
94 | "sc.pp.filter_cells(adata, min_counts=6000)\n",
95 | "sc.pp.filter_genes(adata, min_cells=10)\n",
96 | "\n",
97 | "sq.gr.spatial_neighbors(adata)\n",
98 | "genes = list(adata.var_names)\n",
99 | "sq.gr.sepal(adata, max_neighs=6, genes=genes, n_jobs=1)\n",
100 | "adata.uns[\"sepal_score\"].head(10)\n",
101 | "sepal_df = adata.uns[\"sepal_score\"]\n",
102 | "\n",
103 | "sepal_df.to_csv(data_path + 'sepal.csv')"
104 | ]
105 | }
106 | ],
107 | "metadata": {
108 | "kernelspec": {
109 | "display_name": "Python 3 (ipykernel)",
110 | "language": "python",
111 | "name": "python3"
112 | },
113 | "language_info": {
114 | "codemirror_mode": {
115 | "name": "ipython",
116 | "version": 3
117 | },
118 | "file_extension": ".py",
119 | "mimetype": "text/x-python",
120 | "name": "python",
121 | "nbconvert_exporter": "python",
122 | "pygments_lexer": "ipython3",
123 | "version": "3.8.15"
124 | }
125 | },
126 | "nbformat": 4,
127 | "nbformat_minor": 5
128 | }
129 |
--------------------------------------------------------------------------------
/article/A2_human_lymph_node/SVG_detection_methods/2_spark.R:
--------------------------------------------------------------------------------
1 | library(Seurat)
2 | library(SPARK)
3 |
4 | # Read sparse matrix from h5 file into Seurat object
5 | adata <- Load10X_Spatial("C:/Users/demeter_turos/PycharmProjects/chrysalis/data/V1_Human_Lymph_Node/")
6 |
7 | adata <- PercentageFeatureSet(adata, "^mt-", col.name = "percent_mito")
8 |
9 | adata <- subset(adata, subset = nCount_Spatial > 6000)
10 | gene_counts <- rowSums(GetAssayData(adata, slot = "counts") > 0)
11 | keep_genes <- names(gene_counts[gene_counts >= 10])
12 | adata <- subset(adata, features = keep_genes)
13 |
14 | expression_data <- as.matrix(adata@assays$Spatial@data)
15 | dim(expression_data)
16 | locs <- GetTissueCoordinates(adata)
17 |
18 | sparkX <- sparkx(expression_data,locs,numCores=1,option="mixture")
19 |
20 | head(sparkX$res_mtest)
21 | write.csv(sparkX$res_mtest, "C:/Users/demeter_turos/PycharmProjects/chrysalis/dev/benchmarks/
22 | fig_1_lymph_node_cell2loc/spark.csv")
23 |
--------------------------------------------------------------------------------
/article/A2_human_lymph_node/benchmarking/graphst.py:
--------------------------------------------------------------------------------
1 | import time
2 | import torch
3 | import pandas as pd
4 | import scanpy as sc
5 | from GraphST import GraphST
6 |
7 |
8 | start_time = time.time()
9 |
10 | data_path = '/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/cell2loc_human_lymph_node/'
11 | device = torch.device('cuda:1' if torch.cuda.is_available() else 'cpu')
12 |
13 | adata = sc.read_h5ad(data_path + 'chr.h5ad')
14 | adata.var_names_make_unique()
15 |
16 | # define model
17 | model = GraphST.GraphST(adata, device=torch.device('cpu'))
18 |
19 | # train model
20 | adata = model.train()
21 |
22 | pd.DataFrame(adata.obsm['emb']).to_csv(data_path + 'graphst_lymph_node.csv')
23 |
24 | end_time = time.time()
25 | elapsed_time = end_time - start_time
26 | print(elapsed_time)
27 |
--------------------------------------------------------------------------------
/article/A2_human_lymph_node/benchmarking/mefisto.py:
--------------------------------------------------------------------------------
1 | import time
2 | import mofax
3 | import pandas as pd
4 | import scanpy as sc
5 | from mofapy2.run.entry_point import entry_point
6 |
7 |
8 | start_time = time.time()
9 |
10 | datadir = "/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/cell2loc_human_lymph_node/mefisto/"
11 |
12 | data_path = '/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/cell2loc_human_lymph_node/'
13 | adata = sc.read_h5ad(data_path + 'chr.h5ad')
14 |
15 | sc.pp.normalize_total(adata, inplace=True)
16 | sc.pp.log1p(adata)
17 | sc.pp.highly_variable_genes(adata, flavor="seurat", n_top_genes=2000)
18 |
19 | adata.obs = pd.concat([adata.obs,
20 | pd.DataFrame(adata.obsm["spatial"], columns=["imagerow", "imagecol"], index=adata.obs_names),
21 | ], axis=1)
22 |
23 | ent = entry_point()
24 | ent.set_data_options(use_float32=True)
25 | ent.set_data_from_anndata(adata, features_subset="highly_variable")
26 |
27 | ent.set_model_options(factors=8)
28 | ent.set_train_options()
29 | ent.set_train_options(seed=2021)
30 |
31 | # We use 1000 inducing points to learn spatial covariance patterns
32 | n_inducing = 1000
33 |
34 | ent.set_covariates([adata.obsm["spatial"]], covariates_names=["imagerow", "imagecol"])
35 | ent.set_smooth_options(sparseGP=True, frac_inducing=n_inducing/adata.n_obs,
36 | start_opt=10, opt_freq=10)
37 |
38 | ent.build()
39 | ent.run()
40 | ent.save(datadir + "ST_model.hdf5")
41 |
42 | m = mofax.mofa_model(datadir + "ST_model.hdf5")
43 | factor_df = m.get_factors(df=True)
44 | factor_df.to_csv(datadir + 'factors.csv')
45 |
46 | end_time = time.time()
47 | elapsed_time = end_time - start_time
48 | print(elapsed_time)
49 |
--------------------------------------------------------------------------------
/article/A2_human_lymph_node/benchmarking/nsf.py:
--------------------------------------------------------------------------------
1 | import time
2 | import pickle
3 | import random
4 | import numpy as np
5 | import scanpy as sc
6 | from os import path
7 | import matplotlib.pyplot as plt
8 | from tensorflow_probability import math as tm
9 | from nsf.models import cf, sf, sfh
10 | from nsf.utils import preprocess, training, misc, visualize, postprocess
11 |
12 |
13 | tfk = tm.psd_kernels
14 | start_time = time.time()
15 |
16 | ad = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')
17 |
18 | ad.var_names_make_unique()
19 | sc.pp.calculate_qc_metrics(ad, inplace=True)
20 | sc.pp.filter_cells(ad, min_counts=6000)
21 | sc.pp.filter_genes(ad, min_cells=10)
22 | ad.layers = {"counts":ad.X.copy()} #store raw counts before normalization changes ad.X
23 | sc.pp.normalize_total(ad, inplace=True, layers=None, key_added="sizefactor")
24 | sc.pp.log1p(ad)
25 |
26 | ad.var['deviance_poisson'] = preprocess.deviancePoisson(ad.layers["counts"])
27 | o = np.argsort(-ad.var['deviance_poisson'])
28 | idx = list(range(ad.shape[0]))
29 | random.shuffle(idx)
30 | ad = ad[idx,o]
31 | ad = ad[:,:2000]
32 |
33 | Dtr,Dval = preprocess.anndata_to_train_val(ad,layer="counts",sz="scanpy")
34 | Dtr_n,Dval_n = preprocess.anndata_to_train_val(ad) #normalized data
35 | fmeans,Dtr_c,Dval_c = preprocess.center_data(Dtr_n,Dval_n) #centered features
36 | Xtr = Dtr["X"] #note this should be identical to Dtr_n["X"]
37 | Ntr = Xtr.shape[0]
38 | Dtf = preprocess.prepare_datasets_tf(Dtr,Dval=Dval,shuffle=False)
39 | Dtf_n = preprocess.prepare_datasets_tf(Dtr_n,Dval=Dval_n,shuffle=False)
40 | Dtf_c = preprocess.prepare_datasets_tf(Dtr_c,Dval=Dval_c,shuffle=False)
41 | visualize.heatmap(Xtr,Dtr["Y"][:,0],marker="D",s=15)
42 | plt.show()
43 |
44 | # Visualize raw data
45 | plt.imshow(np.log1p(Dtr["Y"])[:50,:100],cmap="Blues")
46 | plt.show()
47 |
48 | # Visualize inducing points
49 | Z = misc.kmeans_inducing_pts(Xtr,500)
50 | fig,ax=plt.subplots(figsize=(12,10))
51 | ax.scatter(Xtr[:,0],Xtr[:,1],marker="D",s=50,)
52 | ax.scatter(Z[:,0],Z[:,1],c="red",s=30)
53 | plt.show()
54 |
55 | # initialize inducing points and tuning parameters
56 | Z = misc.kmeans_inducing_pts(Xtr, 2363)
57 | M = Z.shape[0]
58 | ker = tfk.MaternThreeHalves
59 | S = 3 #samples for elbo approximation
60 | # NSF: Spatial only with non-negative factors
61 | L = 8 #number of latent factors, ideally divisible by 2
62 | J = 2000
63 |
64 | mpth = path.join("/mnt/c/Users/demeter_turos/PycharmProjects/deep_learning/nsf/models/V5")
65 |
66 | fit = sf.SpatialFactorization(J,L,Z,psd_kernel=ker,nonneg=True,lik="poi")
67 | fit.elbo_avg(Xtr,Dtr["Y"],sz=Dtr["sz"])
68 | fit.init_loadings(Dtr["Y"],X=Xtr,sz=Dtr["sz"])
69 | fit.elbo_avg(Xtr,Dtr["Y"],sz=Dtr["sz"])
70 | pp = fit.generate_pickle_path("scanpy",base=mpth)
71 | tro = training.ModelTrainer(fit,pickle_path=pp)
72 | tro.train_model(*Dtf)
73 |
74 | ttl = "NSF: spatial, non-negative factors, Poisson likelihood"
75 | visualize.plot_loss(tro.loss,title=ttl)#,ss=range(2000,4000))
76 | plt.show()
77 |
78 | hmkw = {"figsize":(4,4), "s":0.3, "marker":"D", "subplot_space":0,
79 | "spinecolor":"white"}
80 | insf = postprocess.interpret_nsf(fit,Xtr,S=10,lda_mode=False)
81 | tgnames = [str(i) for i in range(1,L+1)]
82 | fig,axes=visualize.multiheatmap(Xtr, np.sqrt(insf["factors"]), (4,3), **hmkw)
83 | visualize.set_titles(fig, tgnames, x=0.05, y=.85, fontsize="medium", c="white",
84 | ha="left", va="top")
85 | plt.show()
86 |
87 | end_time = time.time()
88 | elapsed_time = end_time - start_time
89 | print(elapsed_time)
90 |
91 | file = open(mpth + '/human_lymph_node_nsf.pkl', 'wb')
92 | pickle.dump({'factors': insf, 'positions': Xtr}, file)
93 | file.close()
94 |
95 | file = open(mpth + '/human_lymph_node_nsf.pkl', 'rb')
96 | data = pickle.load(file)
97 | file.close()
--------------------------------------------------------------------------------
/article/A2_human_lymph_node/benchmarking/spatialpca.R:
--------------------------------------------------------------------------------
1 | library(SpatialPCA)
2 | library(ggplot2)
3 | library(Matrix)
4 | library(Seurat)
5 |
6 |
7 | # HUMAN LYMPH NODE
8 | # Read sparse matrix from h5 file into Seurat object
9 |
10 | start_time <- Sys.time()
11 |
12 | adata <- Load10X_Spatial("C:/Users/demeter_turos/PycharmProjects/chrysalis/data/V1_Human_Lymph_Node/",)
13 |
14 | adata <- PercentageFeatureSet(adata, "^mt-", col.name = "percent_mito")
15 |
16 | adata <- subset(adata, subset = nCount_Spatial > 6000)
17 | gene_counts <- rowSums(GetAssayData(adata, slot = "counts") > 0)
18 | keep_genes <- names(gene_counts[gene_counts >= 10])
19 | adata <- subset(adata, features = keep_genes)
20 |
21 | xy_coords <- adata@images$slice1@coordinates
22 | xy_coords <- xy_coords[c('imagerow', 'imagecol')]
23 | colnames(xy_coords) <- c('x_coord', 'y_coord')
24 |
25 | count_sub <- adata@assays$Spatial@data
26 | print(dim(count_sub)) # The count matrix
27 | xy_coords <- as.matrix(xy_coords)
28 | rownames(xy_coords) <- colnames(count_sub) # the rownames of location should match with the colnames of count matrix
29 | LIBD <- CreateSpatialPCAObject(counts=count_sub, location=xy_coords, project="SpatialPCA", gene.type="spatial",
30 | sparkversion="spark", numCores_spark=5, gene.number=3000, customGenelist=NULL,
31 | min.loctions=20, min.features=20)
32 |
33 | LIBD <- SpatialPCA_buildKernel(LIBD, kerneltype="gaussian", bandwidthtype="SJ", bandwidth.set.by.user=NULL)
34 | LIBD <- SpatialPCA_EstimateLoading(LIBD,fast=FALSE,SpatialPCnum=20)
35 | LIBD <- SpatialPCA_SpatialPCs(LIBD, fast=FALSE)
36 |
37 |
38 | saveRDS(LIBD, file = "C:/Users/demeter_turos/PycharmProjects/chrysalis/data/cell2loc_human_lymph_node/spatialpca/libd.rds")
39 |
40 | LIBD <- readRDS(file = "C:/Users/demeter_turos/PycharmProjects/chrysalis/data/cell2loc_human_lymph_node/spatialpca/libd.rds")
41 |
42 | write.csv(LIBD@SpatialPCs, "C:/Users/demeter_turos/PycharmProjects/chrysalis/data/cell2loc_human_lymph_node/spatialpca/spatial_pcs.csv")
43 |
44 | clusterlabel <- walktrap_clustering(clusternum=8, latent_dat=LIBD@SpatialPCs, knearest=70)
45 | # here for all 12 samples in LIBD, we set the same k nearest number in walktrap_clustering to be 70.
46 | # for other Visium or ST data, the user can also set k nearest number as
47 | # round(sqrt(dim(SpatialPCAobject@SpatialPCs)[2])) by default.
48 | clusterlabel_refine <- refine_cluster_10x(clusterlabels=clusterlabel, location=LIBD@location, shape="hexagon")
49 |
50 | end_time <- Sys.time()
51 |
52 | elapsed_time <- end_time - start_time
53 | print(elapsed_time)
54 |
55 | cbp<-c('#db5f57', '#dbc257', '#91db57', '#57db80', '#57d3db', '#5770db', '#a157db', '#db57b2')
56 | plot_cluster(location=xy_coords,clusterlabel=clusterlabel_refine, pointsize=1.5,
57 | title_in=paste0("SpatialPCA"), color_in=cbp)
58 |
--------------------------------------------------------------------------------
/article/A2_human_lymph_node/benchmarking/stagate.py:
--------------------------------------------------------------------------------
1 | import pandas as pd
2 | import scanpy as sc
3 | import matplotlib as mpl
4 | import STAGATE
5 | import time
6 |
7 |
8 | start_time = time.time()
9 |
10 | adata = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')
11 | sc.pp.calculate_qc_metrics(adata, inplace=True)
12 |
13 | sc.pp.filter_cells(adata, min_counts=6000)
14 | sc.pp.filter_genes(adata, min_cells=10)
15 |
16 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
17 | sc.pp.normalize_total(adata, target_sum=1e4)
18 | sc.pp.log1p(adata)
19 |
20 | STAGATE.Cal_Spatial_Net(adata, rad_cutoff=150)
21 | STAGATE.Stats_Spatial_Net(adata)
22 |
23 | coor = pd.DataFrame(adata.obsm['spatial'])
24 | coor.index = adata.obs.index
25 | coor.columns = ['imagerow', 'imagecol']
26 | import sklearn.neighbors
27 |
28 | nbrs = sklearn.neighbors.NearestNeighbors(radius=150).fit(coor)
29 | distances, indices = nbrs.radius_neighbors(coor, return_distance=True)
30 | KNN_list = []
31 | for it in range(indices.shape[0]):
32 | KNN_list.append(pd.DataFrame(zip([it]*indices[it].shape[0], indices[it], distances[it])))
33 | KNN_df = pd.concat(KNN_list)
34 | KNN_df.columns = ['Cell1', 'Cell2', 'Distance']
35 |
36 | adata = STAGATE.train_STAGATE(adata, alpha=0)
37 |
38 | for i in range(30):
39 | adata.obs[f'S{i}'] = adata.obsm['STAGATE'][:, i]
40 |
41 | with mpl.rc_context({'figure.figsize': [4.5, 5]}):
42 | sc.pl.spatial(adata, color=[f'S{i}' for i in range(30)], size=2, ncols=4)
43 |
44 | stagate_df = adata.obs[[f'S{i}' for i in range(30)]]
45 | stagate_df.to_csv('stagate_lymph_node.csv')
46 |
47 | end_time = time.time()
48 | elapsed_time = end_time - start_time
49 | print(elapsed_time)
--------------------------------------------------------------------------------
/article/A3_human_breast_cancer/benchmarking/graphst.py:
--------------------------------------------------------------------------------
1 | import torch
2 | import pandas as pd
3 | import scanpy as sc
4 | from GraphST import GraphST
5 |
6 |
7 | data_path = '/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/'
8 |
9 | device = torch.device('cuda:1' if torch.cuda.is_available() else 'cpu')
10 |
11 | adata = sc.read_h5ad(data_path + 'visium_sample.h5ad')
12 | adata.var_names_make_unique()
13 |
14 | # define model
15 | model = GraphST.GraphST(adata, device=torch.device('cpu'))
16 | # train model
17 | adata = model.train()
18 |
19 | pd.DataFrame(adata.obsm['emb']).to_csv(data_path + 'graphst_breast_cancer.csv')
20 |
--------------------------------------------------------------------------------
/article/A3_human_breast_cancer/benchmarking/mefisto.py:
--------------------------------------------------------------------------------
1 | import time
2 | import mofax
3 | import pandas as pd
4 | import scanpy as sc
5 | from mofapy2.run.entry_point import entry_point
6 |
7 |
8 | datadir = "/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/mefisto/"
9 |
10 | data_path = '/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/'
11 | adata = sc.read_h5ad(data_path + 'visium_sample.h5ad')
12 |
13 | sc.pp.normalize_total(adata, inplace=True)
14 | sc.pp.log1p(adata)
15 | sc.pp.highly_variable_genes(adata, flavor="seurat", n_top_genes=2000)
16 |
17 | adata.obs = pd.concat([adata.obs,
18 | pd.DataFrame(adata.obsm["spatial"], columns=["imagerow", "imagecol"], index=adata.obs_names),
19 | ], axis=1)
20 |
21 |
22 | ent = entry_point()
23 | ent.set_data_options(use_float32=True)
24 | ent.set_data_from_anndata(adata, features_subset="highly_variable")
25 |
26 | ent.set_model_options(factors=8)
27 | ent.set_train_options()
28 | ent.set_train_options(seed=2021)
29 |
30 | # We use 1000 inducing points to learn spatial covariance patterns
31 | n_inducing = 1000
32 |
33 | ent.set_covariates([adata.obsm["spatial"]], covariates_names=["imagerow", "imagecol"])
34 | ent.set_smooth_options(sparseGP=True, frac_inducing=n_inducing/adata.n_obs,
35 | start_opt=10, opt_freq=10)
36 |
37 |
38 | ent.build()
39 | ent.run()
40 | ent.save(datadir + "ST_model.hdf5")
41 |
42 | m = mofax.mofa_model(datadir + "ST_model.hdf5")
43 | factor_df = m.get_factors(df=True)
44 | factor_df.to_csv(datadir + 'factors.csv')
--------------------------------------------------------------------------------
/article/A3_human_breast_cancer/benchmarking/nsf.py:
--------------------------------------------------------------------------------
1 | import time
2 | import pickle
3 | import random
4 | import numpy as np
5 | import scanpy as sc
6 | from os import path
7 | import matplotlib.pyplot as plt
8 | from tensorflow_probability import math as tm
9 | from nsf.models import cf, sf, sfh
10 | from nsf.utils import preprocess, training, misc, visualize, postprocess
11 |
12 |
13 | tfk = tm.psd_kernels
14 |
15 | data_path = '/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/'
16 |
17 | ad = sc.read_h5ad(data_path + 'visium_sample.h5ad')
18 | ad.var_names_make_unique()
19 |
20 | sc.pp.calculate_qc_metrics(ad, inplace=True)
21 | sc.pp.filter_cells(ad, min_counts=1000)
22 | sc.pp.filter_genes(ad, min_cells=10)
23 |
24 | ad.layers = {"counts":ad.X.copy()} #store raw counts before normalization changes ad.X
25 | sc.pp.normalize_total(ad, inplace=True, layers=None, key_added="sizefactor")
26 | sc.pp.log1p(ad)
27 |
28 | # normalization, feature selection and train/test split
29 | ad.var['deviance_poisson'] = preprocess.deviancePoisson(ad.layers["counts"])
30 | o = np.argsort(-ad.var['deviance_poisson'])
31 | idx = list(range(ad.shape[0]))
32 | random.shuffle(idx)
33 | ad = ad[idx,o]
34 | ad = ad[:,:2000]
35 |
36 | Dtr,Dval = preprocess.anndata_to_train_val(ad,layer="counts",sz="scanpy")
37 | Dtr_n,Dval_n = preprocess.anndata_to_train_val(ad) #normalized data
38 | fmeans,Dtr_c,Dval_c = preprocess.center_data(Dtr_n,Dval_n) #centered features
39 | Xtr = Dtr["X"] #note this should be identical to Dtr_n["X"]
40 | Ntr = Xtr.shape[0]
41 | Dtf = preprocess.prepare_datasets_tf(Dtr,Dval=Dval,shuffle=False)
42 | Dtf_n = preprocess.prepare_datasets_tf(Dtr_n,Dval=Dval_n,shuffle=False)
43 | Dtf_c = preprocess.prepare_datasets_tf(Dtr_c,Dval=Dval_c,shuffle=False)
44 | visualize.heatmap(Xtr,Dtr["Y"][:,0],marker="D",s=15)
45 | plt.show()
46 |
47 | # Visualize raw data
48 | plt.imshow(np.log1p(Dtr["Y"])[:50,:100],cmap="Blues")
49 | plt.show()
50 |
51 | # Visualize inducing points
52 | Z = misc.kmeans_inducing_pts(Xtr,500)
53 | fig,ax=plt.subplots(figsize=(12,10))
54 | ax.scatter(Xtr[:,0],Xtr[:,1],marker="D",s=50,)
55 | ax.scatter(Z[:,0],Z[:,1],c="red",s=30)
56 | plt.show()
57 |
58 | # initialize inducing points and tuning parameters
59 | Z = misc.kmeans_inducing_pts(Xtr, 2363)
60 | M = Z.shape[0]
61 | ker = tfk.MaternThreeHalves
62 | S = 3 #samples for elbo approximation
63 | # NSF: Spatial only with non-negative factors
64 | L = 8 #number of latent factors, ideally divisible by 2
65 | J = 2000
66 |
67 | mpth = path.join("/mnt/c/Users/demeter_turos/PycharmProjects/deep_learning/nsf/models/V6")
68 |
69 | fit = sf.SpatialFactorization(J,L,Z,psd_kernel=ker,nonneg=True,lik="poi")
70 | fit.elbo_avg(Xtr,Dtr["Y"],sz=Dtr["sz"])
71 | fit.init_loadings(Dtr["Y"],X=Xtr,sz=Dtr["sz"])
72 | fit.elbo_avg(Xtr,Dtr["Y"],sz=Dtr["sz"])
73 | pp = fit.generate_pickle_path("scanpy",base=mpth)
74 | tro = training.ModelTrainer(fit,pickle_path=pp)
75 | tro.train_model(*Dtf)
76 | ttl = "NSF: spatial, non-negative factors, Poisson likelihood"
77 | visualize.plot_loss(tro.loss,title=ttl)#,ss=range(2000,4000))
78 | plt.show()
79 |
80 | # Postprocessing
81 | hmkw = {"figsize":(4,4), "s":0.3, "marker":"D", "subplot_space":0,
82 | "spinecolor":"white"}
83 | insf = postprocess.interpret_nsf(fit,Xtr,S=10,lda_mode=False)
84 | tgnames = [str(i) for i in range(1,L+1)]
85 | fig,axes=visualize.multiheatmap(Xtr, np.sqrt(insf["factors"]), (4,3), **hmkw)
86 | visualize.set_titles(fig, tgnames, x=0.05, y=.85, fontsize="medium", c="white",
87 | ha="left", va="top")
88 | plt.show()
89 |
90 | file = open(mpth + '/human_breast_cancer_nsf.pkl', 'wb')
91 | pickle.dump({'factors': insf, 'positions': Xtr}, file)
92 | file.close()
93 |
94 | file = open(mpth + '/human_breast_cancer_nsf.pkl', 'rb')
95 | data = pickle.load(file)
96 | file.close()
97 |
--------------------------------------------------------------------------------
/article/A3_human_breast_cancer/benchmarking/spatialpca.R:
--------------------------------------------------------------------------------
1 | library(SpatialPCA)
2 | library(ggplot2)
3 | library(Matrix)
4 | library(Seurat)
5 |
6 |
7 | # HUMAN BREAST CANCER
8 | # Read sparse matrix from h5 file into Seurat object
9 | adata <- Load10X_Spatial("C:/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/visium",)
10 | csv_data <- read.csv('C:/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/spots_filtered.csv')
11 | first_column <- csv_data[, 1]
12 | adata <- adata[, first_column]
13 |
14 | adata <- PercentageFeatureSet(adata, "^mt-", col.name = "percent_mito")
15 |
16 | gene_counts <- rowSums(GetAssayData(adata, slot = "counts") > 0)
17 | keep_genes <- names(gene_counts[gene_counts >= 10])
18 | adata <- subset(adata, features = keep_genes)
19 |
20 | xy_coords <- adata@images$slice1@coordinates
21 | xy_coords <- xy_coords[c('imagerow', 'imagecol')]
22 | colnames(xy_coords) <- c('x_coord', 'y_coord')
23 |
24 | count_sub <- adata@assays$Spatial@data
25 | print(dim(count_sub)) # The count matrix
26 | xy_coords <- as.matrix(xy_coords)
27 | rownames(xy_coords) <- colnames(count_sub) # the rownames of location should match with the colnames of count matrix
28 | LIBD <- CreateSpatialPCAObject(counts=count_sub, location=xy_coords, project="SpatialPCA", gene.type="spatial",
29 | sparkversion="spark", numCores_spark=5, gene.number=3000, customGenelist=NULL,
30 | min.loctions=20, min.features=20)
31 |
32 | LIBD <- SpatialPCA_buildKernel(LIBD, kerneltype="gaussian", bandwidthtype="SJ", bandwidth.set.by.user=NULL)
33 | LIBD <- SpatialPCA_EstimateLoading(LIBD,fast=FALSE,SpatialPCnum=20)
34 | LIBD <- SpatialPCA_SpatialPCs(LIBD, fast=FALSE)
35 |
36 | saveRDS(LIBD, file = "C:/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/spatialpca/libd.rds")
37 |
38 | LIBD <- readRDS(file = "C:/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/spatialpca/libd.rds")
39 |
40 | write.csv(LIBD@SpatialPCs, "C:/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/spatialpca/spatial_pcs.csv")
41 |
42 | clusterlabel <- walktrap_clustering(clusternum=8, latent_dat=LIBD@SpatialPCs, knearest=70)
43 | # here for all 12 samples in LIBD, we set the same k nearest number in walktrap_clustering to be 70.
44 | # for other Visium or ST data, the user can also set k nearest number as round(sqrt(dim(SpatialPCAobject@SpatialPCs)[2])) by default.
45 | clusterlabel_refine <- refine_cluster_10x(clusterlabels=clusterlabel, location=LIBD@location, shape="hexagon")
46 |
47 | cbp<-c('#db5f57', '#dbc257', '#91db57', '#57db80', '#57d3db', '#5770db', '#a157db', '#db57b2')
48 | plot_cluster(location=xy_coords,clusterlabel=clusterlabel_refine, pointsize=1.5,
49 | title_in=paste0("SpatialPCA"), color_in=cbp)
--------------------------------------------------------------------------------
/article/A3_human_breast_cancer/benchmarking/stagate.py:
--------------------------------------------------------------------------------
1 | import STAGATE
2 | import pandas as pd
3 | import scanpy as sc
4 | import matplotlib as mpl
5 | import sklearn.neighbors
6 |
7 |
8 | data_path = '/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/'
9 |
10 | adata = sc.read_h5ad(data_path + 'visium_sample.h5ad')
11 |
12 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
13 | sc.pp.normalize_total(adata, target_sum=1e4)
14 | sc.pp.log1p(adata)
15 |
16 | STAGATE.Cal_Spatial_Net(adata, rad_cutoff=300)
17 | STAGATE.Stats_Spatial_Net(adata)
18 |
19 | coor = pd.DataFrame(adata.obsm['spatial'])
20 | coor.index = adata.obs.index
21 | coor.columns = ['imagerow', 'imagecol']
22 |
23 |
24 | nbrs = sklearn.neighbors.NearestNeighbors(radius=1000).fit(coor)
25 | distances, indices = nbrs.radius_neighbors(coor, return_distance=True)
26 | KNN_list = []
27 | for it in range(indices.shape[0]):
28 | KNN_list.append(pd.DataFrame(zip([it]*indices[it].shape[0], indices[it], distances[it])))
29 |
30 | KNN_df = pd.concat(KNN_list)
31 | KNN_df.columns = ['Cell1', 'Cell2', 'Distance']
32 |
33 | sc.pl.spatial(adata, color='CD74')
34 |
35 | adata = STAGATE.train_STAGATE(adata, alpha=0)
36 |
37 | for i in range(30):
38 | adata.obs[f'S{i}'] = adata.obsm['STAGATE'][:, i]
39 |
40 |
41 | with mpl.rc_context({'figure.figsize': [4.5, 5]}):
42 | sc.pl.spatial(adata, color=[f'S{i}' for i in range(30)], size=2, ncols=4)
43 |
44 | stagate_df = adata.obs[[f'S{i}' for i in range(30)]]
45 | stagate_df.to_csv('stagate_breast_cancer.csv')
46 |
--------------------------------------------------------------------------------
/article/A3_human_breast_cancer/morphology_integration/2_autoencoder_training.py:
--------------------------------------------------------------------------------
1 | import numpy as np
2 | import torch
3 | import torch.nn as nn
4 | import torch.nn.functional as F
5 | import torch.optim as optim
6 | import torch.utils.data as data
7 | import pytorch_lightning as L
8 | import matplotlib.pyplot as plt
9 | from itertools import islice
10 | from torchinfo import summary
11 | from torchvision import transforms
12 | from pytorch_lightning.callbacks import Callback, LearningRateMonitor, ModelCheckpoint
13 |
14 |
15 | # setting the seed
16 | L.seed_everything(42)
17 |
18 | # ensure that all operations are deterministic on GPU for reproducibility
19 | torch.backends.cudnn.deterministic = True
20 | torch.backends.cudnn.benchmark = False
21 |
22 | device = torch.device("cuda:0") if torch.cuda.is_available() else torch.device("cpu")
23 | print("Device:", device)
24 |
25 | data_path = "/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/tiles_299.npy"
26 |
27 | class NpDataset(data.Dataset):
28 | def __init__(self, data_file=None, transform=None):
29 | self.data = np.load(data_file)
30 | if self.data.shape[-1] == 3:
31 | self.data = self.data.transpose(0, 3, 1, 2)
32 | self.data = self.data / 255.0
33 | self.transform = transform
34 |
35 | def __len__(self):
36 | return len(self.data)
37 |
38 | def __getitem__(self, idx):
39 | x = torch.from_numpy(self.data[idx]).float()
40 | if self.transform:
41 | x = self.transform(x)
42 | return x, x
43 |
44 | transform = transforms.Compose([transforms.ToPILImage(),
45 | transforms.Resize((256, 256)),
46 | transforms.ToTensor(),
47 | transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))
48 | ])
49 | ds = NpDataset(data_file=data_path, transform=transform)
50 |
51 | train_set, val_set = torch.utils.data.random_split(ds, [3510, 396])
52 |
53 | train_loader = data.DataLoader(ds, batch_size=1, shuffle=True, drop_last=False, pin_memory=True, num_workers=1)
54 |
55 |
56 | def show_image(data_loader):
57 | dataiter = iter(data_loader)
58 | images = dataiter.next()
59 | img = images[0][0].clone() # clone to avoid changing original tensor
60 | img = img * 0.5 + 0.5
61 | img_arr = img.numpy().transpose(1, 2, 0)
62 | plt.imshow(img_arr)
63 | plt.show()
64 |
65 |
66 | show_image(train_loader)
67 |
68 | class Encoder(nn.Module):
69 | def __init__(self, num_input_channels: int, base_channel_size: int, latent_dim: int, act_fn: object = nn.GELU):
70 | super().__init__()
71 | c_hid = base_channel_size
72 | self.net = nn.Sequential(
73 | # 256x256 => 128x128
74 | nn.Conv2d(num_input_channels, c_hid, kernel_size=3, padding=1, stride=2),
75 | act_fn(),
76 | # 128x128 => 64x64
77 | nn.Conv2d(c_hid, c_hid, kernel_size=3, padding=1, stride=2),
78 | act_fn(),
79 | # 64x64 => 32x32
80 | nn.Conv2d(c_hid, 2 * c_hid, kernel_size=3, padding=1, stride=2),
81 | act_fn(),
82 | nn.Flatten(), # image grid to single feature vector
83 | nn.Linear(32 * 32 * 2 * c_hid, latent_dim),
84 | )
85 |
86 | def forward(self, x):
87 | return self.net(x)
88 |
89 |
90 | class Decoder(nn.Module):
91 | def __init__(self, num_input_channels: int, base_channel_size: int, latent_dim: int, act_fn: object = nn.GELU):
92 | super().__init__()
93 | c_hid = base_channel_size
94 | self.linear = nn.Sequential(nn.Linear(latent_dim, 2 * c_hid * 32 * 32), act_fn())
95 | self.net = nn.Sequential(
96 | # 32x32=>64x64
97 | nn.ConvTranspose2d(2 * c_hid, c_hid, kernel_size=3, output_padding=1, padding=1, stride=2),
98 | act_fn(),
99 | # 64x64 => 128x128
100 | nn.ConvTranspose2d(c_hid, num_input_channels, kernel_size=3, output_padding=1, padding=1, stride=2),
101 | act_fn(),
102 | # 128x128 => 256x256
103 | nn.ConvTranspose2d(num_input_channels, num_input_channels, kernel_size=3, output_padding=1, padding=1,
104 | stride=2),
105 | nn.Tanh(),
106 | )
107 |
108 | def forward(self, x):
109 | x = self.linear(x)
110 | x = x.reshape(x.shape[0], 2 * 32, 32, 32)
111 | x = self.net(x)
112 | return x
113 |
114 |
115 | class Autoencoder(L.LightningModule):
116 | def __init__(
117 | self,
118 | base_channel_size: int,
119 | latent_dim: int,
120 | encoder_class: object = Encoder,
121 | decoder_class: object = Decoder,
122 | num_input_channels: int = 3,
123 | width: int = 32,
124 | height: int = 32,
125 | ):
126 | super().__init__()
127 | # saving hyperparameters of autoencoder
128 | self.save_hyperparameters()
129 | # creating encoder and decoder
130 | self.encoder = encoder_class(num_input_channels, base_channel_size, latent_dim)
131 | self.decoder = decoder_class(num_input_channels, base_channel_size, latent_dim)
132 | # example input array needed for visualizing the graph of the network
133 | self.example_input_array = torch.zeros(2, num_input_channels, width, height)
134 |
135 | def forward(self, x):
136 | """the forward function takes in an image and returns the reconstructed image."""
137 | z = self.encoder(x)
138 | x_hat = self.decoder(z)
139 | return x_hat
140 |
141 | def _get_reconstruction_loss(self, batch):
142 | """given a batch of images, this function returns the reconstruction loss (MSE in our case)"""
143 | x, _ = batch # We do not need the labels
144 | x_hat = self.forward(x)
145 | loss = F.mse_loss(x, x_hat, reduction="none")
146 | loss = loss.sum(dim=[1, 2, 3]).mean(dim=[0])
147 | return loss
148 |
149 | def configure_optimizers(self):
150 | optimizer = optim.Adam(self.parameters(), lr=1e-3)
151 | scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer, mode="min", factor=0.2, patience=20, min_lr=5e-5)
152 | return {"optimizer": optimizer, "lr_scheduler": scheduler, "monitor": "train_loss"}
153 |
154 | def training_step(self, batch, batch_idx):
155 | loss = self._get_reconstruction_loss(batch)
156 | self.log("train_loss", loss)
157 | return loss
158 |
159 | def validation_step(self, batch, batch_idx):
160 | loss = self._get_reconstruction_loss(batch)
161 | self.log("val_loss", loss)
162 |
163 | def test_step(self, batch, batch_idx):
164 | loss = self._get_reconstruction_loss(batch)
165 | self.log("test_loss", loss)
166 |
167 |
168 | model = Autoencoder(base_channel_size=32, latent_dim=512, width=256, height=256)
169 |
170 | summary(model, (1, 3, 256, 256))
171 |
172 | latent_dim = 512
173 |
174 | trainer = L.Trainer(default_root_dir="/mnt/c/Users/demeter_turos/PycharmProjects/deep_learning/"
175 | "autoencoder_he_image/models/",
176 | accelerator="auto",
177 | devices=1,
178 | max_epochs=100,
179 | callbacks=[ModelCheckpoint(save_weights_only=True),
180 | # GenerateCallback(get_train_images(8), every_n_epochs=10),
181 | LearningRateMonitor("epoch")],
182 | limit_val_batches=0,
183 | num_sanity_val_steps=0)
184 |
185 | trainer.fit(model, train_loader)
186 |
187 | model = Autoencoder.load_from_checkpoint("/mnt/c/Users/demeter_turos/PycharmProjects/deep_learning/"
188 | "autoencoder_he_image/models/lightning_logs/version_8/checkpoints/"
189 | "epoch=99-step=390600.ckpt")
190 |
191 | data_iter = iter(train_loader) # Create an iterator for the dataloader
192 |
193 |
194 | def show_images(model, data_iter):
195 | model.to(device)
196 | model.eval()
197 | num_elements = 9
198 | elements = [x[0] for x in islice(data_iter, num_elements)] # Select only the first tensor of each pair
199 |
200 | # Now stack the list of tensors to a single tensor
201 | elements = torch.cat(elements)
202 |
203 | images = data_iter.next()
204 | elements = elements.to(device)
205 | # images = images[None, :]
206 | outputs = model(elements)
207 |
208 | outputs = outputs.cpu().detach().numpy()
209 |
210 |
211 | fig, axs = plt.subplots(3, 6, figsize=(12, 6))
212 | axs = axs.flatten()
213 | for a in axs:
214 | a.axis('off')
215 |
216 | for idx, i in enumerate([3, 4, 5, 9, 10, 11, 15, 16, 17]):
217 | out_img = outputs[idx]
218 | out_img = out_img * 0.5 + 0.5
219 | out_img_arr = out_img.transpose(1, 2, 0)
220 | axs[i].imshow(out_img_arr)
221 |
222 | for idx, i in enumerate([0, 1, 2, 6, 7 ,8, 12, 13, 14]):
223 | img = elements[idx].clone()
224 | img = img * 0.5 + 0.5
225 | img_arr = img.cpu().numpy().transpose(1, 2, 0)
226 | axs[i].imshow(img_arr)
227 |
228 |
229 | show_images(model, data_iter)
230 | plt.show()
231 |
232 | model.eval()
233 |
234 | all_encoded_features = []
235 |
236 | eval_loader = data.DataLoader(ds, batch_size=1, shuffle=False, drop_last=False, pin_memory=True, num_workers=1)
237 |
238 | with torch.no_grad():
239 | for batch in eval_loader:
240 | x, _ = batch
241 | x = x.to(device)
242 | encoded_features = model.encoder(x)
243 | encoded_features = encoded_features.cpu().detach().numpy()
244 | all_encoded_features.append(encoded_features)
245 |
246 | all_encoded_features = np.concatenate(all_encoded_features)
247 |
248 | np.save("/mnt/c/Users/demeter_turos/PycharmProjects/chrysalis/data/xenium_human_breast_cancer/aenc_features_512_v2.npy",
249 | all_encoded_features)
250 |
--------------------------------------------------------------------------------
/article/A4_mouse_brain/ffpe/benchmark/graphst.py:
--------------------------------------------------------------------------------
1 | import torch
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | from glob import glob
6 | from GraphST import GraphST
7 | import seaborn as sns
8 | import matplotlib.pyplot as plt
9 | from benchmarks.bm_functions import get_correlation_df, collect_correlation_results, collect_metadata
10 | from sklearn.decomposition import PCA
11 |
12 | print(adp)
13 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
14 | device = torch.device('cuda:1' if torch.cuda.is_available() else 'cpu')
15 | adata = sc.read_h5ad(adp)
16 | adata.var_names_make_unique()
17 |
18 | # define model
19 | model = GraphST.GraphST(adata, device=torch.device('cpu'))
20 |
21 | # train model
22 | adata = model.train()
23 |
24 | graphst_df = pd.DataFrame(adata.obsm['emb'])
25 | graphst_df.index = adata.obs.index
26 |
27 | pca = PCA(n_components=20, svd_solver='arpack', random_state=42)
28 | graphst_pcs = pca.fit_transform(graphst_df)
29 | graphst_pcs_df = pd.DataFrame(data=graphst_pcs, index=graphst_df.index)
30 |
31 | graphst_pcs_df.to_csv(sample_folder + 'graphst_comps.csv')
32 |
33 | tissue_zone_df = adata.obsm['tissue_zones']
34 | # tissue_zone_df = tissue_zone_df[[c for c in tissue_zone_df.columns if 'uniform' not in c]]
35 |
36 | corr_df = get_correlation_df(tissue_zone_df, graphst_pcs_df)
37 | corr_df.to_csv(sample_folder + 'graphst_pearson.csv')
38 |
39 | fig, ax = plt.subplots(1, 1, figsize=(6.4, 4.8))
40 | sns.heatmap(corr_df, square=True, center=0, ax=ax)
41 | plt.tight_layout()
42 | plt.savefig(sample_folder + 'graphst_corr_heatmap.png')
43 | plt.close()
44 |
45 |
--------------------------------------------------------------------------------
/article/A4_mouse_brain/ffpe/benchmark/mefisto.py:
--------------------------------------------------------------------------------
1 | import mofax
2 | import pandas as pd
3 | import scanpy as sc
4 | from mofapy2.run.entry_point import entry_point
5 | from tqdm import tqdm
6 | from glob import glob
7 |
8 |
9 | filepath = '/storage/homefs/pt22a065/chr_data/mouse_brain_anterior'
10 | adatas = glob(filepath + '/*/*.h5ad')
11 |
12 | results_df = pd.DataFrame()
13 |
14 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
15 | print(adp)
16 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
17 | adata = sc.read_h5ad(adp)
18 |
19 | sc.pp.filter_genes(adata, min_cells=len(adata) * 0.05)
20 |
21 | sc.pp.normalize_total(adata, inplace=True)
22 | sc.pp.log1p(adata)
23 | sc.pp.highly_variable_genes(adata, flavor="seurat", n_top_genes=2000)
24 |
25 | adata.obs = pd.concat([adata.obs,
26 | pd.DataFrame(adata.obsm["spatial"], columns=["imagerow", "imagecol"],
27 | index=adata.obs_names),
28 | ], axis=1)
29 |
30 | ent = entry_point()
31 | ent.set_data_options(use_float32=True)
32 | ent.set_data_from_anndata(adata, features_subset="highly_variable")
33 |
34 | ent.set_model_options(factors=28)
35 | ent.set_train_options(save_interrupted=True)
36 | ent.set_train_options(seed=2021)
37 |
38 | # We use 1000 inducing points to learn spatial covariance patterns
39 | n_inducing = 1000 # 500 for size tests
40 |
41 | ent.set_covariates([adata.obsm["spatial"]], covariates_names=["imagerow", "imagecol"])
42 | ent.set_smooth_options(sparseGP=True, frac_inducing=n_inducing / adata.n_obs,
43 | start_opt=10, opt_freq=10)
44 |
45 | ent.build()
46 | ent.run()
47 | ent.save(sample_folder + "mefisto_temp.hdf5")
48 | m = mofax.mofa_model(sample_folder + "mefisto_temp.hdf5")
49 | factor_df = m.get_factors(df=True)
50 |
51 | # factor_df = ent.model.getFactors(df=True)
52 |
53 | factor_df.to_csv(sample_folder + 'mefisto_comps.csv')
54 |
--------------------------------------------------------------------------------
/article/A4_mouse_brain/ffpe/benchmark/nsf.py:
--------------------------------------------------------------------------------
1 | import random
2 | import numpy as np
3 | import pandas as pd
4 | import scanpy as sc
5 | from os import path
6 | import os
7 | from tqdm import tqdm
8 | from glob import glob
9 | import seaborn as sns
10 | import matplotlib.pyplot as plt
11 | from tensorflow_probability import math as tm
12 | from nsf.models import sf
13 | from nsf.utils import preprocess, training, visualize, postprocess, misc
14 | import pickle
15 | import math
16 |
17 | from bm_functions import get_correlation_df, collect_correlation_results, collect_metadata
18 |
19 | filepath = '/storage/homefs/pt22a065/chr_data/mouse_brain_anterior'
20 | adatas = glob(filepath + '/*/*.h5ad')
21 | tfk = tm.psd_kernels
22 |
23 | results_df = pd.DataFrame()
24 |
25 | for idx, adp in tqdm(enumerate(adatas), total=len(adatas)):
26 | print(adp)
27 | sample_folder = '/'.join(adp.split('/')[:-1]) + '/'
28 |
29 | # Check if all necessary output files already exist in the sample_folder
30 | if (os.path.exists(sample_folder + 'nsf_comps.csv') and
31 | os.path.exists(sample_folder + 'nsf_pearson.csv') and
32 | os.path.exists(sample_folder + 'nsf_corr_heatmap.png')):
33 | print(f"Skipping {sample_folder} as output files already exist.")
34 | continue
35 |
36 | adata = sc.read_h5ad(adp)
37 |
38 | sc.pp.calculate_qc_metrics(adata, inplace=True)
39 | sc.pp.filter_genes(adata, min_cells=len(adata) * 0.05)
40 |
41 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
42 | adata.layers = {"counts": adata.X.copy()} # store raw counts before normalization changes ad.X
43 | sc.pp.normalize_total(adata, inplace=True, layers=None, key_added="sizefactor")
44 | sc.pp.log1p(adata)
45 |
46 | adata.var['deviance_poisson'] = preprocess.deviancePoisson(adata.layers["counts"])
47 | o = np.argsort(-adata.var['deviance_poisson'])
48 | idx = list(range(adata.shape[0]))
49 | random.shuffle(idx)
50 | adata = adata[idx, o]
51 | adata = adata[:, :2000]
52 |
53 | Dtr, Dval = preprocess.anndata_to_train_val(adata, layer="counts", sz="scanpy")
54 | Dtr_n, Dval_n = preprocess.anndata_to_train_val(adata) # normalized data
55 | fmeans, Dtr_c, Dval_c = preprocess.center_data(Dtr_n, Dval_n) # centered features
56 | Xtr = Dtr["X"] # note this should be identical to Dtr_n["X"]
57 | Ntr = Xtr.shape[0]
58 | Dtf = preprocess.prepare_datasets_tf(Dtr, Dval=Dval, shuffle=False)
59 | Dtf_n = preprocess.prepare_datasets_tf(Dtr_n, Dval=Dval_n, shuffle=False)
60 | Dtf_c = preprocess.prepare_datasets_tf(Dtr_c, Dval=Dval_c, shuffle=False)
61 | visualize.heatmap(Xtr, Dtr["Y"][:, 0], marker="D", s=15)
62 | plt.close()
63 |
64 | # Visualize raw data
65 | plt.imshow(np.log1p(Dtr["Y"])[:50, :100], cmap="Blues")
66 | plt.close()
67 |
68 | # Visualize inducing points
69 | Z = misc.kmeans_inducing_pts(Xtr, 500)
70 | fig, ax = plt.subplots(figsize=(12, 10))
71 | ax.scatter(Xtr[:, 0], Xtr[:, 1], marker="D", s=50, )
72 | ax.scatter(Z[:, 0], Z[:, 1], c="red", s=30)
73 | plt.close()
74 |
75 | # initialize inducing points and tuning parameters
76 | Z = misc.kmeans_inducing_pts(Xtr, 2363) # 2363
77 | M = Z.shape[0]
78 | ker = tfk.MaternThreeHalves
79 | S = 3 # samples for elbo approximation
80 | # NSF: Spatial only with non-negative factors
81 | L = 28 # number of latent factors, ideally divisible by 2
82 | J = 2000
83 |
84 | mpth = path.join("/storage/homefs/pt22a065/chr_benchmarks/nsf/models/V5/")
85 |
86 | fit = sf.SpatialFactorization(J, L, Z, psd_kernel=ker, nonneg=True, lik="poi")
87 | fit.elbo_avg(Xtr, Dtr["Y"], sz=Dtr["sz"])
88 | fit.init_loadings(Dtr["Y"], X=Xtr, sz=Dtr["sz"])
89 | fit.elbo_avg(Xtr, Dtr["Y"], sz=Dtr["sz"])
90 | pp = fit.generate_pickle_path("scanpy", base=mpth)
91 | tro = training.ModelTrainer(fit, pickle_path=pp)
92 | tro.train_model(*Dtf, ckpt_freq=10000)
93 |
94 | ttl = "NSF: spatial, non-negative factors, Poisson likelihood"
95 | visualize.plot_loss(tro.loss, title=ttl) # ,ss=range(2000,4000))
96 | plt.savefig(sample_folder + 'nsf_loss.png')
97 | plt.close()
98 |
99 | hmkw = {"figsize": (4, 4), "s": 0.3, "marker": "D", "subplot_space": 0,
100 | "spinecolor": "white"}
101 | insf = postprocess.interpret_nsf(fit, Xtr, S=10, lda_mode=False)
102 | tgnames = [str(i) for i in range(1, L + 1)]
103 |
104 | # fig, axes = visualize.multiheatmap(Xtr, np.sqrt(insf["factors"]), (4, 3), **hmkw)
105 | # visualize.set_titles(fig, tgnames, x=0.05, y=.85, fontsize="medium", c="white",
106 | # ha="left", va="top")
107 | # plt.savefig(sample_folder + 'nsf_comps.png')
108 | # plt.close()
109 |
110 | data = {'factors': insf, 'positions': Xtr}
111 |
112 |
113 | def transform_coords(X):
114 | # code from nsf github
115 | X[:, 1] = -X[:, 1]
116 | xmin = X.min(axis=0)
117 | X -= xmin
118 | x_gmean = np.exp(np.mean(np.log(X.max(axis=0))))
119 | X *= 4 / x_gmean
120 | return X - X.mean(axis=0)
121 |
122 |
123 | X = adata.obsm["spatial"].copy().astype('float32')
124 | tcoords = transform_coords(X)
125 |
126 | pair_idx = []
127 | for xy in data['positions']:
128 | distances = [math.dist([xy[0], xy[1]], [idx[0], idx[1]]) for idx in tcoords]
129 | pair_idx.append(np.argmin(distances))
130 |
131 | nsf_df = pd.DataFrame(data=np.zeros([len(adata), data['factors']['factors'].shape[1]]))
132 | for idx, i in enumerate(pair_idx):
133 | nsf_df.iloc[i, :] = data['factors']['factors'][idx, :]
134 | nsf_df.index = adata.obs.index
135 |
136 | nsf_df.to_csv(sample_folder + 'nsf_comps.csv')
--------------------------------------------------------------------------------
/article/A4_mouse_brain/ffpe/benchmark/stagate.py:
--------------------------------------------------------------------------------
1 | import STAGATE
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | from glob import glob
6 | import seaborn as sns
7 | import matplotlib as mpl
8 | import sklearn.neighbors
9 | import matplotlib.pyplot as plt
10 | from benchmarks.bm_functions import get_correlation_df, collect_correlation_results, collect_metadata
11 | import numpy as np
12 |
13 |
14 | filepath = 'data/mouse_brain_anterior/ffpe_cranial/'
15 | adata = sc.read_h5ad(filepath + 'chr.h5ad')
16 |
17 | sc.pp.highly_variable_genes(adata, flavor="seurat_v3", n_top_genes=3000)
18 | sc.pp.normalize_total(adata, target_sum=1e4)
19 | sc.pp.log1p(adata)
20 |
21 | # include 8 neighbours with the cutoff similarly to 6 for visium
22 | STAGATE.Cal_Spatial_Net(adata, rad_cutoff=150)
23 | STAGATE.Stats_Spatial_Net(adata)
24 |
25 | coor = pd.DataFrame(adata.obsm['spatial'])
26 | coor.index = adata.obs.index
27 | coor.columns = ['imagerow', 'imagecol']
28 |
29 | nbrs = sklearn.neighbors.NearestNeighbors(radius=150).fit(coor)
30 | distances, indices = nbrs.radius_neighbors(coor, return_distance=True)
31 | KNN_list = []
32 | for it in range(indices.shape[0]):
33 | KNN_list.append(pd.DataFrame(zip([it] * indices[it].shape[0], indices[it], distances[it])))
34 | KNN_df = pd.concat(KNN_list)
35 | KNN_df.columns = ['Cell1', 'Cell2', 'Distance']
36 |
37 | adata = STAGATE.train_STAGATE(adata, alpha=0)
38 |
39 | for i in range(30):
40 | adata.obs[f'stagate_{i}'] = adata.obsm['STAGATE'][:, i]
41 |
42 | with mpl.rc_context({'figure.figsize': [4.5, 5]}):
43 | sc.pl.spatial(adata, color=[f'stagate_{i}' for i in range(30)], size=2, ncols=4, show=False)
44 | plt.savefig(filepath + 'stagate_comps.png')
45 | plt.close()
46 |
47 | # correlation with tissue zones
48 | stagate_df = adata.obs[[f'stagate_{i}' for i in range(30)]]
49 | stagate_df.to_csv(filepath + 'stagate_comps.csv')
50 |
--------------------------------------------------------------------------------
/article/A4_mouse_brain/ffpe/map_annotations.py:
--------------------------------------------------------------------------------
1 | import warnings
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | import matplotlib.pyplot as plt
6 | from shapely.geometry import Point
7 | from shapely.ops import unary_union
8 | from paquo.projects import QuPathProject
9 | from shapely.errors import ShapelyDeprecationWarning
10 |
11 |
12 | def get_annotation_polygons(qupath_project, show=True):
13 | # Filter out ShapelyDeprecationWarning
14 | warnings.filterwarnings("ignore", category=ShapelyDeprecationWarning)
15 | # load the qupath project
16 | slides = QuPathProject(qupath_project, mode='r+')
17 | img_dict = {}
18 | for img in slides.images:
19 |
20 | # get annotations for slide image
21 | annotations = img.hierarchy.annotations
22 |
23 | # collect polys
24 | polys = {}
25 | error_count = 0
26 | erroneous_annot = {}
27 | for annotation in annotations:
28 | try:
29 | id = annotation.path_class.id
30 | if id in polys.keys():
31 | if annotation.roi.type != 'LineString':
32 | polys[id].append(annotation.roi)
33 | else:
34 | if annotation.roi.type != 'LineString':
35 | polys[id] = [annotation.roi]
36 | except Exception:
37 | erroneous_annot[error_count] = annotation
38 | error_count += 1
39 | print(f"Reading slide {img.image_name}")
40 | print(f"Erroneous poly found {error_count} times from {len(annotations)} polygons.")
41 |
42 | if show:
43 | # merge polys with the same annotation
44 | polym = {}
45 | for key in polys.keys():
46 | polym[key] = unary_union(polys[key])
47 | # look at them
48 | for key in polym.keys():
49 | if polym[key].type != 'Polygon':
50 | for geom in polym[key].geoms:
51 | plt.plot(*geom.exterior.xy)
52 | else:
53 | plt.plot(*polym[key].exterior.xy)
54 | plt.show()
55 |
56 | img_dict[img.image_name] = polys
57 | return img_dict
58 |
59 |
60 | def map_annotations(adata, polygon_dict, default_annot='Tumor'):
61 | df_dict = {i: default_annot for i in list(adata.obs.index)}
62 | tissue_type = pd.DataFrame(df_dict.values(), index=df_dict.keys())
63 | spot_df = pd.DataFrame(adata.obsm['spatial'])
64 |
65 | spot_annots = {}
66 | for key in tqdm(polygon_dict.keys(), desc='Mapping annotations...'):
67 | x, y = spot_df.iloc[:, 0], spot_df.iloc[:, 1]
68 | points = [Point(x, y) for x, y in zip(x, y)]
69 |
70 | contains_sum = [False for x in range(len(spot_df))]
71 | for iv in polygon_dict[key]:
72 | contains = [iv.contains(p) for p in points]
73 | contains_sum = [cs or c for cs, c in zip(contains_sum, contains)]
74 | # plt.scatter(x, y, s=1)
75 | # plt.plot(*iv.exterior.xy)
76 | # plt.show()
77 |
78 | spot_annots[key] = contains_sum
79 | replace = adata.obs.index[contains_sum]
80 |
81 | tissue_type[0][replace] = key
82 | return tissue_type
83 |
84 |
85 |
86 | data_path = 'data/Visium_FFPE_Mouse_Brain/'
87 | adata = sc.read_h5ad(data_path + 'chr_28.h5ad')
88 |
89 | qupath_project = 'data/Visium_FFPE_Mouse_Brain/smooth_brain/'
90 |
91 | polygon_dict = get_annotation_polygons(qupath_project, show=True)
92 |
93 | img_key = list(polygon_dict.keys())[0]
94 | polygon_dict = polygon_dict[img_key]
95 | annots = map_annotations(adata, polygon_dict, default_annot='Rest')
96 | annots[0] = ['Corpus callosum' if x == 'Corpus_callosum/capsula_externa' else x for x in annots[0]]
97 | adata.obs['annotation'] = annots
98 |
99 | sc.pl.spatial(adata, color='annotation')
100 | plt.show()
101 |
102 | adata.write_h5ad(data_path + 'chr_28_annotated.h5ad')
103 |
--------------------------------------------------------------------------------
/article/readme.md:
--------------------------------------------------------------------------------
1 | # Chrysalis Article Readme
2 |
3 |
4 | This folder contains the notebooks and scripts used for our research article, showcasing the data analysis we conducted.
5 | To recreate the analysis, you'll need to take some extra steps, such as getting the raw data, adjusting directory paths,
6 | and downloading supplementary files from Zenodo (https://doi.org/10.5281/zenodo.8247780).
7 | ```
8 | .
9 | ├── A1_synthetic_data
10 | │ ├── array_size_benchmark.ipynb
11 | │ ├── bm_functions.py
12 | │ ├── chrysalis_example.ipynb
13 | │ ├── contamination_benchmark.ipynb
14 | │ ├── data_generator
15 | │ │ ├── functions.py
16 | │ │ ├── generate_synthetic_datasets.py
17 | │ │ ├── generate_truncated_samples.py
18 | │ │ ├── tissue_generator.py
19 | │ │ └── tools.py
20 | │ ├── main_synthetic_benchmark.ipynb
21 | │ └── method_scripts
22 | │ ├── array_size_benchmark
23 | │ │ ├── chrysalis.py
24 | │ │ ├── graphst.py
25 | │ │ ├── mefisto.py
26 | │ │ ├── nsf.py
27 | │ │ └── stagate.py
28 | │ ├── contamination_benchmark
29 | │ │ ├── chrysalis.py
30 | │ │ ├── graphst.py
31 | │ │ ├── mefisto.py
32 | │ │ ├── nsf.py
33 | │ │ └── stagate.py
34 | │ └── main_synthetic_benchmark
35 | │ ├── chrysalis.py
36 | │ ├── graphst.py
37 | │ ├── mefisto.py
38 | │ ├── nsf.py
39 | │ └── stagate.py
40 | ├── A2_human_lymph_node
41 | │ ├── SVG_detection_methods
42 | │ │ ├── 1_bsp_spatialde_sepal.ipynb
43 | │ │ ├── 2_spark.R
44 | │ │ └── 3_method_comparison.ipynb
45 | │ ├── benchmarking
46 | │ │ ├── graphst.py
47 | │ │ ├── mefisto.py
48 | │ │ ├── nsf.py
49 | │ │ ├── spatialpca.R
50 | │ │ └── stagate.py
51 | │ ├── chrysalis_analysis_and_validation.ipynb
52 | │ └── morans_i.ipynb
53 | ├── A3_human_breast_cancer
54 | │ ├── benchmarking
55 | │ │ ├── graphst.py
56 | │ │ ├── mefisto.py
57 | │ │ ├── nsf.py
58 | │ │ ├── spatialpca.R
59 | │ │ └── stagate.py
60 | │ ├── benchmarking.ipynb
61 | │ ├── chrysalis_analysis_and_validation.ipynb
62 | │ └── morphology_integration
63 | │ ├── 1_extract_image_tiles.ipynb
64 | │ ├── 2_autoencoder_training.py
65 | │ └── 3_integrate_morphology.ipynb
66 | ├── A4_mouse_brain
67 | │ ├── ff
68 | │ │ ├── mouse_brain_ff.ipynb
69 | │ │ └── mouse_brain_integration.ipynb
70 | │ └── ffpe
71 | │ ├── benchmark
72 | │ │ ├── graphst.py
73 | │ │ ├── mefisto.py
74 | │ │ ├── nsf.py
75 | │ │ └── stagate.py
76 | │ ├── map_annotations.py
77 | │ ├── mouse_brain_ffpe.ipynb
78 | │ └── mouse_brain_ffpe_benchmark.ipynb
79 | ├── A5_visium_hd
80 | │ └── visium_hd_analysis.ipynb
81 | ├── A6_slide_seqv2
82 | │ └── slide_seqv2_analysis.ipynb
83 | ├── A7_stereo_seq
84 | │ └── stereo_seq_analysis.ipynb
85 | └── readme.md
86 | ```
87 |
88 | ## Chrysalis: decoding tissue compartments in spatial transcriptomics with archetypal analysis
89 |
90 | **Authors**: Demeter Túrós, Jelica Vasiljevic, Kerstin Hahn, Sven Rottenberg, and Alberto Valdeolivas
91 |
92 | **Abstract**: Dissecting tissue compartments in spatial transcriptomics (ST) remains challenging due to
93 | limited spatial resolution and dependence on single-cell reference data. We present Chrysalis, a novel
94 | computational method that rapidly uncovers tissue compartments through spatially variable gene (SVG)
95 | detection and archetypal analysis without requiring external reference data. Additionally, it offers a
96 | unique visualisation approach for swift tissue characterization and provides access to gene expression
97 | signatures, enabling the identification of spatially and functionally distinct cellular niches. Chrysalis
98 | was evaluated through various benchmarks and validated against deconvolution, independently obtained cell
99 | type abundance data, and histopathological annotations, demonstrating superior performance compared to
100 | other algorithms on both in silico and real-world test examples. Furthermore, we underscored its versatility
101 | across different technologies, such as Visium, Visium HD, Slide-seq, and Stereo-seq.
102 |
--------------------------------------------------------------------------------
/chrysalis/__init__.py:
--------------------------------------------------------------------------------
1 | import warnings
2 | from numba.core.errors import NumbaDeprecationWarning, NumbaPendingDeprecationWarning
3 |
4 | # Filter out specific warning categories
5 | warnings.filterwarnings("ignore", category=NumbaDeprecationWarning)
6 | warnings.filterwarnings("ignore", category=UserWarning)
7 | warnings.filterwarnings("ignore", category=FutureWarning)
8 |
9 | # core functions
10 | from .core import detect_svgs
11 | from .core import pca
12 | from .core import aa
13 |
14 | # plotting functions
15 | from .plots import plot
16 | from .plots import plot_compartment
17 | from .plots import plot_compartments
18 | from .plots import plot_explained_variance
19 | from .plots import plot_svgs
20 | from .plots import plot_rss
21 | from .plots import plot_heatmap
22 | from .plots import plot_weights
23 | from .plots import plot_svg_matrix
24 | from .plots import plot_samples
25 |
26 | # utility functions
27 | from .utils import get_compartment_df
28 | from .utils import integrate_adatas
29 | from .utils import harmony_integration
30 |
--------------------------------------------------------------------------------
/chrysalis/core.py:
--------------------------------------------------------------------------------
1 | import numpy as np
2 | import pandas as pd
3 | import scanpy as sc
4 | from tqdm import tqdm
5 | import archetypes as arch
6 | from anndata import AnnData
7 | from pysal.lib import weights
8 | from pysal.explore import esda
9 | from sklearn.decomposition import PCA
10 |
11 |
12 | def detect_svgs(adata: AnnData, min_spots: float=0.05, top_svg: int=1000, min_morans: float=0.20, neighbors: int=6,
13 | geary: bool=False):
14 | """
15 | Calculate spatial autocorrelation (Moran's I) to define spatially variable genes.
16 |
17 | By default we only calculate autocorrelation for genes expressed in at least 5% of capture spots
18 | defined with `min_spots`.
19 |
20 | :param adata:
21 | The AnnData data matrix of shape `n_obs` × `n_vars`. Rows correspond to cells and columns to genes.
22 | Spatial data needs to be stored in `.obsm['spatial']` as X and Y coordinate columns.
23 | :param min_spots: Run calculation only for genes expressed in equal or higher fraction of the total capture spots.
24 | :param top_svg: Cutoff for top ranked spatially variable genes.
25 | :param min_morans:
26 | Cutoff using Moran's I. Specifying this parameter does not disable the cutoff set in `top_svg`. The
27 | 'min_morans' cutoff only activates when the cutoff value retains less genes than specified in `top_svg`.
28 | :param neighbors: Number of nearest neighbours used for calculating Moran's I.
29 | :param geary:
30 | Calculate Geary's C in addition to Moran's I. Selected SVGs are not affect by this, stored
31 | in `.var["Geary's C"]`.
32 | :return:
33 | Updates `.var` with the following fields:
34 |
35 | - **.var["Moran's I"]** – Moran's I value for all genes.
36 | - **.var["spatially_variable"]** – Boolean labels of the examined genes based on the defined cutoffs.
37 |
38 | Example usage:
39 |
40 | >>> import chrysalis as ch
41 | >>> import scanpy as sc
42 | >>> adata = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')
43 | >>> sc.pp.calculate_qc_metrics(adata, inplace=True)
44 | >>> sc.pp.filter_cells(adata, min_counts=6000)
45 | >>> sc.pp.filter_genes(adata, min_cells=10)
46 | >>> ch.detect_svgs(adata)
47 |
48 | """
49 |
50 | assert 0 < min_spots < 1
51 |
52 | sc.settings.verbosity = 0
53 | ad = sc.pp.filter_genes(adata, min_cells=int(len(adata) * min_spots), copy=True)
54 | ad.var_names_make_unique() # moran dies so need some check later
55 | if "log1p" not in adata.uns_keys():
56 | sc.pp.normalize_total(ad, inplace=True)
57 | sc.pp.log1p(ad)
58 |
59 | gene_matrix = ad.to_df()
60 |
61 | points = adata.obsm['spatial'].copy()
62 | points[:, 1] = points[:, 1] * -1
63 |
64 | w = weights.KNN.from_array(points, k=neighbors)
65 | w.transform = 'R'
66 |
67 | moran_dict = {}
68 | if geary:
69 | geary_dict = {}
70 |
71 | for c in tqdm(ad.var_names, desc='Calculating SVGs'):
72 | moran = esda.moran.Moran(gene_matrix[c], w, permutations=0)
73 | moran_dict[c] = moran.I
74 | if geary:
75 | geary = esda.geary.Geary(gene_matrix[c], w, permutations=0)
76 | geary_dict[c] = geary.C
77 |
78 | moran_df = pd.DataFrame(data=moran_dict.values(), index=moran_dict.keys(), columns=["Moran's I"])
79 | moran_df = moran_df.sort_values(ascending=False, by="Moran's I")
80 | adata.var["Moran's I"] = moran_df["Moran's I"]
81 |
82 | if geary:
83 | geary_df = pd.DataFrame(data=geary_dict.values(), index=geary_dict.keys(), columns=["Geary's C"])
84 | geary_df = geary_df.sort_values(ascending=False, by="Geary's C")
85 | adata.var["Geary's C"] = geary_df["Geary's C"]
86 |
87 | # select thresholds
88 | if len(moran_df[:top_svg]) < len(moran_df[moran_df["Moran's I"] > min_morans]):
89 | adata.var['spatially_variable'] = [True if x in moran_df[:top_svg].index else False for x in adata.var_names]
90 | else:
91 | moran_df = moran_df[moran_df["Moran's I"] > min_morans]
92 | adata.var['spatially_variable'] = [True if x in moran_df.index else False for x in adata.var_names]
93 |
94 |
95 | def pca(adata: AnnData, n_pcs: int=50):
96 | """
97 | Perform PCA (Principal Component Analysis) to calculate PCA coordinates, loadings, and variance decomposition.
98 |
99 | Spatially variable genes need to be defined in `.var['spatially_variable']` using `chrysalis.detect_svgs`.
100 |
101 | :param adata: The AnnData data matrix of shape `n_obs` × `n_vars`. Rows correspond to cells and columns to genes.
102 | :param n_pcs: Number of principal components to be calculated.
103 | :return:
104 | Adds PCs to `.obsm['chr_X_pca']` and updates `.uns` with the following fields:
105 |
106 | - **.uns['chr_pca']['variance_ratio']** – Explained variance ratio.
107 | - **.uns['chr_pca']['loadings']** – Spatially variable gene loadings.
108 | - **.uns['chr_pca']['features']** – Spatially variable gene names.
109 |
110 | Example usage:
111 |
112 | >>> import chrysalis as ch
113 | >>> import scanpy as sc
114 | >>> adata = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')
115 | >>> sc.pp.calculate_qc_metrics(adata, inplace=True)
116 | >>> sc.pp.filter_cells(adata, min_counts=6000)
117 | >>> sc.pp.filter_genes(adata, min_cells=10)
118 | >>> ch.detect_svgs(adata)
119 | >>> sc.pp.normalize_total(adata, inplace=True)
120 | >>> sc.pp.log1p(adata)
121 | >>> ch.pca(adata)
122 |
123 | """
124 |
125 | # todo: this only works with CSL matrix, need something to check if the matrix is dense
126 | pcs = np.asarray(adata[:, adata.var['spatially_variable'] == True].X.todense())
127 | pca = PCA(n_components=n_pcs, svd_solver='arpack', random_state=42)
128 | adata.obsm['chr_X_pca'] = pca.fit_transform(pcs)
129 |
130 | if 'chr_pca' not in adata.uns.keys():
131 | adata.uns['chr_pca'] = {'variance_ratio': pca.explained_variance_ratio_,
132 | 'loadings': pca.components_,
133 | 'features': list(adata[:, adata.var['spatially_variable'] == True].var_names)}
134 | else:
135 | adata.uns['chr_pca']['variance_ratio'] = pca.explained_variance_ratio_
136 | adata.uns['chr_pca']['loadings'] = pca.components_
137 | adata.uns['chr_pca']['features'] = list(adata[:, adata.var['spatially_variable'] == True].var_names)
138 |
139 |
140 | def aa(adata: AnnData, n_archetypes: int=8, pca_key: str=None, n_pcs: int=None, max_iter: int=200):
141 | """
142 | Run archetypal analysis on the low-dimensional embedding.
143 |
144 | Calculates archetypes, alphas, loadings, and RSS (Residual Sum of Squares). Requires input calculated with
145 | `chrysalis.pca`.
146 |
147 | :param adata: The AnnData data matrix of shape `n_obs` × `n_vars`. Rows correspond to cells and columns to genes.
148 | :param n_archetypes: Number of archetypes (tissue compartments) to be identified.
149 | :param pca_key: Define alternative PCA input key from `.obm`, otherwise `chr_X_pca` is used.
150 | :param n_pcs: Number of PCs (Principal Components) to be used.
151 | :param max_iter: Maximum number of iterations.
152 | :return:
153 | Updates `.uns` with the following fields:
154 |
155 | - **.uns['chr_aa']['archetypes']** – Archetypes.
156 | - **.uns['chr_aa']['alphas']** – Alphas.
157 | - **.uns['chr_aa']['loadings']** – Gene loadings.
158 | - **.uns['chr_aa']['RSS']** – RSS reconstruvtion error.
159 |
160 | Example usage:
161 |
162 | >>> import chrysalis as ch
163 | >>> import scanpy as sc
164 | >>> adata = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')
165 | >>> sc.pp.calculate_qc_metrics(adata, inplace=True)
166 | >>> sc.pp.filter_cells(adata, min_counts=6000)
167 | >>> sc.pp.filter_genes(adata, min_cells=10)
168 | >>> ch.detect_svgs(adata)
169 | >>> sc.pp.normalize_total(adata, inplace=True)
170 | >>> sc.pp.log1p(adata)
171 | >>> ch.pca(adata)
172 | >>> ch.aa(adata, n_pcs=20, n_archetypes=8)
173 |
174 | """
175 |
176 | if not isinstance(n_archetypes, int):
177 | raise TypeError
178 | if n_archetypes < 2:
179 | raise ValueError(f"n_archetypes cannot be less than 2.")
180 |
181 | if n_pcs is None:
182 | pcs = n_archetypes-1
183 | else:
184 | pcs = n_pcs
185 |
186 | model = arch.AA(n_archetypes=n_archetypes, n_init=3, max_iter=max_iter, tol=0.001, random_state=42)
187 |
188 | if pca_key is None:
189 | model.fit(adata.obsm['chr_X_pca'][:, :pcs])
190 | else:
191 | model.fit(adata.obsm[pca_key][:, :pcs])
192 |
193 | adata.obsm['chr_aa'] = model.alphas_
194 |
195 | # get the mean of the original feature matrix and add it to the multiplied archetypes with the PCA loading matrix
196 | # aa_loadings = np.mean(pcs, axis=0) + np.dot(model.archetypes_.T, pca.components_[:n_archetypes, :])
197 | aa_loadings = np.dot(model.archetypes_, adata.uns['chr_pca']['loadings'][:pcs, :])
198 |
199 | if 'chr_aa' not in adata.uns.keys():
200 | adata.uns['chr_aa'] = {'archetypes': model.archetypes_,
201 | 'alphas': model.alphas_,
202 | 'loadings': aa_loadings,
203 | 'RSS': model.rss_}
204 | else:
205 | adata.uns['chr_aa']['archetypes'] = model.archetypes_
206 | adata.uns['chr_aa']['alphas'] = model.alphas_
207 | adata.uns['chr_aa']['loadings'] = aa_loadings
208 | adata.uns['chr_aa']['RSS'] = model.rss_
209 |
--------------------------------------------------------------------------------
/chrysalis/functions.py:
--------------------------------------------------------------------------------
1 | import colorsys
2 | import numpy as np
3 | import pandas as pd
4 | import scanpy as sc
5 | from tqdm import tqdm
6 | import archetypes as arch
7 | from pysal.lib import weights
8 | from pysal.explore import esda
9 | import matplotlib.pyplot as plt
10 | import matplotlib.colors as mcolors
11 | from sklearn.decomposition import PCA
12 | from scipy.spatial.distance import cdist
13 |
14 |
15 | def get_moransI(w_orig, y):
16 | # REF: https://github.com/yatshunlee/spatial_autocorrelation/blob/main/spatial_autocorrelation/moransI.py modified
17 | # wth some ChatGPT magic to remove the for loops
18 |
19 | if not isinstance(y, np.ndarray):
20 | raise TypeError("Passed array (feature) should be in numpy array (ndim = 1)")
21 | if y.shape[0] != w_orig.shape[0]:
22 | raise ValueError("Feature array is not the same shape of weight")
23 | if w_orig.shape[0] != w_orig.shape[1]:
24 | raise ValueError("Weight array should be in square shape")
25 |
26 | w = w_orig.copy()
27 | y_hat = np.mean(y)
28 | D = y - y_hat
29 | D_sq = (y - y_hat) ** 2
30 | N = y.shape[0]
31 | sum_W = np.sum(w)
32 | w *= D.reshape(-1, 1) * D.reshape(1, -1) * (w != 0)
33 | moransI = (np.sum(w) / sum(D_sq)) * (N / sum_W)
34 |
35 | return round(moransI, 8)
36 |
37 |
38 | def black_to_color(color):
39 | # define the colors in the colormap
40 | colors = ["black", color]
41 | # create a colormap object using the defined colors
42 | cmap = mcolors.LinearSegmentedColormap.from_list("", colors)
43 | return cmap
44 |
45 |
46 | def hls_to_hex(h, l, s):
47 | # convert the HSV values to RGB values
48 | r, g, b = colorsys.hls_to_rgb(h, l, s)
49 | # convert the RGB values to a hex color code
50 | hex_code = "#{:02X}{:02X}{:02X}".format(int(r * 255), int(g * 255), 76)
51 | return hex_code
52 |
53 |
54 | def generate_random_colors(num_colors, hue_range=(0, 1), saturation=0.5, lightness=0.5, min_distance=0.2):
55 | colors = []
56 | hue_list = []
57 |
58 | while len(colors) < num_colors:
59 | # Generate a random hue value within the specified range
60 | hue = np.random.uniform(hue_range[0], hue_range[1])
61 |
62 | # Check if the hue is far enough away from the previous hue
63 | if len(hue_list) == 0 or all(abs(hue - h) > min_distance for h in hue_list):
64 | hue_list.append(hue)
65 | saturation = saturation
66 | lightness = lightness
67 | rgb = colorsys.hls_to_rgb(hue, lightness, saturation)
68 | hex_code = '#{:02x}{:02x}{:02x}'.format(int(rgb[0] * 255), int(rgb[1] * 255), int(rgb[2] * 255))
69 | colors.append(hex_code)
70 |
71 | return colors
72 |
73 | def get_rgb_from_colormap(cmap, vmin, vmax, value):
74 | # normalize the value within the range [0, 1]
75 | norm = plt.Normalize(vmin=vmin, vmax=vmax)
76 | value_normalized = norm(value)
77 |
78 | # get the RGBA value from the colormap
79 | rgba = plt.get_cmap(cmap)(value_normalized)
80 | # convert the RGBA value to RGB
81 | # color = tuple(np.array(rgba[:3]) * 255)
82 | color = np.array(rgba[:, :3])
83 |
84 | return color
85 |
86 |
87 | def blend_colors(colors_1, colors_2, weight=0.5):
88 | # ensure weight is between 0 and 1
89 | weight = max(0, min(1, weight))
90 |
91 | # blend the colors using linear interpolation
92 | blended_colors = []
93 | for i in range(len(colors_1)):
94 | r = (1 - weight) * colors_1[i][0] + weight * colors_2[i][0]
95 | g = (1 - weight) * colors_1[i][1] + weight * colors_2[i][1]
96 | b = (1 - weight) * colors_1[i][2] + weight * colors_2[i][2]
97 | blended_colors.append((r, g, b))
98 | return blended_colors
99 |
100 |
101 | def mip_colors(colors_1, colors_2):
102 | # blend the colors using linear interpolation
103 | mip_color = []
104 | for i in range(len(colors_1)):
105 | r = max(colors_1[i][0], colors_2[i][0])
106 | g = max(colors_1[i][1], colors_2[i][1])
107 | b = max(colors_1[i][2], colors_2[i][2])
108 | mip_color.append((r, g, b))
109 | return mip_color
110 |
111 |
112 | def chrysalis_calculate(adata, min_spots=1000, top_svg=1000, n_archetypes=8):
113 | """
114 | Calculates spatially variable genes and embeddings for visualization.
115 |
116 | :param adata: 10X Visium anndata matrix created with scanpy.
117 | :param min_spots: Discard genes expressed in less capture spots than this threshold. Speeds up spatially variable
118 | gene computation but can be set lower if sample area is small.
119 | :param top_svg: Number of spatially variable genes to be considered for PCA.
120 | :param n_archetypes: Number of inferred archetypes, best leave it at 8, no significant gain by trying to visualize
121 | more.
122 | :return: Directly annotates the data matrix: adata.obsm['chr_X_pca'] and adata.obsm['chr_aa'].
123 | """
124 | sc.settings.verbosity = 0
125 | ad = sc.pp.filter_genes(adata, min_cells=min_spots, copy=True)
126 | ad.var_names_make_unique() # moran dies so need some check later
127 | if "log1p" not in adata.uns_keys():
128 | sc.pp.normalize_total(ad, inplace=True)
129 | sc.pp.log1p(ad)
130 |
131 | gene_matrix = ad.to_df()
132 |
133 | points = adata.obsm['spatial'].copy()
134 | points[:, 1] = points[:, 1] * -1
135 |
136 | w = weights.KNN.from_array(points, k=6)
137 | w.transform = 'R'
138 | moran_dict = {}
139 |
140 | for c in tqdm(ad.var_names):
141 | moran = esda.moran.Moran(gene_matrix[c], w, permutations=0)
142 | moran_dict[c] = moran.I
143 |
144 | moran_df = pd.DataFrame(data=moran_dict.values(), index=moran_dict.keys(), columns=["Moran's I"])
145 | moran_df = moran_df.sort_values(ascending=False, by="Moran's I")
146 | adata.var['spatially_variable'] = [True if x in moran_df[:top_svg].index else False for x in adata.var_names]
147 | ad.var['spatially_variable'] = [True if x in moran_df[:top_svg].index else False for x in ad.var_names]
148 | adata.var["Moran's I"] = moran_df["Moran's I"]
149 |
150 | pcs = np.asarray(ad[:, ad.var['spatially_variable'] == True].X.todense())
151 | pca = PCA(n_components=50, svd_solver='arpack', random_state=0)
152 | adata.obsm['chr_X_pca'] = pca.fit_transform(pcs)
153 | if 'chr_pca' not in adata.uns.keys():
154 | adata.uns['chr_pca'] = {'variance_ratio': pca.explained_variance_ratio_}
155 | else:
156 | adata.uns['chr_pca']['variance_ratio'] = pca.explained_variance_ratio_
157 |
158 | model = arch.AA(n_archetypes=n_archetypes, n_init=3, max_iter=200, tol=0.001, random_state=42)
159 | model.fit(adata.obsm['chr_X_pca'][:, :n_archetypes-1])
160 | adata.obsm[f'chr_aa'] = model.alphas_
161 |
162 |
163 | def chrysalis_plot(adata, dim=8, hexcodes=None, seed=None, mode='aa'):
164 | """
165 | Visualizes embeddings calculated with chrysalis.calculate.
166 | :param adata: 10X Visium anndata matrix created with scanpy.
167 | :param dim: Number of components to visualize.
168 | :param hexcodes: List of hexadecimal colors to replace the default colormap.
169 | :param seed: Random seed, used for mixing colors.
170 | :param mode: Components to visualize: 'aa' - archetype analysis, 'pca' - PCA
171 | :return:
172 | """
173 |
174 | # define PC colors
175 | if hexcodes is None:
176 | hexcodes = ['#db5f57', '#dbc257', '#91db57', '#57db80', '#57d3db', '#5770db', '#a157db', '#db57b2']
177 | if seed is None:
178 | np.random.seed(len(adata))
179 | else:
180 | np.random.seed(seed)
181 | np.random.shuffle(hexcodes)
182 | else:
183 | assert len(hexcodes) >= dim
184 | # define colormaps
185 | cmaps = []
186 |
187 | if mode == 'aa':
188 | for d in range(dim):
189 | pc_cmap = black_to_color(hexcodes[d])
190 | pc_rgb = get_rgb_from_colormap(pc_cmap,
191 | vmin=min(adata.obsm['chr_aa'][:, d]),
192 | vmax=max(adata.obsm['chr_aa'][:, d]),
193 | value=adata.obsm['chr_aa'][:, d])
194 | cmaps.append(pc_rgb)
195 |
196 | elif mode == 'pca':
197 | for d in range(dim):
198 | pc_cmap = black_to_color(hexcodes[d])
199 | pc_rgb = get_rgb_from_colormap(pc_cmap,
200 | vmin=min(adata.obsm['chr_X_pca'][:, d]),
201 | vmax=max(adata.obsm['chr_X_pca'][:, d]),
202 | value=adata.obsm['chr_X_pca'][:, d])
203 | cmaps.append(pc_rgb)
204 | else:
205 | raise Exception
206 |
207 | # mip colormaps
208 | cblend = mip_colors(cmaps[0], cmaps[1],)
209 | if len(cmaps) > 2:
210 | i = 2
211 | for cmap in cmaps[2:]:
212 | cblend = mip_colors(cblend, cmap,)
213 | i += 1
214 |
215 | # plot
216 | fig, ax = plt.subplots(1, 1, figsize=(5, 5))
217 | ax.axis('off')
218 | row = adata.obsm['spatial'][:, 0]
219 | col = adata.obsm['spatial'][:, 1] * -1
220 | ax.set_xlim((np.min(row) * 0.9, np.max(row) * 1.1))
221 | ax.set_ylim((np.min(col) * 1.1, np.max(col) * 0.9))
222 | ax.set_aspect('equal')
223 |
224 | distances = cdist(np.column_stack((row, col)), np.column_stack((row, col)))
225 | np.fill_diagonal(distances, np.inf)
226 | min_distance = np.min(distances)
227 |
228 | # get the physical length of the x and y axes
229 | ax_len = np.diff(np.array(ax.get_position())[:, 0]) * fig.get_size_inches()[0]
230 | size_const = ax_len / np.diff(ax.get_xlim())[0] * min_distance * 72
231 | size = size_const ** 2 * 0.95
232 | plt.scatter(row, col, s=size, marker="h", c=cblend)
233 |
--------------------------------------------------------------------------------
/chrysalis/test/test.py:
--------------------------------------------------------------------------------
1 | import scanpy as sc
2 | import chrysalis as ch
3 | import matplotlib.pyplot as plt
4 | import scanorama
5 | import os
6 | from glob import glob
7 |
8 |
9 | def preprocess_sample():
10 | # preprocessing samples
11 | print('Preprocessing...')
12 |
13 | if not os.path.isdir('temp/'):
14 | os.makedirs('temp/', exist_ok=True)
15 |
16 | try:
17 | adata = sc.read_h5ad('temp/V1_Human_Lymph_Node_ss.h5ad')
18 | except FileNotFoundError:
19 | adata = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')
20 | sc.pp.calculate_qc_metrics(adata, inplace=True)
21 | sc.pp.filter_cells(adata, min_counts=6000)
22 | sc.pp.filter_genes(adata, min_cells=10)
23 |
24 | ch.detect_svgs(adata)
25 |
26 | moran_df = adata.var[adata.var["Moran's I"] > 0.08]
27 | adata.var['spatially_variable'] = [True if x in moran_df.index else False for x in adata.var_names]
28 |
29 | adata.write_h5ad(f'temp/V1_Human_Lymph_Node_ss.h5ad')
30 |
31 | return adata
32 |
33 |
34 | def preprocess_multisample():
35 | # preprocessing samples
36 | print('Preprocessing...')
37 | samples = ['V1_Mouse_Brain_Sagittal_Anterior_Section_2', 'V1_Mouse_Brain_Sagittal_Posterior_Section_2']
38 | adatas = []
39 |
40 | if not os.path.isdir('temp/'):
41 | os.makedirs('temp/', exist_ok=True)
42 |
43 | files = glob('temp/*_ms.h5ad')
44 | adatas = [sc.read_h5ad(x) for x in files]
45 |
46 | if len(adatas) == 0:
47 | for sample in samples:
48 | ad = sc.datasets.visium_sge(sample_id=sample)
49 | ad.var_names_make_unique()
50 | sc.pp.calculate_qc_metrics(ad, inplace=True)
51 | sc.pp.filter_cells(ad, min_counts=1000)
52 | sc.pp.filter_genes(ad, min_cells=10)
53 | sc.pp.normalize_total(ad, inplace=True)
54 | sc.pp.log1p(ad)
55 |
56 | ch.detect_svgs(ad, min_morans=0.05, min_spots=0.05)
57 | ad.write_h5ad(f'temp/{sample}_ms.h5ad')
58 |
59 | adatas.append(ad)
60 |
61 | return adatas
62 |
63 |
64 | def save_plot(plot_save, name=None):
65 | if plot_save:
66 | # plt.show()
67 | if isinstance(name, str):
68 | if not os.path.isdir('temp/plots/'):
69 | os.makedirs('temp/plots/', exist_ok=True)
70 | plt.savefig(f'temp/plots/{name}.png')
71 | else:
72 | raise ValueError('No plot name specified.')
73 | else:
74 | plt.clf()
75 |
76 |
77 | def test_single_sample(save=True):
78 |
79 | adata = preprocess_sample()
80 |
81 | # normalization
82 | sc.pp.normalize_total(adata, inplace=True)
83 | sc.pp.log1p(adata)
84 |
85 | ch.pca(adata)
86 |
87 | ch.plot_svgs(adata)
88 | print(os.getcwd())
89 | save_plot(save, name='singleplot_svg')
90 |
91 | ch.plot_explained_variance(adata)
92 | save_plot(save, name='singleplot_evr')
93 |
94 | ch.aa(adata, n_pcs=20, n_archetypes=8)
95 |
96 | ch.plot(adata)
97 | save_plot(save, name='singleplot_plot')
98 |
99 | ch.plot_compartments(adata)
100 | save_plot(save, name='singleplot_comps')
101 |
102 | ch.plot_heatmap(adata)
103 | save_plot(save, name='singleplot_heatmap')
104 |
105 | ch.plot_weights(adata)
106 | save_plot(save, name='singleplot_weights')
107 |
108 |
109 | def test_multi_sample_harmony(save=True):
110 |
111 | adatas = preprocess_multisample()
112 |
113 | # concatenate samples
114 | adata = ch.integrate_adatas(adatas, sample_col='sample')
115 | # replace ENSEMBL IDs with the gene symbols and make them unique
116 | adata.var_names = adata.var['gene_symbols']
117 | adata.var_names_make_unique()
118 | # harmony
119 | ch.pca(adata, n_pcs=50)
120 | ch.harmony_integration(adata, 'sample', random_state=42, block_size=0.05)
121 |
122 | ch.aa(adata, n_pcs=20, n_archetypes=10)
123 |
124 | ch.plot_samples(adata, 1, 2, dim=10, suptitle='test')
125 | save_plot(save, name='multiplot_mip_harmony')
126 |
127 | ch.plot_samples(adata, 1, 2, dim=10, suptitle='test', selected_comp=0)
128 | save_plot(save, name='multiplot_single_harmony')
129 |
130 |
131 | def test_multi_sample_scanorama(save=True):
132 |
133 | adatas = preprocess_multisample()
134 |
135 | # scanorama
136 | adatas_cor = scanorama.correct_scanpy(adatas, return_dimred=True)
137 | # concatenate samples
138 | adata = ch.integrate_adatas(adatas_cor, sample_col='sample')
139 | # replace ENSEMBL IDs with the gene symbols and make them unique
140 | adata.var_names = adata.var['gene_symbols']
141 | adata.var_names_make_unique()
142 |
143 | ch.pca(adata, n_pcs=50)
144 | ch.aa(adata, n_pcs=20, n_archetypes=10)
145 |
146 | ch.plot_samples(adata, 1, 2, dim=10, suptitle='test')
147 | save_plot(save, name='multiplot_mip_scanorama')
148 |
149 | ch.plot_samples(adata, 1, 2, dim=10, suptitle='test', selected_comp=0)
150 | save_plot(save, name='multiplot_single_scanorama')
151 |
152 | def test_multi_sample_plots(save=True):
153 | adatas = preprocess_multisample()
154 |
155 | # concatenate samples
156 | adata = ch.integrate_adatas(adatas, sample_col='sample')
157 | # replace ENSEMBL IDs with the gene symbols and make them unique
158 | adata.var_names = adata.var['gene_symbols']
159 | adata.var_names_make_unique()
160 |
161 | ch.pca(adata, n_pcs=50)
162 | ch.aa(adata, n_pcs=20, n_archetypes=10)
163 |
164 | ch.plot_svg_matrix(adatas, figsize=(8, 7), obs_name='sample', cluster=True)
165 | save_plot(save, name='multiplot_svg_matrix')
166 |
167 | ch.plot_samples(adata, 1, 2, dim=10, suptitle='test')
168 | save_plot(save, name='multiplot_mip')
169 |
170 | ch.plot_samples(adata, 1, 2, dim=10, suptitle='test', selected_comp=0)
171 | save_plot(save, name='multiplot_single')
172 |
173 |
174 | if __name__ == '__main__':
175 | save=True
176 |
177 | script_directory = os.path.dirname(os.path.abspath(__file__))
178 | os.chdir(script_directory)
179 |
180 | print(f'Temporary files and plots are saved to the following directory: {script_directory}')
181 |
182 | print('Running test_single_sample...')
183 | test_single_sample(save=True)
184 | print('Test completed!')
185 | print('Running test_multi_sample_harmony...')
186 | test_multi_sample_harmony(save=True)
187 | print('Test completed!')
188 | print('Running test_multi_sample_scanorama...')
189 | test_multi_sample_scanorama(save=True)
190 | print('Test completed!')
191 | print('Running test_multi_sample_plots...')
192 | test_multi_sample_plots(save=True)
193 | print('Test completed!')
194 | print('------------------------------')
195 | print('All tests have been completed!')
196 |
--------------------------------------------------------------------------------
/chrysalis/utils.py:
--------------------------------------------------------------------------------
1 | import anndata
2 | import colorsys
3 | import numpy as np
4 | import pandas as pd
5 | from tqdm import tqdm
6 | import archetypes as arch
7 | from scipy.stats import entropy
8 | import matplotlib.pyplot as plt
9 | import matplotlib.colors as mcolors
10 | from .core import detect_svgs
11 | from typing import List
12 | from anndata import AnnData
13 |
14 |
15 | def black_to_color(color):
16 | # define the colors in the colormap
17 | colors = ["black", color]
18 | # create a colormap object using the defined colors
19 | cmap = mcolors.LinearSegmentedColormap.from_list("", colors)
20 | return cmap
21 |
22 |
23 | def color_to_color(first, last):
24 | # define the colors in the colormap
25 | colors = [first, last]
26 | # create a colormap object using the defined colors
27 | cmap = mcolors.LinearSegmentedColormap.from_list("", colors)
28 | return cmap
29 |
30 |
31 | def hls_to_hex(h, l, s):
32 | # convert the HLS values to RGB values
33 | r, g, b = colorsys.hls_to_rgb(h, l, s)
34 | # convert the RGB values to a hex color code
35 | hex_code = "#{:02X}{:02X}{:02X}".format(int(r * 255), int(g * 255), 76)
36 | return hex_code
37 |
38 |
39 | def generate_random_colors(num_colors, hue_range=(0, 1), saturation=0.5, lightness=0.5, min_distance=0.05, seed=None):
40 | colors = []
41 | hue_list = []
42 | if seed:
43 | np.random.seed(seed)
44 | else:
45 | np.random.seed(42)
46 | while len(colors) < num_colors:
47 | # generate a random hue value within the specified range
48 | hue = np.random.uniform(hue_range[0], hue_range[1])
49 |
50 | # check if the hue is far enough away from the previous hue
51 | if len(hue_list) == 0 or all(abs(hue - h) > min_distance for h in hue_list):
52 | hue_list.append(hue)
53 | saturation = saturation
54 | lightness = lightness
55 | rgb = colorsys.hls_to_rgb(hue, lightness, saturation)
56 | hex_code = '#{:02x}{:02x}{:02x}'.format(int(rgb[0] * 255), int(rgb[1] * 255), int(rgb[2] * 255))
57 | colors.append(hex_code)
58 |
59 | return colors
60 |
61 |
62 | def get_rgb_from_colormap(cmap, vmin, vmax, value):
63 | # normalize the value within the range [0, 1]
64 | norm = plt.Normalize(vmin=vmin, vmax=vmax)
65 | value_normalized = norm(value)
66 |
67 | # get the RGBA value from the colormap
68 | rgba = plt.get_cmap(cmap)(value_normalized)
69 | # convert the RGBA value to RGB
70 | # color = tuple(np.array(rgba[:3]) * 255)
71 | color = np.array(rgba[:, :3])
72 |
73 | return color
74 |
75 |
76 | def blend_colors(colors_1, colors_2, weight=0.5):
77 | # ensure weight is between 0 and 1
78 | weight = max(0, min(1, weight))
79 |
80 | # blend the colors using linear interpolation
81 | blended_colors = []
82 | for i in range(len(colors_1)):
83 | r = (1 - weight) * colors_1[i][0] + weight * colors_2[i][0]
84 | g = (1 - weight) * colors_1[i][1] + weight * colors_2[i][1]
85 | b = (1 - weight) * colors_1[i][2] + weight * colors_2[i][2]
86 | blended_colors.append((r, g, b))
87 | return blended_colors
88 |
89 |
90 | def mip_colors(colors_1, colors_2):
91 | # blend the colors using linear interpolation
92 | mip_color = []
93 | for i in range(len(colors_1)):
94 | r = max(colors_1[i][0], colors_2[i][0])
95 | g = max(colors_1[i][1], colors_2[i][1])
96 | b = max(colors_1[i][2], colors_2[i][2])
97 | mip_color.append((r, g, b))
98 | return mip_color
99 |
100 |
101 | def get_colors(adata, dim=8, seed=42):
102 | if dim > 8:
103 | hexcodes = generate_random_colors(num_colors=dim, min_distance=1 / dim * 0.5, seed=seed,
104 | saturation=0.65, lightness=0.60)
105 | else:
106 | hexcodes = ['#db5f57', '#dbc257', '#91db57', '#57db80', '#57d3db', '#5770db', '#a157db', '#db57b2']
107 | if seed is None:
108 | np.random.seed(len(adata))
109 | else:
110 | np.random.seed(seed)
111 | np.random.shuffle(hexcodes)
112 | return hexcodes
113 |
114 |
115 | def estimate_compartments(adata, n_pcs=20, range_archetypes=(3, 50), max_iter=10):
116 |
117 | if 'chr_X_pca' not in adata.obsm.keys():
118 | raise ValueError(".obsm['chr_X_pca'] cannot be found, run chrysalis_pca first.")
119 |
120 | entropy_arr = np.zeros((len(range(range_archetypes[0], range_archetypes[1])), len(adata)))
121 | rss_dict = {}
122 | i = 0
123 | for a in tqdm(range(range_archetypes[0], range_archetypes[1]), desc='Fitting models'):
124 | model = arch.AA(n_archetypes=a, n_init=3, max_iter=max_iter, tol=0.001, random_state=42)
125 | model.fit(adata.obsm['chr_X_pca'][:, :n_pcs])
126 | rss_dict[a] = model.rss_
127 |
128 | entropy_arr[i, :] = entropy(model.alphas_.T)
129 | i += 1
130 |
131 | adata.obsm['entropy'] = entropy_arr.T
132 |
133 | if 'chr_aa' not in adata.uns.keys():
134 | adata.uns['chr_aa'] = {'RSSs': rss_dict}
135 | else:
136 | adata.uns['chr_aa']['RSSs'] = rss_dict
137 |
138 |
139 | def get_compartment_df(adata: AnnData, weights: bool=True):
140 | """
141 | Get spatially variable gene weights/expression values as a pandas DataFrame.
142 |
143 | :param adata: The AnnData data matrix of shape `n_obs` × `n_vars`. Rows correspond to cells and columns to genes.:
144 | :param weights: If False, return expression values instead of weights.
145 | :return: Pandas DataFrame.
146 |
147 | """
148 |
149 | # SVG expression for each compartment
150 | exp_array = np.asarray(adata[:, adata.var['spatially_variable'] == True].X.todense())
151 | exp_array = np.mean(exp_array, axis=0)
152 | exp_aa = adata.uns['chr_aa']['loadings']
153 | if not weights:
154 | exp_aa += exp_array
155 |
156 | df = pd.DataFrame(data=exp_aa, columns=adata.uns['chr_pca']['features'],
157 | index=[f'compartment_{x}' for x in (range(len(exp_aa)))]).T
158 | return df
159 |
160 |
161 | def integrate_adatas(adatas: List[AnnData], sample_names: List[str]=None, calculate_svgs: bool=False,
162 | sample_col: str='sample', **kwargs):
163 | """
164 | Integrate multiple samples stored in AnnData objects.
165 |
166 | If ENSEMBL IDs are present in the`.var['gene_ids']` column, that will be used instead of gene symbols.
167 | `.var['spatially_variable']` will be outer joined.
168 |
169 | :param adatas: List of AnnData objects.
170 | :param sample_names: List of sample names. If not defined, a list of integers [0, 1, ...] will be used instead.
171 | :param calculate_svgs: If True, the function also runs `chrysalis.detect_svgs` for every sample.
172 | :param sample_col: `.obs` column name to store the sample labels.
173 | :param kwargs: Keyword arguments for `chrysalis.detect_svgs`.
174 | :return:
175 | Integrated AnnData object. Sample IDs are stored in `.obs[sample_col]. `.var['spatially_variable']` contains
176 | the union of`.var['spatially_variable']` from the input AnnData objects. Sample-wise SVG data is stored in
177 | `.varm['spatially_variable']` and Moran's I is stored in `.varm["Moran's I"]`.
178 |
179 | """
180 |
181 | if sample_names is None:
182 | sample_names = np.arange(len(adatas))
183 | assert len(adatas) == len(sample_names)
184 |
185 | adatas_dict = {}
186 | gene_symbol_dict = {}
187 | for ad, name in zip(adatas, sample_names):
188 |
189 | # replace .uns['spatial'] with the specified sample name
190 | if 'spatial' in ad.uns.keys():
191 | assert len(ad.uns['spatial'].keys()) == 1
192 | curr_key = list(ad.uns['spatial'].keys())[0]
193 | ad.uns['spatial'][name] = ad.uns['spatial'][curr_key]
194 | if name != curr_key:
195 | del ad.uns['spatial'][curr_key]
196 |
197 | # check if column is already used
198 | if sample_col not in ad.obs.columns:
199 | ad.obs[sample_col] = name
200 | else:
201 | raise Exception('sample_id_col is already present in adata.obs, specify another column.')
202 |
203 | if 'gene_symbols' not in ad.var.columns:
204 | ad.var['gene_symbols'] = ad.var_names
205 |
206 | if 'gene_ids' in ad.var.columns:
207 | ad.var_names = ad.var['gene_ids']
208 |
209 | # check if SVGs are already present
210 | if 'spatially_variable' not in ad.var.columns:
211 | if calculate_svgs:
212 | detect_svgs(ad, **kwargs)
213 | else:
214 | raise Exception('spatially_variable column is not found in adata.var. Run `chrysalis.detect_svgs` '
215 | 'first or set the calculate_svgs argument to True.')
216 |
217 | ad.var[f'spatially_variable_{name}'] = ad.var['spatially_variable']
218 | ad.var[f"Moran's I_{name}"] = ad.var["Moran's I"]
219 |
220 | adatas_dict[name] = ad
221 |
222 | # concat samples
223 | adata = anndata.concat(adatas_dict, index_unique='-', uns_merge='unique', merge='first')
224 | adata.obs[sample_col] = adata.obs[sample_col].astype('category')
225 | # get SVGs for all samples
226 | svg_columns = [c for c in adata.var.columns if 'spatially_variable' in c]
227 | svg_list = [list(adata.var[c][adata.var[c] == True].index) for c in svg_columns]
228 |
229 | # union of SVGs
230 | spatially_variable = list(set().union(*svg_list))
231 | adata.var['spatially_variable'] = [True if x in spatially_variable else False for x in adata.var_names]
232 |
233 | # save sample-wise spatially_variable and Morans's I columns
234 | sv_cols = [x for x in adata.var.columns if 'spatially_variable_' in x]
235 | adata.varm['spatially_variable'] = adata.var[sv_cols].copy()
236 | if 'gene_ids' in adata.var.columns:
237 | adata.varm['spatially_variable']['gene_ids'] = adata.var['gene_ids']
238 | if 'gene_symbols' in adata.var.columns:
239 | adata.varm['spatially_variable']['gene_symbols'] = adata.var['gene_symbols']
240 | adata.var = adata.var.drop(columns=sv_cols)
241 |
242 | mi_cols = [x for x in adata.var.columns if "Moran's I_" in x]
243 | adata.varm["Moran's I"] = adata.var[mi_cols].copy()
244 | if 'gene_ids' in adata.var.columns:
245 | adata.varm["Moran's I"]['gene_ids'] = adata.var['gene_ids']
246 | if 'gene_symbols' in adata.var.columns:
247 | adata.varm["Moran's I"]['gene_symbols'] = adata.var['gene_symbols']
248 | adata.var = adata.var.drop(columns=mi_cols)
249 |
250 | return adata
251 |
252 |
253 | def harmony_integration(adata, covariates, input_matrix='chr_X_pca', corrected_matrix=None,
254 | random_state=42, **harmony_kw):
255 | """
256 | Integrate data using `harmonypy`, the Python implementation of the R package Harmony.
257 |
258 | Harmony integration is done on the PCA matrix, therefore `chrysalis.pca` must be run before this function.
259 |
260 | :param adata: The AnnData data matrix of shape `n_obs` × `n_vars`. Rows correspond to cells and columns to genes.
261 | :param covariates: String or list of strings containing the covariate columns to integrate over.
262 | :param input_matrix: Input PCA matrix, by default 'chr_X_pca' is used in `.obsm`.
263 | :param corrected_matrix: If `corrected_matrix` is defined, a new `.obsm` matrix will be created for the integrated
264 | results instead of overwriting the `input_matrix`.
265 | :param harmony_kw: `harmonypy.run_harmony()` keyword arguments.
266 | :return:
267 | Replaces `.obsm[input_matrix]` with the corrected one, or saves the new matrix as a new .`.obsm` matrix
268 | specified with `corrected_matrix`.
269 |
270 | """
271 |
272 | try:
273 | import harmonypy as hm
274 | except ImportError:
275 | raise ImportError("Please install harmonypy: `pip install harmonypy`.")
276 |
277 | data_matrix = adata.obsm[input_matrix]
278 | metadata = adata.obs
279 |
280 | ho = hm.run_harmony(data_matrix, metadata, covariates, random_state, **harmony_kw)
281 |
282 | adjusted_matrix = np.transpose(ho.Z_corr)
283 |
284 | if corrected_matrix is None:
285 | adata.obsm[input_matrix] = adjusted_matrix
286 | else:
287 | adata.obsm[corrected_matrix] = adjusted_matrix
288 |
289 |
290 | def get_color_vector(adata: AnnData, dim: int=8, hexcodes: List[str]=None, seed: int=None,
291 | selected_comp='all'):
292 | # define compartment colors
293 | # default colormap with 8 colors
294 | hexcodes = get_hexcodes(hexcodes, dim, seed, len(adata))
295 |
296 | if selected_comp == 'all':
297 | # define colormaps
298 | cmaps = []
299 | for d in range(dim):
300 | pc_cmap = black_to_color(hexcodes[d])
301 | pc_rgb = get_rgb_from_colormap(pc_cmap,
302 | vmin=min(adata.obsm['chr_aa'][:, d]),
303 | vmax=max(adata.obsm['chr_aa'][:, d]),
304 | value=adata.obsm['chr_aa'][:, d])
305 | cmaps.append(pc_rgb)
306 |
307 | # mip colormaps
308 | cblend = mip_colors(cmaps[0], cmaps[1],)
309 | if len(cmaps) > 2:
310 | i = 2
311 | for cmap in cmaps[2:]:
312 | cblend = mip_colors(cblend, cmap,)
313 | i += 1
314 | # specific compartment
315 | else:
316 | color_first = '#2e2e2e'
317 | pc_cmap = color_to_color(color_first, hexcodes[selected_comp])
318 | pc_rgb = get_rgb_from_colormap(pc_cmap,
319 | vmin=min(adata.obsm['chr_aa'][:, selected_comp]),
320 | vmax=max(adata.obsm['chr_aa'][:, selected_comp]),
321 | value=adata.obsm['chr_aa'][:, selected_comp])
322 | cblend = pc_rgb
323 | return cblend
324 |
325 |
326 | def get_hexcodes(hexcodes, dim, seed, adata_len):
327 | if hexcodes is None:
328 | if dim > 8:
329 | hexcodes = generate_random_colors(num_colors=dim, min_distance=1 / dim * 0.5, seed=seed,
330 | saturation=0.65, lightness=0.60)
331 | else:
332 | hexcodes = ['#db5f57', '#dbc257', '#91db57', '#57db80', '#57d3db', '#5770db', '#a157db', '#db57b2']
333 | if seed is None:
334 | np.random.seed(adata_len)
335 | else:
336 | np.random.seed(seed)
337 | np.random.shuffle(hexcodes)
338 | else:
339 | assert len(hexcodes) >= dim
340 | return hexcodes
341 |
--------------------------------------------------------------------------------
/docs/Makefile:
--------------------------------------------------------------------------------
1 | # Minimal makefile for Sphinx documentation
2 | #
3 |
4 | # You can set these variables from the command line, and also
5 | # from the environment for the first two.
6 | SPHINXOPTS ?=
7 | SPHINXBUILD ?= sphinx-build
8 | SOURCEDIR = .
9 | BUILDDIR = _build
10 |
11 | # Put it first so that "make" without argument is like "make help".
12 | help:
13 | @$(SPHINXBUILD) -M help "$(SOURCEDIR)" "$(BUILDDIR)" $(SPHINXOPTS) $(O)
14 |
15 | .PHONY: help Makefile
16 |
17 | # Catch-all target: route all unknown targets to Sphinx using the new
18 | # "make mode" option. $(O) is meant as a shortcut for $(SPHINXOPTS).
19 | %: Makefile
20 | @$(SPHINXBUILD) -M $@ "$(SOURCEDIR)" "$(BUILDDIR)" $(SPHINXOPTS) $(O)
21 |
--------------------------------------------------------------------------------
/docs/_static/css/custom.css:
--------------------------------------------------------------------------------
1 | /*
2 | `width:auto` was rendering 0px wide for .svg files
3 | https://stackoverflow.com/questions/59215996/how-to-add-a-logo-to-my-readthedocs-logo-rendering-at-0px-wide
4 | */
5 | .wy-side-nav-search .wy-dropdown > a img.logo, .wy-side-nav-search > a img.logo {
6 | width: 200px;
7 | }
8 |
9 | /* ReadTheDocs theme colors */
10 |
11 | .wy-nav-top { background-color: #f07e44 }
12 |
13 | .wy-side-nav-search { background-color: transparent}
14 | .wy-side-nav-search input[type="text"] { border-width: 0 }
15 |
16 | .wy-nav-content {
17 | max-width: 1200px;
18 | background: #ffffff;
19 | }
20 |
21 | .wy-body-for-nav {
22 | background: #ffffff;
23 | }
24 |
25 | /* toctree menu caption colors */
26 | .wy-menu-vertical header, .wy-menu-vertical p.caption {
27 | color: #8655ea;
28 | }
29 |
30 | /* toctree menu background colors */
31 | .wy-nav-side {
32 | background: #f8f8f8;
33 | }
34 |
35 | /* toctree menu item colors */
36 | .wy-menu-vertical a {
37 | color: #231F20;
38 | }
39 |
40 | .wy-menu-vertical a:hover {
41 | background-color: #d0beff;
42 | }
43 |
44 | .wy-menu-vertical a:hover button.toctree-expand {
45 | color: #d9d9d9
46 | }
47 |
48 | .rst-content code.literal, .rst-content tt.literal {
49 | color: #8655ea;
50 | }
51 |
52 | html.writer-html4 .rst-content dl:not(.docutils)>dt,html.writer-html5 .rst-content dl[class]:not(.option-list):not(.field-list):not(.footnote):not(.citation):not(.glossary):not(.simple)>dt {
53 | display: table;
54 | margin: 6px 0;
55 | font-size: 90%;
56 | line-height: normal;
57 | background: rgba(240, 231, 250, 0.73);
58 | color: #8655ea;
59 | border-top: 3px solid #6726ec;
60 | padding: 6px;
61 | position: relative
62 | }
63 |
64 | .wy-nav-content-wrap {
65 | background: rgb(255 255 255 / 5%);
66 | }
67 |
68 | /* before-after slider */
69 |
70 | html {
71 | box-sizing: border-box;
72 | }
73 | *, *:before, *:after {
74 | box-sizing: inherit;
75 | }
76 | body {
77 | margin: 0;
78 | height: 100vh;
79 | display: flex;
80 | justify-content: center;
81 | align-items: center;
82 | }
83 | .befaft_container {
84 | position: relative;
85 | width: 500px;
86 | height: 436px;
87 | border: 2px solid white;
88 | }
89 | .befaft_container .img {
90 | position: absolute;
91 | top: 0;
92 | left: 0;
93 | width: 100%;
94 | height: 100%;
95 | background-size: 500px 100%;
96 | }
97 | .befaft_container .background-img {
98 | background-image: url('../images/before.png');
99 | }
100 | .befaft_container .foreground-img {
101 | background-image: url('../images/after.png');
102 | width: 50%;
103 | }
104 | .befaft_container .slider {
105 | position: absolute;
106 | -webkit-appearance: none;
107 | appearance: none;
108 | width: 100%;
109 | height: 100%;
110 | background: rgba(255, 255, 255, 0);
111 | outline: none;
112 | margin: 0;
113 | transition: all 0.2s;
114 | display: flex;
115 | justify-content: center;
116 | align-items: center;
117 | }
118 | .befaft_container .slider:hover {
119 | background: rgba(242, 242, 242, .1);
120 | }
121 | .befaft_container .slider::-webkit-slider-thumb {
122 | -webkit-appearance: none;
123 | appearance: none;
124 | width: 6px;
125 | height: 436px;
126 | background: #ffffff;
127 | cursor: pointer;
128 | }
129 | .befaft_container .slider::-moz-range-thumb {
130 | width: 6px;
131 | height: 436px;
132 | background: white;
133 | cursor: pointer;
134 | }
135 | .befaft_container .slider-button {
136 | pointer-events: none;
137 | position: absolute;
138 | width: 30px;
139 | height: 30px;
140 | border-radius: 50%;
141 | background-color: #ede8ff;
142 | left: calc(50% - 17.5px);
143 | top: calc(50% - 18px);
144 | display: flex;
145 | justify-content: center;
146 | align-items: center;
147 | }
148 | .befaft_container .slider-button:after {
149 | content: '';
150 | padding: 3px;
151 | display: inline-block;
152 | border: solid #5d5d5d;
153 | border-width: 0 2px 2px 0;
154 | transform: rotate(-45deg);
155 | }
156 | .befaft_container .slider-button:before {
157 | content: '';
158 | padding: 3px;
159 | display: inline-block;
160 | border: solid #5d5d5d;
161 | border-width: 0 2px 2px 0;
162 | transform: rotate(135deg);
163 | }
164 |
--------------------------------------------------------------------------------
/docs/_static/images/after.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/docs/_static/images/after.png
--------------------------------------------------------------------------------
/docs/_static/images/before.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/docs/_static/images/before.png
--------------------------------------------------------------------------------
/docs/_static/js/custom.js:
--------------------------------------------------------------------------------
1 | $(document).ready(function() {
2 | $("#slider").on("input change", (e)=>{
3 | const sliderPos = e.target.value;
4 | // Update the width of the foreground image
5 | $('.foreground-img').css('width', `${sliderPos}%`)
6 | // Update the position of the slider button
7 | $('.slider-button').css('left', `calc(${sliderPos}% - 18px)`)
8 | });
9 | });
--------------------------------------------------------------------------------
/docs/api.md:
--------------------------------------------------------------------------------
1 | ```{eval-rst}
2 | .. automodule:: chrysalis
3 | ```
4 |
5 | # API overview
6 |
7 | Import chrysalis as:
8 |
9 | ```
10 | import chrysalis as ch
11 | ```
12 |
13 | ## Core functions
14 |
15 | Identifying spatially variable genes, dimensionality reduction, archetypal analysis.
16 |
17 | Main functions required to identify tissue compartments.
18 |
19 | ```{eval-rst}
20 | .. autosummary::
21 | :toctree: generated/
22 |
23 | detect_svgs
24 | pca
25 | aa
26 | ```
27 |
28 | ## Plotting
29 |
30 | Visualization module.
31 |
32 | ### Tissue compartments
33 |
34 | Visualizations to examine the identified compartments in the tissue space.
35 |
36 | ```{eval-rst}
37 | .. autosummary::
38 | :toctree: generated/
39 |
40 | plot
41 | plot_samples
42 | plot_compartment
43 | plot_compartments
44 | ```
45 |
46 | ### Quality control
47 |
48 | Plot quality control metrics to determine the correct number of spatially variable genes or PCs (Principal Components).
49 |
50 | ```{eval-rst}
51 | .. autosummary::
52 | :toctree: generated/
53 |
54 | plot_explained_variance
55 | plot_svgs
56 | ```
57 |
58 | ### Compartment-associated genes
59 |
60 | Generate a visualization of the top-contributing genes for each tissue compartment.
61 |
62 | ```{eval-rst}
63 | .. autosummary::
64 | :toctree: generated/
65 |
66 | plot_heatmap
67 | plot_weights
68 | ```
69 |
70 | ## Utility functions
71 |
72 | Sample interation, spatially variable gene contributions.
73 |
74 | ```{eval-rst}
75 | .. autosummary::
76 | :toctree: generated/
77 |
78 | integrate_adatas
79 | harmony_integration
80 | get_compartment_df
81 | ```
82 |
--------------------------------------------------------------------------------
/docs/conf.py:
--------------------------------------------------------------------------------
1 | import os
2 | import sys
3 |
4 | sys.path.insert(0, os.path.abspath(".."))
5 | sys.path.insert(0, os.path.abspath("../.."))
6 |
7 |
8 | # Configuration file for the Sphinx documentation builder.
9 | #
10 | # For the full list of built-in configuration values, see the documentation:
11 | # https://www.sphinx-doc.org/en/master/usage/configuration.html
12 |
13 | # -- Project information -----------------------------------------------------
14 | # https://www.sphinx-doc.org/en/master/usage/configuration.html#project-information
15 |
16 | project = 'chrysalis'
17 | copyright = '2024, Demeter Túrós'
18 | author = 'Demeter Túrós'
19 | release = '2023'
20 |
21 | # -- General configuration ---------------------------------------------------
22 | # https://www.sphinx-doc.org/en/master/usage/configuration.html#general-configuration
23 |
24 | extensions = ['myst_parser',
25 | 'sphinx.ext.autodoc',
26 | 'sphinx.ext.autosummary',
27 | 'sphinx.ext.napoleon',
28 | 'nbsphinx',
29 | ]
30 |
31 | templates_path = ['_templates']
32 | exclude_patterns = ['_build', 'Thumbs.db', '.DS_Store']
33 |
34 | # -- Options for HTML output -------------------------------------------------
35 | # https://www.sphinx-doc.org/en/master/usage/configuration.html#options-for-html-output
36 |
37 | html_theme = 'sphinx_rtd_theme'
38 | html_static_path = ['_static']
39 |
40 | html_logo = "docs_logo.svg"
41 | html_favicon = "favicon.svg"
42 |
43 | html_theme_options = {"logo_only": True}
44 |
45 | html_css_files = ['css/custom.css']
46 |
47 | html_js_files = ['js/custom.js']
48 |
49 | html_title = 'chrysalis 0.2.0'
50 |
51 | autodoc_exclude_members = {
52 | 'chrysalis.core': ['detect_svgs', 'pca', 'aa'],
53 | }
54 |
55 | def setup(app):
56 | app.add_css_file("css/custom.css")
--------------------------------------------------------------------------------
/docs/index.md:
--------------------------------------------------------------------------------
1 | # Welcome to chrysalis!
2 | [](https://pypi.org/project/chrysalis-st)
3 | [](https://pepy.tech/project/chrysalis-st)
4 | [](https://github.com/rockdeme/chrysalis/stargazers)
5 | ```{include} ../README.md
6 | :start-line: 7
7 | :end-line: 18
8 | ```
9 |
10 | * Discuss **chrysalis** on [GitHub].
11 | * Get started by reading the {doc}`basic tutorial `.
12 | * You can also browse the {doc}`API `.
13 | * Consider citing our [bioRxiv preprint].
14 |
15 | ## Visual demonstration
16 | ### human lung cancer (FFPE)
17 |
18 | [Squamous Cell Carcinoma](https://www.10xgenomics.com/resources/datasets/human-lung-cancer-ffpe-2-standard) sample by 10X Genomics.
19 |
20 | Move the slider to reveal tissue compartments calculated by **chrysalis** or the associated tissue morphology.
21 |
22 |
23 |
29 |
30 | ```{toctree}
31 | :hidden: true
32 | :maxdepth: 1
33 | :caption: chrysalis
34 |
35 | overview/getting-started
36 | overview/installation
37 | ```
38 |
39 | ```{toctree}
40 | :hidden: true
41 | :maxdepth: 2
42 | :caption: Tutorials
43 |
44 | tutorials/lymph_node_tutorial
45 | tutorials/mouse_brain_integration_tutorial
46 | tutorials/advanced_integration_tutorial
47 | ```
48 |
49 | ```{toctree}
50 | :hidden: true
51 | :maxdepth: 2
52 | :caption: API
53 |
54 | api
55 | ```
56 |
57 | [GitHub]: https://github.com/rockdeme/chrysalis
58 | [bioRxiv preprint]: https://doi.org/10.1101/2023.08.17.553606
59 |
--------------------------------------------------------------------------------
/docs/make.bat:
--------------------------------------------------------------------------------
1 | @ECHO OFF
2 |
3 | pushd %~dp0
4 |
5 | REM Command file for Sphinx documentation
6 |
7 | if "%SPHINXBUILD%" == "" (
8 | set SPHINXBUILD=sphinx-build
9 | )
10 | set SOURCEDIR=.
11 | set BUILDDIR=_build
12 |
13 | %SPHINXBUILD% >NUL 2>NUL
14 | if errorlevel 9009 (
15 | echo.
16 | echo.The 'sphinx-build' command was not found. Make sure you have Sphinx
17 | echo.installed, then set the SPHINXBUILD environment variable to point
18 | echo.to the full path of the 'sphinx-build' executable. Alternatively you
19 | echo.may add the Sphinx directory to PATH.
20 | echo.
21 | echo.If you don't have Sphinx installed, grab it from
22 | echo.https://www.sphinx-doc.org/
23 | exit /b 1
24 | )
25 |
26 | if "%1" == "" goto help
27 |
28 | %SPHINXBUILD% -M %1 %SOURCEDIR% %BUILDDIR% %SPHINXOPTS% %O%
29 | goto end
30 |
31 | :help
32 | %SPHINXBUILD% -M help %SOURCEDIR% %BUILDDIR% %SPHINXOPTS% %O%
33 |
34 | :end
35 | popd
36 |
--------------------------------------------------------------------------------
/docs/overview/getting-started.md:
--------------------------------------------------------------------------------
1 | # Getting started
2 |
3 | Quickstart guide to install and run **chrysalis**.
4 |
5 | ## Install
6 |
7 | ```shell
8 | pip install chrysalis-st
9 | ```
10 |
11 | ## Run
12 |
13 | ```python
14 | import chrysalis as ch
15 | import scanpy as sc
16 | import matplotlib.pyplot as plt
17 |
18 |
19 | adata = sc.datasets.visium_sge(sample_id='V1_Human_Lymph_Node')
20 |
21 | sc.pp.calculate_qc_metrics(adata, inplace=True)
22 | sc.pp.filter_cells(adata, min_counts=6000)
23 | sc.pp.filter_genes(adata, min_cells=10)
24 |
25 | ch.detect_svgs(adata, min_morans=0.08, min_spots=0.05)
26 |
27 | sc.pp.normalize_total(adata, inplace=True)
28 | sc.pp.log1p(adata)
29 |
30 | ch.pca(adata)
31 |
32 | ch.aa(adata, n_pcs=20, n_archetypes=8)
33 |
34 | ch.plot(adata)
35 | plt.show()
36 | ```
37 |
--------------------------------------------------------------------------------
/docs/overview/installation.md:
--------------------------------------------------------------------------------
1 | # Installation
2 |
3 | Create a new conda environment if required:
4 |
5 | ```shell
6 | conda create -n chrysalis-env python=3.8
7 | ```
8 |
9 | ```shell
10 | conda activate chrysalis-env
11 | ```
12 |
13 | You can install **chrysalis** from PyPI using pip:
14 |
15 | ```shell
16 | pip install chrysalis-st
17 | ```
18 |
19 | This will install **chrysalis** and all dependencies including `scanpy`.
20 |
21 | ## Troubleshooting
22 |
23 | If `rvlib` fails to install, you can try installing it with conda:
24 | ```shell
25 | conda install -c conda-forge rvlib
26 | ```
27 |
--------------------------------------------------------------------------------
/docs/requirements.txt:
--------------------------------------------------------------------------------
1 | scipy
2 | numpy
3 | pandas
4 | matplotlib==3.7.2
5 | sphinx==5.3.0
6 | sphinx_rtd_theme==1.2.2
7 | myst_parser==0.18.1
8 | nbsphinx==0.9.2
9 | chrysalis-st
--------------------------------------------------------------------------------
/gallery/readme.md:
--------------------------------------------------------------------------------
1 | # Gallery
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
--------------------------------------------------------------------------------
/misc/banner.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/misc/banner.png
--------------------------------------------------------------------------------
/misc/demo.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/misc/demo.png
--------------------------------------------------------------------------------
/misc/deprecated_functions.py:
--------------------------------------------------------------------------------
1 | import colorsys
2 | import numpy as np
3 | import pandas as pd
4 | import scanpy as sc
5 | from tqdm import tqdm
6 | import geopandas as gpd
7 | import archetypes as arch
8 | from pysal.lib import weights
9 | from pysal.explore import esda
10 | import matplotlib.pyplot as plt
11 | from shapely.geometry import Point
12 | import matplotlib.colors as mcolors
13 | from sklearn.decomposition import PCA
14 | from scipy.spatial.distance import cdist
15 |
16 |
17 | def get_moransI(w_orig, y):
18 | # w = spatial weight (topological or actual distance)
19 | # y = actual value
20 | # y_hat = mean value
21 | # REF: https://github.com/yatshunlee/spatial_autocorrelation/blob/main/spatial_autocorrelation/moransI.py modified
22 | # wth some ChatGPT magic to remove the for loops
23 |
24 | if not isinstance(y, np.ndarray):
25 | raise TypeError("Passed array (feature) should be in numpy array (ndim = 1)")
26 | if y.shape[0] != w_orig.shape[0]:
27 | raise ValueError("Feature array is not the same shape of weight")
28 | if w_orig.shape[0] != w_orig.shape[1]:
29 | raise ValueError("Weight array should be in square shape")
30 |
31 | w = w_orig.copy()
32 | y_hat = np.mean(y)
33 | D = y - y_hat
34 | D_sq = (y - y_hat) ** 2
35 | N = y.shape[0]
36 | sum_W = np.sum(w)
37 | w *= D.reshape(-1, 1) * D.reshape(1, -1) * (w != 0)
38 | moransI = (np.sum(w) / sum(D_sq)) * (N / sum_W)
39 | return round(moransI, 8)
40 |
41 |
42 | def black_to_color(color):
43 | # define the colors in the colormap
44 | colors = ["black", color]
45 |
46 | # create a colormap object using the defined colors
47 | cmap = mcolors.LinearSegmentedColormap.from_list("", colors)
48 |
49 | return cmap
50 |
51 |
52 | def hls_to_hex(h, l, s):
53 | # convert the HSV values to RGB values
54 | r, g, b = colorsys.hls_to_rgb(h, l, s)
55 | # convert the RGB values to a hex color code
56 | hex_code = "#{:02X}{:02X}{:02X}".format(int(r * 255), int(g * 255), 76)
57 | return hex_code
58 |
59 |
60 | def generate_random_colors(num_colors, hue_range=(0, 1), saturation=0.5, lightness=0.5, min_distance=0.2):
61 | colors = []
62 | hue_list = []
63 |
64 | while len(colors) < num_colors:
65 | # Generate a random hue value within the specified range
66 | hue = np.random.uniform(hue_range[0], hue_range[1])
67 |
68 | # Check if the hue is far enough away from the previous hue
69 | if len(hue_list) == 0 or all(abs(hue - h) > min_distance for h in hue_list):
70 | hue_list.append(hue)
71 | saturation = saturation
72 | lightness = lightness
73 | rgb = colorsys.hls_to_rgb(hue, lightness, saturation)
74 | hex_code = '#{:02x}{:02x}{:02x}'.format(int(rgb[0] * 255), int(rgb[1] * 255), int(rgb[2] * 255))
75 | colors.append(hex_code)
76 |
77 | return colors
78 |
79 | def get_rgb_from_colormap(cmap, vmin, vmax, value):
80 | # normalize the value within the range [0, 1]
81 | norm = plt.Normalize(vmin=vmin, vmax=vmax)
82 | value_normalized = norm(value)
83 |
84 | # get the RGBA value from the colormap
85 | rgba = plt.get_cmap(cmap)(value_normalized)
86 |
87 | # convert the RGBA value to RGB
88 | # color = tuple(np.array(rgba[:3]) * 255)
89 | color = np.array(rgba[:, :3])
90 |
91 | return color
92 |
93 |
94 | def blend_colors(colors_1, colors_2, weight=0.5):
95 | # ensure weight is between 0 and 1
96 | weight = max(0, min(1, weight))
97 |
98 | # blend the colors using linear interpolation
99 | blended_colors = []
100 | for i in range(len(colors_1)):
101 | r = (1 - weight) * colors_1[i][0] + weight * colors_2[i][0]
102 | g = (1 - weight) * colors_1[i][1] + weight * colors_2[i][1]
103 | b = (1 - weight) * colors_1[i][2] + weight * colors_2[i][2]
104 | blended_colors.append((r, g, b))
105 | return blended_colors
106 |
107 |
108 | def mip_colors(colors_1, colors_2):
109 | # blend the colors using linear interpolation
110 | mip_color = []
111 | for i in range(len(colors_1)):
112 | r = max(colors_1[i][0], colors_2[i][0])
113 | g = max(colors_1[i][1], colors_2[i][1])
114 | b = max(colors_1[i][2], colors_2[i][2])
115 | mip_color.append((r, g, b))
116 | return mip_color
117 |
118 | def chrysalis_plot_old(adata, pcs=8, hexcodes=None, seed=None, vis='mip_colors'):
119 |
120 | def norm_weight(a, b):
121 | # for weighting PCs if we want to use blend_colors
122 | return (b - a) / b
123 |
124 | # define PC colors
125 | if hexcodes is None:
126 | hexcodes = ['#db5f57', '#dbc257', '#91db57', '#57db80', '#57d3db', '#5770db', '#a157db', '#db57b2']
127 | if seed is None:
128 | np.random.seed(len(adata))
129 | else:
130 | np.random.seed(seed)
131 | np.random.shuffle(hexcodes)
132 | else:
133 | assert len(hexcodes) >= pcs
134 |
135 |
136 | # define colormaps
137 | cmaps = []
138 | for pc in range(pcs):
139 | pc_cmap = black_to_color(hexcodes[pc])
140 | pc_rgb = get_rgb_from_colormap(pc_cmap,
141 | vmin=min(adata.obs[f'pca_{pc}']),
142 | vmax=max(adata.obs[f'pca_{pc}']),
143 | value=adata.obs[f'pca_{pc}'])
144 | cmaps.append(pc_rgb)
145 |
146 | # blend colormaps
147 | if vis == 'mip_colors':
148 | cblend = mip_colors(cmaps[0], cmaps[1],)
149 | if len(cmaps) > 2:
150 | i = 2
151 | for cmap in cmaps[2:]:
152 | cblend = mip_colors(cblend, cmap,)
153 | i += 1
154 | elif vis == 'blend_colors':
155 | var_r = np.cumsum(adata.uns['pca']['variance_ratio'][:pcs]) # get variance ratios to normalize
156 | cblend = blend_colors(cmaps[0], cmaps[1], weight=norm_weight(var_r[0], var_r[1]))
157 | if len(cmaps) > 2:
158 | i = 2
159 | for cmap in cmaps[2:]:
160 | cblend = blend_colors(cblend, cmap, weight=norm_weight(var_r[i - 1], var_r[i]))
161 | i += 1
162 | else:
163 | raise Exception('vis should be either mip_colors or blend colors')
164 |
165 | # plot
166 | fig, ax = plt.subplots(1, 1, figsize=(6, 6))
167 | ax.axis('off')
168 | # ax[idx].set_xlim((0, 8500))
169 | # ax[idx].set_ylim((-8500, 0))
170 | row = adata.obsm['spatial'][:, 0]
171 | col = adata.obsm['spatial'][:, 1] * -1
172 | plt.scatter(row, col, s=25, marker="h", c=cblend)
173 | ax.set_aspect('equal')
174 |
175 |
176 | def chrysalis_calculate_old(adata):
177 | sc.pp.filter_genes(adata, min_cells=1000)
178 | adata.var_names_make_unique() # moran dies so need some check later
179 | sc.pp.normalize_total(adata, inplace=True)
180 | sc.pp.log1p(adata)
181 |
182 | gene_matrix = adata.to_df()
183 | gene_list = list(gene_matrix.columns)
184 | gdf = gpd.GeoDataFrame(gene_matrix)
185 | gdf['spots'] = [Point(x, y) for x, y in zip(adata.obsm['spatial'][:, 0], adata.obsm['spatial'][:, 1] * -1)]
186 | gdf.geometry = gdf['spots']
187 |
188 | w = weights.KNN.from_dataframe(gdf, k=6)
189 | w.transform = 'R'
190 | moran_dict = {}
191 | # moran.by_col(gdf,gene_list, w=w, permutations=0) this doesn't seem to be faster
192 | for c in tqdm(gene_list):
193 | moran = esda.moran.Moran(gdf[c], w, permutations=0)
194 | moran_dict[c] = moran.I
195 |
196 | moran_df = pd.DataFrame(data=moran_dict.values(), index=moran_dict.keys(), columns=["Moran's I"])
197 | moran_df = moran_df.sort_values(ascending=False, by="Moran's I")
198 | adata.var['highly_variable'] = [True if x in moran_df[:1000].index else False for x in adata.var_names]
199 | adata.var["Moran's I"] = moran_df["Moran's I"]
200 |
201 | sc.pp.pca(adata)
202 |
203 | for i in range(20):
204 | adata.obs[f'pca_{i}'] = adata.obsm['X_pca'][:, i]
205 |
206 | # archetype analysis
207 | model = arch.AA(n_archetypes=8, n_init=3, max_iter=200, tol=0.001, random_state=42)
208 | model.fit(adata.obsm['X_pca'][:, :7])
209 |
210 | for i in range(model.alphas_.shape[1]):
211 | adata.obs[f'aa_{i}'] = model.alphas_[:, i]
212 |
213 |
214 | def plot_loadings(adata):
215 | hexcodes = ['#db5f57', '#dbc257', '#91db57', '#57db80', '#57d3db', '#5770db', '#a157db', '#db57b2']
216 |
217 | np.random.seed(len(adata))
218 | np.random.shuffle(hexcodes)
219 |
220 | loadings = pd.DataFrame(adata.varm['PCs'][:, :20], index=adata.var_names)
221 | sl = loadings[[0]].sort_values(ascending=False, by=0)[:10]
222 |
223 | fig, ax = plt.subplots(2, 4, figsize=(3 * 4, 4 * 2))
224 | ax = ax.flatten()
225 | for i in range(8):
226 | sl = loadings[[i]].sort_values(ascending=False, by=i)[:10]
227 | ax[i].axis('on')
228 | ax[i].grid(axis='x')
229 | ax[i].set_axisbelow(True)
230 | ax[i].barh(list(sl.index)[::-1], list(sl[i].values)[::-1], color=hexcodes[i])
231 | ax[i].set_xlabel('Loading')
232 | ax[i].set_title(f'PC {i}')
233 | plt.tight_layout()
234 | plt.show()
235 |
236 |
237 | def chrysalis_plot_aa(adata, pcs=8, hexcodes=None, seed=None, vis='mip_colors'):
238 |
239 | def norm_weight(a, b):
240 | # for weighting PCs if we want to use blend_colors
241 | return (b - a) / b
242 |
243 | # define PC colors
244 | if hexcodes is None:
245 | hexcodes = ['#db5f57', '#dbc257', '#91db57', '#57db80', '#57d3db', '#5770db', '#a157db', '#db57b2']
246 |
247 | if pcs > 8:
248 | if seed is None:
249 | np.random.seed(len(adata))
250 | else:
251 | np.random.seed(seed)
252 | hexcodes = generate_random_colors(pcs, hue_range=(0.0, 1.0), min_distance=0.05)
253 |
254 | if seed is None:
255 | np.random.seed(len(adata))
256 | else:
257 | np.random.seed(seed)
258 | np.random.shuffle(hexcodes)
259 | else:
260 | assert len(hexcodes) >= pcs
261 |
262 |
263 | # define colormaps
264 | cmaps = []
265 | for pc in range(pcs):
266 | pc_cmap = black_to_color(hexcodes[pc])
267 | pc_rgb = get_rgb_from_colormap(pc_cmap,
268 | vmin=min(adata.obs[f'aa_{pc}']),
269 | vmax=max(adata.obs[f'aa_{pc}']),
270 | value=adata.obs[f'aa_{pc}'])
271 | cmaps.append(pc_rgb)
272 |
273 | # blend colormaps
274 | if vis == 'mip_colors':
275 | cblend = mip_colors(cmaps[0], cmaps[1],)
276 | if len(cmaps) > 2:
277 | i = 2
278 | for cmap in cmaps[2:]:
279 | cblend = mip_colors(cblend, cmap,)
280 | i += 1
281 | elif vis == 'blend_colors':
282 | var_r = np.cumsum(adata.uns['pca']['variance_ratio'][:pcs]) # get variance ratios to normalize
283 | cblend = blend_colors(cmaps[0], cmaps[1], weight=norm_weight(var_r[0], var_r[1]))
284 | if len(cmaps) > 2:
285 | i = 2
286 | for cmap in cmaps[2:]:
287 | cblend = blend_colors(cblend, cmap, weight=norm_weight(var_r[i - 1], var_r[i]))
288 | i += 1
289 | else:
290 | raise Exception("Vis should be either 'mip_colors' or 'blend colors'")
291 |
292 | # plot
293 | fig, ax = plt.subplots(1, 1, figsize=(6, 6))
294 | ax.axis('off')
295 | row = adata.obsm['spatial'][:, 0]
296 | col = adata.obsm['spatial'][:, 1] * -1
297 | ax.set_xlim((np.min(row) * 0.9, np.max(row) * 1.1))
298 | ax.set_ylim((np.min(col) * 1.1, np.max(col) * 0.9))
299 | ax.set_aspect('equal')
300 |
301 | # get the physical length of the x and y axes
302 | x_length = np.diff(ax.get_xlim())[0] * fig.dpi * fig.get_size_inches()[0]
303 | y_length = np.diff(ax.get_ylim())[0] * fig.dpi * fig.get_size_inches()[1]
304 |
305 | size = np.sqrt(x_length * y_length) * 0.000005
306 |
307 | plt.scatter(row, col, s=size, marker="h", c=cblend)
--------------------------------------------------------------------------------
/misc/human_lymph_node.jpg:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/misc/human_lymph_node.jpg
--------------------------------------------------------------------------------
/misc/panel_1.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/misc/panel_1.png
--------------------------------------------------------------------------------
/misc/panel_2.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/misc/panel_2.png
--------------------------------------------------------------------------------
/plots/V1_Human_Lymph_Node.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/V1_Human_Lymph_Node.png
--------------------------------------------------------------------------------
/plots/V1_Mouse_Brain_Sagittal_Anterior.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/V1_Mouse_Brain_Sagittal_Anterior.png
--------------------------------------------------------------------------------
/plots/V1_Mouse_Brain_Sagittal_Posterior.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/V1_Mouse_Brain_Sagittal_Posterior.png
--------------------------------------------------------------------------------
/plots/V1_Mouse_Kidney.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/V1_Mouse_Kidney.png
--------------------------------------------------------------------------------
/plots/gallery/Parent_Visium_Human_BreastCancer.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/Parent_Visium_Human_BreastCancer.png
--------------------------------------------------------------------------------
/plots/gallery/Parent_Visium_Human_Cerebellum.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/Parent_Visium_Human_Cerebellum.png
--------------------------------------------------------------------------------
/plots/gallery/Parent_Visium_Human_ColorectalCancer.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/Parent_Visium_Human_ColorectalCancer.png
--------------------------------------------------------------------------------
/plots/gallery/Parent_Visium_Human_Glioblastoma.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/Parent_Visium_Human_Glioblastoma.png
--------------------------------------------------------------------------------
/plots/gallery/Parent_Visium_Human_OvarianCancer.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/Parent_Visium_Human_OvarianCancer.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Adult_Mouse_Brain.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Adult_Mouse_Brain.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Adult_Mouse_Brain_Coronal_Section_1.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Adult_Mouse_Brain_Coronal_Section_1.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Adult_Mouse_Brain_Coronal_Section_2.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Adult_Mouse_Brain_Coronal_Section_2.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Breast_Cancer_Block_A_Section_1.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Breast_Cancer_Block_A_Section_1.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Breast_Cancer_Block_A_Section_2.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Breast_Cancer_Block_A_Section_2.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Human_Heart.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Human_Heart.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Human_Lymph_Node.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Human_Lymph_Node.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Mouse_Brain_Sagittal_Anterior.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Mouse_Brain_Sagittal_Anterior.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Mouse_Brain_Sagittal_Anterior_Section_2.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Mouse_Brain_Sagittal_Anterior_Section_2.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Mouse_Brain_Sagittal_Posterior.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Mouse_Brain_Sagittal_Posterior.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Mouse_Brain_Sagittal_Posterior_Section_2.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Mouse_Brain_Sagittal_Posterior_Section_2.png
--------------------------------------------------------------------------------
/plots/gallery/V1_Mouse_Kidney.png:
--------------------------------------------------------------------------------
https://raw.githubusercontent.com/rockdeme/chrysalis/6c18ff8c3e2b1b64fdf8fe7217a96f98ed6749be/plots/gallery/V1_Mouse_Kidney.png
--------------------------------------------------------------------------------
/pyproject.toml:
--------------------------------------------------------------------------------
1 | [build-system]
2 | requires = ["hatchling"]
3 | build-backend = "hatchling.build"
4 |
5 | # for testing use pip install --index-url=https://test.pypi.org/simple/
6 | # --extra-index-url=https://pypi.org/simple/ chrysalis-st==x.x.x
7 |
8 | [project]
9 | name = "chrysalis-st"
10 | version = "0.2.0"
11 | authors = [
12 | {name="Demeter Túrós"},
13 | ]
14 | description = "Powerful and lightweight package to identify tissue compartments in spatial transcriptomics datasets."
15 | readme = "README.md"
16 | requires-python = ">=3.7"
17 | classifiers = [
18 | "Programming Language :: Python :: 3",
19 | "License :: OSI Approved :: MIT License",
20 | "Operating System :: OS Independent",
21 | ]
22 |
23 | dependencies = [
24 | "archetypes==0.4.2", # last version before PyTorch integration, chrysalis is not relying on that yet
25 | "matplotlib",
26 | "numpy",
27 | "pandas",
28 | "pysal",
29 | "scanpy",
30 | "scikit-learn",
31 | "scipy",
32 | "tqdm",
33 | "seaborn",
34 | ]
35 |
36 | [project.urls]
37 | "Homepage" = "https://github.com/rockdeme/chrysalis"
38 | "Documentation" = "https://chrysalis.readthedocs.io/"
39 |
40 | [tool.hatch.build.targets.wheel]
41 | packages = ["chrysalis"]
42 |
43 | [tool.hatch.build.targets.sdist]
44 | exclude = [
45 | "/.github",
46 | "/docs",
47 | "/misc",
48 | "/plots",
49 | "/article",
50 | "/gallery",
51 | ".readthedocs.yaml",
52 | ]
53 |
--------------------------------------------------------------------------------
/requirements.txt:
--------------------------------------------------------------------------------
1 | archetypes
2 | matplotlib
3 | numpy
4 | pandas
5 | pysal
6 | scanpy
7 | scikit_learn
8 | scipy
9 | tqdm
10 | seaborn
11 | anndata
12 |
--------------------------------------------------------------------------------
