MIDI REMOTE for BEHRINGER BCR2000

2 | 3 | INSTALL: 4 | - Create folder structure "Behringer/BCR2000" inside "../MIDI Remote/Driver Scripts/Local" folder. 5 | - Copy .js file inside BCR2000 folder. 6 | - Connect your device. 7 | - Start Cubase/Nuendo. 8 | 9 | IMPORTANT: 10 | factory preset for BCR2000 is absolute mode, and this cause stutter moving on knobs: I used relative mode. 11 | BCR2000 need to be configured manually prior to use this script: 12 | - all knobs need to be in “rel1” mode; 13 | - all buttons “toggle off” mode. 14 | 15 | Or you can load attached .bcr preset (easy done with BC MANAGER https://mountainutilities.eu/bcmanager). 16 | 17 | This is the default CC assignement to match midi remote script: 18 | ![Immagine1](https://user-images.githubusercontent.com/101831235/159006077-9ba786d6-dd70-4328-be39-a26210b7813b.png) 19 | 20 |

FOCUS PAGE

21 | 22 | ![Focus page](https://user-images.githubusercontent.com/101831235/159119444-0d218338-423c-4c4d-963d-b3a0183a04fc.png) 23 | 24 | Use Encoder Groups buttons on BCR2000 to switch between 25 | - Sends 26 | - Focused Quick Controls 27 | - Track Quick Controls 28 | - Cues 29 | 30 | EQ Q/TYPE button, switches between Q and filter type on lower knobs 31 | 32 | Side buttons: 33 | use arrows buttons to move between tracks 34 | use page button to switch page 35 | 36 |

MIXING PAGE

37 | 38 | ![02](https://user-images.githubusercontent.com/101831235/159119463-9793dedd-06c1-4c50-b40a-d82e10955b9d.png) 39 | 40 | Side buttons: 41 | use arrows to switch banks 42 | 43 |   44 |

Changelog:

45 | 46 | - v 1.0 07/03/2022 47 | first release. 48 | - v 1.1 08/03/2022 49 | navigate tracks via side button. 50 | - v 1.2 09/03/2022 51 | Focused Quick Control lock added. 52 | - v 1.3 10/03/2022 53 | Pre-filter eq controls added. 54 | Added push button for Focused Quick Control: if focused parameter is a button now you can push the encoder to switch. 55 | - v 1.4. 56 | Added Layers for encoders Group. 57 | - v 1.5 11/03/2022 58 | Cue level control added. 59 | Control Room Main channel level control added. 60 | Monitor enable control added. 61 | Read and write automation control added. 62 | Foot-switches added. 63 | - v 1.6 19/03/2022 64 | Added label for focused track and selected page. 65 | Focus Control page: Phase control added, EQ Q/TYPE button added to switch between Q and filter type on lower knobs. Mixing page added to control banks of 8 channels at once. Mixing page shows track names. 66 | 67 | 68 | 69 | Programmed by Giampaolo Gesuale 70 | contact: giampaologesuale@gmail.com 71 | -------------------------------------------------------------------------------- /examplecompany/putasmileonyoursurface/examplecompany_putasmileonyoursurface.js: -------------------------------------------------------------------------------- 1 | //----------------------------------------------------------------------------- 2 | // 1. DRIVER SETUP - create driver object, midi ports and detection information 3 | //----------------------------------------------------------------------------- 4 | 5 | // get the api's entry point 6 | var midiremote_api = require('midiremote_api_v1') 7 | 8 | // create the device driver main object 9 | var deviceDriver = midiremote_api.makeDeviceDriver('ExampleCompany', 'PutASmileOnYourSurface', 'Steinberg Media Technologies GmbH') 10 | 11 | // create objects representing the hardware's MIDI ports 12 | var midiInput = deviceDriver.mPorts.makeMidiInput() 13 | var midiOutput = deviceDriver.mPorts.makeMidiOutput() 14 | 15 | // define all possible namings the devices MIDI ports could have 16 | // NOTE: Windows and MacOS handle port naming differently 17 | deviceDriver.makeDetectionUnit().detectPortPair(midiInput, midiOutput) 18 | .expectInputNameEquals('SmileDevice IN') 19 | .expectOutputNameEquals('SmileDevice OUT') 20 | 21 | deviceDriver.makeDetectionUnit().detectPortPair(midiInput, midiOutput) 22 | .expectInputNameEquals('SmileDevice (MIDI IN)') 23 | .expectOutputNameEquals('SmileDevice (MIDI OUT)') 24 | 25 | 26 | //----------------------------------------------------------------------------- 27 | // 2. SURFACE LAYOUT - create control elements and midi bindings 28 | //----------------------------------------------------------------------------- 29 | 30 | // create control element representing your hardware's surface 31 | 32 | deviceDriver.mSurface.makeBlindPanel(0, 0, 6, 6).setShapeCircle() 33 | 34 | var knob1 = deviceDriver.mSurface.makeKnob(0.75, 3.25, 1, 1.5) 35 | var knob2 = deviceDriver.mSurface.makeKnob(1.50, 4.00, 1, 1.5) 36 | var knob3 = deviceDriver.mSurface.makeKnob(2.50, 4.25, 1, 1.5) 37 | var knob4 = deviceDriver.mSurface.makeKnob(3.50, 4.00, 1, 1.5) 38 | var knob5 = deviceDriver.mSurface.makeKnob(4.25, 3.25, 1, 1.5) 39 | var knob6 = deviceDriver.mSurface.makeKnob(1.00, 1.15, 2, 2) 40 | var knob7 = deviceDriver.mSurface.makeKnob(3.00, 1.15, 2, 2) 41 | 42 | // bind midi ports to surface elements 43 | knob1.mSurfaceValue.mMidiBinding 44 | .setInputPort(midiInput) 45 | .setOutputPort(midiOutput) 46 | .bindToControlChange (0, 21) // channel 0, cc 21 47 | 48 | knob2.mSurfaceValue.mMidiBinding 49 | .setInputPort(midiInput) 50 | .setOutputPort(midiOutput) 51 | .bindToControlChange (0, 22) // channel 0, cc 22 52 | 53 | knob3.mSurfaceValue.mMidiBinding 54 | .setInputPort(midiInput) 55 | .setOutputPort(midiOutput) 56 | .bindToControlChange (0, 23) // channel 0, cc 23 57 | 58 | knob4.mSurfaceValue.mMidiBinding 59 | .setInputPort(midiInput) 60 | .setOutputPort(midiOutput) 61 | .bindToControlChange (0, 24) // channel 0, cc 24 62 | 63 | //----------------------------------------------------------------------------- 64 | // 3. HOST MAPPING - create mapping pages and host bindings 65 | //----------------------------------------------------------------------------- 66 | 67 | // create at least one mapping page 68 | var page = deviceDriver.mMapping.makePage('Example Mixer Page') 69 | 70 | // create host accessing objects 71 | var hostSelectedTrackChannel = page.mHostAccess.mTrackSelection.mMixerChannel 72 | 73 | 74 | // bind surface elements to host accessing object values 75 | page.makeValueBinding(knob1.mSurfaceValue, hostSelectedTrackChannel.mValue.mVolume) 76 | page.makeValueBinding(knob2.mSurfaceValue, hostSelectedTrackChannel.mSends.getByIndex(0).mLevel) 77 | page.makeValueBinding(knob3.mSurfaceValue, hostSelectedTrackChannel.mSends.getByIndex(1).mLevel) 78 | page.makeValueBinding(knob4.mSurfaceValue, hostSelectedTrackChannel.mSends.getByIndex(2).mLevel) 79 | page.makeValueBinding(knob5.mSurfaceValue, hostSelectedTrackChannel.mSends.getByIndex(3).mLevel) 80 | page.makeValueBinding(knob6.mSurfaceValue, hostSelectedTrackChannel.mValue.mVolume) 81 | page.makeValueBinding(knob7.mSurfaceValue, hostSelectedTrackChannel.mValue.mPan) 82 | -------------------------------------------------------------------------------- /README.md: -------------------------------------------------------------------------------- 1 | # MIDI Remote API - User Scripts 2 | 3 | # About 4 | 5 | Welcome to the Steinberg **MIDI Remote API**. 6 | 7 | This document will guide you through the steps of writing a **MIDI Remote API Script** for a specific MIDI Controller Hardware. 8 | 9 | > **NOTE**: Scripts are written in the **[ES5](https://www.w3schools.com/js/js_es5.asp)** version of **JavaScript** 10 | 11 | # How to work with this repository 12 | 13 | 1. Make a fork of steinbergmedia/midiremote-userscripts 14 | 15 | 2. Rename your existing …/Driver Scripts/Local folder to something else (like Local_backup) 16 | 17 | 3. Create a new empty folder Local to replace it 18 | 19 | 4. Clone your forked repository inside the newly created empty Local folder 20 | 21 | 5. Copy your existing scripts from within the Local_backup folder into the Local folder 22 | 23 | 6. Still use the parent folder of Local, the Drive Scripts folder, as the workspace folder in Visual Studio Code 24 | 25 | 7. Make commits/pushes to your forked repo 26 | 27 | 8. Make pull requests to the upstream repo (steinbergmedia/midiremote-userscripts) 28 | 29 | > And don't forget to regulary do “fetch and merge” from the upstream repo (steinbergmedia/midiremote-userscripts) to stay in sync. 30 | 31 | 32 | # Basic Concept 33 | 34 | > The **MIDI Remote API Script** acts as a mediator between a Hardware Controller and Cubase / Nuendo 35 | 36 | 37 | 38 | 39 | 40 | 43 | 44 | > The **MIDI Remote API Script** emulates the hardware surface. This improves usability and recognizability. 45 | 46 | 47 | 48 | # Script Structure 49 | 50 | ### The **MIDI Remote API Script** consists of three building blocks 51 | 1. Driver Setup 52 | - create driver object 53 | - define driver ports to be associated with existing hardware midi ports 54 | - specify all possible port namings for automatic device detection 55 | 56 | 2. Surface Layout 57 | - visualize the hardware's surface elements (e.g. knobs, faders, buttons) 58 | - bind surface elements to midi messages 59 | 60 | 3. Host Mapping 61 | - create mapping pages for each user workflow (e.g. mixing, playing instruments, track navigation) 62 | 63 |

64 | 65 | > The following image illustrates that: 66 | 67 |

68 | 69 | 70 | 71 | 72 | # Getting Started 73 | 74 | 75 | 76 | ### To get started please perform these steps: 77 | 78 | 1. Make sure you have [Visual Studio Code](https://code.visualstudio.com/) installed. 79 | 80 |
81 | We highly recommend using Visual Studio Code for writing MIDI Remote API Scripts. We provide a JSDoc based auto-completion setup. You will not have to look up types and methods in a separate documentation. Visual Studio Code will help you write scripts intuitively. 82 |
83 | 84 | 85 | 86 | 2. Make sure the folder of the [Visual Studio Code](https://code.visualstudio.com/) executable is added to the PATH environment variable. 87 | 88 | 3. Make sure you have the newest Cubase / Nuendo installed. 89 | 90 | 4. Start Cubase / Nuendo. 91 | 92 | 5. Create a project with audio and/or instrument tracks. 93 | 94 | 6. Open the Remote tab in the lower zone. 95 | 96 | 97 | 98 | 1. Open the **MIDI Remote Driver Scripts** folder. 99 | 100 | > Mac: /Users/<Username>/Documents/Steinberg/<Cubase or Nuendo>/MIDI Remote/Driver Scripts 101 | 102 | > Windows: C:\Users\\<Username>\Documents\Steinberg\<Cubase or Nuendo>\MIDI Remote\Driver Scripts 103 | 104 |

105 | 106 | 1. Open a console (win: cmd, mac: terminal) and go to the **MIDI Remote Driver Scripts** folder. 107 | 108 | 2. Open [Visual Studio Code](https://code.visualstudio.com/) from the command line like this: 109 | 110 | > code . 111 | 112 | 113 | 114 | 10. Create a script file. 115 | 116 | The **MIDI Remote API Script** file follows the structure: 117 | <Driver Scripts Folder>/<Local or Public>/<vendor>/<device>/<vendor>_<device>.js 118 | 119 |
120 | WARNING: Always use the folder Local for development, folder Public will be overwritten when starting Cubase / Nuendo. 121 |
122 | 123 | Example: 124 | <Driver Scripts Folder>/Local/Nektar/Impact_LX49Plus/Nektar_Impact_LX49Plus.js 125 | 126 | 1. Connect your MIDI hardware controller. 127 | 128 | 2. Open script console. 129 | 130 | 131 | 132 | > The **Script Console** appears like this: 133 | 134 | 135 | 136 | > After modifying the script file press the 'Reload Scripts' button. 137 | -------------------------------------------------------------------------------- /_docimg/overview_big.svg: -------------------------------------------------------------------------------- 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |

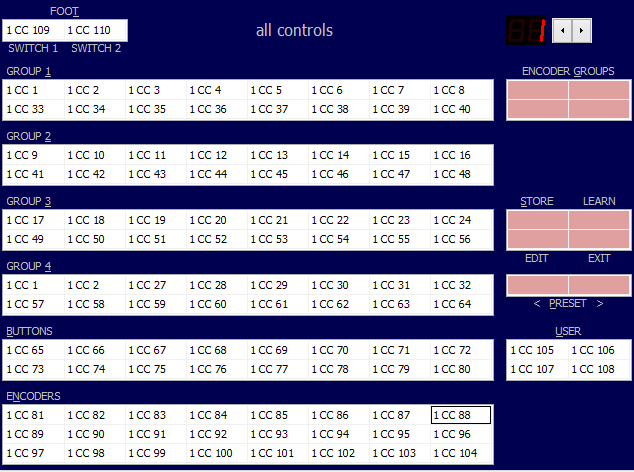

11 |
12 |
13 | 14 | Cubase / Nuendo 15 | 16 |
17 |

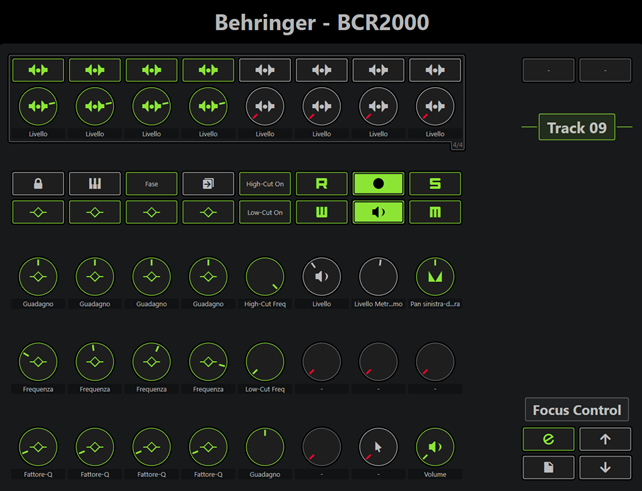

18 |
19 | 20 | 21 | Host 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 |
30 |
31 |
32 | 33 | 34 | Host MIDI I/O 35 | 36 | 37 |
38 |
39 |
40 | 41 | 42 | Host MIDI I/O 43 | 44 | 45 | 46 | 47 | 48 | 49 | 50 |
51 |
52 |
53 | 54 | 55 | 56 | MIDI Remote Script 57 | 58 |
59 | 60 | Written in Javascript (ES5) 61 | 62 | 63 |
64 | 65 |
66 |
67 |
68 | 69 | 70 | MIDI Remote Script... 71 | 72 | 73 | 74 | 75 | 76 | 77 | 78 |

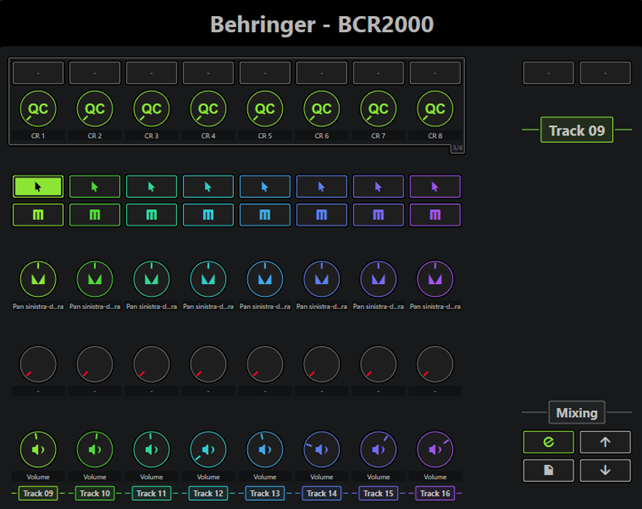

79 |
80 |
81 | 82 | 83 | 84 | 85 | 86 | Host Functions 87 | 88 |
89 | 90 | 91 | Quick Controls,
92 | Selected Track,
93 | MixConsole,
94 | Key Commands,
95 | ... 96 | 97 |
98 | 99 | 100 | 101 |
102 |
103 |
104 | 105 | 106 | Host Functions... 107 | 108 | 109 | 110 | 111 | 112 | 113 | 114 | 115 | 116 | 117 | 118 | 119 | 120 | 121 | Viewer does not support full SVG 1.1 122 | 123 | 124 | 125 | 126 | -------------------------------------------------------------------------------- /alesis/vi49/alesis_vi49.js: -------------------------------------------------------------------------------- 1 | //----------------------------------------------------------------------------- 2 | // 1. DRIVER SETUP - create driver object, midi ports and detection information 3 | //----------------------------------------------------------------------------- 4 | 5 | // get the api's entry point 6 | var midiremote_api = require('midiremote_api_v1') 7 | 8 | // create the device driver main object 9 | var deviceDriver = midiremote_api.makeDeviceDriver('Alesis', 'VI49', 'MH') 10 | 11 | // create objects representing the hardware's MIDI ports 12 | var midiInput = deviceDriver.mPorts.makeMidiInput() 13 | var midiOutput = deviceDriver.mPorts.makeMidiOutput() 14 | 15 | // define all possible namings the devices MIDI ports could have 16 | // NOTE: Windows and MacOS handle port naming differently 17 | deviceDriver.makeDetectionUnit().detectPortPair(midiInput, midiOutput) 18 | .expectInputNameEquals('VI49') 19 | .expectOutputNameEquals('VI49') 20 | 21 | //----------------------------------------------------------------------------- 22 | // 2. SURFACE LAYOUT - create control elements and midi bindings 23 | //----------------------------------------------------------------------------- 24 | var surface = deviceDriver.mSurface 25 | 26 | var keyboard = {} 27 | keyboard.knobs = {} 28 | keyboard.knobs.num = 12 29 | keyboard.knobs.channel = 0 30 | keyboard.buttons = {} 31 | keyboard.buttons.rows = 3 32 | keyboard.buttons.channel = 1 33 | keyboard.buttons.cc = [ 34 | 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 35 | 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 36 | 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 37 | ] 38 | keyboard.pads = {} 39 | keyboard.pads.num = 16 40 | keyboard.pads.channel = 1 41 | keyboard.pads.note = [ 42 | 48, 49, 50, 51, 43 | 44, 45, 46, 47, 44 | 40, 41, 42, 43, 45 | 36, 37, 38, 39, 46 | ] 47 | 48 | 49 | 50 | function makeKnobs(x, y, w, h, num, channel) { 51 | var knobs = [] 52 | for (var i = 0; i < num; i++) { 53 | var knob = surface.makeKnob(i * w + x, y, w, h) 54 | knob.mSurfaceValue.mMidiBinding.setInputPort(midiInput).setOutputPort(midiOutput).bindToControlChange(channel, i + 20) 55 | knobs[i] = knob 56 | } 57 | return knobs 58 | } 59 | 60 | function makeButtons(x, y, w, h, channel) { 61 | var buttons = [] 62 | for (var row = 0; row < keyboard.buttons.rows; row++) { 63 | for (var i = 0; i < keyboard.knobs.num; i++) { 64 | var button = surface.makeButton(i * w + x, row * h + y, w, h) 65 | button.mSurfaceValue.mMidiBinding.setInputPort(midiInput).setOutputPort(midiOutput).bindToControlChange(channel, keyboard.buttons.cc[row * 12 + i]) 66 | buttons.push(button) 67 | } 68 | } 69 | return buttons 70 | } 71 | 72 | function makePads(x, y, w, h, channel) { 73 | var pads = [] 74 | for (var row = 0; row < 4; row++) { 75 | for (var i = 0; i < 4; i++) { 76 | var pad = surface.makeTriggerPad(i * w + x, row * h + y, w, h) 77 | pad.mSurfaceValue.mMidiBinding.setInputPort(midiInput).setOutputPort(midiOutput).bindToNote(channel, keyboard.pads.note[row * 4 + i]) 78 | pads.push(pad) 79 | } 80 | } 81 | return pads 82 | } 83 | 84 | function makeTransport(x, y) { 85 | var transport = {} 86 | function mkButton(x, y, w, h, cc) { 87 | var button = {} 88 | button = surface.makeButton(x, y, w, h) 89 | button.mSurfaceValue.mMidiBinding.setInputPort(midiInput).setOutputPort(midiOutput).bindToControlChange(0, cc) 90 | return button 91 | } 92 | transport.rewind = mkButton(x, y, 1, 0.7, 116) 93 | transport.forward = mkButton(x + 1, y, 1, 0.7, 117) 94 | transport.stop = mkButton(x + 2, y, 1, 0.7, 118) 95 | transport.play = mkButton(x + 3, y, 1, 0.7, 119) 96 | transport.cycle = mkButton(x + 4, y, 1, 0.7, 115) 97 | transport.record = mkButton(x + 5, y, 1, 0.7, 114) 98 | return transport 99 | } 100 | 101 | function makeSurfaceElements(){ 102 | var surfaceElements = {} 103 | surfaceElements.knobs = makeKnobs(11, 0, 1.2, 2, keyboard.knobs.num, keyboard.knobs.channel) 104 | surfaceElements.buttons = makeButtons(11, 1.5, 1.2, 0.7, keyboard.buttons.channel) 105 | surfaceElements.pads = makePads(0, 4, 1, 1, keyboard.pads.channel) 106 | surfaceElements.transport = makeTransport(4, 2.5) 107 | surfaceElements.pb = surface.makeBlindPanel(0, 0, 0.75, 2) 108 | surfaceElements.mw = surface.makeBlindPanel(1, 0, 0.75, 2) 109 | surfaceElements.piano = surface.makePianoKeys(4, 4, 24, 4, 0, 48) 110 | return surfaceElements 111 | } 112 | 113 | var surfaceElements = makeSurfaceElements() 114 | //----------------------------------------------------------------------------- 115 | // 3. HOST MAPPING - create mapping pages and host bindings 116 | //----------------------------------------------------------------------------- 117 | 118 | var page = deviceDriver.mMapping.makePage('Default') 119 | //Knobs 120 | var knobs = surfaceElements.knobs 121 | for (var i = 0; i < 8; i++) { 122 | var knobSurfaceValue = knobs[i].mSurfaceValue 123 | page.makeValueBinding(knobSurfaceValue, page.mHostAccess.mFocusedQuickControls.getByIndex(i)).setValueTakeOverModePickup() 124 | } 125 | page.makeValueBinding(knobs[8].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mValue.mVolume).setValueTakeOverModePickup() 126 | page.makeValueBinding(knobs[9].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mValue.mPan).setValueTakeOverModePickup() 127 | page.makeValueBinding(knobs[10].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mSends.getByIndex(0).mLevel).setValueTakeOverModePickup() 128 | page.makeValueBinding(knobs[11].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mSends.getByIndex(1).mLevel).setValueTakeOverModePickup() 129 | 130 | //Transport 131 | var transport = surfaceElements.transport 132 | page.makeValueBinding(transport.rewind.mSurfaceValue, page.mHostAccess.mTransport.mValue.mRewind) 133 | page.makeValueBinding(transport.forward.mSurfaceValue, page.mHostAccess.mTransport.mValue.mForward) 134 | page.makeValueBinding(transport.stop.mSurfaceValue, page.mHostAccess.mTransport.mValue.mStop).setTypeToggle() 135 | page.makeValueBinding(transport.play.mSurfaceValue, page.mHostAccess.mTransport.mValue.mStart).setTypeToggle() 136 | page.makeValueBinding(transport.cycle.mSurfaceValue, page.mHostAccess.mTransport.mValue.mCycleActive).setTypeToggle() 137 | page.makeValueBinding(transport.record.mSurfaceValue, page.mHostAccess.mTransport.mValue.mRecord).setTypeToggle() 138 | 139 | 140 | //Pads 141 | var pads = surfaceElements.pads 142 | page.makeCommandBinding(pads[0].mSurfaceValue, 'Mixer', 'Bypass: Inserts') 143 | page.makeCommandBinding(pads[1].mSurfaceValue, 'Mixer', 'Bypass: EQs') 144 | page.makeCommandBinding(pads[2].mSurfaceValue, 'Mixer', 'Bypass: Channel Strip') 145 | page.makeCommandBinding(pads[3].mSurfaceValue, 'Mixer', 'Bypass: Sends') 146 | 147 | page.makeCommandBinding(pads[4].mSurfaceValue, 'Devices', 'Mixer') 148 | page.makeCommandBinding(pads[5].mSurfaceValue, 'Editors', 'Open/Close Editor') 149 | page.makeActionBinding(pads[6].mSurfaceValue, page.mHostAccess.mTrackSelection.mAction.mPrevTrack) 150 | page.makeActionBinding(pads[7].mSurfaceValue, page.mHostAccess.mTrackSelection.mAction.mNextTrack) 151 | 152 | page.makeValueBinding(pads[8].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mValue.mMute).setTypeToggle() 153 | page.makeValueBinding(pads[9].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mValue.mSolo).setTypeToggle() 154 | page.makeValueBinding(pads[10].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mValue.mAutomationRead).setTypeToggle() 155 | page.makeValueBinding(pads[11].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mValue.mAutomationWrite).setTypeToggle() 156 | 157 | page.makeValueBinding(pads[12].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mValue.mRecordEnable).setTypeToggle() 158 | page.makeValueBinding(pads[13].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mValue.mMonitorEnable).setTypeToggle() 159 | page.makeValueBinding(pads[14].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mValue.mEditorOpen).setTypeToggle() 160 | page.makeValueBinding(pads[15].mSurfaceValue, page.mHostAccess.mTrackSelection.mMixerChannel.mValue.mInstrumentOpen).setTypeToggle() 161 | 162 | 163 | //Switches 164 | var buttons = surfaceElements.buttons 165 | page.makeCommandBinding(buttons[0].mSurfaceValue, 'Transport', 'To Marker 1') 166 | page.makeCommandBinding(buttons[1].mSurfaceValue, 'Transport', 'To Marker 2') 167 | page.makeCommandBinding(buttons[2].mSurfaceValue, 'Transport', 'To Marker 3') 168 | page.makeCommandBinding(buttons[3].mSurfaceValue, 'Transport', 'To Marker 4') 169 | page.makeCommandBinding(buttons[4].mSurfaceValue, 'Transport', 'To Marker 5') 170 | page.makeCommandBinding(buttons[5].mSurfaceValue, 'Transport', 'To Marker 6') 171 | page.makeCommandBinding(buttons[6].mSurfaceValue, 'Transport', 'To Marker 7') 172 | page.makeCommandBinding(buttons[7].mSurfaceValue, 'Transport', 'To Marker 8') 173 | page.makeCommandBinding(buttons[8].mSurfaceValue, 'Transport', 'To Marker 9') 174 | -------------------------------------------------------------------------------- /behringer/bcr2000/behringer_bcr2000.js: -------------------------------------------------------------------------------- 1 | // Behringer BCR2000 v 1.6 by Giampaolo Gesuale 2 | 3 | //----------------------------------------------------------------------------- 4 | // 1. DRIVER SETUP - create driver object, midi ports and detection information 5 | //----------------------------------------------------------------------------- 6 | 7 | var midiremote_api = require('midiremote_api_v1') 8 | var deviceDriver = midiremote_api.makeDeviceDriver('Behringer', 'BCR2000', 'Giampaolo Gesuale') 9 | 10 | var midiInput = deviceDriver.mPorts.makeMidiInput() 11 | var midiOutput = deviceDriver.mPorts.makeMidiOutput() 12 | 13 | deviceDriver.makeDetectionUnit().detectPortPair(midiInput, midiOutput) 14 | .expectInputNameEquals('BCR2000') 15 | .expectOutputNameEquals('BCR2000') 16 | 17 | //user guide 18 | //deviceDriver.setUserGuide ('BCR2000_midi_remote.pdf') 19 | 20 | //submit bcr preset: to be tested 21 | //midiOutput.sendSysexFile(activeDevice, 'preset.bcr', 5) 22 | 23 | //----------------------------------------------------------------------------- 24 | // 2. SURFACE LAYOUT - create control elements and midi bindings 25 | //----------------------------------------------------------------------------- 26 | 27 | var surface= deviceDriver.mSurface 28 | var selTrackName = surface.makeLabelField(18,2,4,1) 29 | var pagename = surface.makeLabelField(18,12,4,0.9) 30 | 31 | var trackNames = [] 32 | for (var i = 0; i < 8; ++i){ 33 | var trackName = surface.makeLabelField(i*2,15,2,0.6) 34 | trackNames.push(trackName) 35 | } 36 | 37 | 38 | //layer zone 39 | var encoderGroups = surface.makeControlLayerZone('Encoder Groups') 40 | var encoderGroup1 = encoderGroups.makeControlLayer('Group 1') 41 | var encoderGroup2 = encoderGroups.makeControlLayer('Group 2') 42 | var encoderGroup3 = encoderGroups.makeControlLayer('Group 3') 43 | var encoderGroup4 = encoderGroups.makeControlLayer('Group 4') 44 | 45 | var knobs =[] 46 | var buttons = [] 47 | 48 | var inarow = 8 49 | var nEncoders = 32 50 | var gruppo = encoderGroup1 51 | 52 | //encoders 53 | for(var r = 0; r < nEncoders/inarow; ++r) { 54 | switch (r){ 55 | case 0: gruppo = encoderGroup1 56 | break 57 | case 1: gruppo = encoderGroup2 58 | break 59 | case 2: gruppo = encoderGroup3 60 | break 61 | case 3: gruppo = encoderGroup4 62 | } 63 | for (var c=0; c lastNavKnobValue) { 261 | console.log("UP 2: " + newValue + ", scene: " + knobScene); 262 | navKnobButtons[knobScene][1].mSurfaceValue.setProcessValue(context, 127) 263 | } else { 264 | console.log("DOWN 3: " + newValue + ", scene: " + knobScene); 265 | navKnobButtons[knobScene][0].mSurfaceValue.setProcessValue(context, 127) 266 | } 267 | lastNavKnobValue = newValue; 268 | } 269 | 270 | knob.mSurfaceValue.mMidiBinding 271 | .setInputPort(midiInput) 272 | .setOutputPort(midiOutput) 273 | .bindToControlChange(0, 49); 274 | 275 | hostMapper.mapNavigationKnobButtons(navKnobButtons); 276 | } 277 | 278 | this.initFaders = function() { 279 | var selectButtonsMidi = [ 280 | {channel: 1, code: 64}, 281 | {channel: 1, code: 66}, 282 | {channel: 1, code: 67}, 283 | {channel: 1, code: 65}, 284 | {channel: 1, code: 68}, 285 | {channel: 1, code: 80}, 286 | {channel: 1, code: 81}, 287 | {channel: 1, code: 123}, 288 | 289 | ]; 290 | 291 | var fadersMidi = [1, 11, 7, 10, 5, 84, 2, 16]; 292 | var faders = []; 293 | 294 | for(var i = 0; i < numBankItems; i++) { 295 | 296 | var selectButton = deviceDriver.mSurface.makeButton(i * 2 + 2, 0, 2, 1) 297 | selectButton.mSurfaceValue.mMidiBinding 298 | .setInputPort(midiInput) 299 | .setOutputPort(midiOutput) 300 | .bindToControlChange (selectButtonsMidi[i].channel, selectButtonsMidi[i].code); 301 | hostMapper.mapSelectButton(selectButton, i); 302 | 303 | var muteButton = deviceDriver.mSurface.makeButton(i * 2 + 2, 1, 1, 1); 304 | muteButton.mSurfaceValue.mMidiBinding 305 | .setInputPort(midiInput) 306 | .setOutputPort(midiOutput) 307 | .bindToControlChange(2, 23 + i); 308 | hostMapper.mapMuteButton(muteButton, i); 309 | 310 | var soloButton = deviceDriver.mSurface.makeButton(i * 2 + 3, 1, 1, 1); 311 | soloButton.mSurfaceValue.mMidiBinding 312 | .setInputPort(midiInput) 313 | .setOutputPort(midiOutput) 314 | .bindToControlChange(3, 23 + i); 315 | hostMapper.mapSoloButton(soloButton, i); 316 | 317 | var fader = deviceDriver.mSurface.makeFader(i * 2 + 0.5 + 2, 2, 1, 6); 318 | 319 | fader.mSurfaceValue.mMidiBinding 320 | .setInputPort(midiInput) //received from device 321 | // causes fader 3 to overtake fader 1 322 | // .setOutputPort(midiOutput) //sent to device, 323 | .bindToControlChange(0, fadersMidi[i]); 324 | 325 | faders.push(fader); 326 | } 327 | hostMapper.mapFaders(faders); 328 | } 329 | return this; 330 | } 331 | 332 | // --- 333 | 334 | function HostMapper(device) { 335 | var pageDefault = device.driver.mMapping.makePage("Main Page"); 336 | var pageEq = device.driver.mMapping.makePage("Channel Page"); 337 | 338 | pageDefault.mOnActivate = function (context) { 339 | console.log('Default Page Activated'); 340 | } 341 | pageEq.mOnActivate = function (context) { 342 | console.log('Channel Page Activated'); 343 | } 344 | var mixerBankZone = pageDefault.mHostAccess.mMixConsole.makeMixerBankZone(); 345 | var selectedMixerChannel = pageEq.mHostAccess.mTrackSelection.mMixerChannel; 346 | 347 | var mainChannel = mixerBankZone.makeMixerBankChannel(); 348 | 349 | var channels = []; 350 | 351 | for (var i = 0 ; i < 8 ; i++) { 352 | channels.push(mixerBankZone.makeMixerBankChannel()); 353 | } 354 | this.pageDefault = pageDefault; 355 | this.pageEq = pageEq; 356 | 357 | this.mapPluginsButton = function(button) { 358 | pageDefault.makeActionBinding(button.mSurfaceValue, device.driver.mAction.mNextPage); 359 | pageEq.makeActionBinding(button.mSurfaceValue, device.driver.mAction.mPrevPage); 360 | } 361 | 362 | this.mapPanKnob = function(panKnob) { 363 | this.pageDefault.makeValueBinding (panKnob.mSurfaceValue, pageDefault.mHostAccess.mTrackSelection.mMixerChannel.mValue.mPan) ; 364 | } 365 | 366 | this.mapNavigationKnobButtons = function(navKnobButtons){ 367 | pageDefault.makeActionBinding(navKnobButtons[0][0].mSurfaceValue, pageDefault.mHostAccess.mTrackSelection.mAction.mPrevTrack); 368 | pageDefault.makeActionBinding(navKnobButtons[0][1].mSurfaceValue, pageDefault.mHostAccess.mTrackSelection.mAction.mNextTrack); 369 | 370 | pageDefault.makeCommandBinding(navKnobButtons[1][1].mSurfaceValue, 'Zoom', 'Zoom In'); 371 | pageDefault.makeCommandBinding(navKnobButtons[1][0].mSurfaceValue, 'Zoom', 'Zoom Out'); 372 | 373 | pageDefault.makeCommandBinding(navKnobButtons[2][1].mSurfaceValue, 'Transport', 'Nudge Cursor Right'); 374 | pageDefault.makeCommandBinding(navKnobButtons[2][0].mSurfaceValue, 'Transport', 'Nudge Cursor Left'); 375 | 376 | pageDefault.makeCommandBinding(navKnobButtons[3][1].mSurfaceValue, 'Navigate', 'Right'); 377 | pageDefault.makeCommandBinding(navKnobButtons[3][0].mSurfaceValue, 'Navigate', 'Left'); 378 | 379 | } 380 | 381 | this.mapFaders = function(faders) { 382 | for (var i = 0 ; i < faders.length ; i++) { 383 | this.mapFader(faders[i], i); 384 | } 385 | }; 386 | 387 | this.mapFader = function(fader, channelIndex) { 388 | this.pageDefault.makeValueBinding (fader.mSurfaceValue, channels[channelIndex].mValue.mVolume) ; 389 | 390 | // from host to device 391 | (function (channelNumber) { 392 | channels[channelNumber].mValue.mVolume.mOnProcessValueChange = function (a, b, newValue) { 393 | device.midiOutput.sendMidi(a, [176 + channelNumber, 7, parseInt(newValue * 127)]); 394 | } 395 | })(channelIndex); 396 | 397 | 398 | 399 | switch (channelIndex) { 400 | case 0: 401 | this.pageEq.makeValueBinding (fader.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand1.mGain); 402 | 403 | selectedMixerChannel.mChannelEQ.mBand1.mGain.mOnProcessValueChange = function (a, b, newValue) { 404 | device.midiOutput.sendMidi(a, [176 + channelIndex, 7, parseInt(newValue * 127)]); 405 | } 406 | break; 407 | case 1: 408 | this.pageEq.makeValueBinding (fader.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand2.mGain); 409 | 410 | selectedMixerChannel.mChannelEQ.mBand2.mGain.mOnProcessValueChange = function (a, b, newValue) { 411 | device.midiOutput.sendMidi(a, [176 + channelIndex, 7, parseInt(newValue * 127)]); 412 | } 413 | break; 414 | case 2: 415 | this.pageEq.makeValueBinding (fader.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand3.mGain); 416 | 417 | selectedMixerChannel.mChannelEQ.mBand3.mGain.mOnProcessValueChange = function (a, b, newValue) { 418 | device.midiOutput.sendMidi(a, [176 + channelIndex, 7, parseInt(newValue * 127)]); 419 | } 420 | break; 421 | case 3: 422 | this.pageEq.makeValueBinding (fader.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand4.mGain); 423 | 424 | selectedMixerChannel.mChannelEQ.mBand4.mGain.mOnProcessValueChange = function (a, b, newValue) { 425 | device.midiOutput.sendMidi(a, [176 + channelIndex, 7, parseInt(newValue * 127)]); 426 | } 427 | break; 428 | case 4: 429 | this.pageEq.makeValueBinding (fader.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand1.mFreq); 430 | 431 | selectedMixerChannel.mChannelEQ.mBand1.mFreq.mOnProcessValueChange = function (a, b, newValue) { 432 | device.midiOutput.sendMidi(a, [176 + channelIndex, 7, parseInt(newValue * 127)]); 433 | } 434 | break; 435 | case 5: 436 | this.pageEq.makeValueBinding (fader.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand2.mFreq); 437 | 438 | selectedMixerChannel.mChannelEQ.mBand2.mFreq.mOnProcessValueChange = function (a, b, newValue) { 439 | device.midiOutput.sendMidi(a, [176 + channelIndex, 7, parseInt(newValue * 127)]); 440 | } 441 | break; 442 | case 6: 443 | this.pageEq.makeValueBinding (fader.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand3.mFreq); 444 | 445 | selectedMixerChannel.mChannelEQ.mBand3.mFreq.mOnProcessValueChange = function (a, b, newValue) { 446 | device.midiOutput.sendMidi(a, [176 + channelIndex, 7, parseInt(newValue * 127)]); 447 | } 448 | break; 449 | case 7: 450 | this.pageEq.makeValueBinding (fader.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand4.mFreq); 451 | 452 | selectedMixerChannel.mChannelEQ.mBand4.mFreq.mOnProcessValueChange = function (a, b, newValue) { 453 | device.midiOutput.sendMidi(a, [176 + channelIndex, 7, parseInt(newValue * 127)]); 454 | } 455 | break; 456 | } 457 | }; 458 | 459 | this.mapSelectButton = function(button, channelIndex) { 460 | switch (channelIndex) { 461 | case 0: 462 | this.pageEq.makeValueBinding (button.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand1.mOn); 463 | break; 464 | case 1: 465 | this.pageEq.makeValueBinding (button.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand2.mOn); 466 | break; 467 | case 2: 468 | this.pageEq.makeValueBinding (button.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand3.mOn); 469 | break; 470 | case 3: 471 | this.pageEq.makeValueBinding (button.mSurfaceValue, selectedMixerChannel.mChannelEQ.mBand4.mOn); 472 | break; 473 | } 474 | this.pageDefault.makeValueBinding (button.mSurfaceValue, channels[channelIndex].mValue.mSelected); 475 | }; 476 | 477 | this.mapMuteButtons = function(buttons) { 478 | for(var i = 0 ; i < buttons.length ; i++) { 479 | this.mapMuteButton (buttons[i], i); 480 | } 481 | }; 482 | 483 | this.mapMuteButton = function(button, channelIndex) { 484 | this.pageDefault.makeValueBinding(button.mSurfaceValue, channels[channelIndex].mValue.mMute); 485 | }; 486 | 487 | this.mapSoloButtons = function(buttons) { 488 | for(var i = 0 ; i < buttons.length ; i++) { 489 | this.mapSoloButton (buttons[i], i); 490 | } 491 | }; 492 | 493 | this.mapSoloButton = function(button, channelIndex) { 494 | this.pageDefault.makeValueBinding(button.mSurfaceValue, channels[channelIndex].mValue.mSolo); 495 | }; 496 | 497 | this.getMainChannel = function() { 498 | return mainChannel; 499 | } 500 | 501 | return this; 502 | } -------------------------------------------------------------------------------- /_docimg/script_structure.svg: -------------------------------------------------------------------------------- 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
11 |
12 |
13 | 14 | 15 | 1. Driver Setup 16 | 17 | 18 |
19 |
20 |
21 | 22 | 23 | Driver Setup 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 |
32 |
33 |
34 | 35 | 36 | 2. Surface Layout 37 | 38 | 39 |
40 |
41 |
42 | 43 | 44 | Surface Layout 45 | 46 | 47 | 48 | 49 | 50 | 51 | 52 |
53 |
54 |
55 | 56 | 57 | 3. Host Mapping 58 | 59 | 60 |
61 |
62 |
63 | 64 | 65 | Host Mapping 66 | 67 | 68 | 69 | 70 | 71 | 72 | 73 |
74 |
75 |
76 | 77 | 78 | 79 | SurfaceElement 80 | 81 | 82 |
83 | 84 | Knob, Fader, Button, ... 85 | 86 | 87 |
88 |
